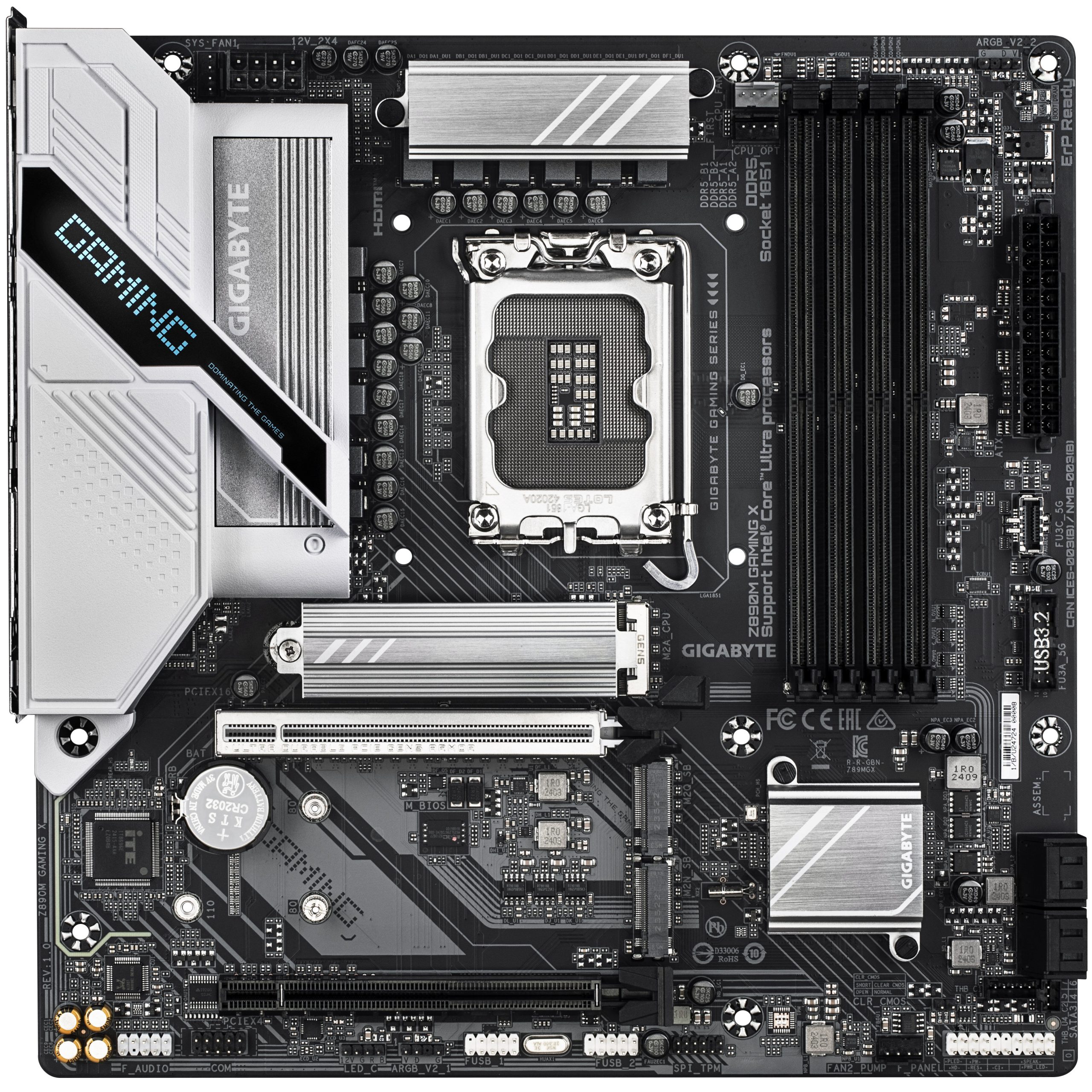

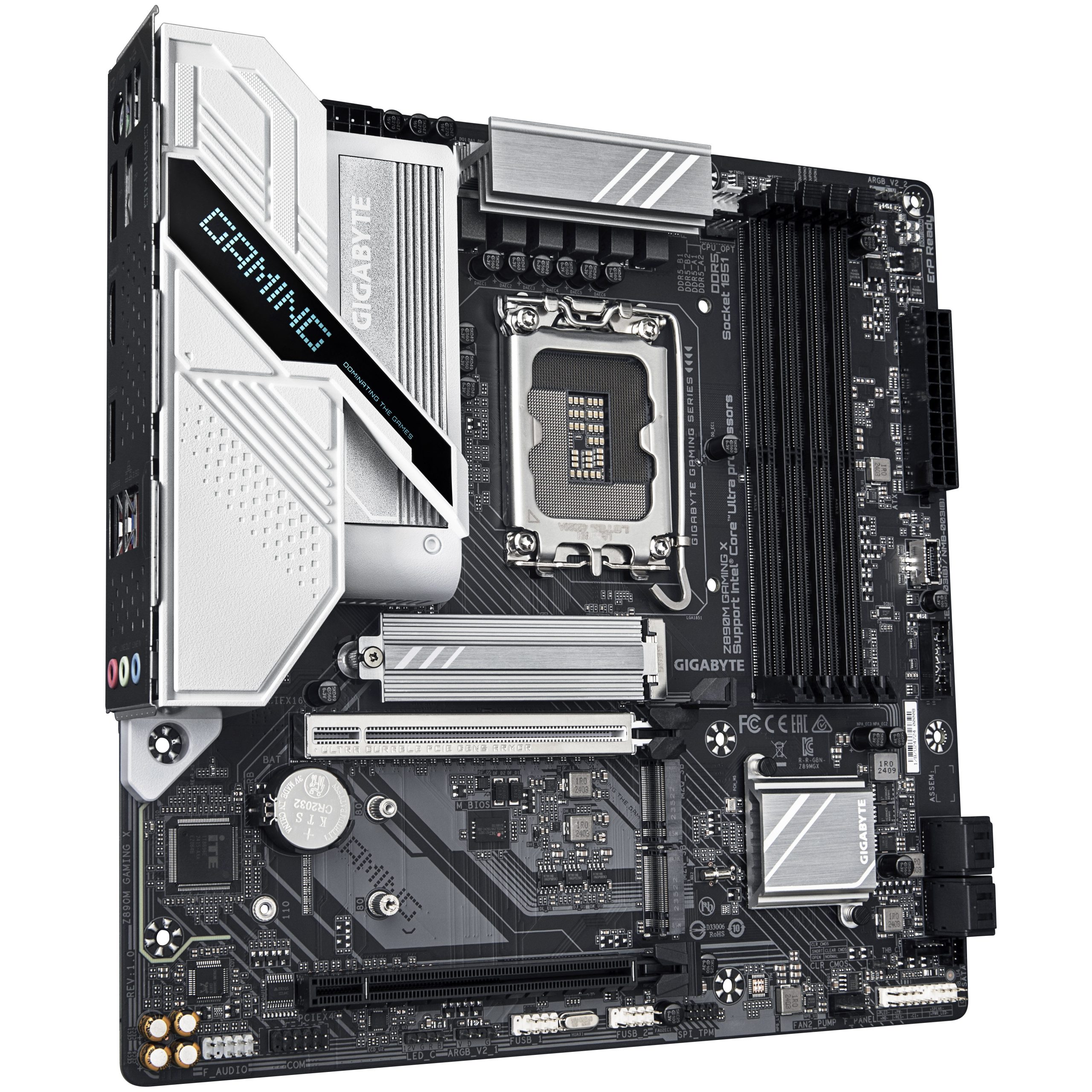

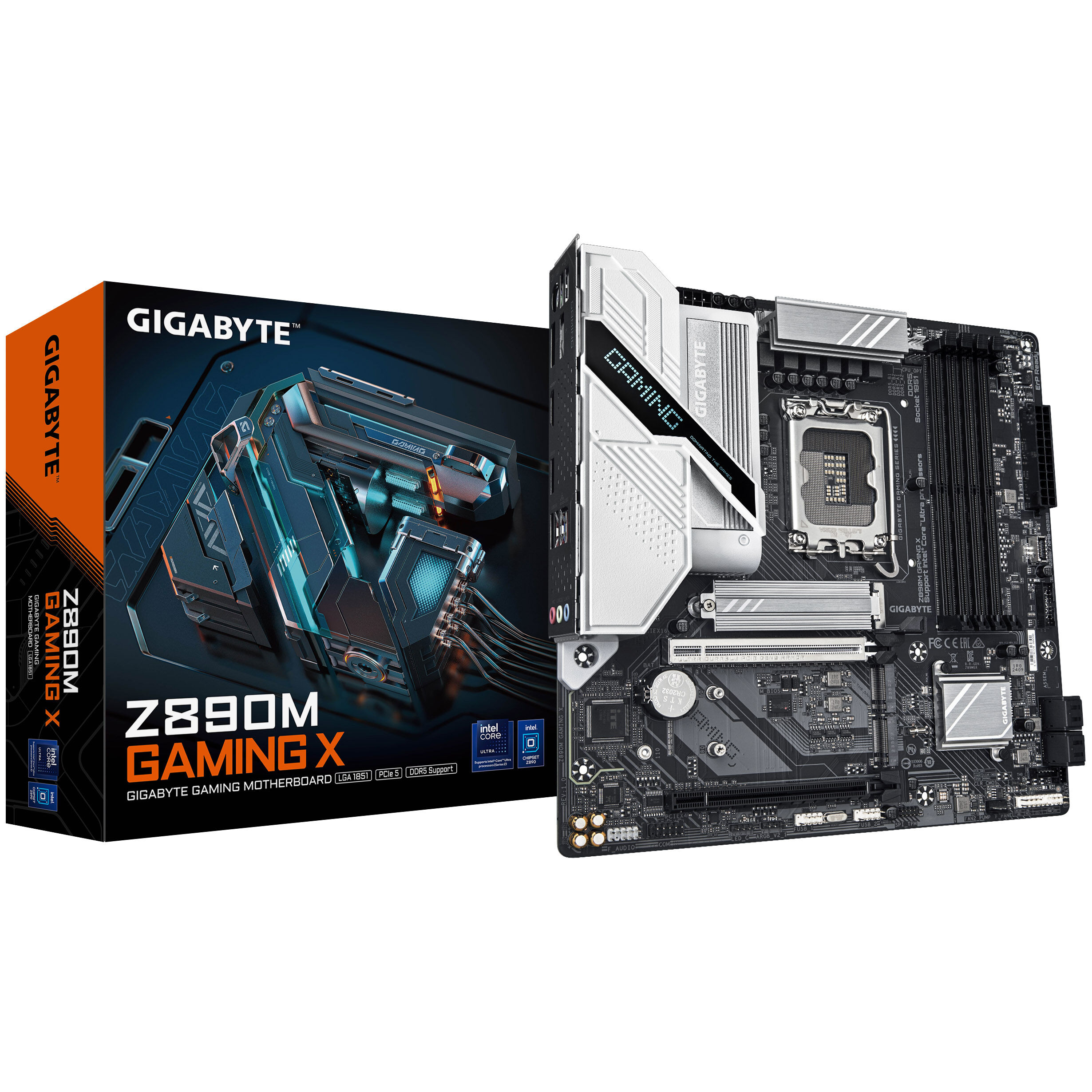

Gigabyte Z890M GAMING X motherboard, socket LGA 1851, Intel Z890, Micro ATX, DDR5

This motherboard is ideal for gamers.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8800 MHz (XMP 3.0 support)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 3x USB 3.0, 2x USB 2.0
– OC features: Q-Flash support, 8+1+2 phases
– Total of 4x 4-pin connectors for fans and pumps

GIGABYTE Z890M GAMING X: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890M GAMING X is an ATX motherboard with the The high-end Intel Z890 chipset and the LGA 1851 socket support second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890M GAMING X boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
Form Factor:
– Micro ATX (244 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 8800 MHz using XMP)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8)
– 1x PCIe 4.0 x16 (electrical x4)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4, CPU)
– 1x M.2 (PCIe 4.0 x4, chipset)
– 1x M.2 (PCIe 4.0 x4, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 1x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbit/s)
– 1 x Clear CMOS jumper
– Fan header:
– 1 x 4-pin CPU fan header
– 1 x 4-pin AIO pump header
– 2x case fans (4-pin)

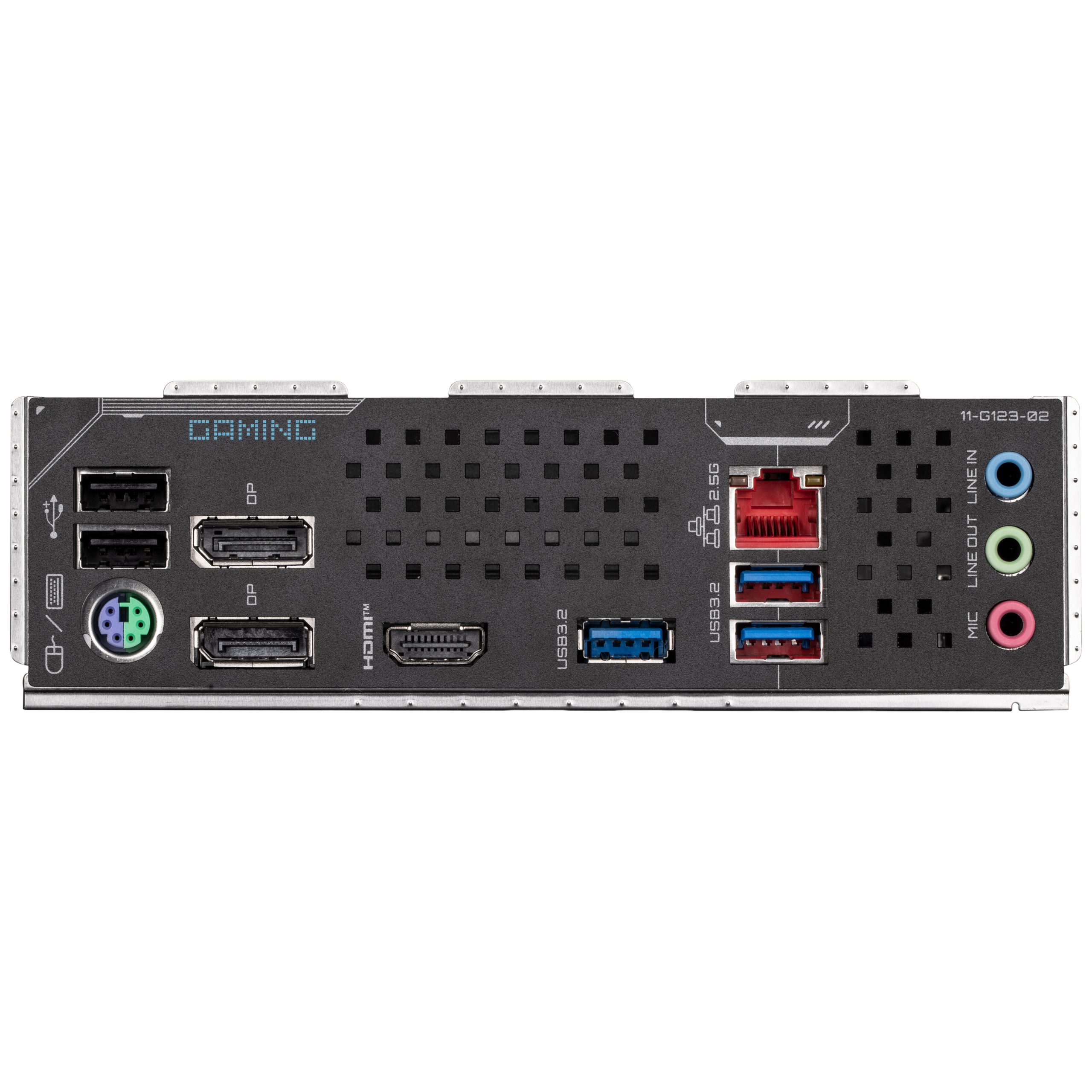

– External connections:
– 3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort
– 1xHDMI
– 1x 2.5 Gigabit LAN
– 3x 3.5 mm jack
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX12V
