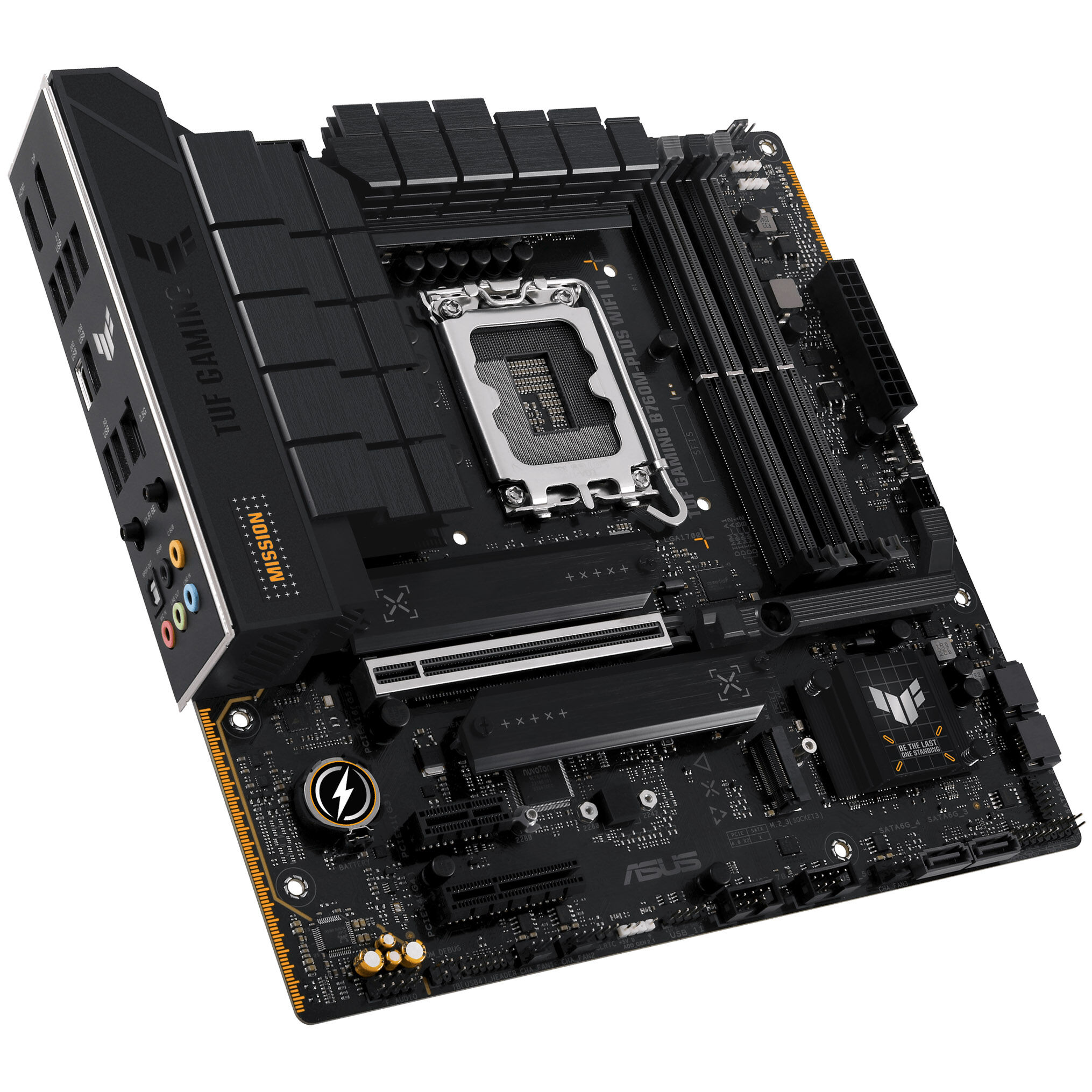

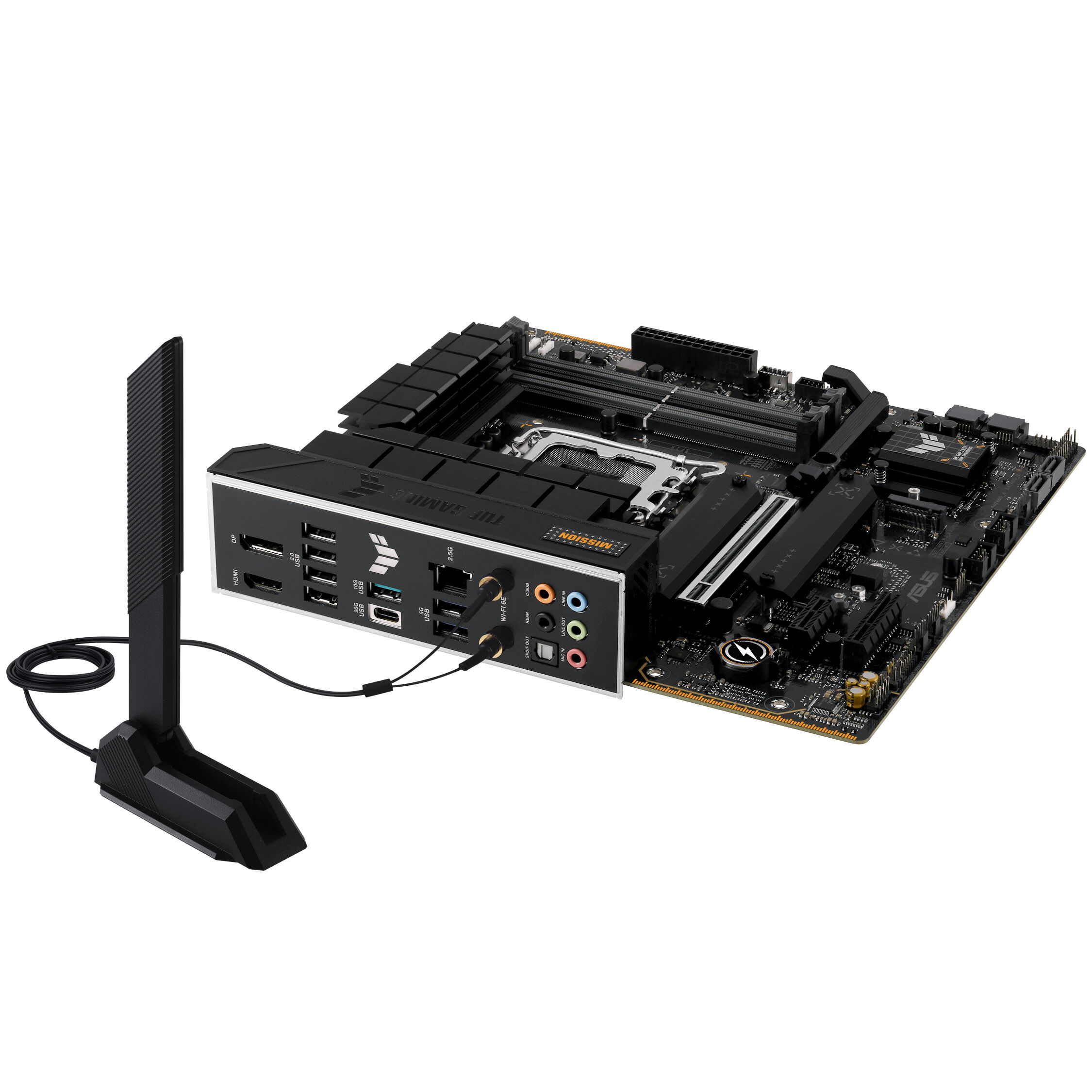

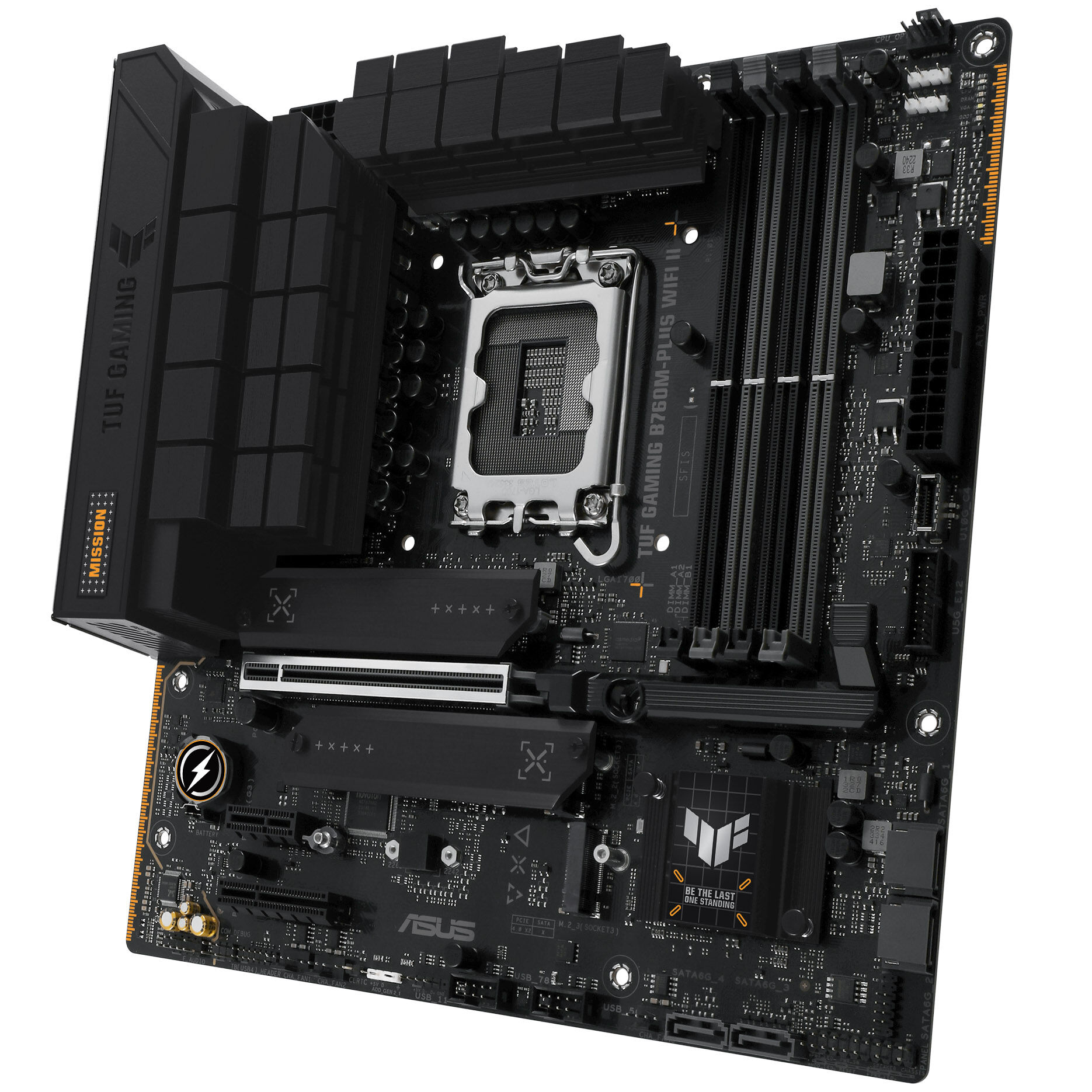

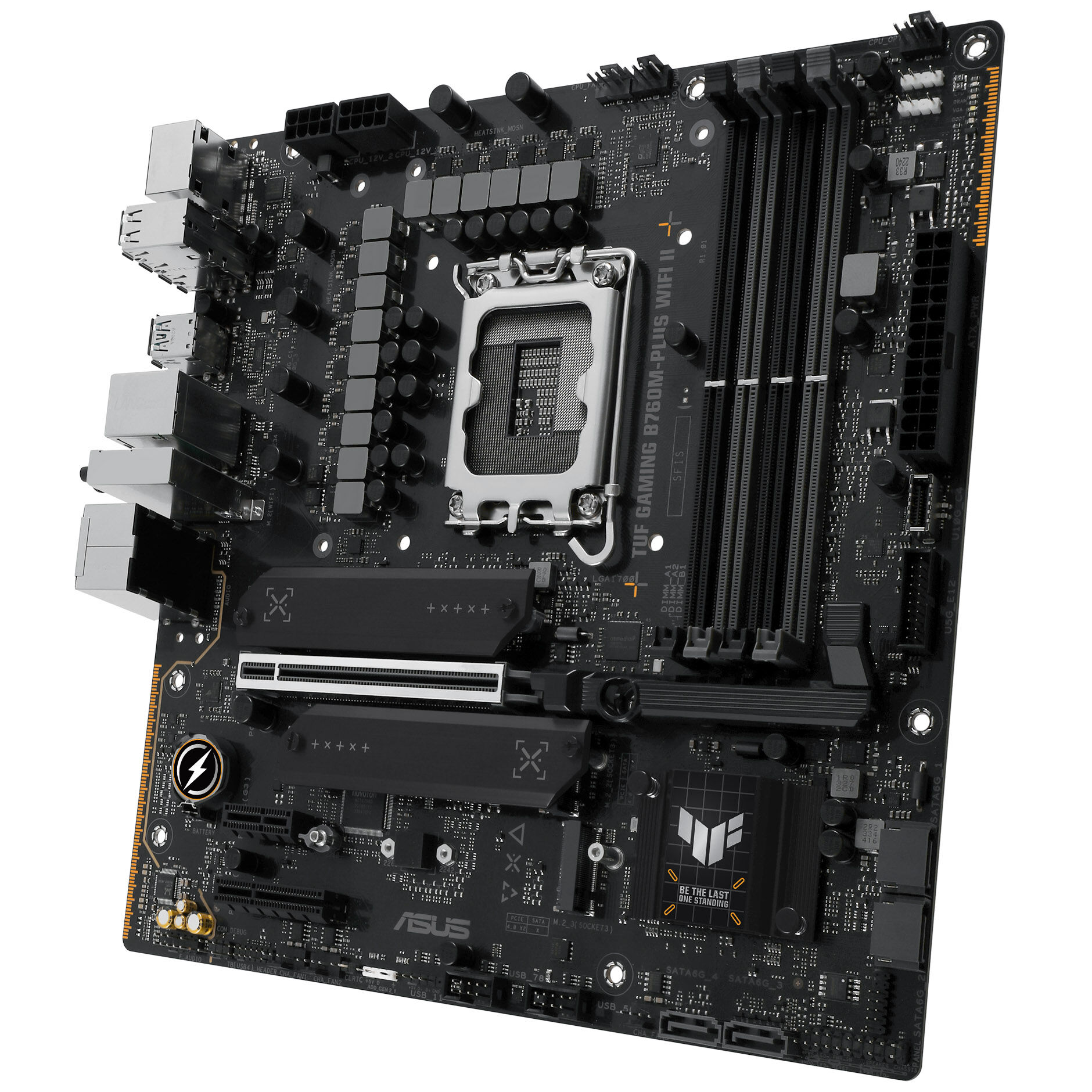

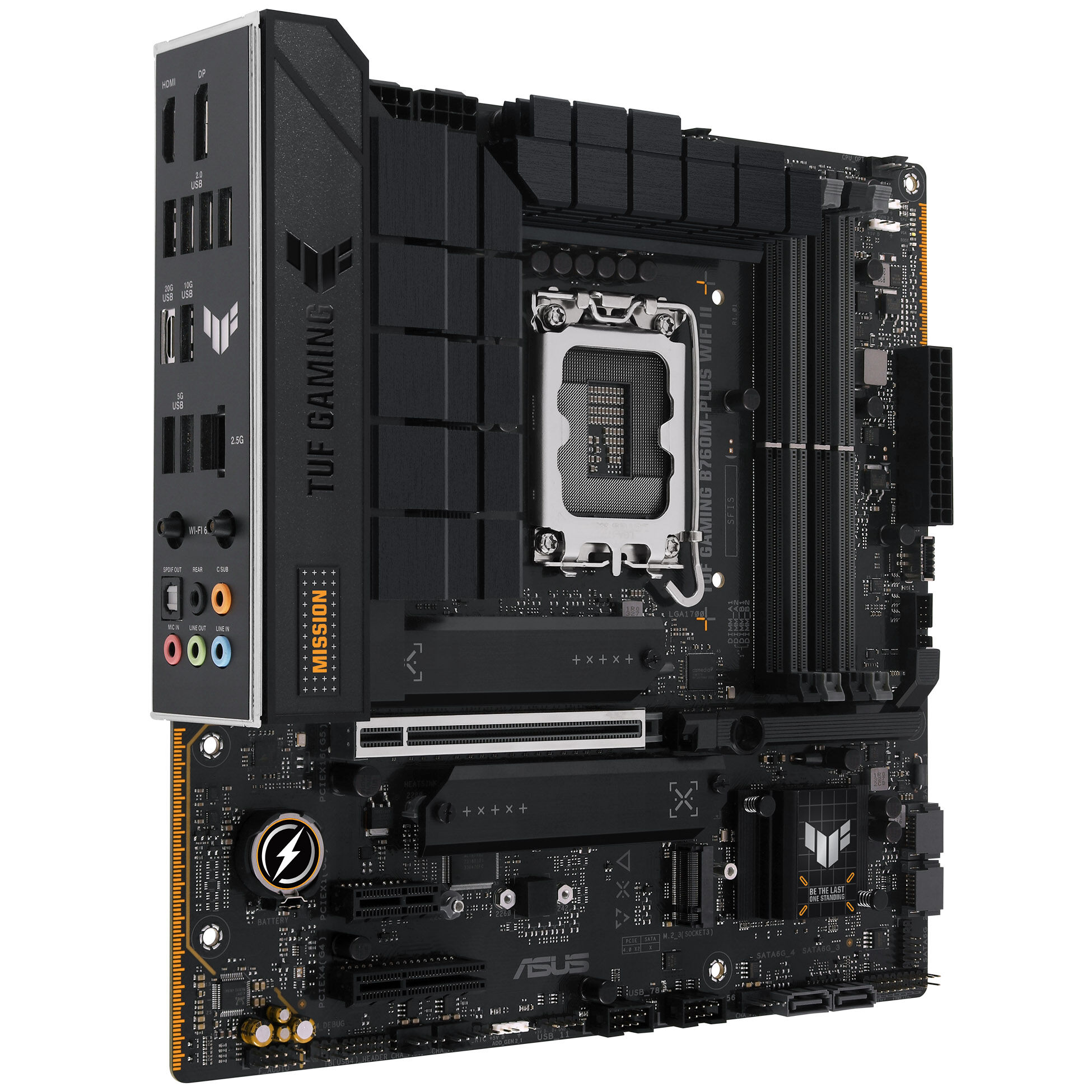

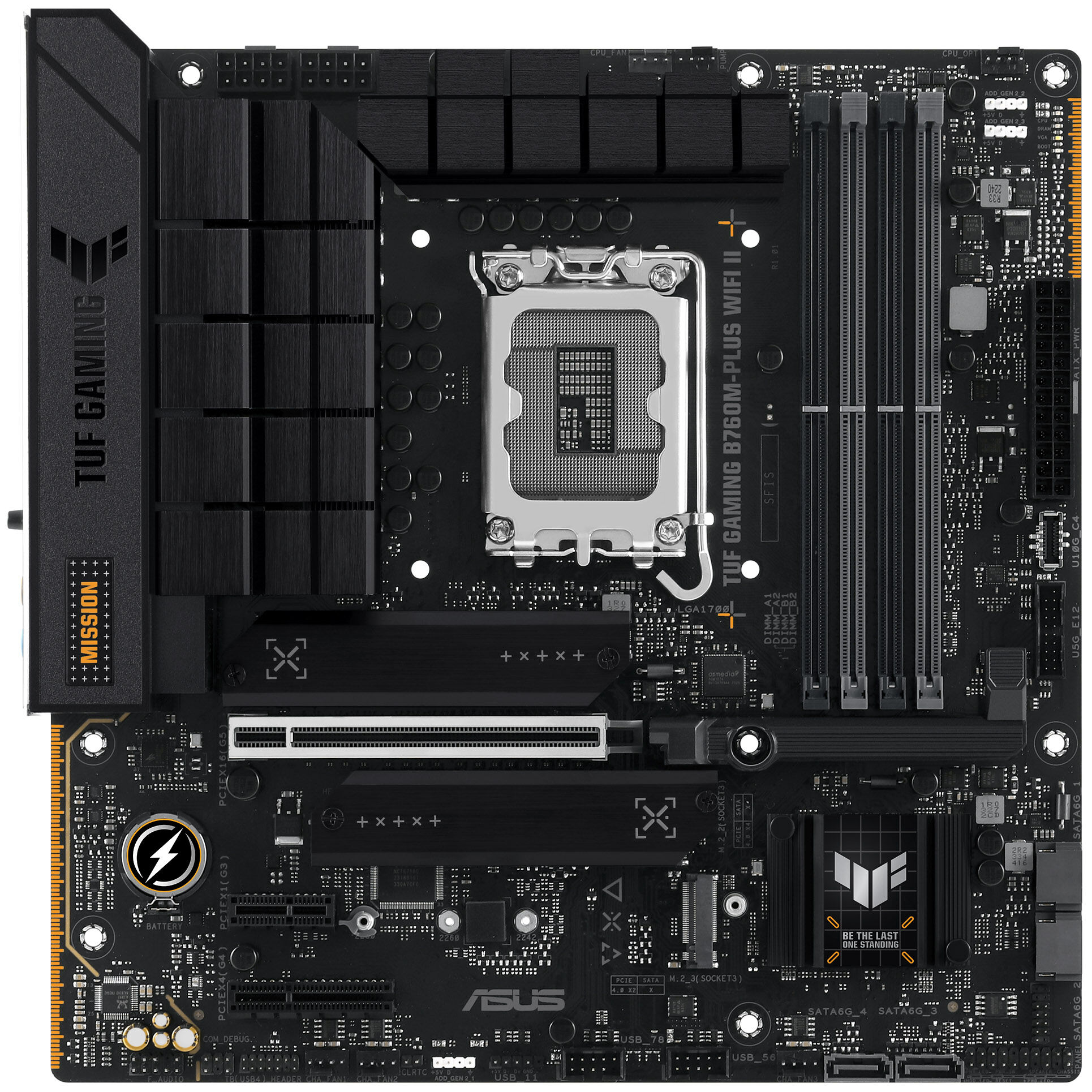

ASUS TUF Gaming B760M-Plus WIFI II, Intel B760 motherboard, Socket 1700, DDR5

– 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x4 (x4), and 1x PCIe 4.0 x1 (x1) slots
– DDR5 memory up to 5,200 MHz (7,800 MHz OC)
– 3x M.2 PCIe 4.0 and 4x SATA
– USB on the I/O panel: 1x USB-C 3.1, 1x USB-A 3.0, 3x USB-A 2.0
– 2.5 Gb LAN and Wi-Fi
– Supports 12th, 13th, and 14th Generation Intel Processors
– For Micro-ATX Cases and Intel Processors

The ASUS TUF Gaming B760M-Plus is specifically designed for 12th, 13th, and 14th Generation Intel Processors. In addition, the Micro-ATX format allows you to easily install the motherboard into a smaller, more compact tower.

Using the four RAM slots, you can expand the DDR5 memory by up to 192 GB, ensuring your PC can easily handle even demanding multitasking tasks. You can also overclock the memory to up to 7,800 MHz.

Numerous ports and support for M.2 SSDs
The motherboard offers plenty of ports for your peripherals and hardware, including a USB-C port capable of speeds of up to 20 Gbps. Of course, fast M.2 SSDs can also be installed on the motherboard, making long loading screens in games a thing of the past.

The motherboard also features a built-in Wi-Fi module, a 2.5 Gigabit LAN port, and supports Bluetooth 5.3.

Comprehensive cooling for your hardware
The extended heatsink in the motherboard ensures better heat dissipation and processors run at full speed. A heatsink on an M.2 slot also prevents SSD throttling. Additionally, you can control the fans using the integrated Fan Xpert 4 utility or directly via the ASUS UEFI BIOS. This provides you with extensive configuration options.

For the best possible processor performance, we recommend regularly updating your motherboard BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details
– Format: Micro-ATX (244 x 244 mm)
– Chipset: Intel B760
– Socket: Intel LGA1700
– RAM:
– 4x DDR5 (5200 MHz, up to 7800 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots:
– 1x PCIe 5.0 x16 (electrical x16)
– 1x PCIe 4.0 x4 (electrical x4)
– 1x PCIe 4.0 x1 (electrical x1)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (M-Key, PCIe 4.0 x4, 2242-2280, CPU)
– 1x M.2 (M-Key, PCIe 4.0 x4, 2242-2280, chipset)
– 1x M.2 (M-Key, PCIe 4.0) x2, 2242 – 2280, chipset)
– 1x USB-C 3.1 (3.1 Gen2, max. 10 Gbps)
– 1x USB 3.0 (1 header, USB 3.0 Gen1, max. 5 Gbps)
– 3x USB 2.0 (2 headers, max. 480 Mbps)
– 1x Thunderbolt 1x Chassis Intrusion Header
– 1x COM Debug Header
– RGB Header: 3x ARGB Headers (3-pin, 5 V)
– Fan Header:
– 2x CPU Fans (4-pin)
– 1x Pump (4-pin)
– 3x Chassis Fans (4-pin)

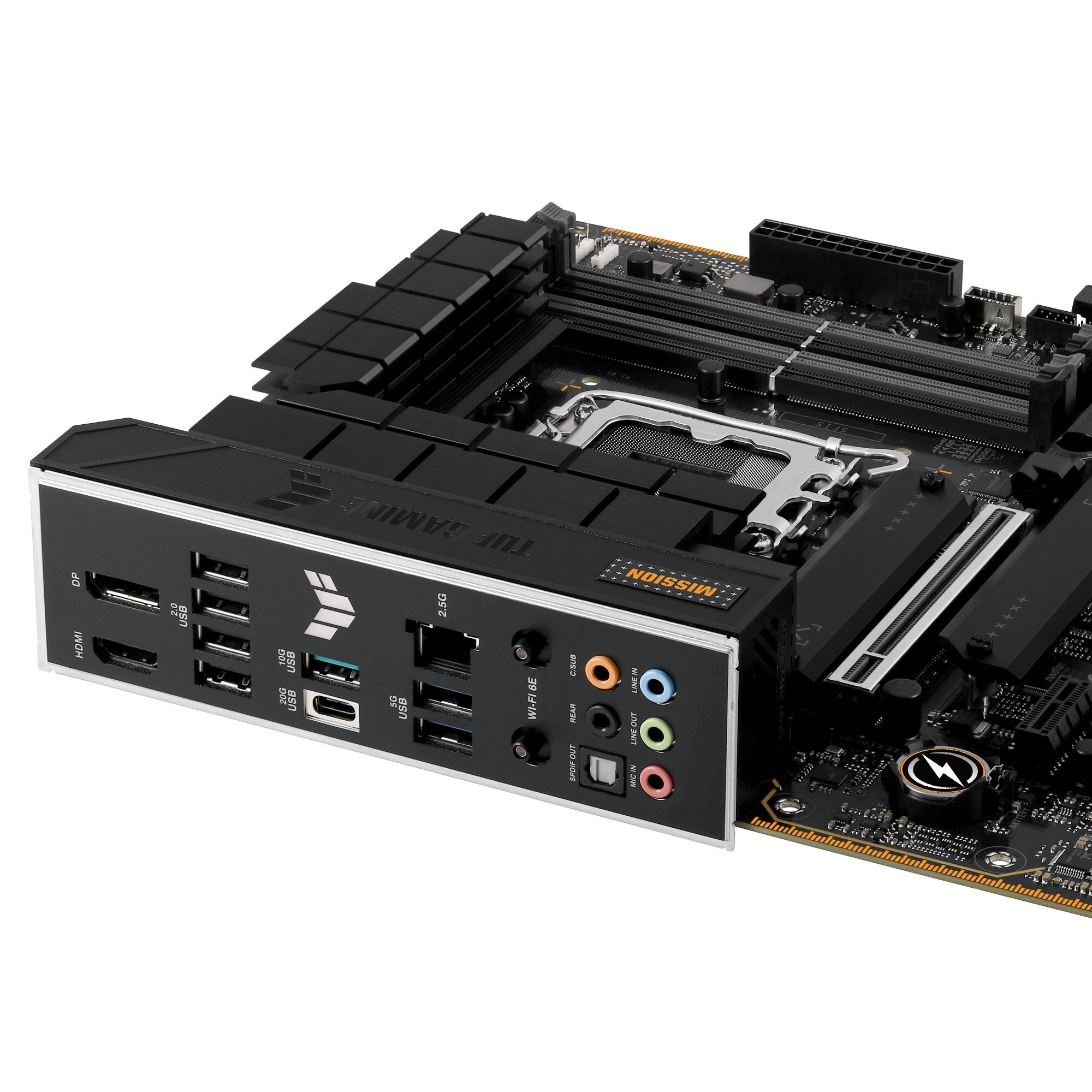

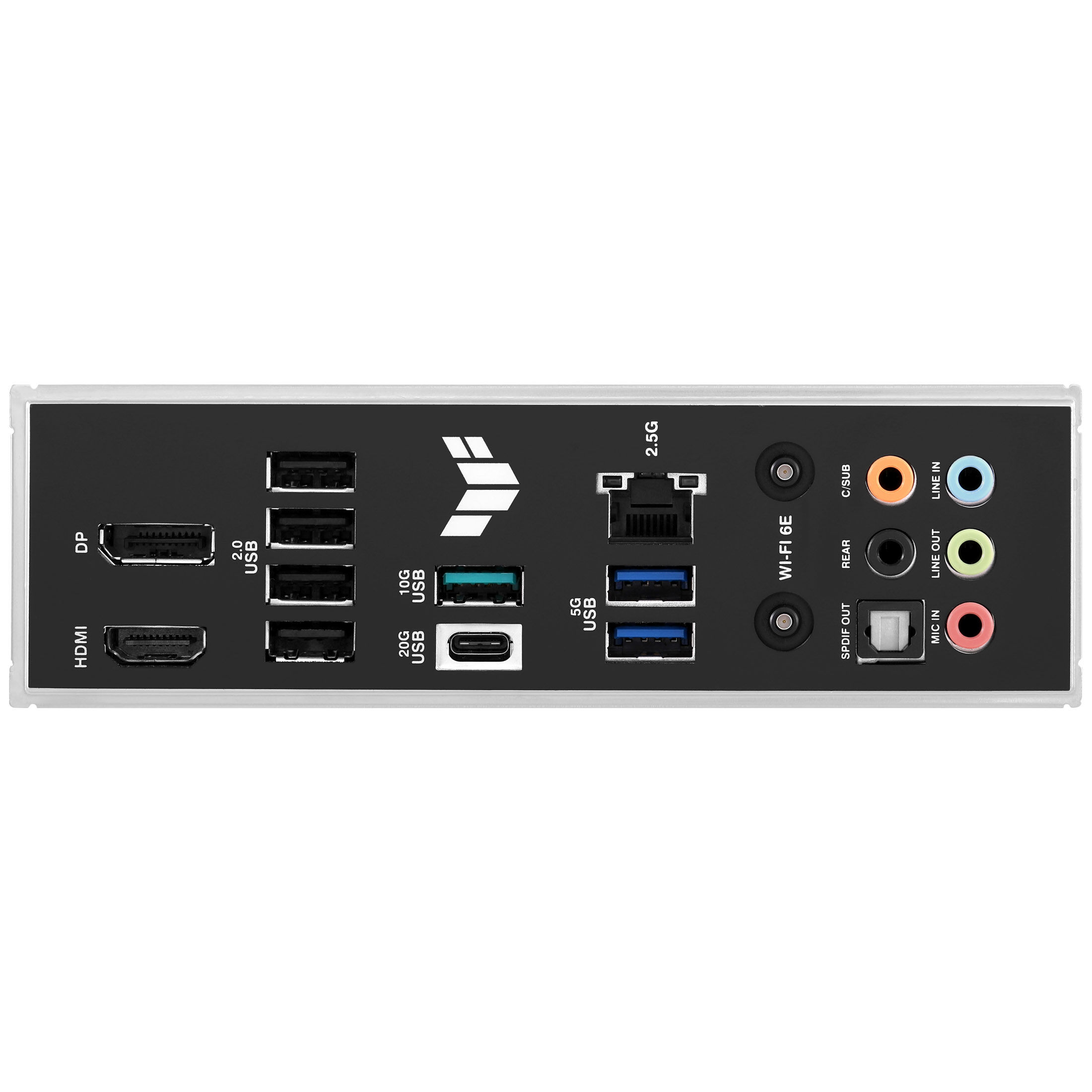

– External Connectors:
– 1x USB-C 3.2 (3.2, Gen2x2, max. 20 Gbps)
– 1x USB-A 3.1 (3.1 Gen2, max. 10 Gbit/s)
– 2x USB-A 3.1 (3.1 Gen1, max. 5 Gbit/s)
– 4x USB-A 2.0
– 1x HDMI 2.1
– 1x DisplayPort 1.4
– 1x 2.5 Gigabit LAN
– 2x WLAN antenna connection (WiFi 6E, Bluetooth 5.3)
– 5x 3.5 mm jack
– Power supply:
– 1x 24-pin ATX12V
– 2x 8-pin EPS12V
