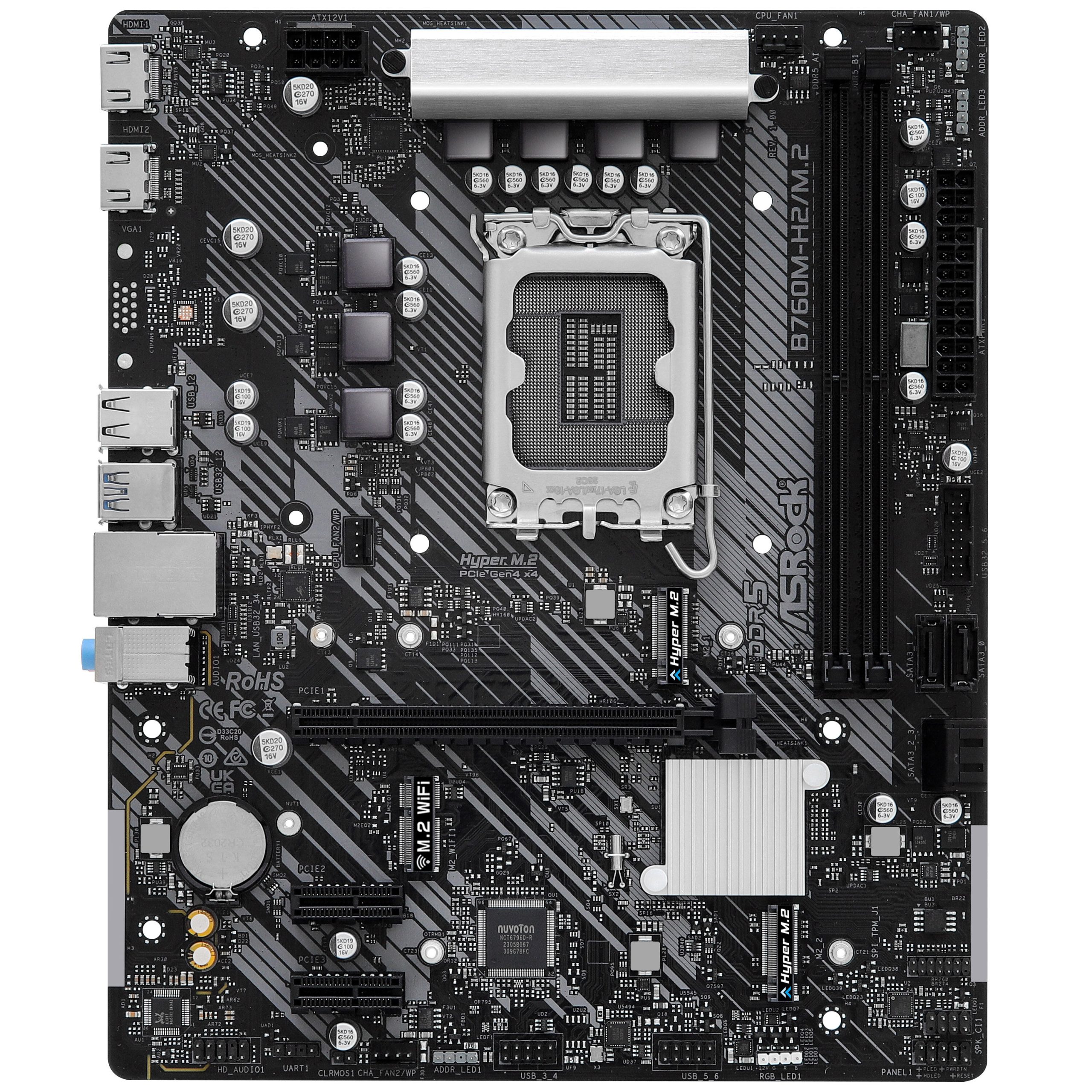

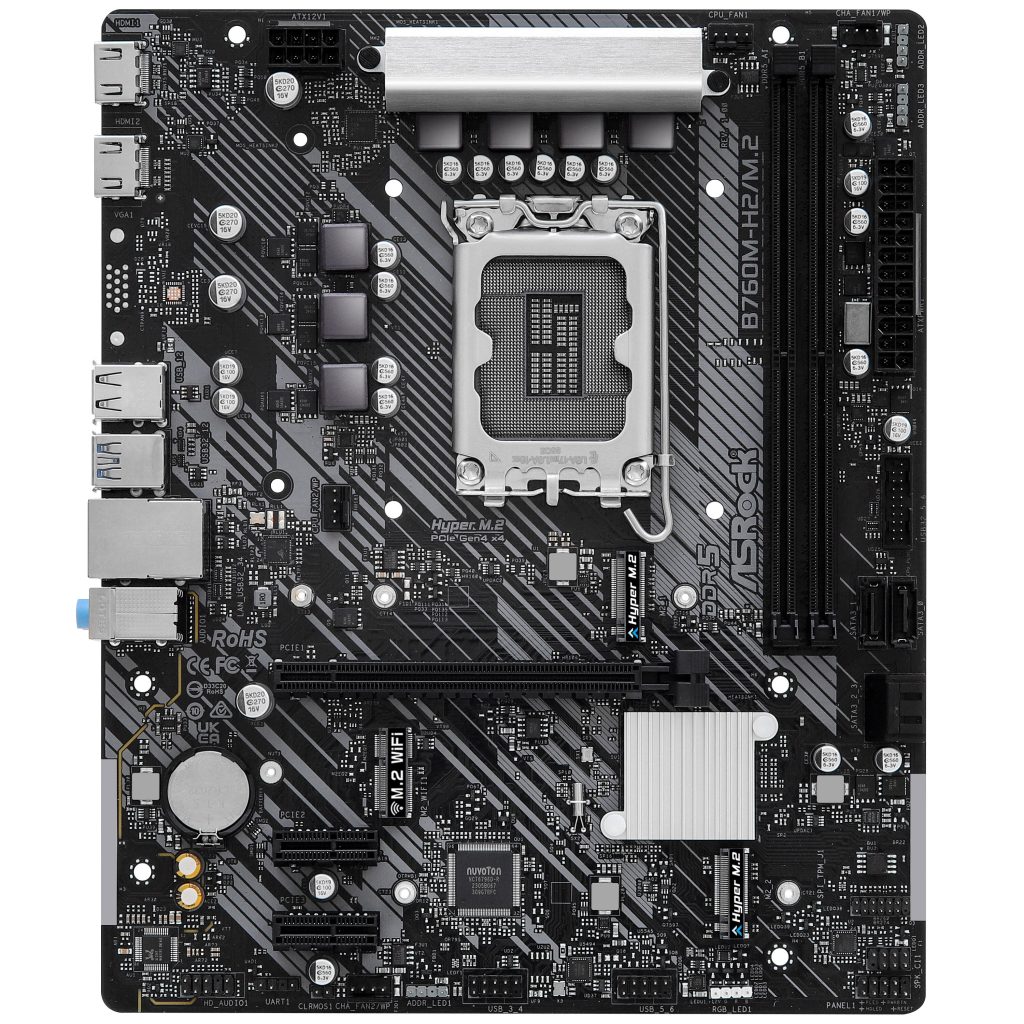

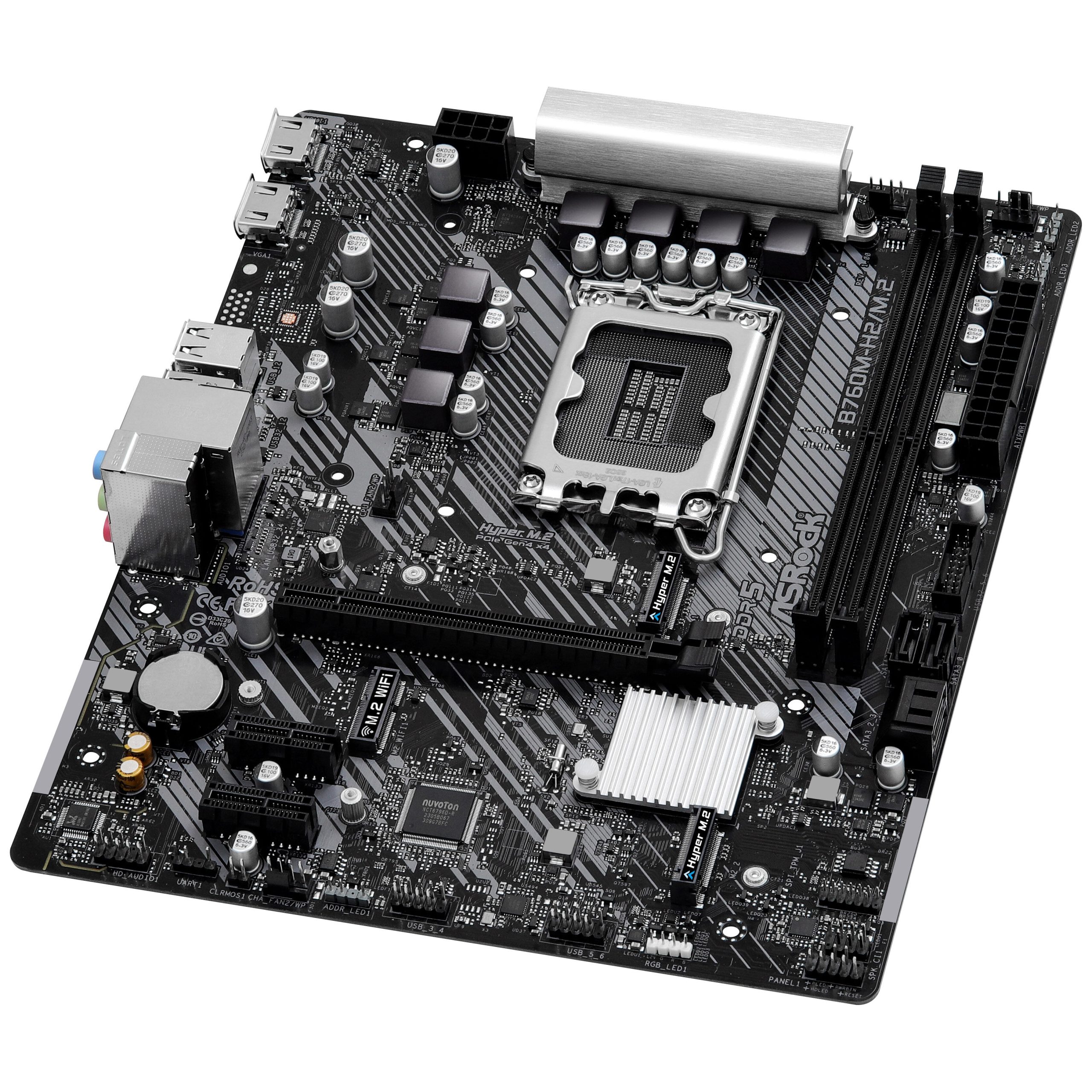

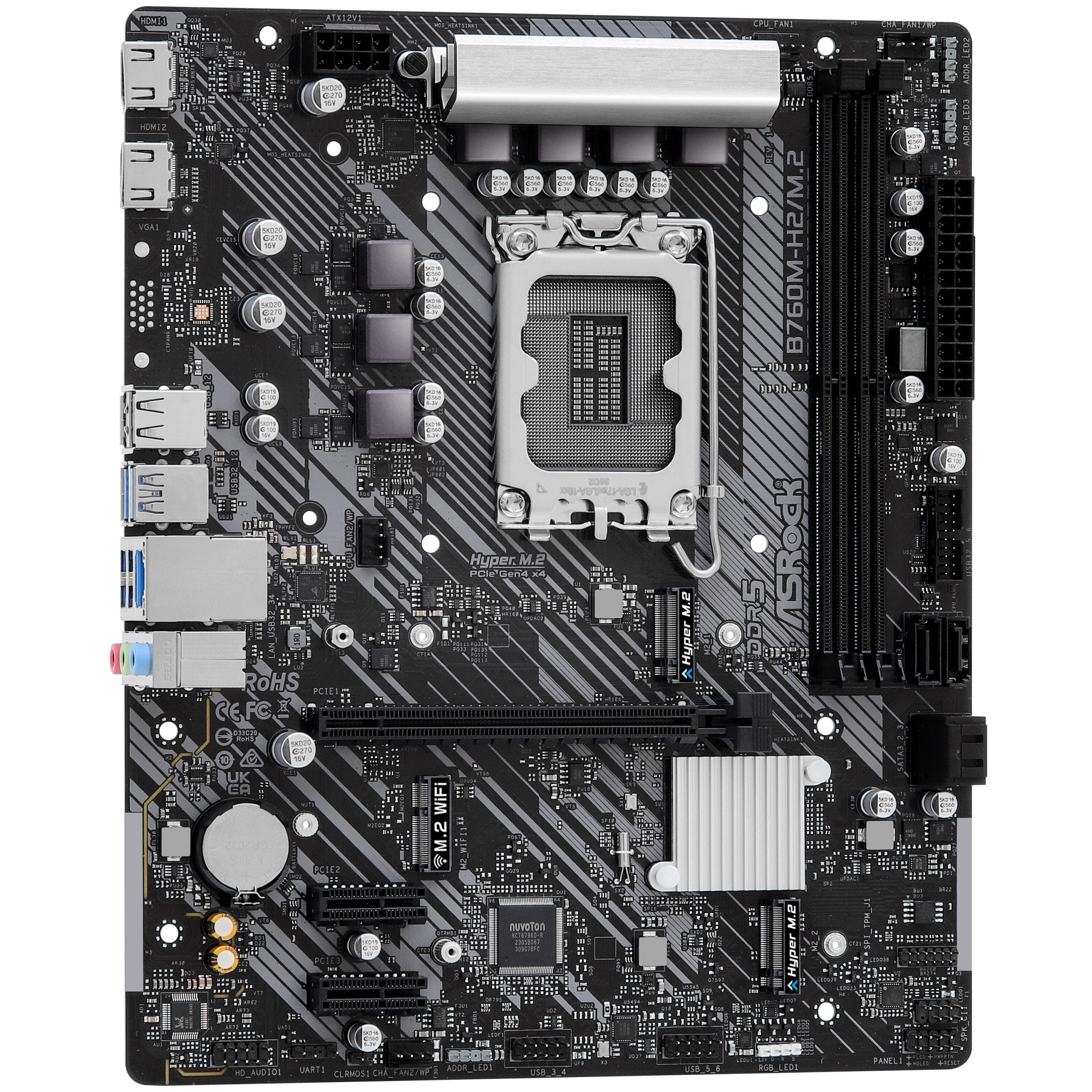

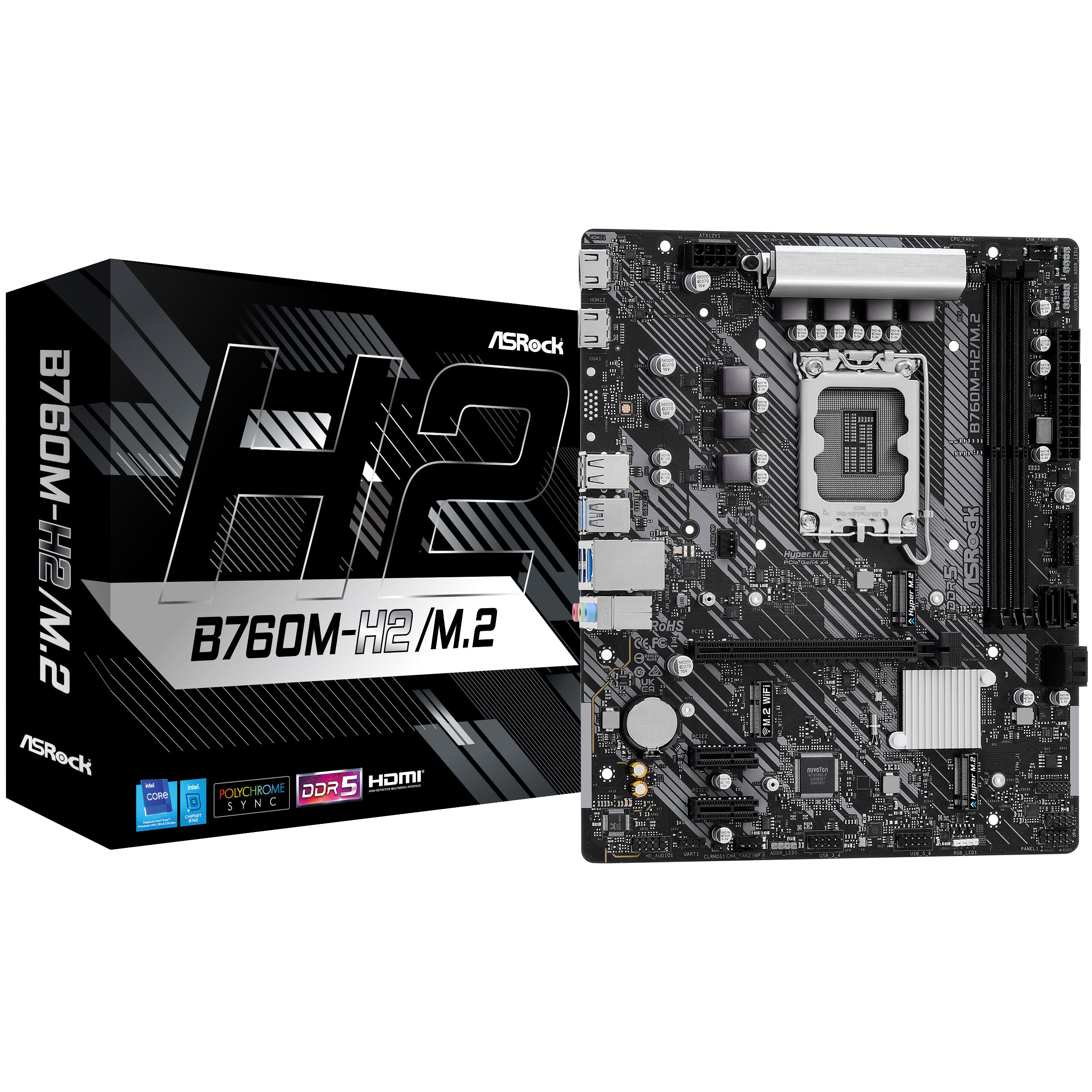

ASRock B760M-H2/M.2 motherboard, socket 1700, Intel B760, mATX, DDR5

– 1x PCIe 4.0 x16 (x16) and 2x PCIe 3.0 x1
– DDR5 memory via RAM overclocking up to 7,200 MHz
– 2x M.2 slots, including 1x PCIe 4.0 and 1x PCIe 4.0 & SATA

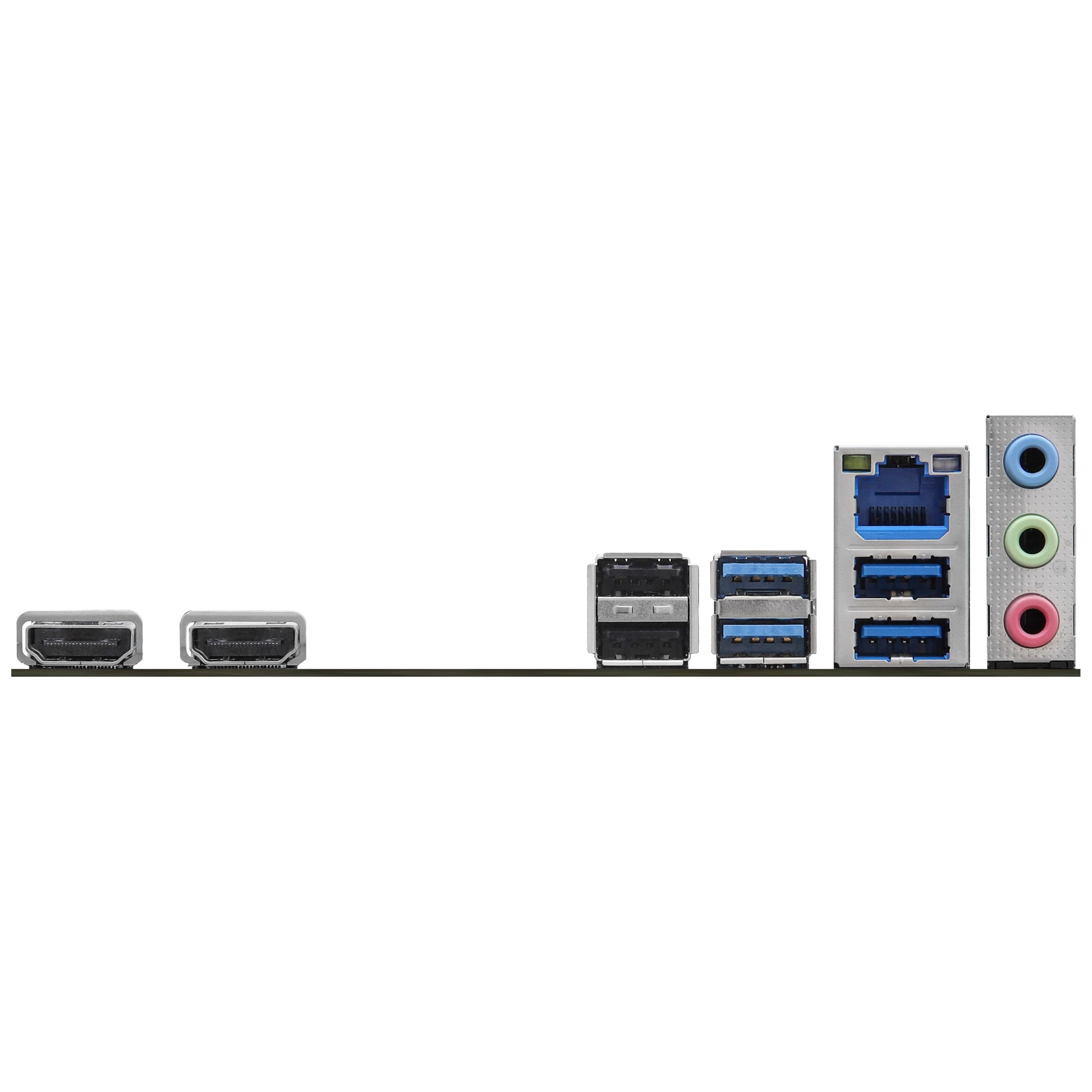

– USB on the I/O panel: 4x USB-A 3.0 and 4x USB 2.0
– A total of 4 connectors for fans and pumps

The ASRock B760M-H2/M.2 Micro-ATX motherboard with Intel B670 chipset
The ASRock B760M-H2/M.2 is a Micro-ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is compatible with 12th, 13th, and 14th generation Intel Core desktop processors, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,200 MHz and, thanks to its outstanding power delivery, is ideal for RAM overclocking.

Technical Details
– Color
– Primary Color
 -Black
– Secondary Color
– Silver
– Dimensions
– Length / Depth
– 244 mm
– Width
– 201 mm
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1700
– Motherboard
– Motherboard Chipset
– Intel B760
– RAM
– Max. RAM
– 128 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (OC)
– 7200 MT/s
– ECC Support
– No
– Memory Slots
– 2x
– Performance Profile
– Intel XMP 3.0
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– LAN Chip
– Dragon RTL8125BG
– WLAN / Bluetooth
– No
– -Cooling
– Backplate
 Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 8-pin
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) Possible Ports
– 2
– USB 2.0 (internal) Header
– 2
– – USB 2.0 (internal) Possible Ports
– 4
– RGB/LED Ports
– 1x RGB (4-pin 5050 12VGRB), 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes
– External Ports
– USB 3.0 (external) Type-C
– 4
– USB 2.0 (external) Type-A
– 4
– Display Ports
– HDMI (2x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 2
– SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x1 Slots (total)
– 2
– PCIe 4.0 x16 (mechanical)
– 1
– PCIe 3.0 x1 (mechanical)
– 2
– Fan Headers
– 4-pin Fan Connectors
– 4
– Lighting
– Lighting / RGB
– Yes
– Lighting Color
– RGB
