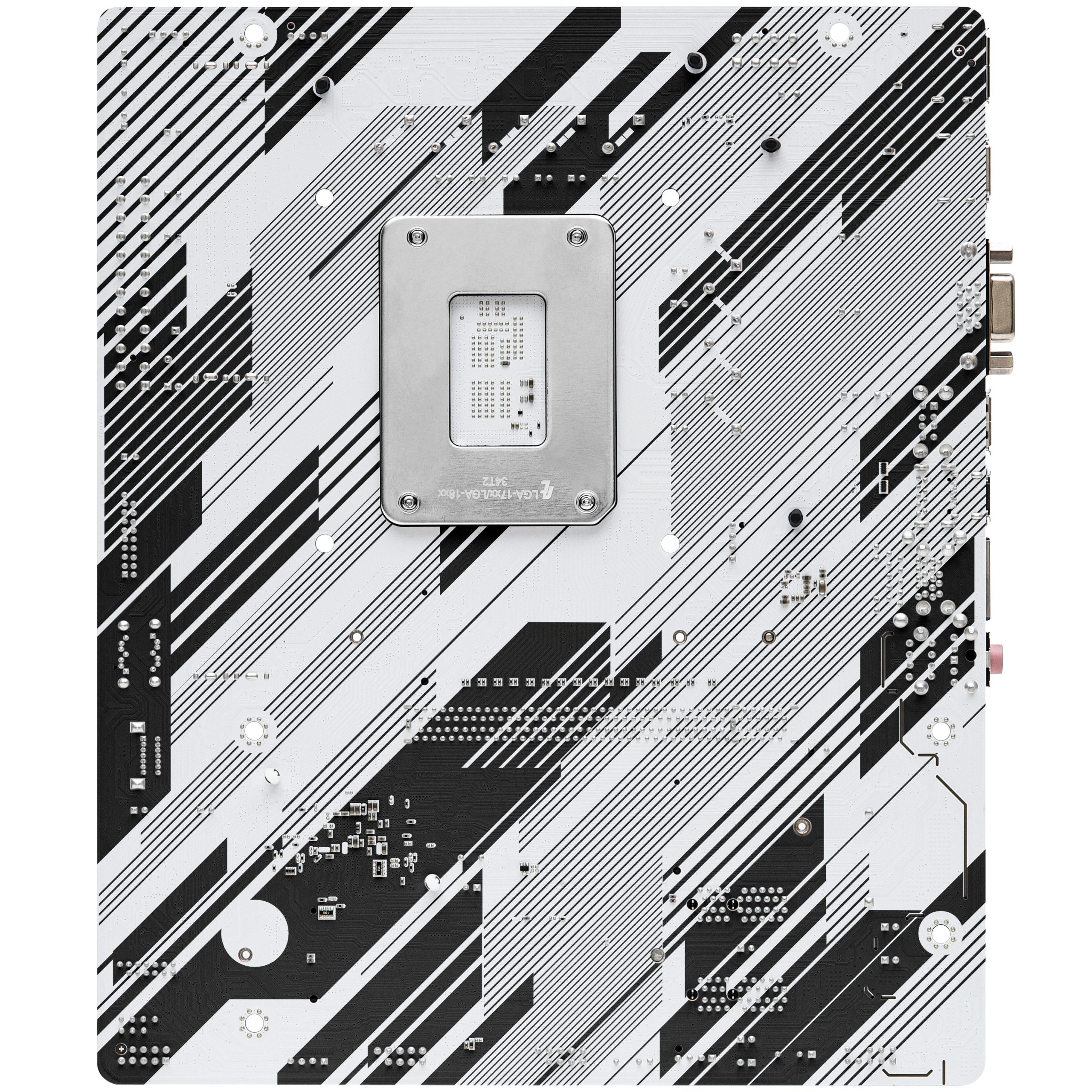

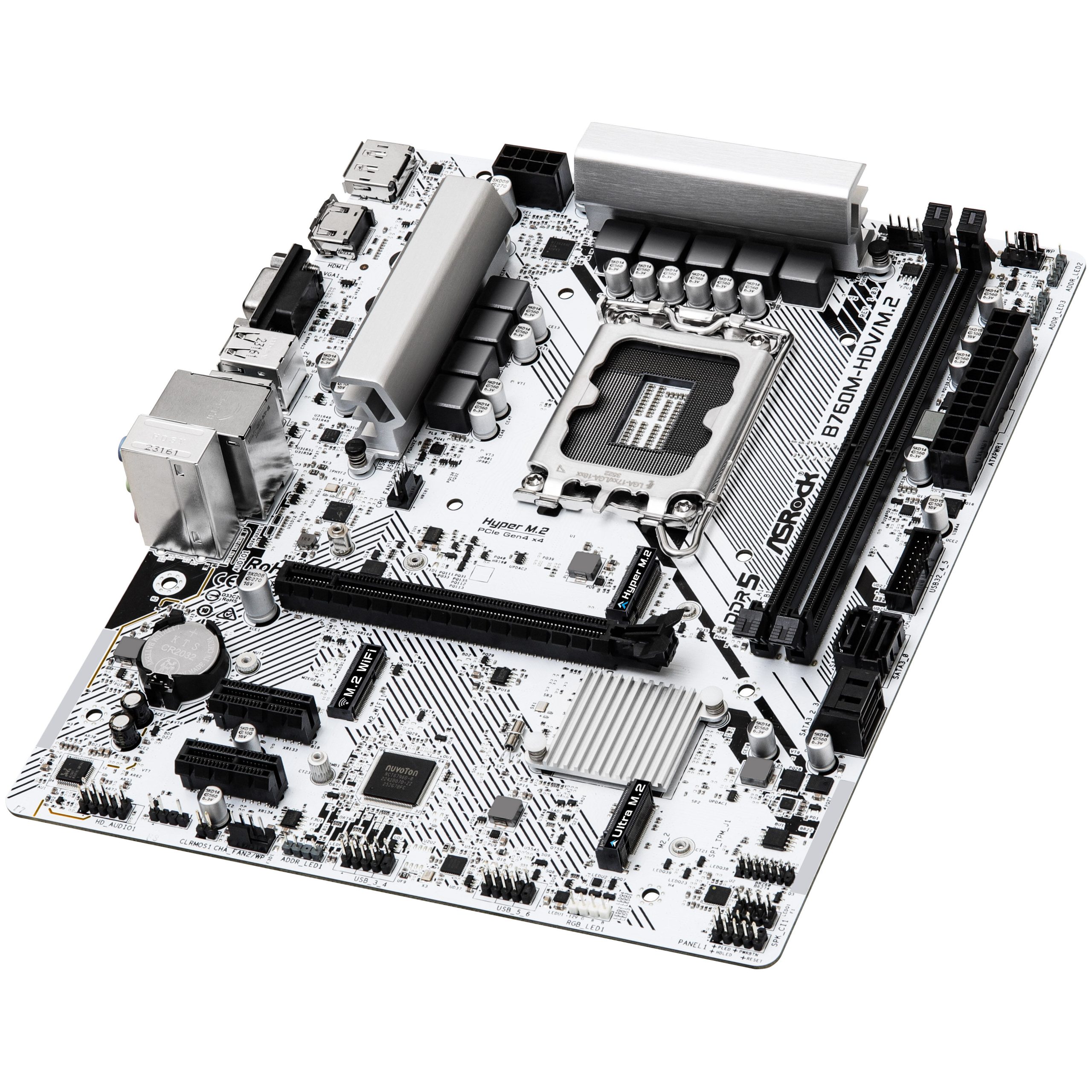

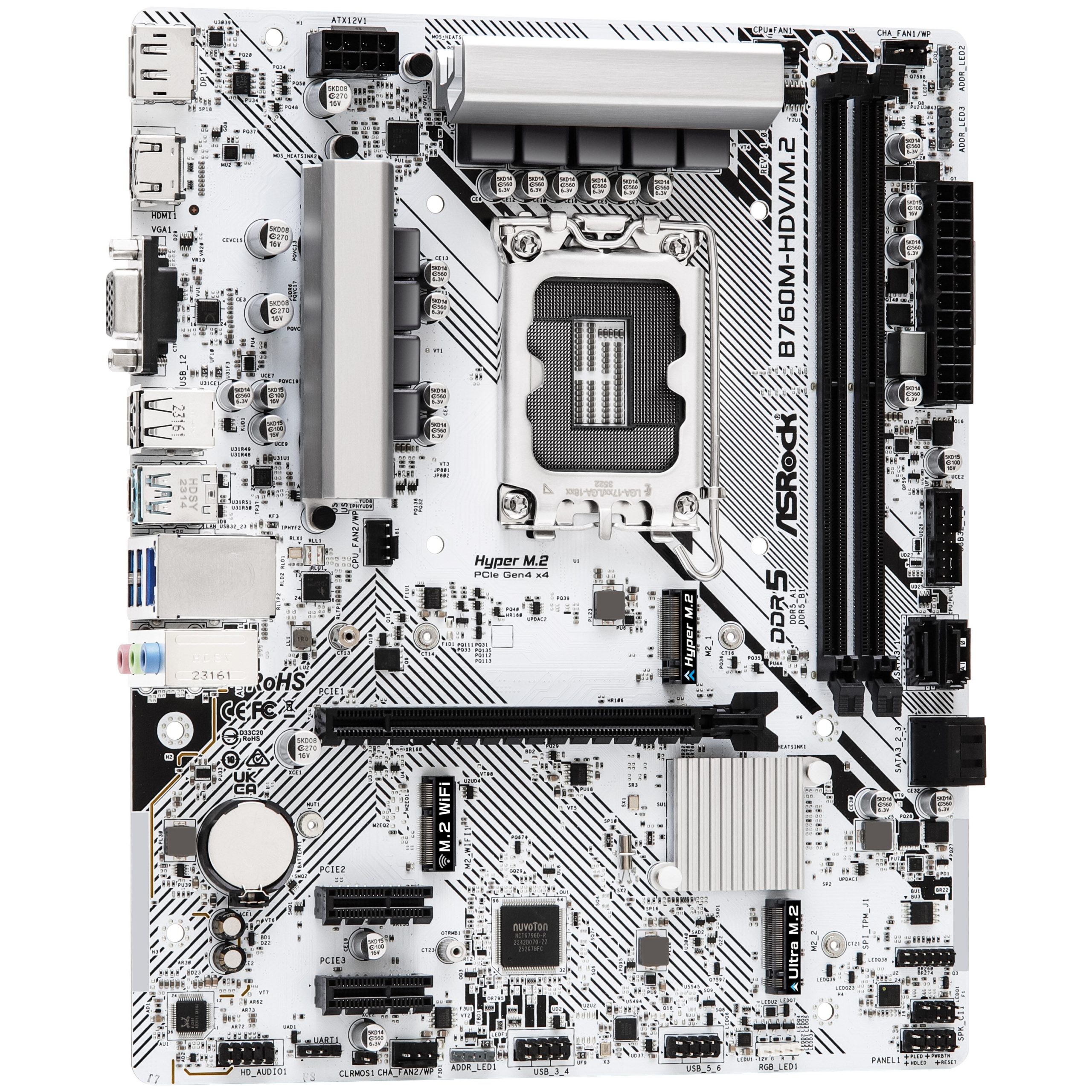

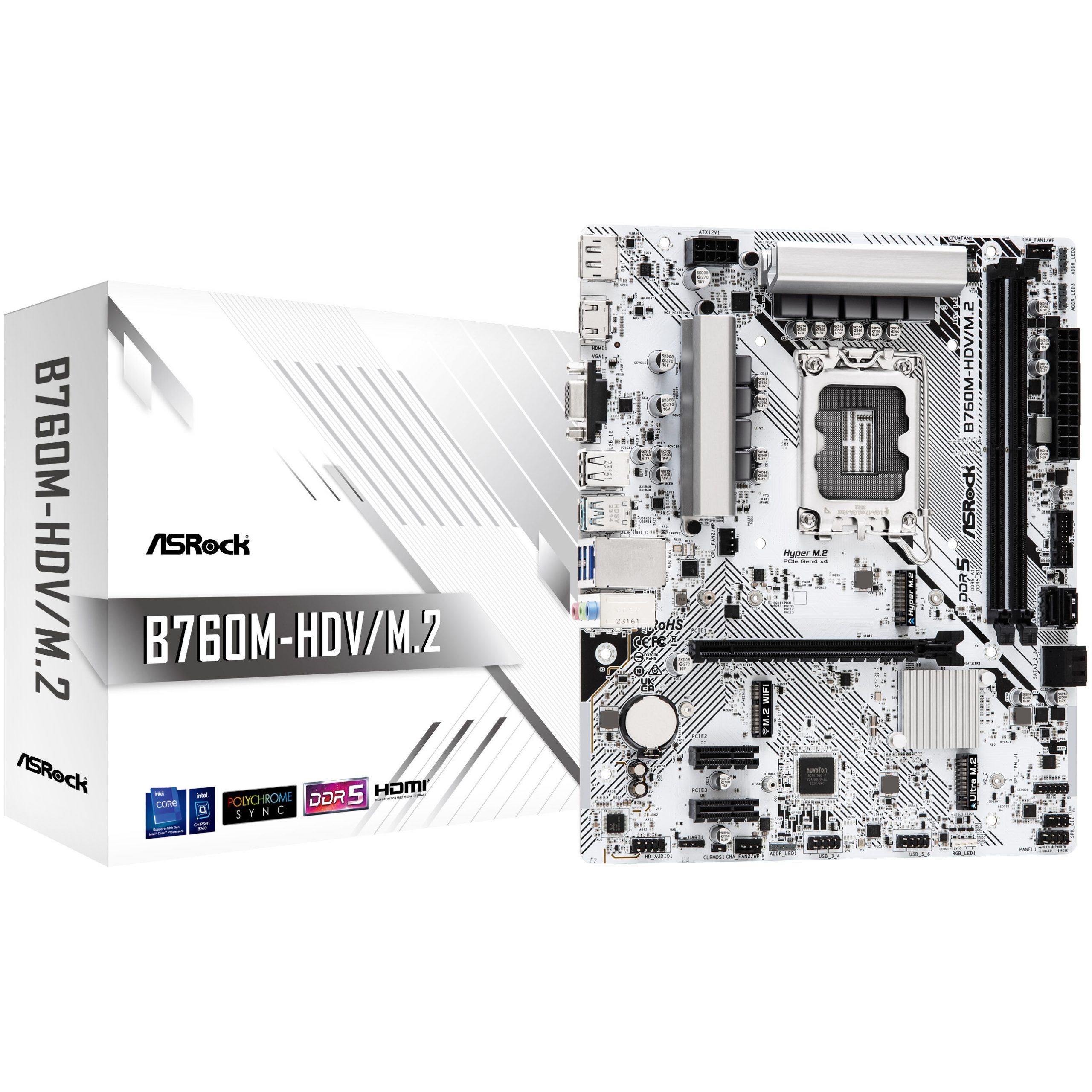

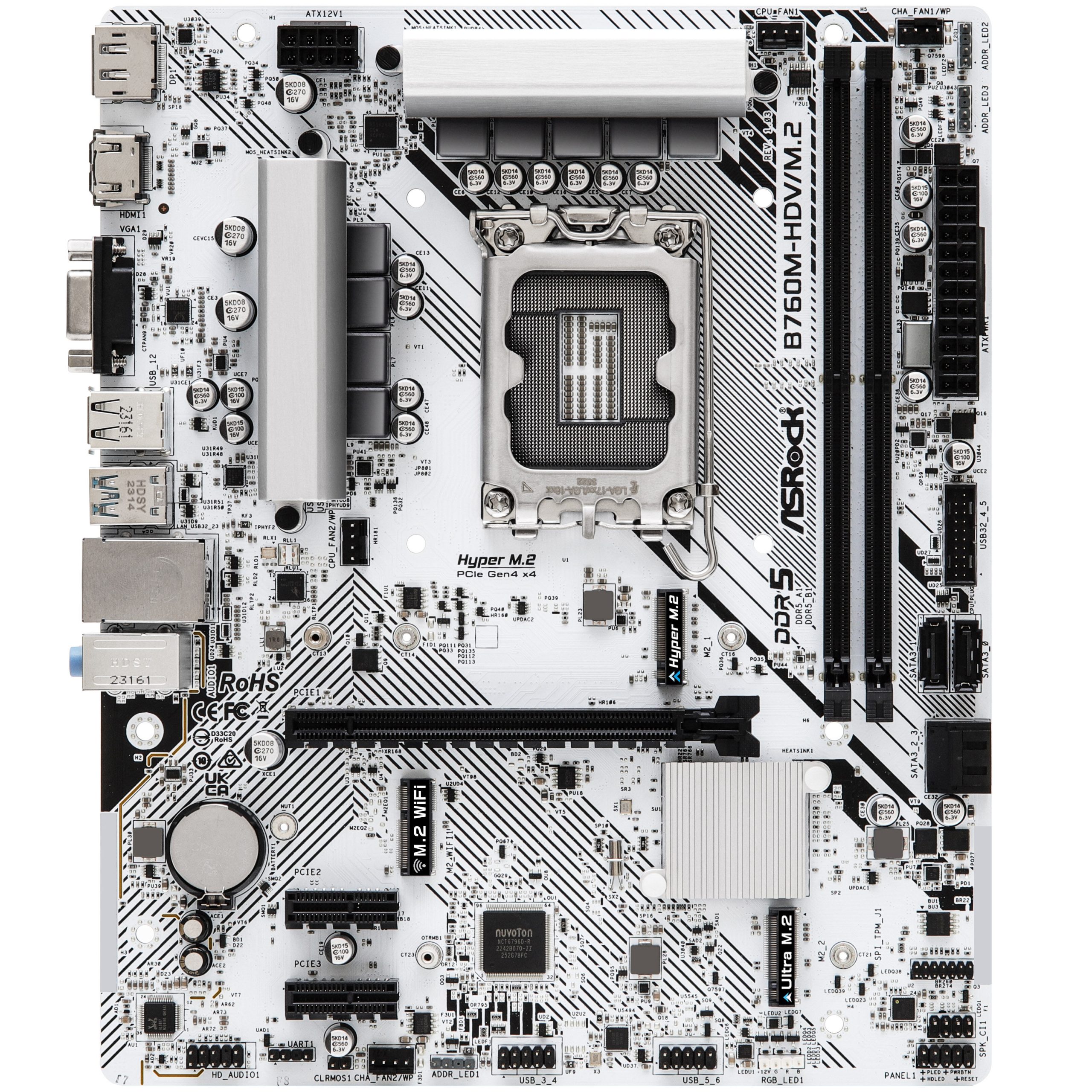

ASRock B760M-HDV/M.2, Intel B760 motherboard - Socket 1700, DDR5

– 1x PCIe x16 and 2x PCIe x1 slots, including 1x PCIe 4.0
– DDR5 memory up to 5600 MHz, with RAM overclocking up to 7200 MHz
– 1x M.2 slot, including 1x PCIe 4.0
– USB on the I/O panel: 2x USB 3.1 Type A, 2x USB 3.1 Type C
– A total of 4 ports for fans and pumps
– 2.5 Gb LAN and Wi-Fi

The ASRock B760M-HDV/M.2 ATX motherboard with Intel B760M chipset in detail
The ASRock B760M-HDV/M.2 is an ATX motherboard with the Intel B760M chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation desktop processors Intel Core CPUs, Alder Lake, and Meteor Lake. It supports DDR5 memory up to 7200 MHz and also offers features such as extensive heat spreaders for VRMs and the chipset.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboard BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details
– Processor
– Processor Manufacturer: Intel
– Processor Socket: LGA 1700
– Compatible Processors: Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
– Maximum Number of SMP Processors: 1
– Memory
– Supported Memory: DDR5 SDRAM
– Number of Memory Slots: 2
– Memory Type: DIMM
– Memory Channels: Dual-Channel
– Non-ECC
– Supported Memory Speeds: 3200, 4400, 5333 MHz
– Maximum RAM: 96 GB
– Unbuffered Memory
– Storage Controller
– Supported Storage Drive Interfaces: M.2, SATA III
– RAID Support:
– RAID Level 0, 1, 5 10
– Graphics
– Parallel Processing Technology Not Supported
– HDCP
– Internal I/O Connectors
– Number of USB 2.0 Ports: 3
– USB 3.2 Gen 1 (3.1 Gen 1) Ports: 2
– SATA III Ports: 4
– Front Panel Connectors:
– ATX Power Connector (24-pin)
– CPU Fan Connectors:
– Chassis Intrusion Connectors:
– EPS Power Connector (8-pin)
– TPM Connectors

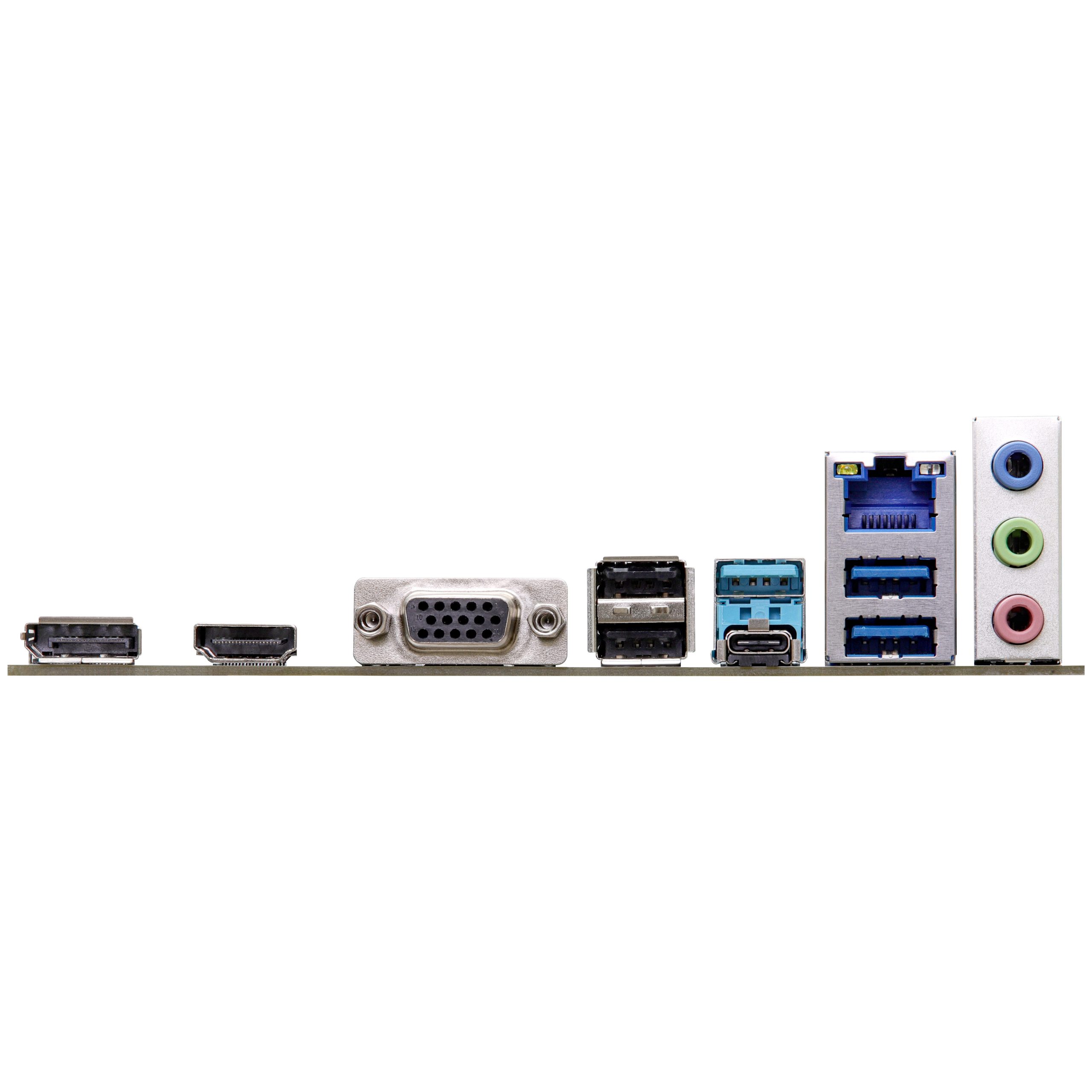

– Rear Panel I/O Connectors:
– Number of USB 2.0 Ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports: 3
– USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports: 1
– Number of Ethernet LAN Ports (RJ-45): 1
– Rear Panel I/O Connectors:
– Number of PS/2 Ports: 1
– Number of HDMI Ports: 1
– Number of DisplayPort Ports: 1
– DisplayPort version 1.4
– Line-in
– Microphone input
– Network
– Built-in Ethernet port
– Ethernet interface type: Gigabit Ethernet
– LAN controller: Realtek RTL8111H
– Wi-Fi
– Features
– Motherboard chipset: Intel B760
– Audio chip: Realtek ALC897
– Audio channels: 7.1 channels
– PC component
– – Motherboard form factor: micro ATX
– Motherboard chipset family: Intel
– Supported Windows operating systems: Windows 10 Education x64, Windows 11 x64
– Certification: FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
