ASRock Z890 Pro-A WiFi, Intel Z890 motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for gamers and everyday users.

1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x4 (x4), 1x PCIe 4.0 x1
4x DIMM slots for up to 256 GB DDR5 RAM up to 8,666 MHz (XMP 3.0 support)
4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
USB on the I/O panel: 1x USB 4, 1x USB 3.1, 2x USB 3.0, 4x USB 2.0
OC features: 16+1+1+1+1 power phases, Dr. MOS for VCore+GT
A total of 8x 4-pin connectors for fans and pumps

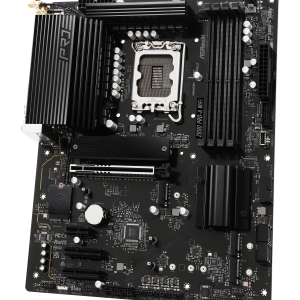

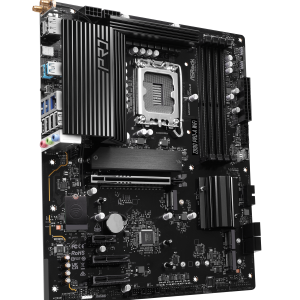

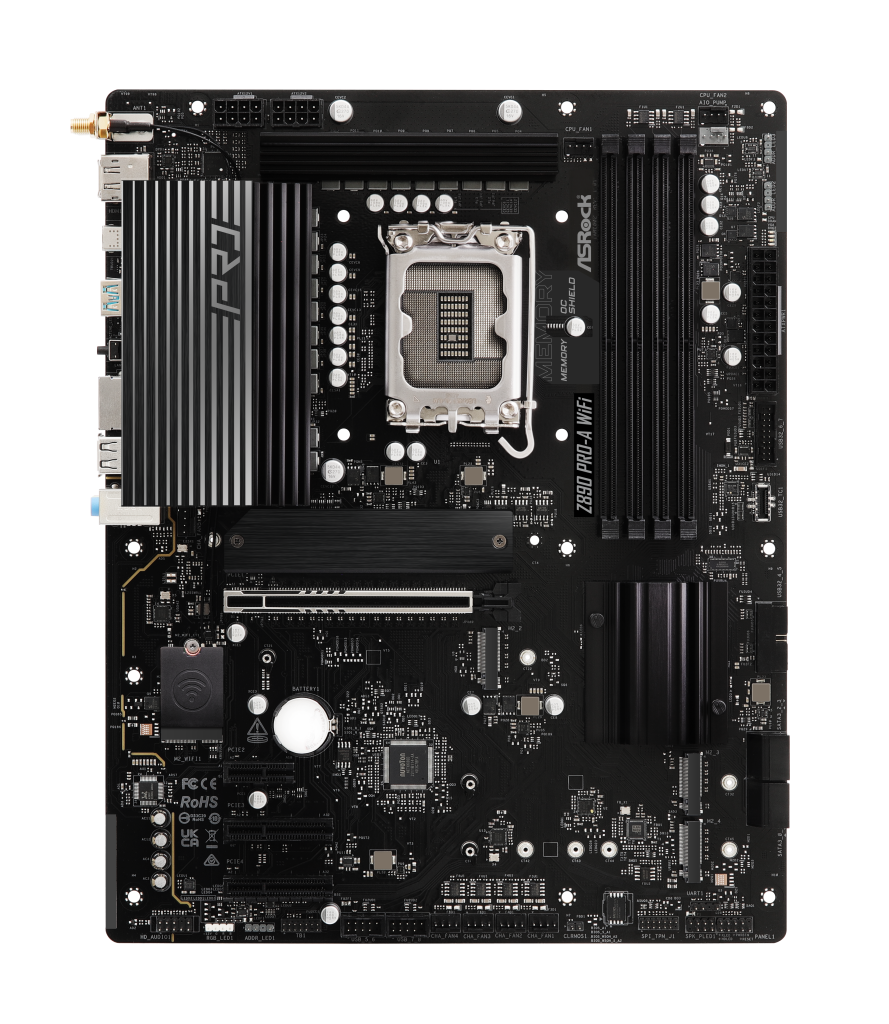

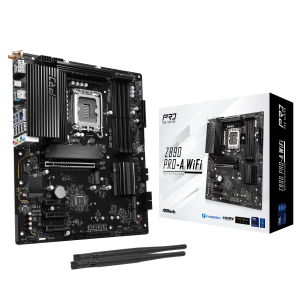

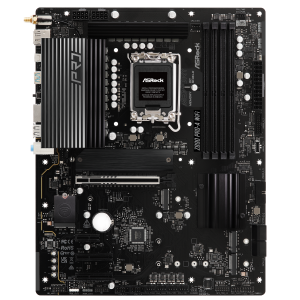

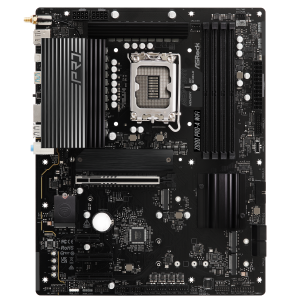

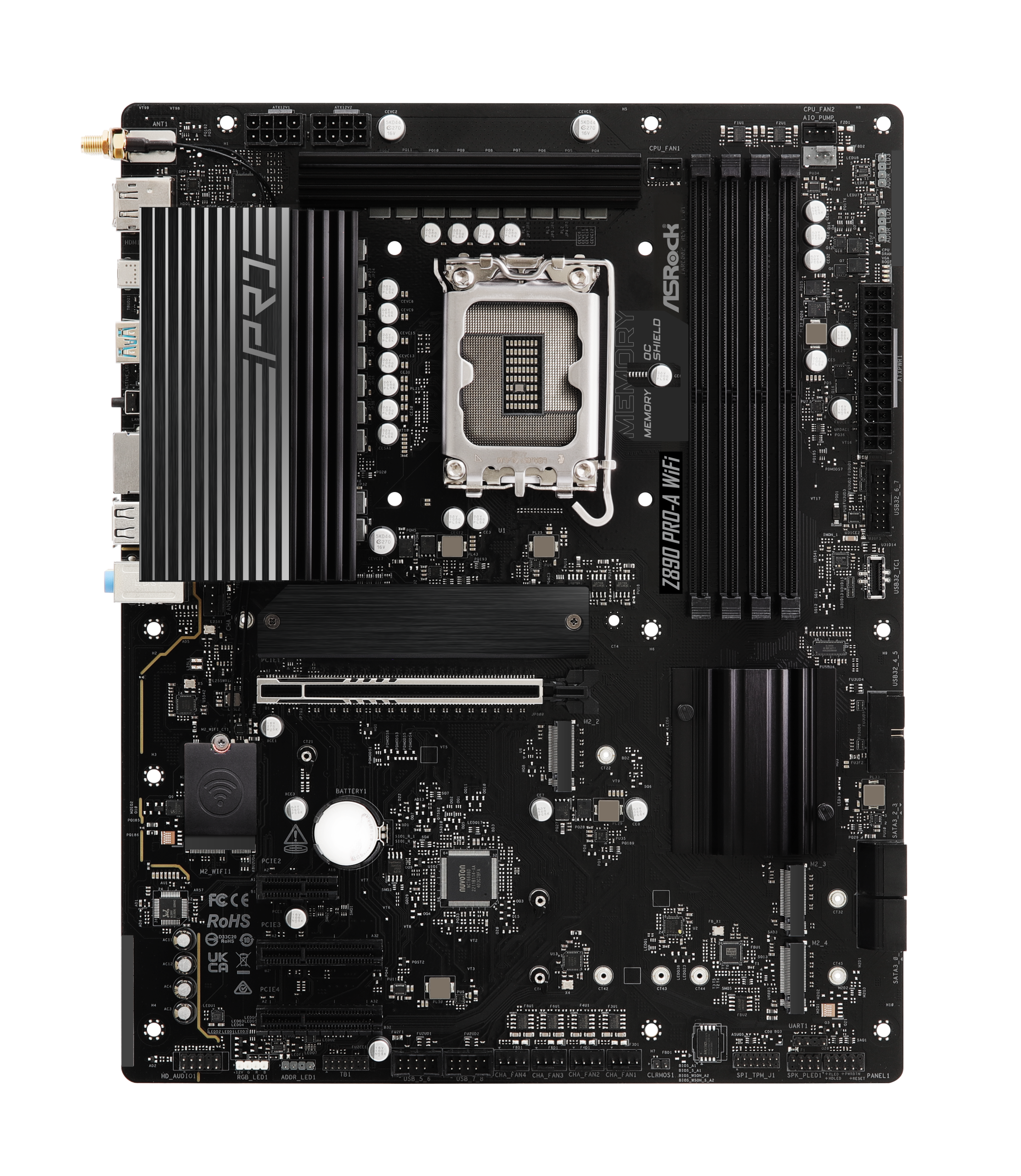

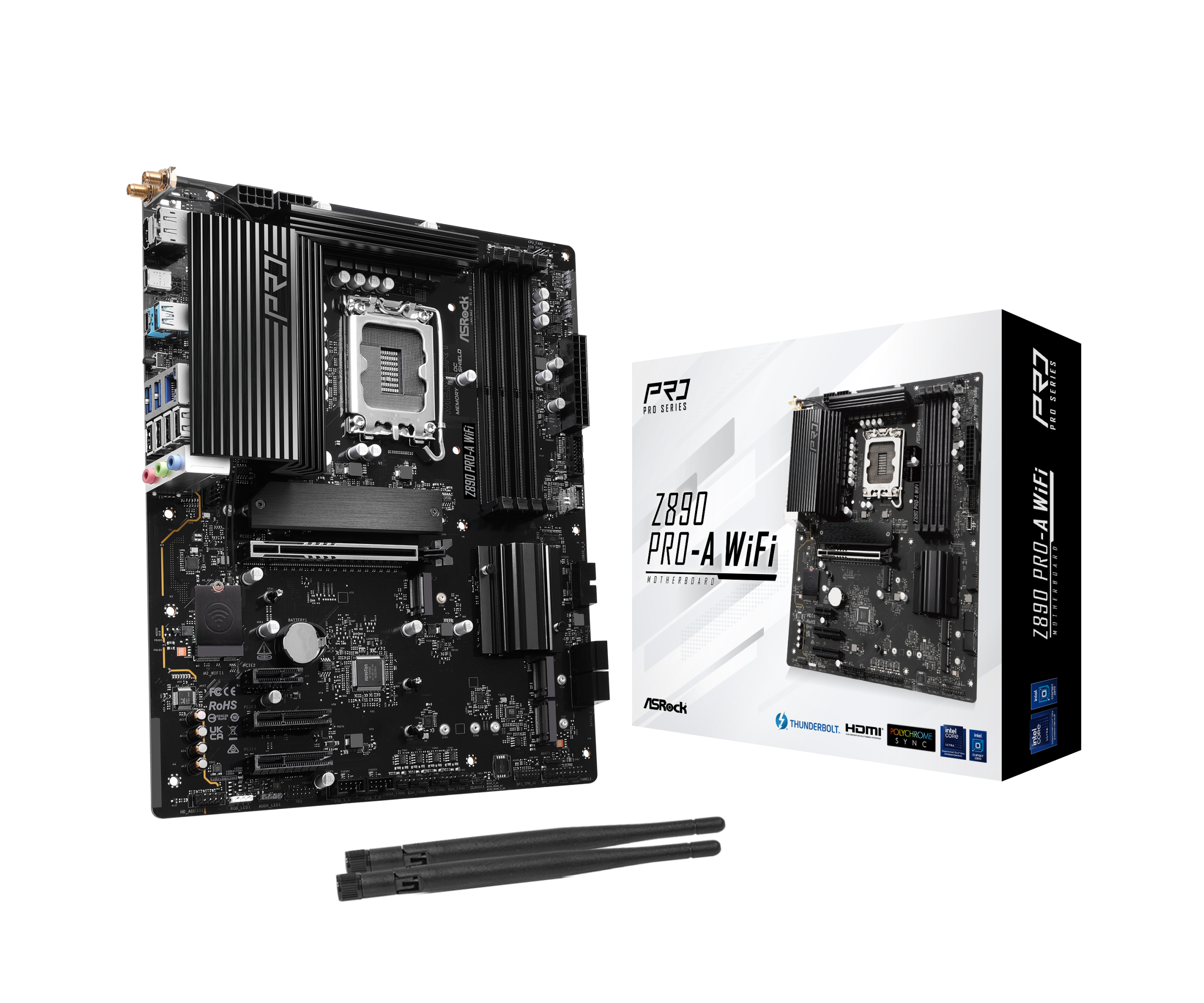

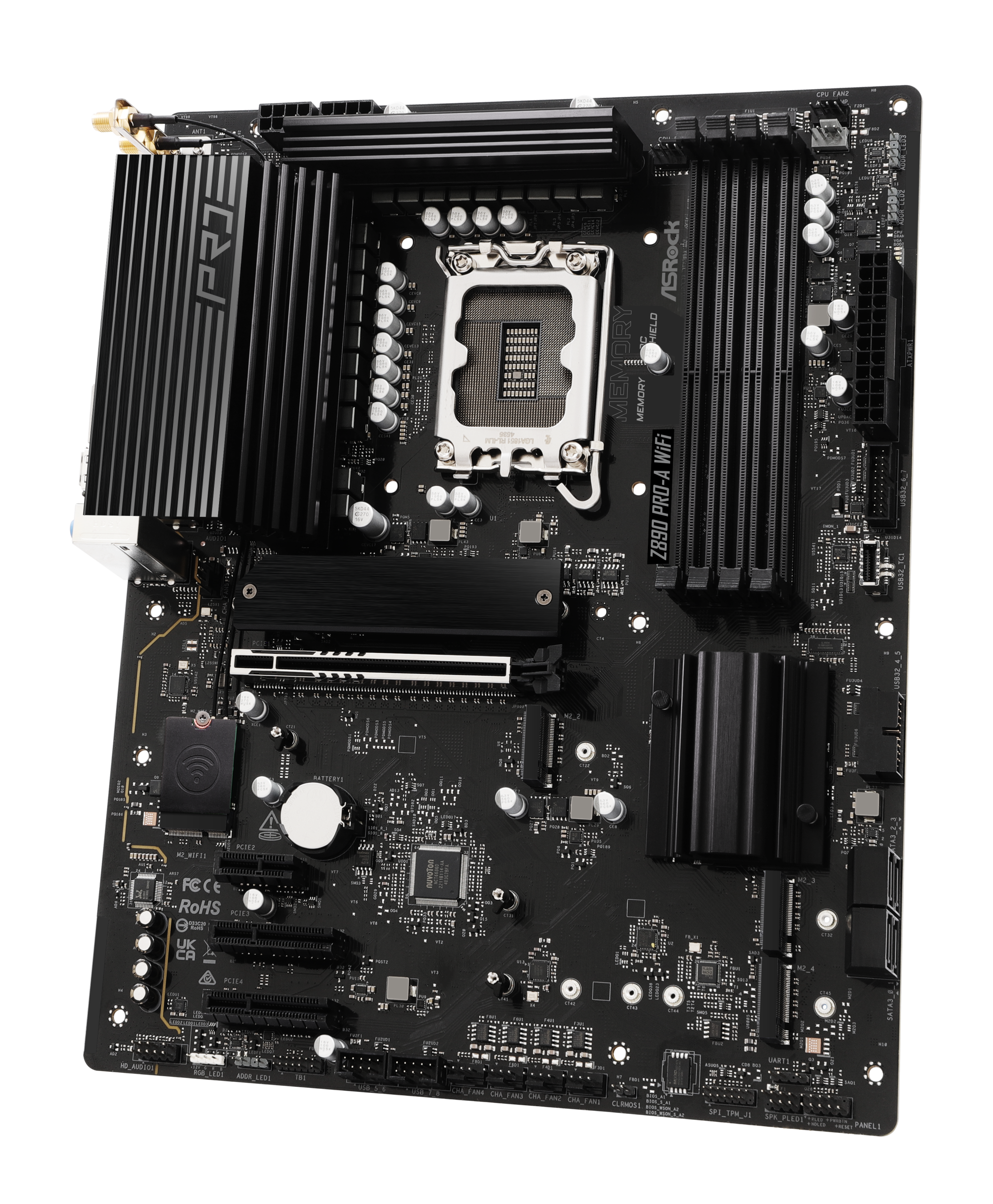

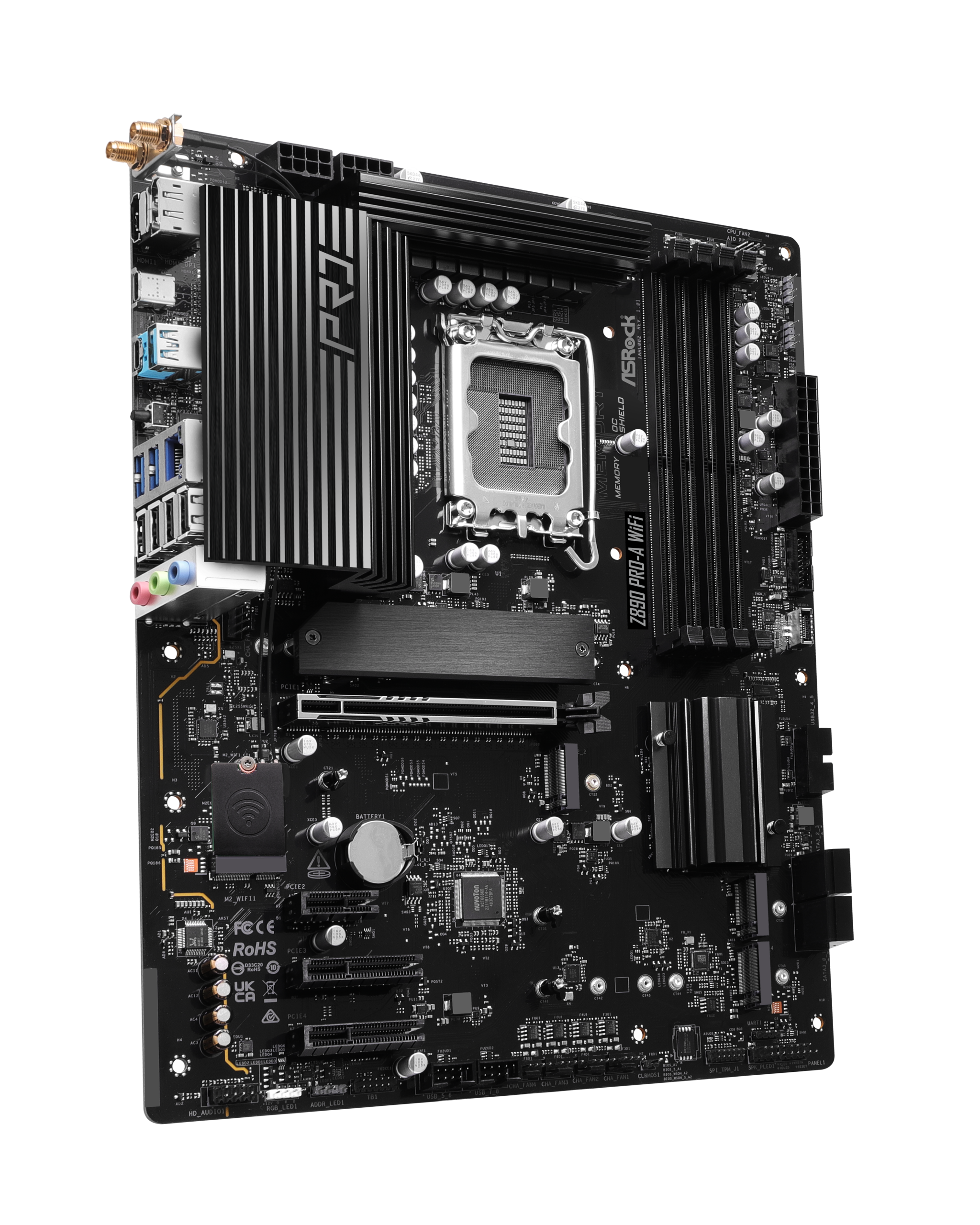

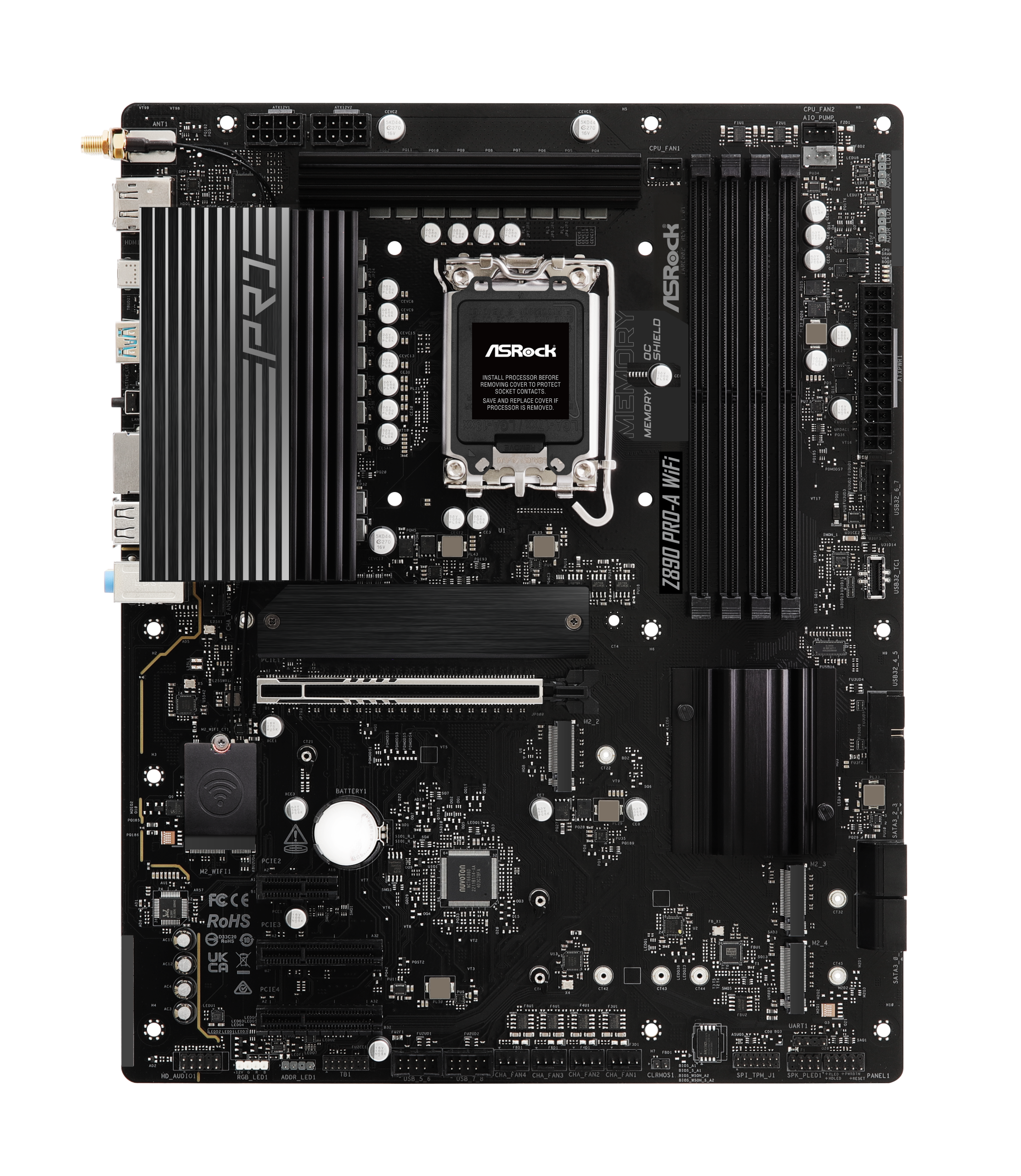

ASROCK Z890 PRO-A WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASROCK Z890 PRO-A WIFI is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASROCK Z890 PRO-A WIFI features full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 8,666 MHz via XMP)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8)
– 2x PCIe 4.0 x4 (electrical x4)
– 1x PCIe 4.0 x1
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4, CPU)
– 1x M.2 (PCIe 4.0 x4, CPU)
– 1x M.2 (PCIe 4.0 x4, chipset)
– 1x M.2 (PCIe 4.0 x4, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbit/s)
– 1 x Front Panel Audio header
– 1 x Front System Panel header
– 1 x Thermal Sensor header
– Fan header:
– 1 x 4-pin CPU fan header
– 1 x 4-pin CPU OPT fan header
– 1 x 4-pin AIO pump header
– 5x case fans (4-pin)

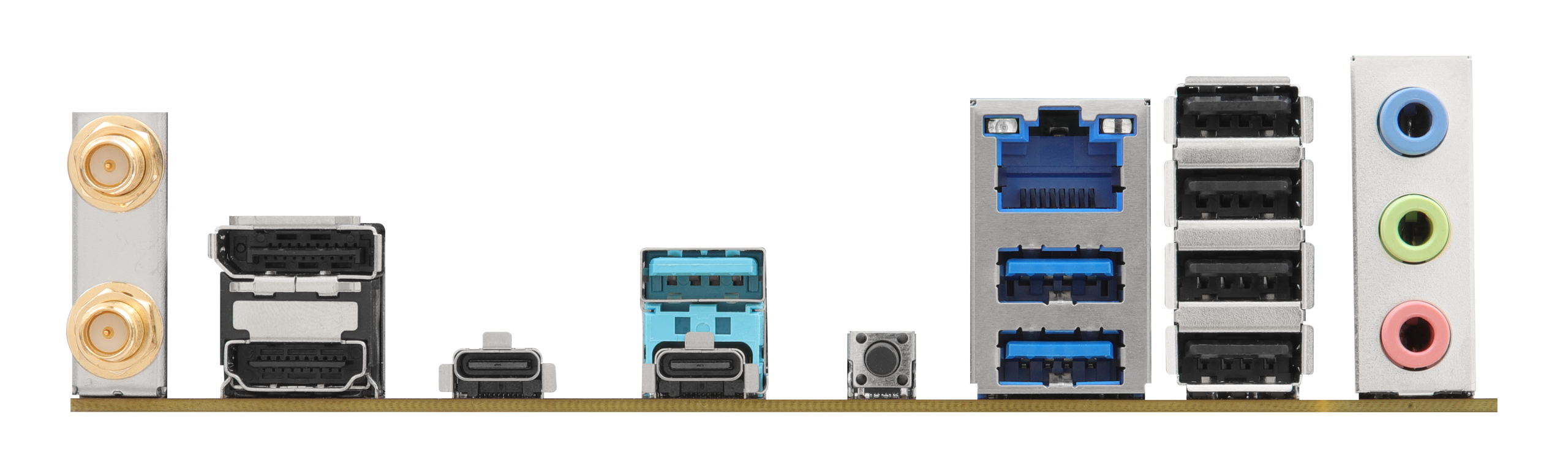

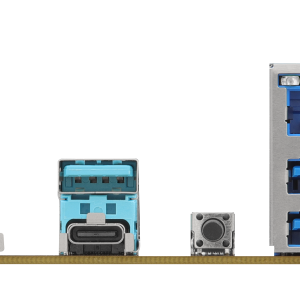

– External connections:
– 1x Thunderbolt 4 (USB-C 40 Gbit/s)
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s) 1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1xHDMI
– 1x 2.5 Gigabit LAN
– 1x WiFi/Bluetooth module
– 2x 3.5 mm jack (Realtek ALC897)
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX12V
– Connectivity: Wifi 7
