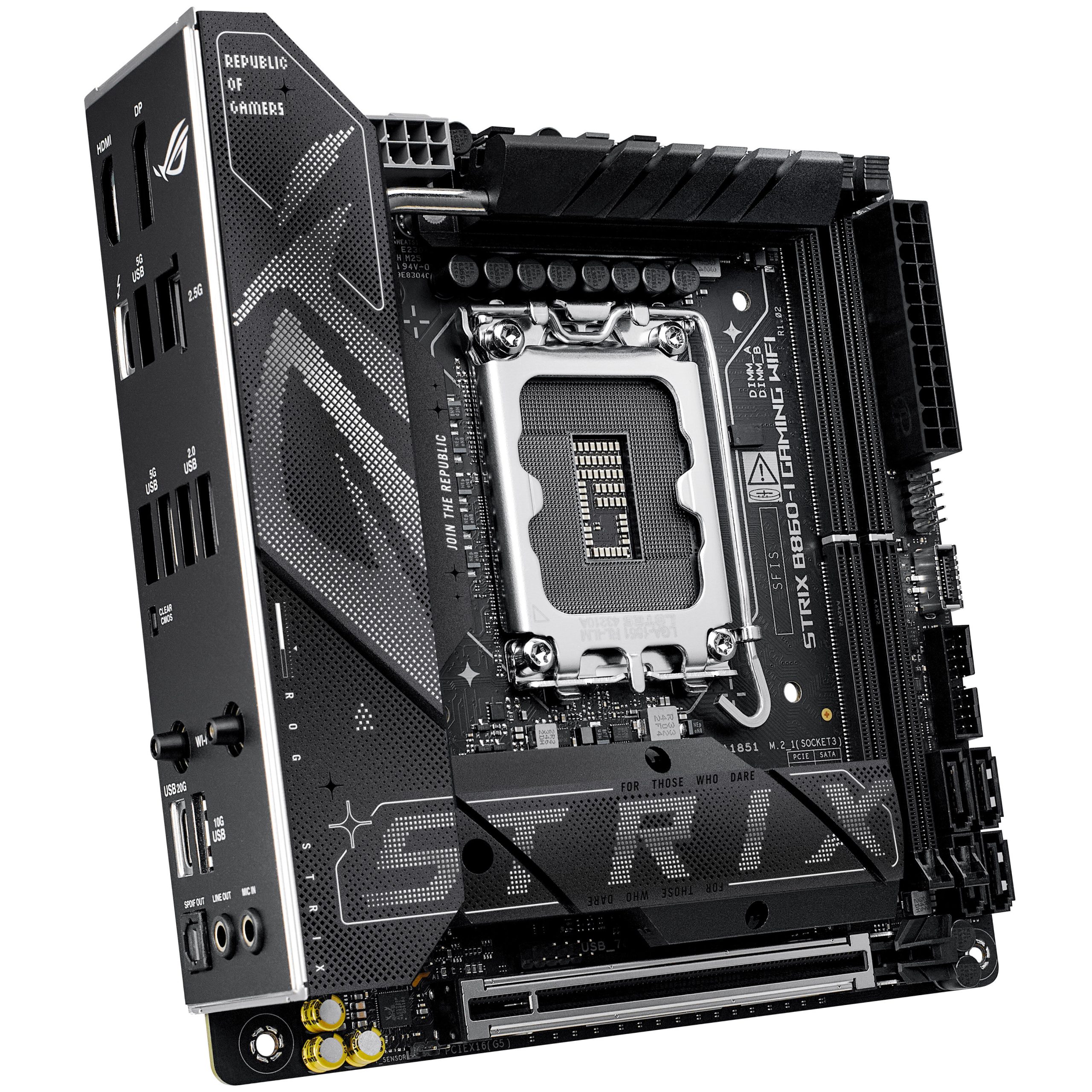

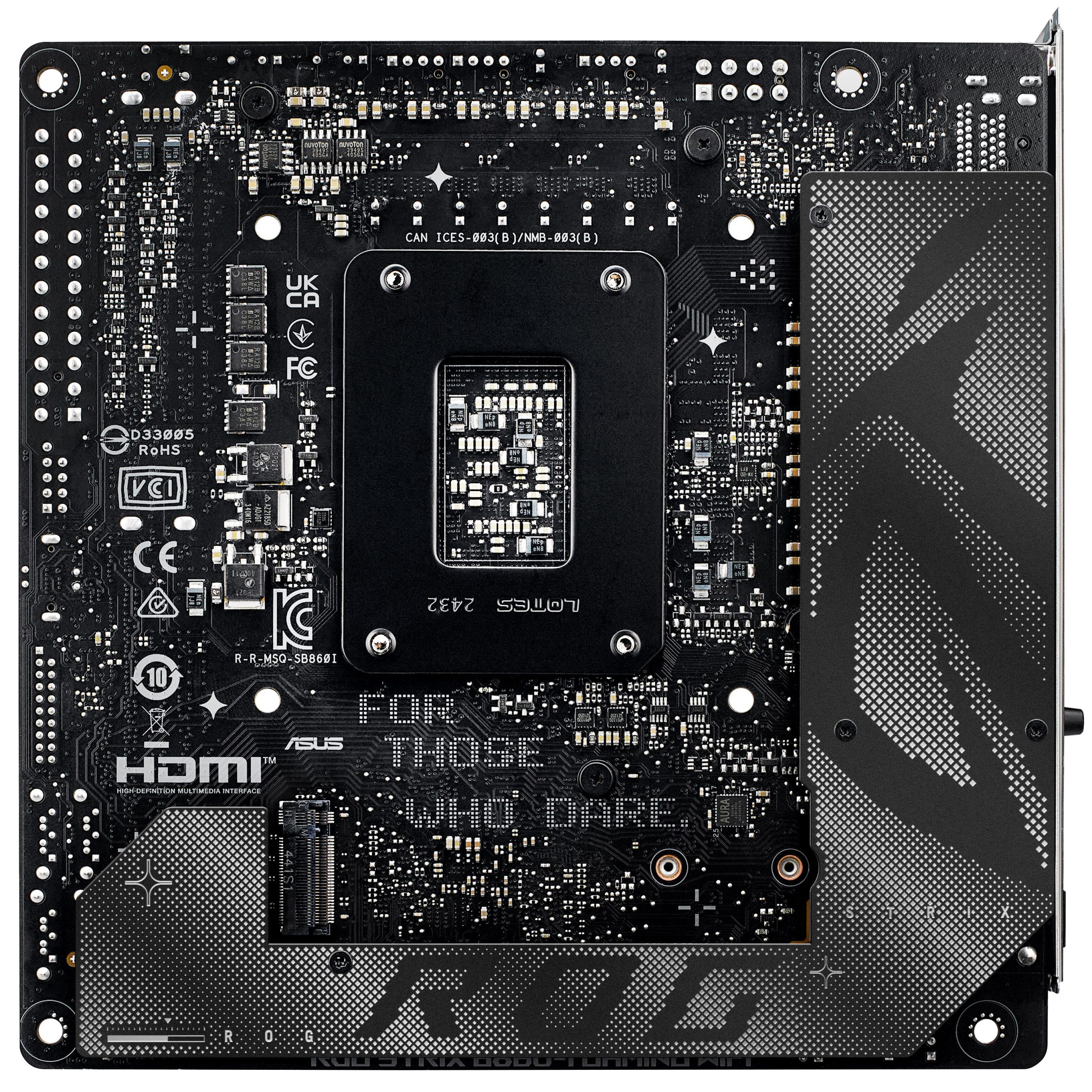

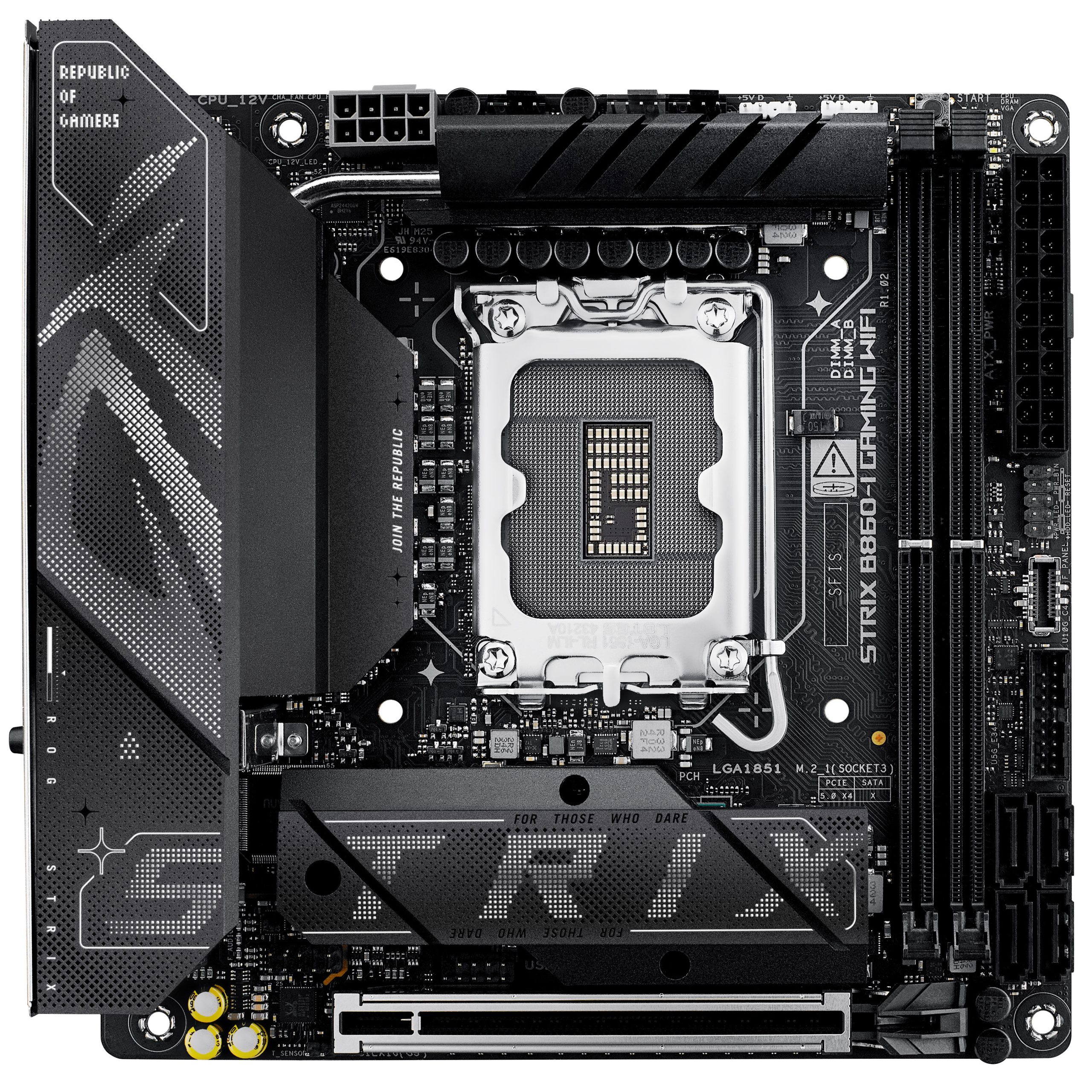

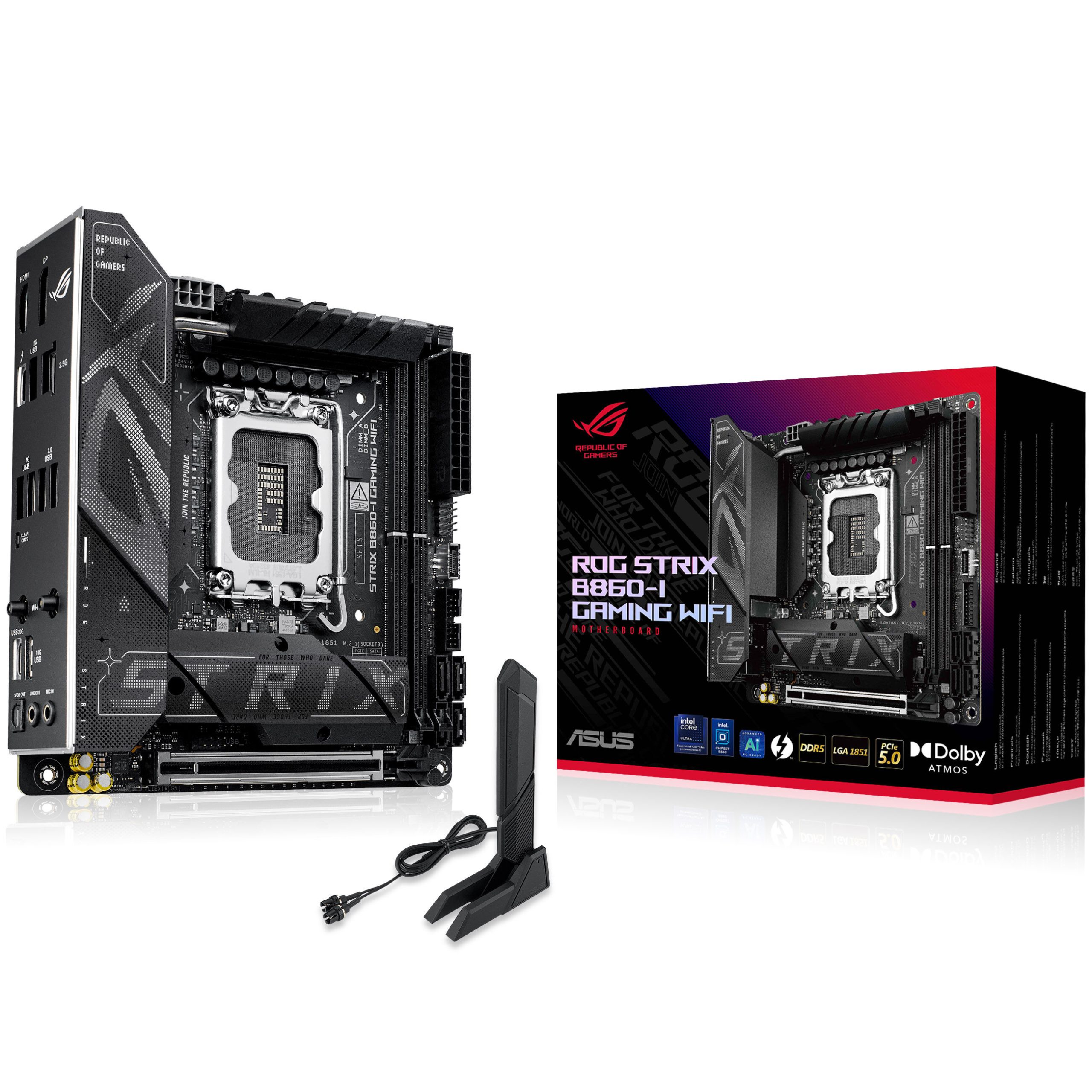

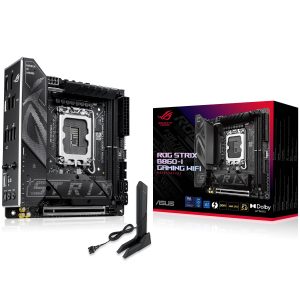

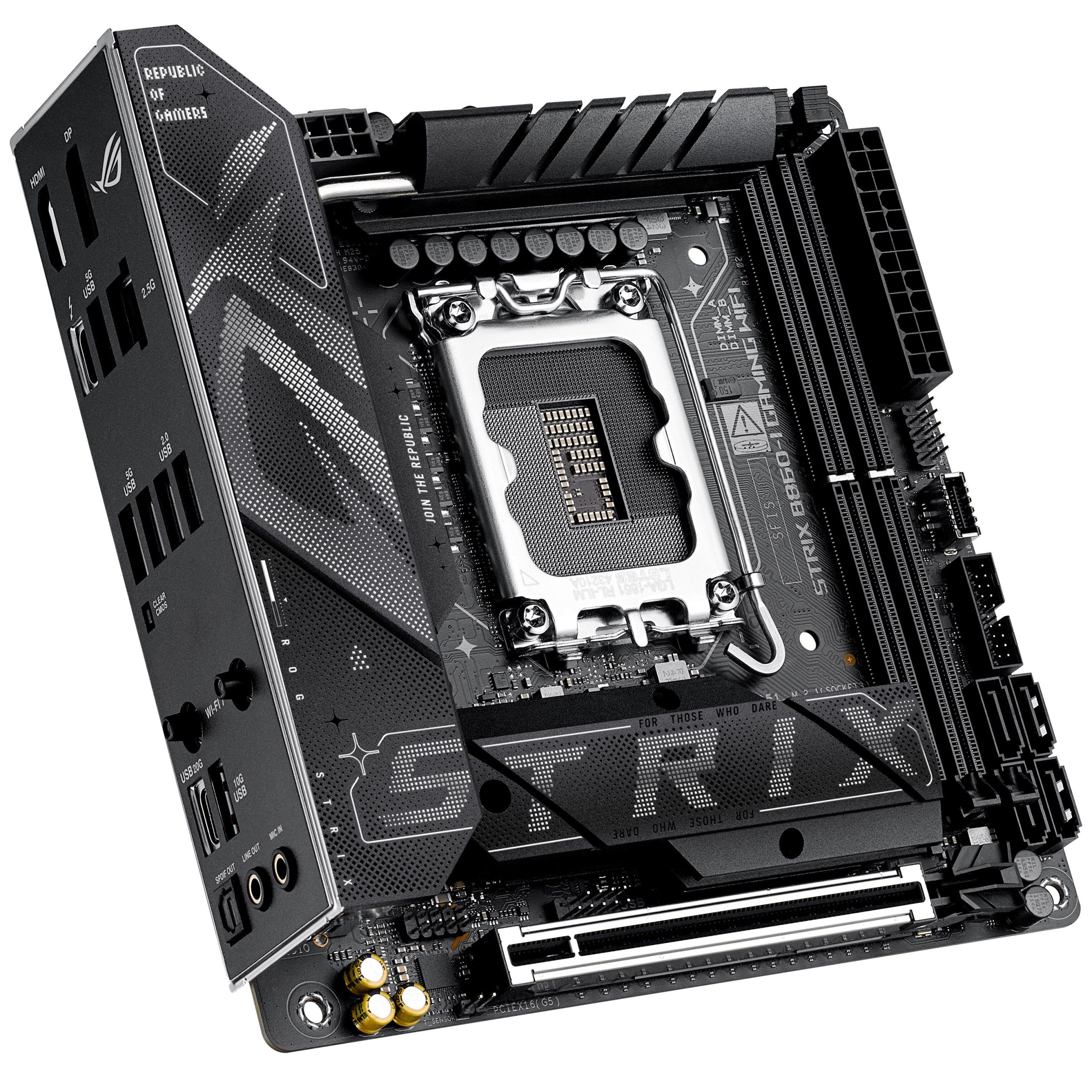

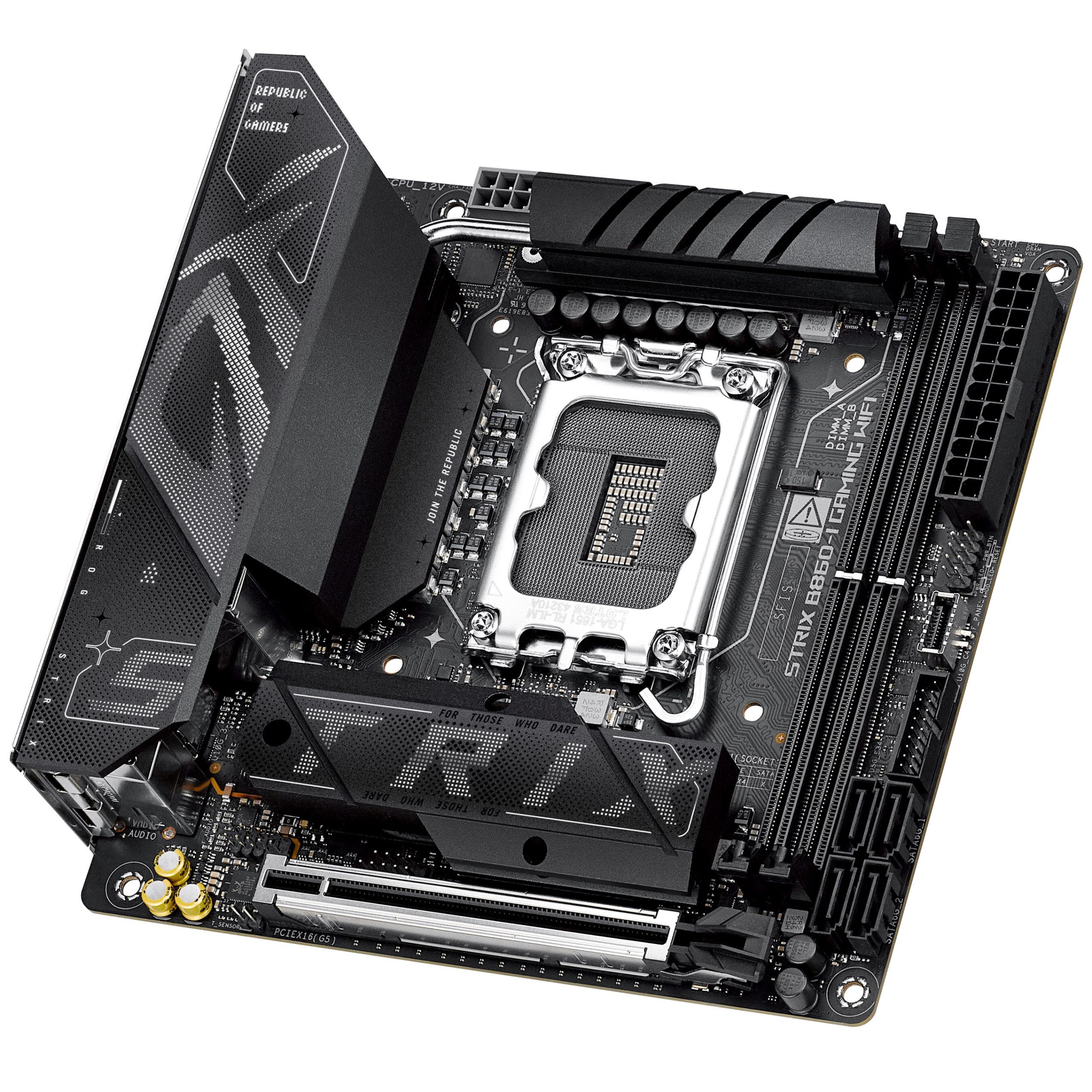

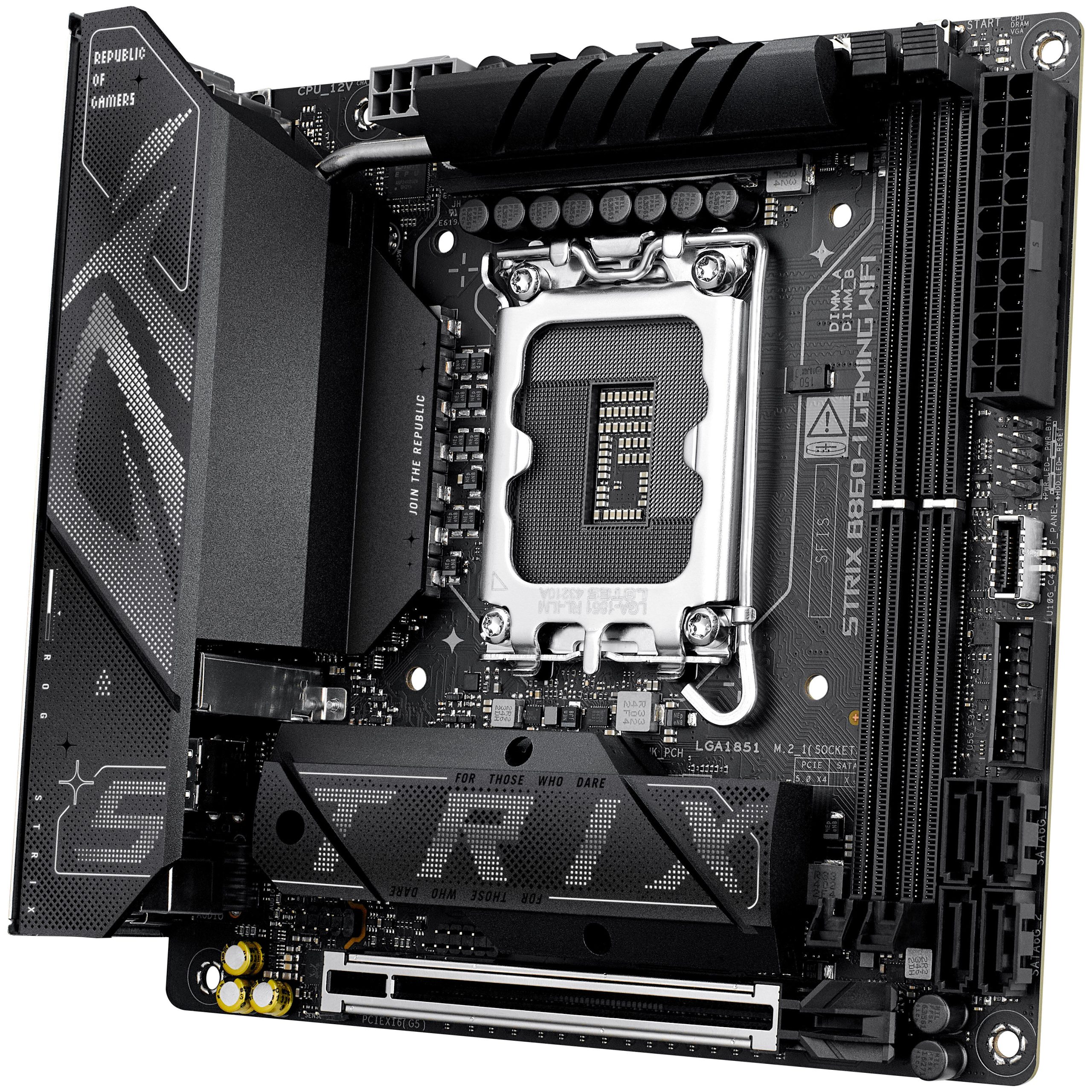

ASUS ROG Strix B860-I Gaming WiFi motherboard, socket LGA 1851, Intel B860, Mini-ITX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16)
– RAM: 2x DIMM slots for up to 96 GB DDR5 RAM up to 9066 MT/s
– Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
– USB: 1x Thunderbolt 4, 1x USB-C 3.2, 1x USB 3.1, 3x USB 3.0, and 2x USB 2.0
– Cooling: 3x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 7 and Bluetooth 5.4

ASUS ROG Strix B860-I Gaming WiFi: Mini-ITX motherboard with Intel LGA 1851 socket and B860 chipset
The ASUS ROG Strix B860-I Gaming WiFi is a Mini-ITX motherboard with The mid-range Intel B860 chipset and the Intel LGA 1851 socket support Intels Arrow Lake processors, making it ideal for gamers who dont need to overclock their CPUs.

The B680 motherboards also support USB 4, which enables very fast data transfer rates of up to 40 Gbps. The ASUS ROG Strix B860-I Gaming WiFi also offers PCIe 5.0 for graphics cards and M.2 SSDs, but lacks lane splitting for the GPU expansion slot. The DDR5 memory is overclockable, allowing you to get the most out of your RAM.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 170 mm
– Width
– 170 mm
– Form Factor
– Motherboard Form Factor
– Mini-ITX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
 -96 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (OC)
– 9066 MT/s
– ECC Support
– Yes
– Memory Slots
– 2x
– Performance Profile
 -Intel XMP 3.0
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbit/s
– WLAN / Bluetooth
– Yes
– WLAN Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– CPU Power
– 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 1
– USB 2.0 (internal) possible ports
– 2
– RGB / LED ports
– 2x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes

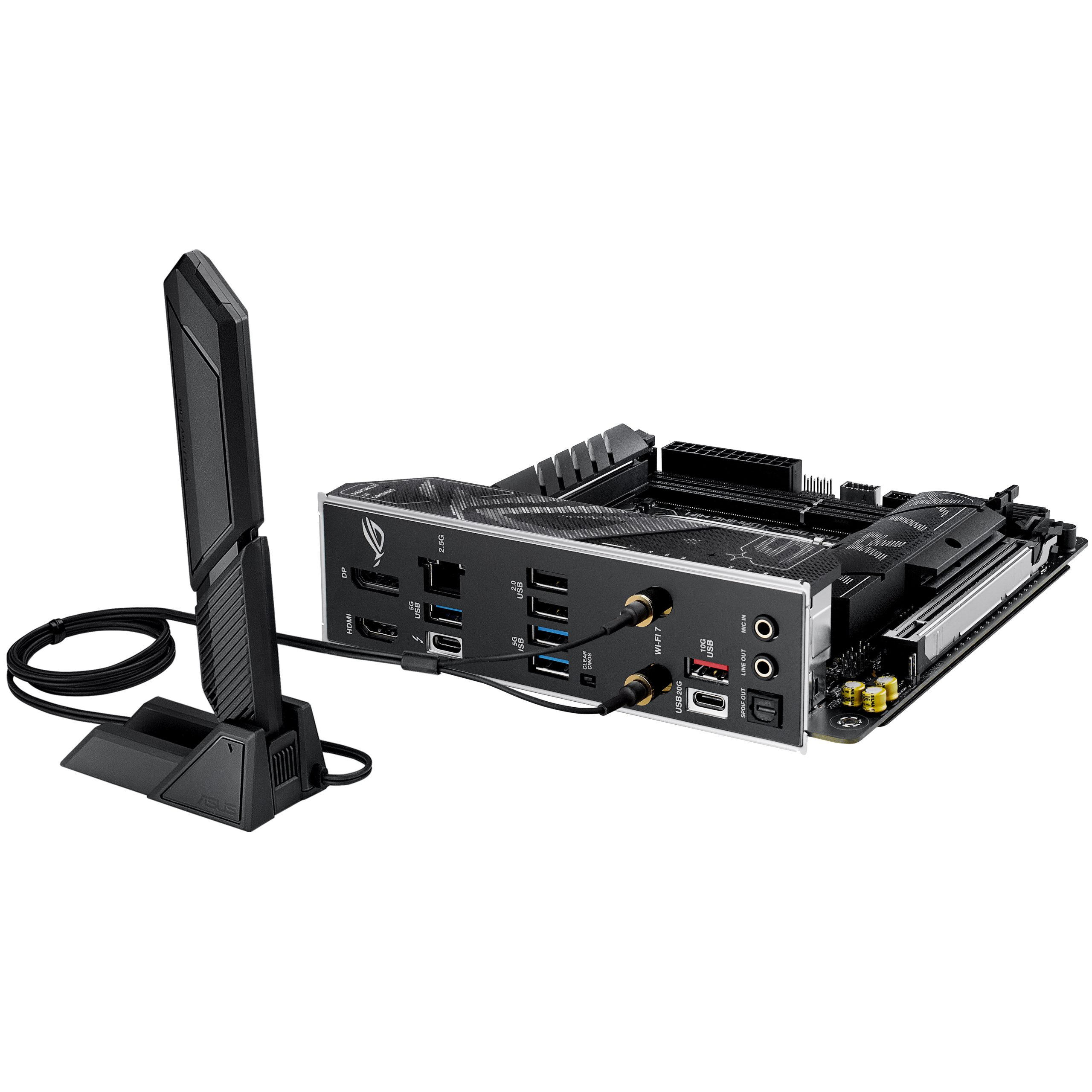

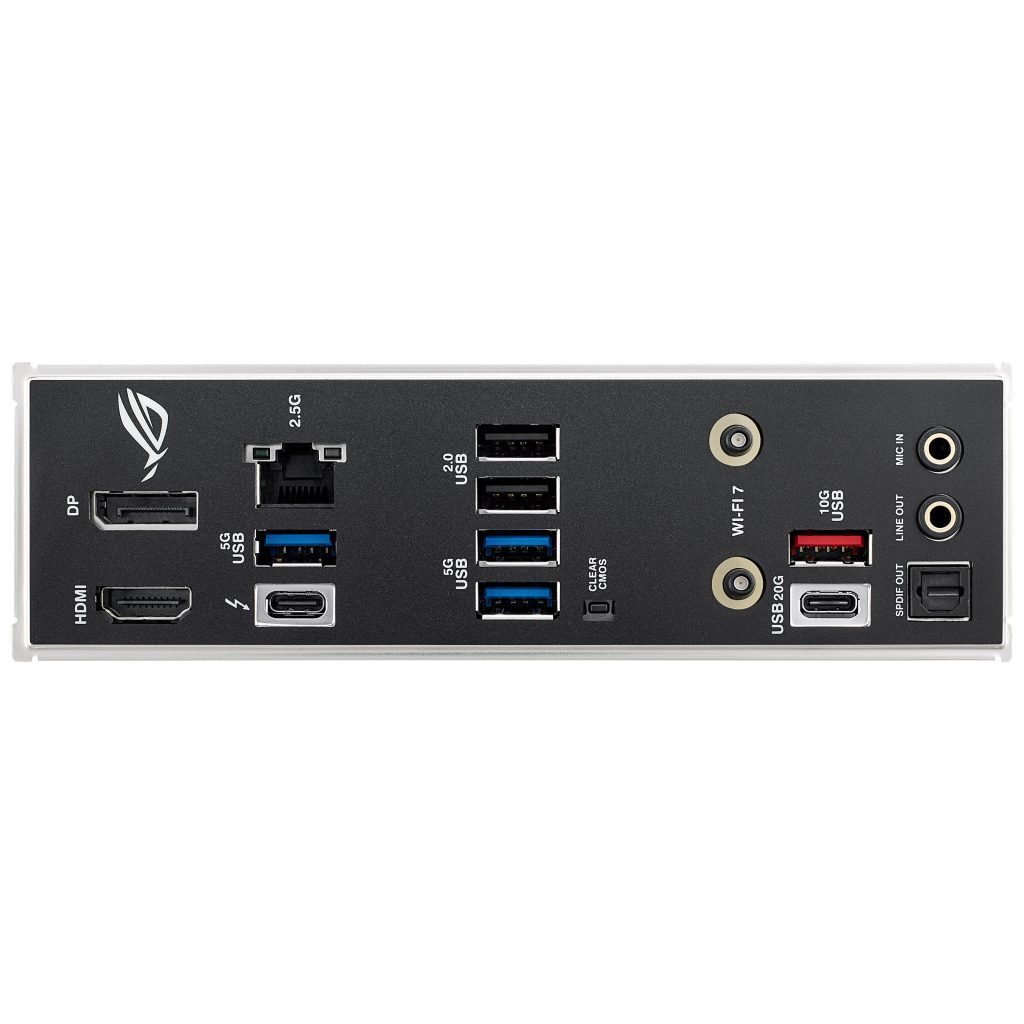

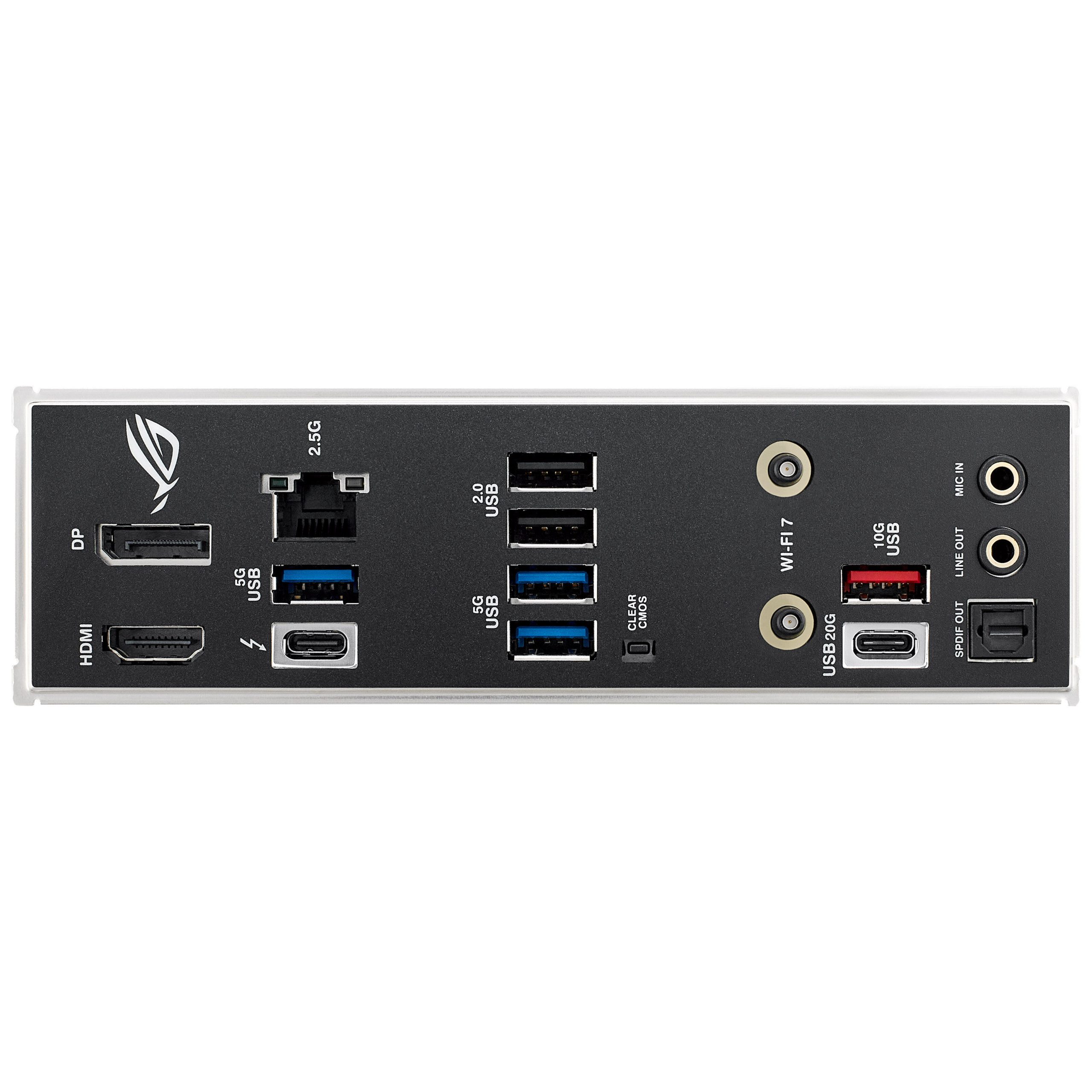

– External Connectors
– USB 4 Gen 3×2 (external) Type-C
– 1
– USB 3.2 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 1
– USB 3.0 (external) Type-C A
– 3
– USB 2.0 (external) Type A
– 2
– Display connectors
– Display port (1x), HDMI (1x)
