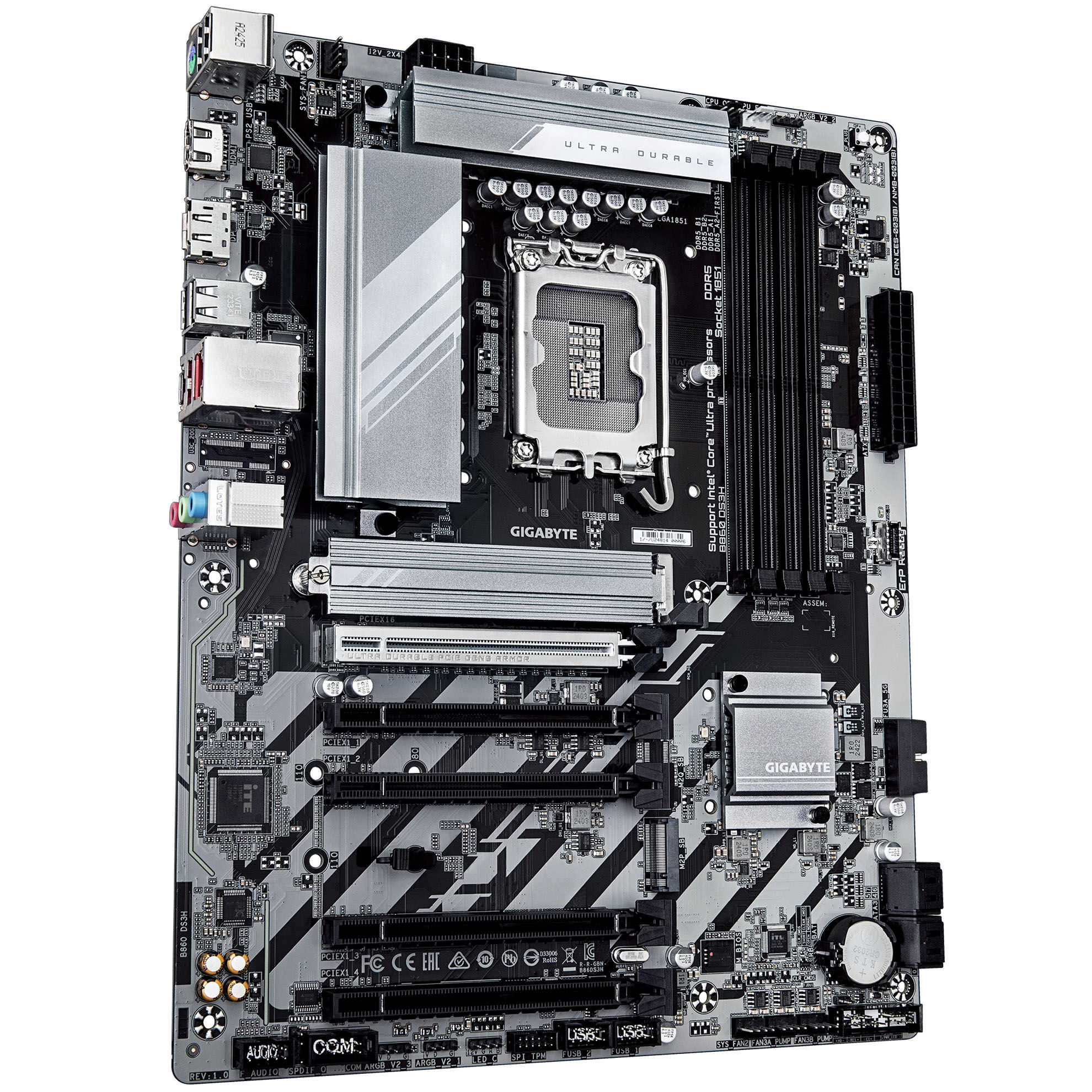

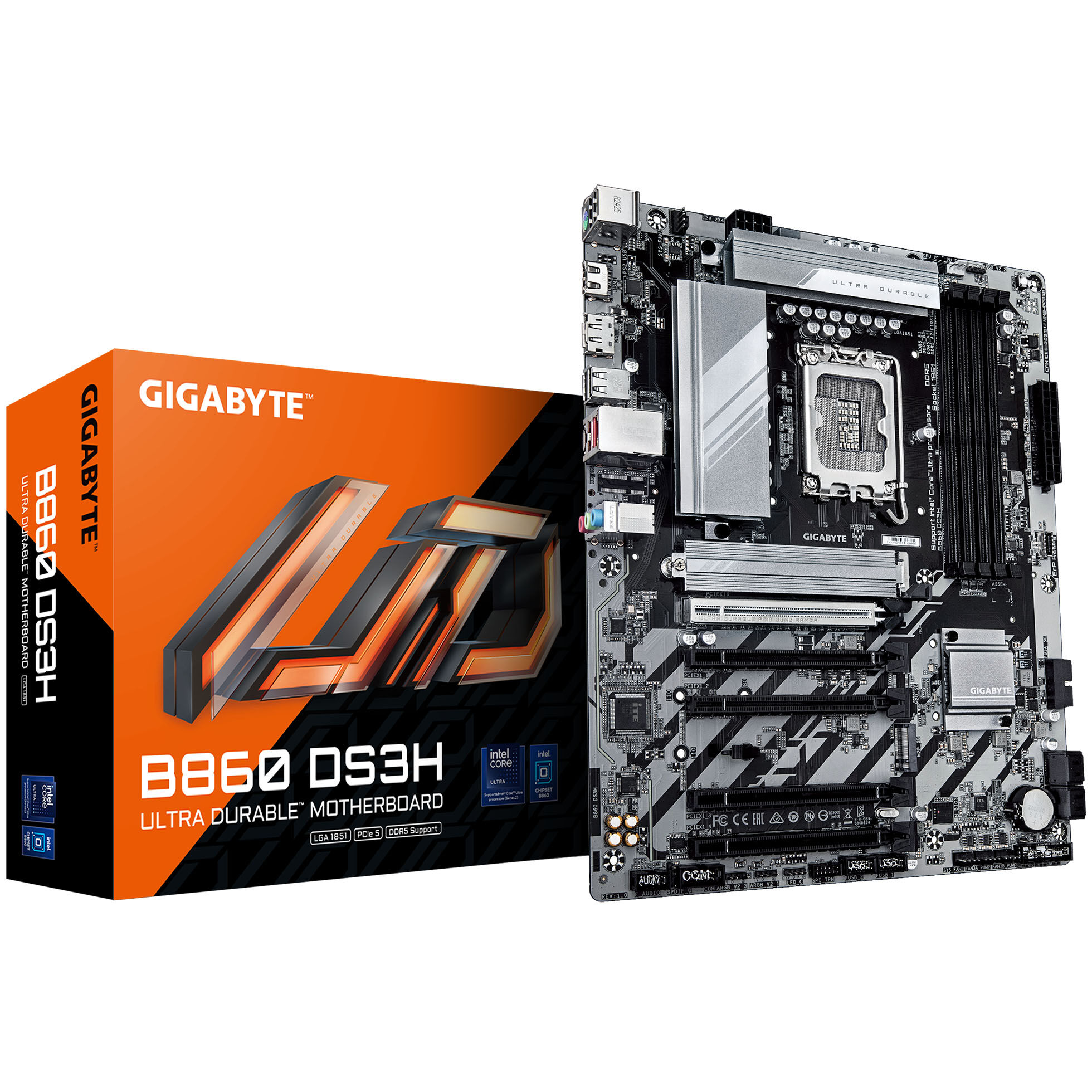

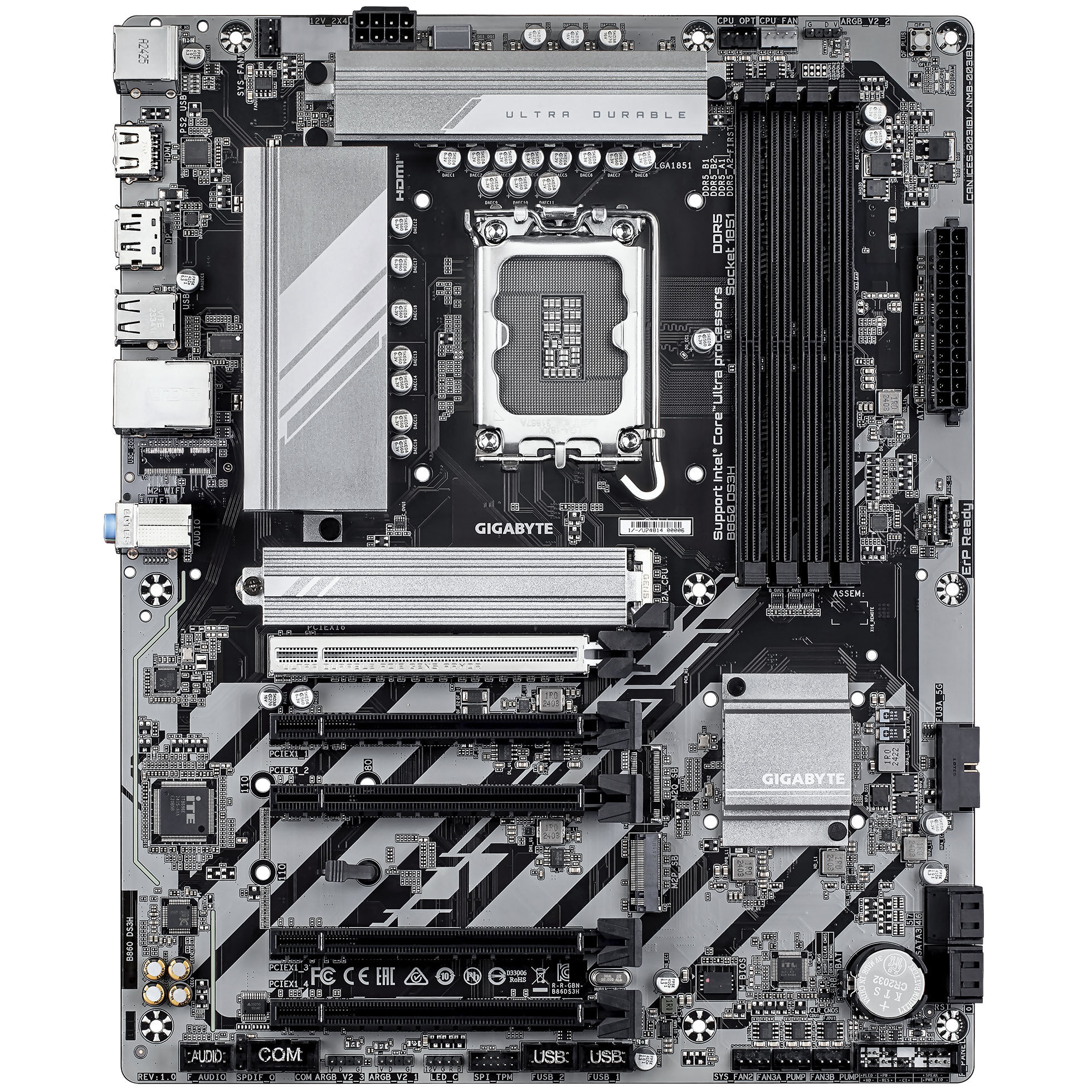

Gigabyte B860 DS3H motherboard, socket LGA 1851, Intel B860, ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 4x PCIe 4.0 x16 (x1)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 9066 MT/s
– Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
– USB: 1x USB-C 3.2, 1x USB 3.1, and 4x USB 2.0
– Cooling: 6x 4-pin PWM connectors for fans and radiators

GIGABYTE B860 DS3H: ATX motherboard with Intel LGA 1851 socket and B860 chipset
The GIGABYTE B860 DS3H is an ATX motherboard with the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intels Arrow Lake processor generation and is suitable for gamers who dont need to overclock their CPU.

The GIGABYTE B860 DS3H also offers PCIe 5.0 for graphics cards and M.2 SSDs. The DDR5 memory is overclockable, allowing you to get the most out of your RAM.

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Silver
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 9066 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– Intel XMP
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– WLAN / Bluetooth
– No
– Cooling
– Backplate
– Yes
– M.2 Heatsink
– Yes
– VRM Heatsink
– Yes
– Internal Ports
– CPU Power
– 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Ports
– 1
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) Possible Ports
– 2
– USB 2.0 (internal) Header
– 2
– USB 2.0 (internal) Possible Ports
– 4
– RGB / LED Ports
– 1x RGB (4-pin 5050 12VGRB), 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes

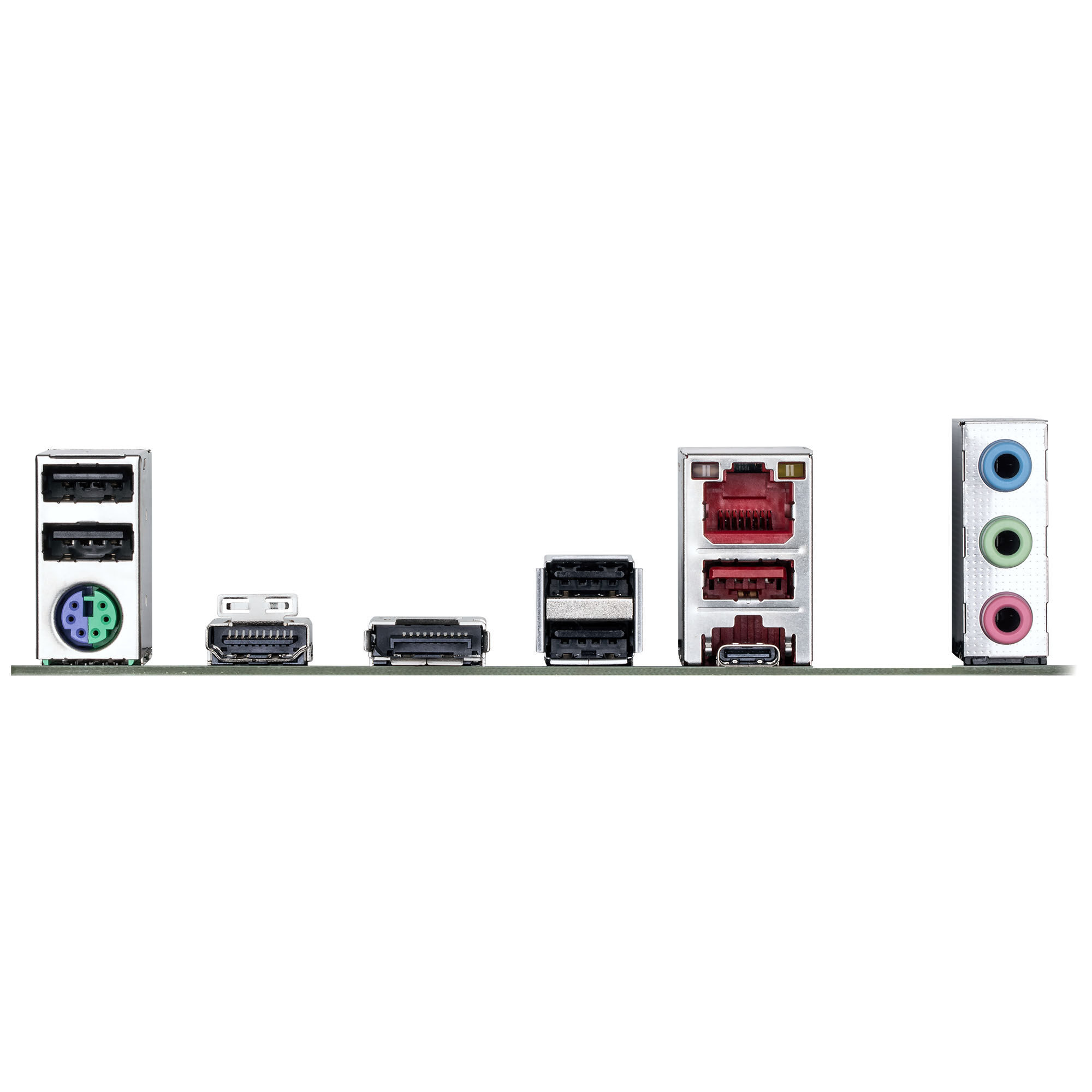

– External Ports
– USB 3.2 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 1
– USB 2.0 (external) Type-A
– 4
– Display Ports
– Display Port (1x), HDMI (1x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 1
– M.2 PCIe 5.0 x4
– 1
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x1 Slots (total)
– 4
– PCIe 5.0 x16 (mechanical)
– 1
– PCIe 4.0 x16 (mechanical)
– 4
– Fan Headers
– 4-pin Fan Connectors
– 6
– Lighting
– Lighting / RGB
– Yes
