ASUS ProArt Z890-Creator WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for high-end builds and content creators.

– 2x PCIe 5.0 x16 (x16 or x8 / x8) and 1x PCIe 4.0 x4
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 9066 MHz (XMP 3.0 & CUDIMM support)
– 5x M.2 (including 1x PCIe 5.0, 3x PCIe 4.0, and 1x PCIe 4.0 / SATA) / 4x SATA 6G
– USB on the I/O panel: 2x USB-C TB5, 1x USB-C TB4, 6x USB 3.1, and 1x USB 2.0
– OC features: 21-phase VRMs, CMOS reset, Digi+ VRM
– Total of 8x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

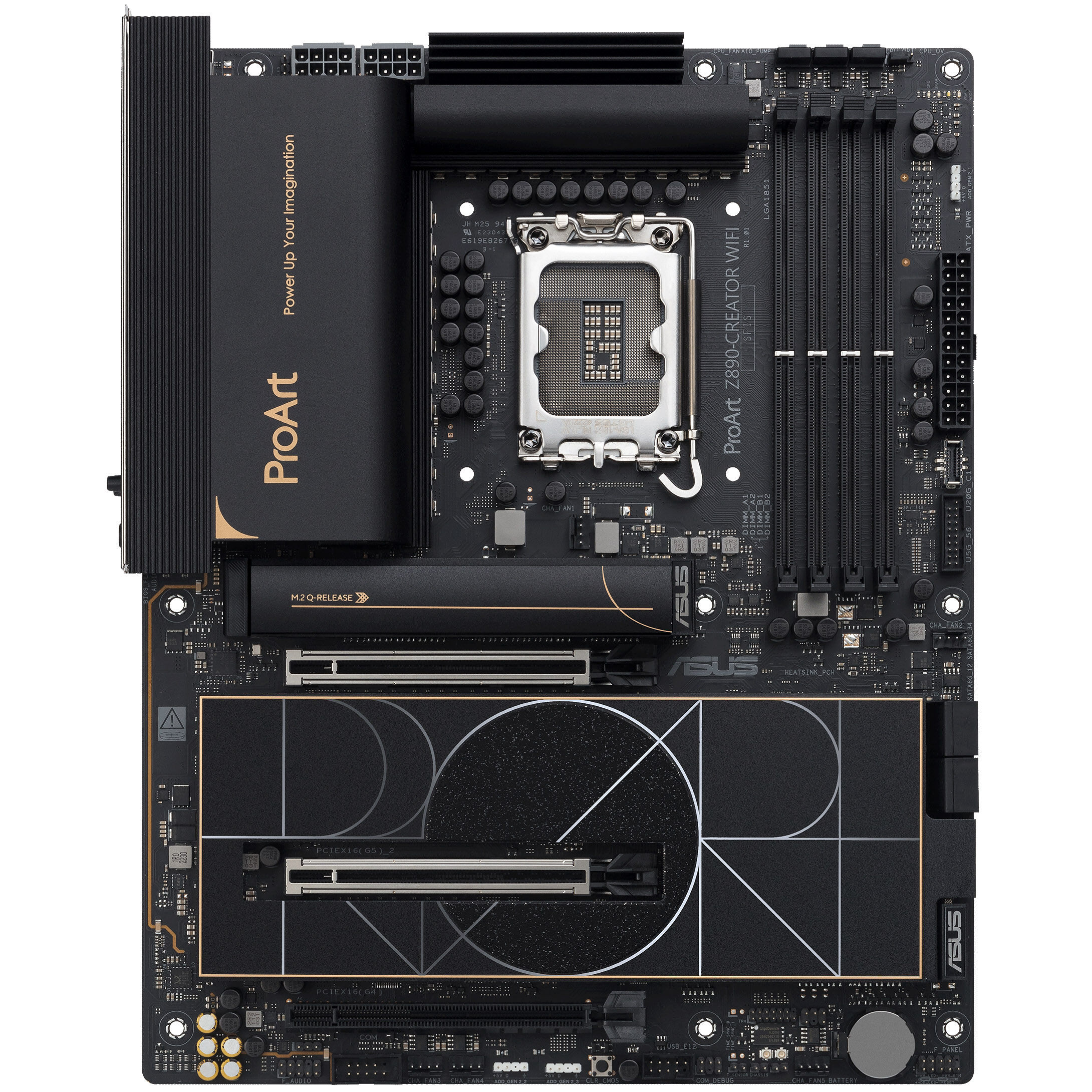

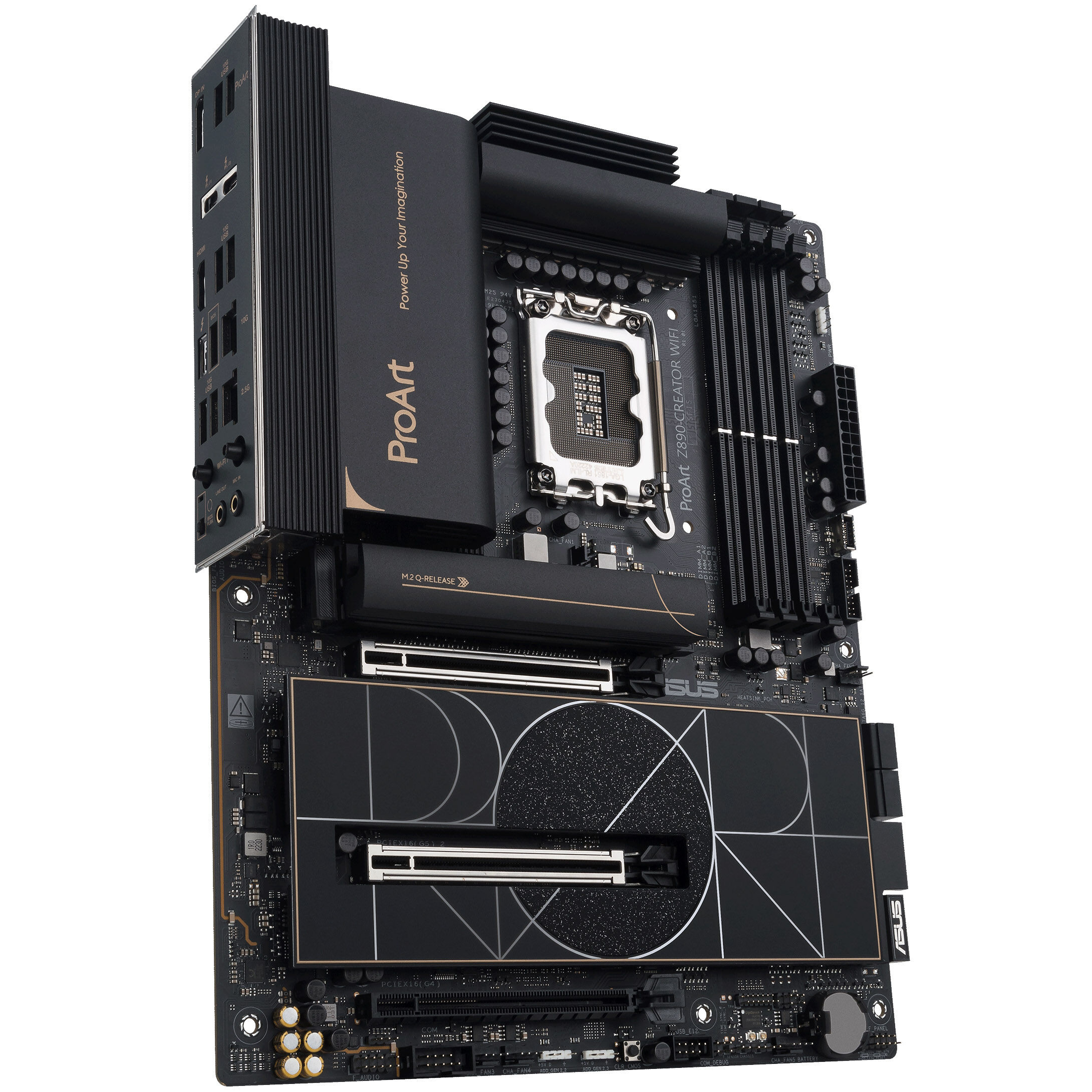

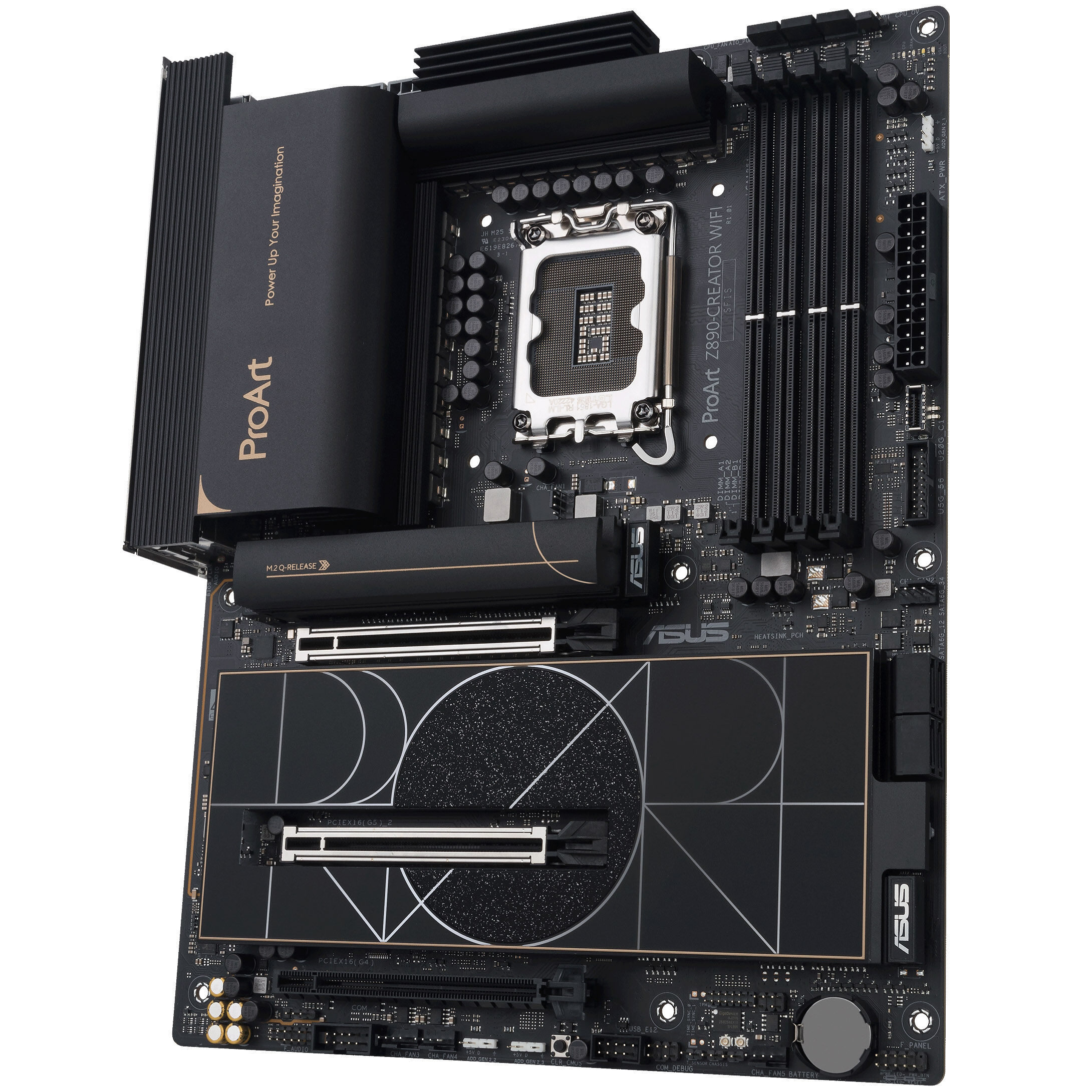

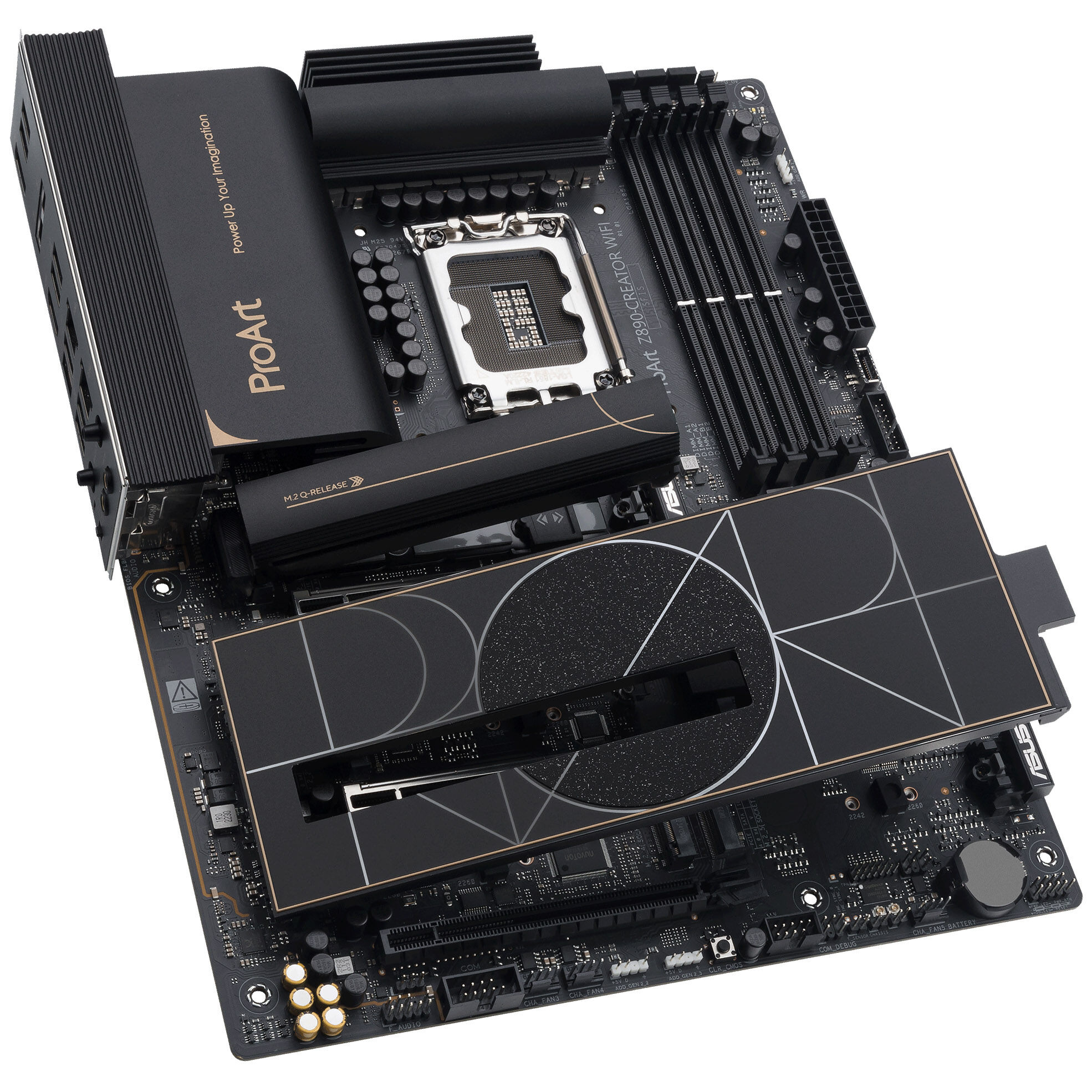

ASUS ProArt Z890-Creator WiFi motherboard: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS ProArt Z890-Creator WiFi motherboard is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS ProArt Z890-Creator WiFi motherboard boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

The motherboard is designed for overclocking, allowing you to efficiently handle even demanding projects. The 21-phase voltage converters provide 90 A of stable power to the CPU, ensuring its high clock speeds even over extended periods. There are also features like DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, so you can get your PC back up and running if something goes wrong. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (5600 MHz, up to 9066 MHz via XMP / OC / CUDIMM)
– Quad / Dual Channel
– Max. 192 GB
– Slots (Physical):
– 2x PCIe 5.0 x16 (electrical x16 or x8/x8)
– 1x PCIe 4.0 x16 (electrical x4)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, CPU)
– 2x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbit/s)
– 1x front panel audio header
– 1x 10-1-Pin System Panel Header
– 1x Clear CMOS button
– 1x COM port header
– 1x CPU overvoltage jumper
– 1x SPI TPM headers
– 1x chassis intrusion header
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU OPT fan (4-pin)
– 1x AIO_PUMP header (4-pin
– 1x 2-pin thermal sensor
– 5x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– Status displays:
– 4x Q-LED (diagnostic LEDs)

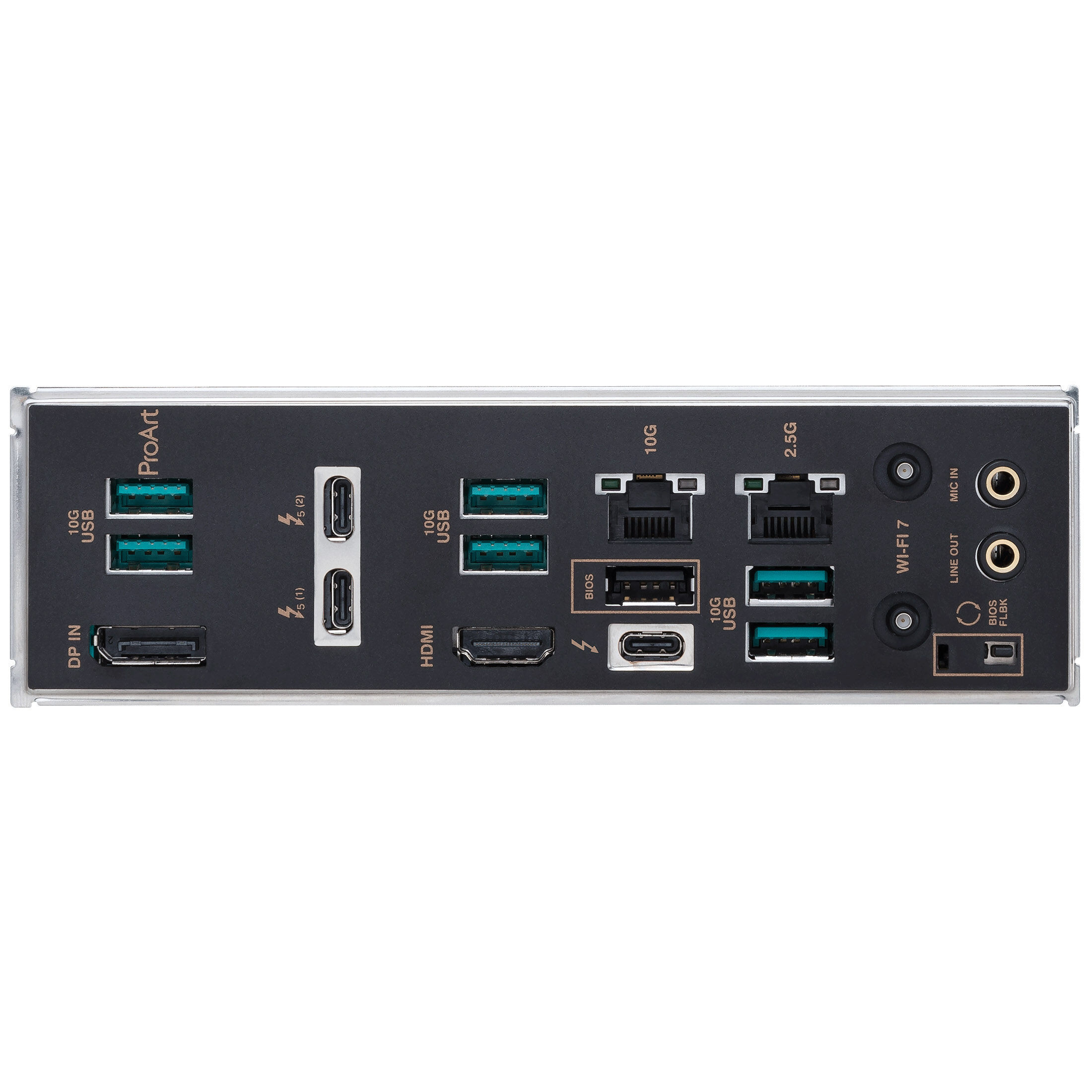

– External connections:
– 2x Thunderbolt 5 (USB-C)
– 1x Thunderbolt 4 (USB-C)
– 6x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort
 -1xHDMI
– 1x 10 Gigabit LAN (Marvell AQtion)
– 1x 2.5 Gigabit LAN (Intel)
– 1x WiFi/Bluetooth module
– 2x 3.5 mm jack (Realtek ALC1220P)
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX12V

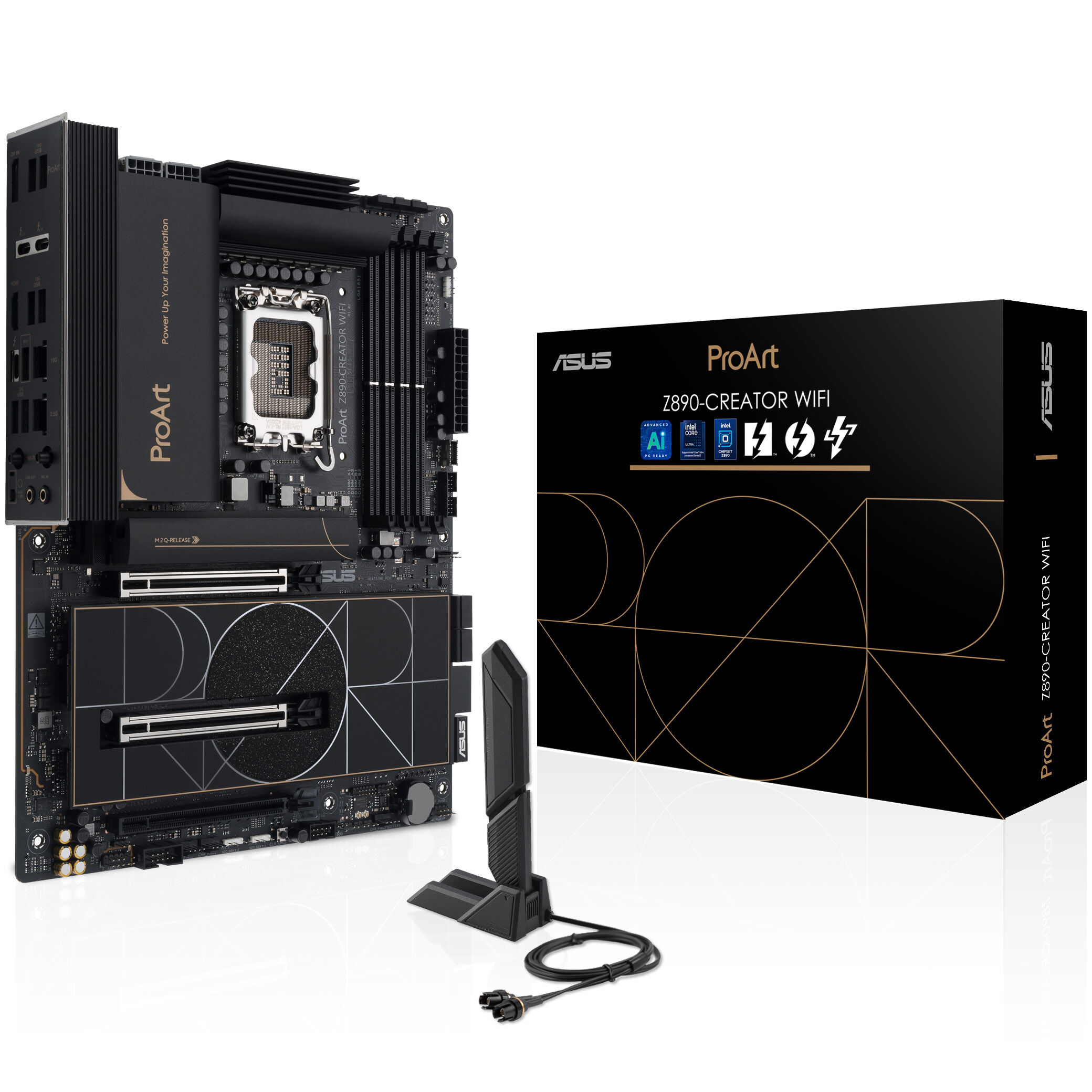

– Accessories:
– 2x SATA 6G cables

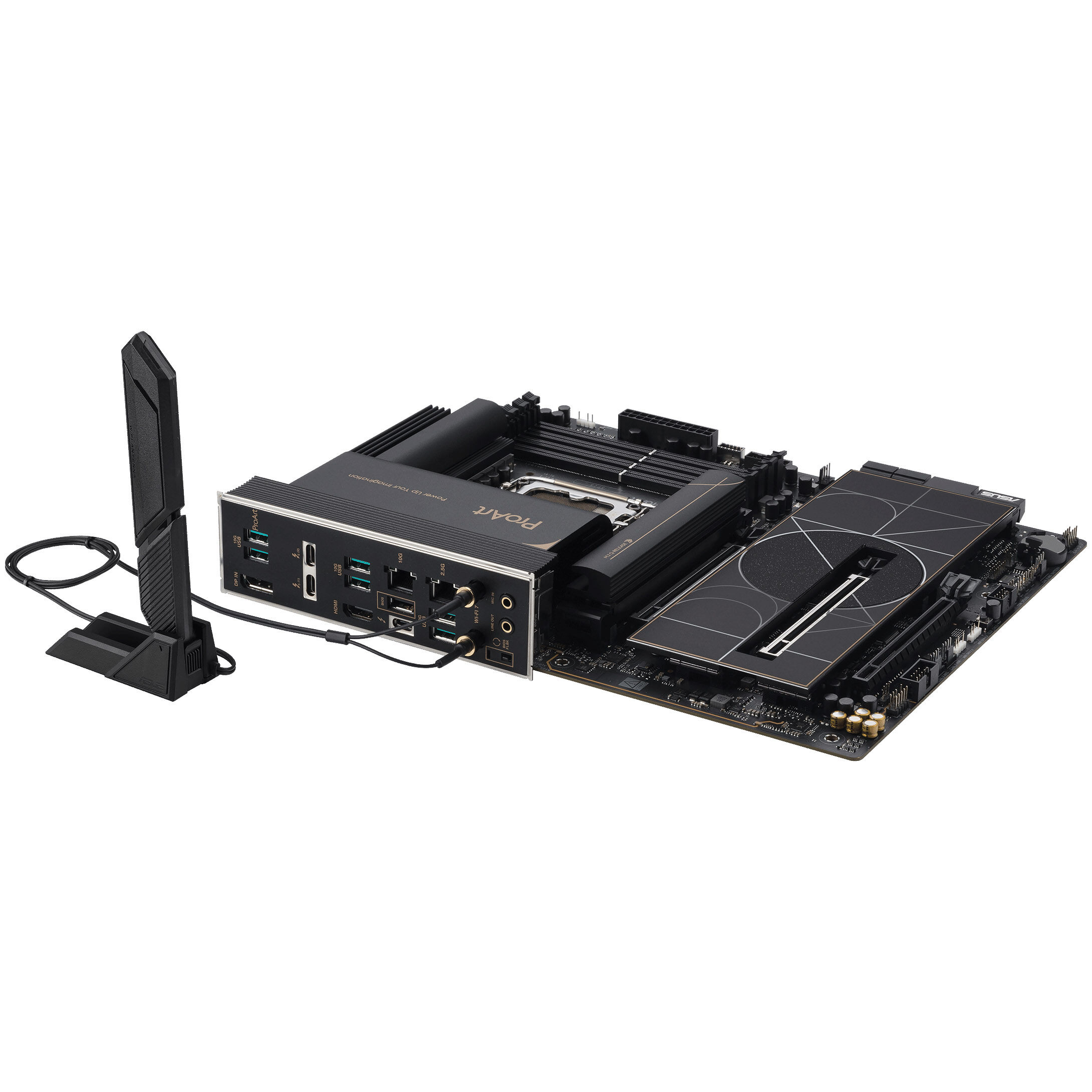

– 1x ASUS WiFi Q antenna
– 1x Q connector
– 2x M.2 accessory kit
– 1x ProArt accessory bag
– 1x ACC activation card
– Instruction manual
