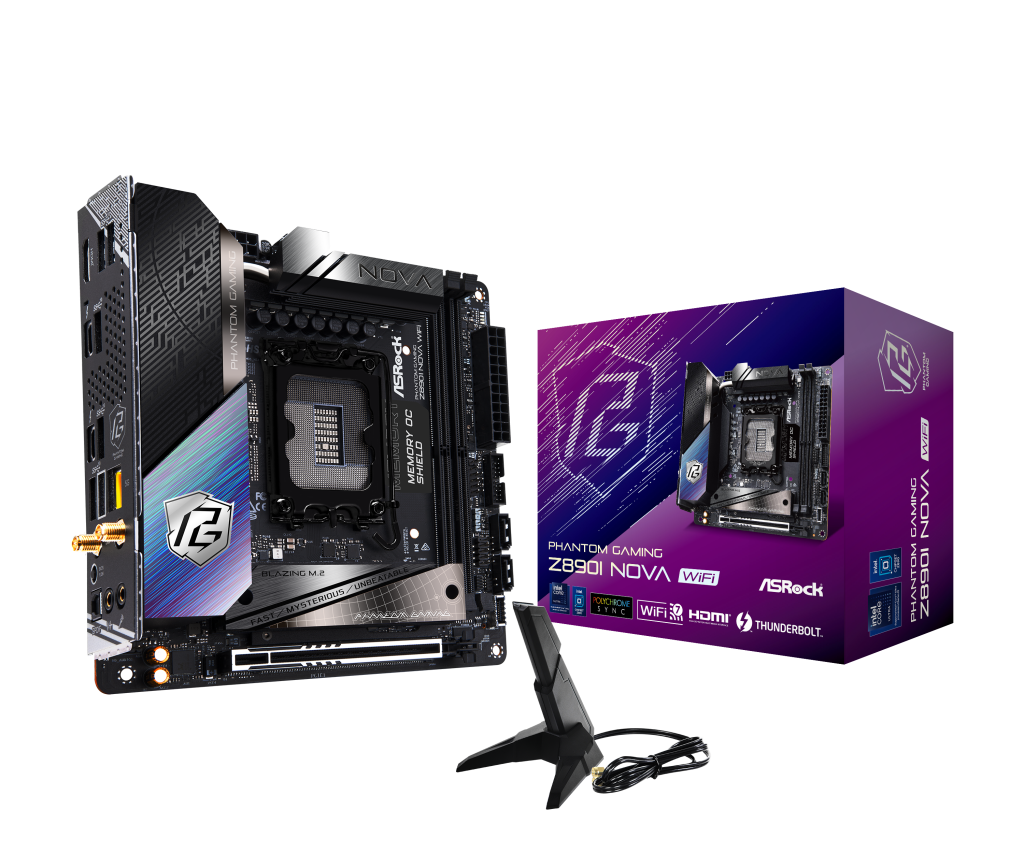

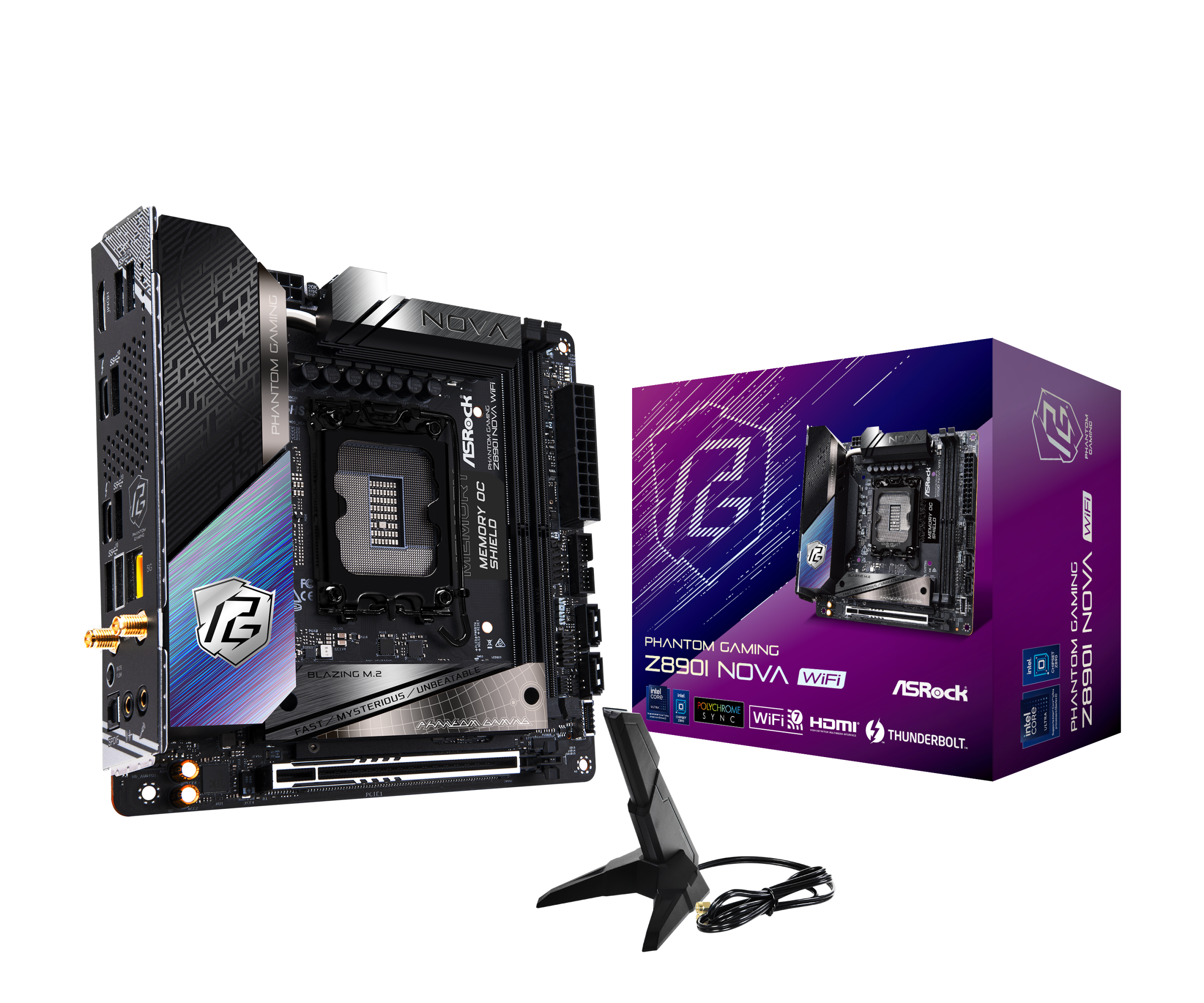

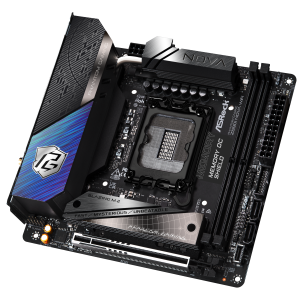

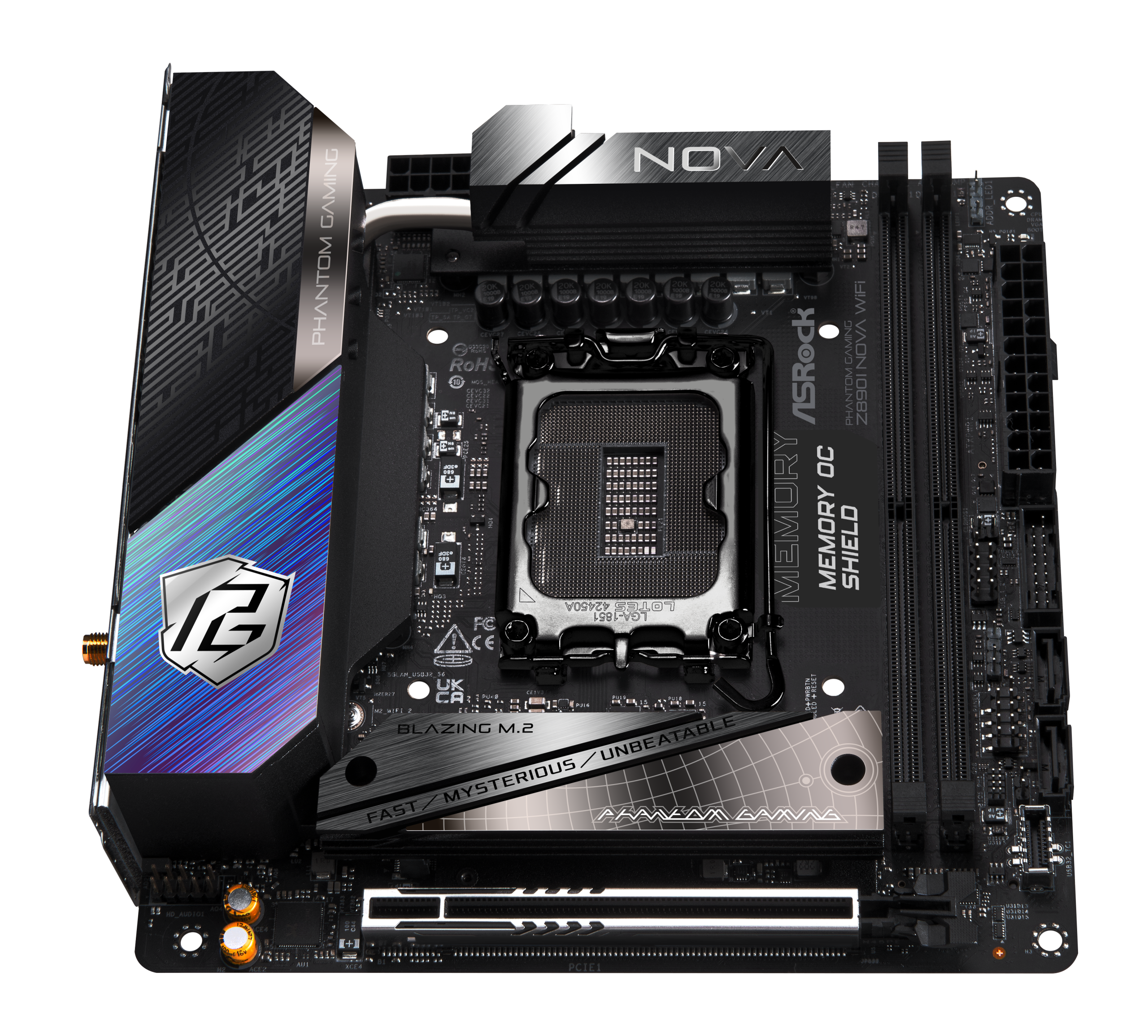

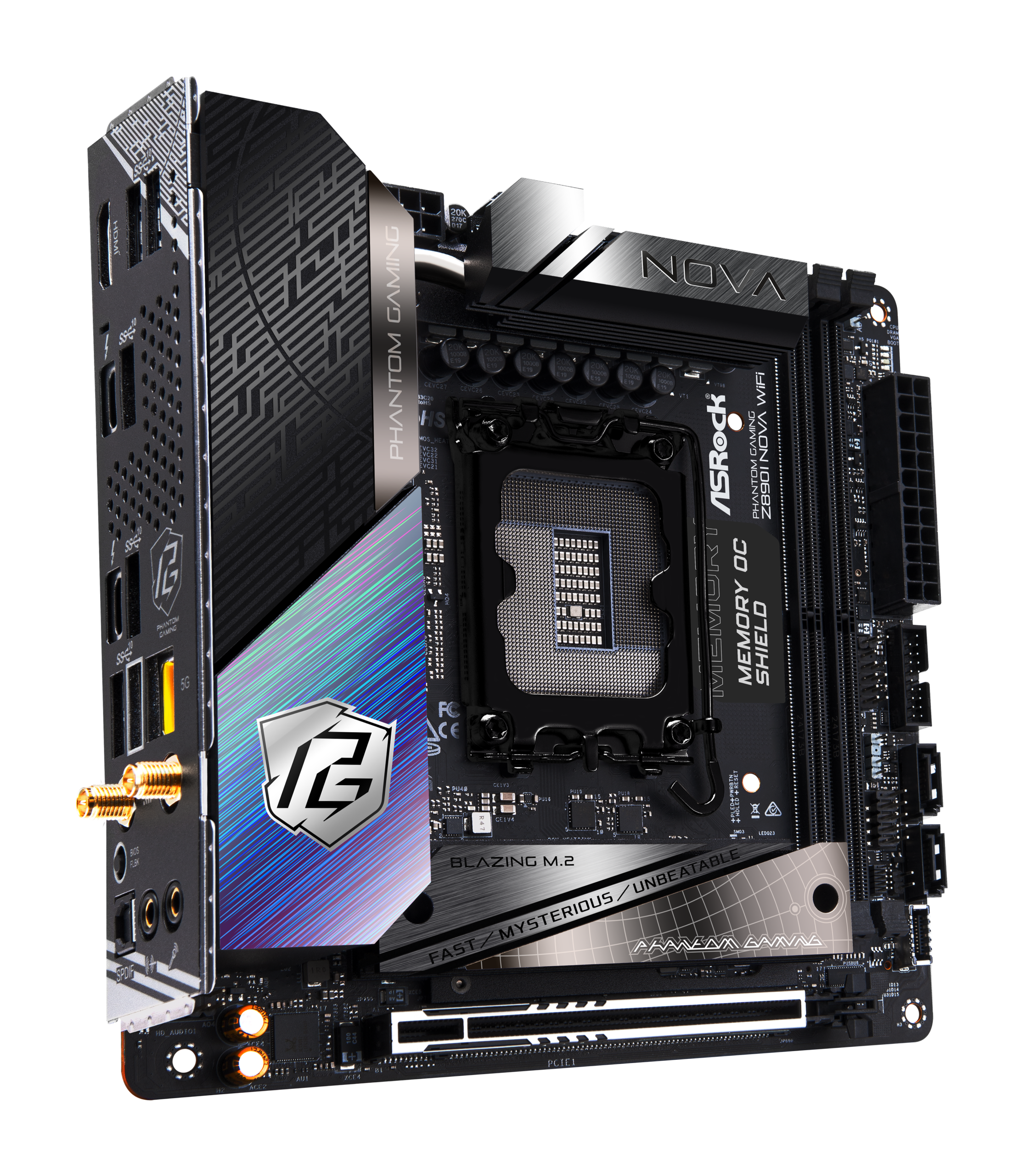

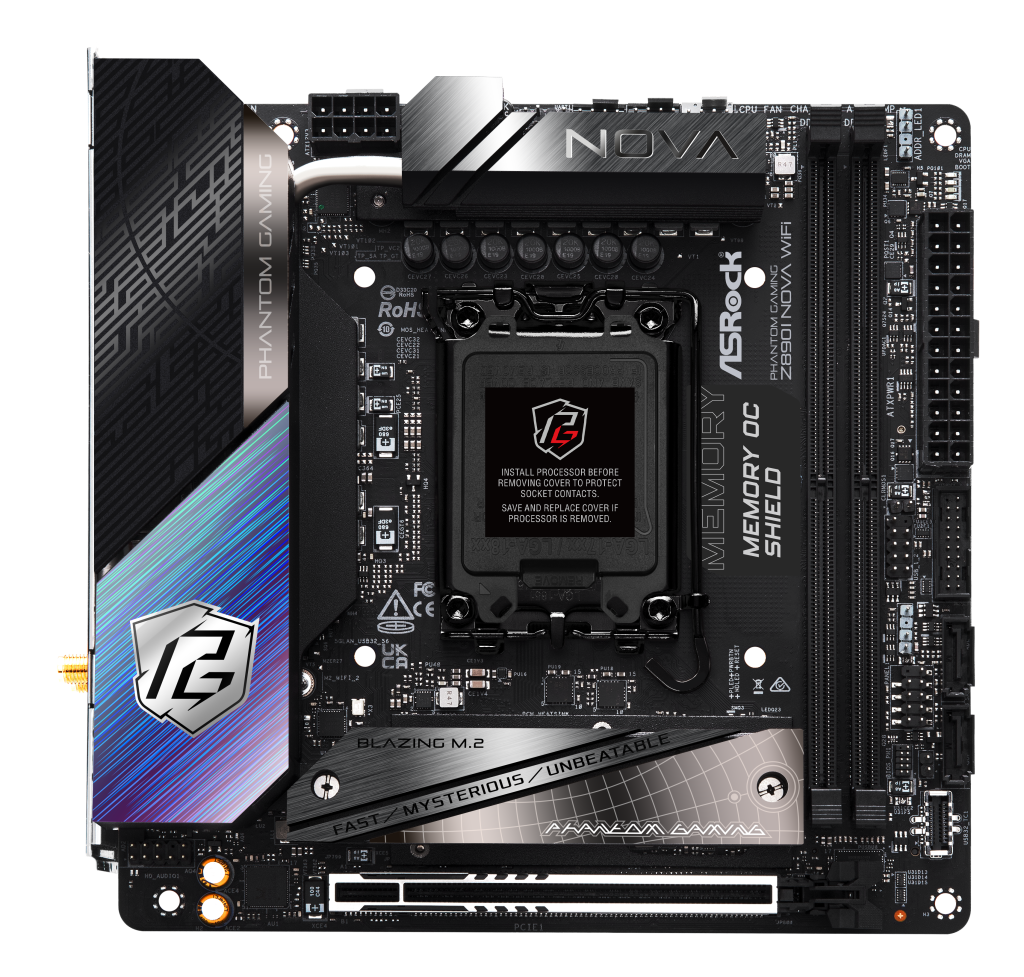

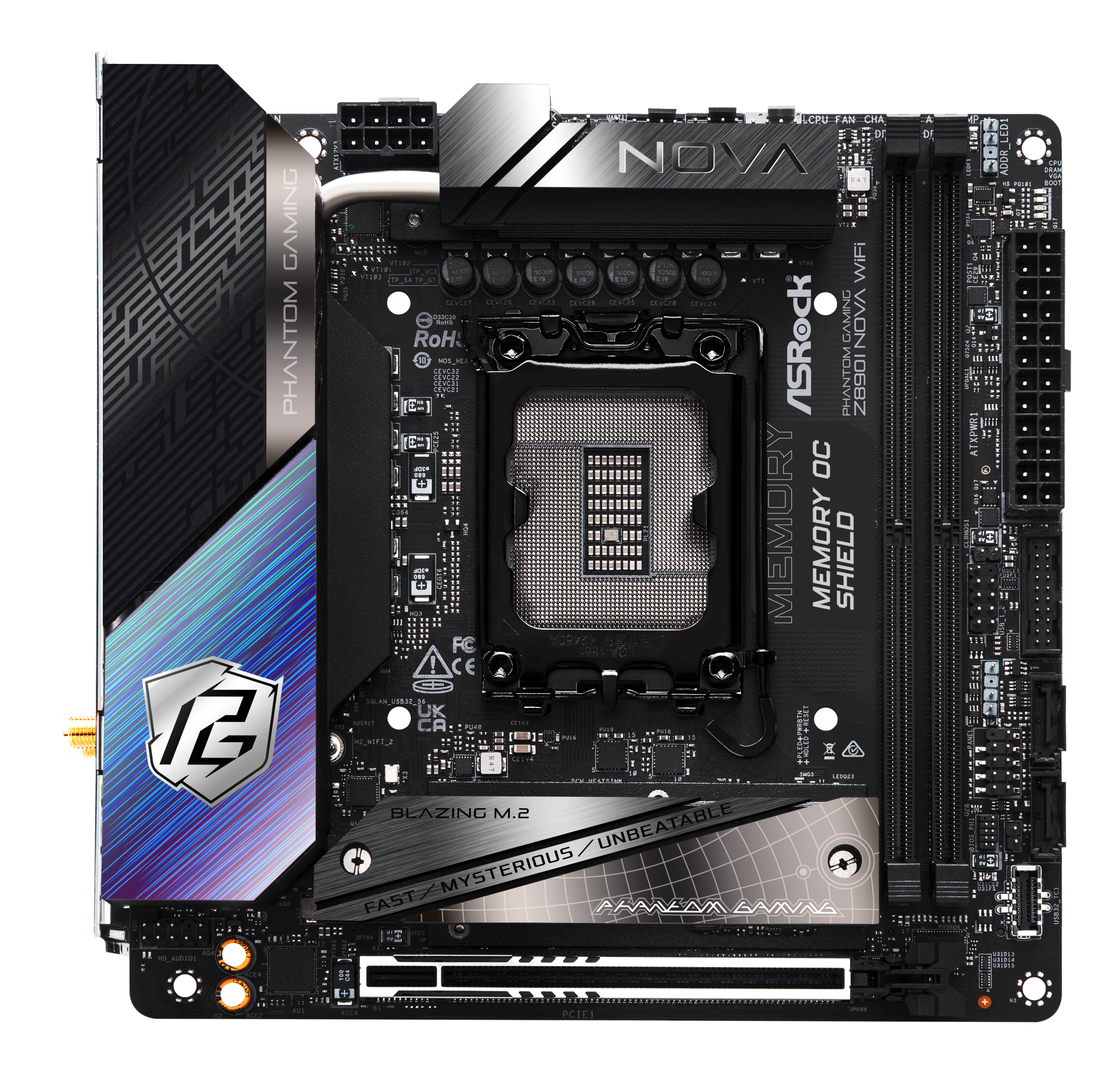

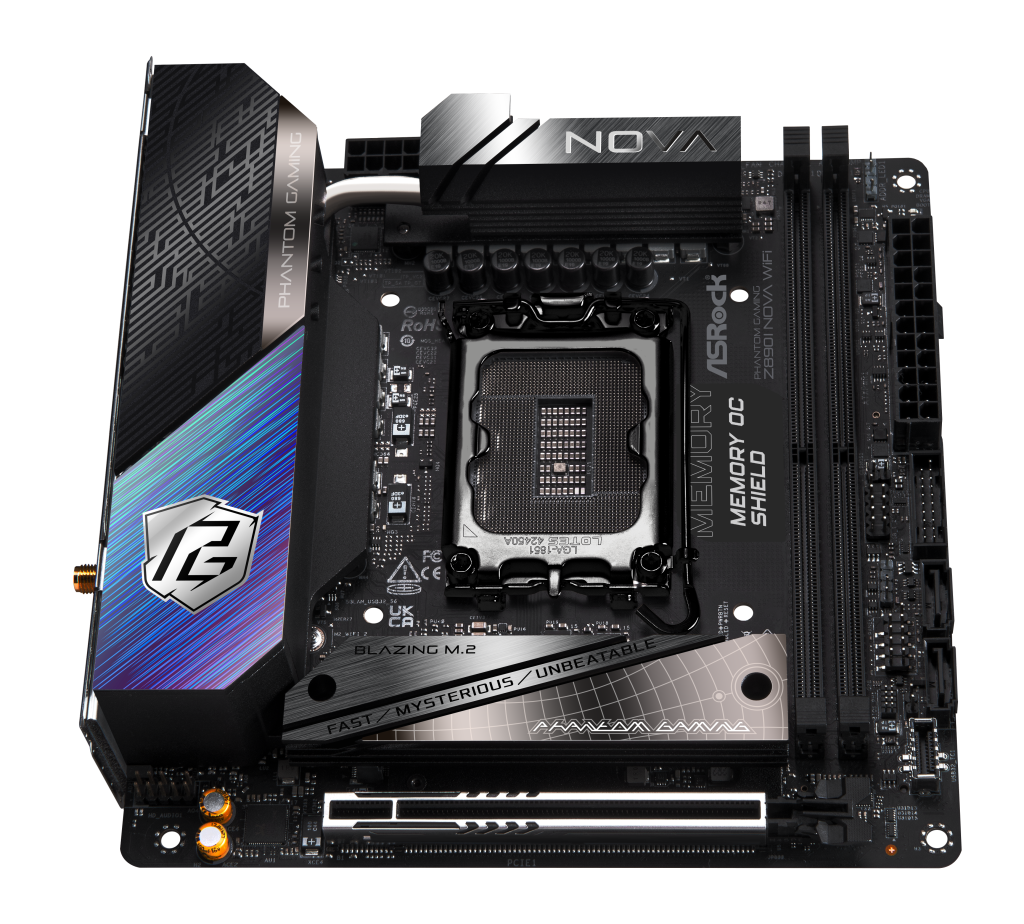

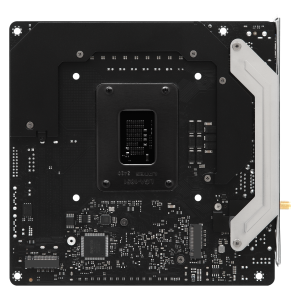

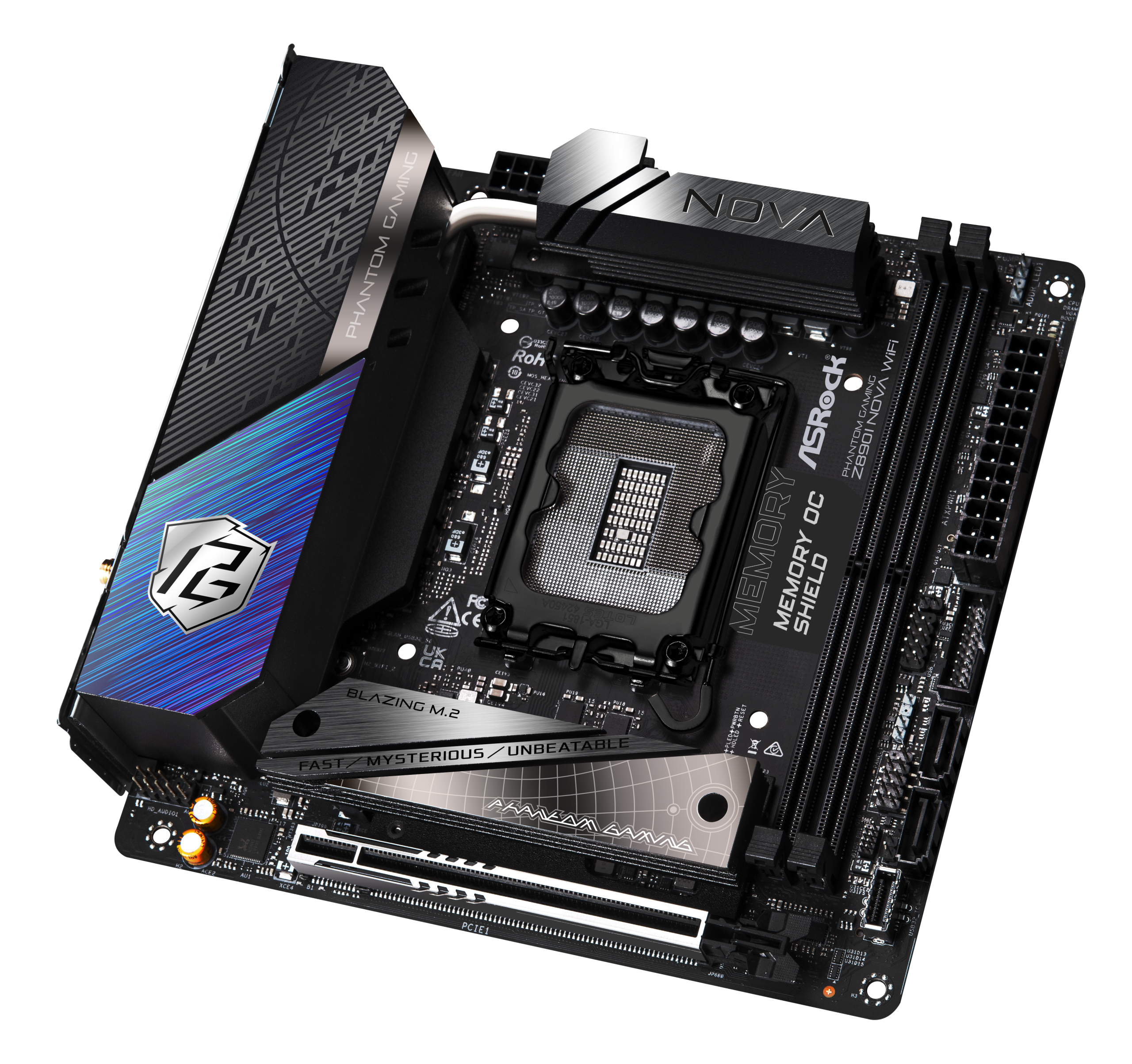

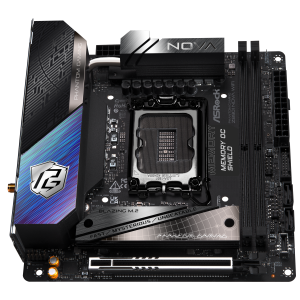

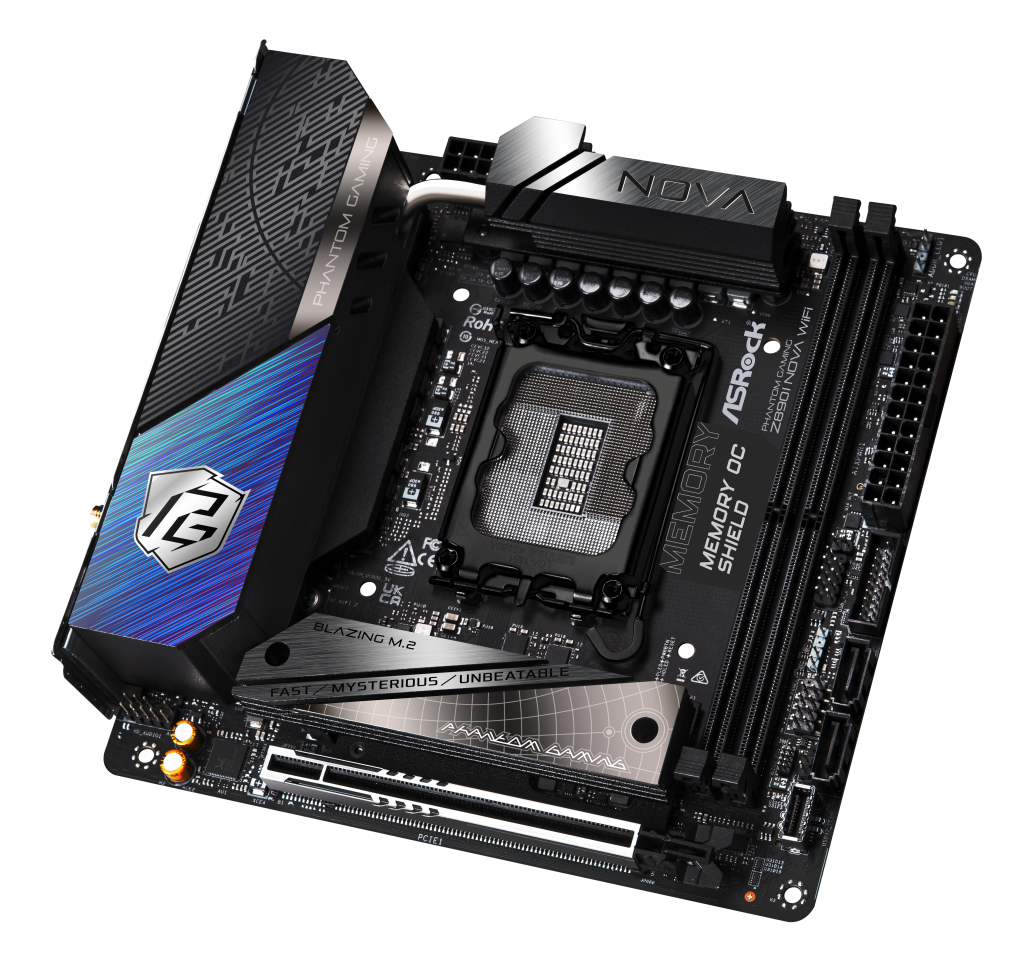

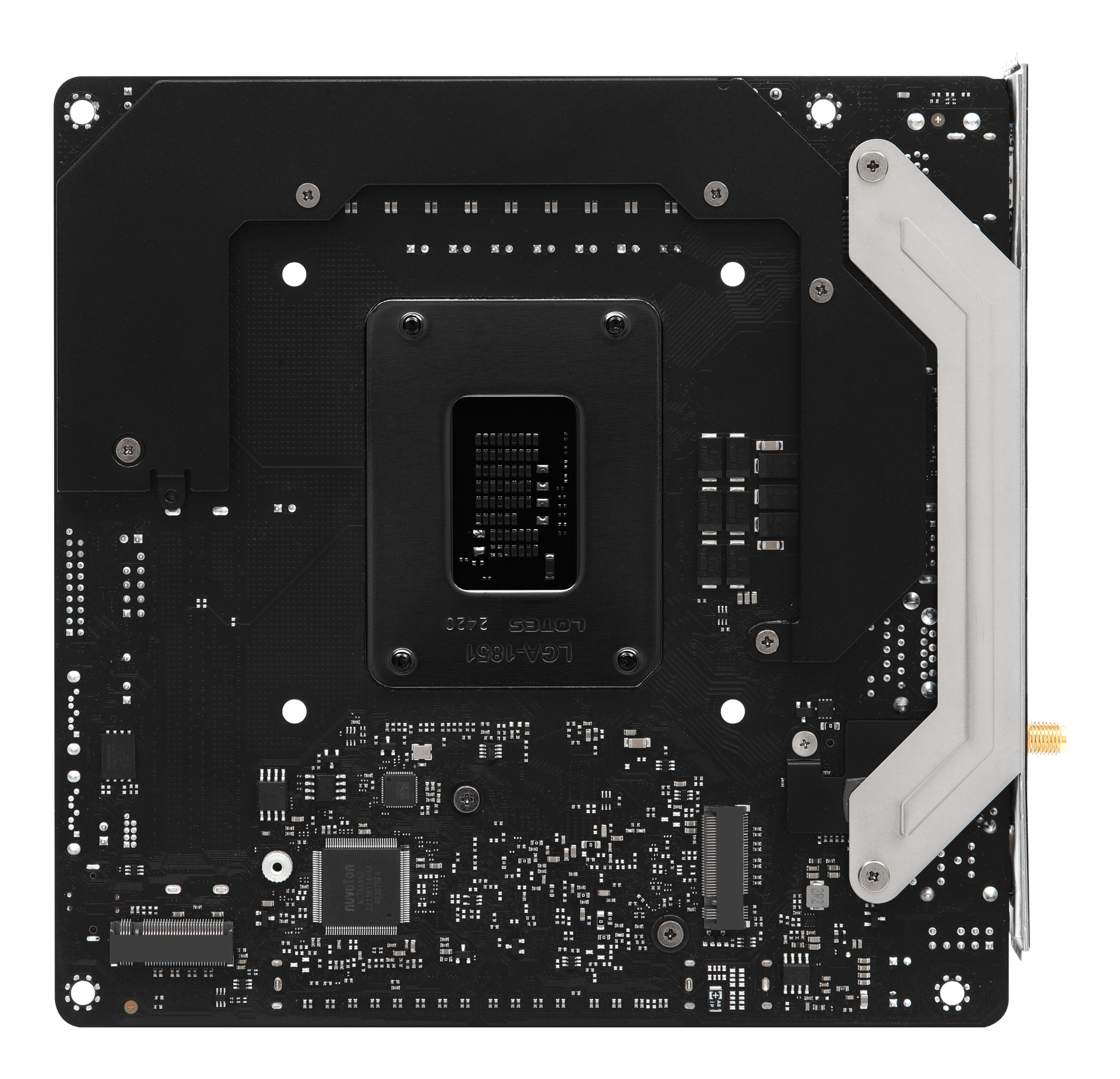

ASRock Z890I NOVA WiFi motherboard, socket LGA 1851, Intel Z890, Mini-ITX, DDR5

This motherboard is ideal for budget-conscious gamers.

– 1x PCIe 5.0 x16 (x16)
– 2x DIMM slots for up to 128 GB DDR5 RAM up to 9466 MHz
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 2x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 4 and 6x USB 3.1
– A total of 3x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

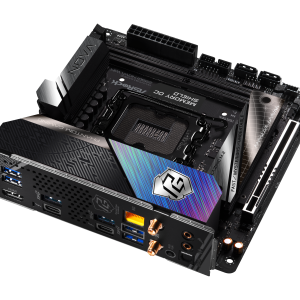

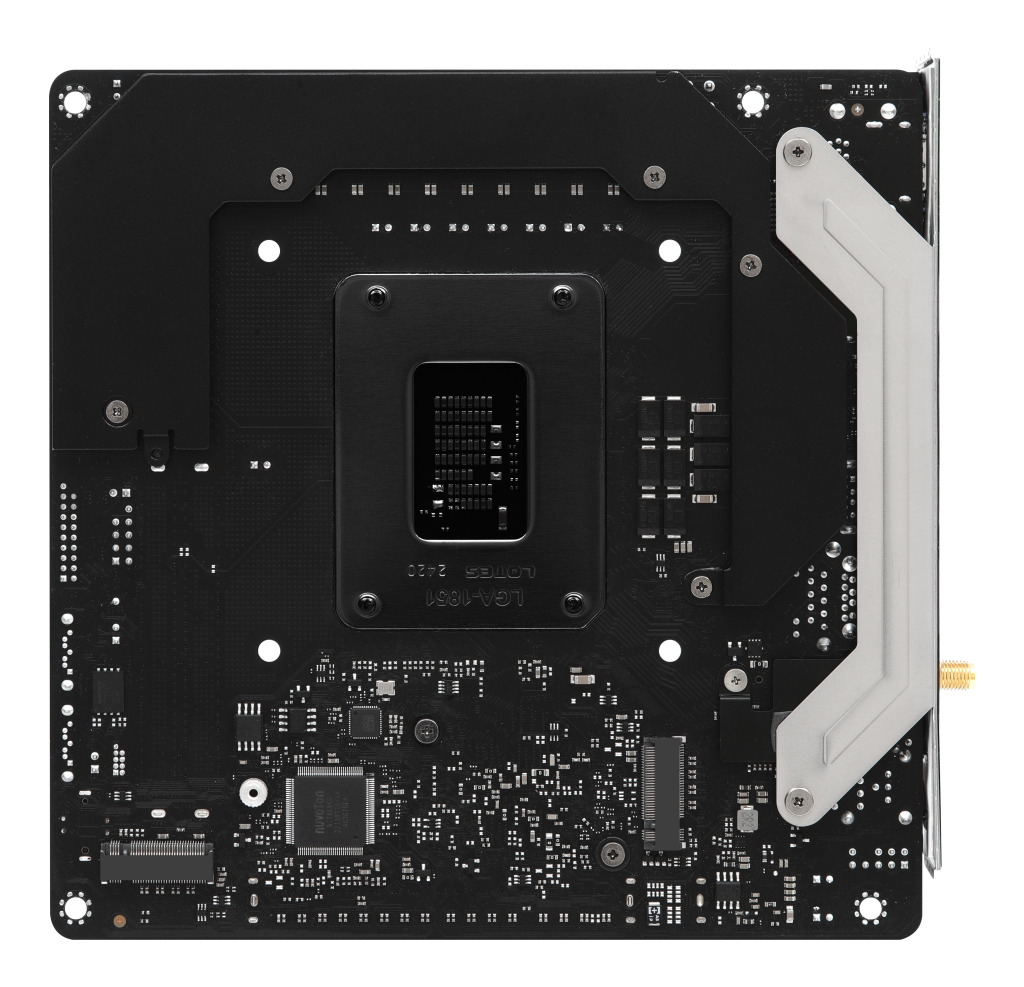

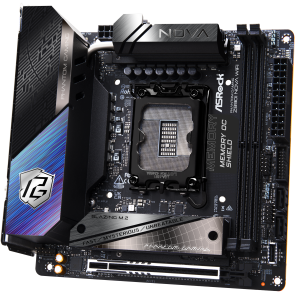

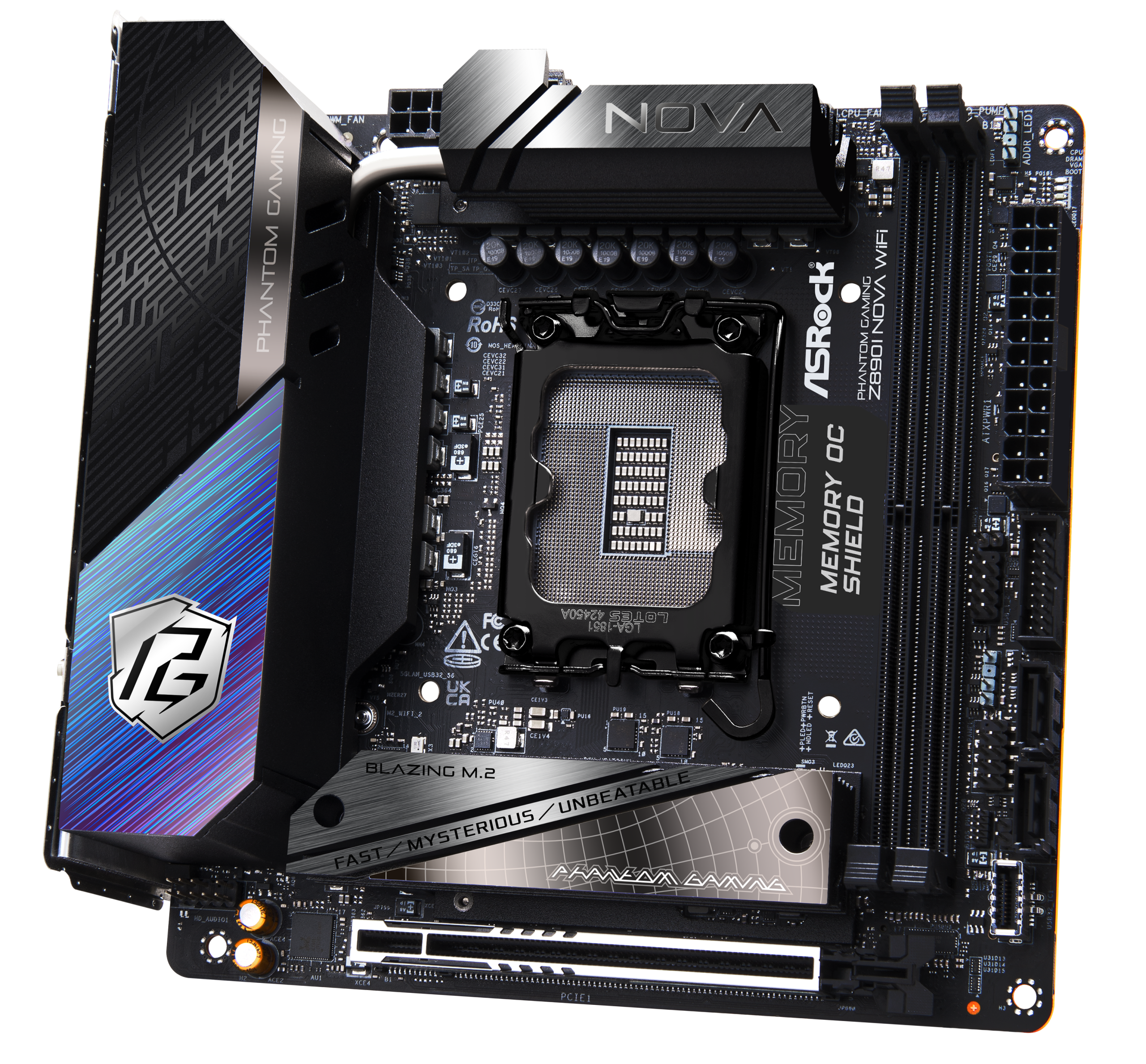

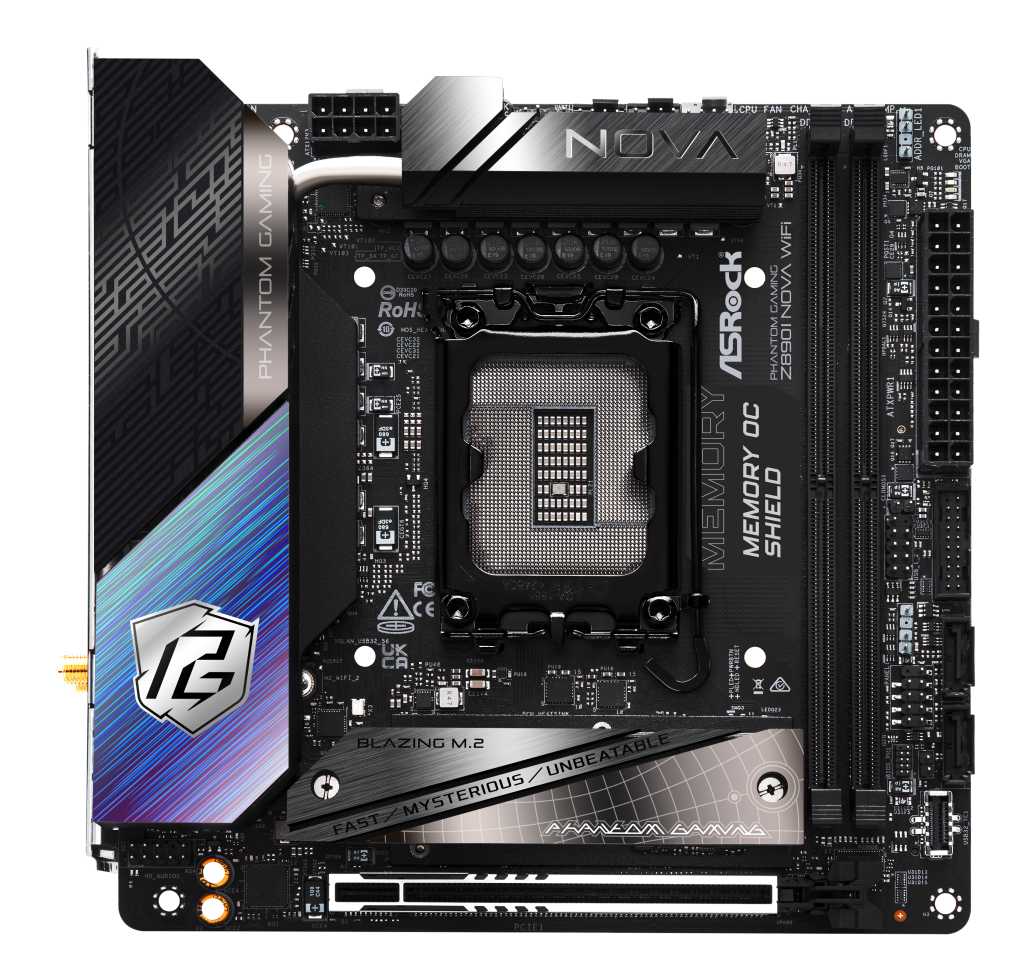

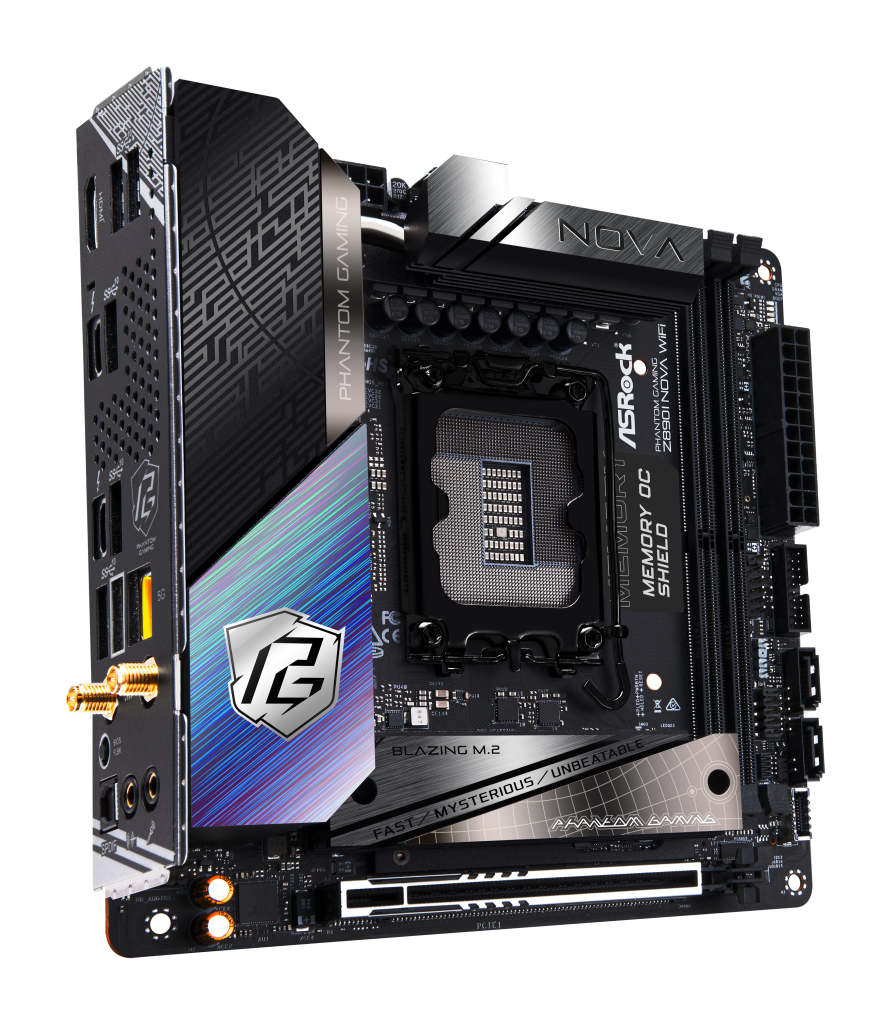

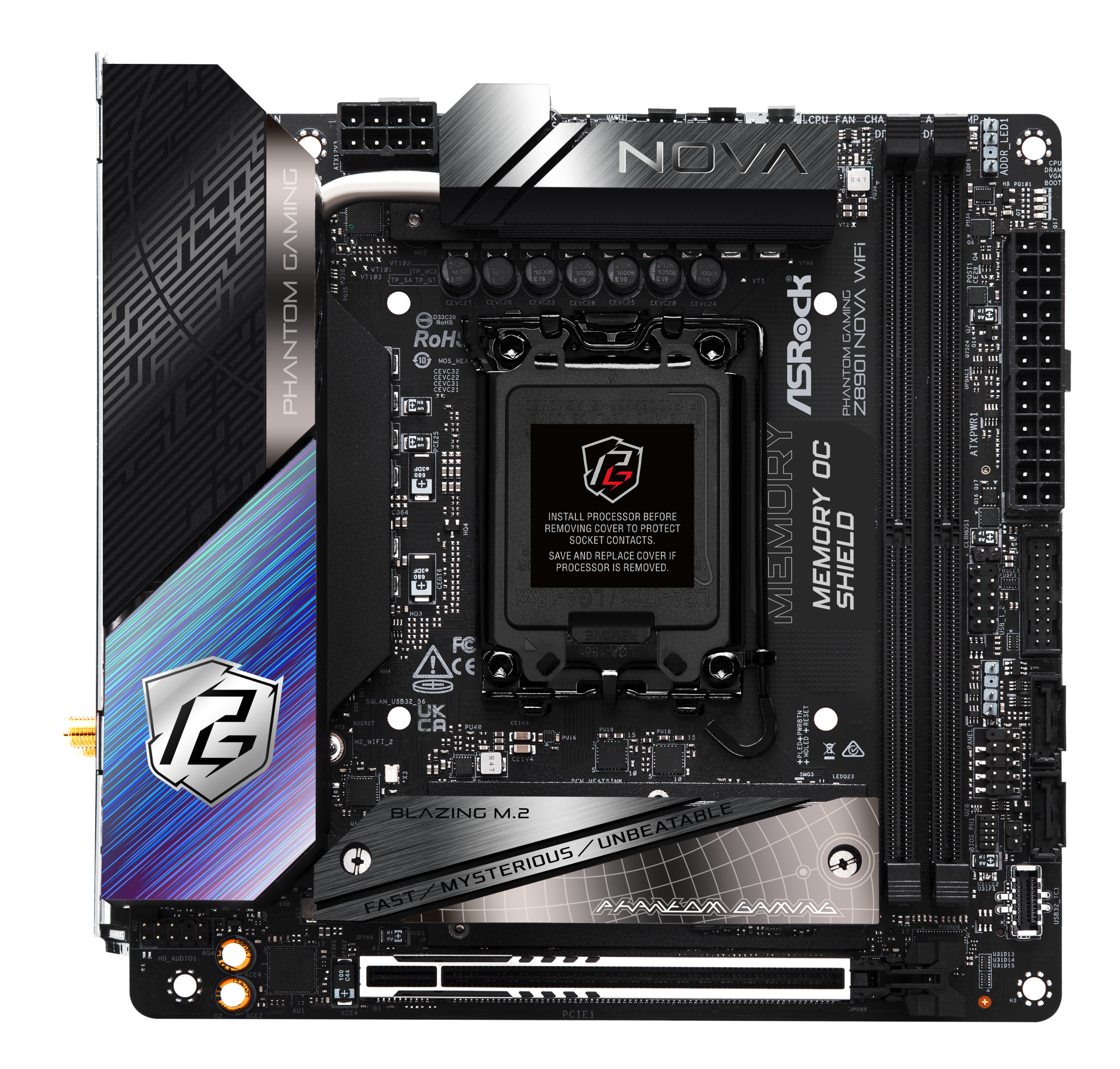

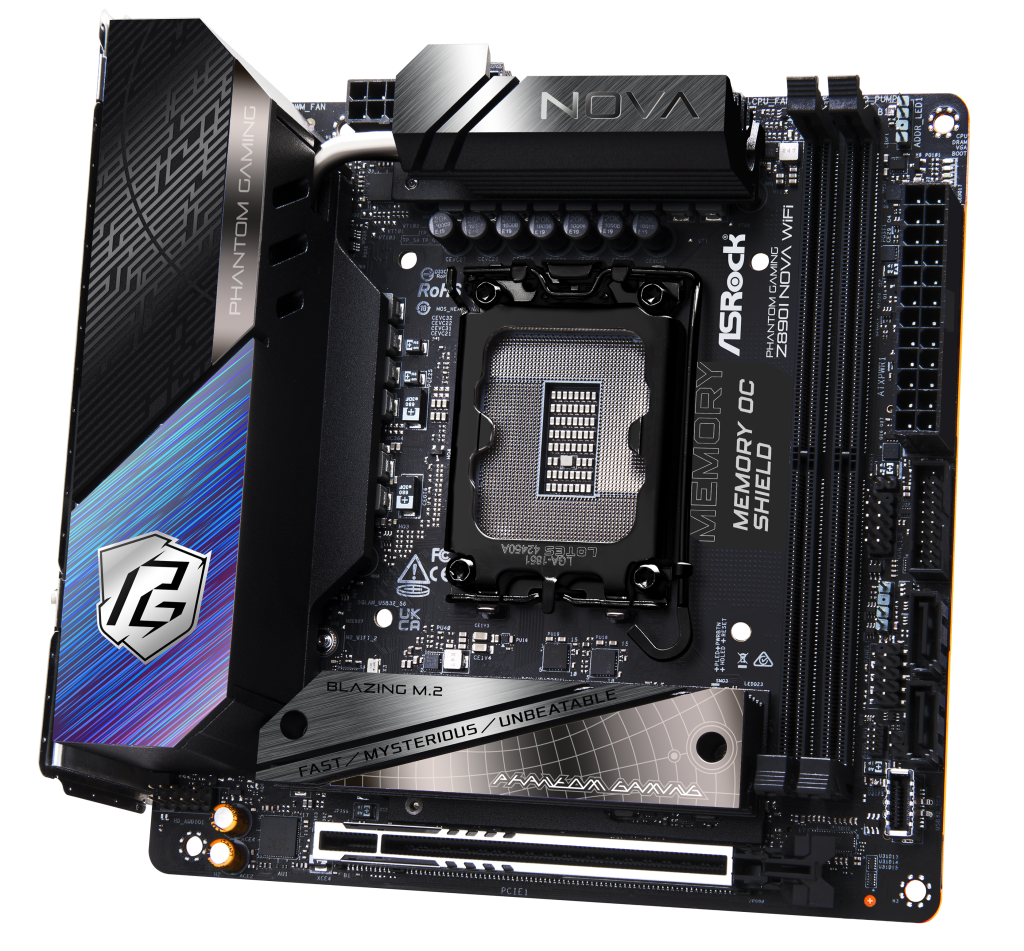

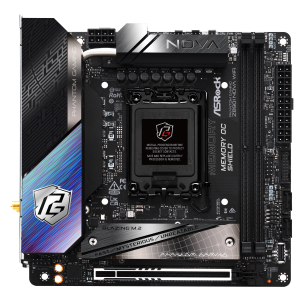

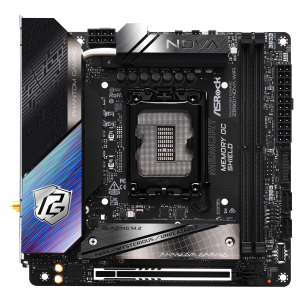

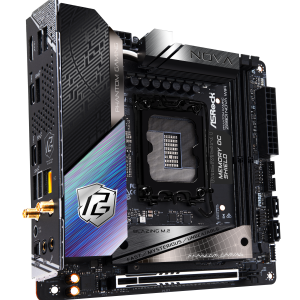

ASRock Z890I NOVA WiFi: Mini-ITX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890I NOVA WiFi is a Mini-ITX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASRock Z890I NOVA WiFi boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
Form Factor:
– Mini-ITX (170 x 170 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 2x DDR5 DIMM (up to 9466 MHz via OC / XMP 3.0)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 2x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbit/s)
– 1x Thermistor Cable Header
– 1x Front Panel Audio Connector
– Fan header:
– 1x CPU fan (4-pin)
– 1x AIO pump (4-pin)
– 1x case fan (4-pin)
– RGB header:
– 2x 3-pin ARGB (5V)

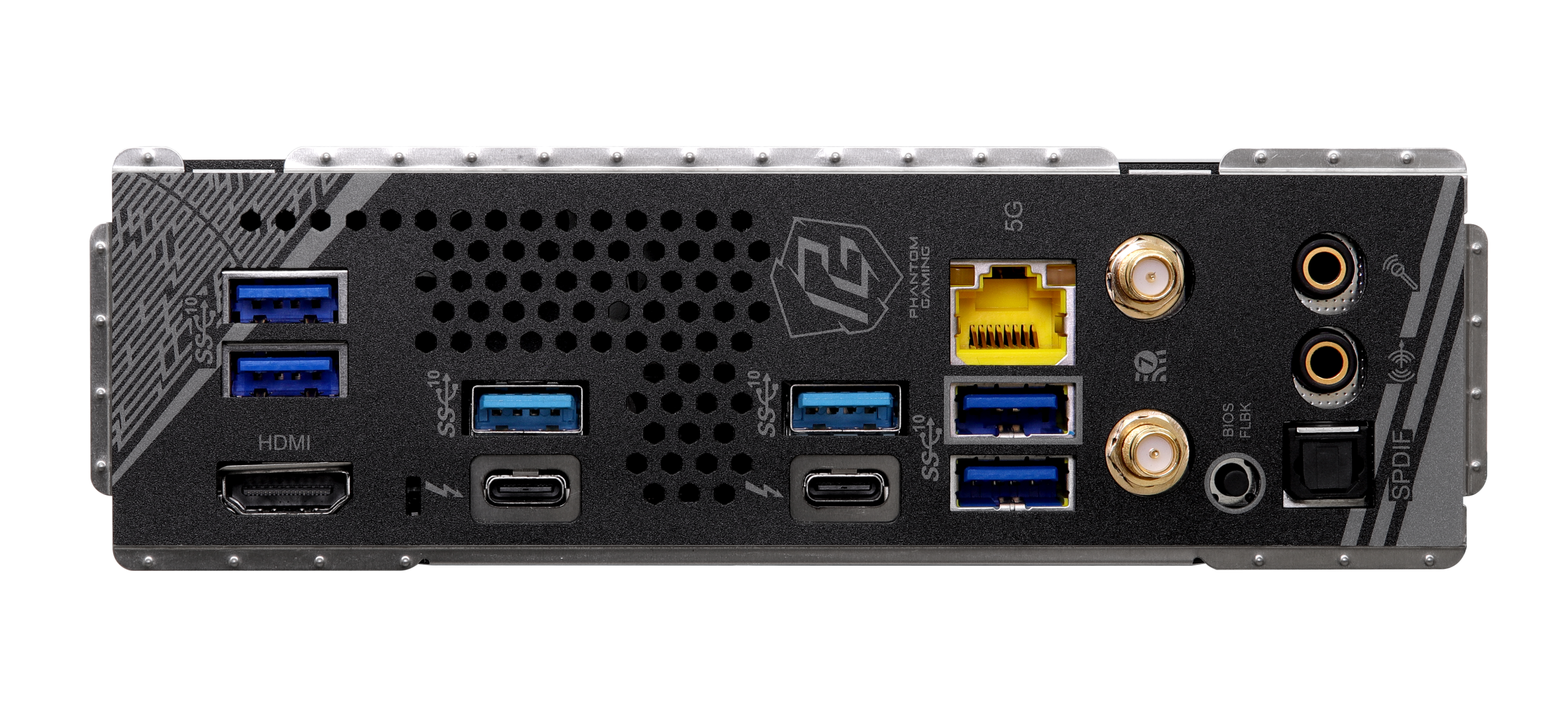

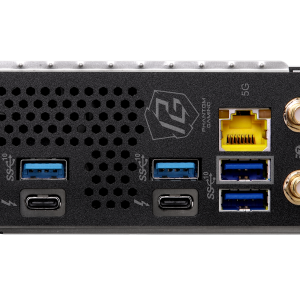

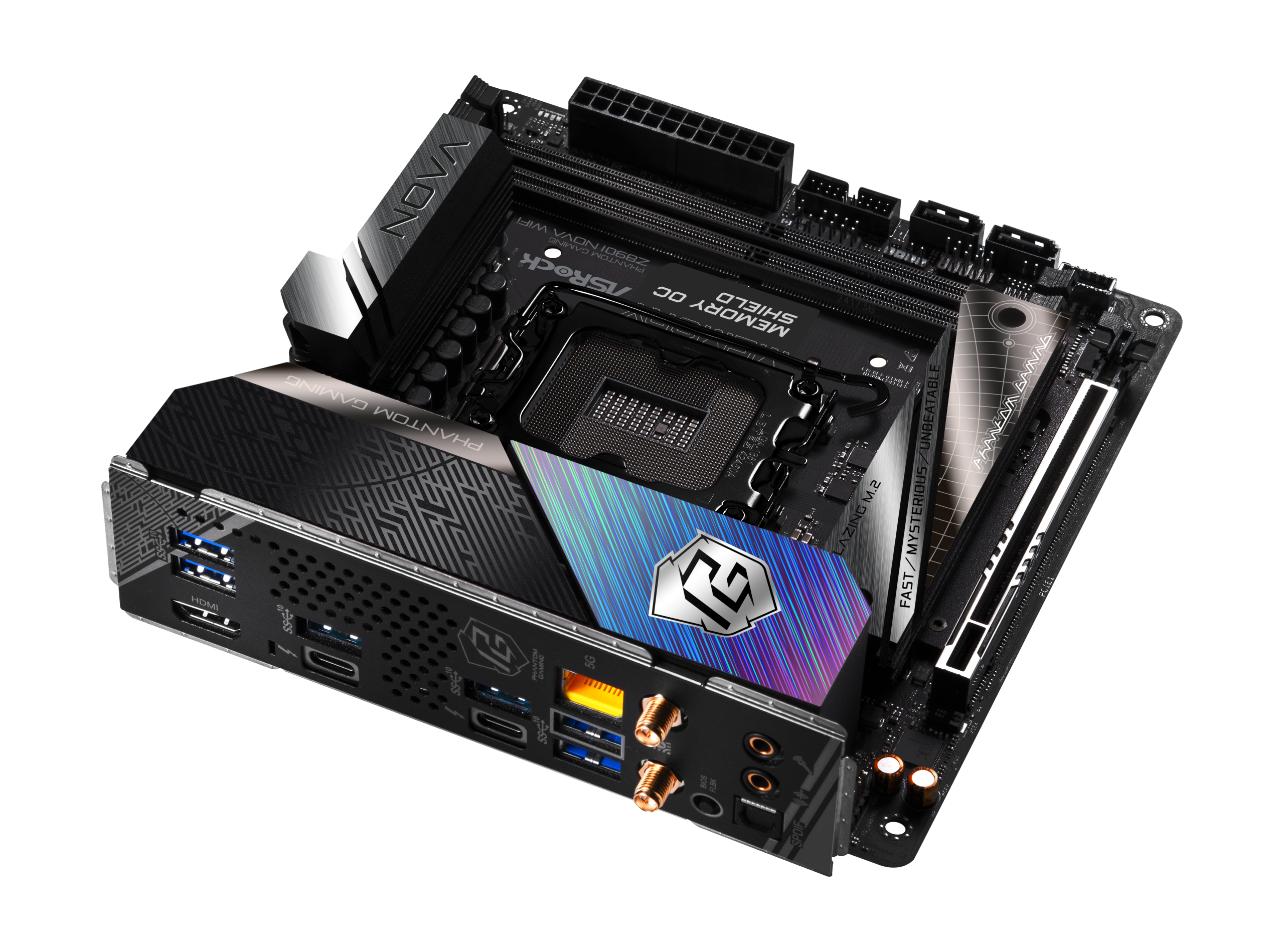

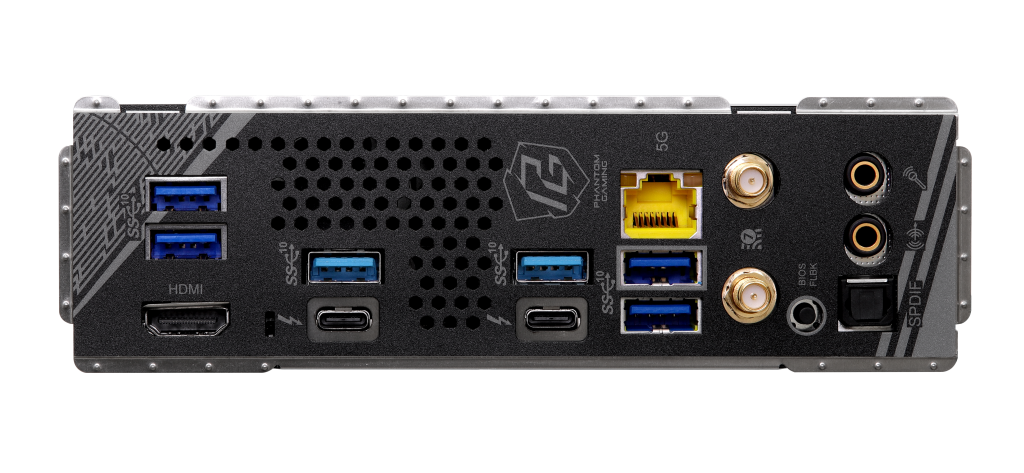

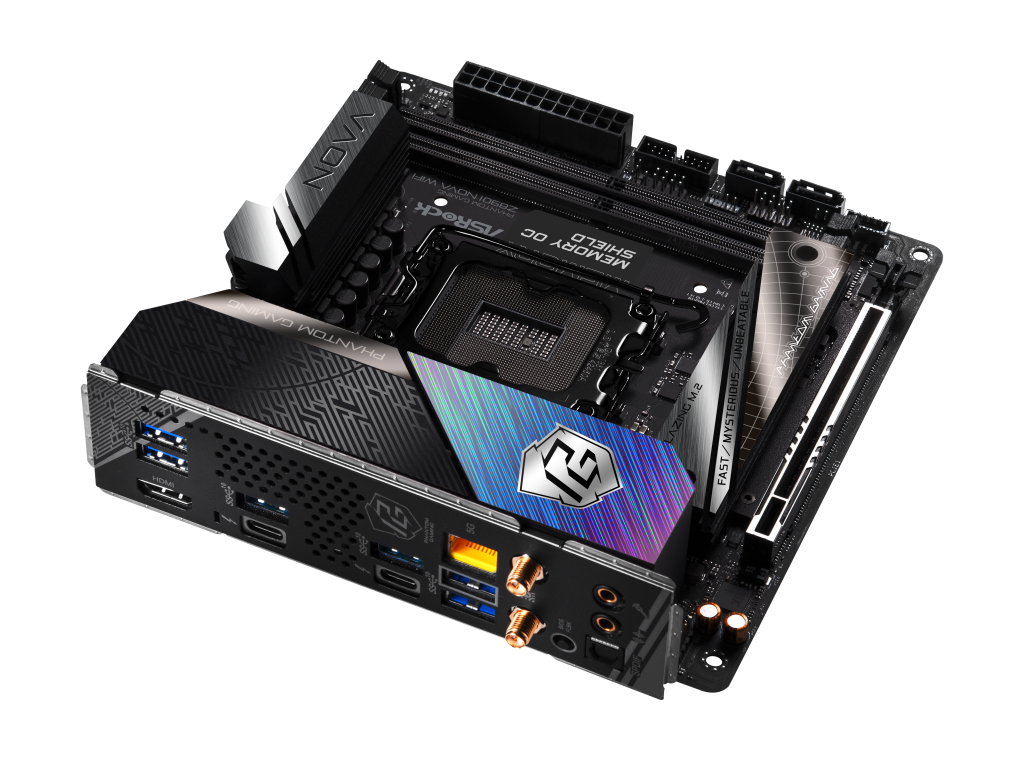

– External connections:
– 2x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
– 6x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x 5 Gigabit LAN (Realtek 8126CG)
– 2x 3.5 mm jack (Realtek ALC 4082)
– 1x BIOS Flashback button
– 1x HDMI
– 2x antenna ports
– 1x WiFi/Bluetooth module
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin +12V CPU
– Accessories:
– 2x SATA cables
– 1x antennas
– 1x ARGB splitter cable
– 1x thermistor cable
– 3x screws for M.2
