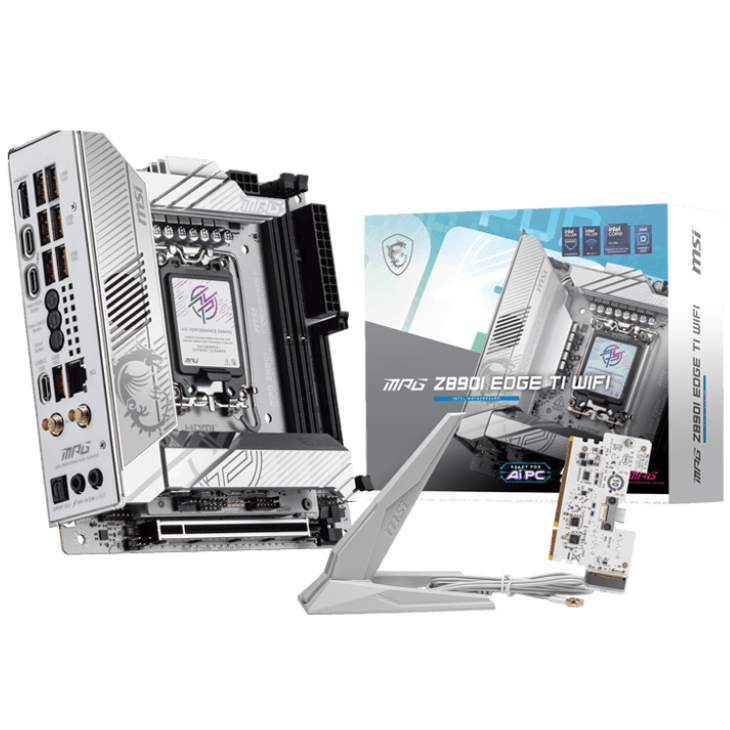

MSI MPG Z890I Edge TI WIFI motherboard, socket 1851, Intel Z890, mini-ITX, DDR5

This motherboard is ideal for high-end and small form factor builds.

– 1x PCIe 5.0 x16 (x16)
– 2x DIMM slots for up to 128 GB DDR5 RAM up to 8600 MHz (XMP 3.0 & CUDIMM support)
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 2x SATA 6G
– USB on the I/O panel: 2x USB 4, 1x USB 3.1 Type-C, 7x USB 3.1
– OC features: 13-phase VRMs, CMOS reset
– A total of 3x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

MSI MPG Z890I Edge TI WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The MSI MPG Z890I Edge TI WIFI is a Mini-ITX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the MSI MPG Z890I Edge TI WIFI impresses with full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

The MSI MPG Z890I Edge TI WIFI is geared toward high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters with a total of 13 phases provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Features like BIOS Flash and Clear CMOS ensure you can use the PC again if something goes wrong during overclocking. And, as usual, DDR5 RAM can also be pushed to its limits with higher clock speeds.

Technical Details
– Color
– Primary Color
– White
– Secondary Color
– Black, Gray
– Form Factor
– Motherboard Form Factor
– Mini-ITX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel Z890
– Dual BIOS
– No
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 128 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 8600 MT/s
– ECC Support
– No
– Memory Slots
– 2x
– Performance Profile
– – Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 5 Gbit/s
– LAN Chip
– Intel Killer E5000B
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
-Bluetooth Standard
– 5.4
– Wi-Fi Chip
– Intel Killer BE1750x
– Cooling
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) Possible Connectors
– 2
– USB 2.0 (internal) Header
– 1
– USB 2.0 (internal) Possible Connectors
– 2
– RGB / LED Connectors
– 1x RGB (5-pin 12VGRBW)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes
– External Connectors
– USB 4 Gen 3×2 (external) Type-C
– 2
– USB 3.1 (external) Type-C
– 1
– USB 3.1 (external) Type A
– 7
– Display connectors
– HDMI (1x)
