Gigabyte B860M D3HP motherboard, Socket 1851, Intel B860, mATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 2x PCIe 3.0 x1
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 9066 MT/s
– Storage: 2x M.2 (2x PCIe 4.0) and 4x SATA
– USB: 6x USB 3.0, 7x USB 2.0
– Cooling: 4x 4-pin PWM connectors for fans and radiators

GIGABYTE B860M D3HP: micro-ATX motherboard with Intel LGA 1851 socket and B860 chipset
The GIGABYTE B860M D3HP is a micro-ATX motherboard with the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake processors and is suitable for gamers. who dont place much value on extreme CPU overclocking.

The GIGABYTE B860M D3HP also offers PCIe 5.0 for graphics cards. The DDR5 memory is overclockable with XMP, so you can get the most out of your RAM.

Technical Details
– Color
– Main Color
– Gray
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– Dual BIOS
– No
– Built-in IO Shield
– No
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 9066 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– Intel XMP
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– WLAN / Bluetooth
– No
– Cooling
– Backplate
– No
– M.2 Heatsink
– No
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 1x 8-Pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
 -2
– USB 2.0 (internal) possible ports
– 4
– RGB / LED ports
– 1x RGB (4-pin 5050 12VGRB), 2x Digital RGB (3-pin 5VDG)
– – Front panel audio header
– Yes
– SPI TPM header
– Yes

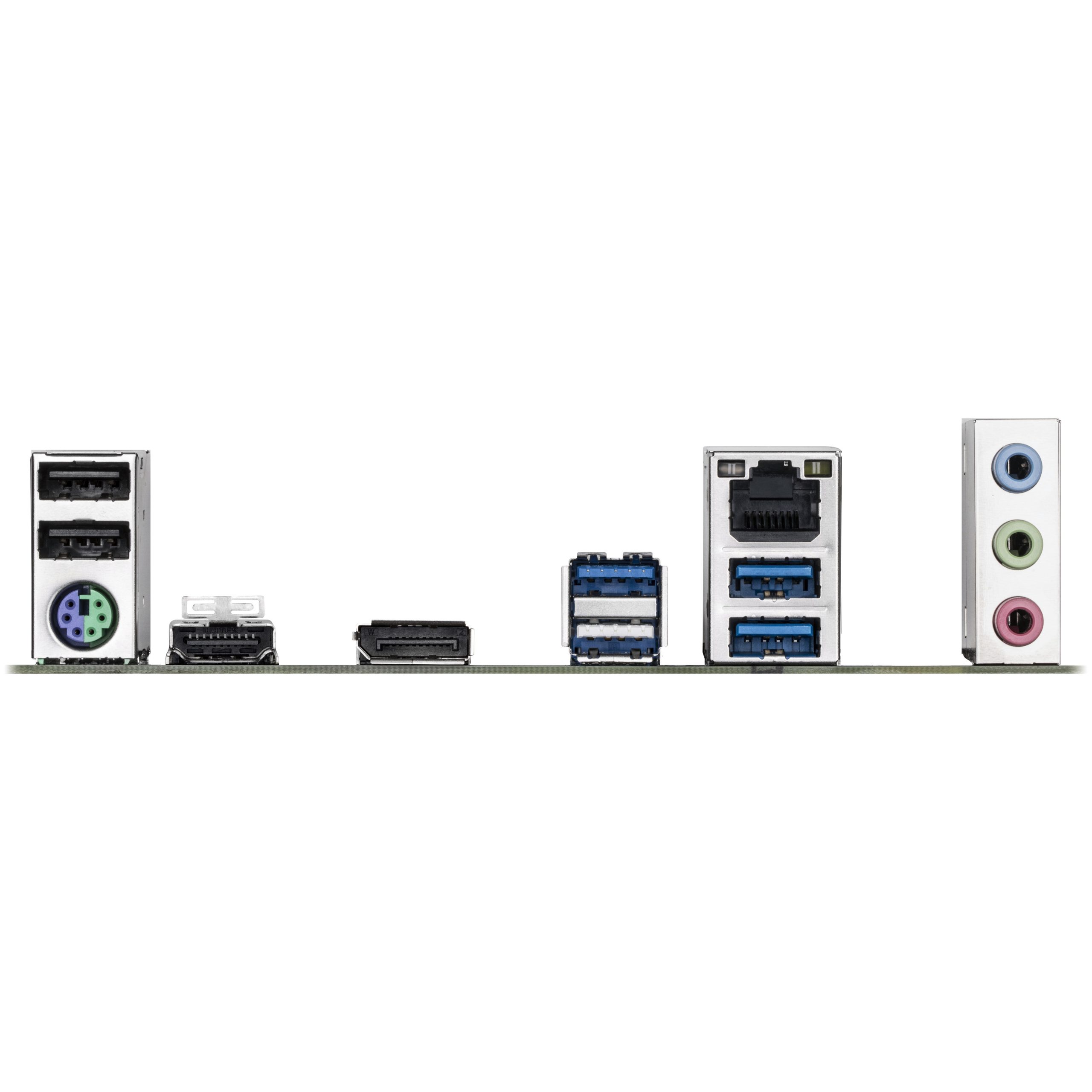

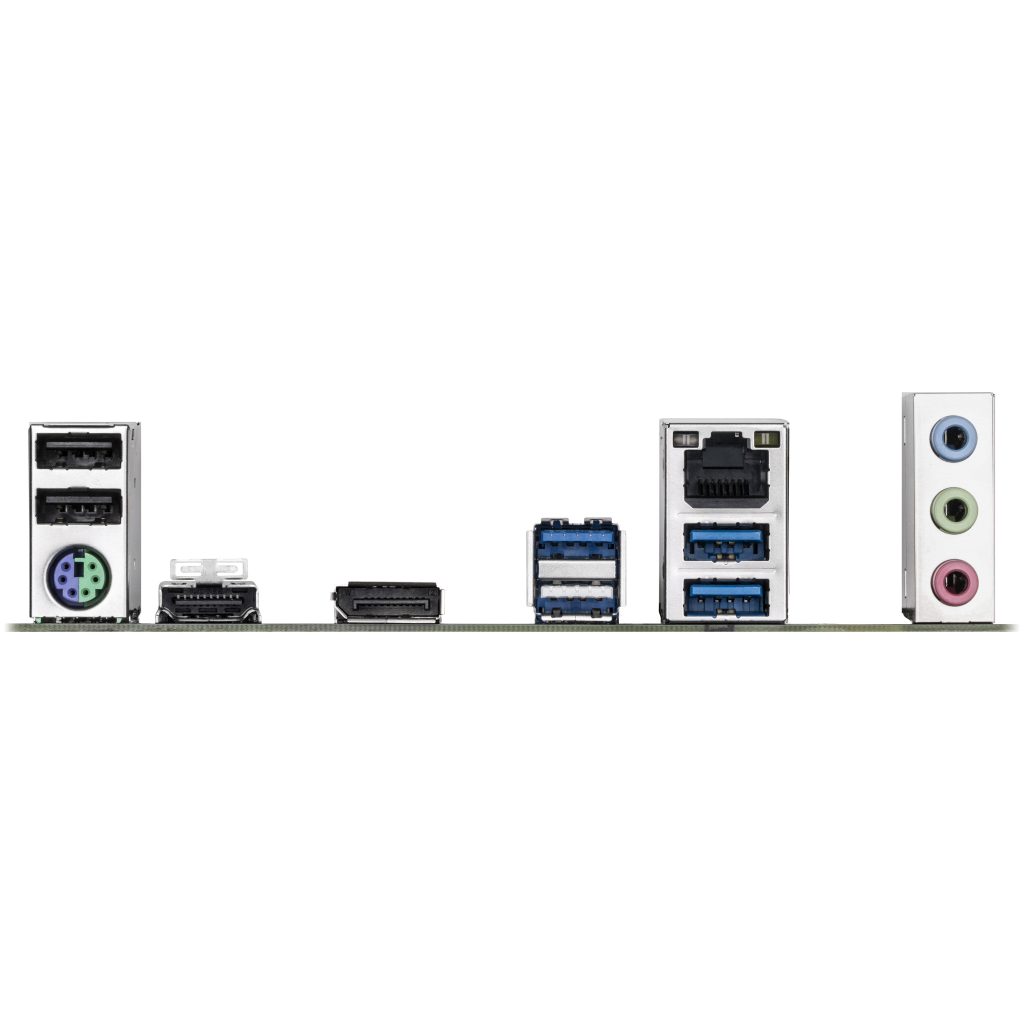

– External ports
– USB 3.0 (external) Type-A
– 3
– USB 2.0 (external) Type-A
– 3
– Display ports
– Display Port (1x), HDMI (1x)
– Storage ports
– M.2 PCIe 4.0 x4
– 2
– SATA 6G (internal)
– 4
– Back connect
– Back Connect
– No
– Expansion Slots
– PCIe x16 Slots (Total)
– 1
– PCIe x1 Slots (Total)
– 2
– PCIe 5.0 x16 (Mechanical)
– 1
– PCIe 3.0 x1 (Mechanical)
– 2
– Fan Headers
– 4-pin Fan Connectors
– 4
– Lighting
– Lighting / RGB
– Yes
– Lighting Color
– RGB
– Lighting Compatibility
– GIGABYTE RGB Fusion
