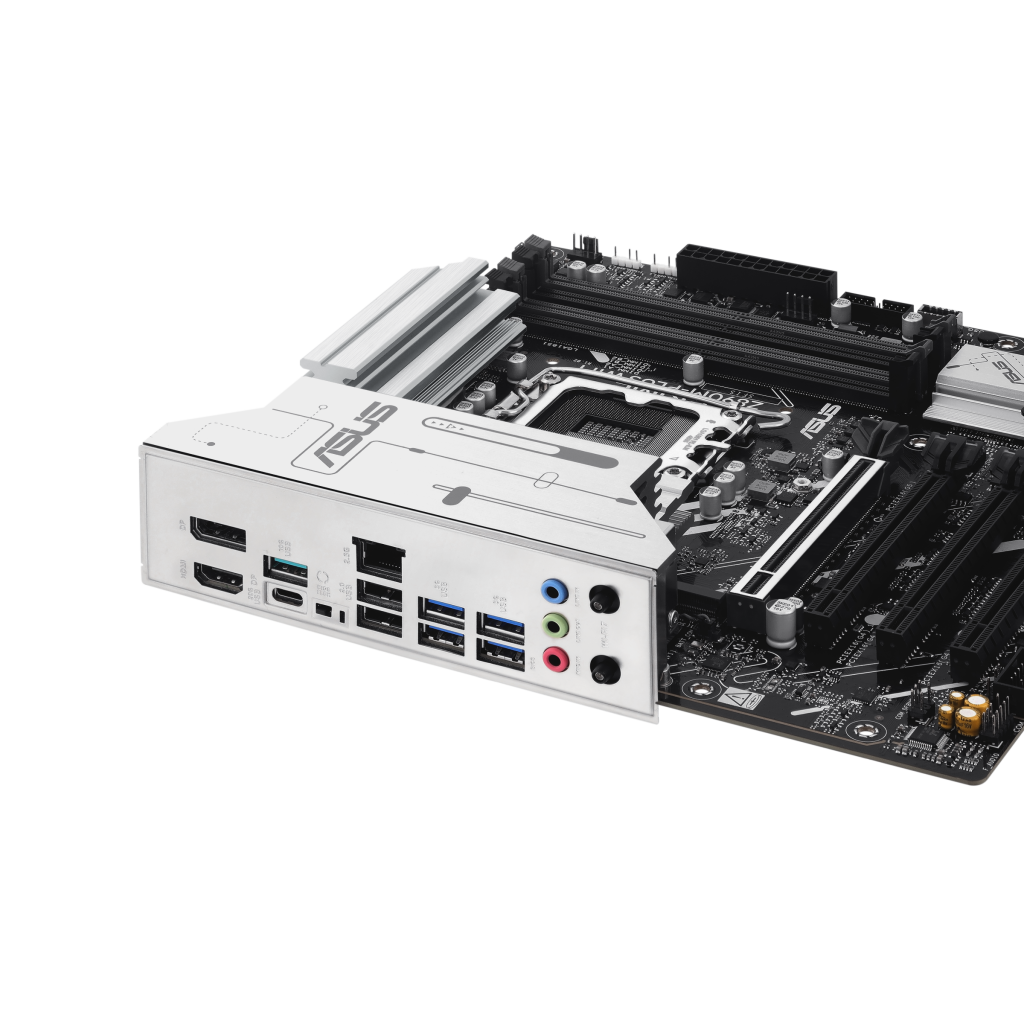

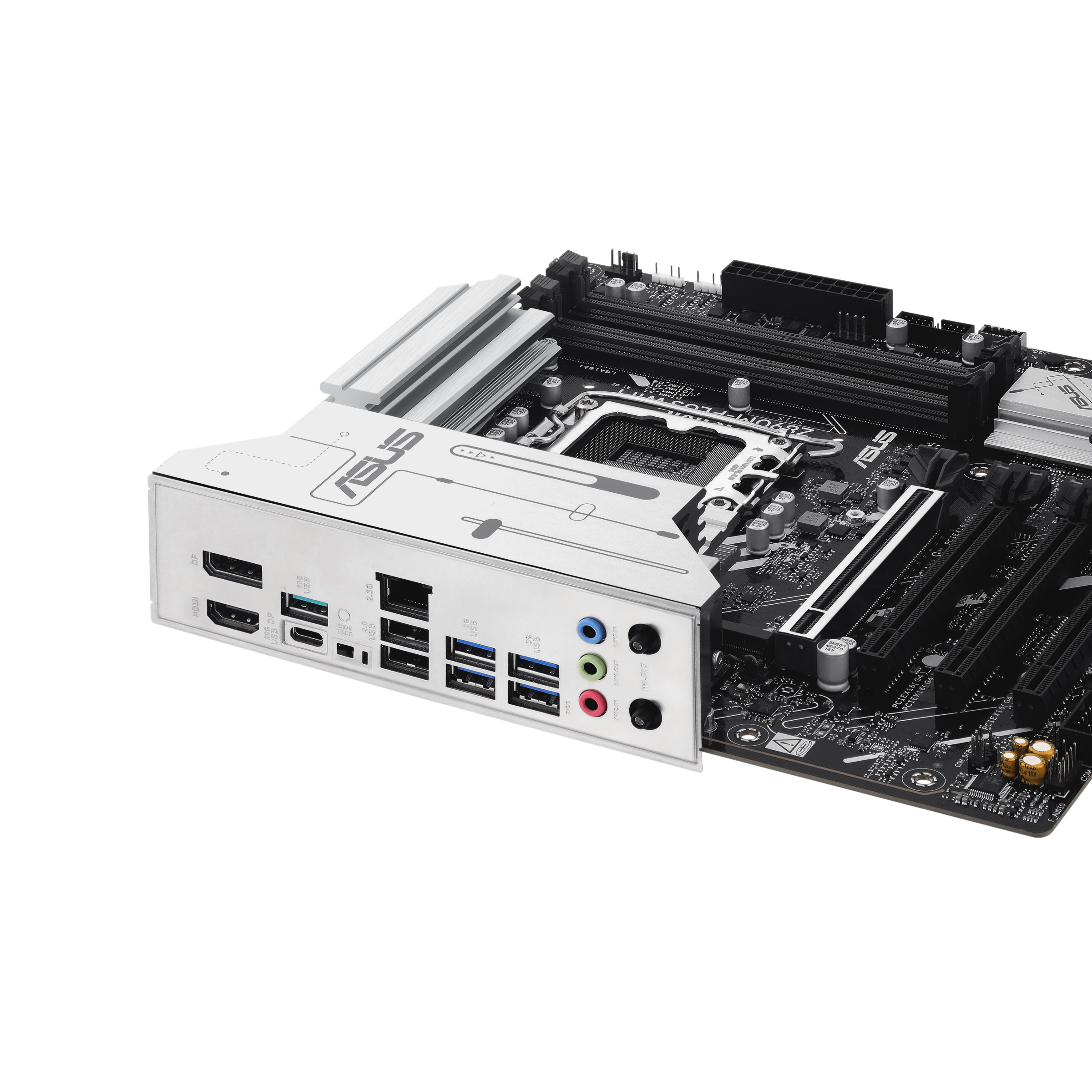

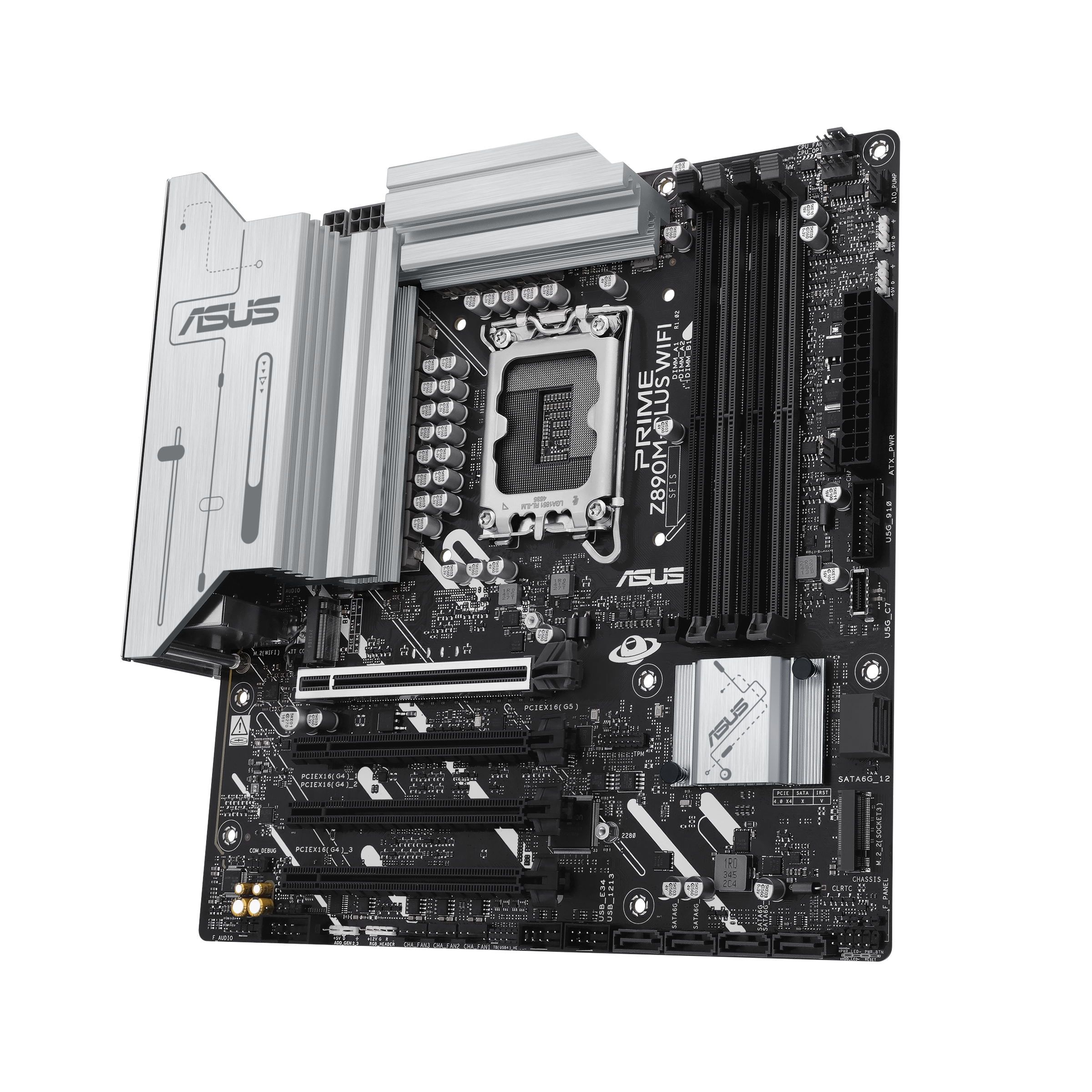

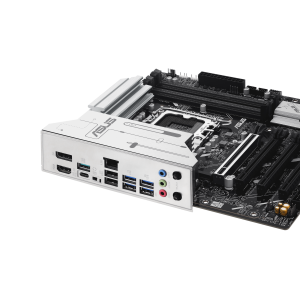

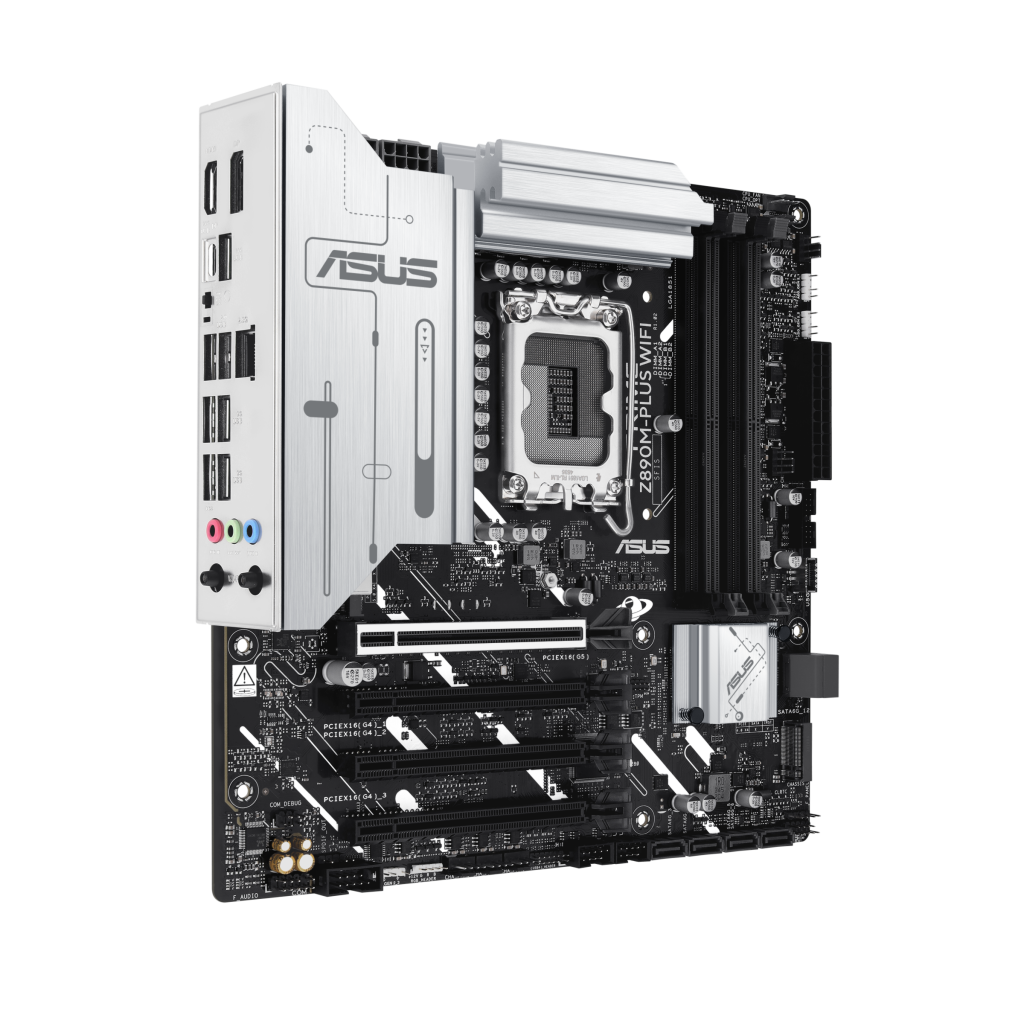

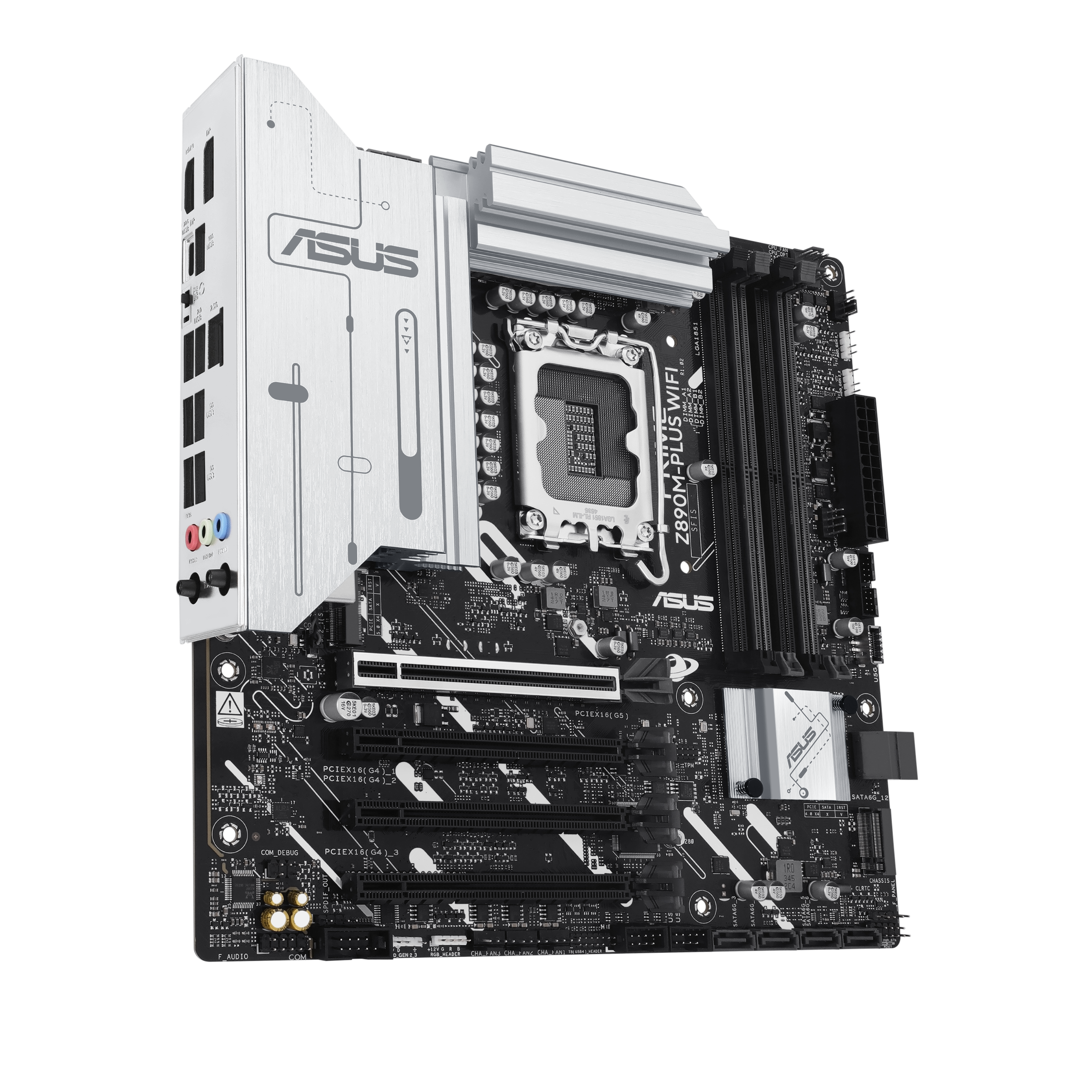

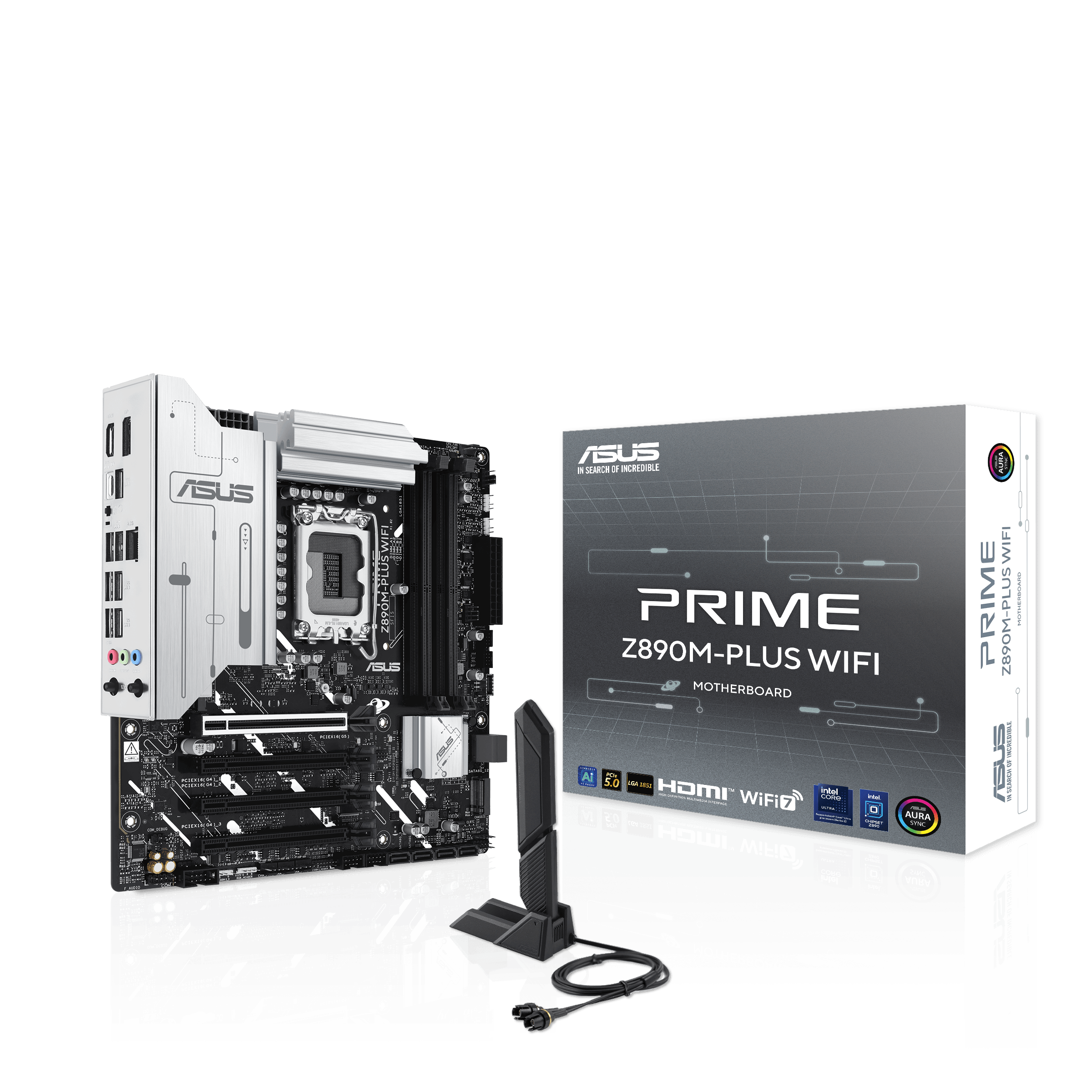

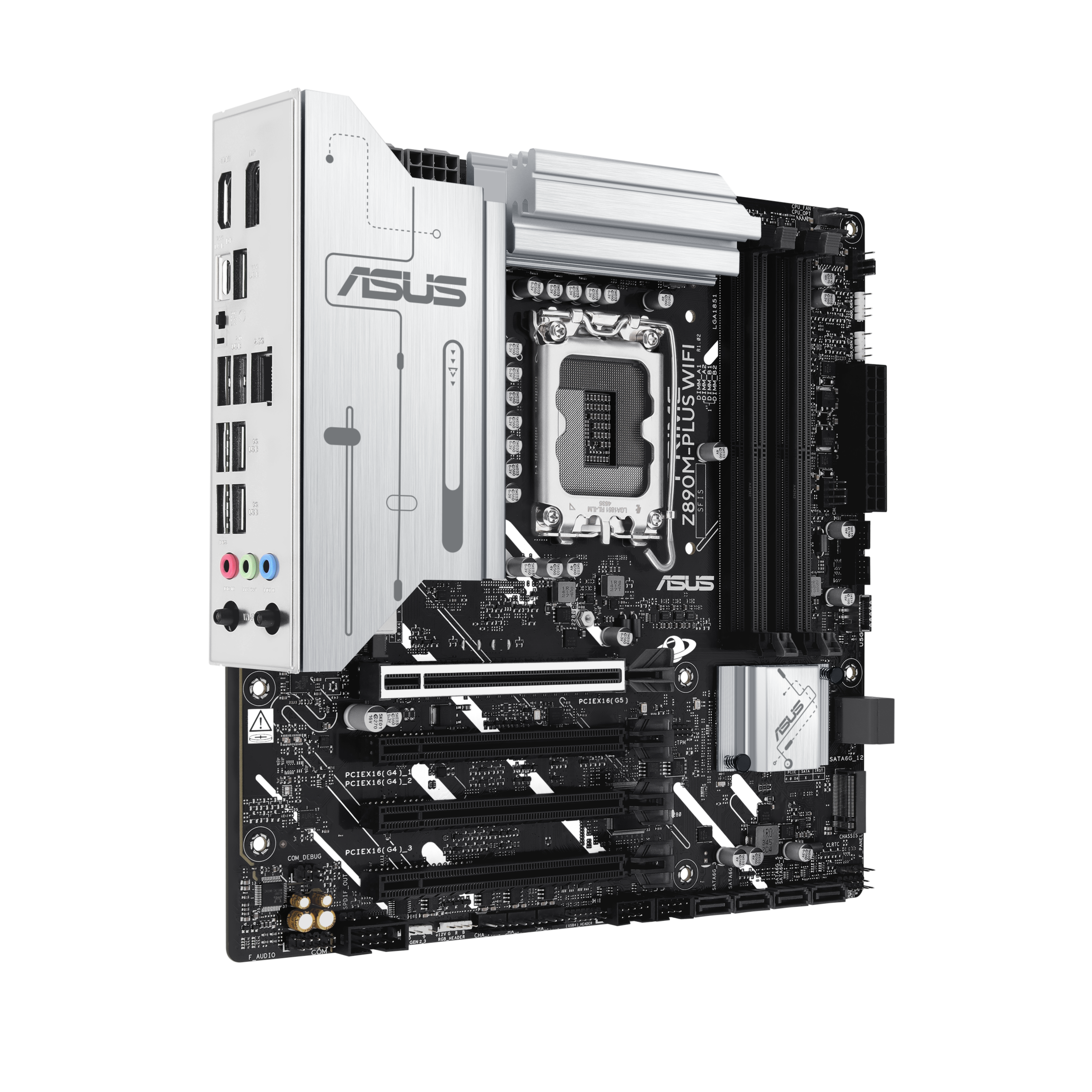

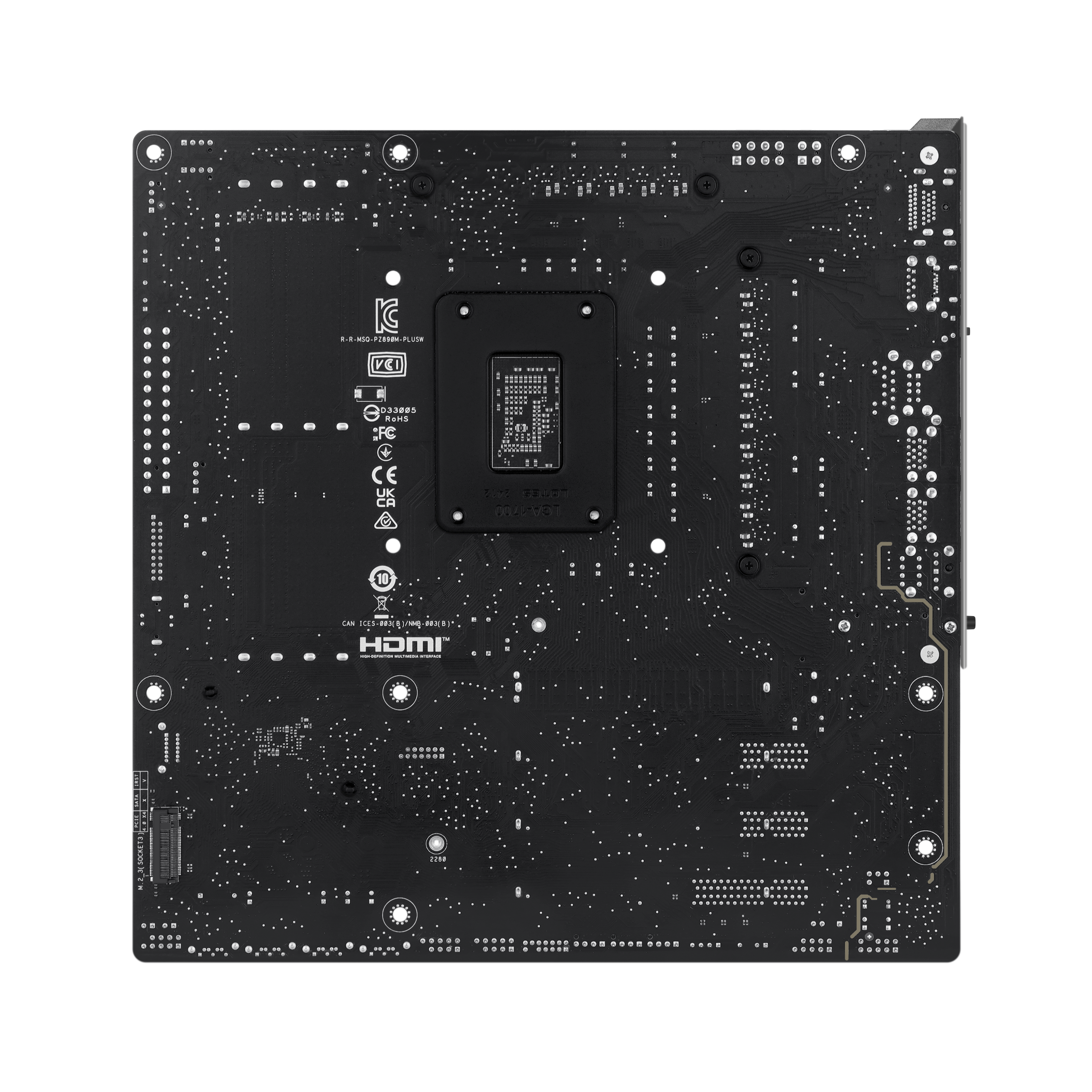

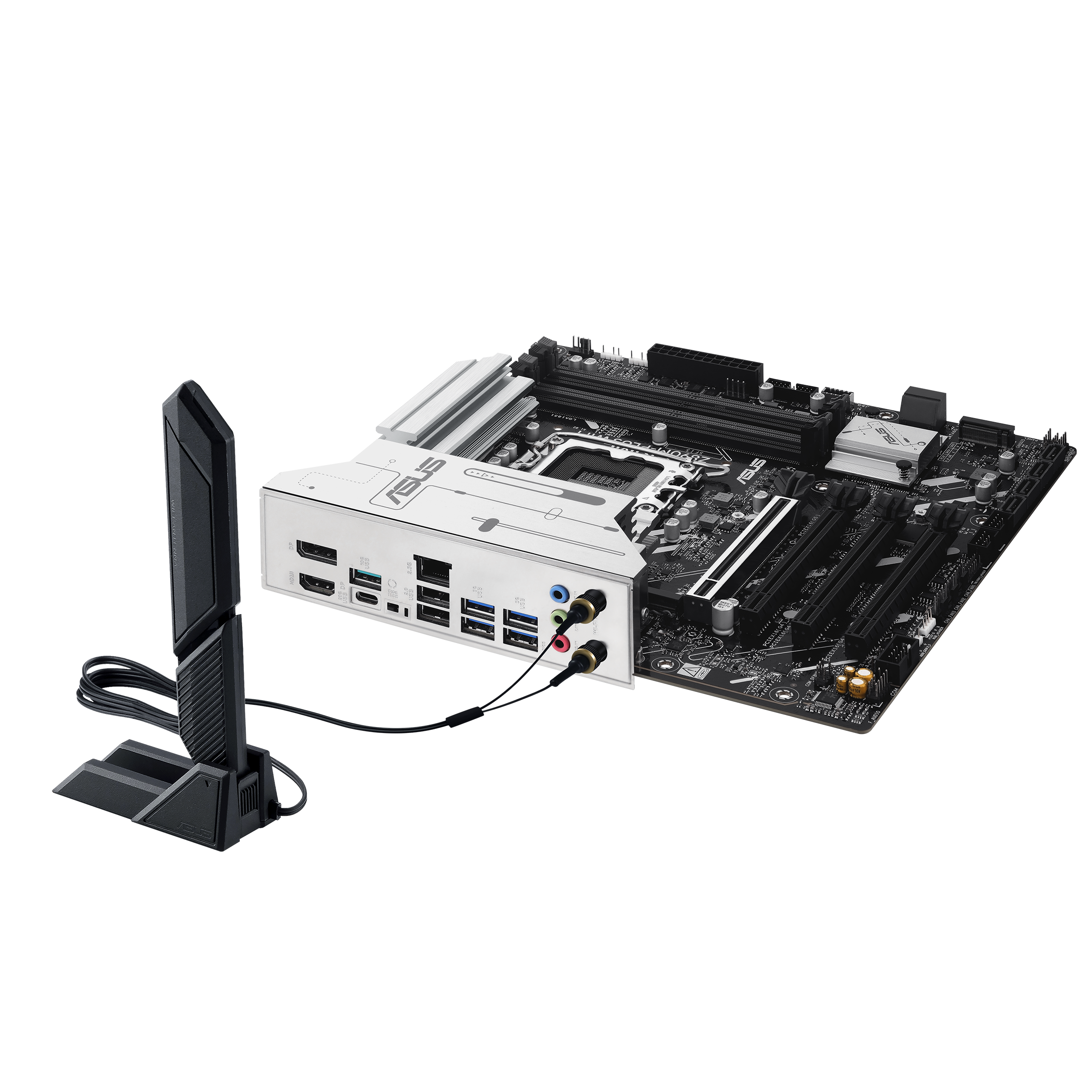

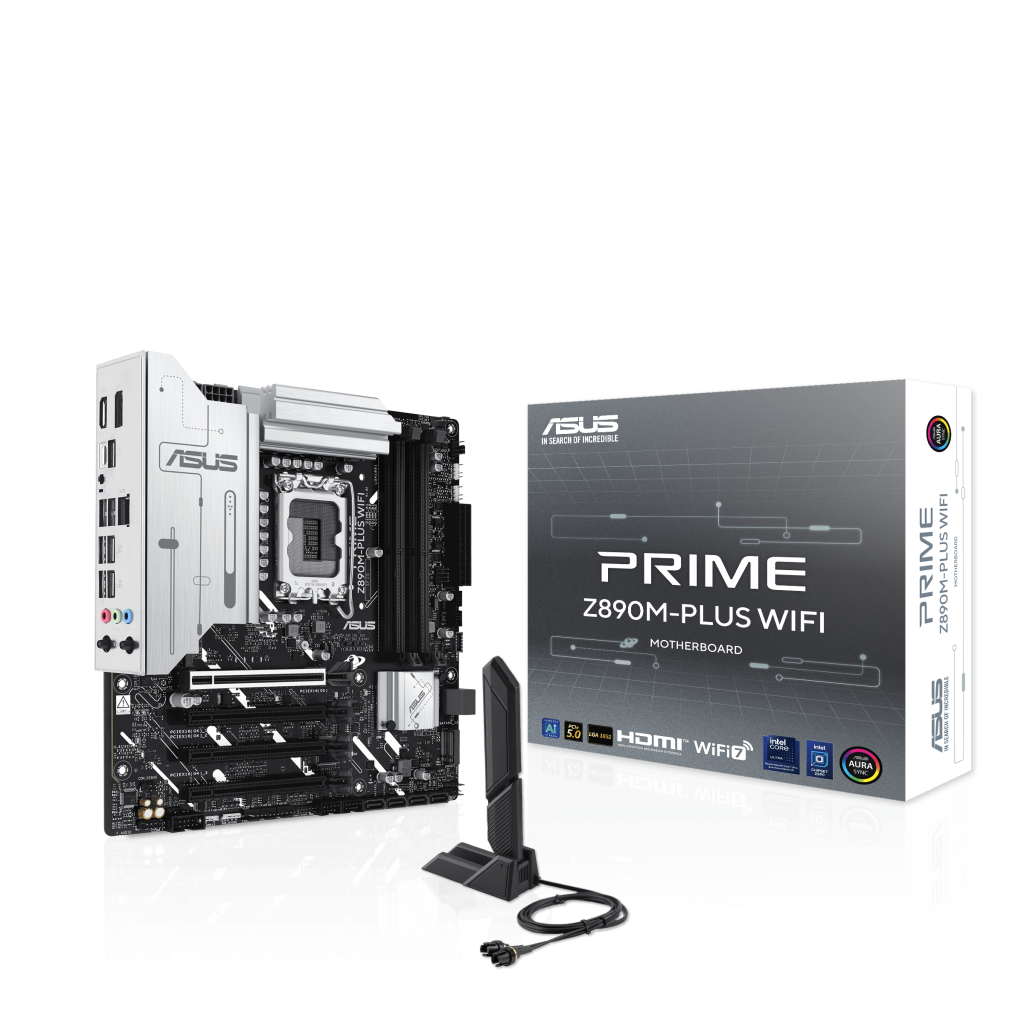

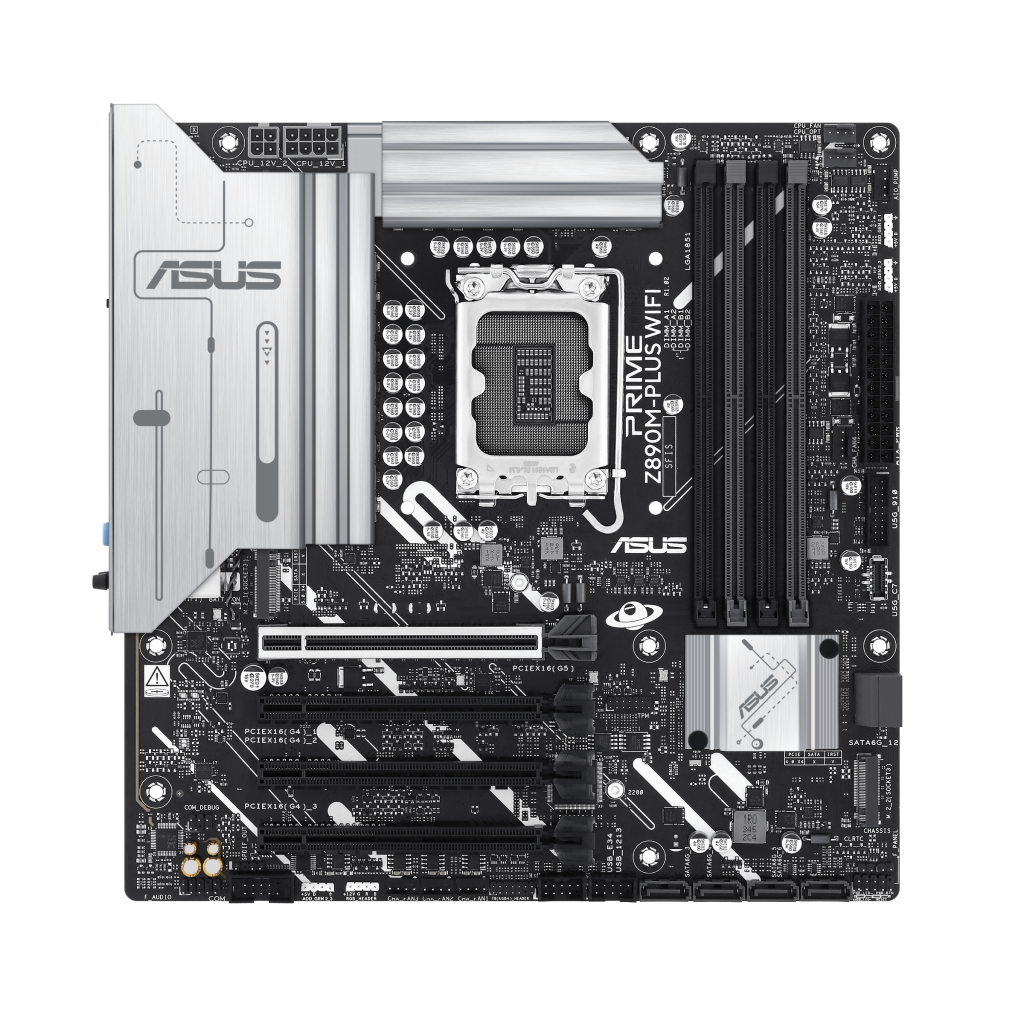

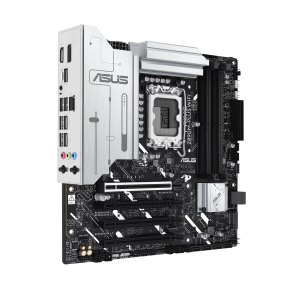

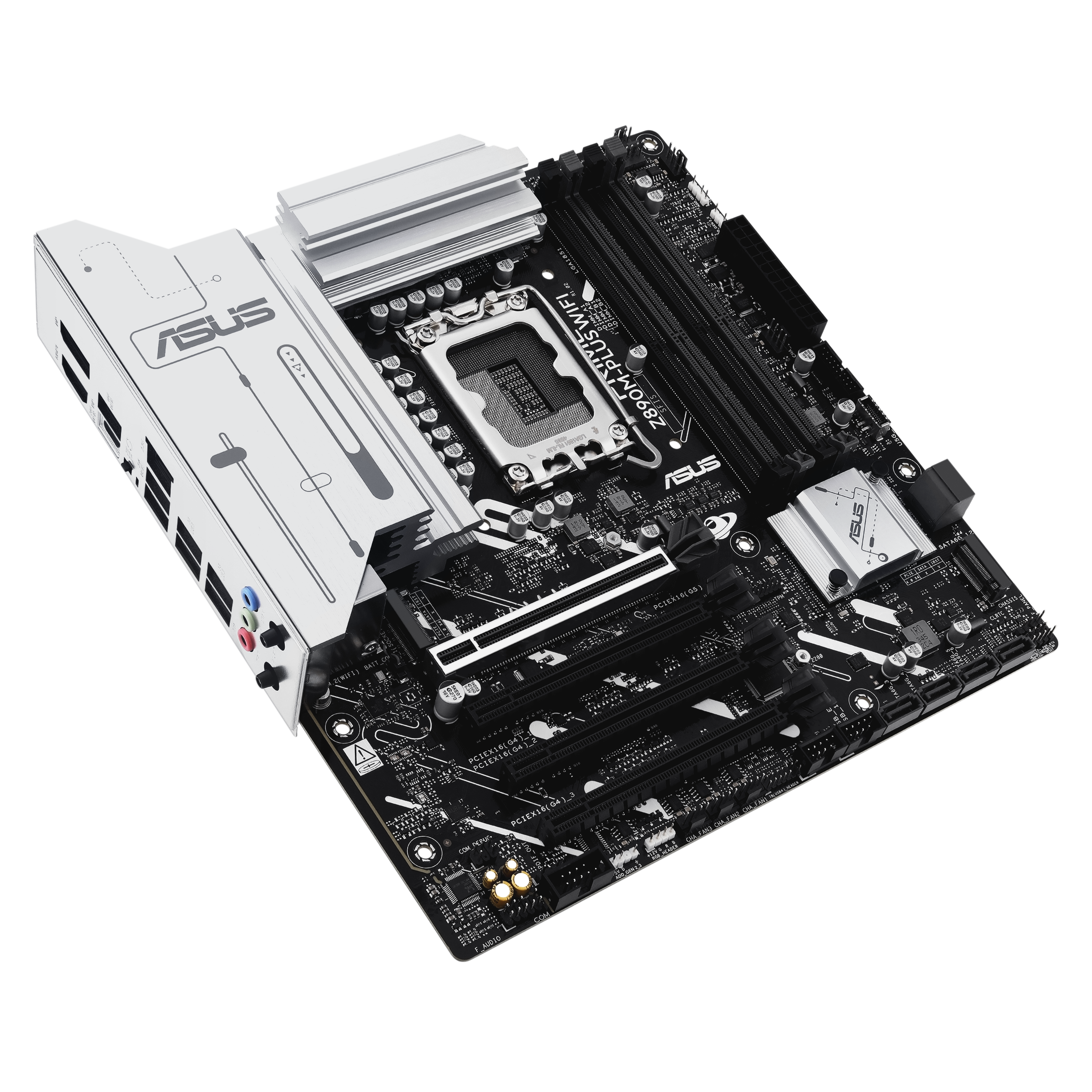

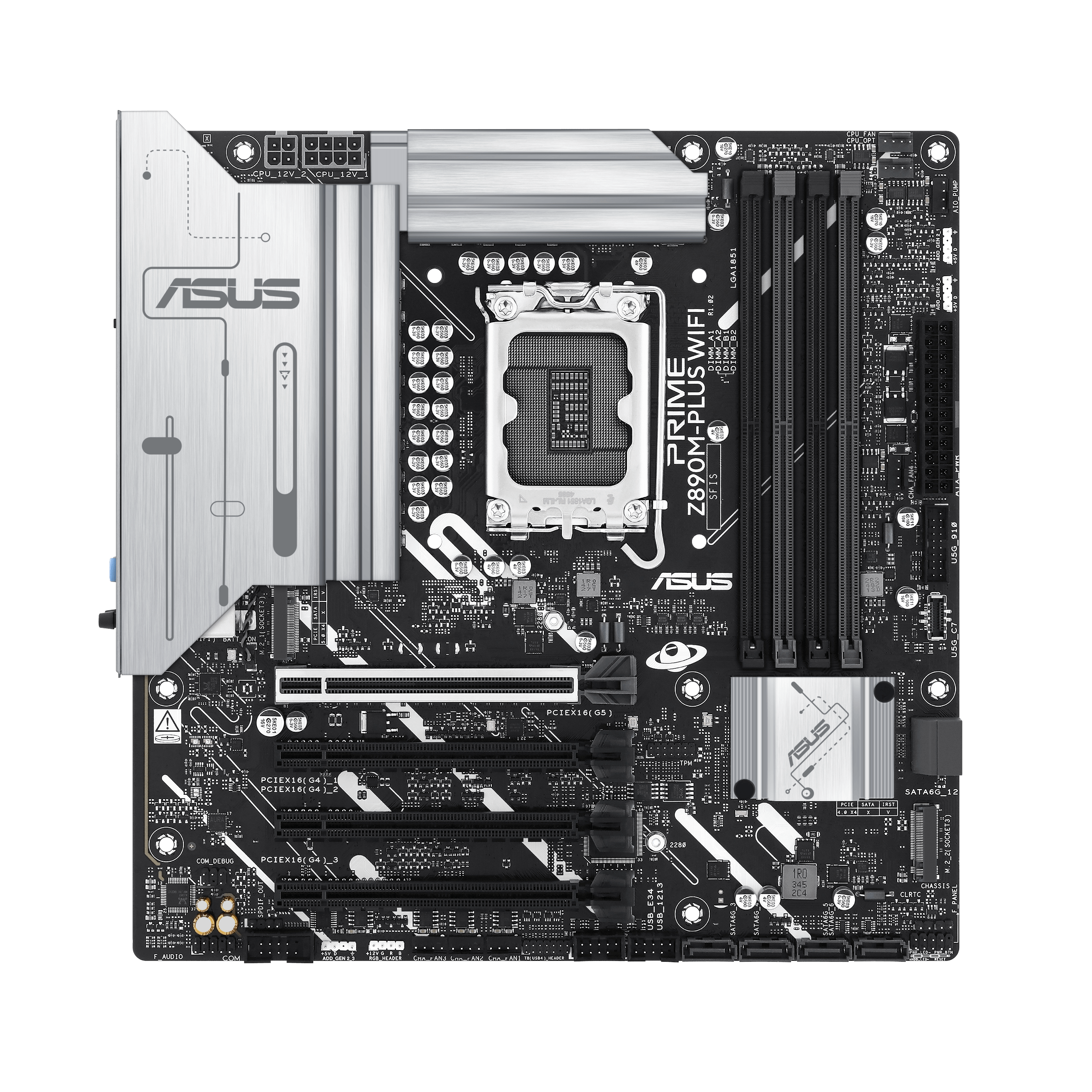

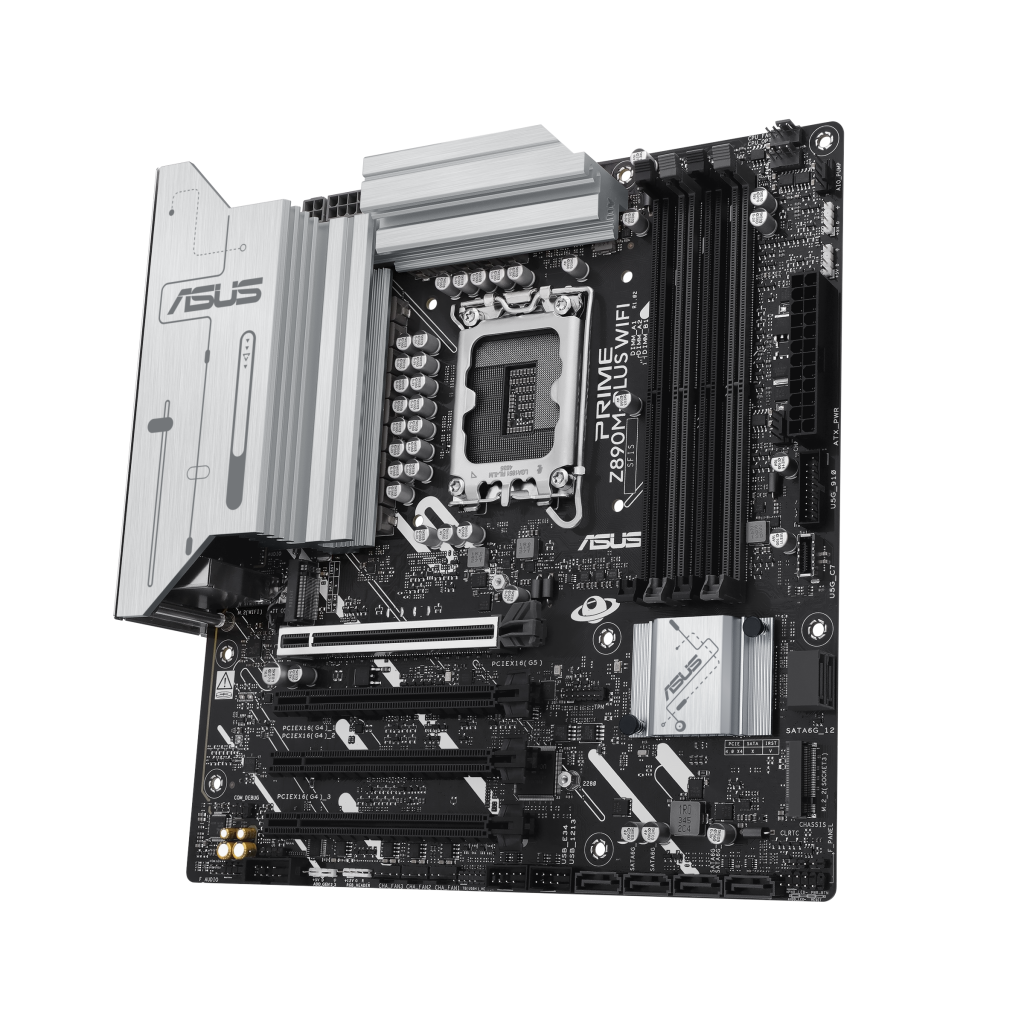

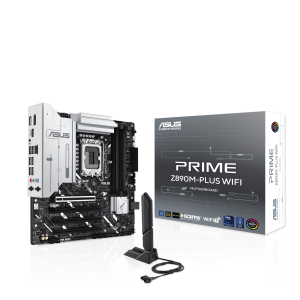

ASUS Prime Z890M Plus WiFi motherboard, socket LGA 1851, Intel Z890, mATX, DDR5

This motherboard is ideal for gaming enthusiasts.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x16 (x1)
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 7,600 MHz
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 6x SATA 6G
– USB on the I/O panel: 3x USB 3.2 Type-C, 1x USB 3.2, 4x USB 3.0, and 2x USB 2.0
– OC features: CMOS reset, Digi+
– A total of 7x 4-pin connectors for fans and pumps

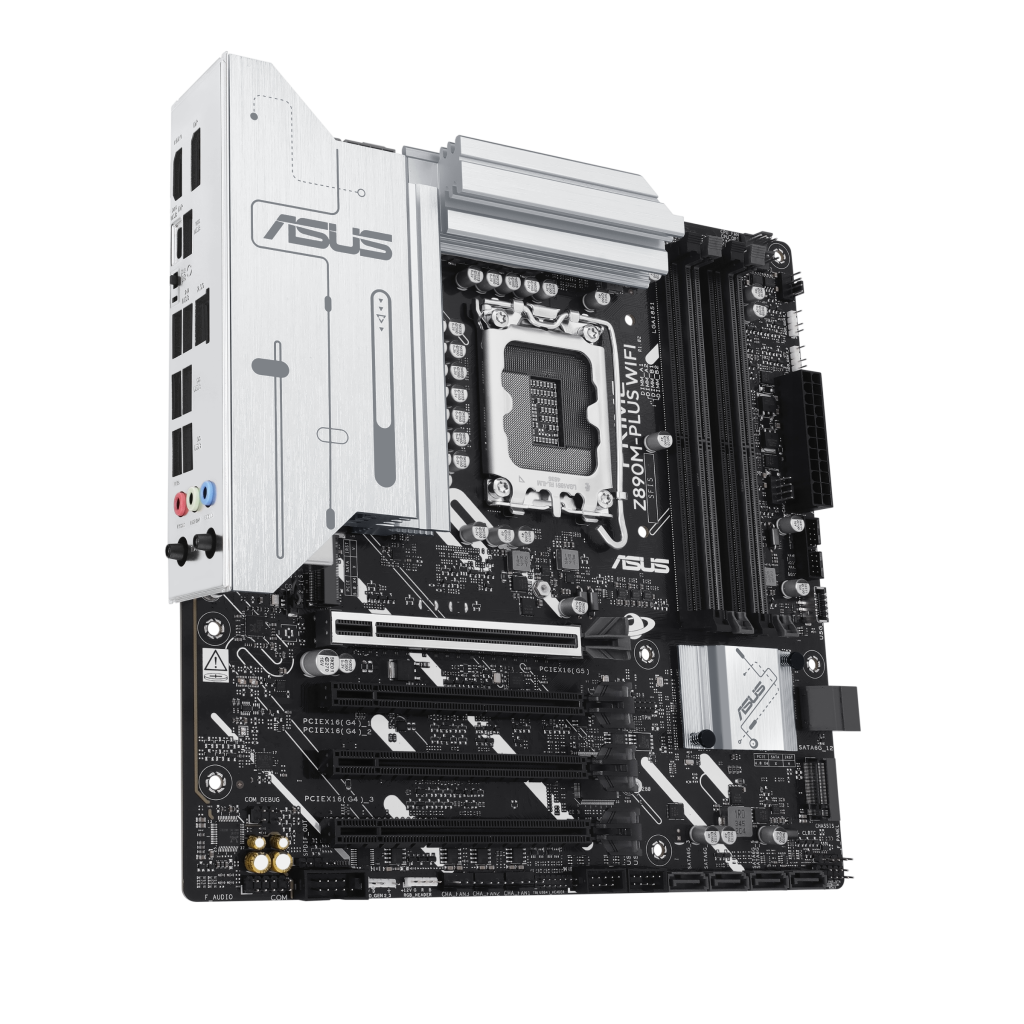

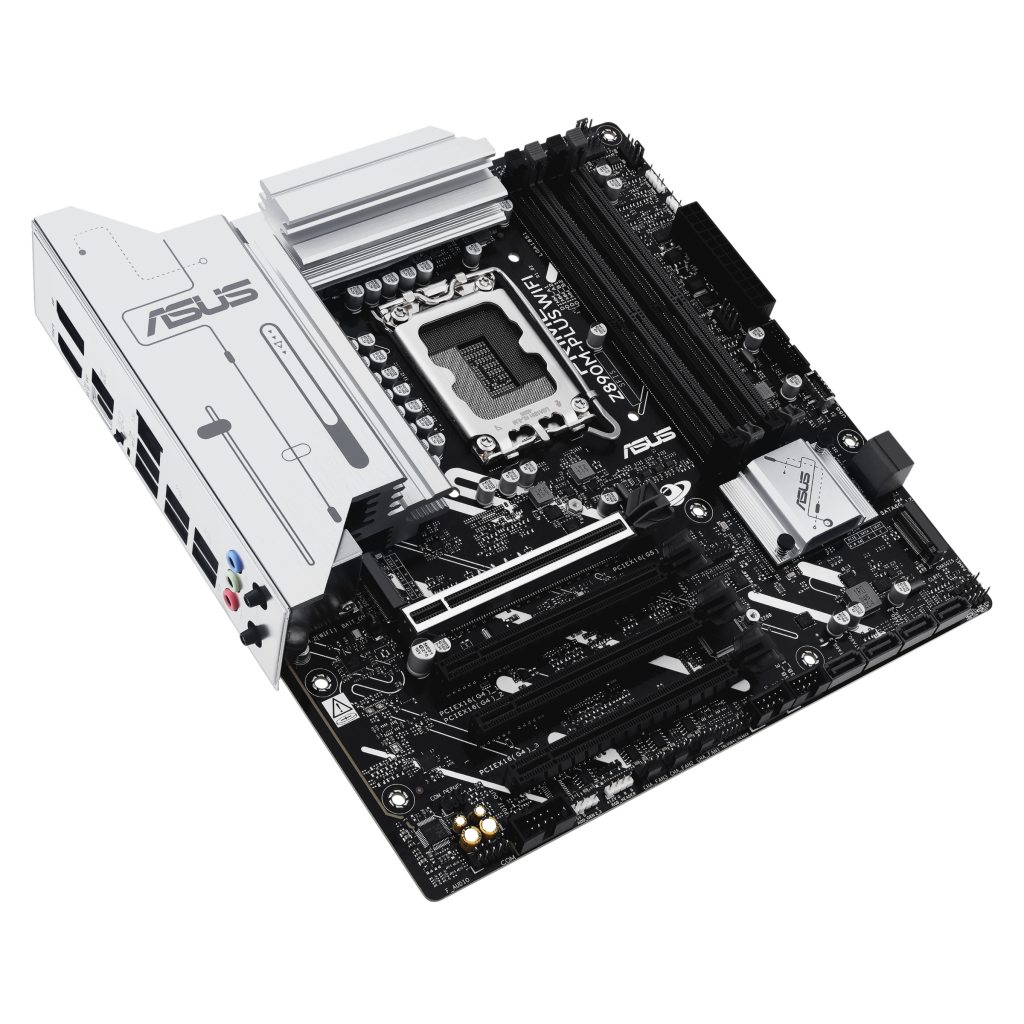

ASUS Prime Z890M Plus WiFi: mATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS Prime Z890M Plus WiFi is an mATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS Prime Z890M Plus WiFi features full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
– div class=specification>
– Form Factor:
– mATX (244 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 7,600 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x4/x4, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 4.0 x16 (electrical x1, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 6x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 2x M.2 (PCIe 4.0 x4; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Thunderbolt header
– 1x front panel audio header
– 1x 10-1-Pin System Panel Header
– 1x SPI TPM header (14-1 pin)
– 1x COM port header
– 1x chassis intrusion header
– 1x BIOS flashback button
– 1x Clear CMOS button
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU OPT fan (4-pin)
– 1x AIO pump header
– 4x case fans (4-pin)
– -RGB header:
–  3x 3-Pin ARGB (5V)
– 1x Aura RGB header

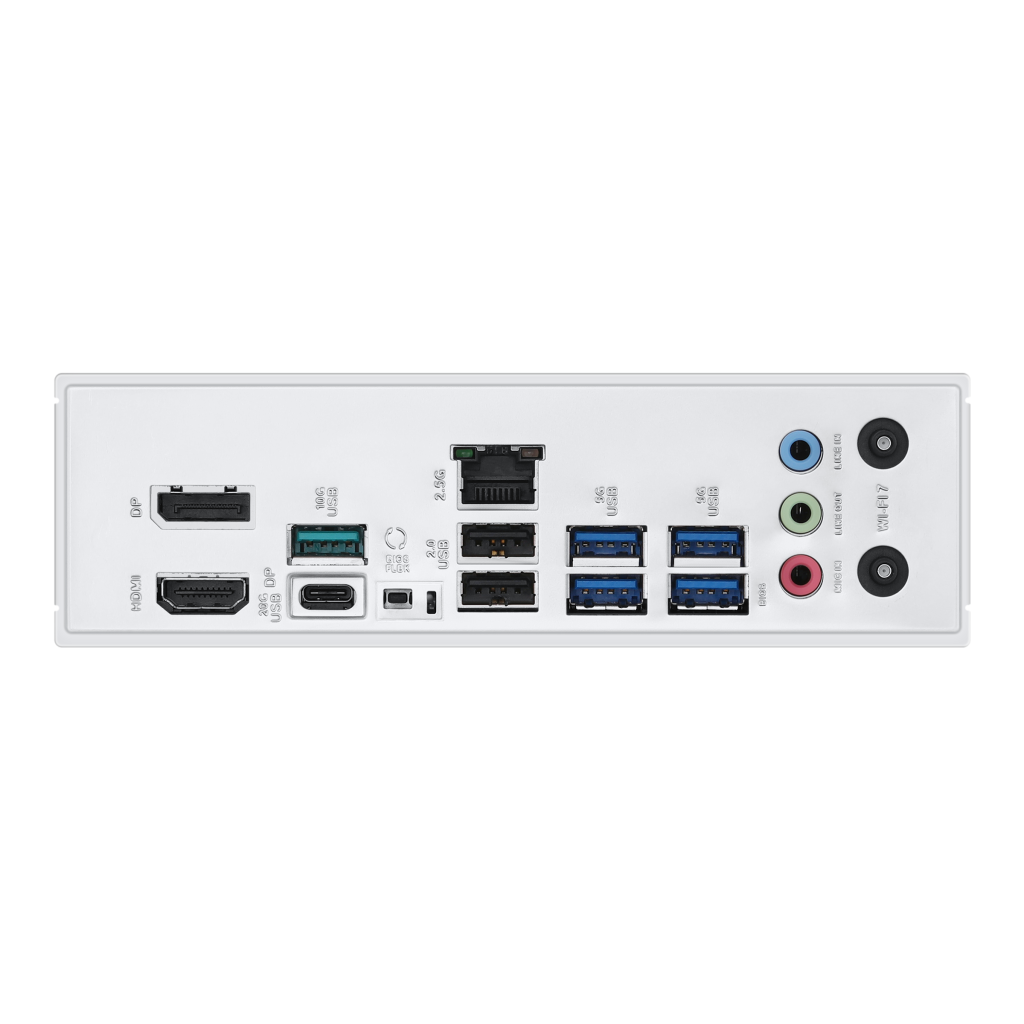

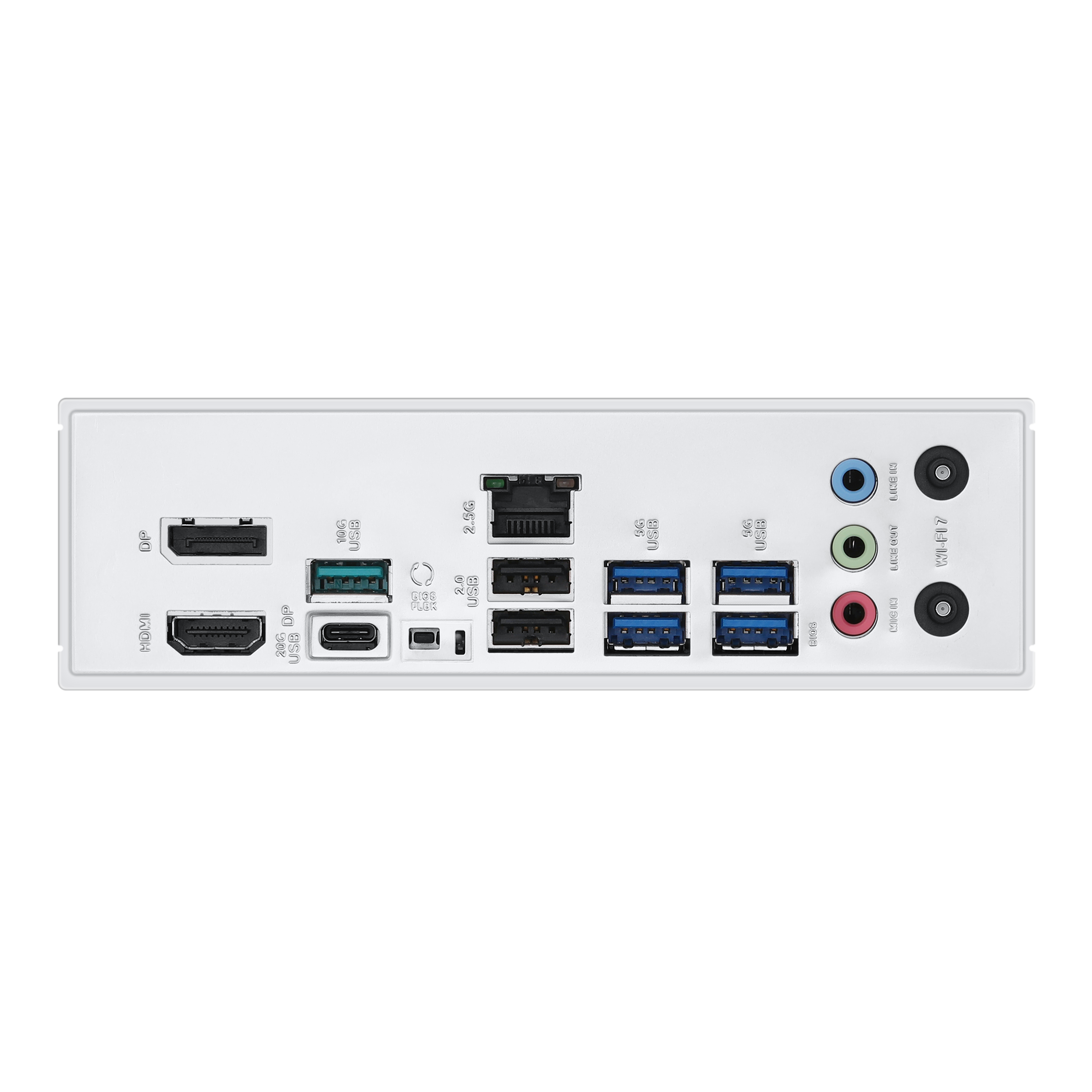

– External connections:
– 1x USB 3.1 (Type C, USB 3.2, Gen2x2, max. 20 Gbit/s)
– 1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort
– 1xHDMI
– 1x 2.5 Gigabit LAN (Intel I219V)
– 1x WiFi/Bluetooth module (Realtek AC9560)
– 3x 3.5 mm jack (Realtek ALC 4080)
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– -1x 8 pin +12V CPU
 1x 4-pin +12V CPU
– Accessories:

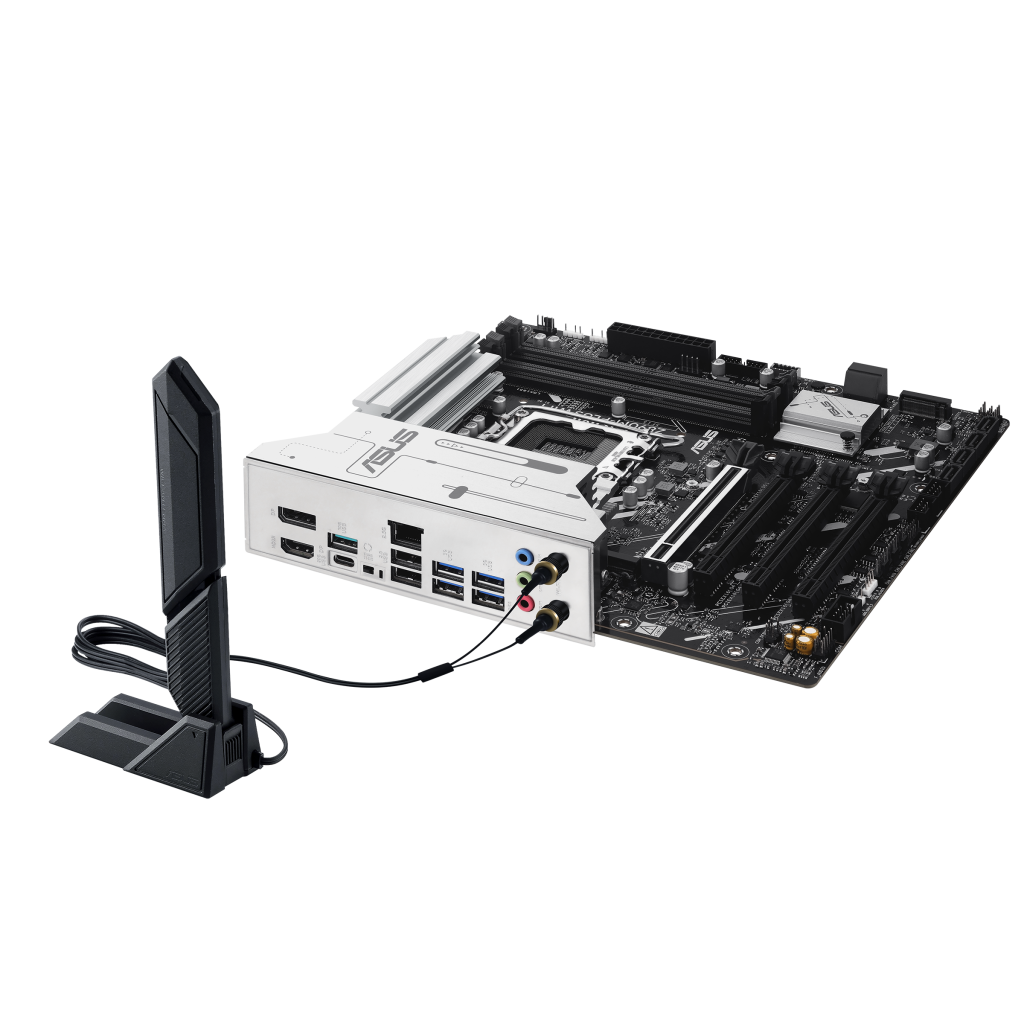

– 1x Wi-Fi antenna
– 2x SATA cables
