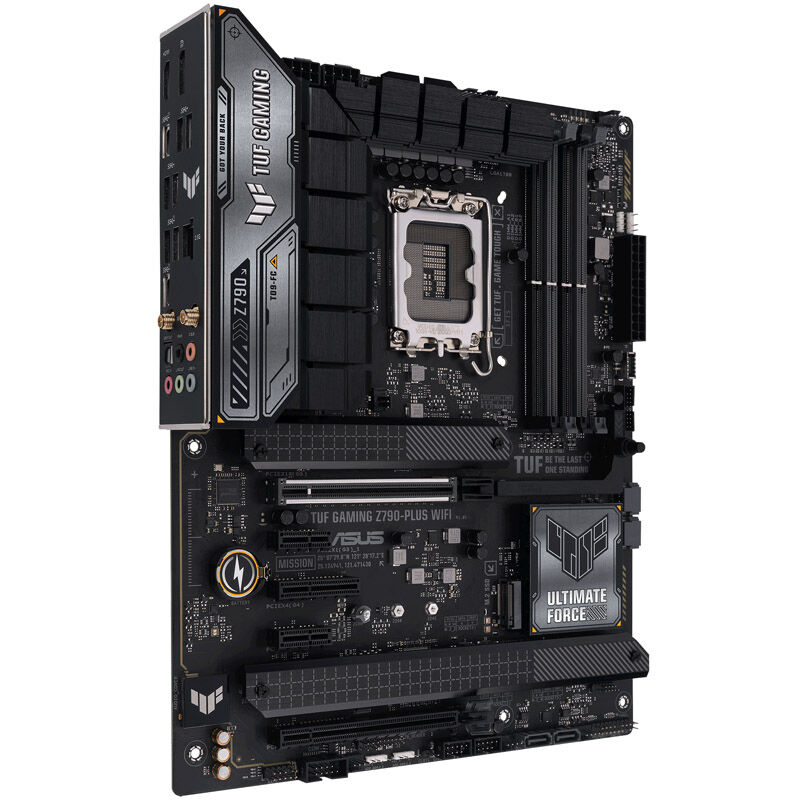

ASUS TUF Gaming Z790 Plus WiFi, Socket LGA 1700, Intel Z790, ATX - DDR5

– 1x PCIe 5.0 (x16), 1x PCIe 4.0 (x4), 1x PCIe 3.0 (x1)
– DDR5 memory up to 4800 MHz, up to 7200 MHz with RAM overclocking
– 4x M.2 slots with PCIe 4.0
– USB on the I/O panel: 4x USB 3.0 Type A / 2x USB 3.1 Type A / 1x USB 3.1 Type C / 1x USB 3.2 Type C
– With Wi-Fi and Bluetooth 5.2
– Overclocking features: BIOS Flashback, diagnostic LEDs, Clear CMOS jumper
– RGB LED lighting and 4x RGB headers
– A total of 7 connectors for fans and pumps

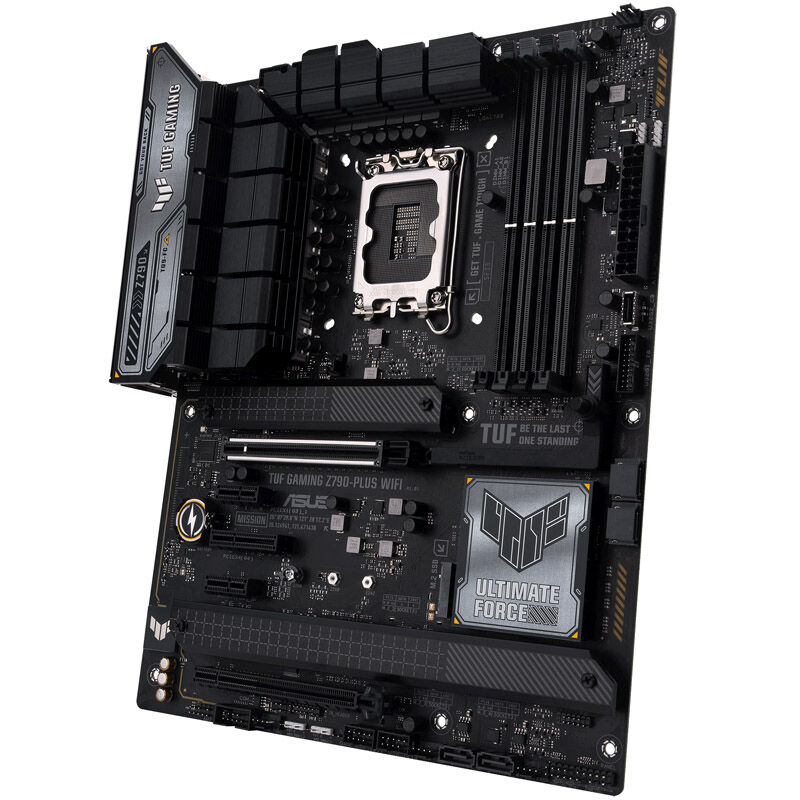

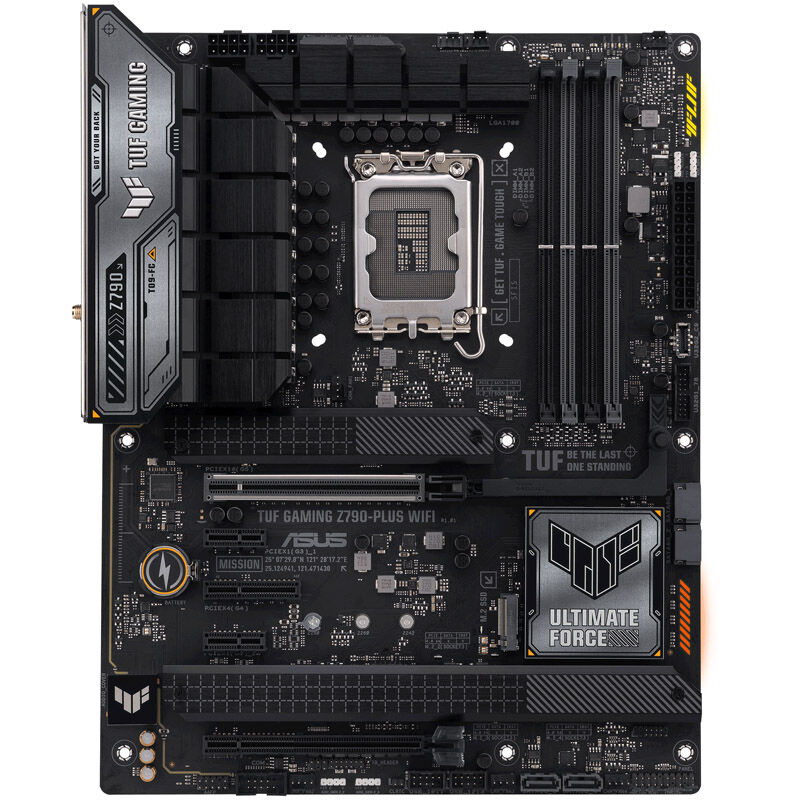

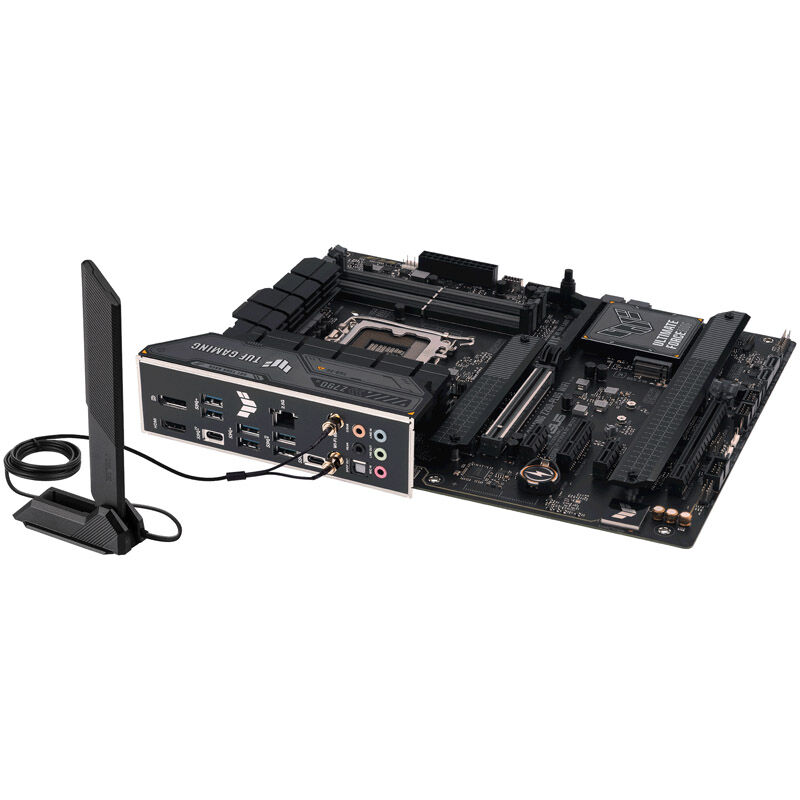

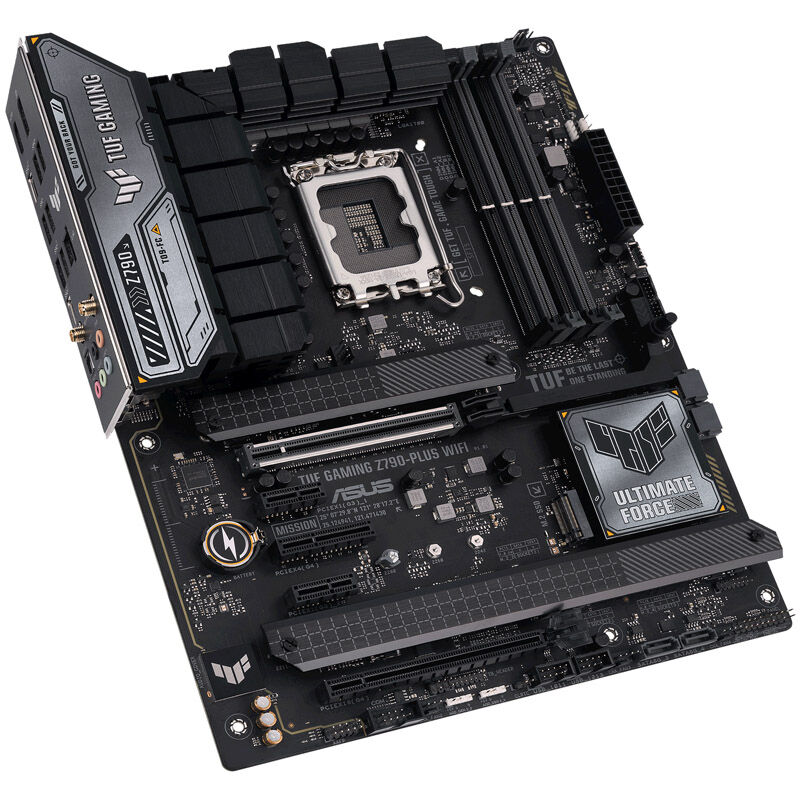

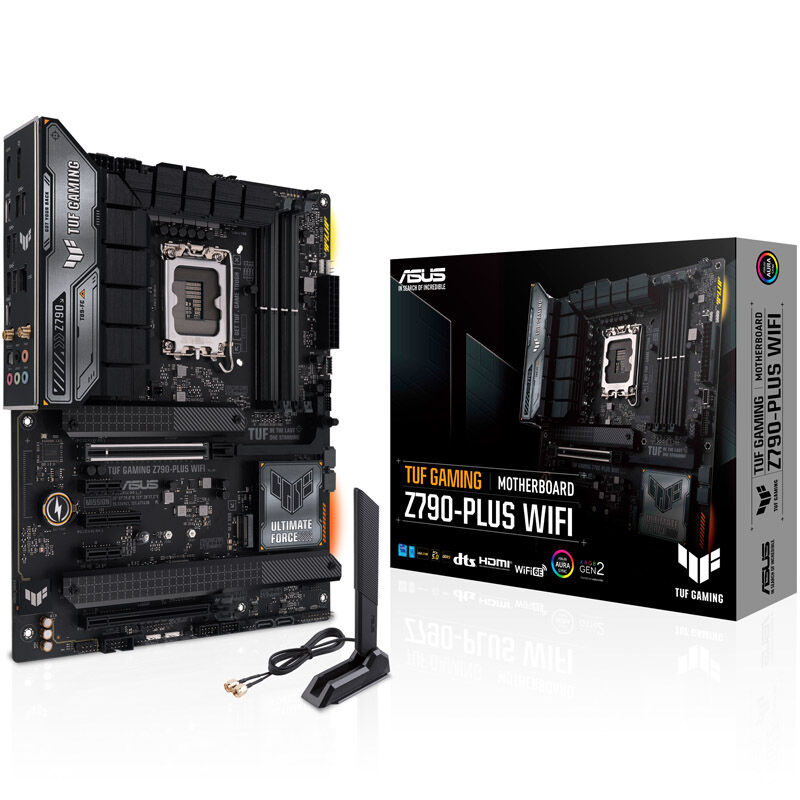

The ASUS TUF Gaming Z790 Plus WiFi ATX motherboard with Intel Z790 chipset in detail
The ASUS TUF Gaming Z790 Plus WiFi is a ATX motherboard with the high-end Intel Z790 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake, and Raptor Lake desktop processors. It supports DDR5 memory up to 7,200 MHz and, thanks to its optimized power supply, is ideal for overclocking.

Note: This motherboard supports DDR5 memory.

For optimal processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance.

Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z790
– Socket:
– 1700 (for Intel 12th, 13th, and 14th Core Generation CPUs)
– RAM:
– 4x DDR5 (4800 MHz, up to 7200 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16
– 2x PCIe 3.0 x16 (electrical x4 / x1)
 -1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
– 1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
– 1x M.2 (PCIe 4.0 x4, 2242-22110, chipset)
– 1x M.2 (PCIe 4.0 x4 / SATA 6G, 2242-2280, chipset)
– 1x USB-C (one header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (one header, USB 3.2 Gen 1, max 5 Gbit/s)
– 4x USB 2.0 (two headers, max. 480 Mbit/s)
– 1x Front Panel Audio Connector
– 1x system panel connector
– 1x Chassis Intrusion Connector
– 1x Clear CMOS jumper
– 1x TPM Module Connector
– 1x tuning controller connector
– 1x Thunderbolt (USB4)
– Fan header:
– 1x CPU fan (4-pin)
– 1x pump (4-pin)
– 7x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x 4-pin RGB (12V)

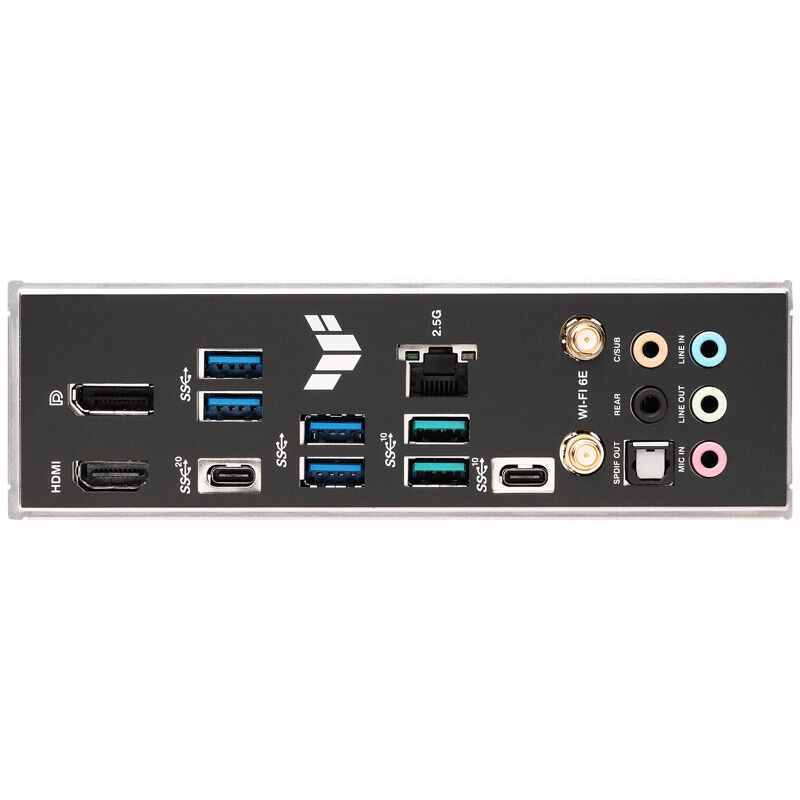

– External connections:
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x RJ-45 (Intel I225-V, max. 2.5 Gbit/s)
– 2x WLAN antenna (Intel Wifi 6E, Bluetooth 5.2)
– 5×3.5 mm jack (Realtek ALC 4080)
– 1x S/PDIF
– 1x Flash BIOS button
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
– 1x 4-pin ATX 12V
