ASUS Prime H610M-R D4-SI, Intel H610 motherboard, Socket 1700, DDR4

– 1x PCIe 4.0 x16 for graphics cards, 1x PCIe 3.0 x1
– For 64 GB DDR4 RAM up to 3200 MHz
– 1x M.2 SSD slot with PCIe 3.0
– USB on the I/O panel: 2x USB-A 3.0 / 2x USB-A 2.0
– A total of 2 fan connectors
– With 1 Gbit LAN

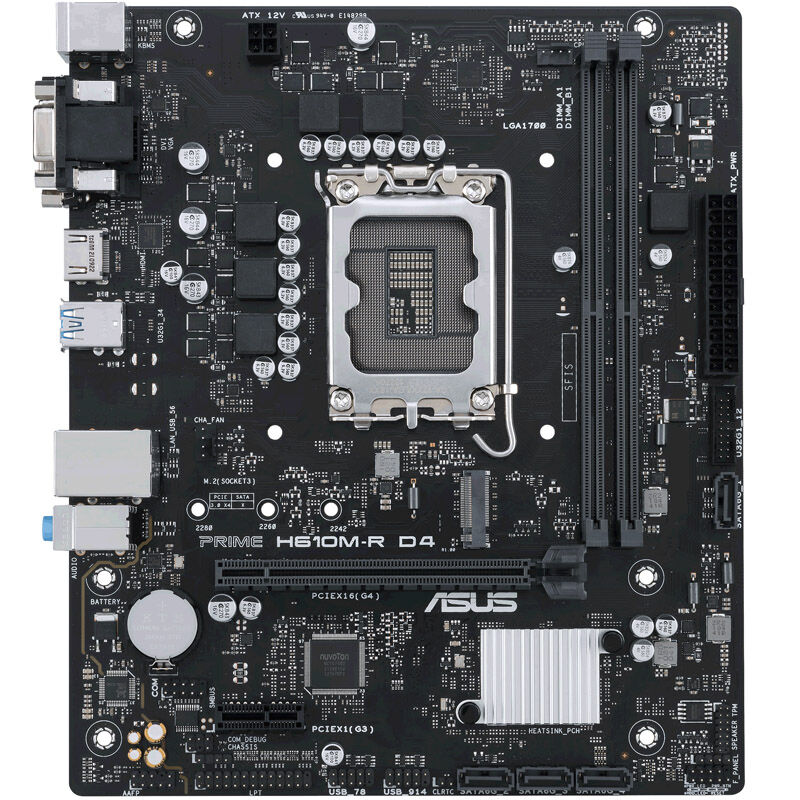

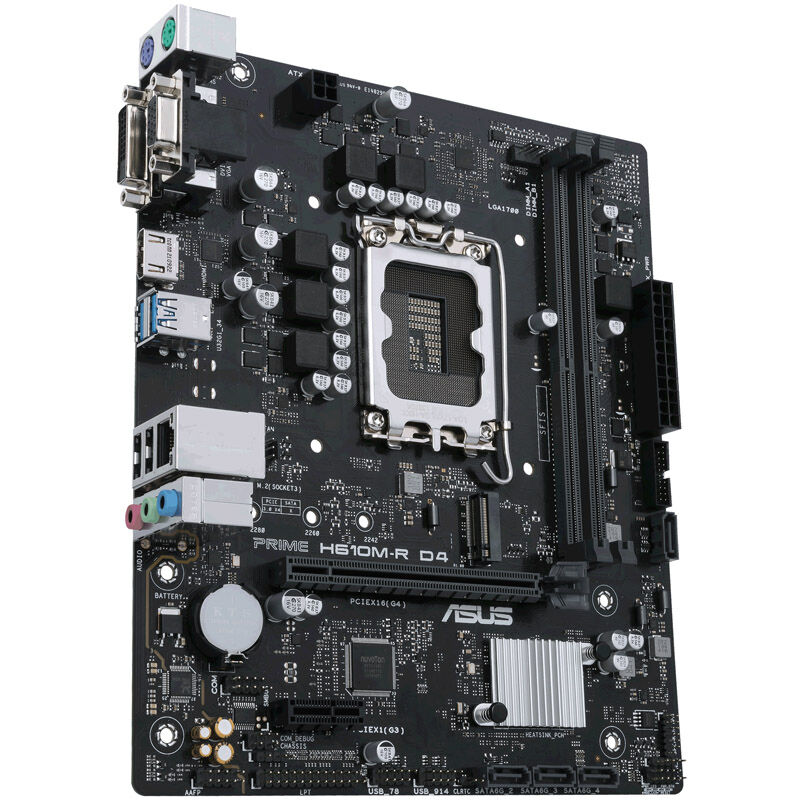

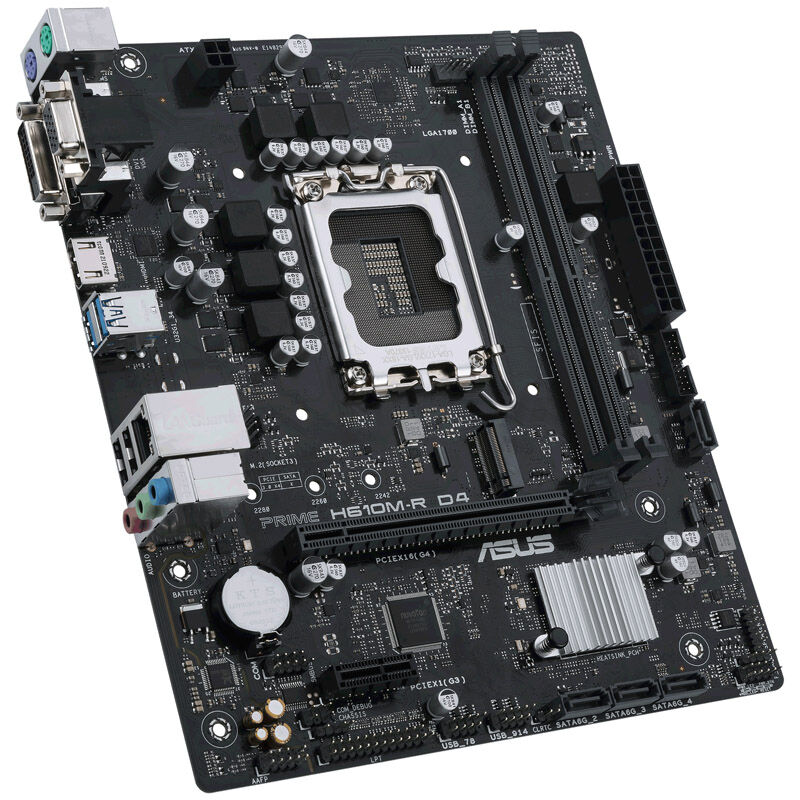

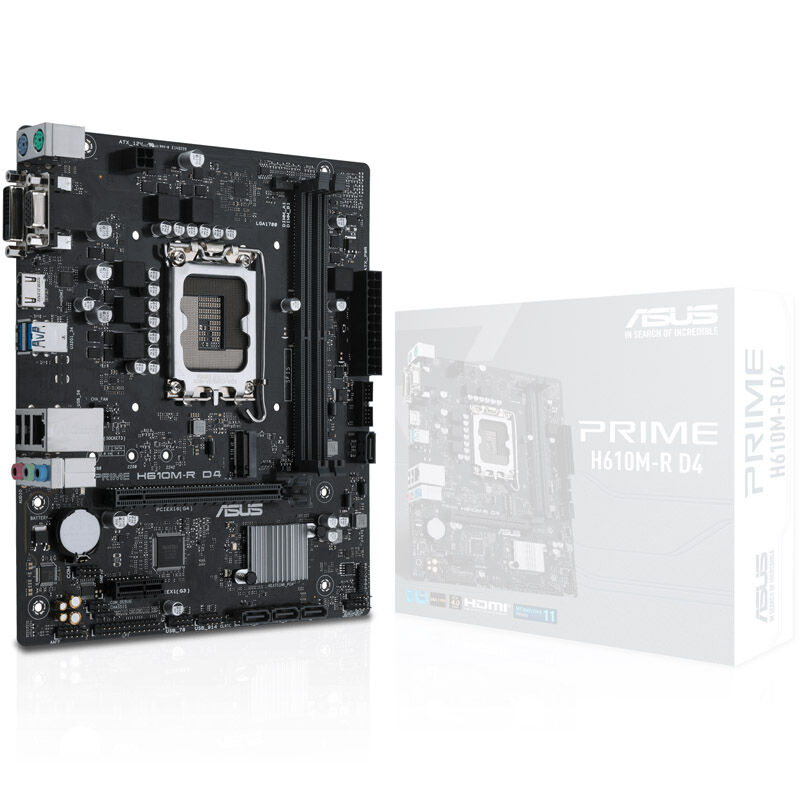

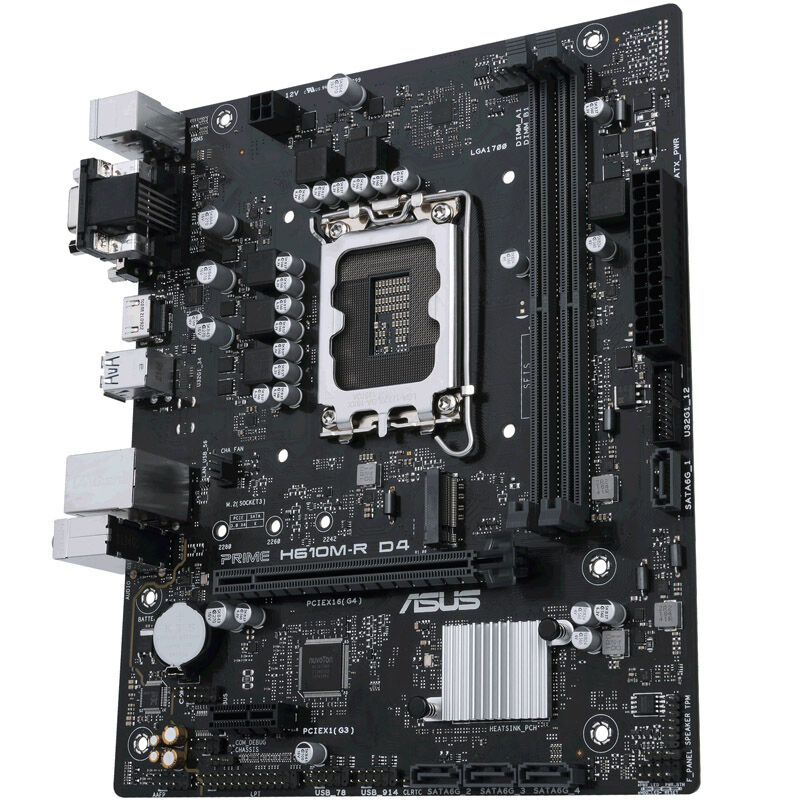

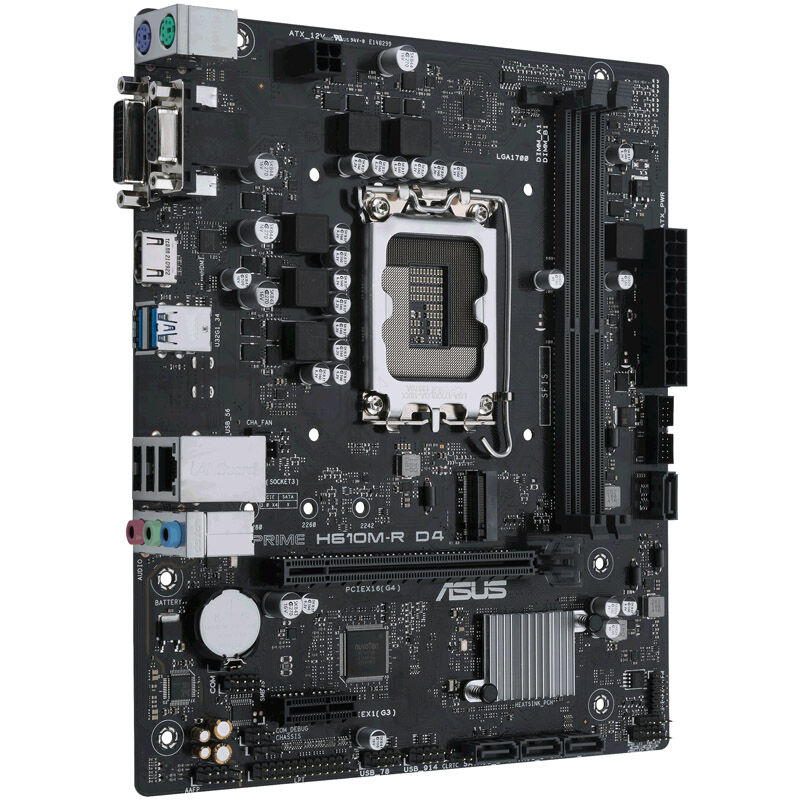

The ASUS Prime H610M-R D4-SI Micro-ATX motherboard with Intel H610 chipset
The ASUS Prime H610M-R D4-SI is a Micro-ATX motherboard with the Intel H610 chipset and the LGA 1700 socket. The motherboard is compatible with 12th and 13th generation Intel Core i-13000 and i-12000 processors, Alder Lake and Raptor Lake, and Intel Xeon processors. Pentium Gold G7000 and Celeron G6000 CPUs with integrated graphics. It supports DDR4 memory up to 3200 MHz and also offers features such as Gbit LAN.

Note: This motherboard supports DDR4 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboard BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Form Factor:
– Mini-ITX (240 x 240 mm)
– Chipset:
– Intel H610
– Socket:
– 1700 (for Intel Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000 with iGPU)
– RAM:
– 2x DDR4 (3,200 MHz)
– Dual-Channel
– Max. 64 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU) 1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 3.0) x4, 2242-2280)
– 2x USB 3.0 (one header, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (two headers, max. 480 Mbit/s)

– 1x Front Panel Audio Header (AAFP)
– 1x 10-pin System Panel Header
– 1x Chassis Intrusion Header
– 1x COM Port Header
– 1x COM Debug Header
– 1x LPT Port Header
– 1x Speaker Header
– 1x 14-pin SPI TPM Header
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x Chassis Fan (4-pin)
– RGB Header:
– none

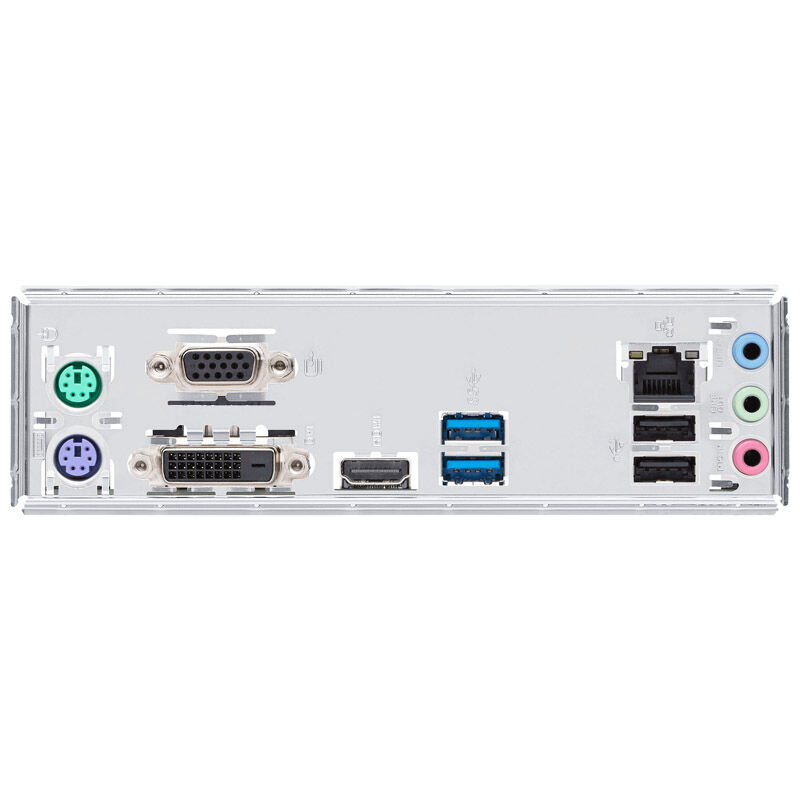

– External Connectors:
– 2x PS/2 for mouse and keyboard
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbps)
– 2x USB 2.0 (Type A, max. 480 Mbps)
– 1x DVI-D
– 1x HDMI 2.1
– 1x D-Sub
– 1x RJ-45 (Realtek, max. 1 Gbps)
– 3x 3.5 mm jack
– Power supply:
– 1x 24-pin ATX12V
– 1x 4-pin ATX12V
