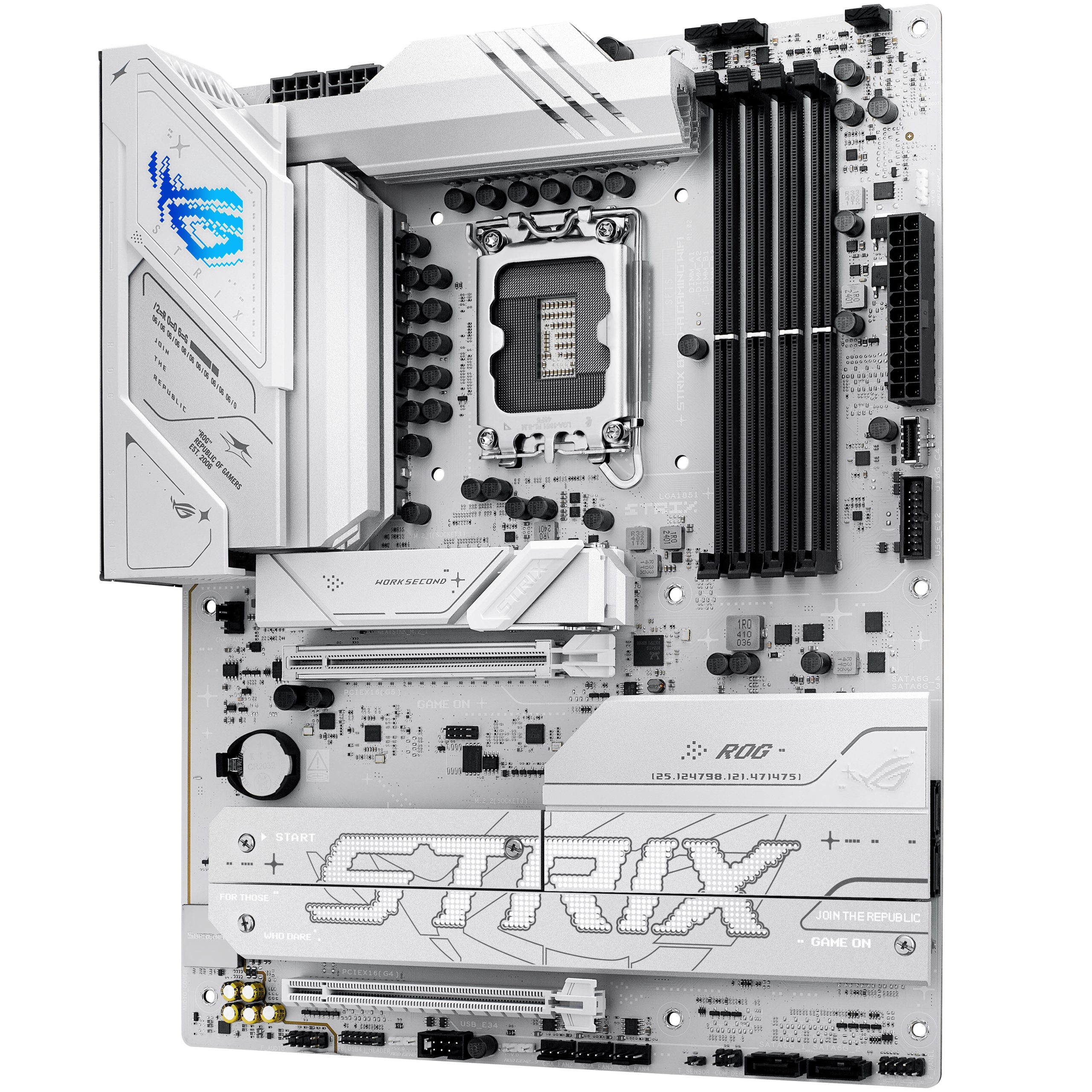

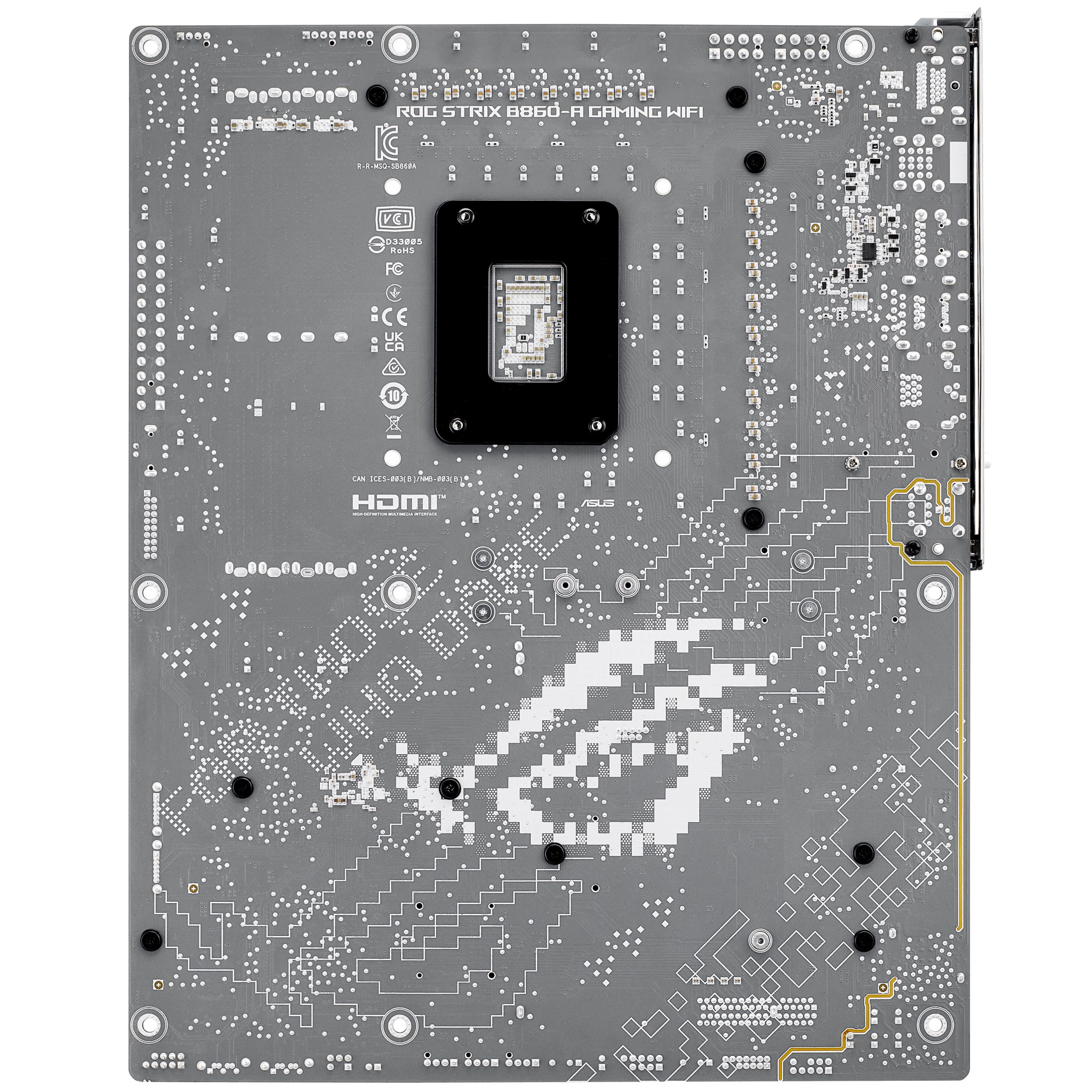

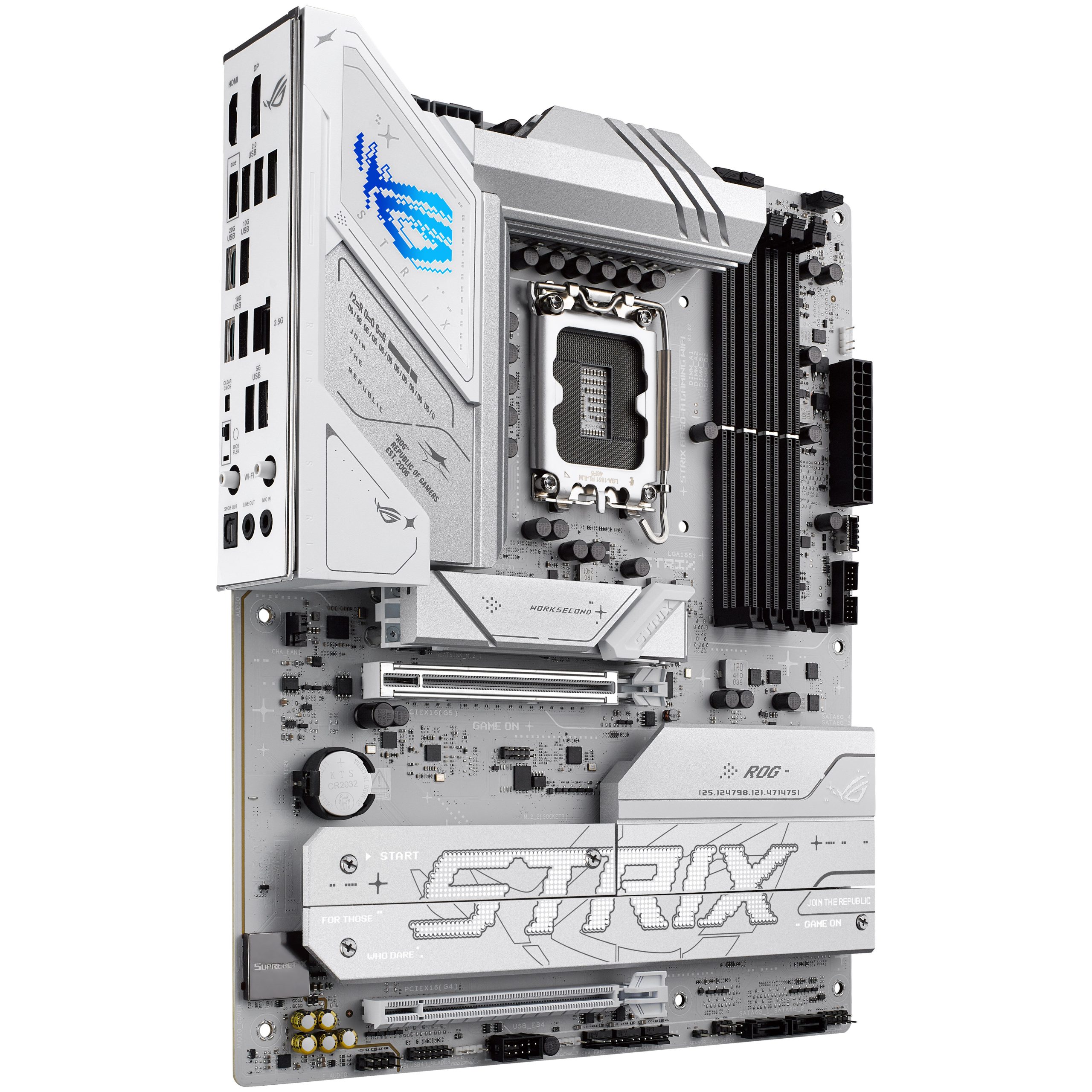

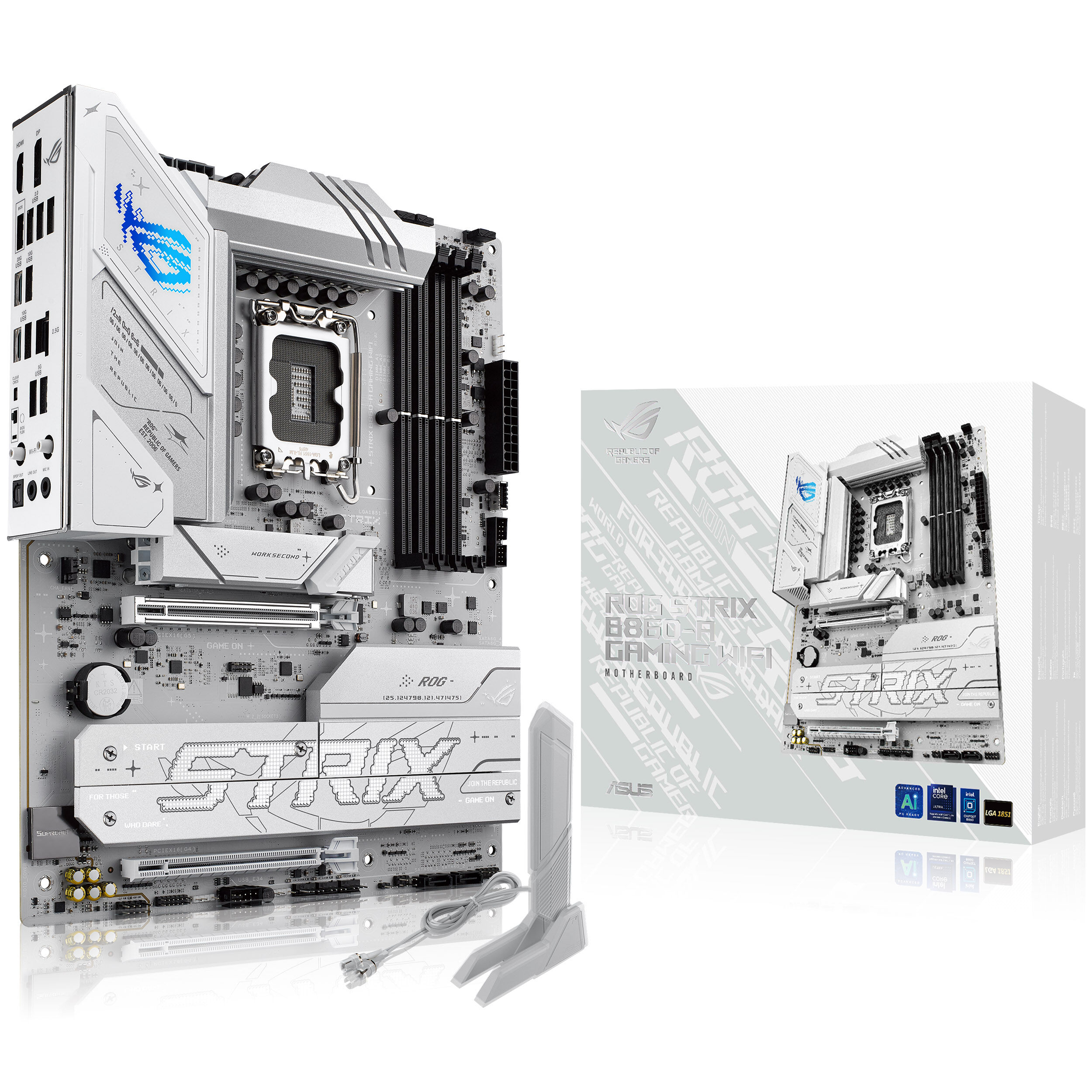

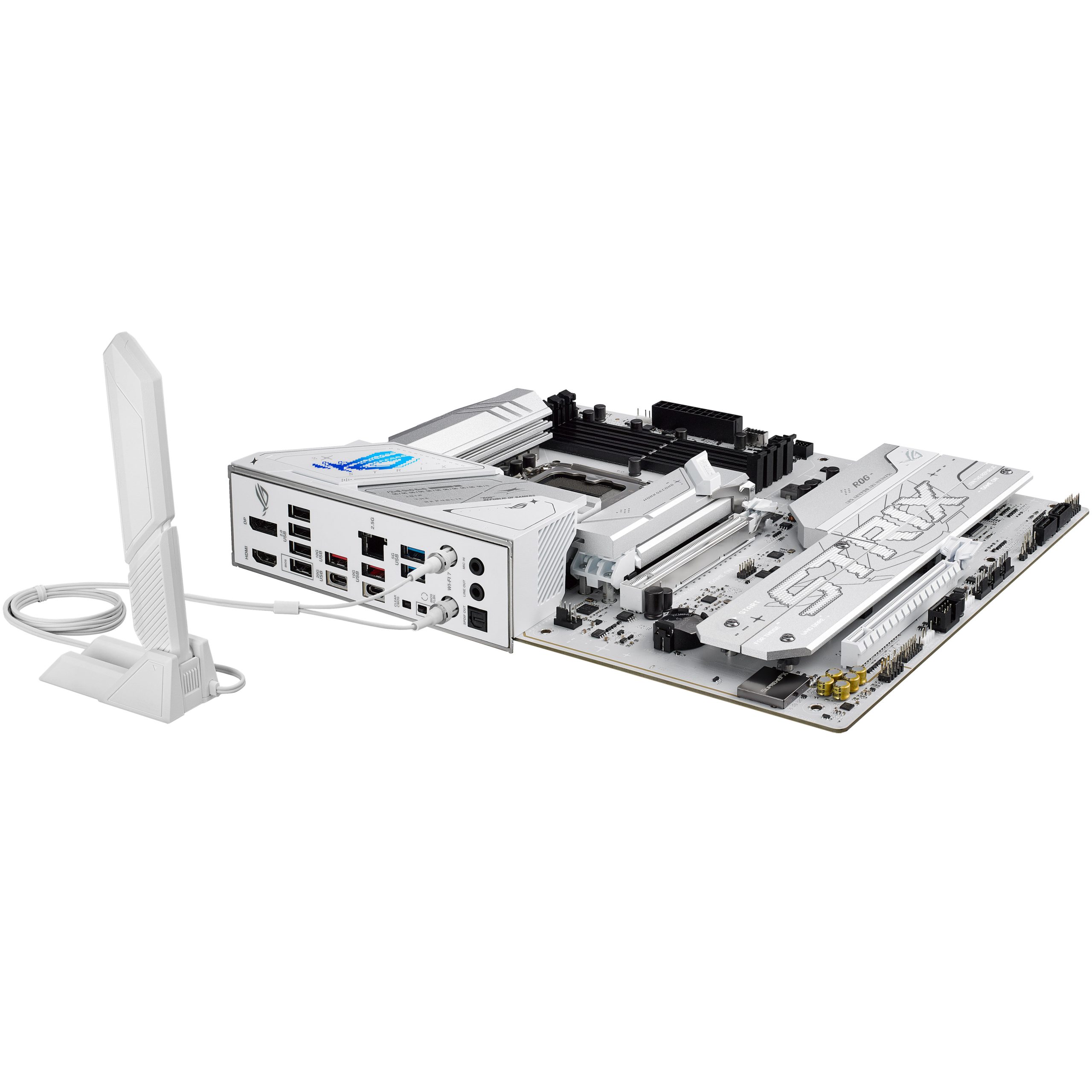

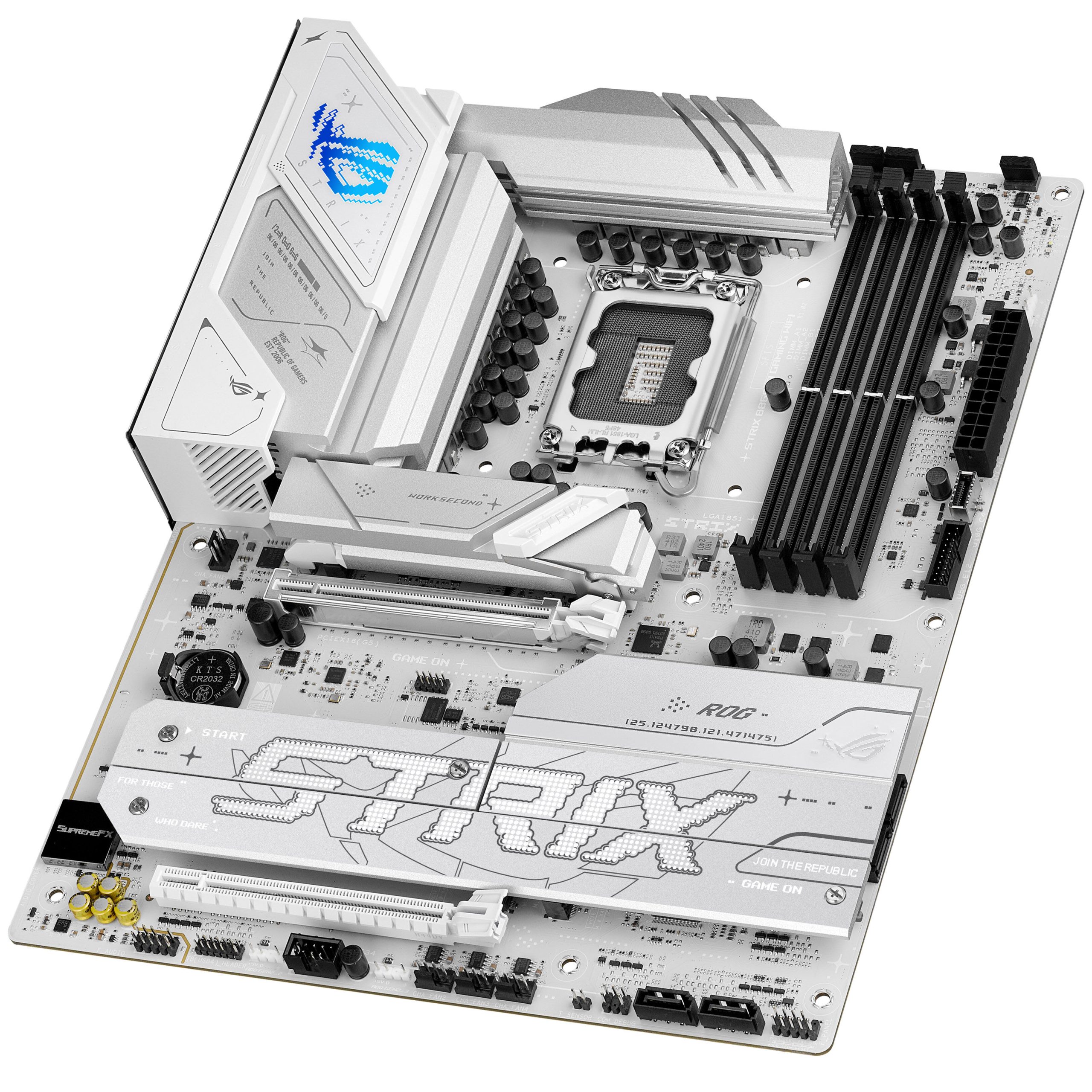

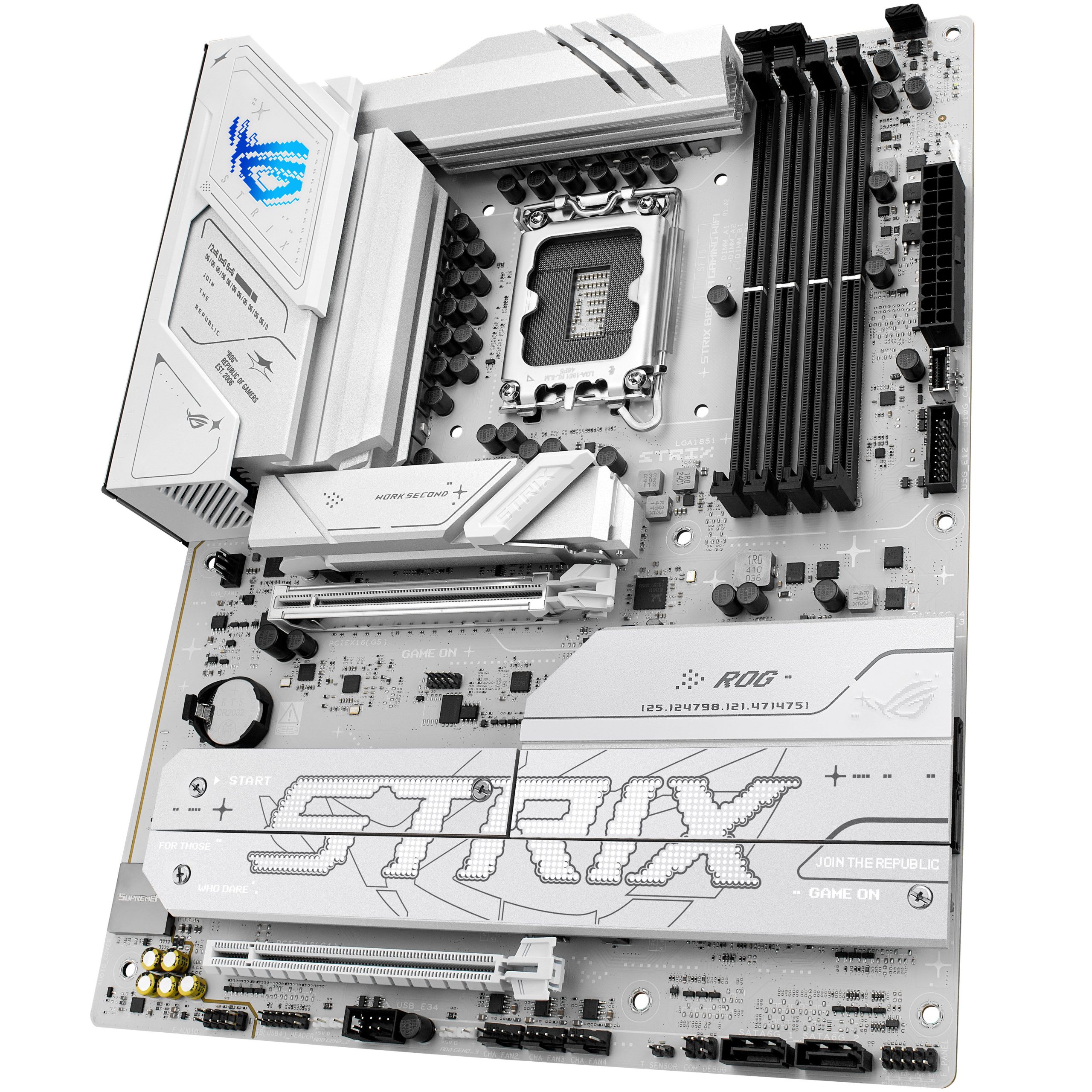

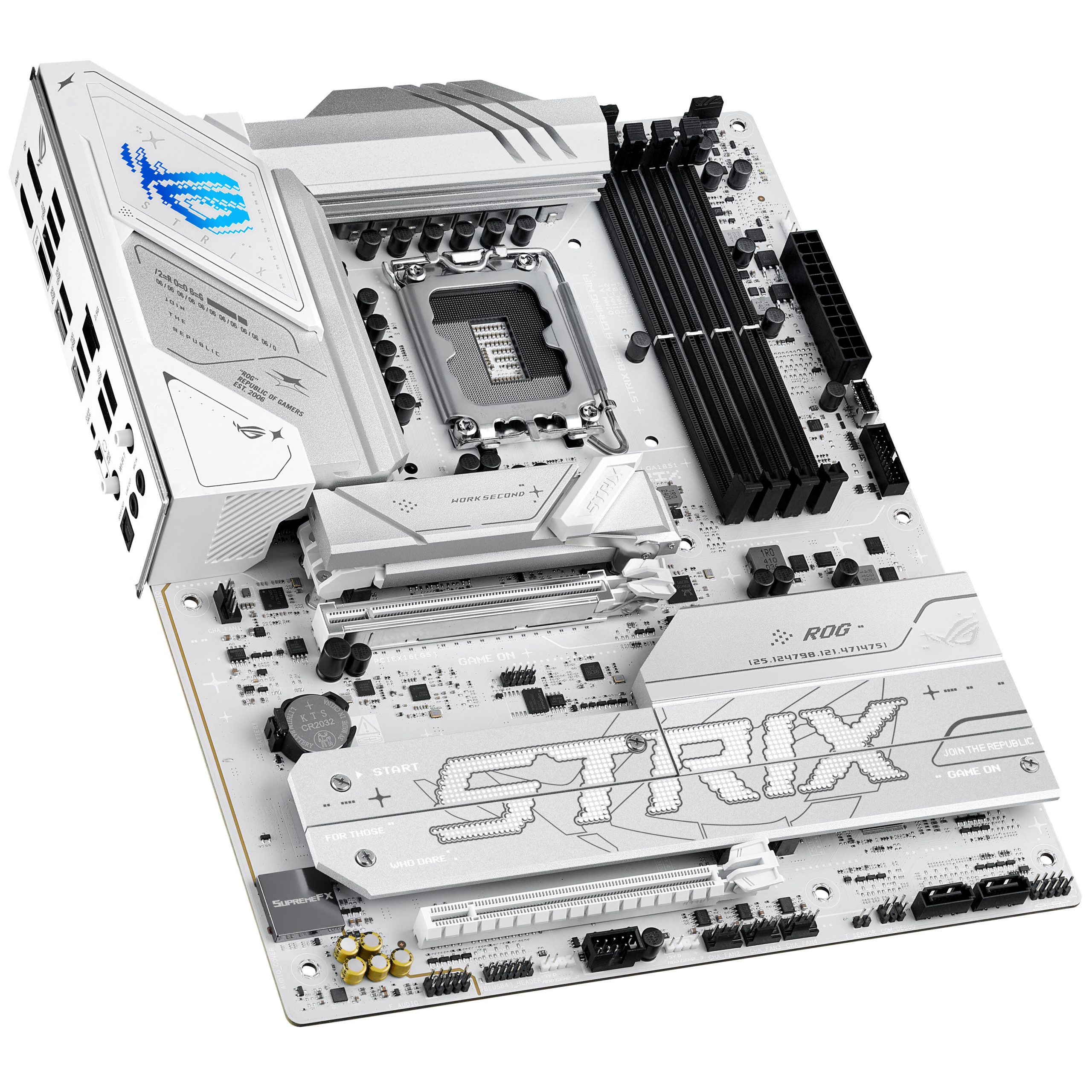

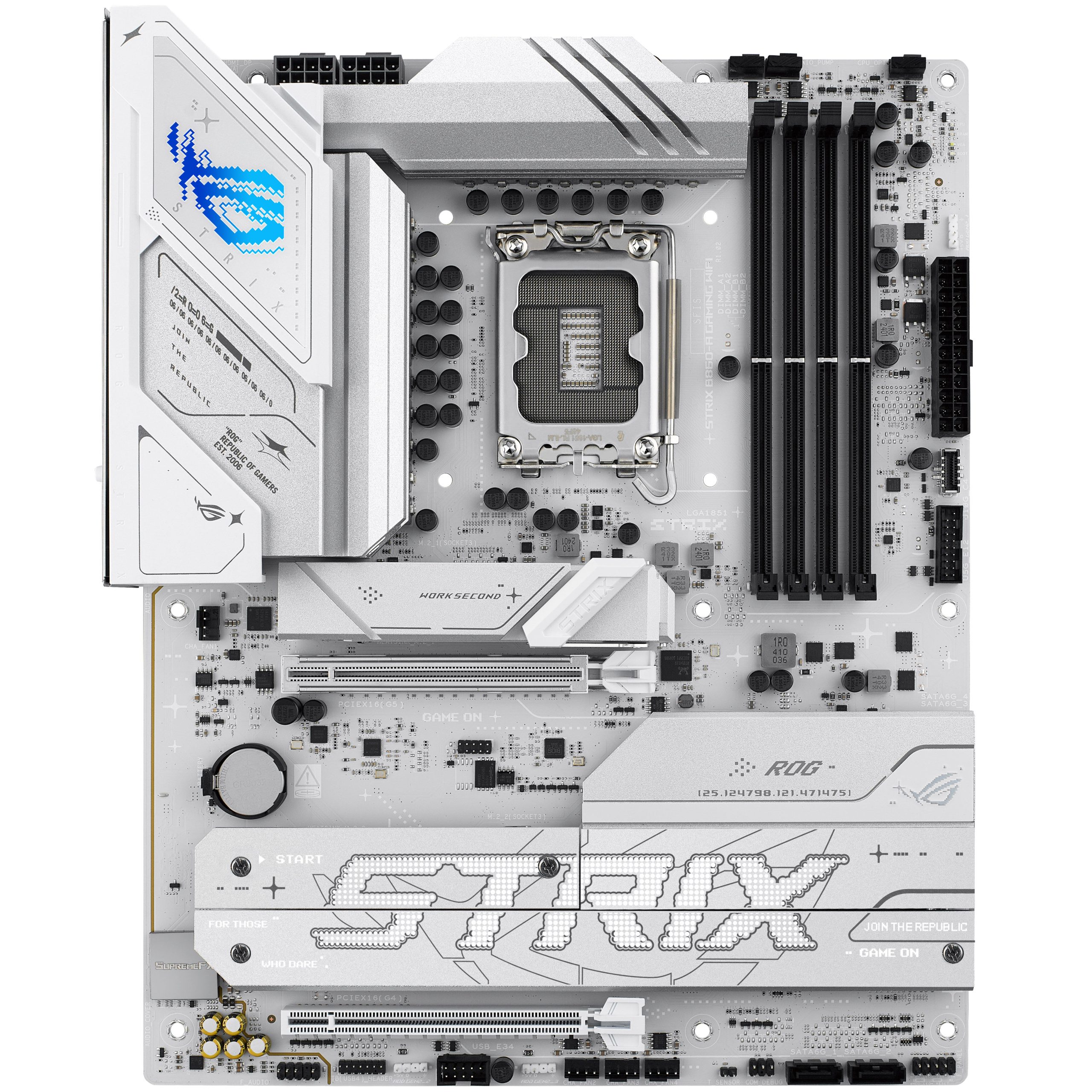

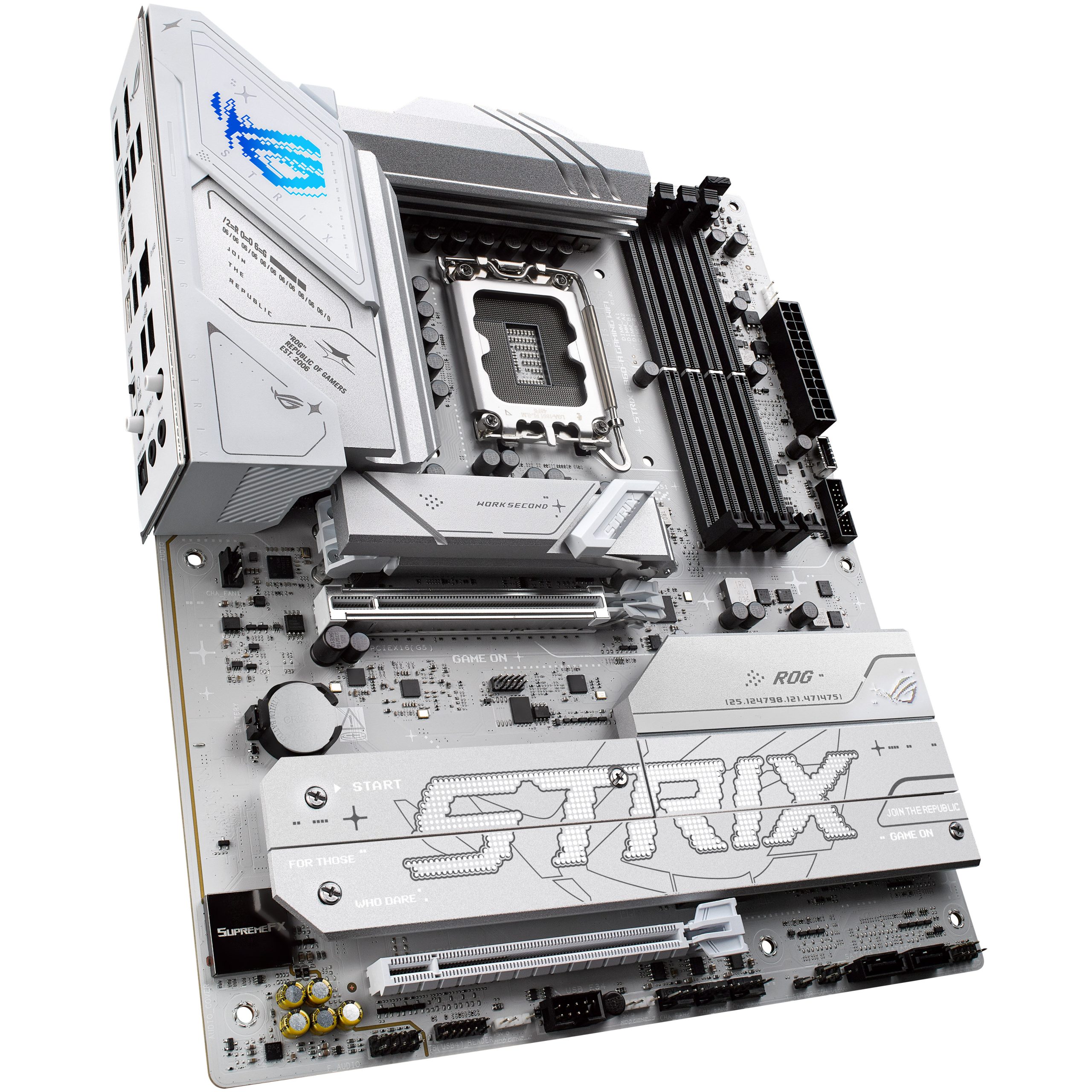

ASUS ROG Strix B860-A Gaming WiFi motherboard, socket LGA 1851, Intel B860, ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x4
– RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 9066 MT/s
– Storage: 4x M.2 (1x PCIe 5.0 & 3x PCIe 4.0) and 4x SATA
– USB: 1x USB 4, 1x USB-C 3.1, 2x USB 3.1, 2x USB 3.0, and 4x USB 2.0
– Cooling: 7x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 7 and Bluetooth 5.4

ASUS ROG Strix B860-A Gaming WiFi: ATX motherboard with Intel LGA 1851 socket and B860 chipset
The ASUS ROG Strix B860-A Gaming WiFi is a ATX motherboard with the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake processors and is suitable for gamers who can forgo overclocking their CPU.

The B680 motherboards also support USB 4, which achieves very fast data transfer rates of up to 40 Gbps. The ASUS ROG Strix B860-A Gaming WiFi also offers PCIe 5.0 for graphics cards and M.2 SSDs, but lacks lane splitting for the GPU expansion slot. The DDR5 memory is overclockable, allowing you to get the most out of your RAM.

Technical Details
– Color
– Main Color
– White
– Dimensions
– Length / Depth
– 305 mm
– Width
– 244 mm
– Height
– 50 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (OC)
– 9066 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 2x 8-pin
– USB4 (internal) header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible connectors
– 2
– USB 2.0 (internal) header
– 1
– USB 2.0 (internal) possible connectors
– 2
– RGB / LED connectors
– 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– No

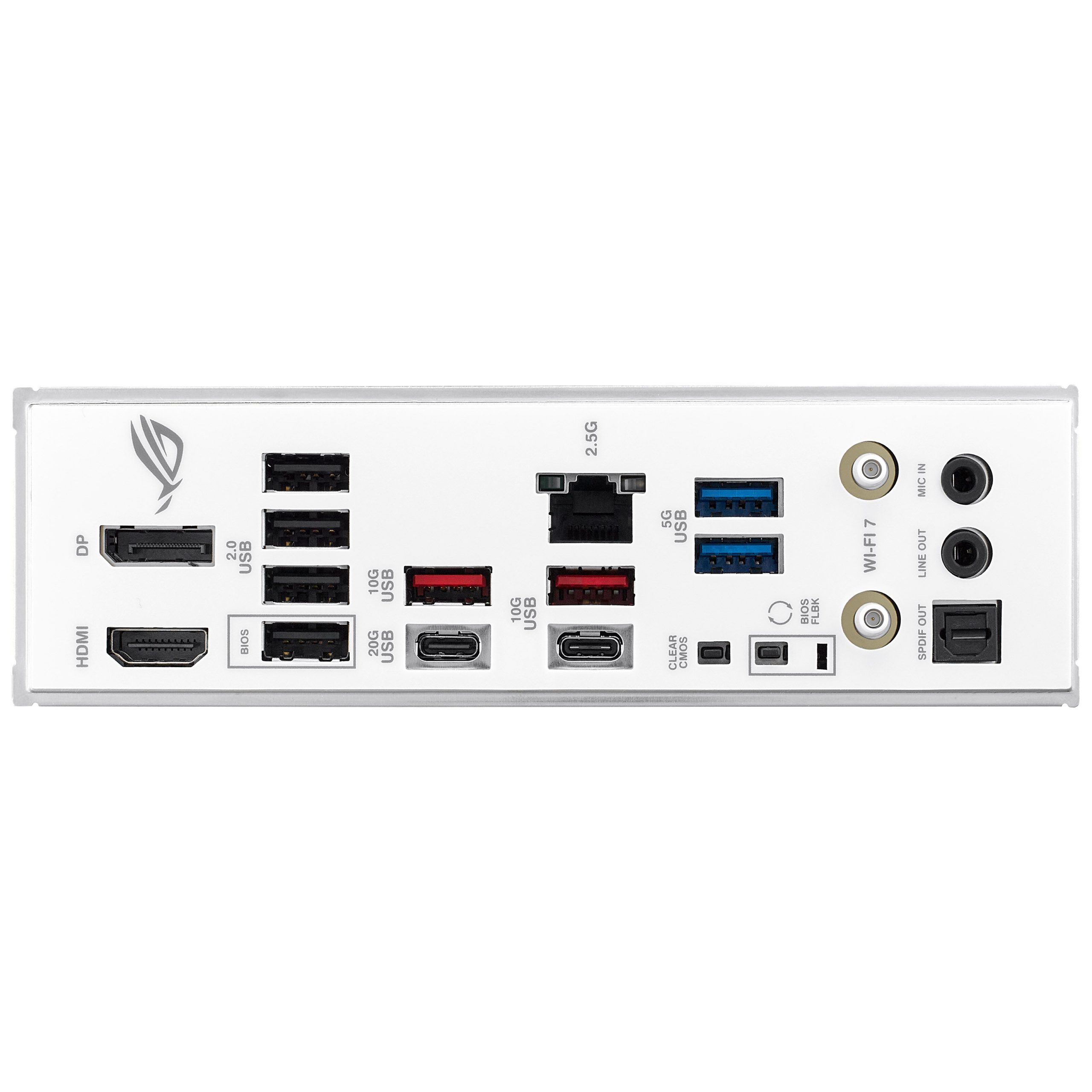

– External Connectors
– USB4 Gen 3×2 (external) Type-C
– 1
– USB 3.1 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 2
– USB 3.0 (external) Type-A
– 2
– USB 2.0 (external) Type A
– 4
– Display connectors
– Display port (1x), HDMI (1x)
