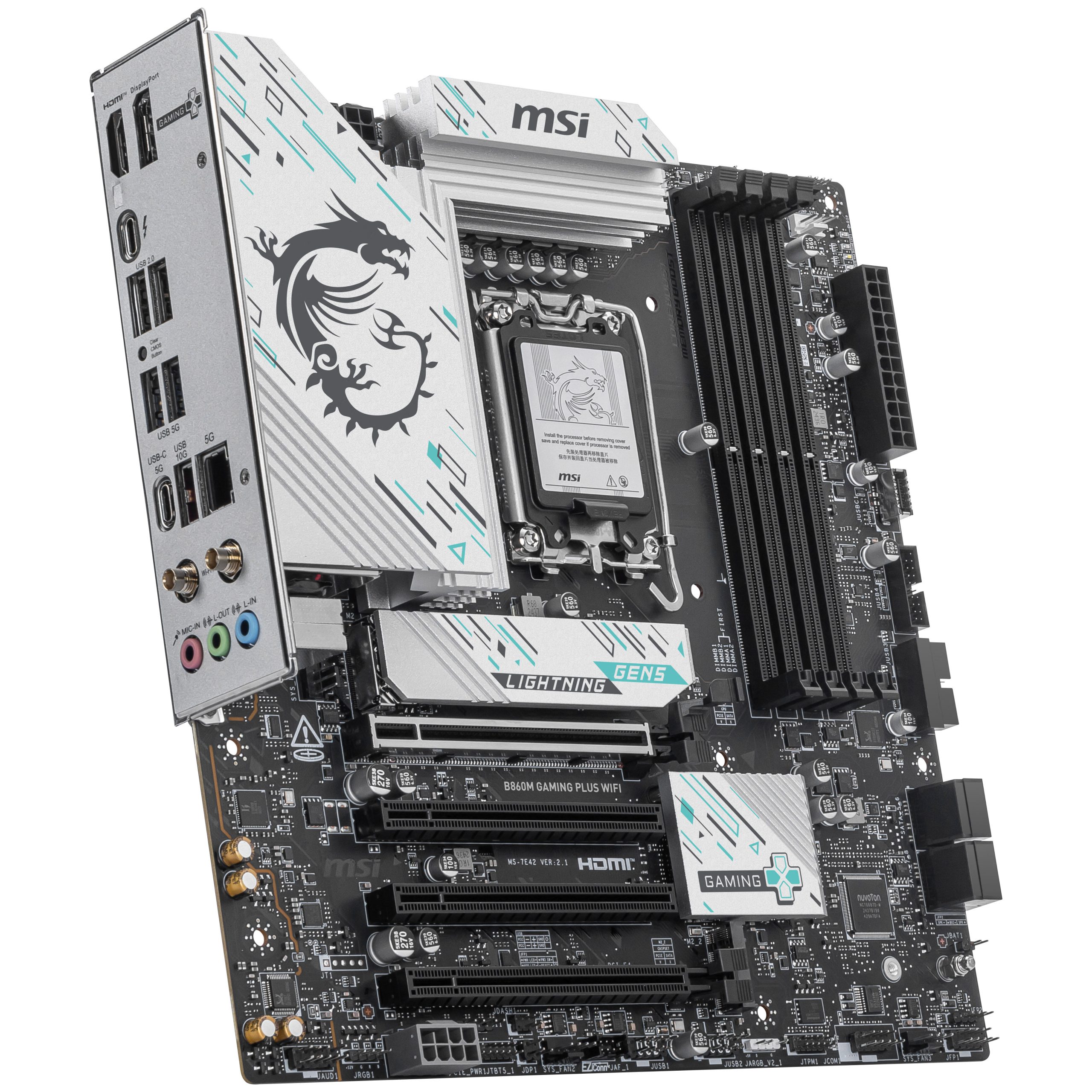

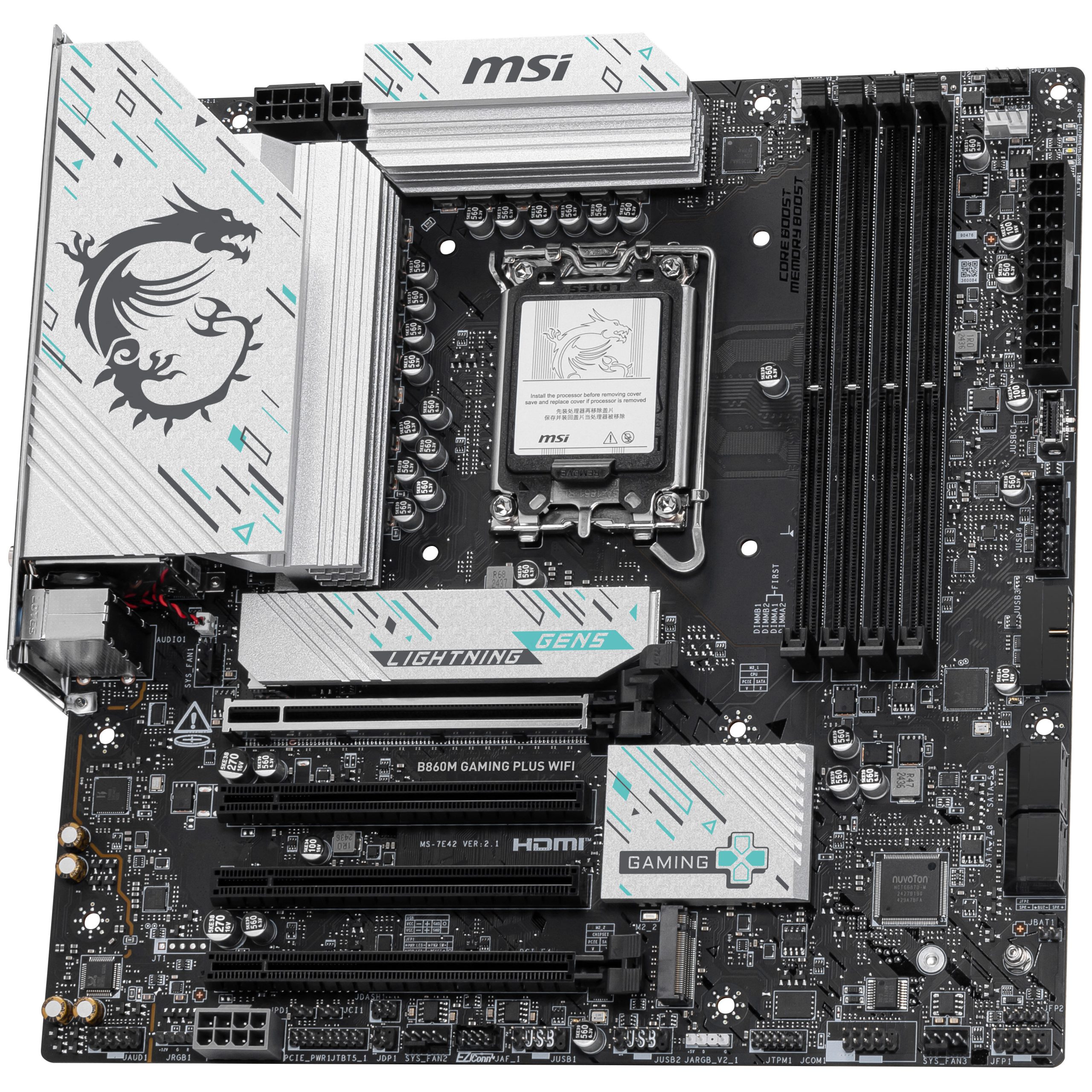

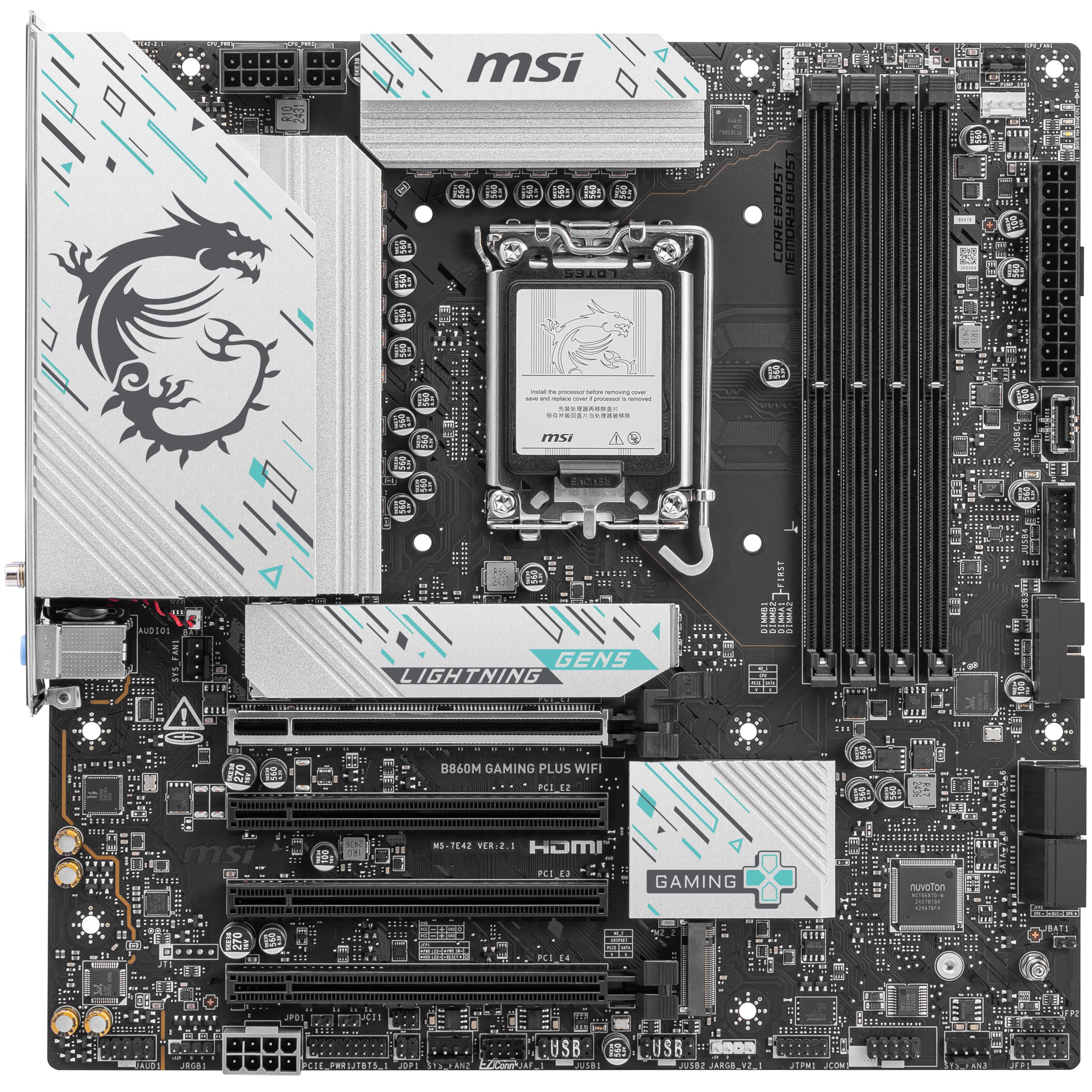

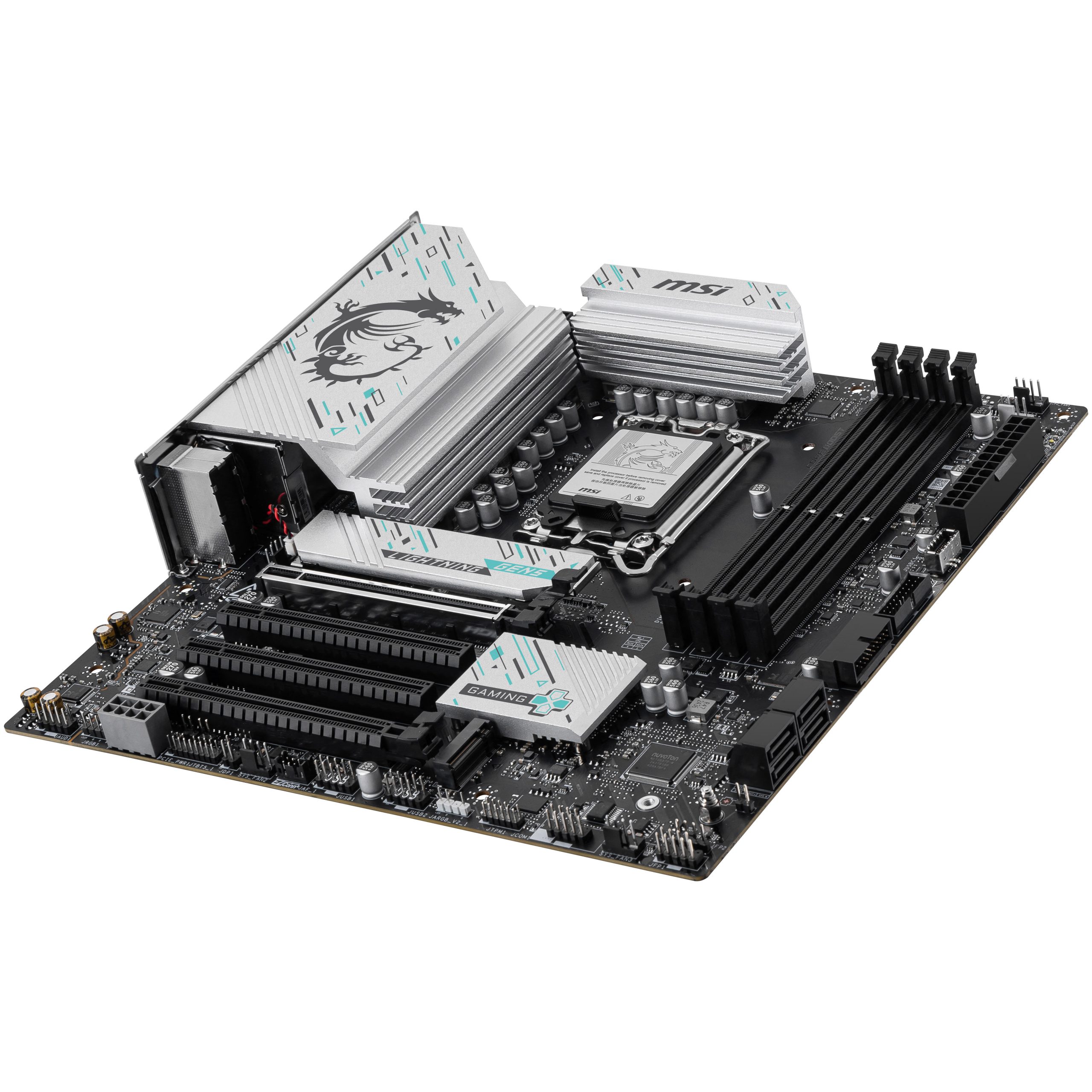

MSI B860M Gaming Plus WiFi motherboard, socket LGA 1851, Intel B860, mATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 2x PCIe 4.0 x16 (x1)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,600 MT/s
– Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
– USB: 1x Thunderbolt 4, 1x USB-C 3.1, 1x USB-C 3.0, 2x USB 3.0, and 2x USB 2.0
– Cooling: 5x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 7 and Bluetooth 5.4

MSI B860M Gaming Plus WiFi: Micro-ATX motherboard with Intel LGA 1851 socket and B860 Chipset
The MSI B860M Gaming Plus WiFi is a Micro-ATX motherboard with the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake processors and is suitable for gamers who dont need to overclock their CPU.

The B860 motherboards also support USB 4, which achieves very fast data transfer rates of up to 40 Gbps. The MSI B860M Gaming Plus WiFi also offers PCIe 5.0 for graphics cards and M.2 SSDs. The DDR5 memory is overclockable, allowing you to get the most out of your RAM.

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Silver
– Dimensions
– Length / Depth
– 243.8 mm
– Width
– 243.8 mm
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– RAM
– Max. Memory
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– UDIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 8600 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 5 Gbit/s
– LAN Chip
– Intel Killer E5000
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Wi-Fi Chip
– Intel Killer BE1750x
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power
– 1x 4-pin + 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 2
– USB 3.0 (internal) Possible Connectors
– 4
– USB 2.0 (internal) Header
– 2
– USB 2.0 (internal) Possible Connectors
– 4
– RGB / LED Connectors
– 1x RGB (4-pin 5050 12VGRB), 2x Digital RGB (3-pin 5V/12VDG)
