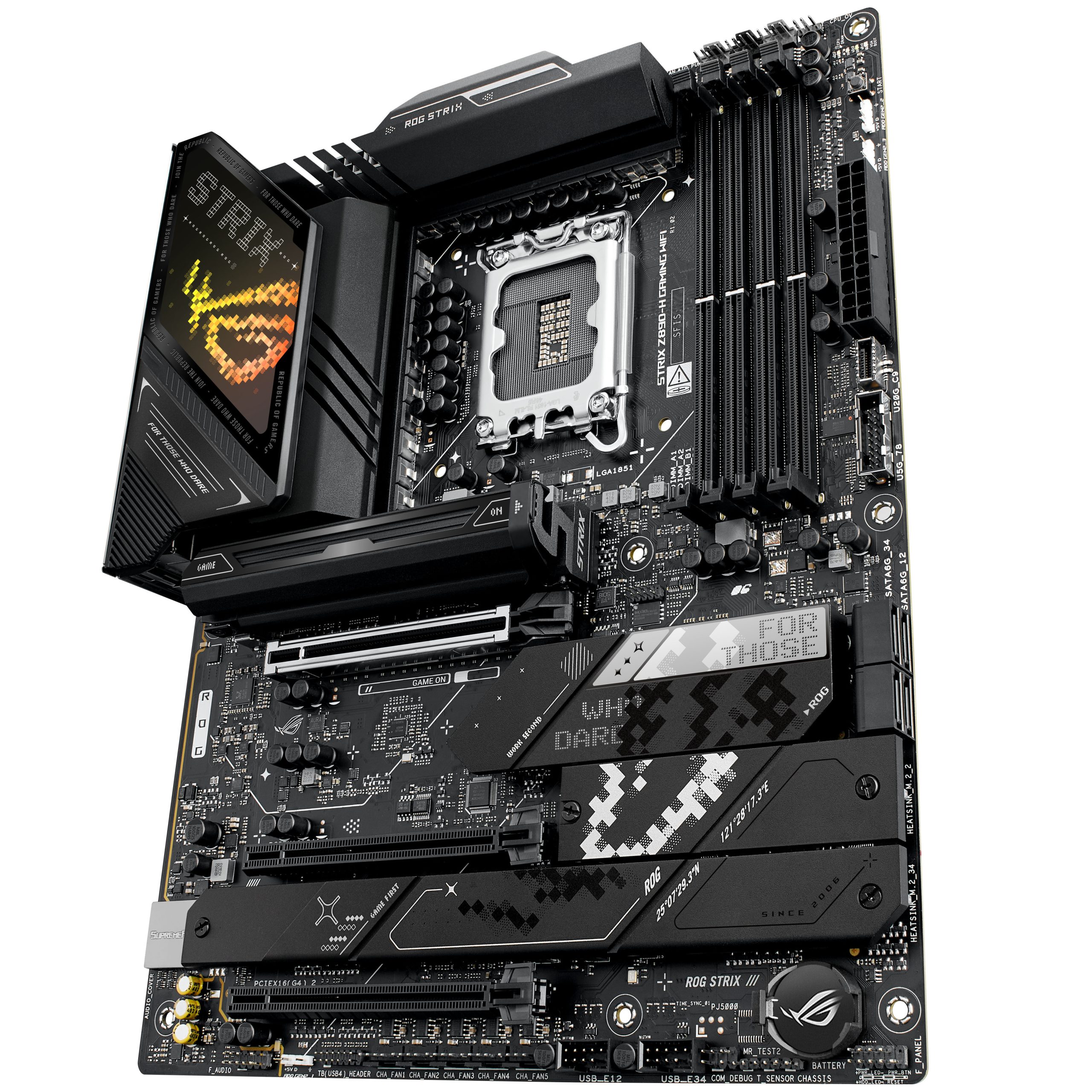

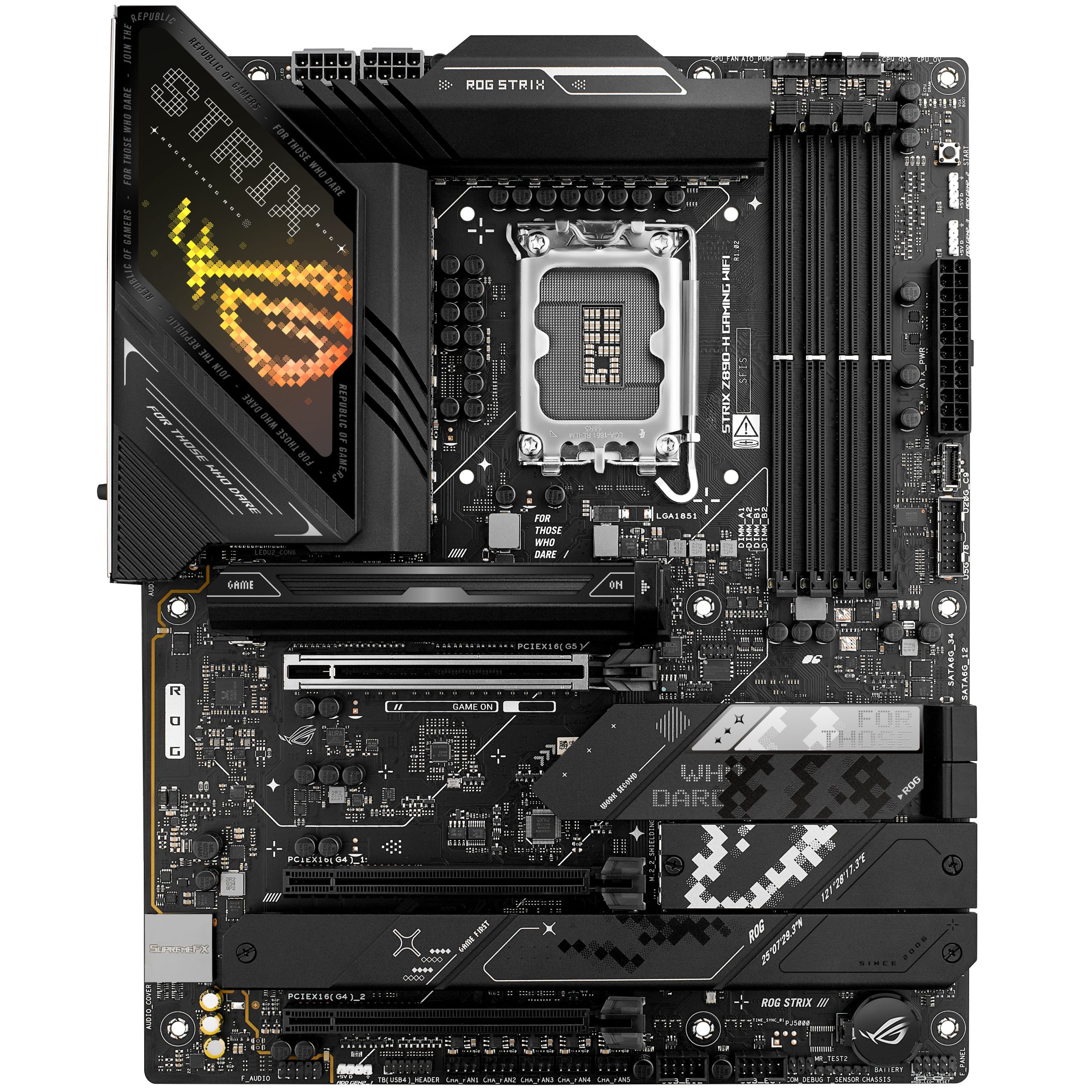

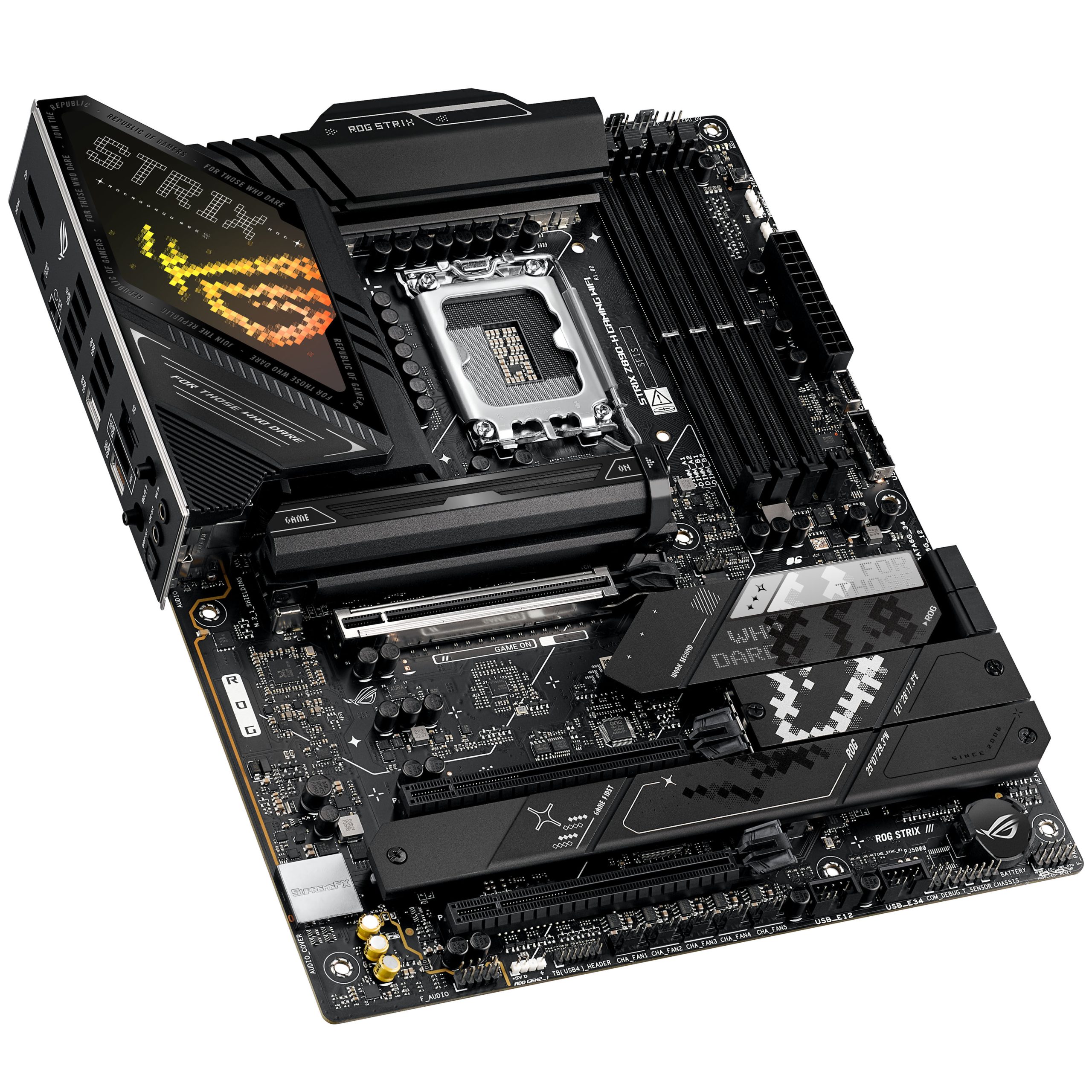

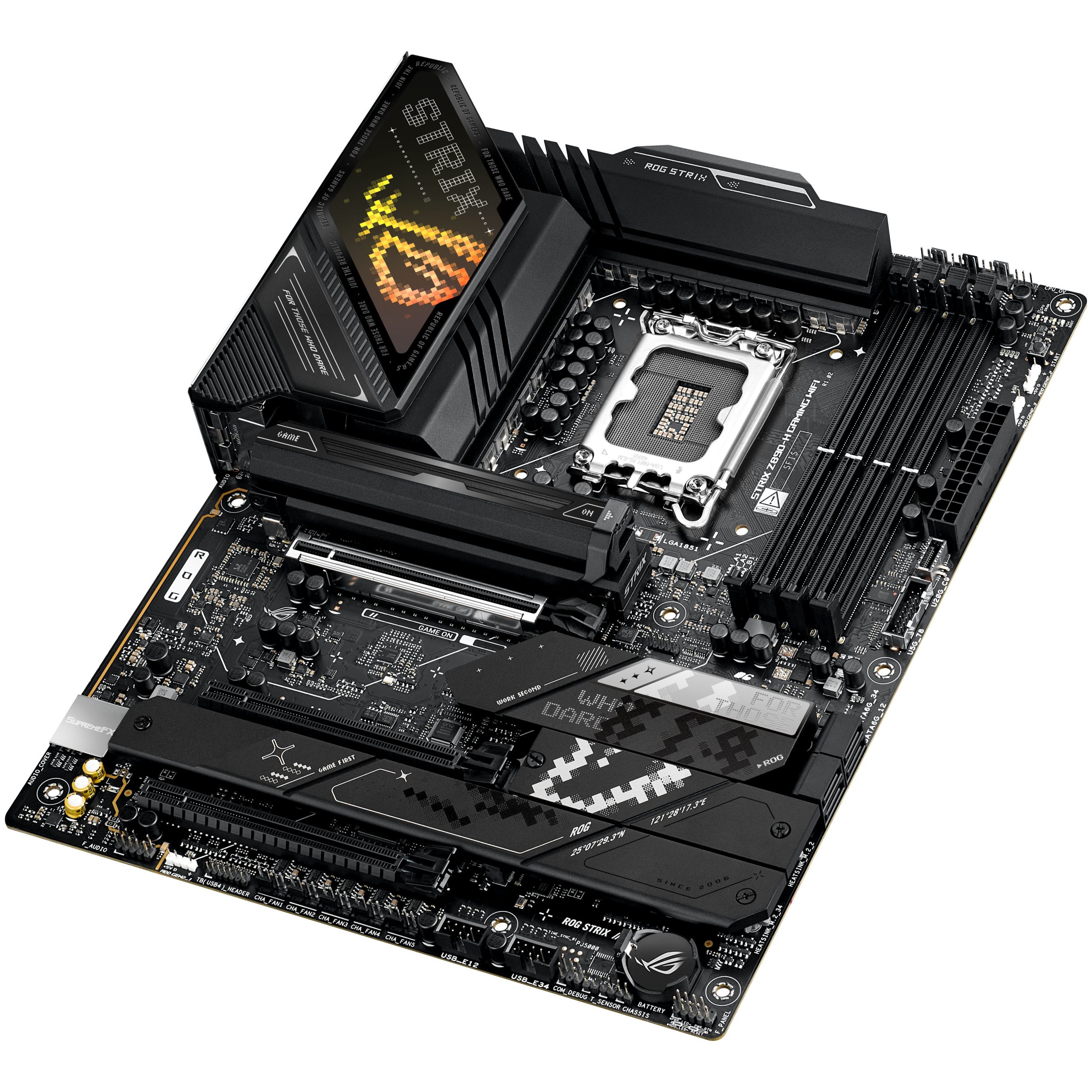

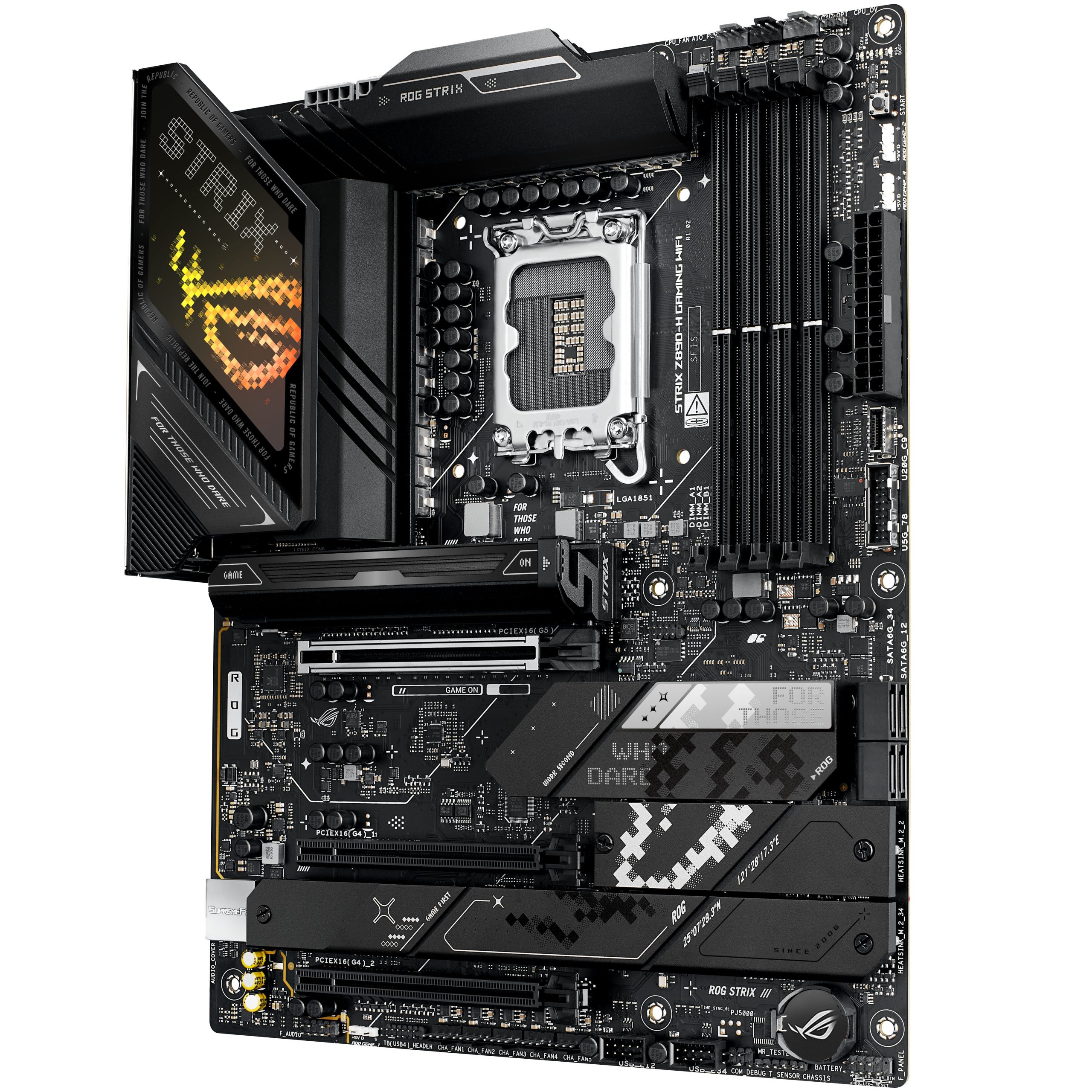

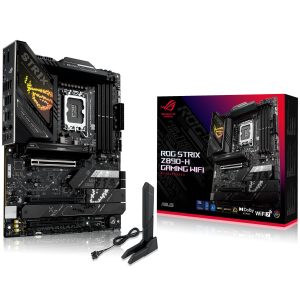

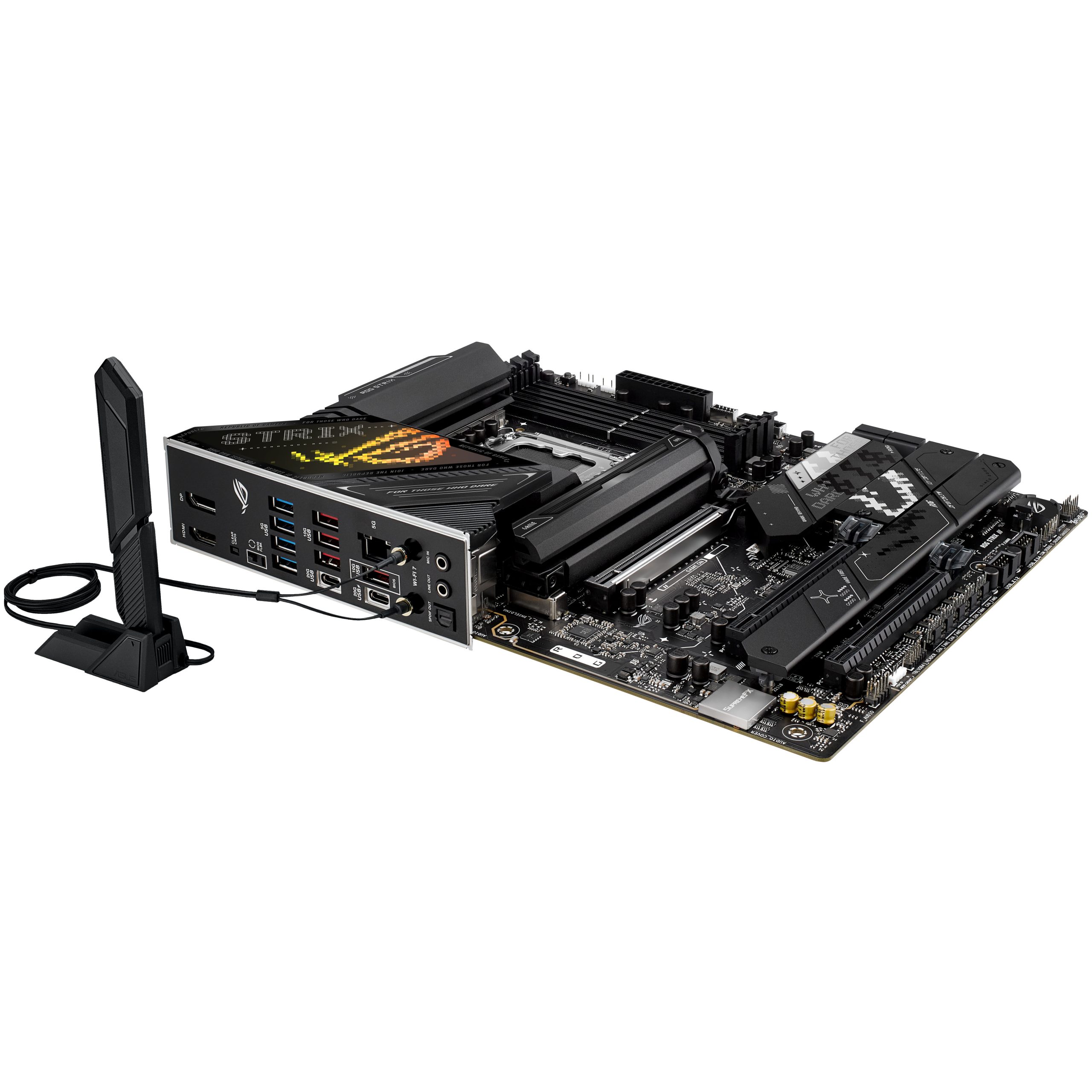

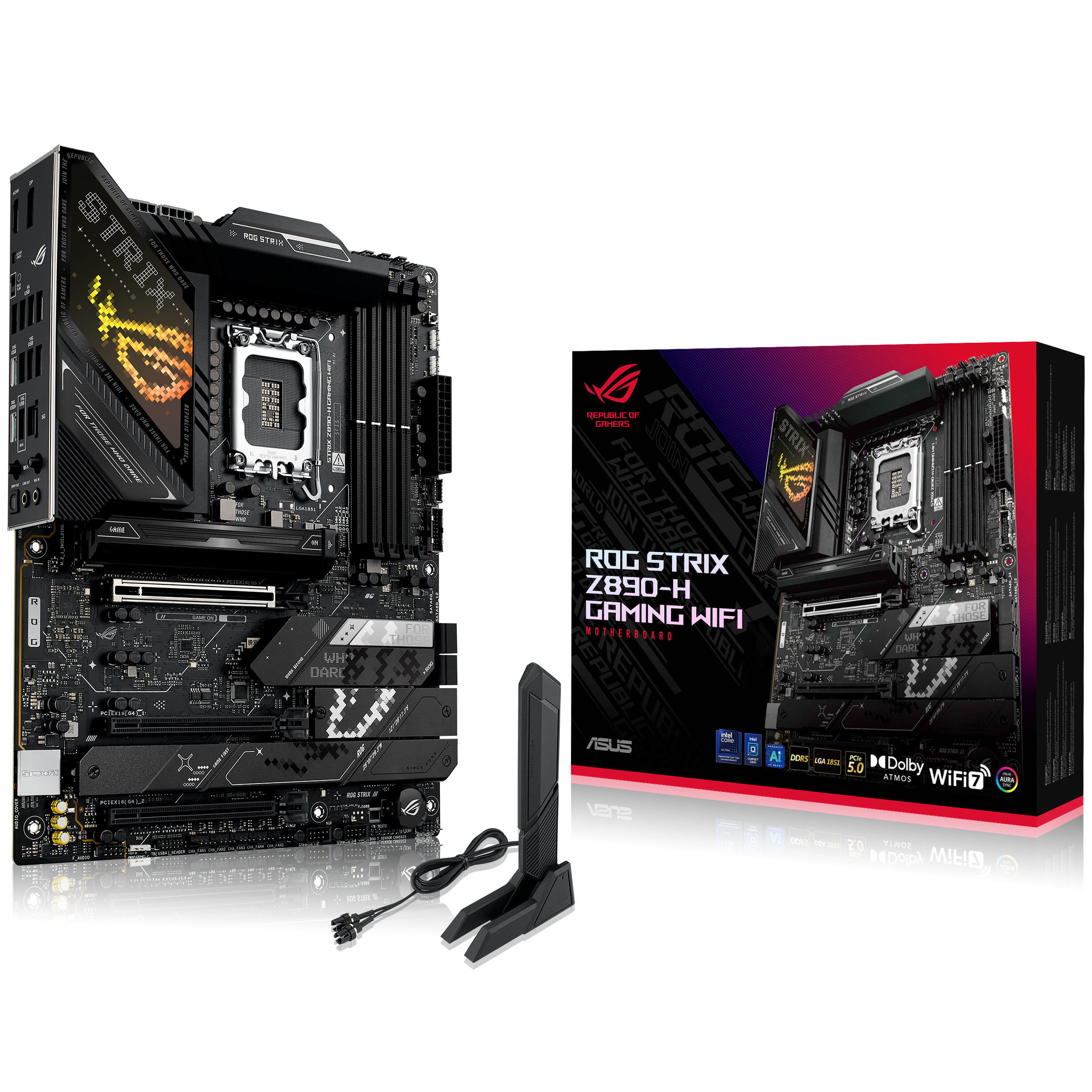

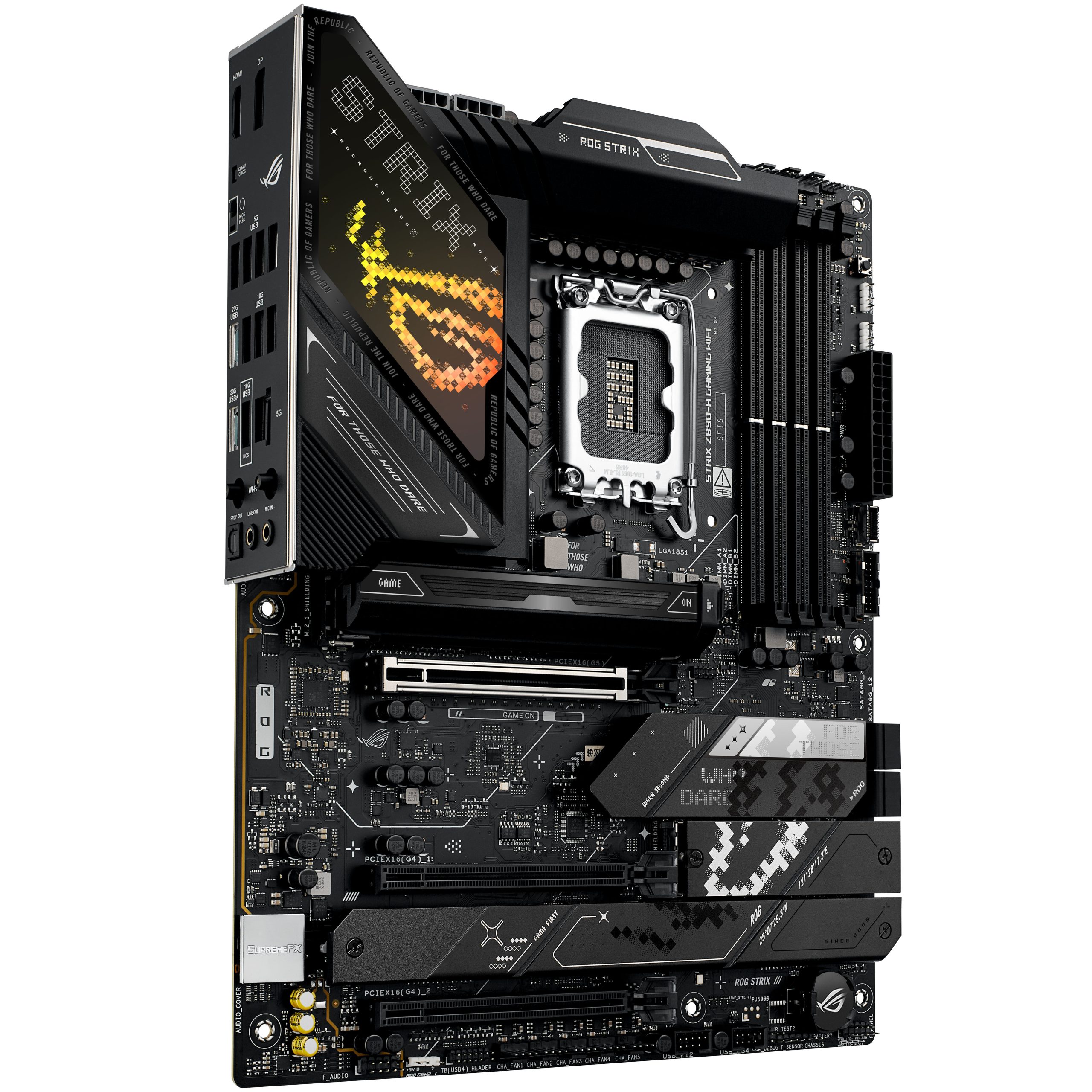

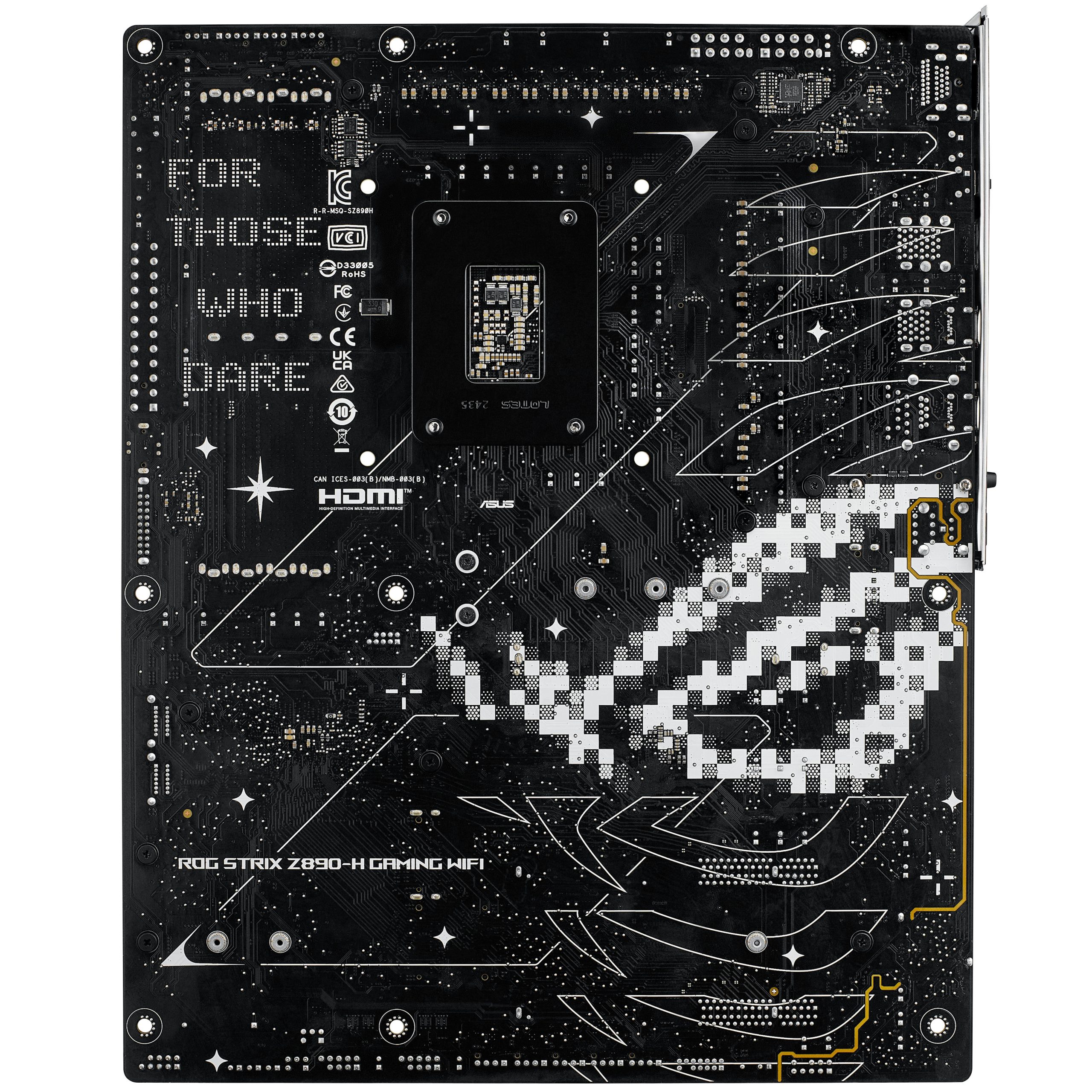

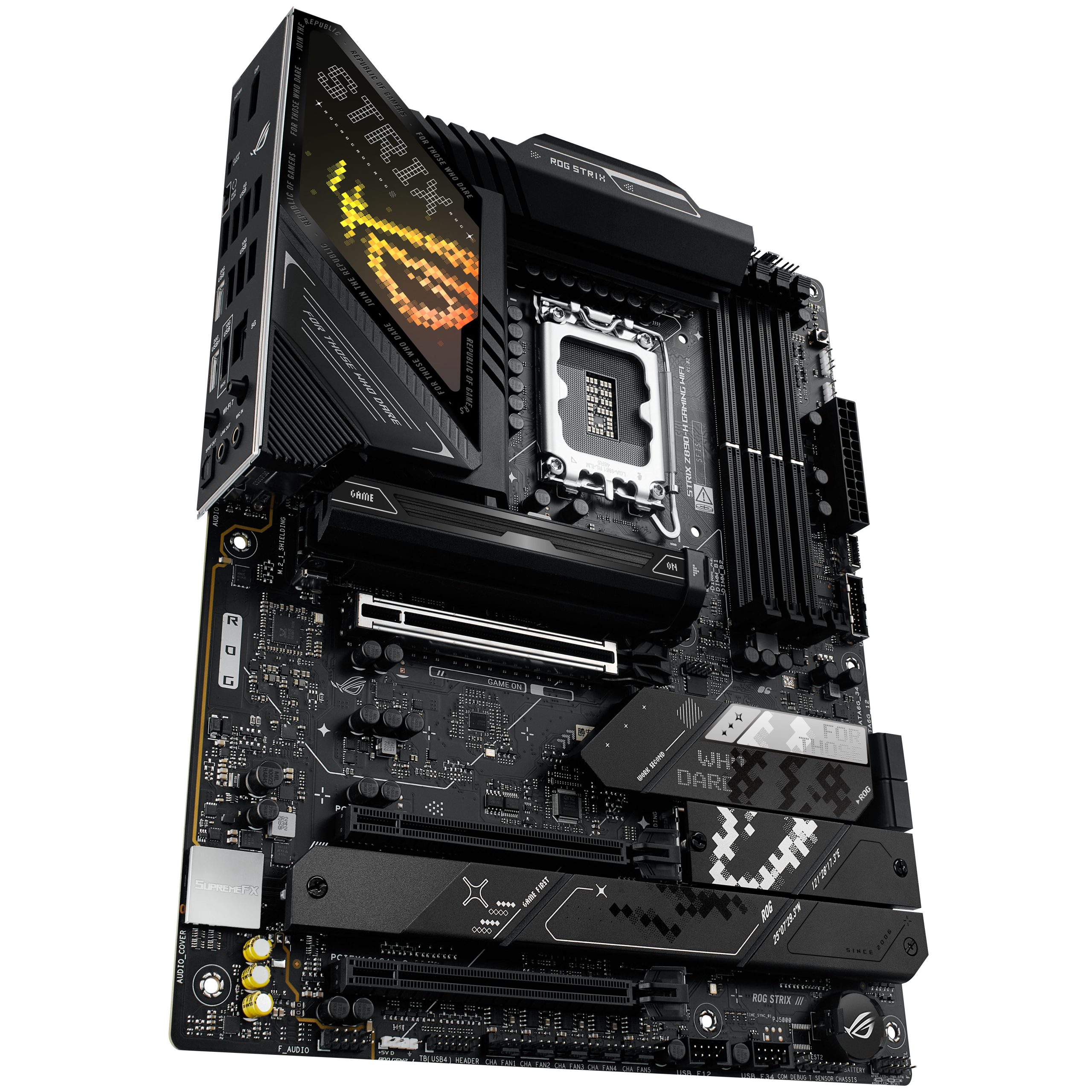

ASUS ROG STRIX Z890-H Gaming WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for high-end builds.

– 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9066 MT/s
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G

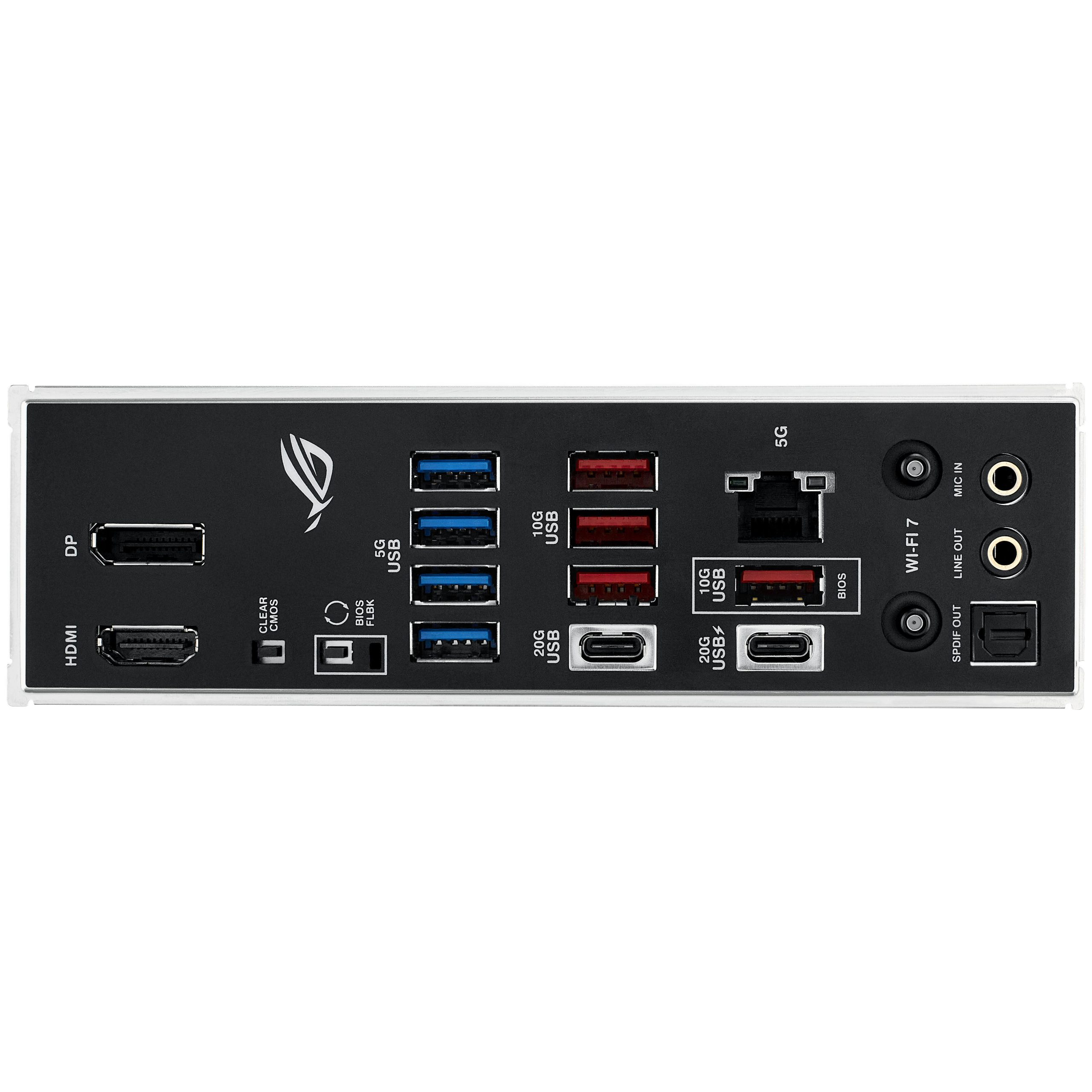

– USB on the I/O panel: 2x USB-C 3.2, 4x USB 3.1, and 4x USB 3.0
– A total of 8x 4-pin connectors for fans and pumps
– OC features: 16+2+1+2 phase VRMs, CMOS
– Supports WiFi 7 and Bluetooth 5.4

ASUS ROG STRIX Z890-H Gaming WiFi: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS ROG STRIX Z890-H Gaming WiFi is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG STRIX Z890-H Gaming WiFi impresses with full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Suitable for Overclocking
With its 16+2+1+2 phase VRMs, the ASUS ROG STRIX Z890-H Gaming WiFi allows you to overclock your CPU and thus get the full performance out of your gaming PC. The DDR5 RAM can also be overclocked. To be on the safe side, there is a Clear CMOS button on the I/O panel.

Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel Z890
– – Dual BIOS
– No
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (OC)
– 9066 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– Intel XMP 3.0
– Wi-Fi & LAN
— LAN
– Yes
– LAN Ports
– 1x 5 Gbit/s
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Ports
– CPU Power
– 2x 8-pin
– USB4 (internal) Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 2
– USB 2.0 (internal) possible ports
– 4
– – RGB / LED ports
– 3x Digital RGB (3-pin 5VDG)
– Front panel audio header
– Yes
– SPI TPM header
– Yes
– External ports
– USB 3.2 (external) Type-C
– 2
– USB 3.1 (external) Type-A
– 4
– USB 3.0 (external) Type-A
– 4
– Display ports
– Display Port (1x), HDMI (1x)
– Storage ports
– M.2 PCIe 4.0 x4
– 3
– M.2 PCIe 5.0 x4
– 1
– SATA 6G (internal)
– 4
