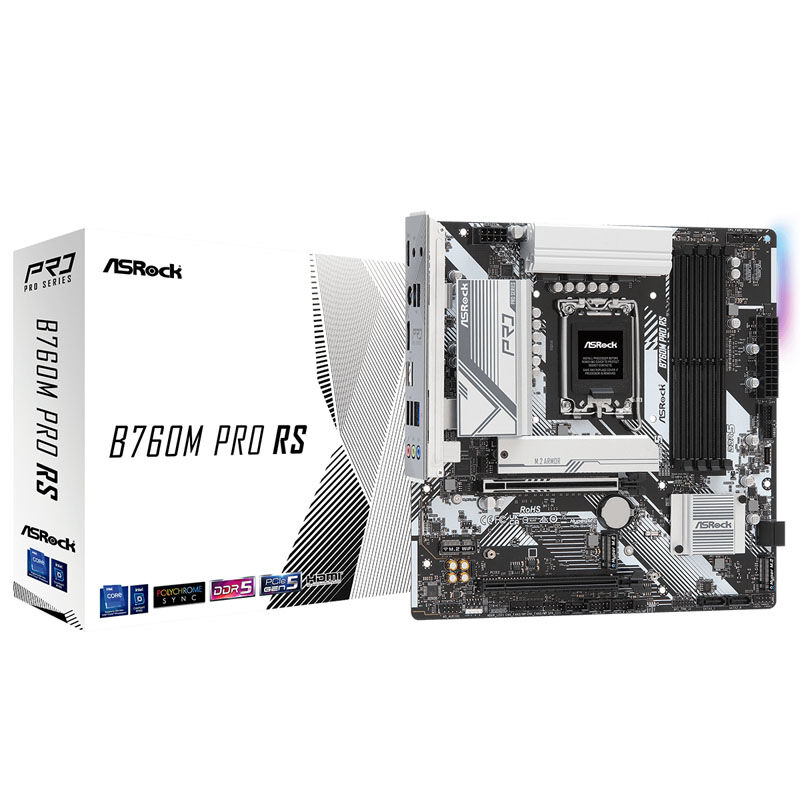

ASRock B760M Pro RS, Intel B760 Motherboard - Socket 1700, DDR5

– 2x PCIe x16 slots, including 1x PCIe 5.0
– DDR5 memory up to 4800 MHz, with RAM overclocking up to 7200 MHz
– 3x M.2 slots, including 3x PCIe 4.0
– USB on the I/O panel: 3x USB 3.1 Type A, 1x USB 3.1 Type C, 2x USB 2.0 Type A
– A total of 6 ports for fans and pumps
– 2.5 Gbit LAN

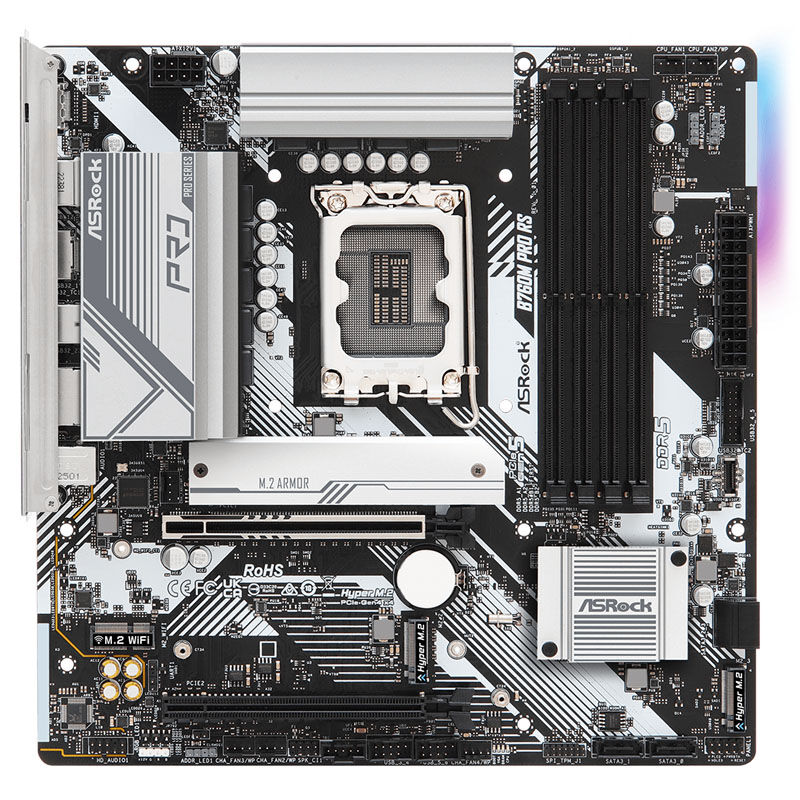

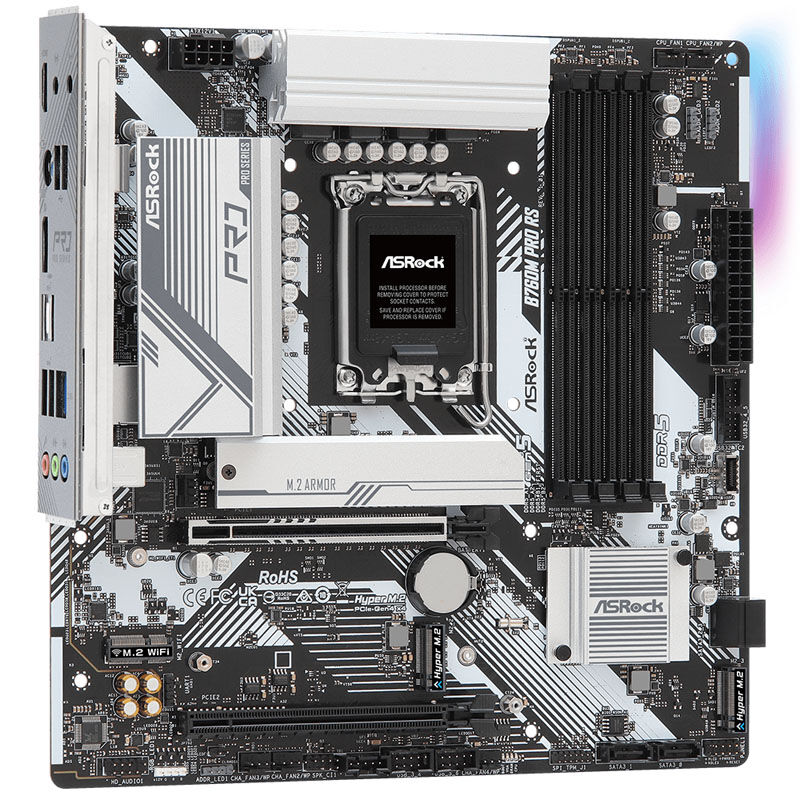

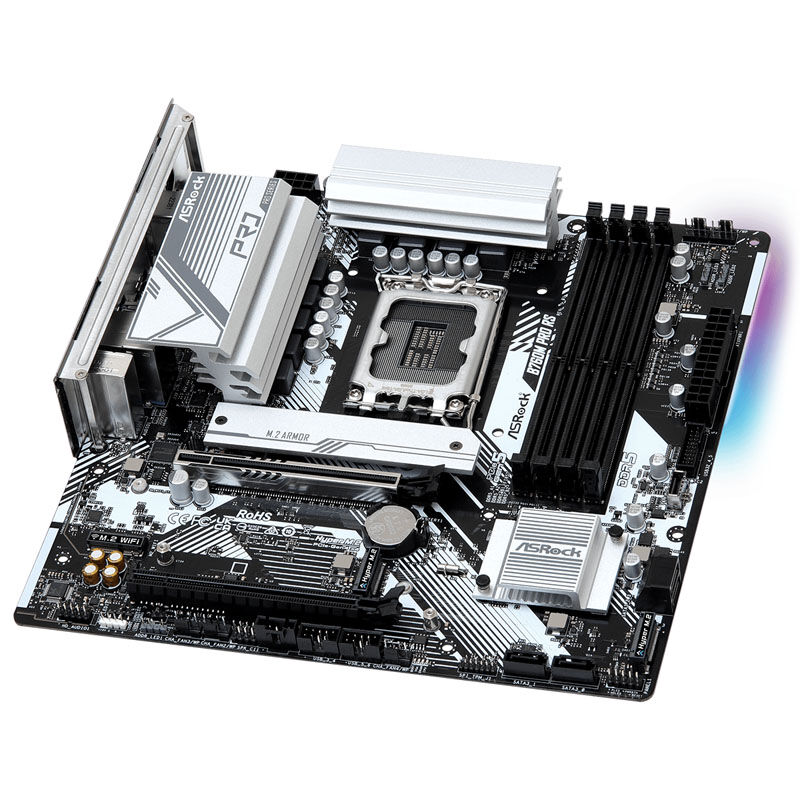

The ASRock B760M Pro RS Micro-ATX motherboard with Intel B760M chipset in detail
The ASRock B760M Pro RS is a Micro-ATX motherboard with the Intel B760M chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake, and Meteor desktop processors. Lake. It supports DDR5 memory up to 7,200 MHz and also offers features such as extensive heat spreaders for VRMs and the chipset, as well as subtle RGB lighting.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
– Processor
– Processor Manufacturer: Intel
– Processor Socket: LGA 1700
– Compatible Processors: Intel Core i5, Intel Core i7, Intel Core i9
– Maximum Number of SMP Processors: 1
– Memory
– Supported Memory: DDR5 SDRAM
– Number of Memory Slots: 4
– Memory Type: DIMM
– Memory Channels: Dual-Channel
– Non-ECC
– Maximum RAM: 192 GB
– Storage Controller
– Supported Storage Drives: HDD & SSD
– Supported Storage Drive Interfaces: M.2, SATA III
– Internal I/O Ports
– Number of USB 2.0 Ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) Ports: 1
– SATA III Ports 4
– Front panel audio connectors
– ATX power connector (24-pin)
– CPU fan connector
– TPM connector
– Thunderbolt headers 1
– RGB LED header

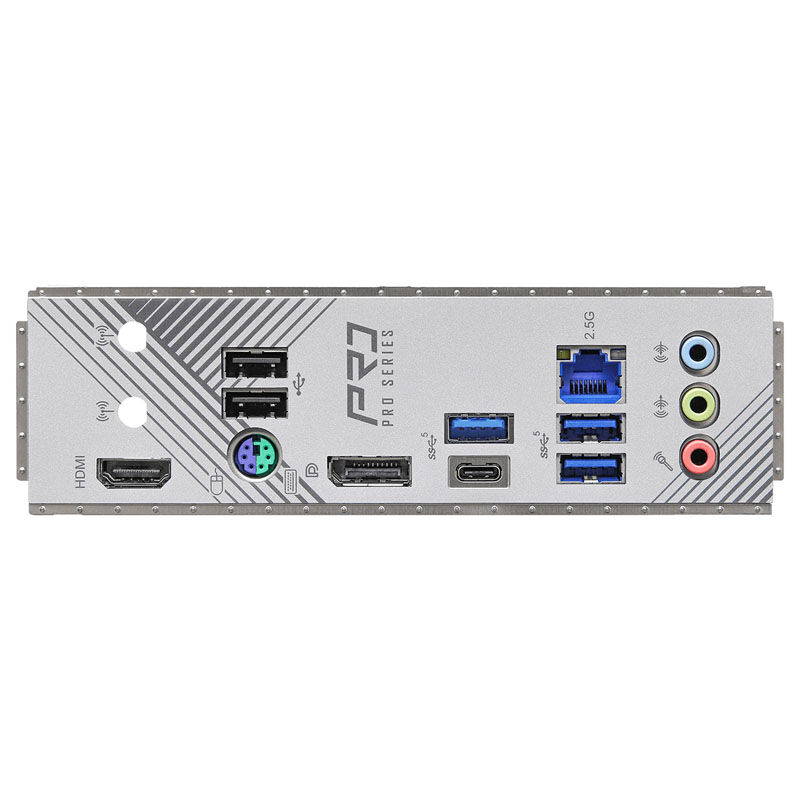

– Rear panel I/O connectors
– Number of USB 2.0 ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
– USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
– Number of Ethernet LAN ports (RJ-45): 1
– Number of PS/2 ports: 1
