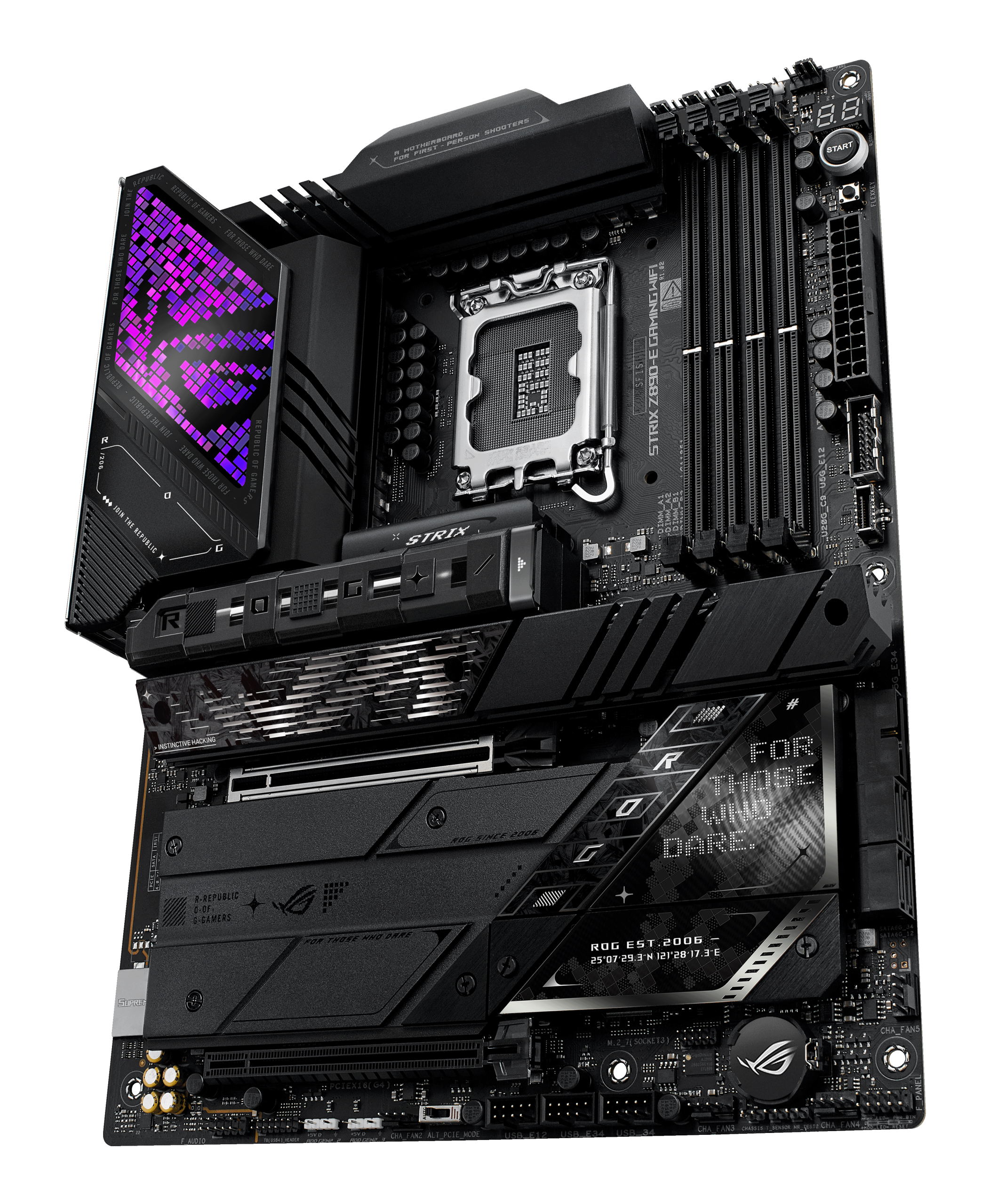

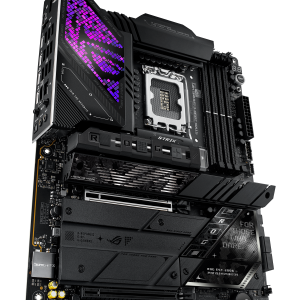

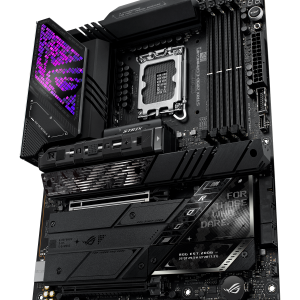

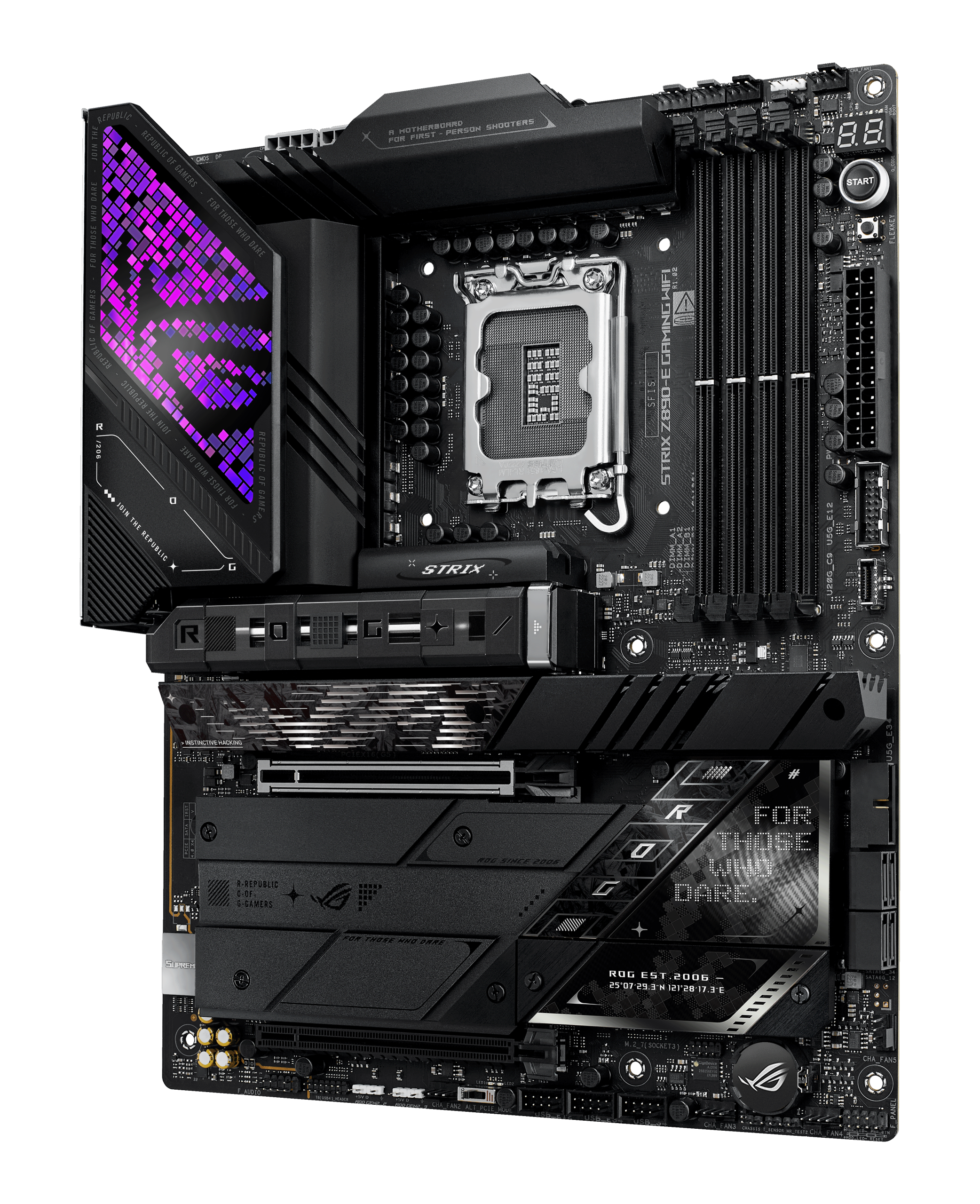

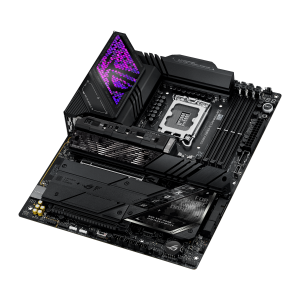

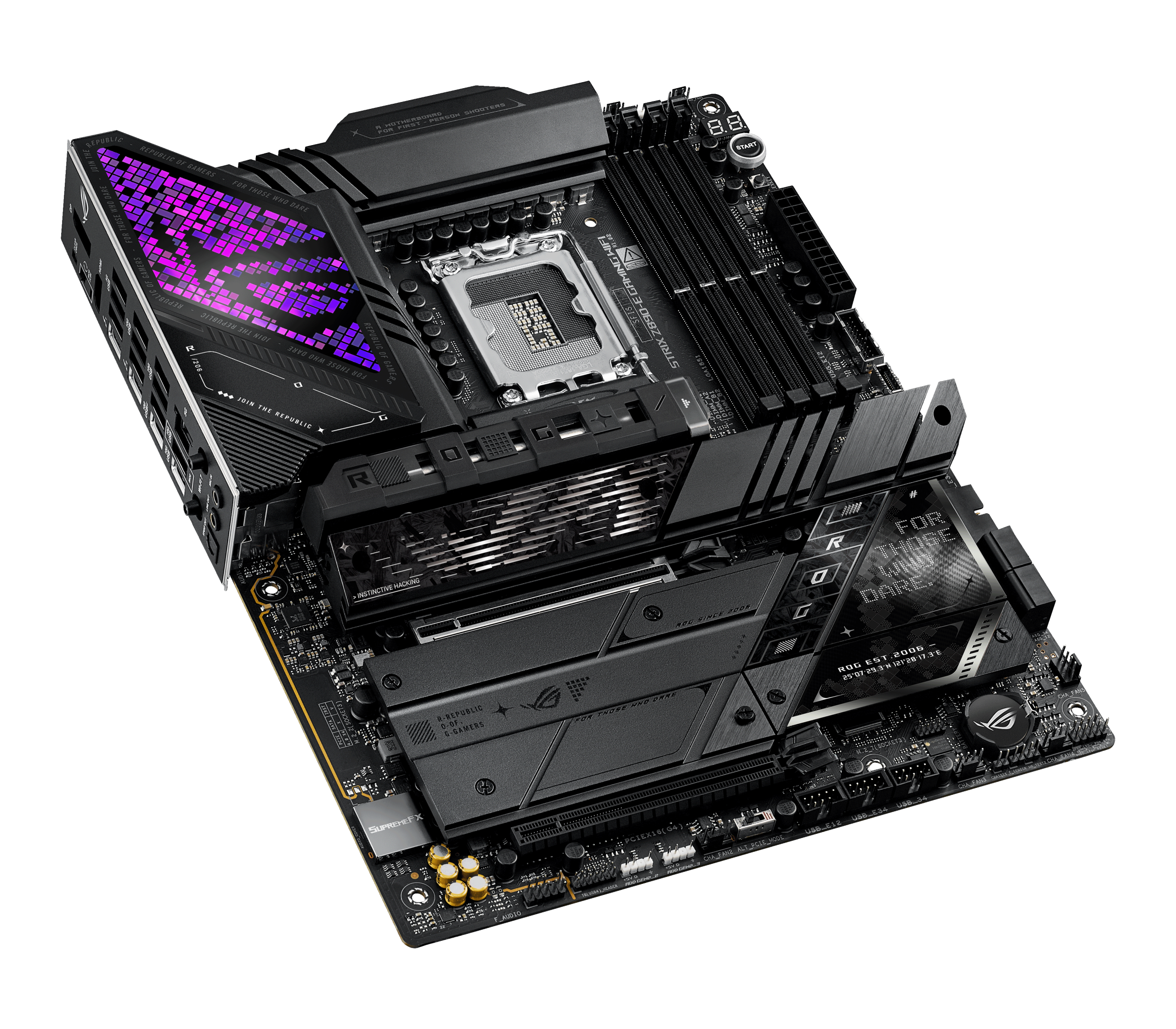

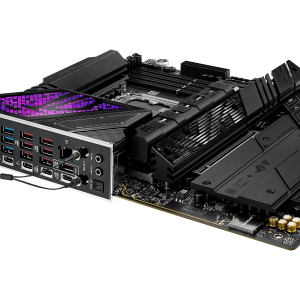

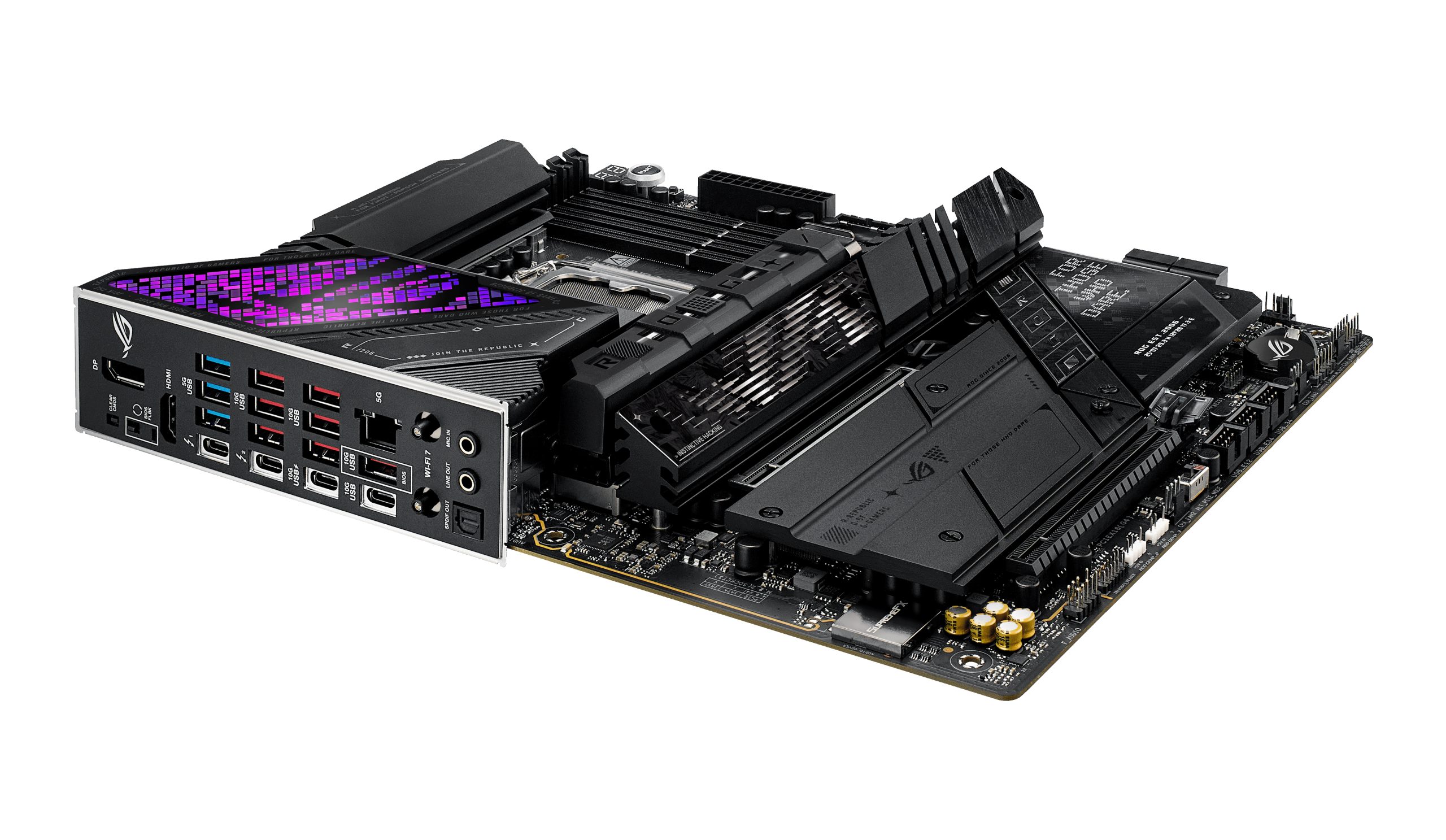

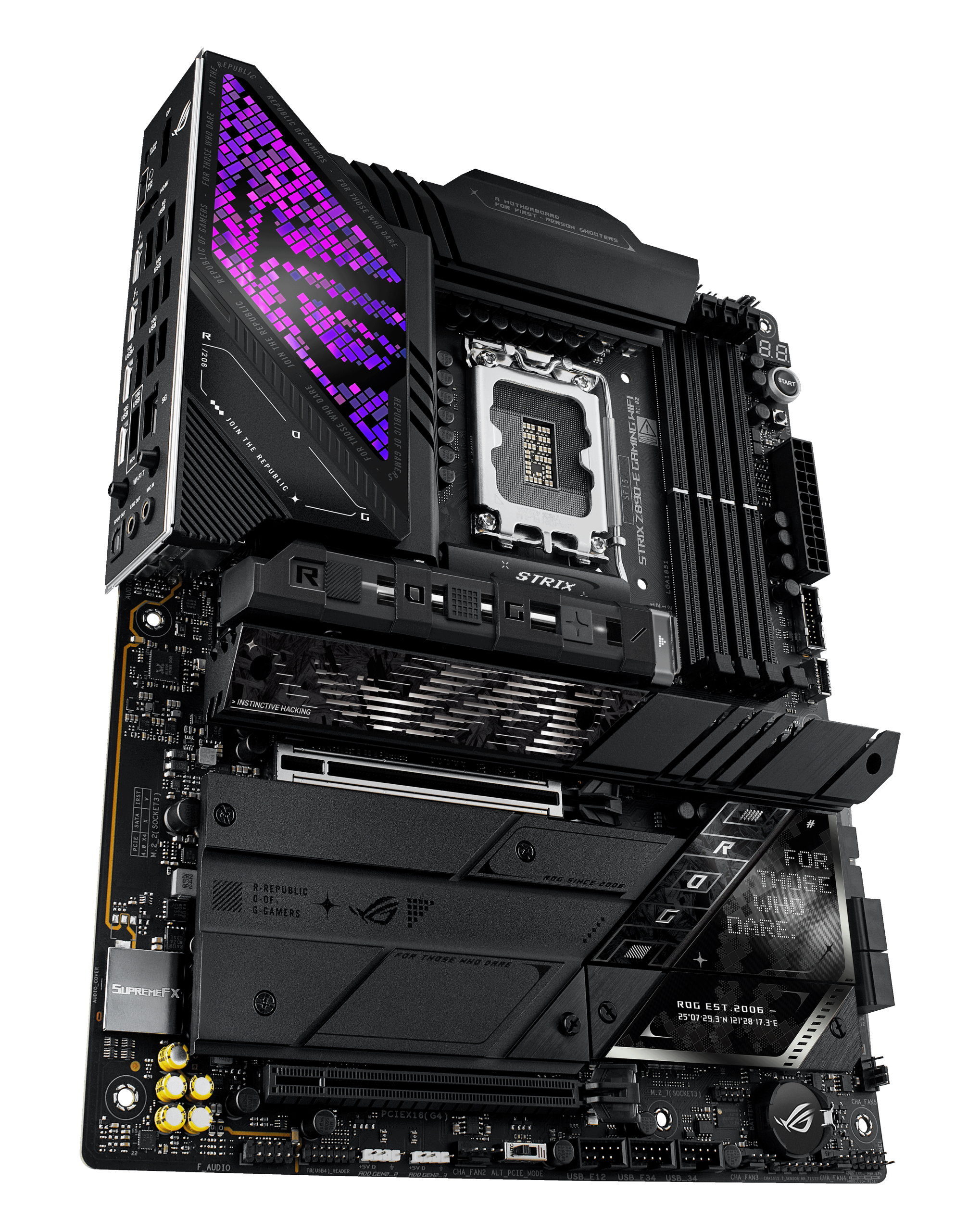

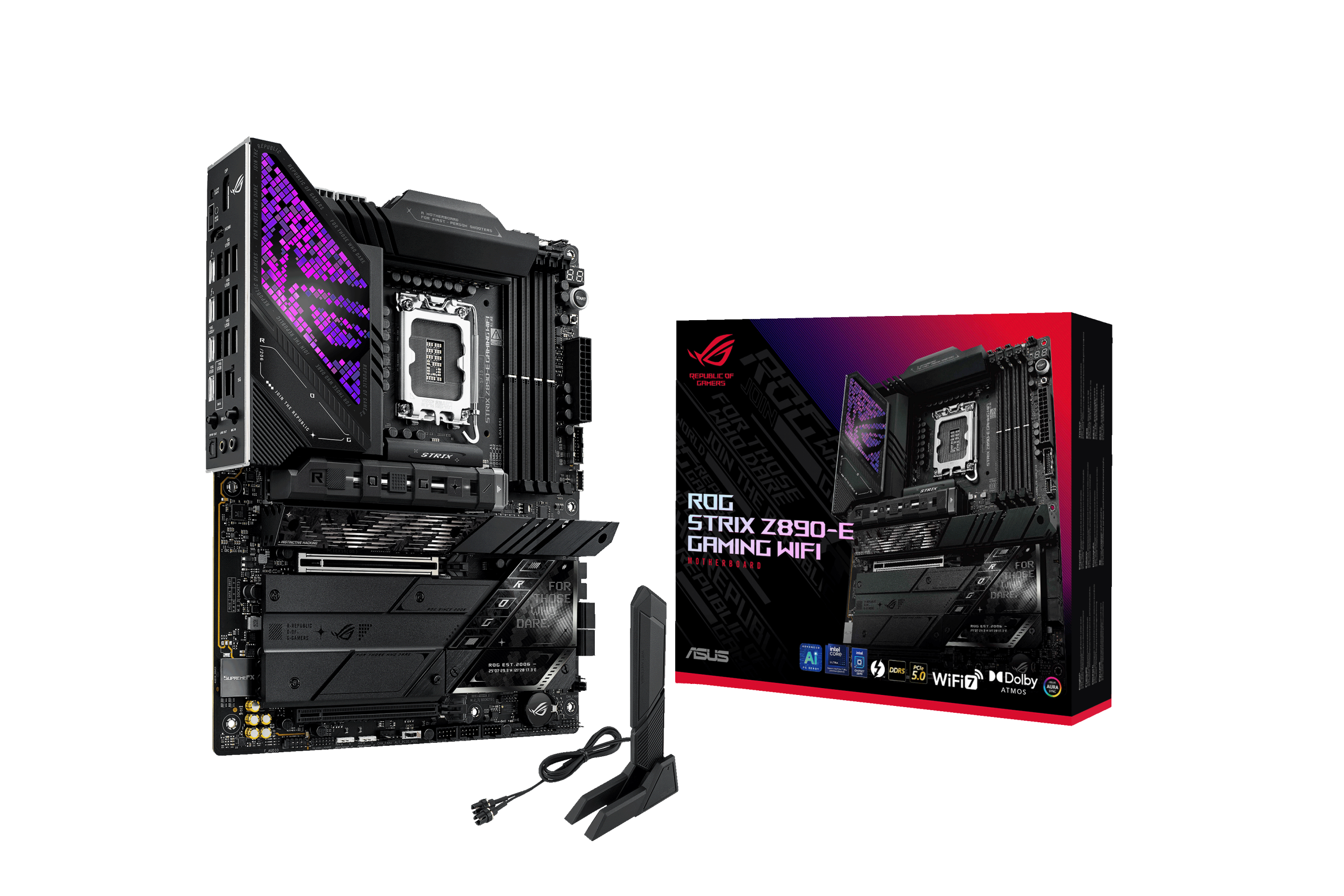

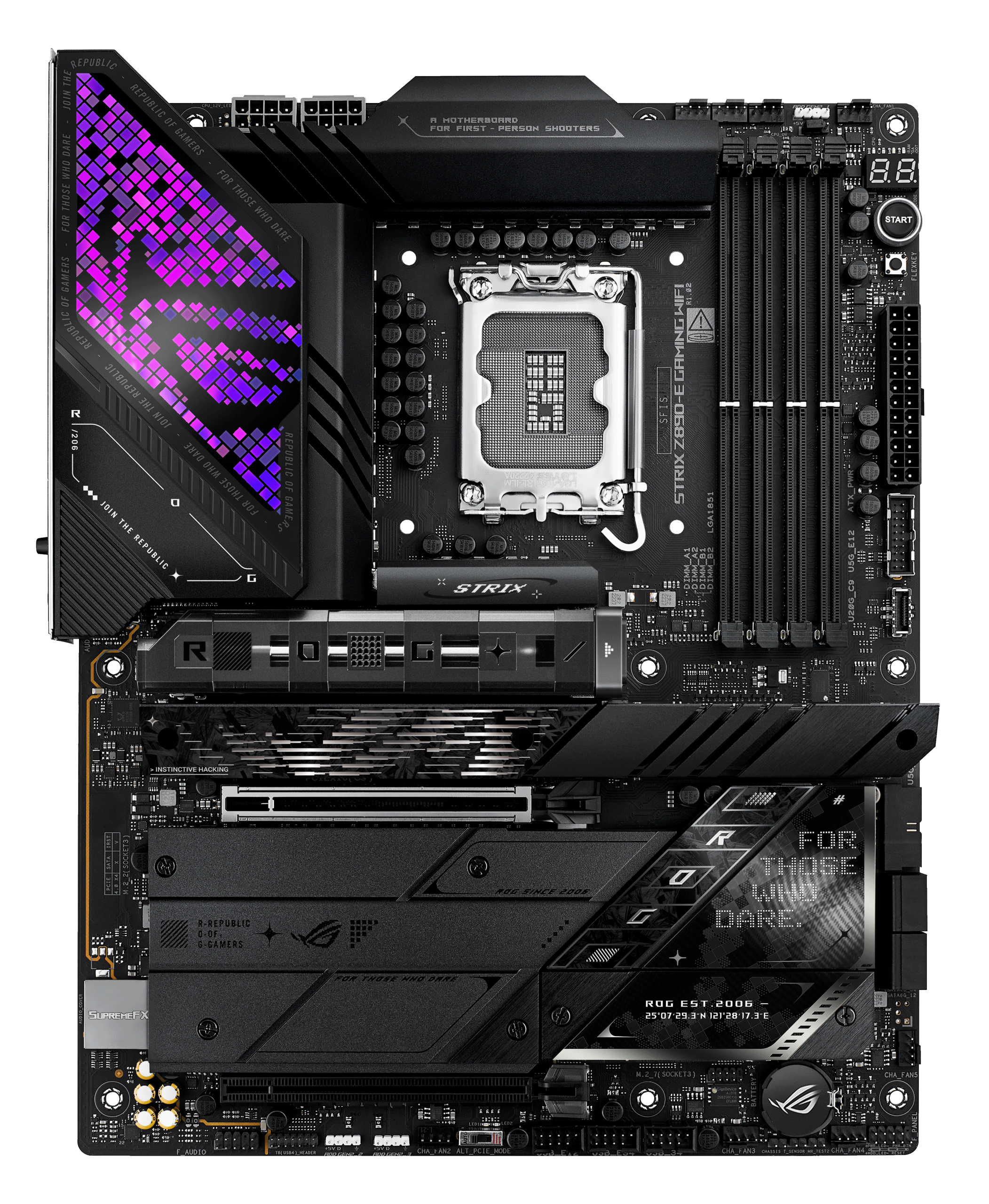

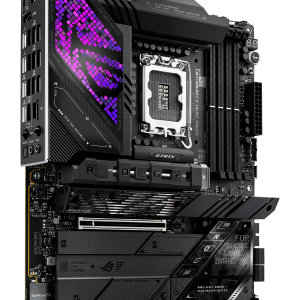

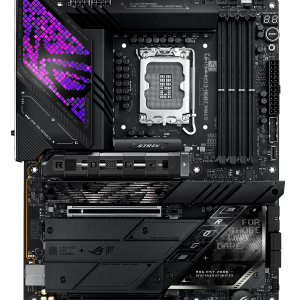

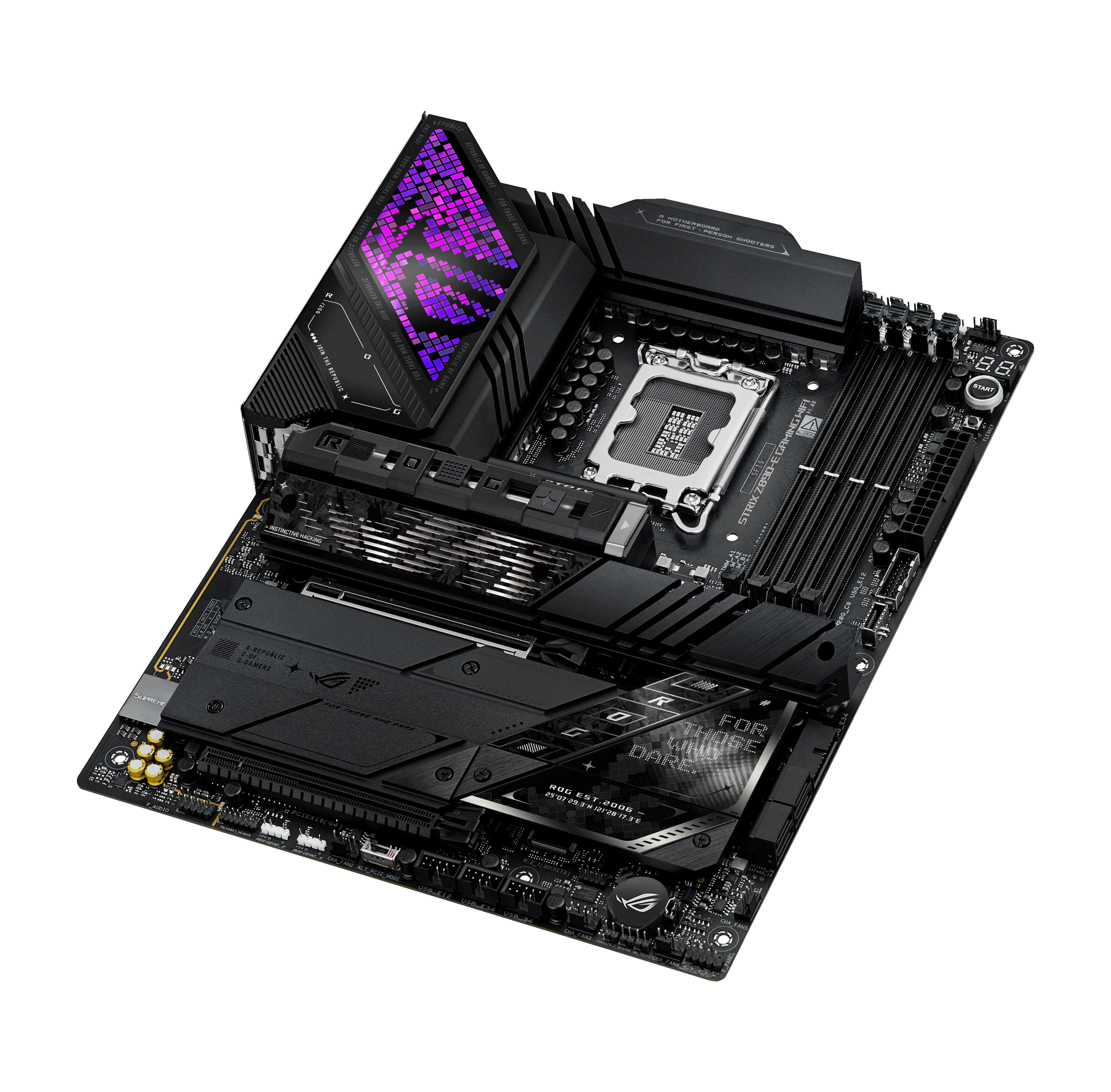

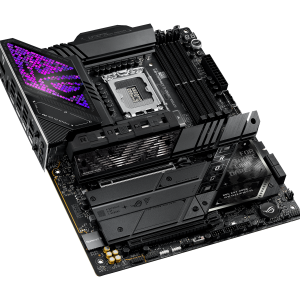

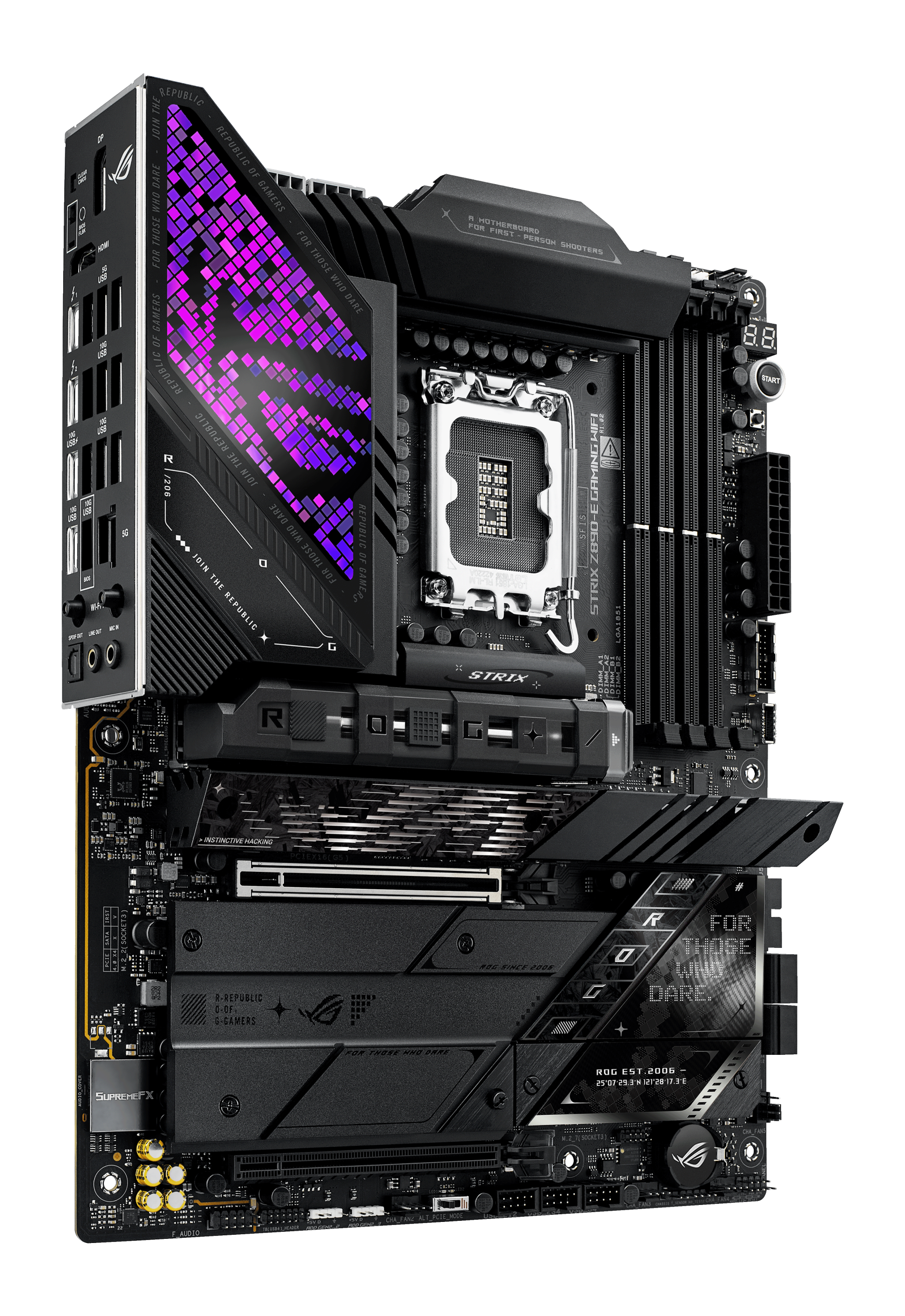

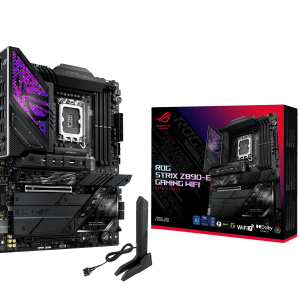

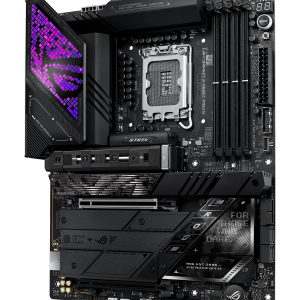

ASUS ROG Strix Z890-E Gaming WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for high-end builds.

– 1x PCIe 5.0 x16 (x16 or x8/x4/x4) and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8800 MHz (XMP 3.0 & CUDIMM support)
– 7x M.2 (including 3x PCIe 5.0 / 3x PCIe 4.0 and 1x PCIe 4.0 & SATA) / 4x SATA 6G
– USB on the I/O panel: 2x USB 4, 7x USB 3.1, 1x USB 3.1 Type-C, 1x USB 3.1 Type-C (PD 30W), and 3x USB 3.0
– OC features: 18+1+2+2 phase VRMs, CMOS reset, BIOS flashback
– Total of 8x 4-pin connectors for fans & Pumps

ASUS ROG STRIX Z890-E GAMING WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS ROG STRIX Z890-E GAMING WIFI is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG STRIX Z890-E GAMING WIFI features full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Made for Gaming
The ASUS ROG STRIX Z890-E GAMING WIFI is designed for high-end gaming, so you can enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Features like BIOS Flashback and Clear CMOS allow you to get the PC back up and running if something goes wrong. And, as always, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 8800 MHz using XMP / OC / CUDIMM)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x4/x4)
– 1x PCIe 4.0 x4 (electrical x4)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
– 1x M.2 (PCIe 4.0×4; 2280, CPU)
– 2x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
– 2x M.2 (PCIe 4.0 x4; 2280, chipset)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 6x USB 2.0 (3 headers, max. 480 Mbit/s)
– 1x front panel audio header
– 1x 10-1-Pin System Panel Header
– 1x FlexKey button
– 1x start button
– 1x thermal sensor Headers
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x CPU OPT Fan (4-pin)
– 1x W_PUMP+ Header
– 5x Case Fans (4-pin)
– RGB Header:
– 3x 3-pin ARGB (5 V)

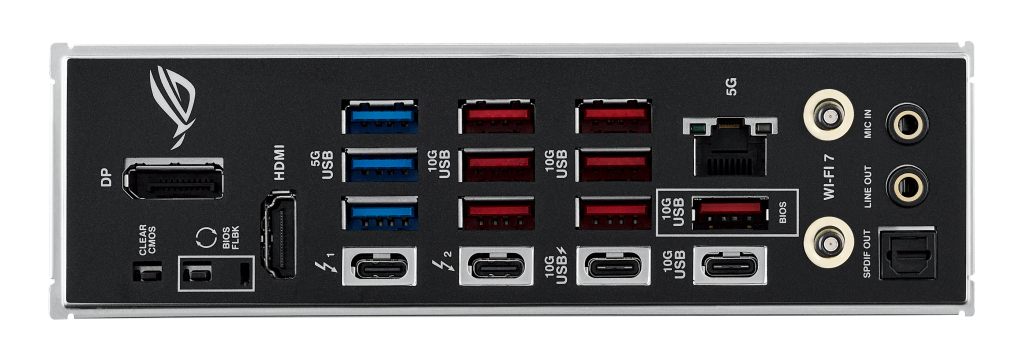

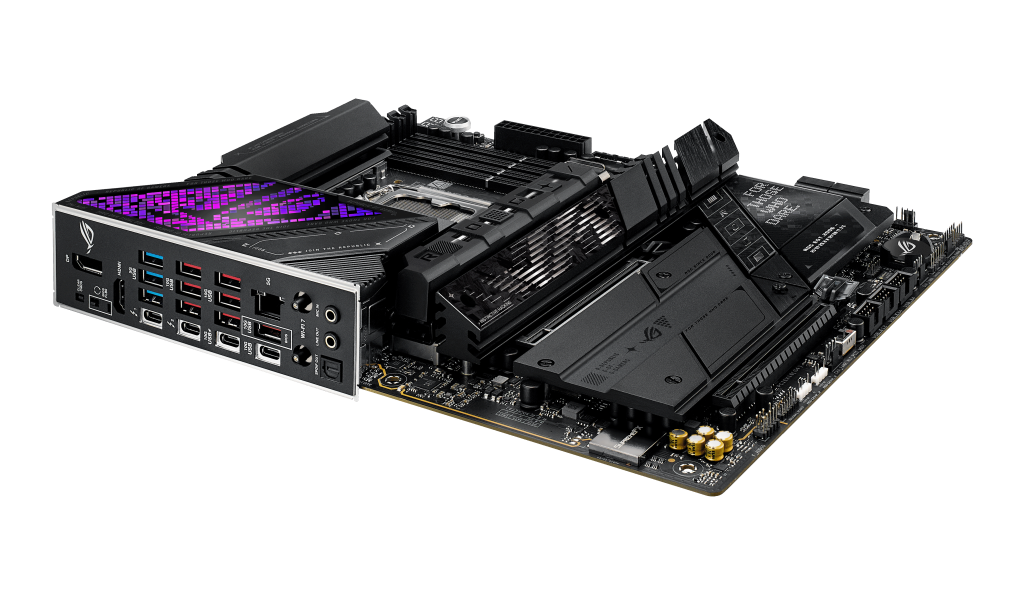

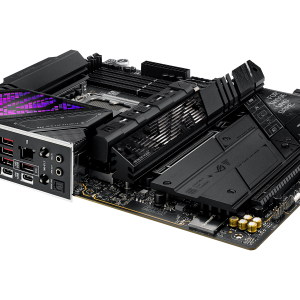

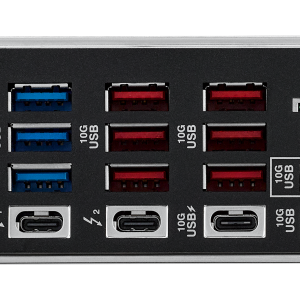

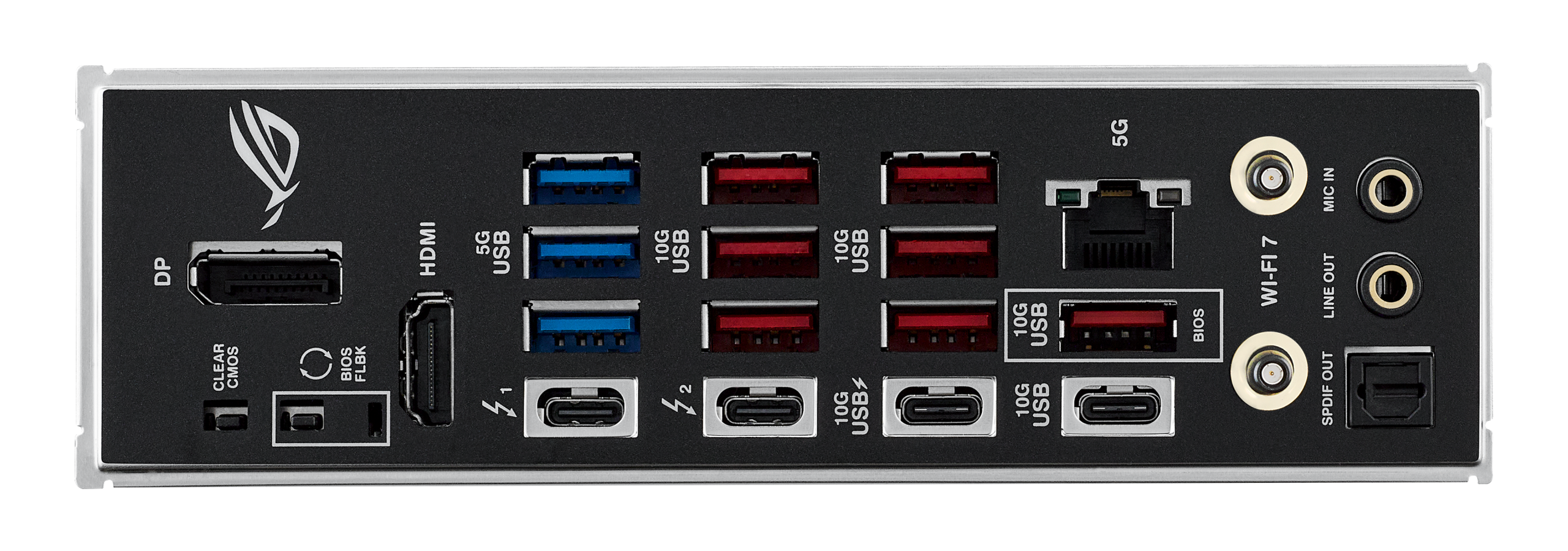

– External Connectors:
– 2x USB 4 (Type-C, USB 4 Gen 3×2, max. 40 Gbps with DisplayPort)
– 7x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 1x USB 3.1 (Type-C, USB 3.2 Gen 2, max. 10 Gbps)
 -1x USB 3.1 (Type-C, USB 3.2 Gen 2, PD 30 W, max. 10 Gbps)
– 3x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 1x DisplayPort
– 1x HDMI
– 1x 5 Gigabit LAN (Realtek)
– 1x Wi-Fi/Bluetooth module
– 2x 3.5 mm jack (Realtek ALC 4080)
– 1x S/PDIF audio out
– 1x BIOS flashback
– 1x Clear CMOS
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX12V
– Accessories:
– 2x SATA 6Gb/s cables
– 1x Thermal pad for M.2 22110

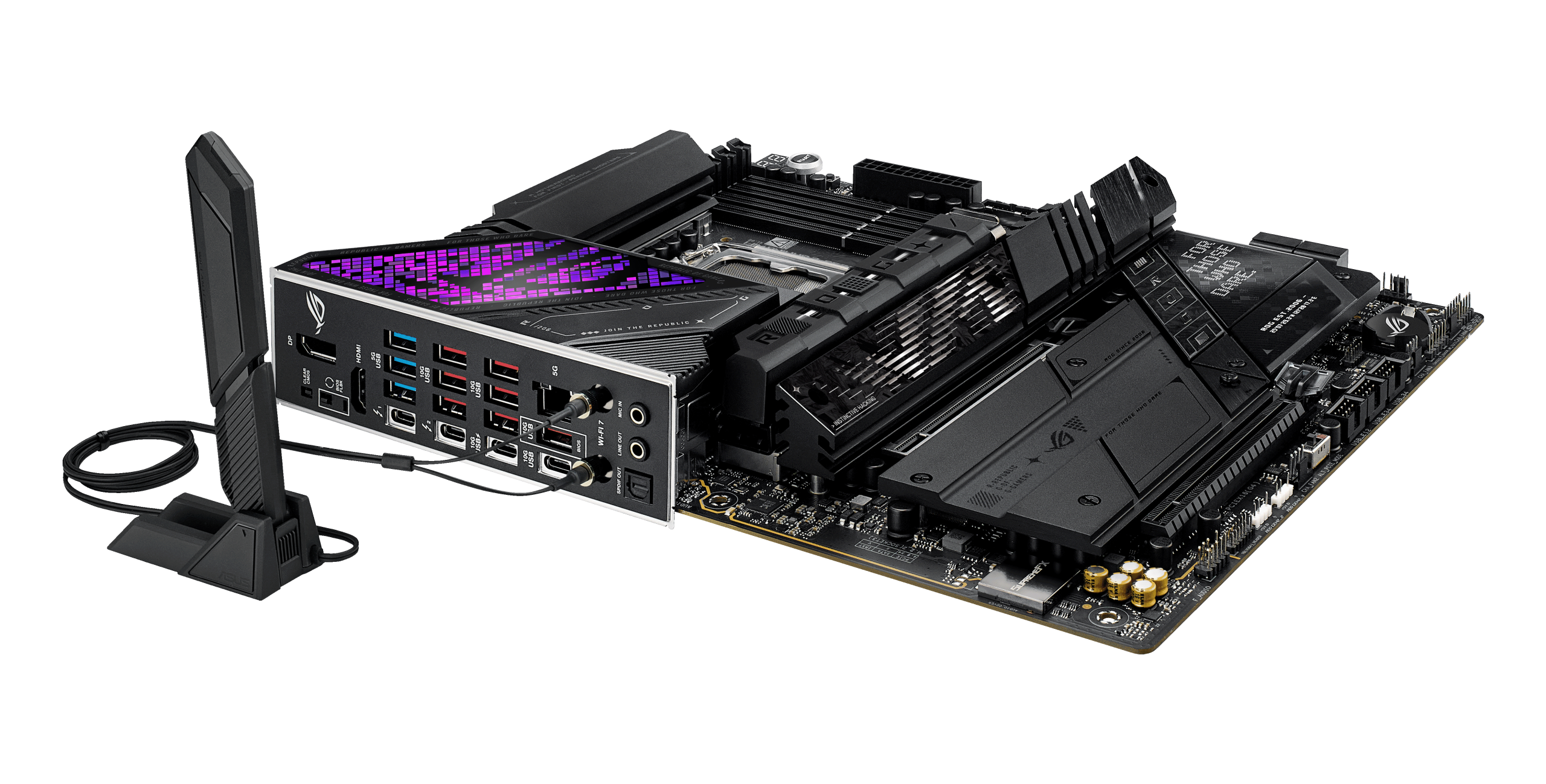

– 1x ASUS Wi-Fi Q-antenna
– 1x Pack of cable ties
– 1x M.2 Q-latch pack
– 2x M.2 Q-slides
– 1x ROG keychain
– 1x ROG Strix sticker
– 7x M.2 rubber buffers
– 1x Quick start guide
