- Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 8,200 MT/s
- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.2, 2x USB 3.1, 1x USB 3.0, and 2x USB 2.0
- Cooling: 7x 4-pin PWM connectors for fans and radiators
- Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 8,200 MT/s
- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.2, 2x USB 3.1, 1x USB 3.0, and 2x USB 2.0
- Cooling: 7x 4-pin PWM connectors for fans and radiators
- Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 8,200 MT/s
- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.2, 2x USB 3.1, 1x USB 3.0, and 2x USB 2.0
- Cooling: 7x 4-pin PWM connectors for fans and radiators
– Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 8,200 MT/s
– Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
– USB: 1x USB-C 3.2, 2x USB 3.1, 1x USB 3.0, and 2x USB 2.0
– Cooling: 7x 4-pin PWM connectors for fans and radiators

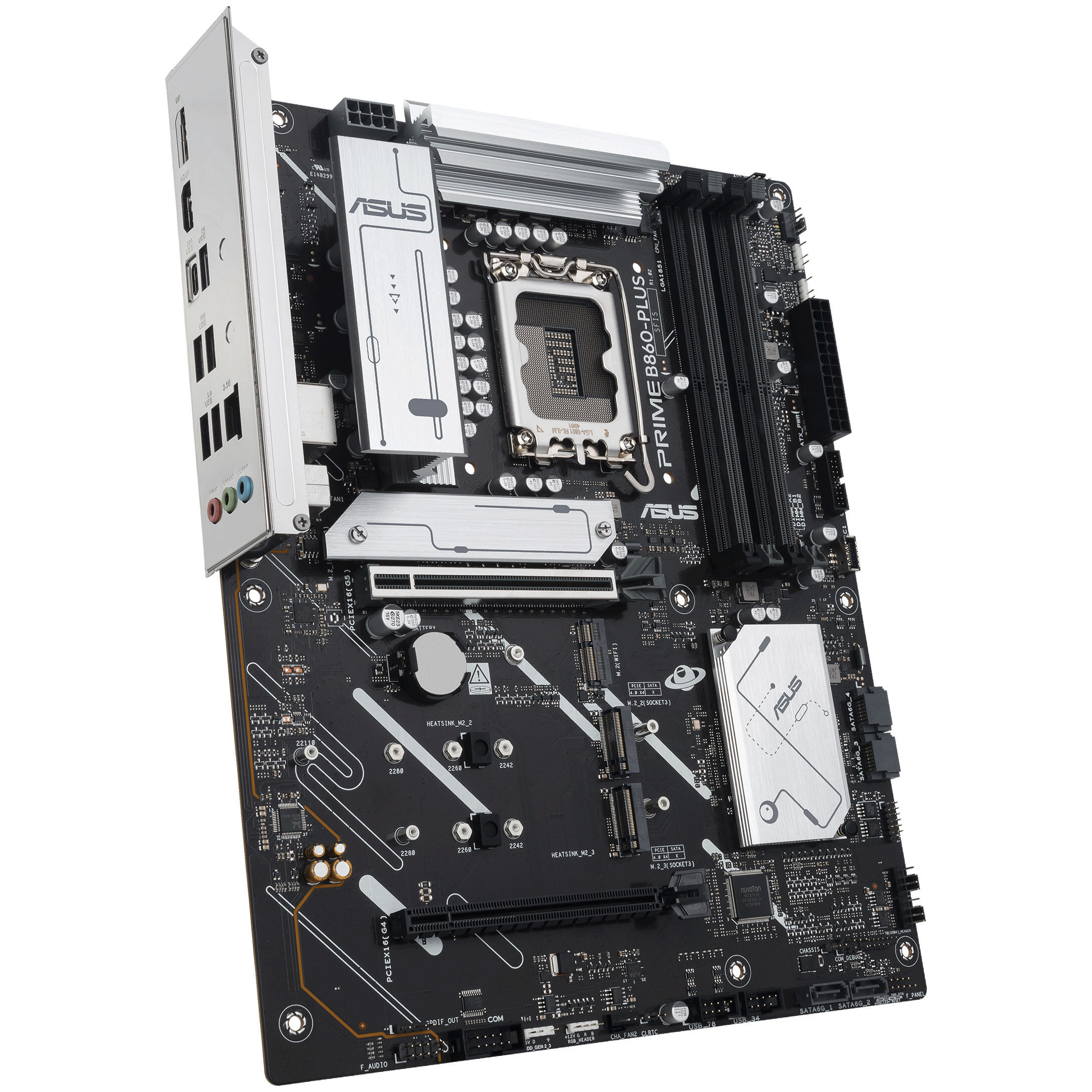

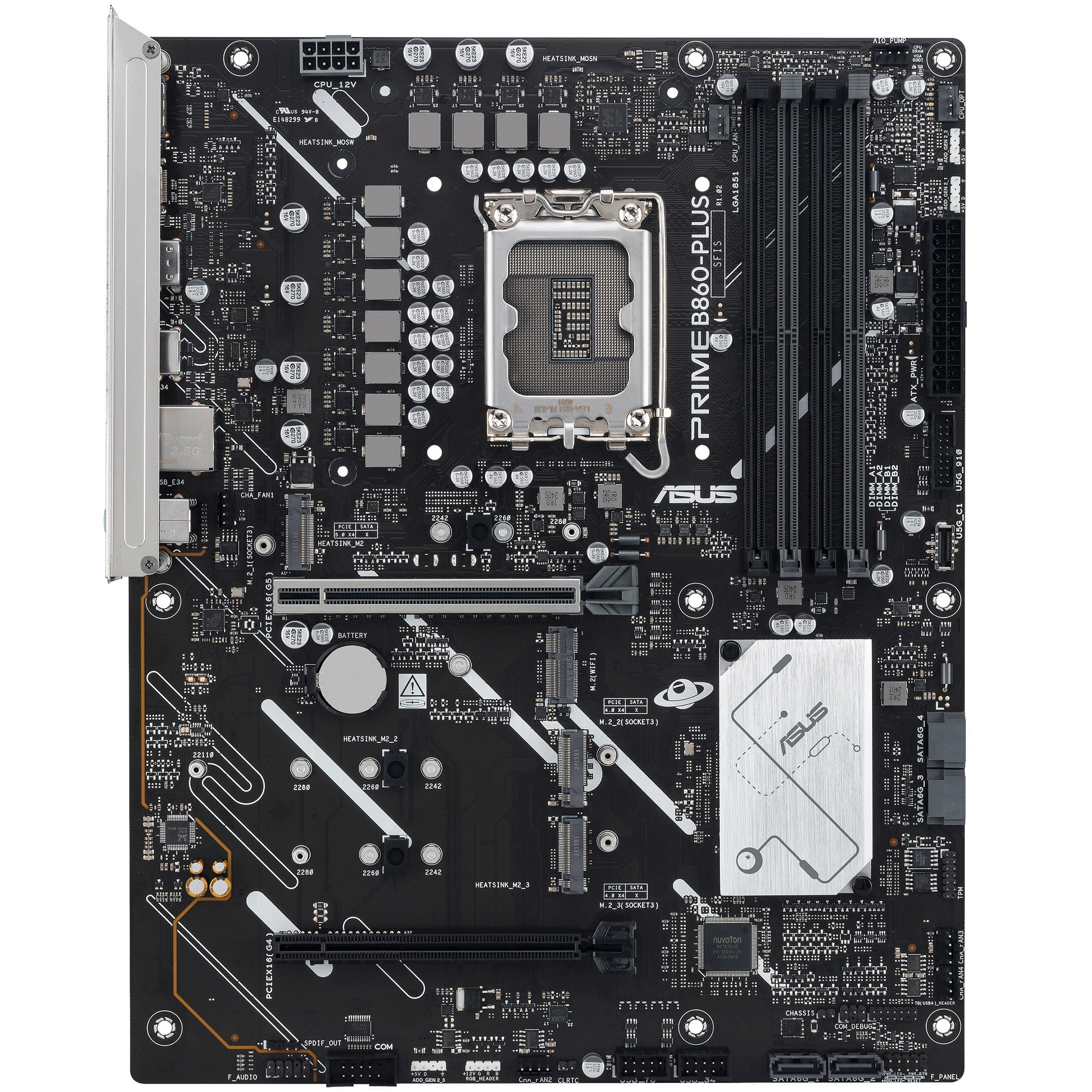

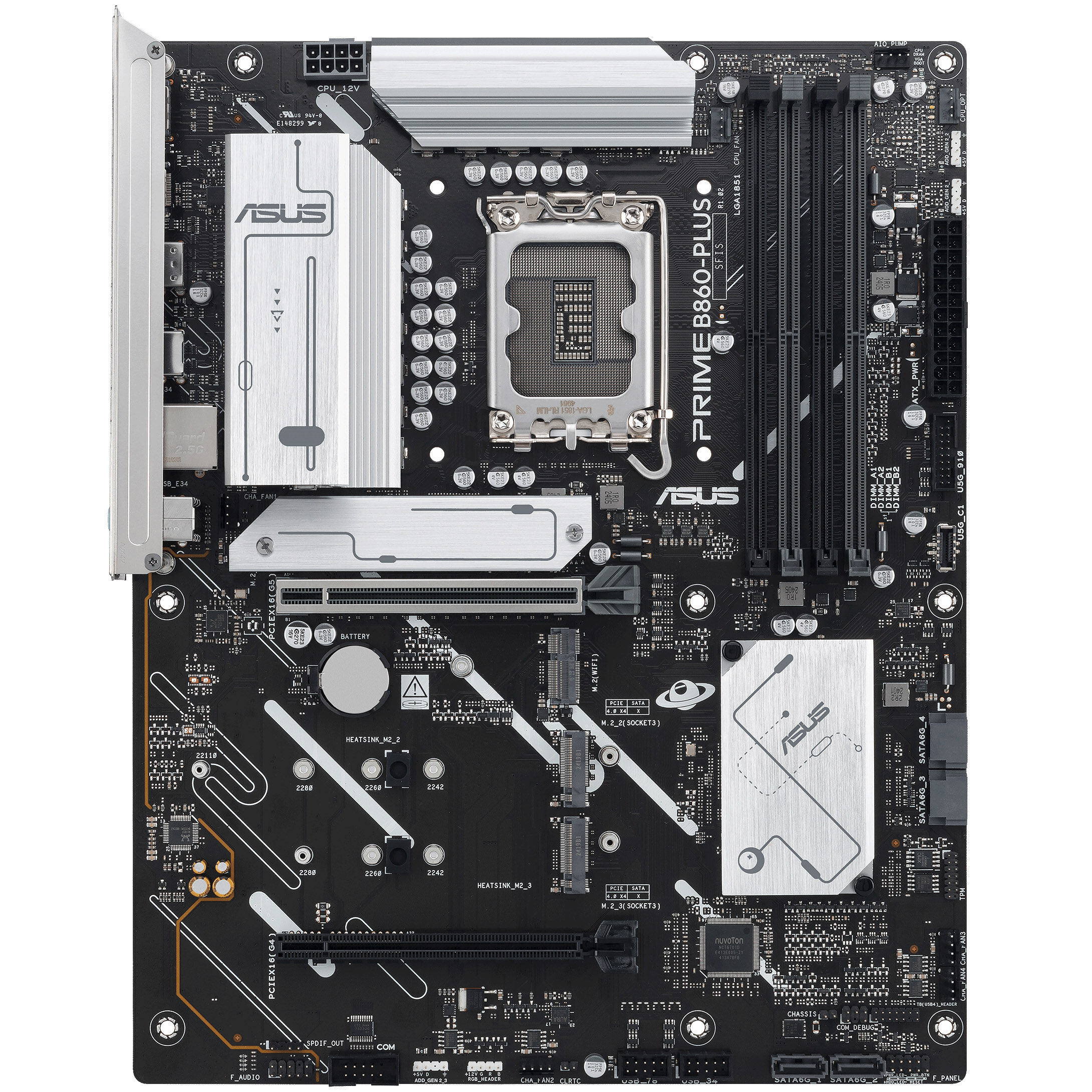

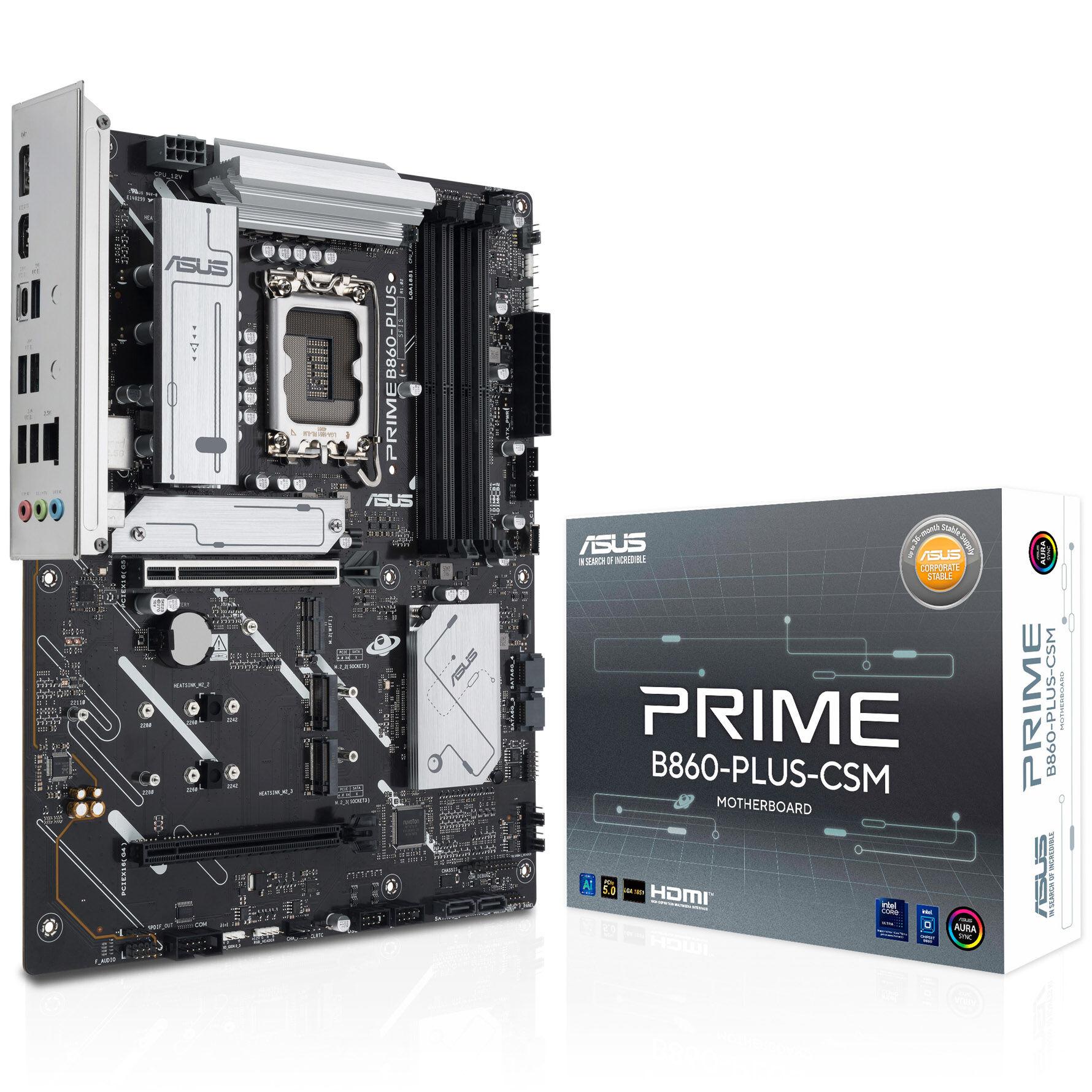

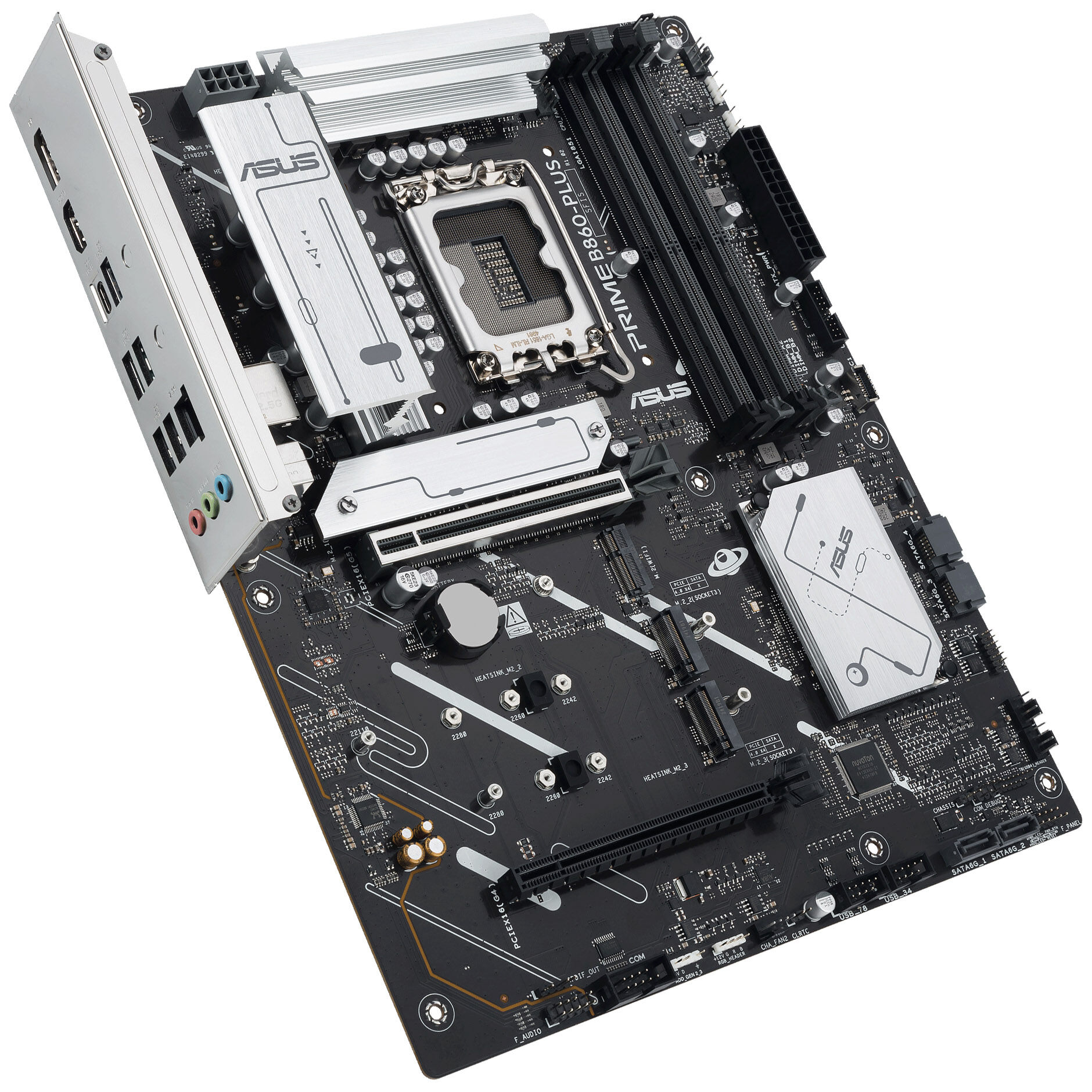

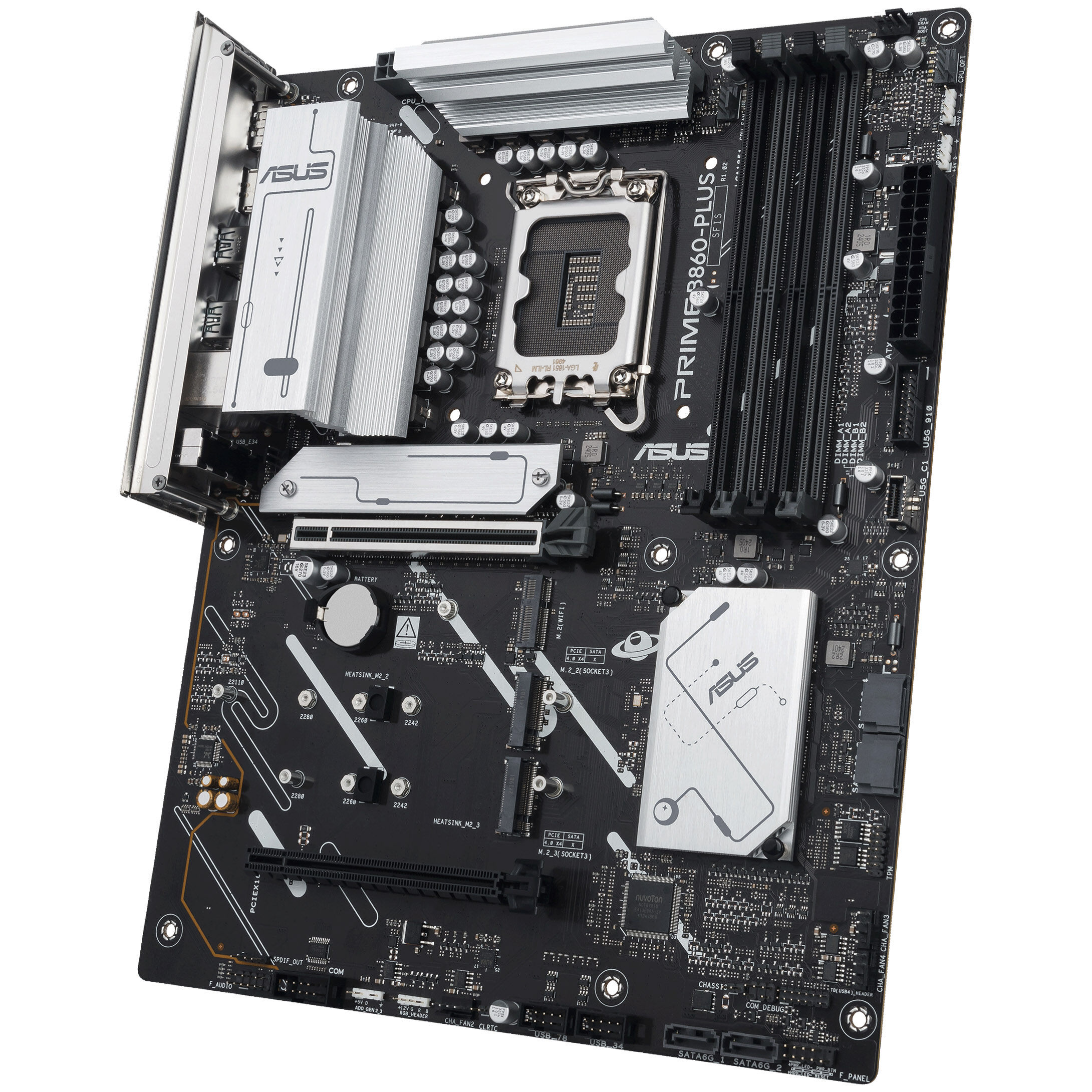

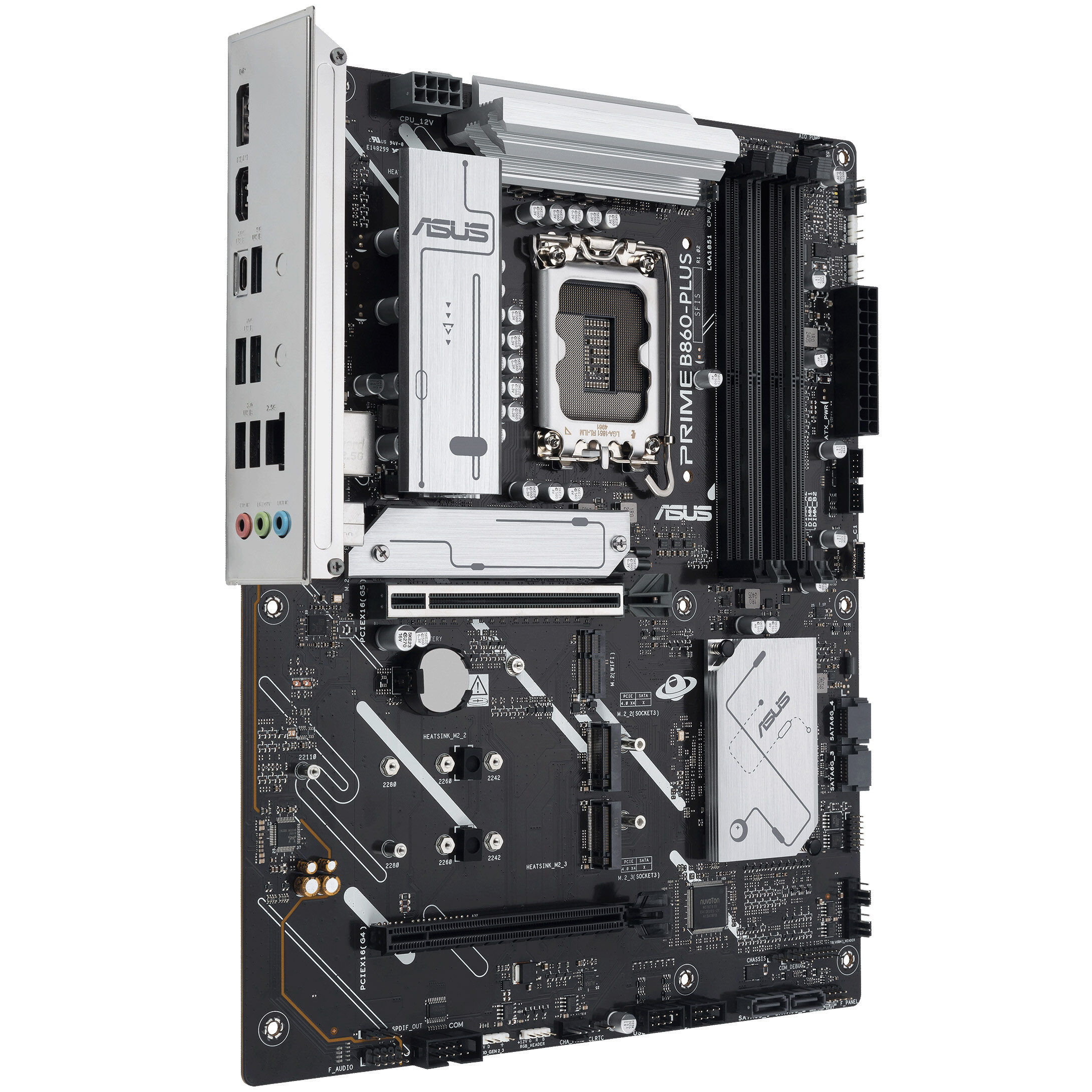

ASUS Prime B860-Plus: ATX motherboard with Intel LGA 1851 socket and B860 chipset
The ASUS Prime B860-Plus is an ATX motherboard with the mid-range Intel B860 chipset and the Intel LGA socket 1851. It supports Intels Arrow Lake processor generation and is suitable for gamers who can forgo overclocking their CPU.
The B680 motherboards also support USB 4, which achieves very fast data transfer rates of up to 40 Gbps. The ASUS Prime B860-Plus also offers PCIe 5.0 for graphics cards and M.2 SSDs, but lacks lane splitting for the GPU expansion slot. The DDR5 memory is overclockable, allowing you to get the most out of your RAM.
Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 305 mm
– Width
– 244 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (OC)
– 8200 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– No
– Cooling
– Backplate
– Yes
– M.2 Heatsink
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 8-pin
– USB4 (internal) header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) headers
– 2
– USB 2.0 (internal) possible ports
– 4
– RGB / LED ports
– 1x RGB (4-pin 5050 12VGRB), 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes

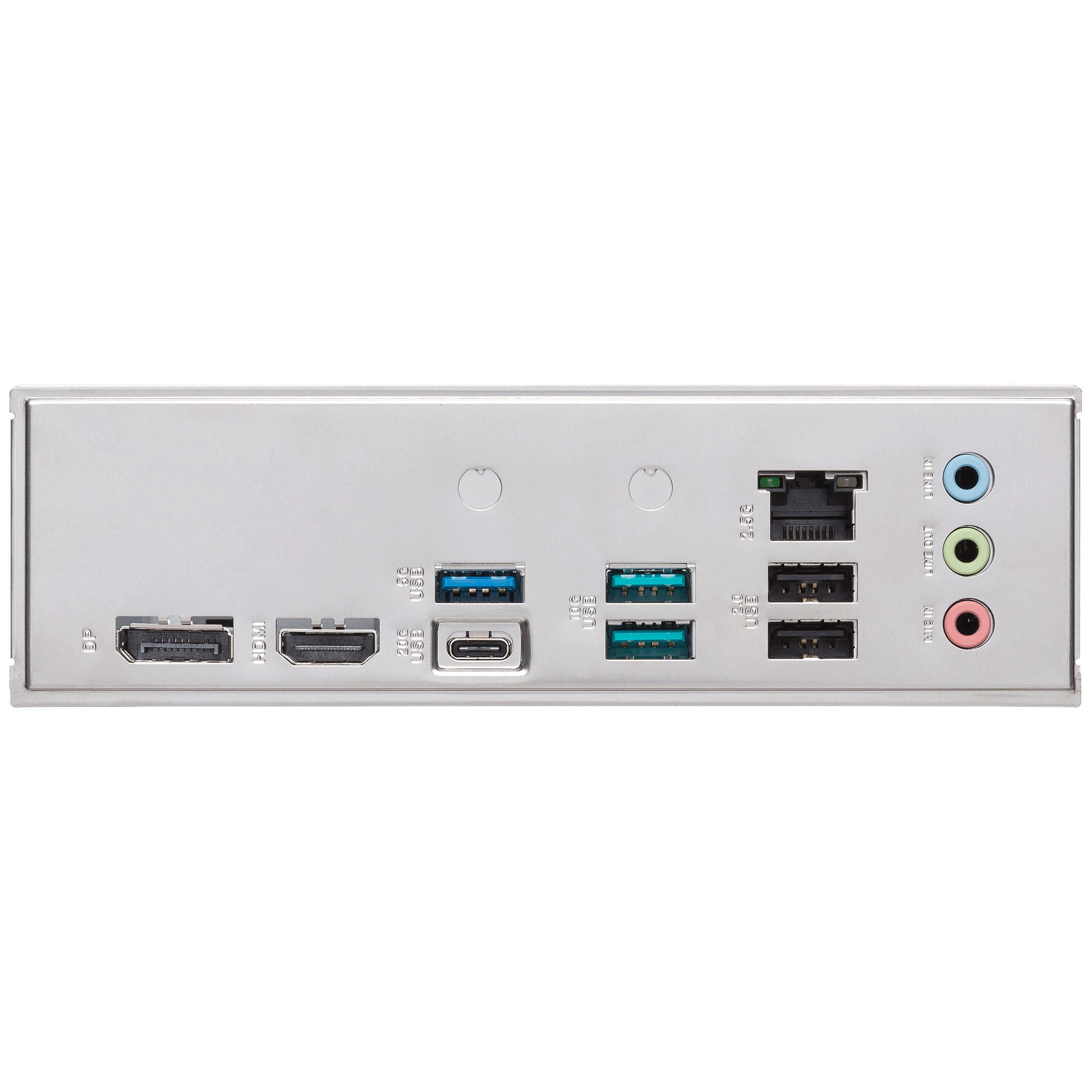

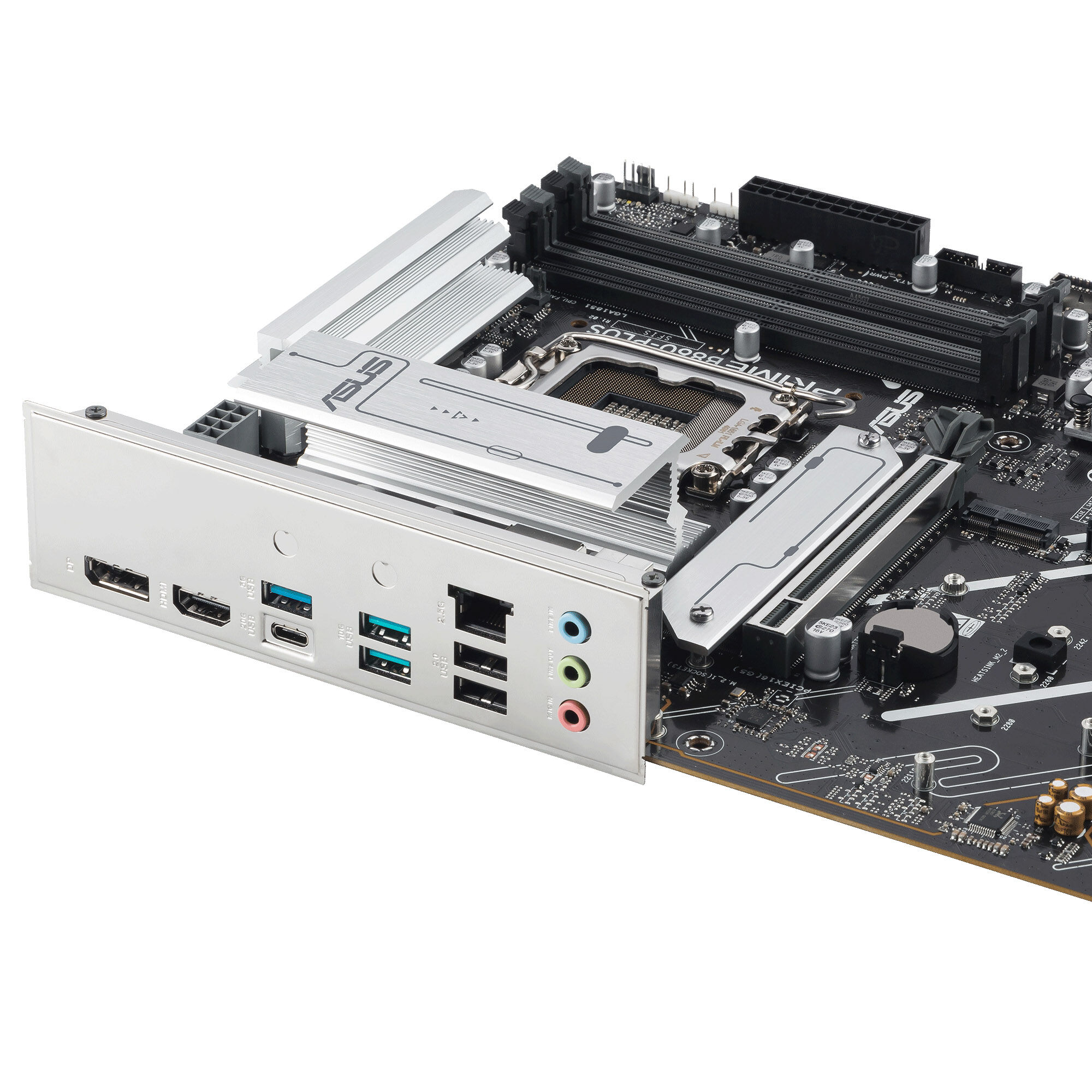

– External Ports
– USB 3.2 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 2
– USB 3.0 (external) Type-A
– 1
– USB 2.0 (external) Type-C A
– 2
– Display Ports
– Display Port (1x), HDMI (1x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 2
– M.2 PCIe 5.0 x4
– 1
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 Slots (total)
– 2
– Fan Headers
– 4-pin Fan Connectors
– 7
– Lighting
– Lighting / RGB
– Yes
