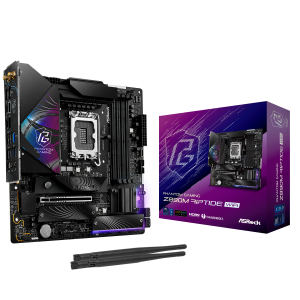

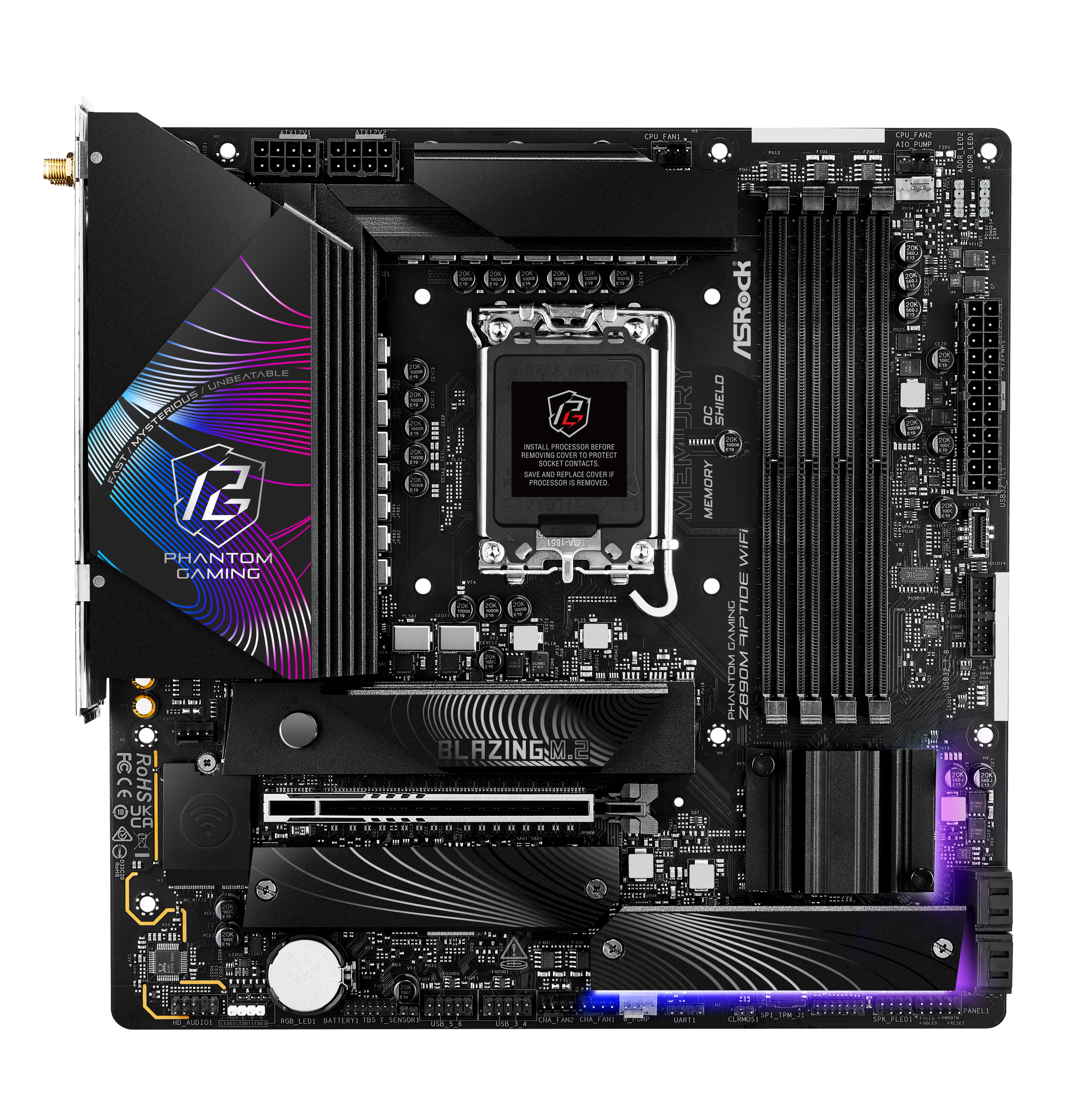

ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5

This motherboard is ideal for gaming enthusiasts.

– 1x PCIe 5.0 x16 (x16)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9066 MHz
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 4, 2x USB 3.1, 4x USB-C 3.0, and 2x USB 2.0
– OC features: 16+1+1+1+1 phase VRMs
– Total of 7x 4-pin connectors for fans and pumps
– Supports WiFi 6E and Bluetooth 5.3

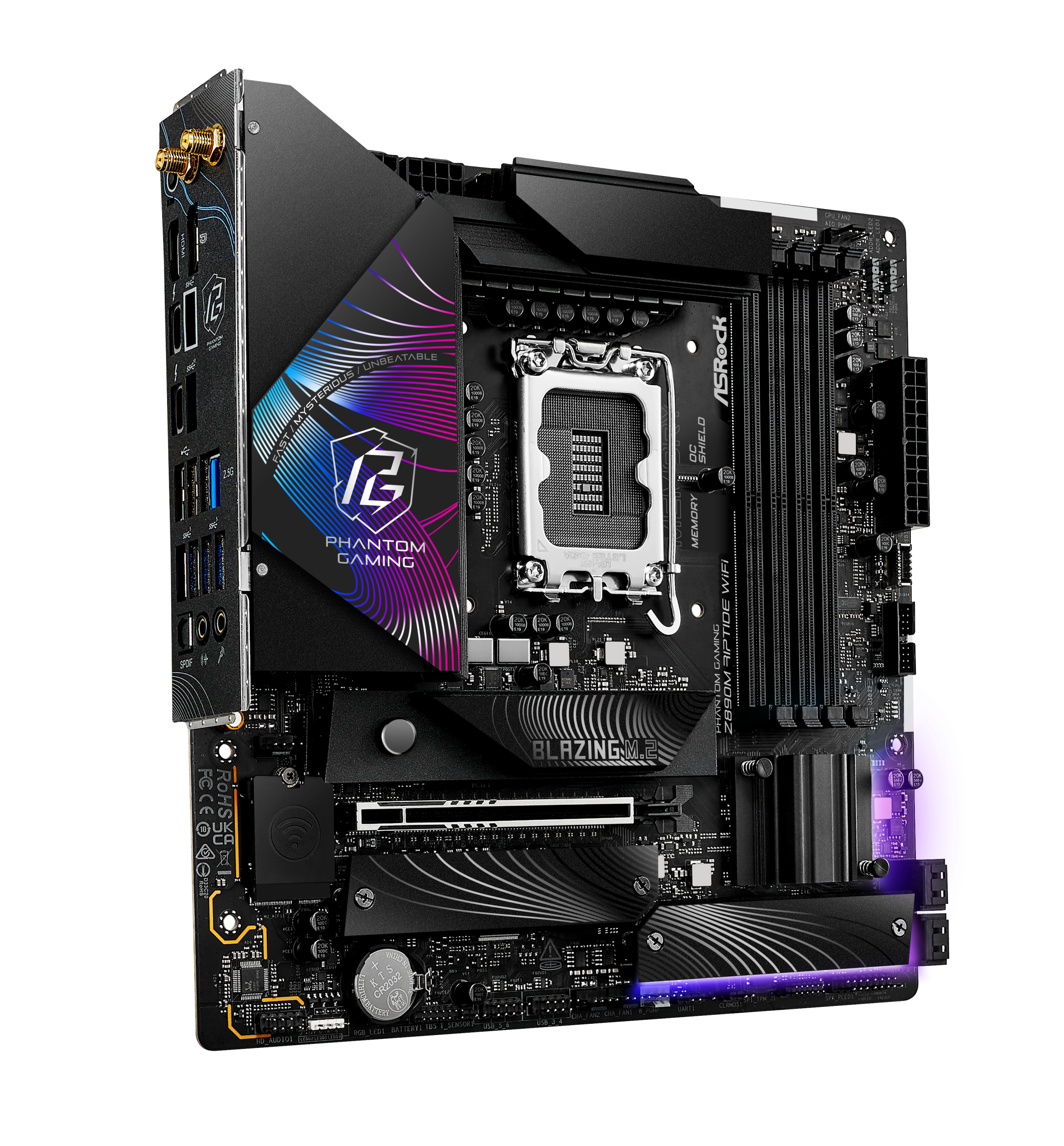

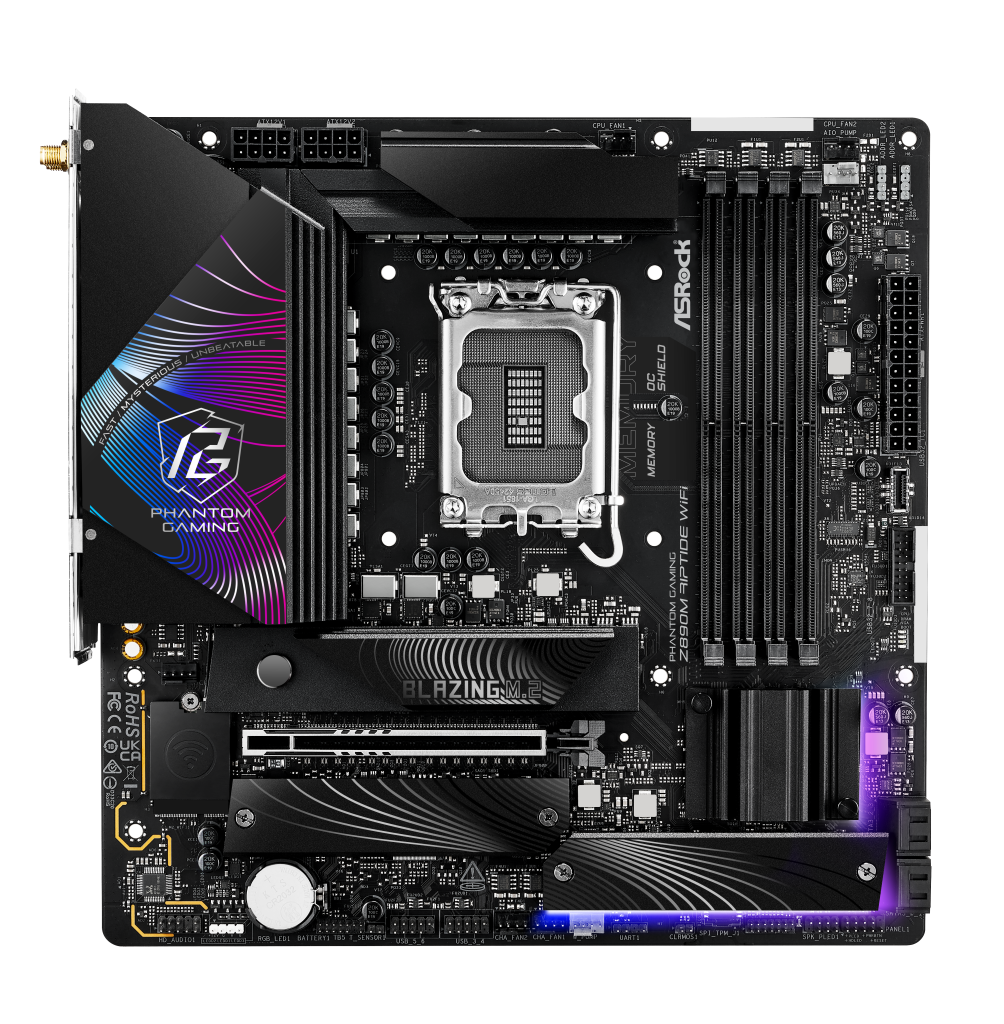

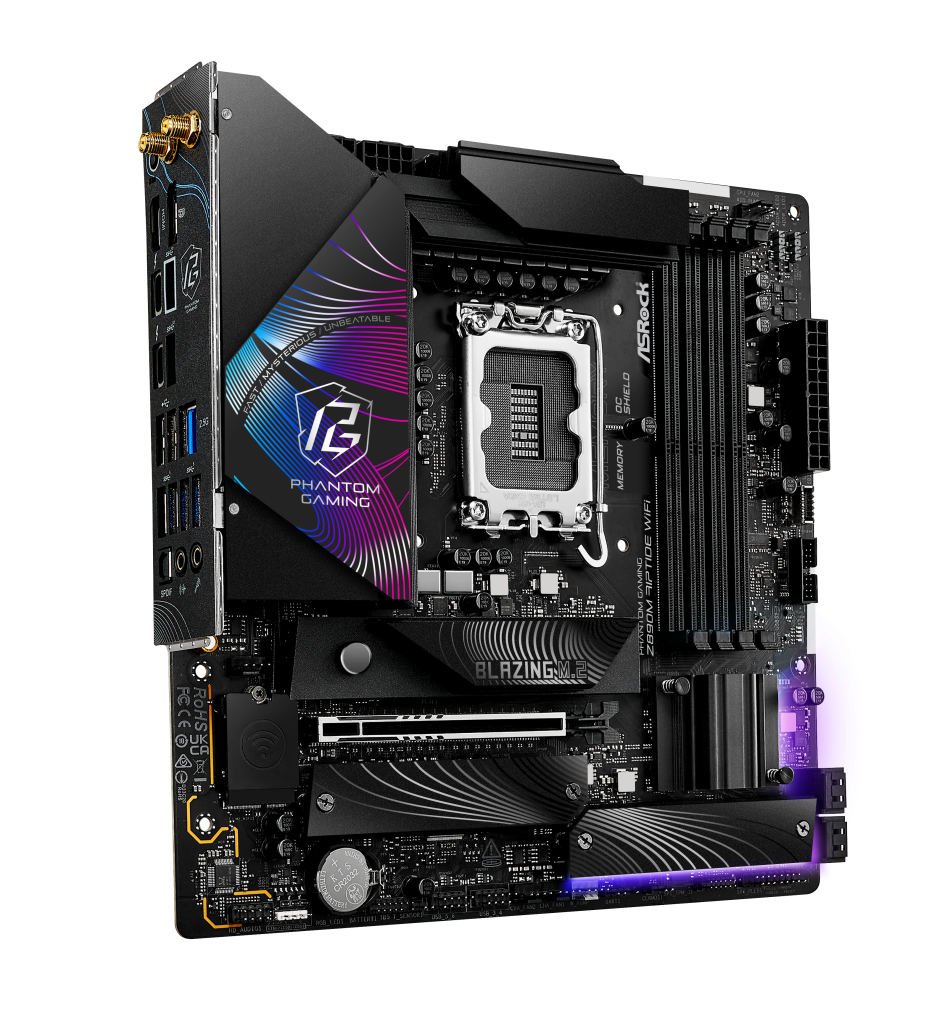

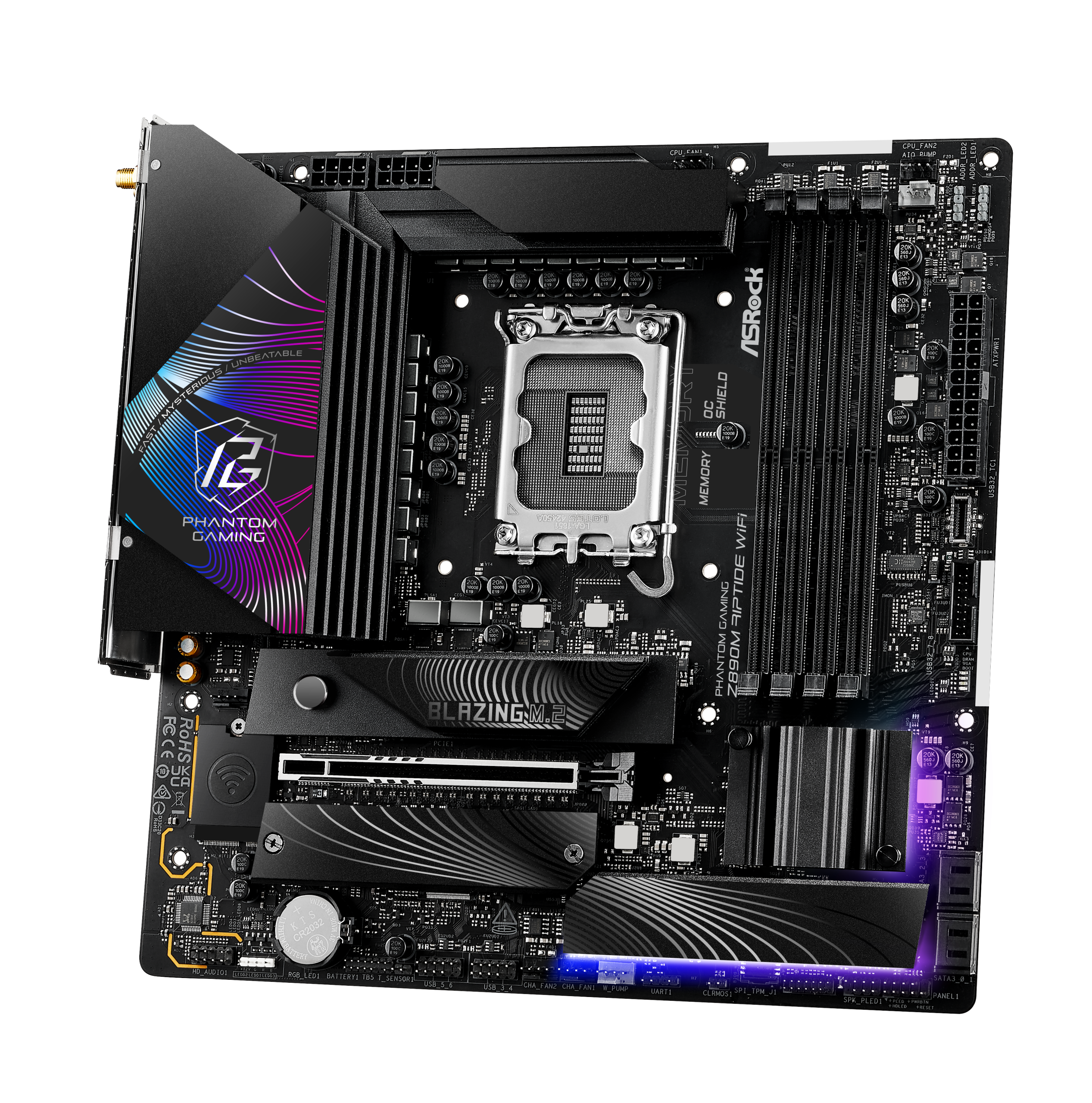

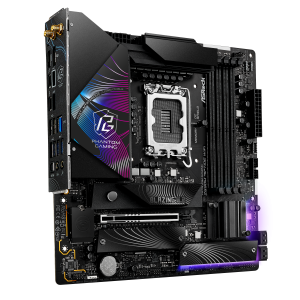

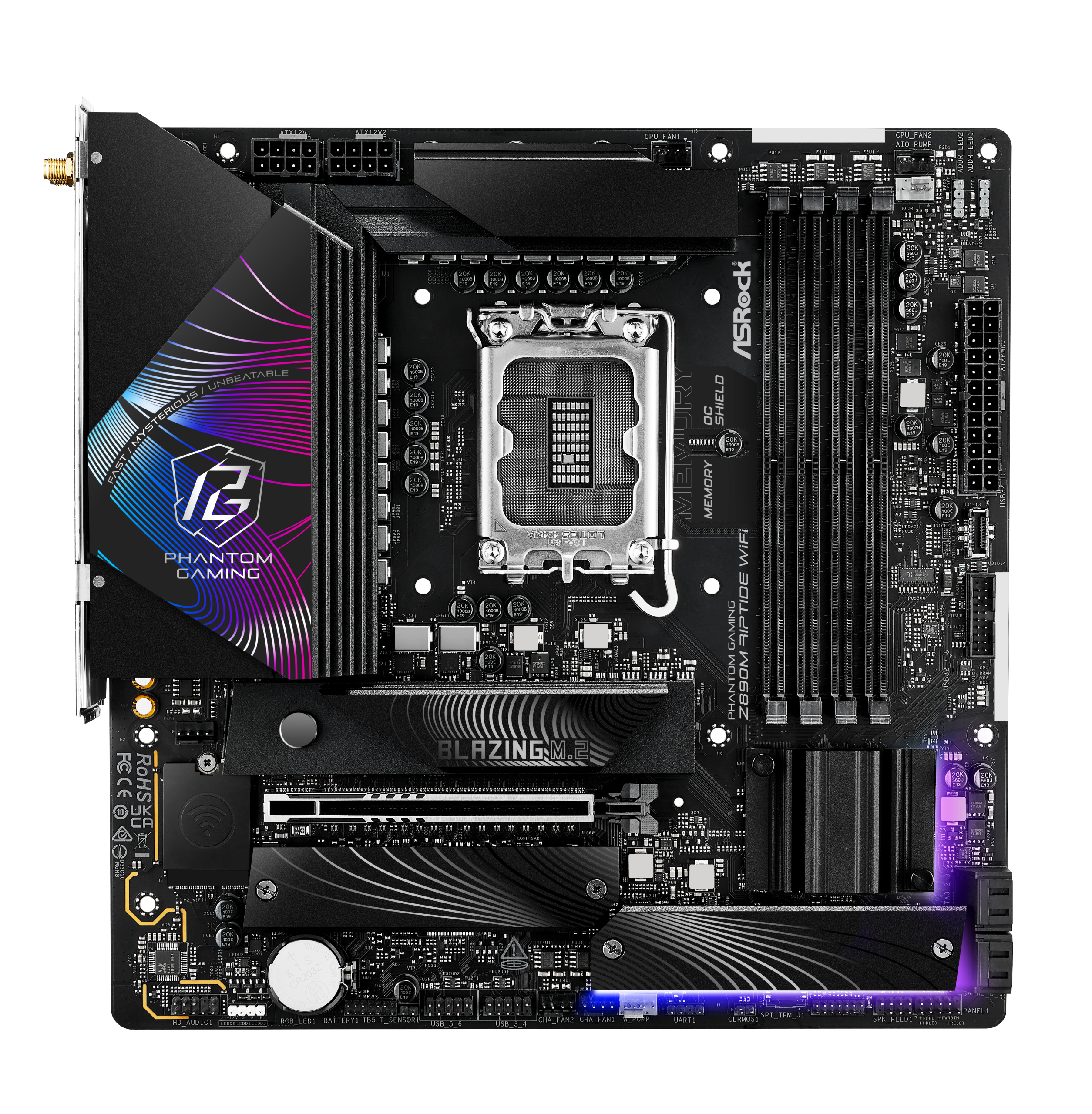

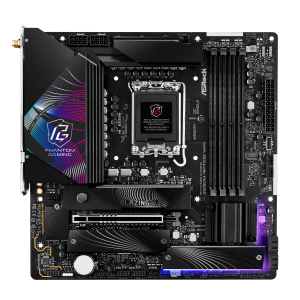

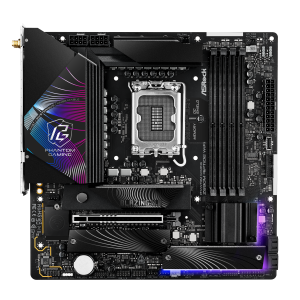

ASRock Z890M RIPTIDE WiFi: Micro-ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890M RIPTIDE WiFi is a Micro-ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASRock Z890M RIPTIDE WiFi boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
– div class=specification>
– Form Factor:
– Micro-ATX (244 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMMs (up to 9066 MHz via OC / XMP 3.0)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8, CPU)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x SPI TPM header
– 1x Thermistor Cable Header
– 1x Front Panel Audio Connector
– 1x Power LED/Speaker Header
– Fan header:
– 2x CPU fan (4-pin)
– 1x AIO pump (4-pin)
– 1x pump (4-pin)
– 3x case fans (4-pin)
– RGB header:
– 2x 3-pin ARGB (5V)
– 1x RGB headers

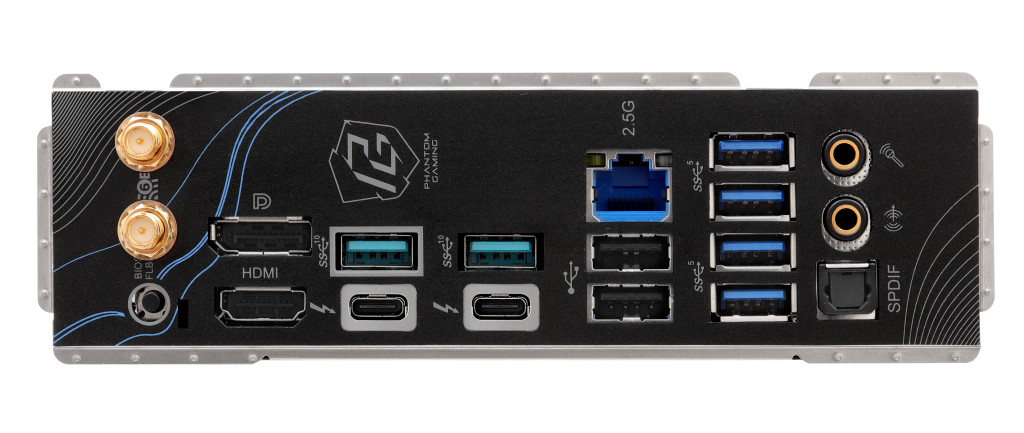

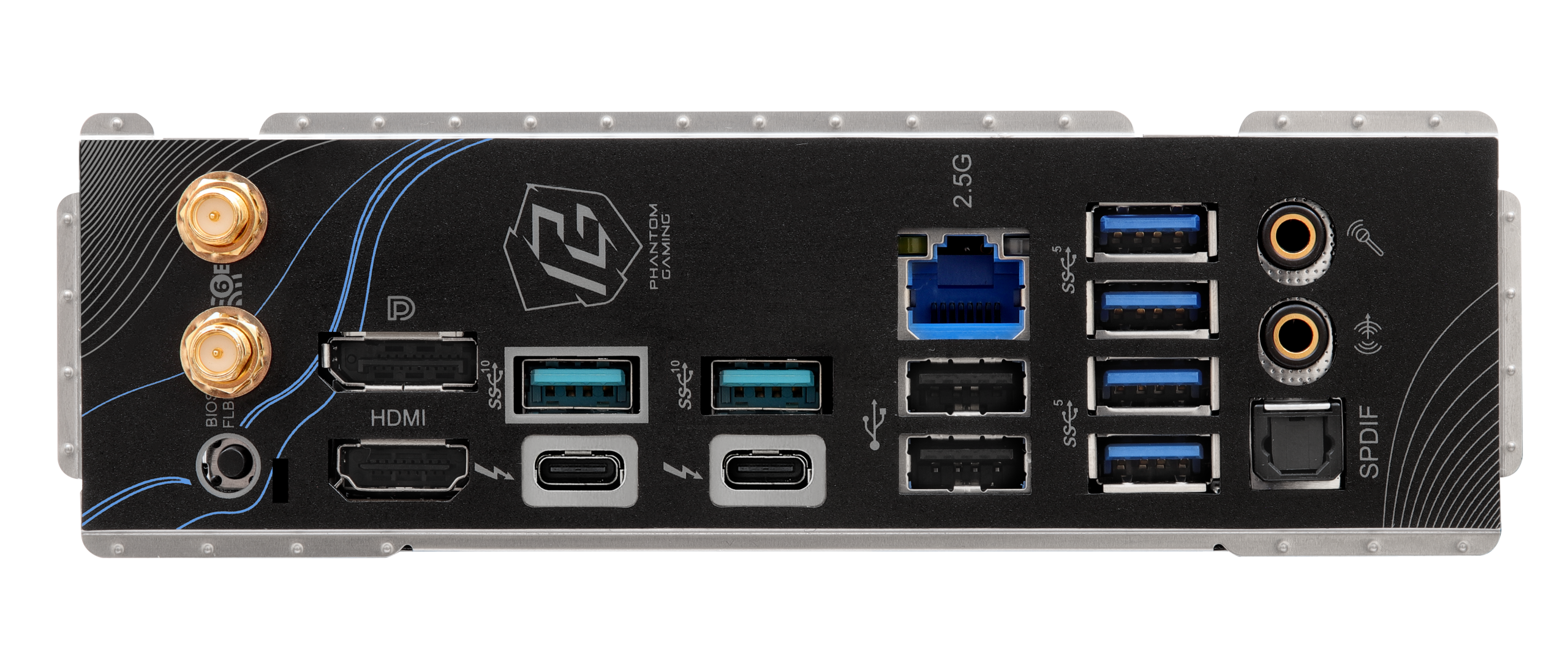

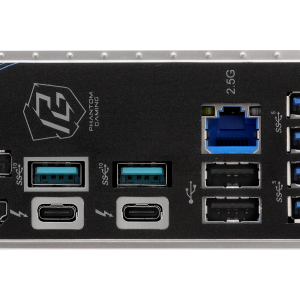

– External connections:
– 2x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x 2.5 Gigabit LAN (Killer E3100G)
– 2x 3.5 mm jack (Realtek ALC 897)
– 1x BIOS flashback button
– 1xHDMI
– 1x DisplayPort
– 1x Clear CMOS button
– 2x antenna port
– 1x WiFi/Bluetooth module
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU

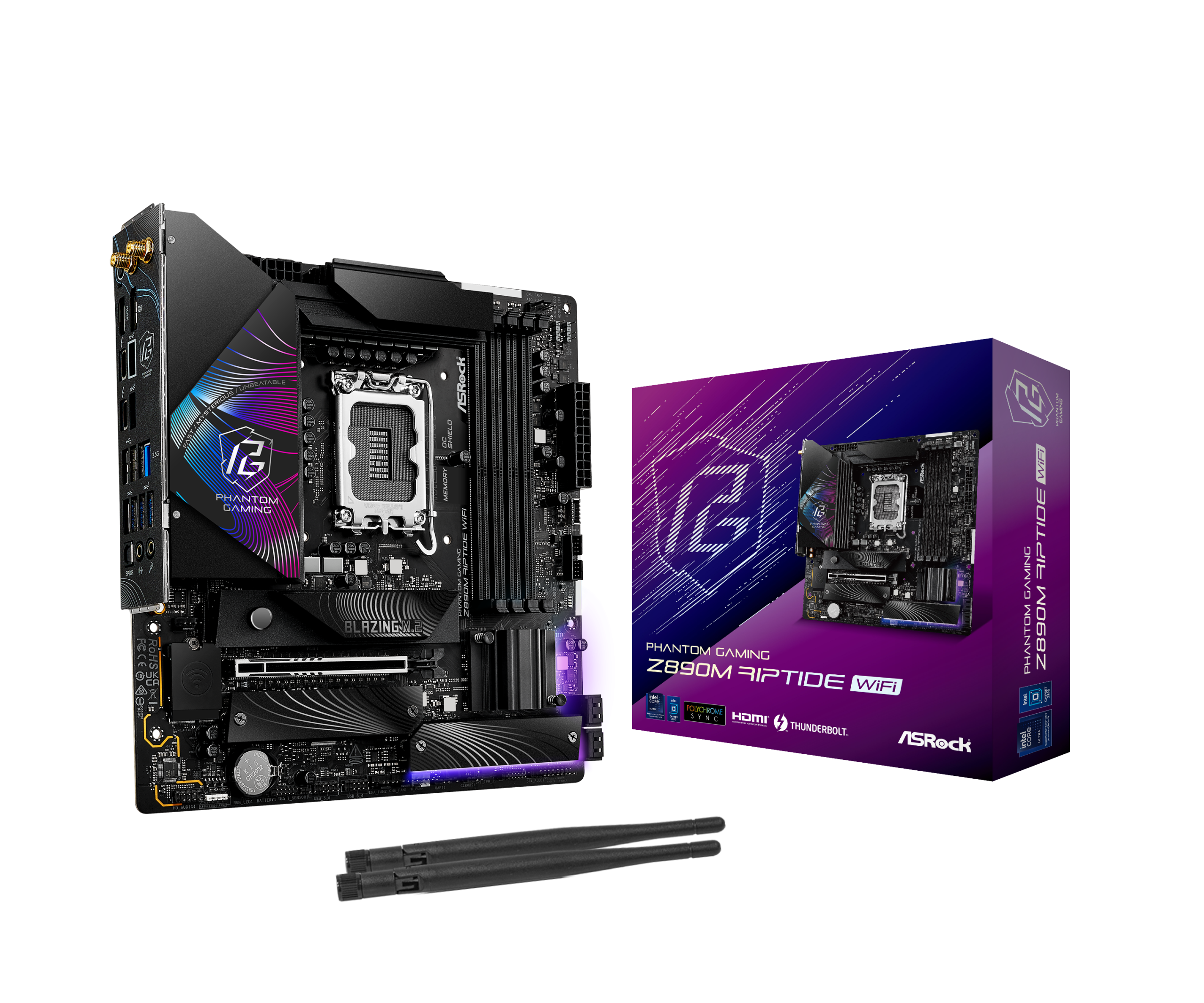

– Accesories:
– 2x SATA cable
– 2x antennas
– 1x ARGB splitter cable
– 1x thermistor cable
