MSI Z790 Gaming Plus WiFi, Socket LGA 1700, Intel Z790, ATX - DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x1), 1x PCIe 3.0 x1
– DDR5 memory up to 4800 MHz, up to 7200 MHz with RAM overclocking
– 3x M.2 slots with PCIe 4.0 for NVMe SSDs

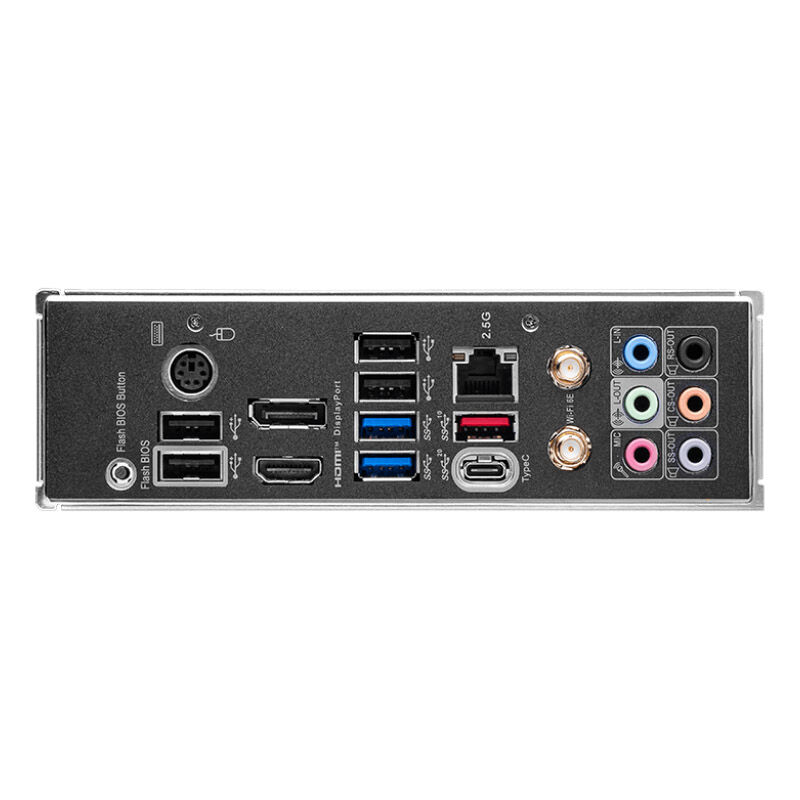

– USB on the I/O panel: 8x USB 3.0, one of which is USB-C
– Features: 15 real phases (14 + 1), BIOS Flashback
– A total of seven connectors for fans and pumps

The MSI Z790 Gaming Plus WiFi with Intel Z790 chipset in detail
The MSI Z790 Gaming Plus WiFi is an ATX motherboard with the high-end Intel Z790 chipset and the LGA 1700 socket. The motherboard is suitable for desktop processors 12th, 13th, and 14th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,200 MHz and, thanks to its stable power supply, is suitable for overclocking.

In addition to a stable power supply with 14+1 phases, the MSI Z790 Gaming Plus WiFi impresses with other useful features, such as the option for an external BIOS flashback via USB.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, it is recommended to regularly update the motherboard BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your cart now.
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
– Processor
– Processor Manufacturer: Intel
– Processor Socket: LGA 1700
– Compatible Processors: Intel Celeron, Intel Pentium Gold
– Supported Processor Slots: LGA 1700
– Memory
– Supported Memory: DDR5 SDRAM
– Number of Memory Slots: 4
– Non-ECC
– Supported Memory Speed: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
– Supported Memory Clock Speed (max.): 7200 MHz
– Maximum RAM 192 GB
– Storage Controller
– Supported Storage Drives: HDD & SSD
– Supported Storage Drive Interfaces: M.2, PCI Express
– RAID Levels 0, 1, 5, 10
– Graphics
– Parallel Processing Technology: Not supported
– Internal I/O Ports
– Number of USB 2.0 Ports: 4
– USB 3.2 Gen 1 (3.1 Gen 1) Ports: 4
– USB 3.2 Gen 2 (3.1 Gen 2) Ports: 1
– SATA III Ports: 6
