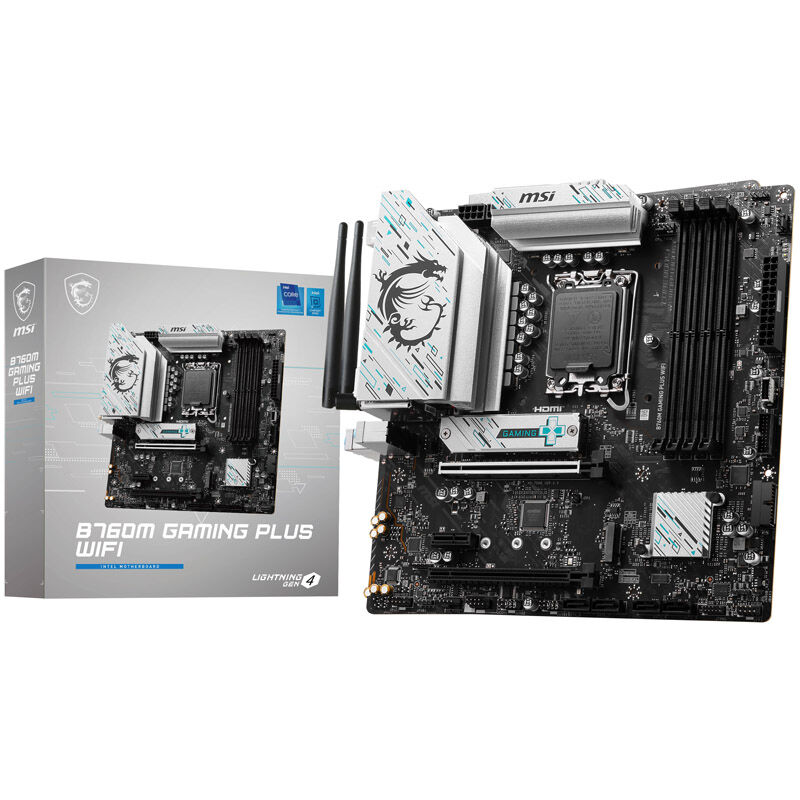

MSI B760M Gaming Plus WiFi, Socket LGA 1700, Intel B760M, Micro-ATX - DDR5

– 2x PCIe 4.0 x16 (x16, x4), 1x PCIe 3.0 x1
– DDR5 memory up to 5,600 MHz, with RAM overclocking up to 6,800 MHz
– 2x M.2 slots, including 2x PCIe 4.0
– USB on the I/O panel: 2x USB-A 3.1, 2x USB-A 3.0, and 4x USB 2.0
– A total of 4 connectors for fans and pumps

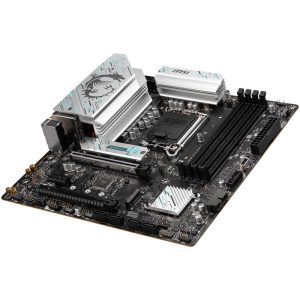

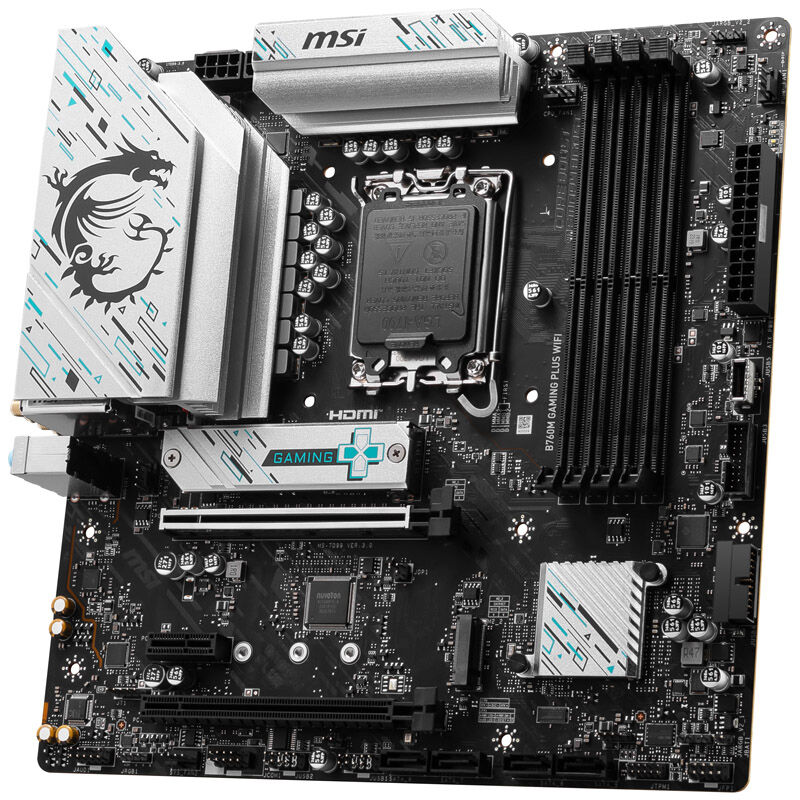

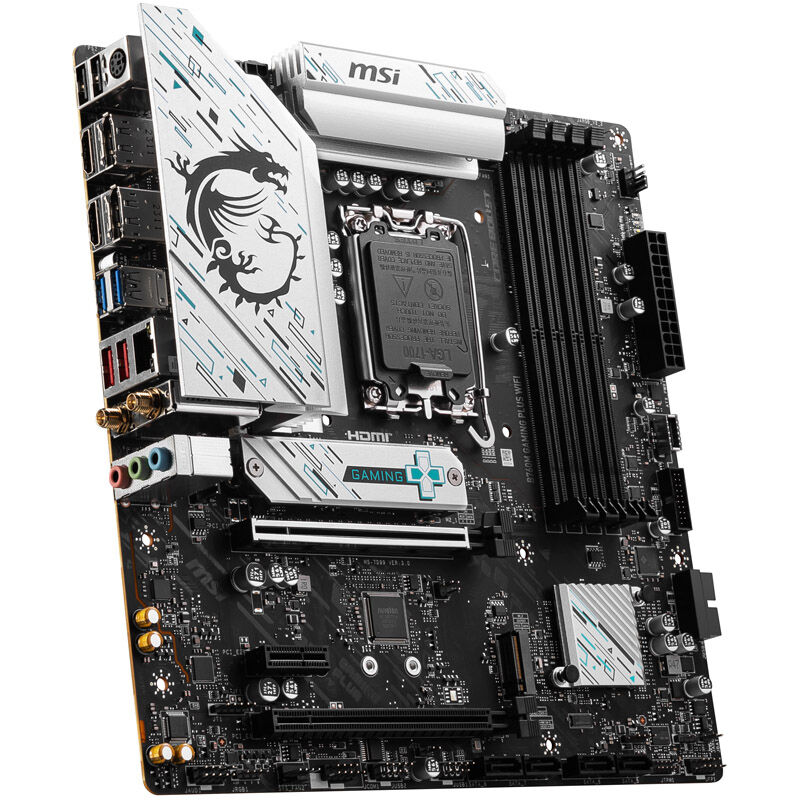

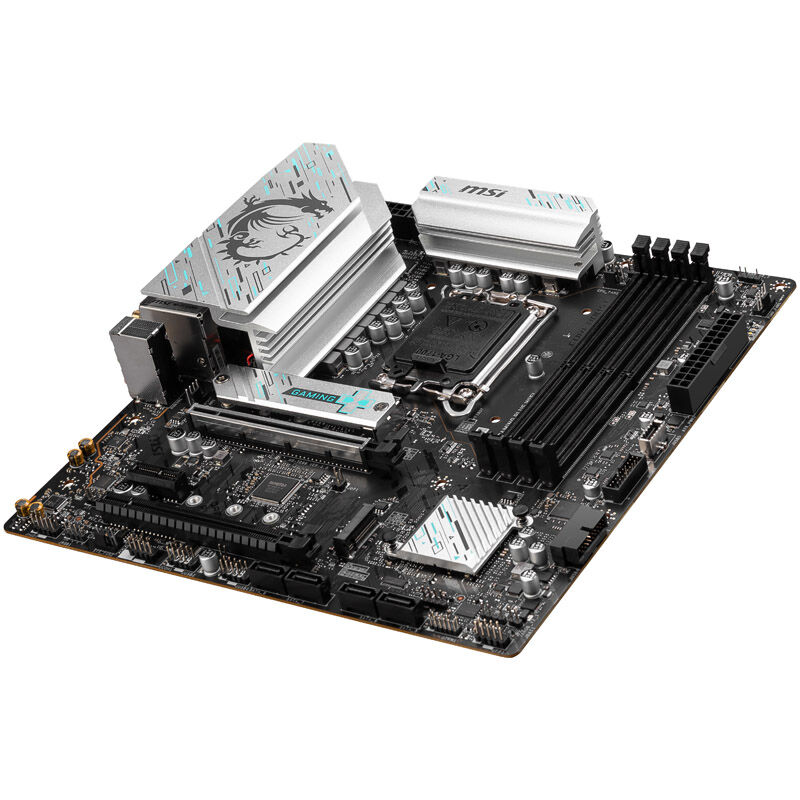

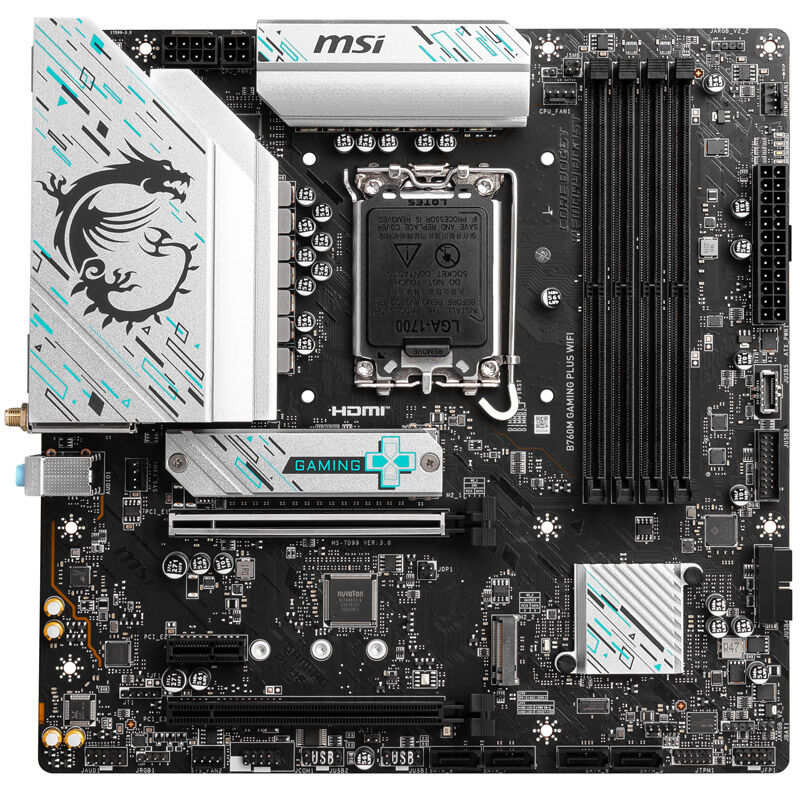

The MSI B760M Gaming Plus WiFi Micro-ATX motherboard with Intel B760 chipset in detail
The MSI B760M Gaming Plus WiFi is a Micro-ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is compatible with 12th, 13th, and 14th generation Intel Core CPUs, codenamed: Alder Lake and Raptor Lake. It supports DDR5 memory up to 6800 MHz and, thanks to its outstanding power supply, is ideal for RAM overclocking.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboard BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Format:
– Micro-ATX (244 x 244 mm)
– Chipset:
– Intel B760
– Socket:
– LGA 1700 (for Intel 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 4x DDR4 (5,600 MHz, up to 6,800 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 3.0 x1
– Internal Connections:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2242-2280, CPU)
– 1x M.2 (PCIe 4.0 x4 and SATA, 2242-2280, chipset)
– 1x USB-C 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x front panel audio header
– 2x system panel headers
– 1x Trusted Platform Module Header (TPM2.0)
– 1x chassis intrusion header
– – 1x COOM port header
– Fan header:
– 1x CPU fan (4-pin)
– 2x case fans (4-pin)
– 1x pump (4-pin)
– RGB header:
– 2x ARGB header (3-pin, 5V)
– 1x RGB header (4-pin, 12V)

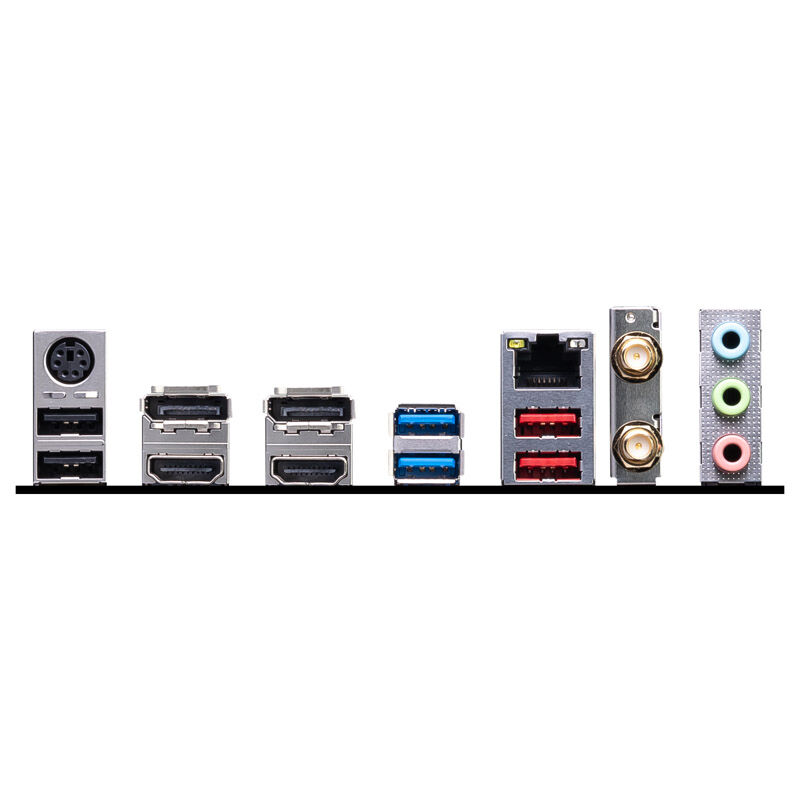

– External connectors:
– 1x PS/2 combo for keyboard or mouse
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbps)
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 2x HDMI 2.1
– 2x DisplayPort 1.4
– 1x RJ-45 (max. 2.5 Gbps, Realtek RTL8125BG)
– 2x WLAN antenna connectors (WiFi 6E, Intel, Bluetooth 5.3)
– 3x 3.5 mm jacks (Realtek ALC897) 7.1)
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
