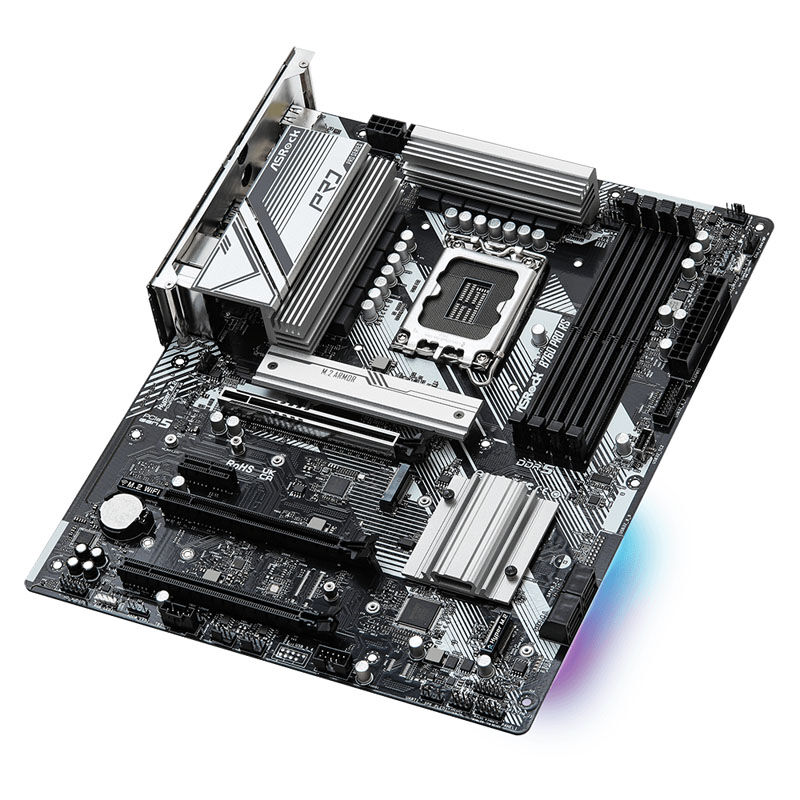

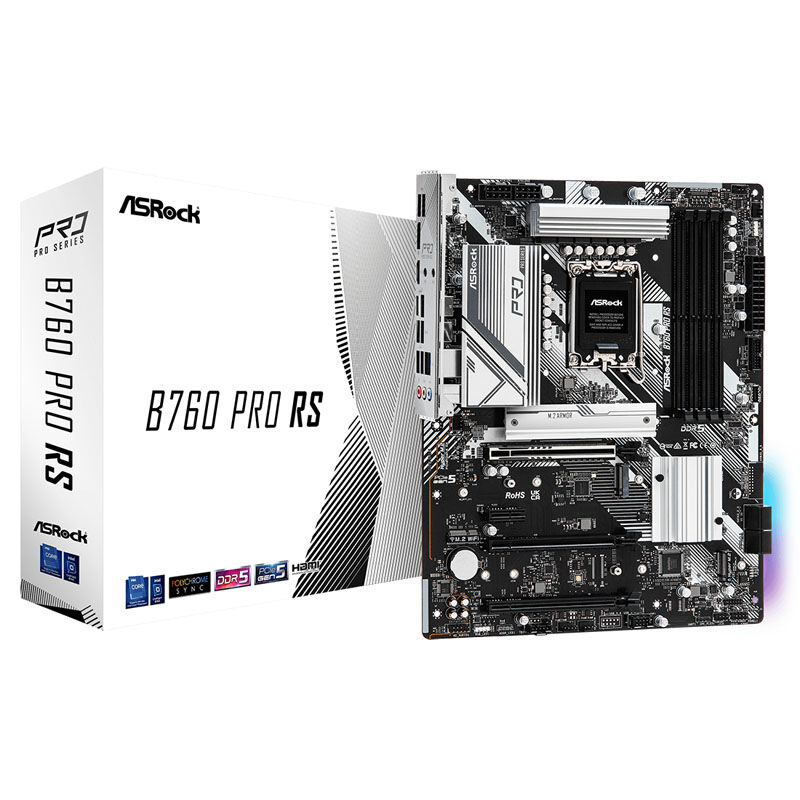

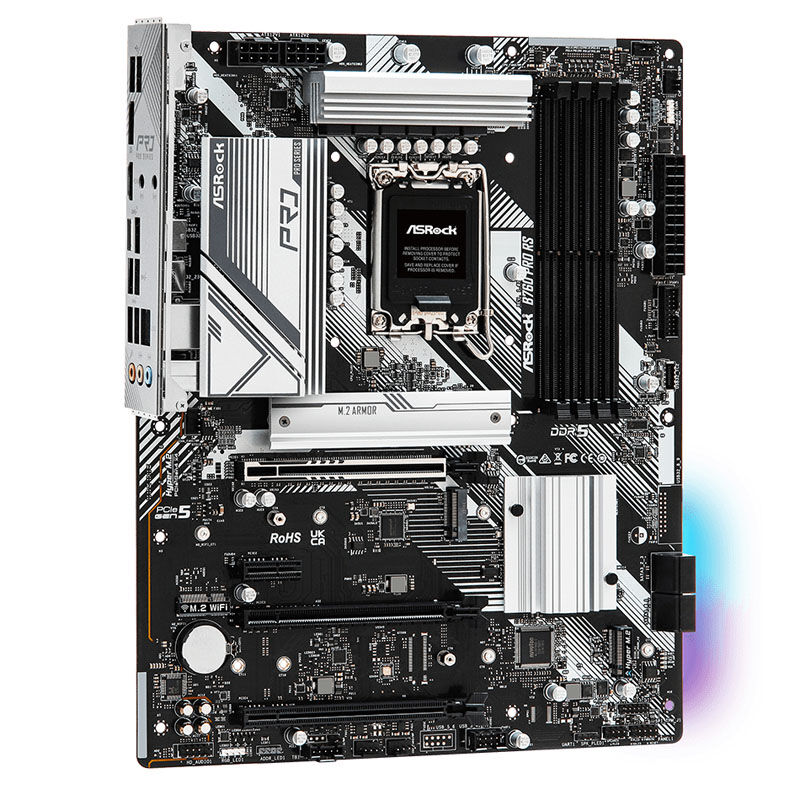

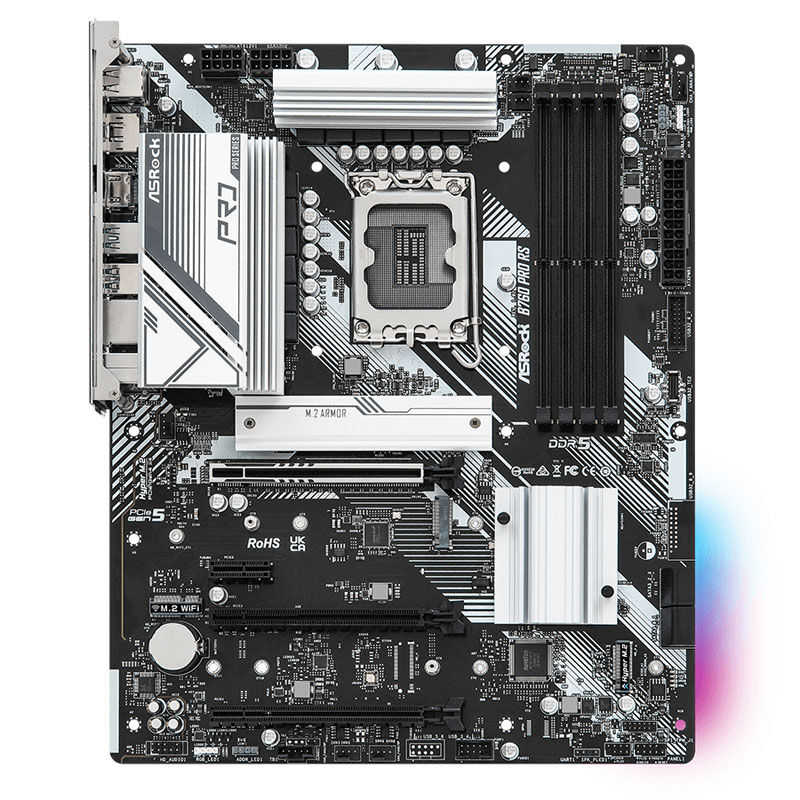

ASRock B760 Pro RS, Intel B760 motherboard - Socket 1700, DDR5

– 3x PCIe x16 and 1x PCIe x1 slots, including 1x PCIe 5.0
– DDR5 memory up to 4800 MHz, with RAM overclocking up to 7200 MHz
– 3x M.2 slots, including 3x PCIe 4.0
– USB on the I/O panel: 1x USB 3.1 Type A, 1x USB 3.1 Type C, 4x USB 3.0 Type A, 2x USB 2.0 Type A
– A total of 7 connectors for fans and pumps
– 2.5 Gbit LAN

The ASRock B760 Pro RS ATX motherboard with Intel B760 chipset in detail
The ASRock B760 Pro RS is an ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation desktop processors. 14th Generation Intel Core CPUs, Alder Lake and Meteor Lake. It supports DDR5 memory up to 7,200 MHz and also offers features such as extensive heat spreaders for VRMs and chipset, and subtle RGB lighting.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel B760
– Socket:
– Intel LGA 1700 (for Intel CPUs)
– RAM:
– 4x DDR5 (4800 MHz, up to 7200 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16
– 1x PCIe 4.0 x16
– 1x PCIe 3.0 x16
– 1x PCIe 3.0 x1
– Internal Connectors:
– 2x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2260/2280, CPU)
– 2x M.2 (PCIe 4.0 x4, 2260/2280, chipset)
– 1x USB 3.0 (two headers, USB 3.2 Gen 1, max. 5 Gbps)
– 1x USB 3.1 (two headers, USB 3.2 Gen 2, max. 10 Gbps) 1x USB 2.0 (two headers, max. 480 Mb/s)
– 1x Front Panel Audio Connector
– Fan Headers:
– – 2x CPU Fan (4-pin)
– 5x Case Fan (4-pin)

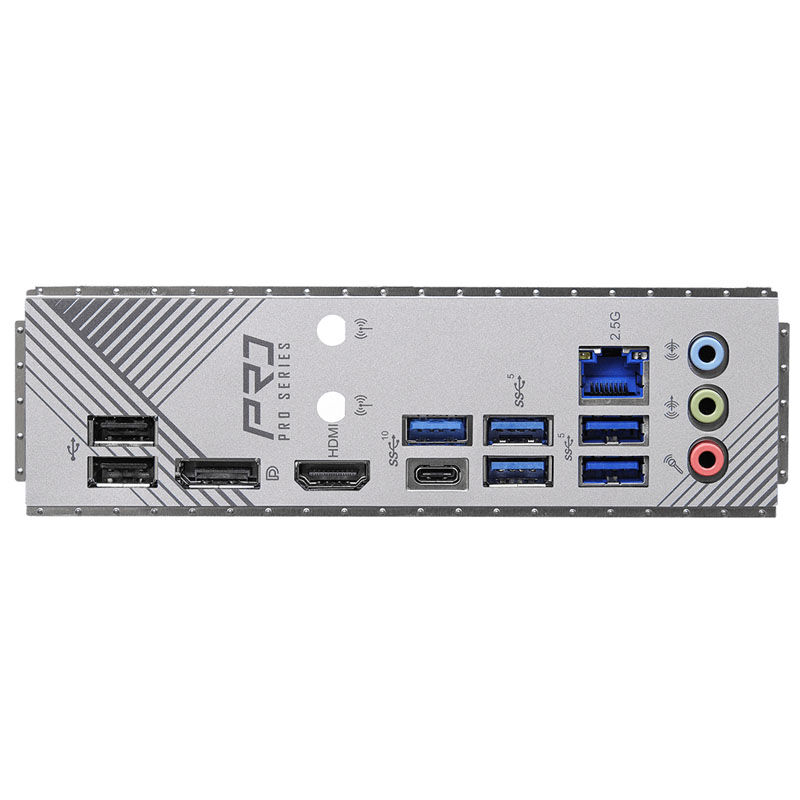

– External Connectors:
– 1x USB 3.0 (Type-C, USB 3.2 Gen 2, max. 10 Gbps)
– 1x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (Type A, max. 480 Mbps)
– 1x RJ-45 (AMD I225-V, max. 2.5 Gbps)
– 2x 3.5 mm jack
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX/EPS 12V
– Manufacturer warranty: 2 years
