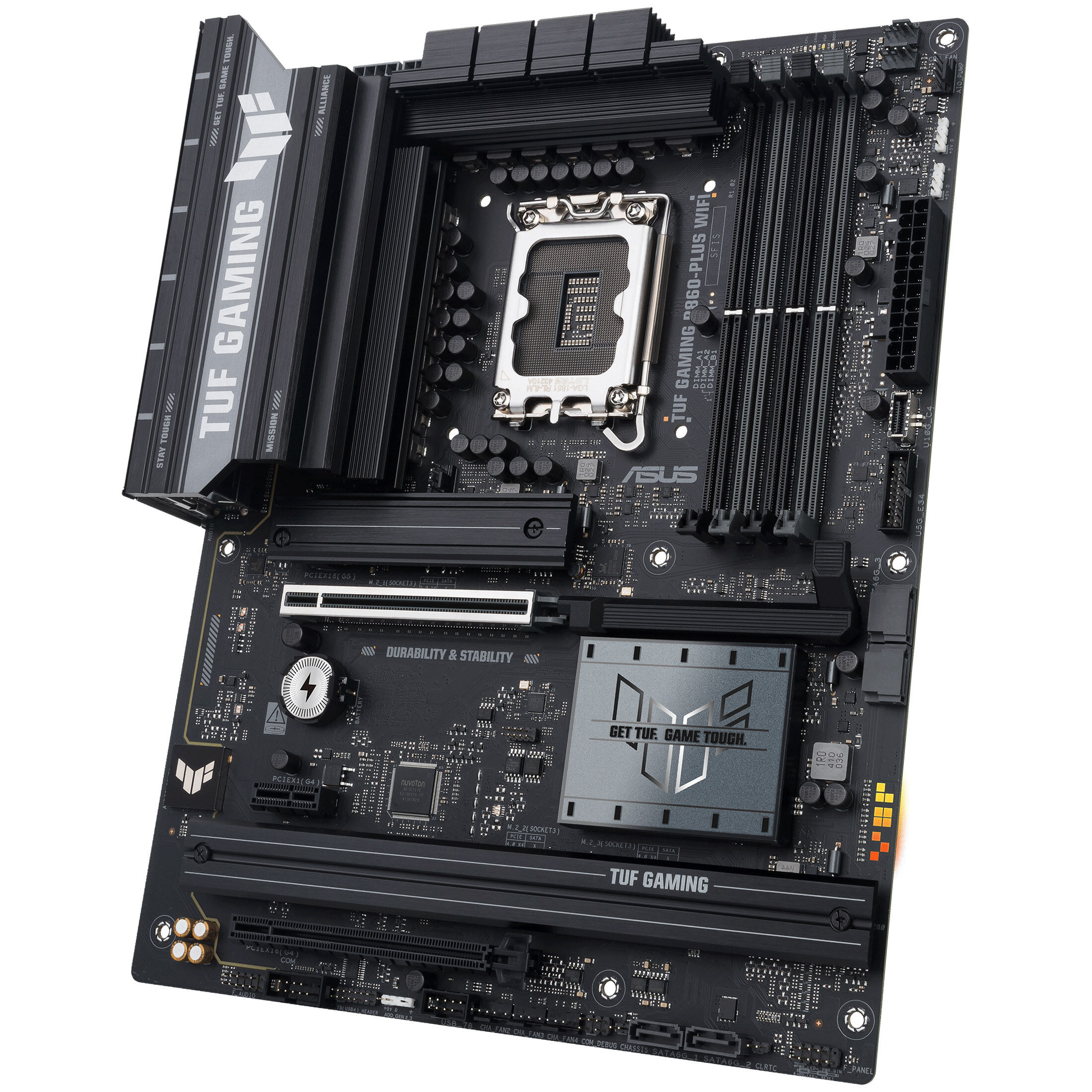

ASUS TUF Gaming B860-Plus WiFi motherboard, socket LGA 1851, Intel B860, ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x1
– RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 8666 MT/s
– Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
– USB: 1x USB-C 3.2, 2x USB 3.1, 3x USB 3.0, and 2x USB 2.0
– Cooling: 7x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 7 and Bluetooth 5.4

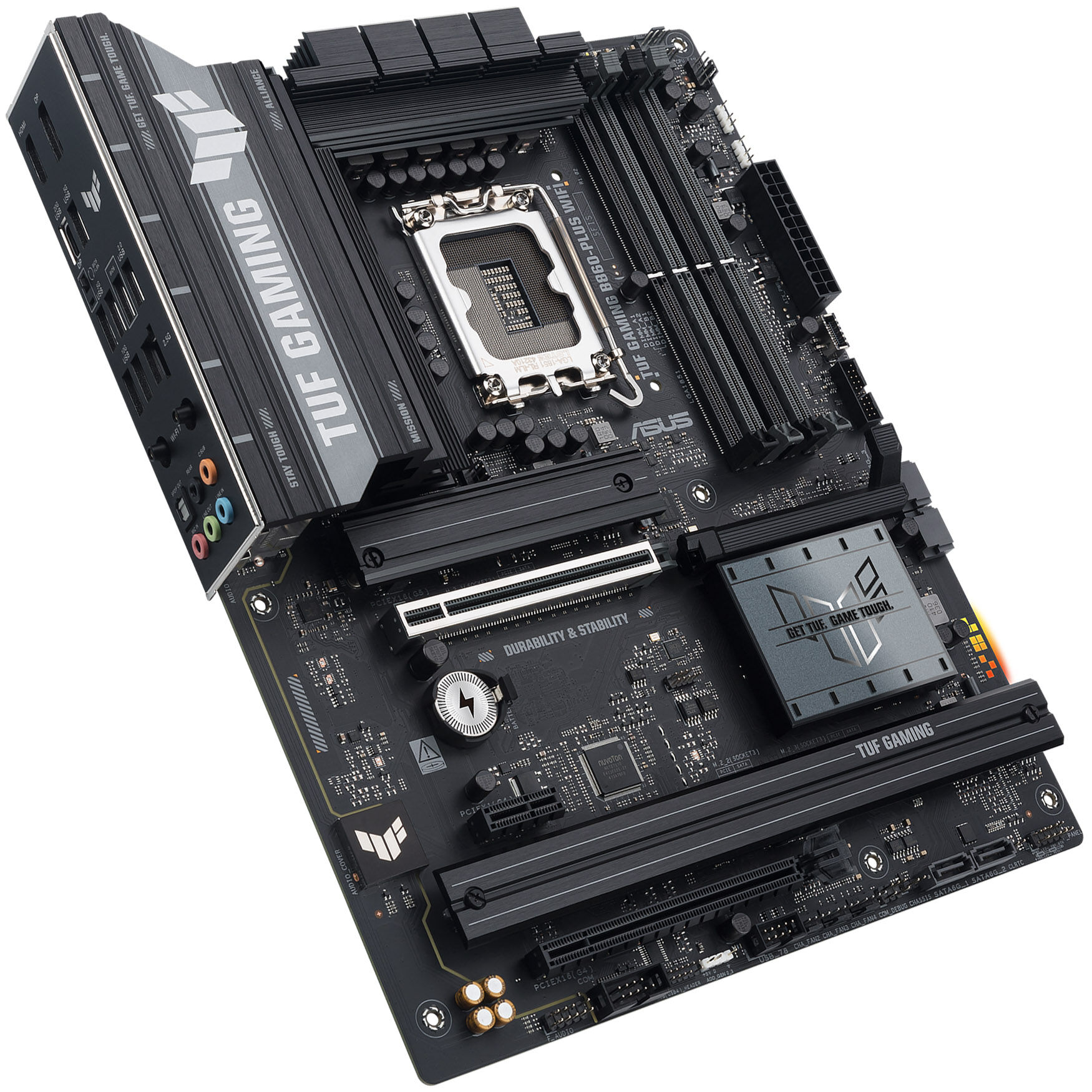

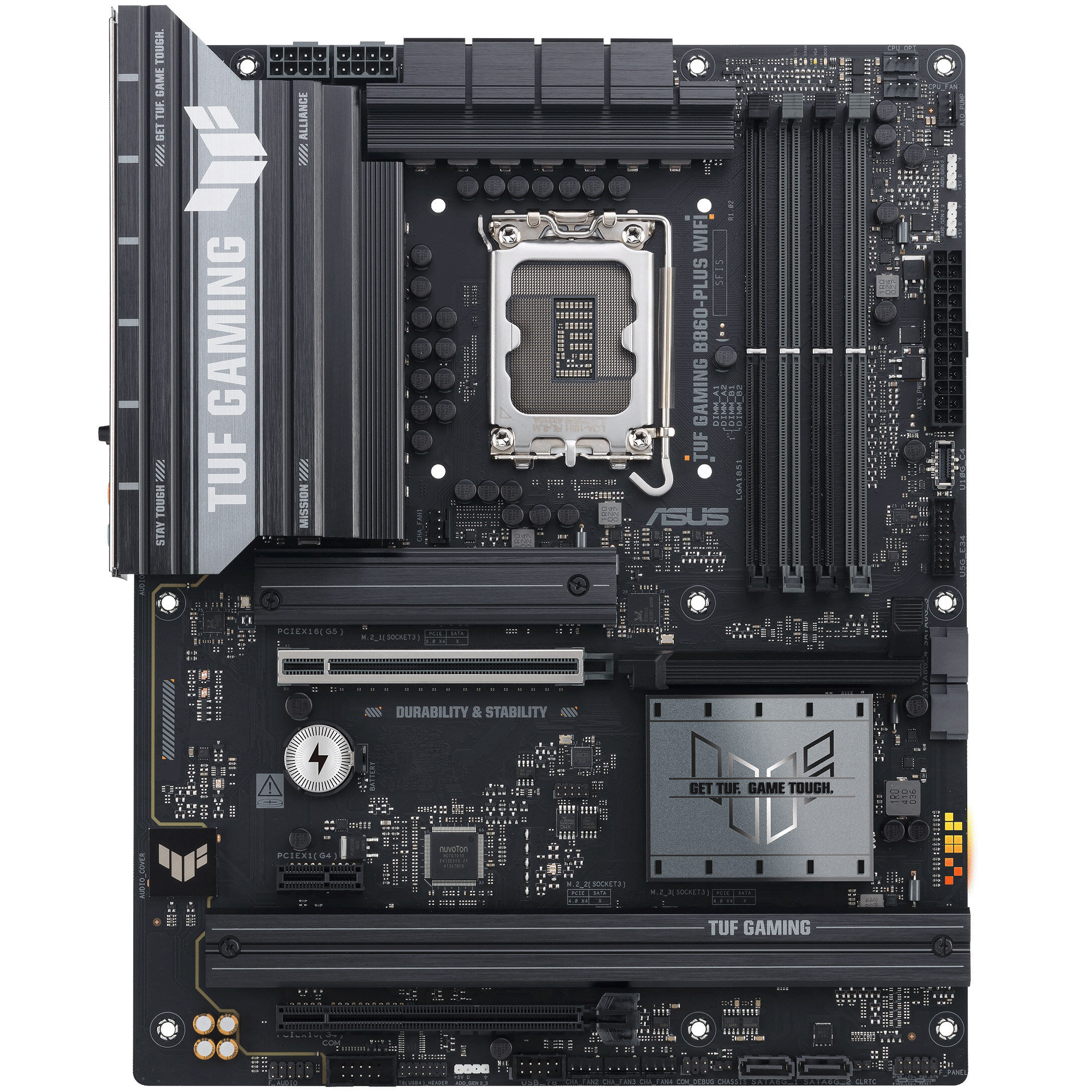

ASUS TUF Gaming B860-Plus WiFi: ATX motherboard with Intel LGA 1851 socket and B860 chipset
The ASUS TUF Gaming The B860-Plus WiFi is an ATX motherboard with the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake processors and is suitable for gamers who dont need to overclock their CPU.

The B680 motherboards also support USB 4, which achieves very fast data transfer rates of up to 40 Gbps. The ASUS TUF Gaming B860-Plus WiFi also offers PCIe 5.0 for graphics cards and M.2 SSDs, but lacks lane splitting for the GPU expansion slot. The DDR5 memory is overclockable, allowing you to get the most out of your RAM.

Technical Details
– Color
– Main Color
– – Black
– Dimensions
– Length / Depth
– 305 mm
– Width
– 244 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (OC)
– 8666 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-pin
– USB4 (internal) Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) Possible Connectors
– 2
– USB 2.0 (internal) Header
– 1
– USB 2.0 (internal) Possible Connectors
– 2
– RGB / LED Connectors
– 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes

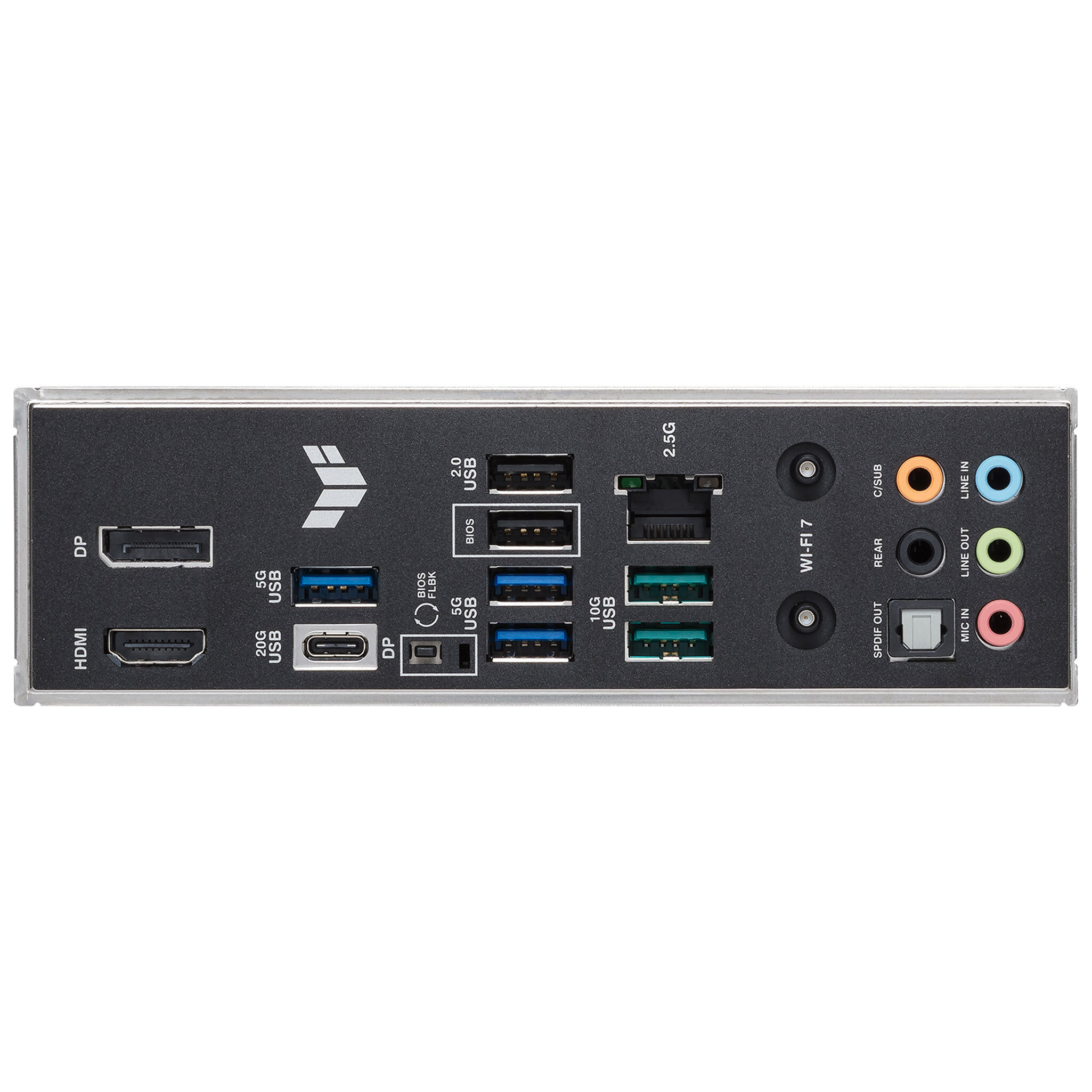

– External Connectors
– USB 3.2 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 2
– USB 3.0 (external) Type-A
– 3
– USB 2.0 (external) Type-A
– 2
– Display Connectors
– Display Port (1x), HDMI (1x)
