Gigabyte Z890 Aorus Xtreme AI Top motherboard, socket LGA 1851, Intel Z890, E-ATX, DDR5

This motherboard is ideal for high-end builds and AI enthusiasts.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 5.0 x16 (x8), and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,500 MHz
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 5, 10x USB 3.1
– Total of 9x 4-pin connectors for fans and pumps
– OC features: 22+1+2 phase VRMs, CMOS
– Supports WiFi 7 and Bluetooth 5.4

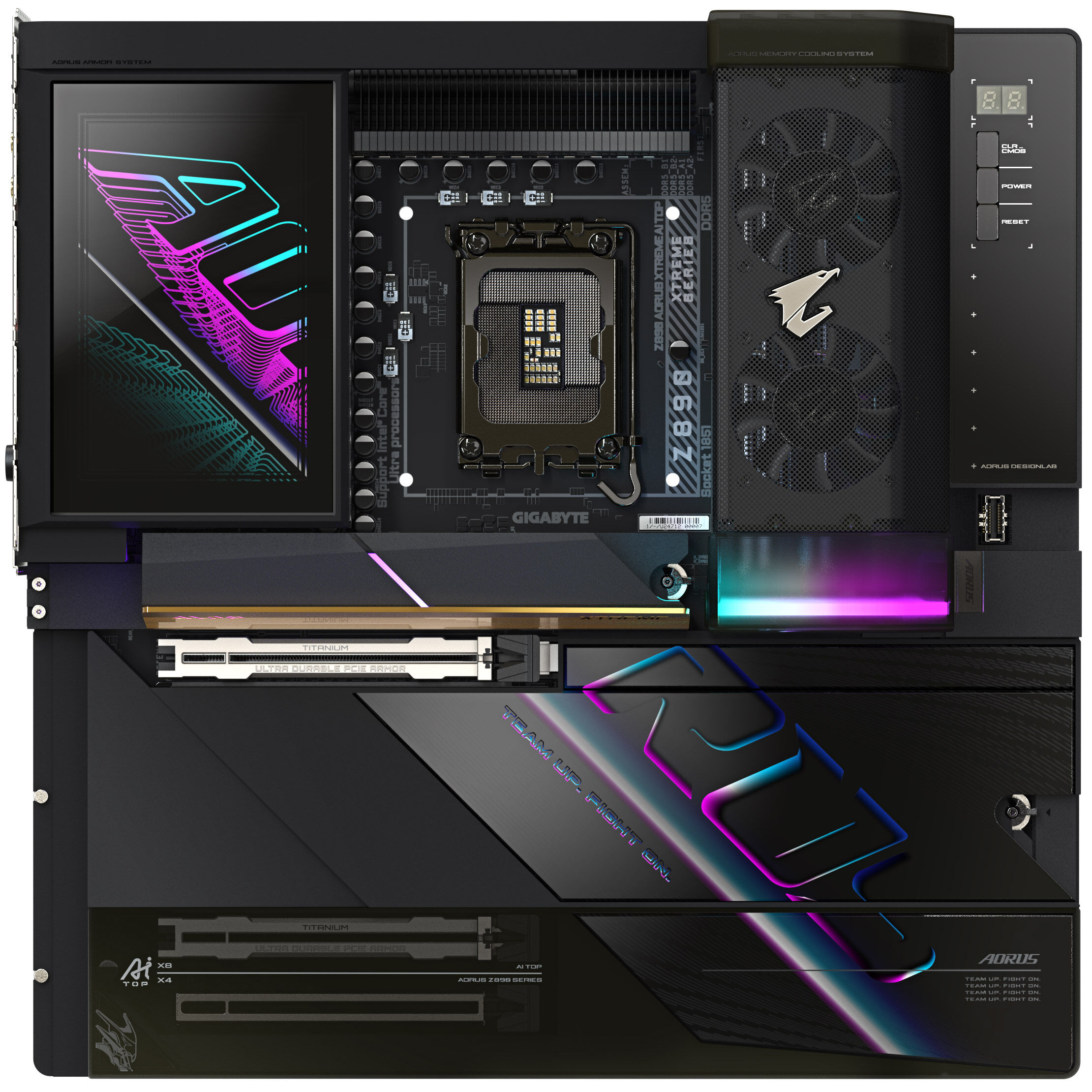

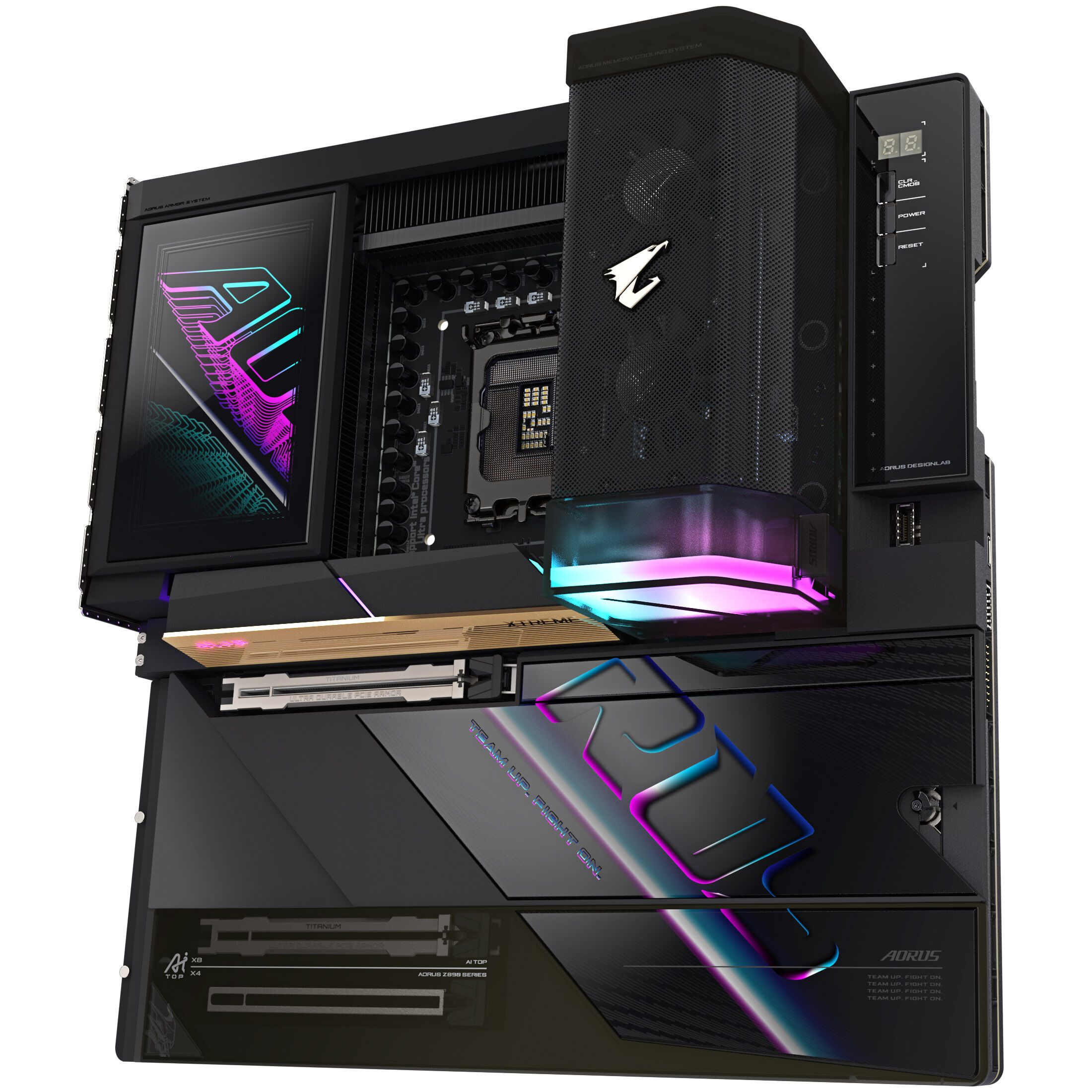

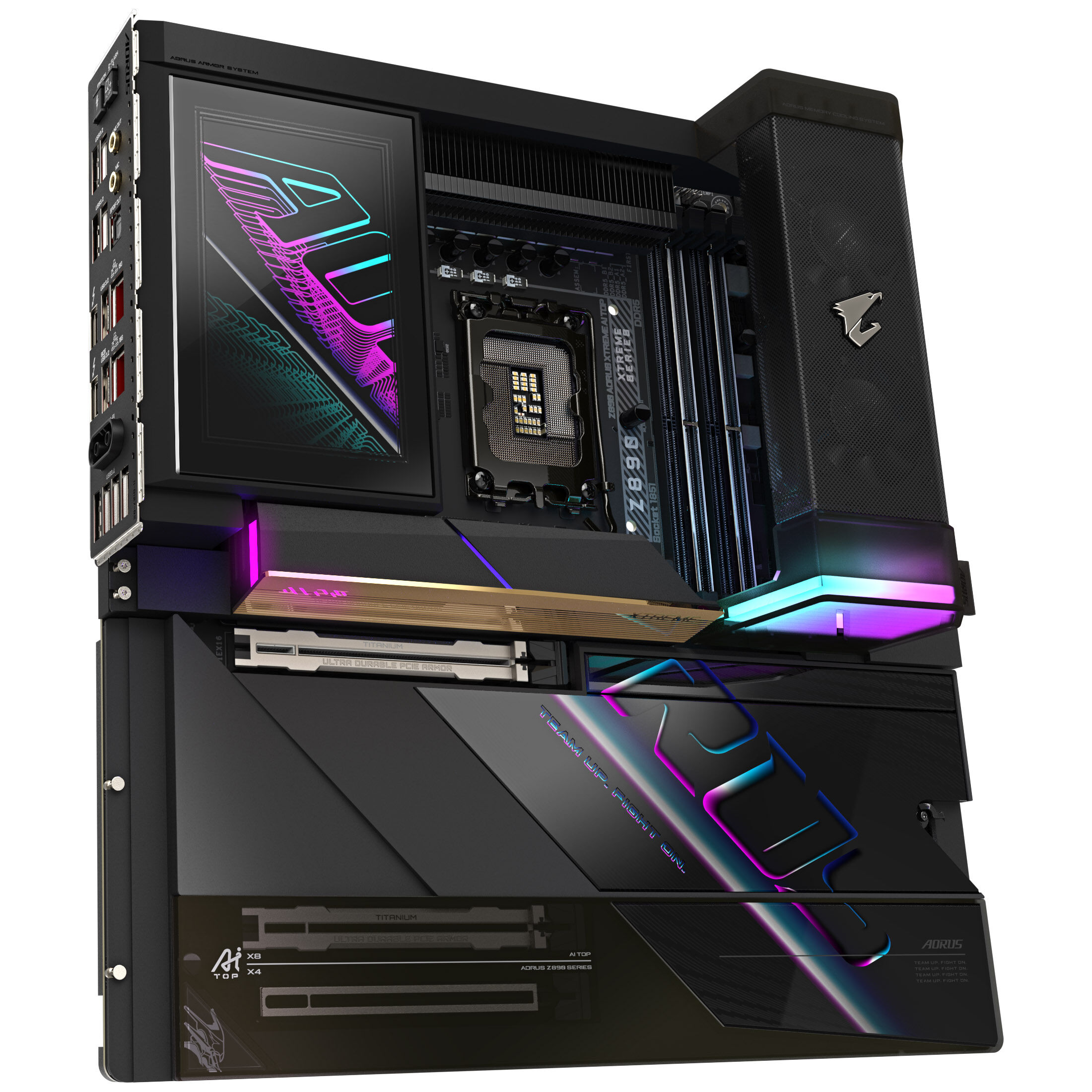

GIGABYTE Z890 Aorus Xtreme AI Top: E-ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The The GIGABYTE Z890 Aorus Xtreme AI Top is an E-ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890 Aorus Xtreme AI Top features full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Suitable for Overclocking
With its 22+1+2 phase VRMs, the GIGABYTE Z890 Aorus Xtreme AI Top allows you to overclock your CPU and thus get the full performance out of your gaming PC. The DDR5 RAM can also be overclocked. To be on the safe side, there is a Clear CMOS button on the I/O panel.

Technical Details
Form Factor:
– E-ATX (304.8 x 305 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 UDIMM (6400 MHz, validated up to 9500 MHz using OC / XMP 3.0)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 5.0 x16 (electrical x8, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4/x2; 25110 / 22110 / 2580 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 25110 / 22110 / 2580 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 22110 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x4/x2 & SATA; 22110 / 2280, chipset)
– 4x USB-C (2 headers, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x noise detection Header
– 1x Front Panel
– 1x Thunderbolt 4
– 1x Power Button
– 1x Reset Button
– 1x Clear CMOS Button
– 2x Temperature Sensor Headers
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x CPU Fan/Pump (4-pin)
– 1x System Fan (4-pin)
– 1x System Fan Extension Cable Header (up to three system fans, 4-pin)
– 1x System Fan/Pump Extension Cable Header (up to three system fans/pumps, 4-pin)
– RGB Header:
– 1x Integrated Extension Cable Header for ARGB and RGB (four ARGB headers and one RGB header)

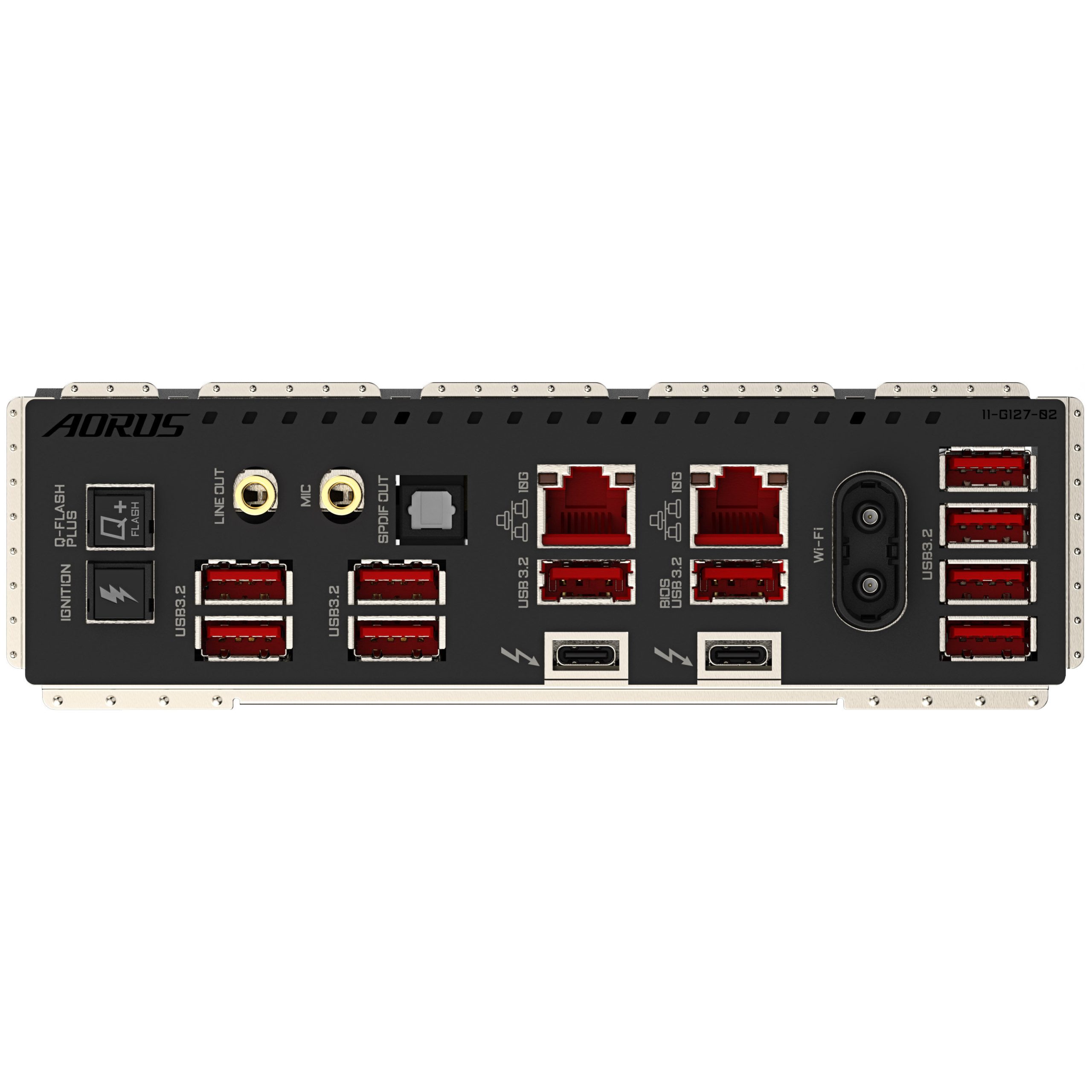

– External Ports:
– 2x Thunderbolt 5 (USB-C, max. 80 Gbps)
– 10x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbps)
– 2x 10 Gigabit LAN (Marvell) AQC113C)
– 2x 3.5 mm jack
– 1x Q-Flash Plus button
– 1x OC Ignition Button

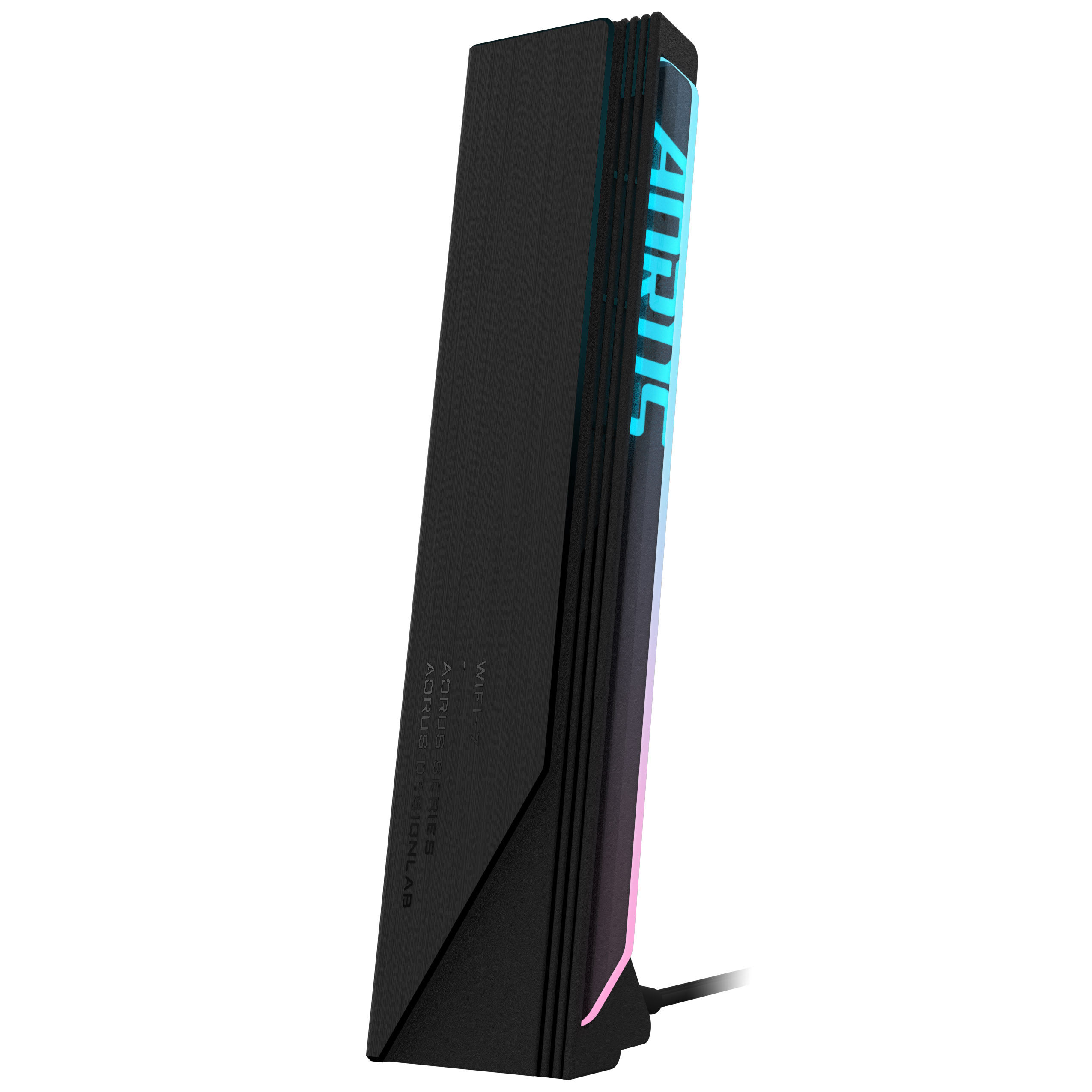

– 2x antenna connectors
– 1x S/PDIF out
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU
