This motherboard is ideal for high-end builds and overclockers who want to get the most out of their system.
- 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16
- 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,500 MHz
- 5x M.2 (including 2x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G

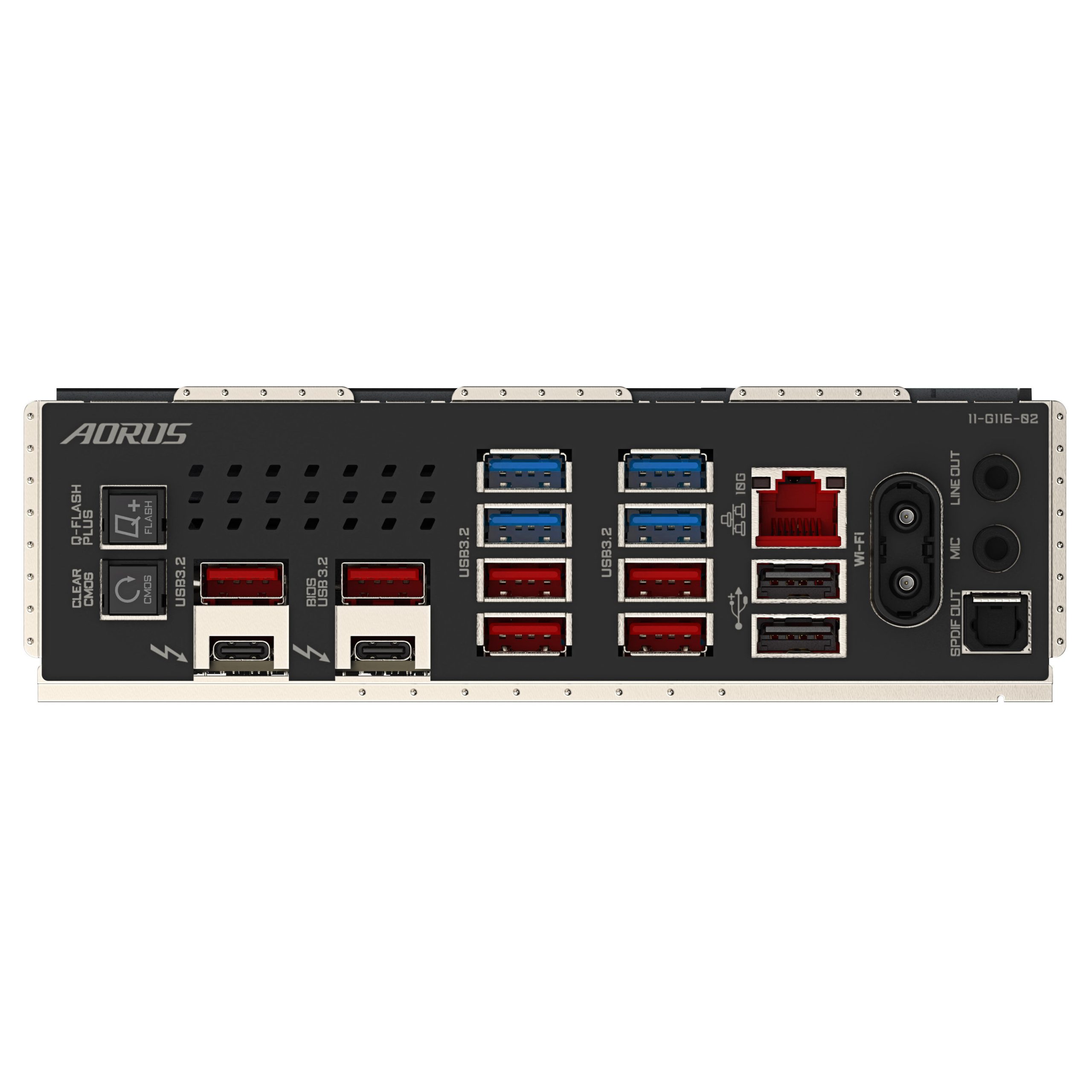

- USB on the I/O panel: 2x Thunderbolt 4, 6x USB 3.1, 4x USB 3.0, 2x USB 2.0
- Total of 10x 4-pin connectors for fans and pumps
- OC features: 18+1+2 phase VRMs, CMOS
- Supports WiFi 7 and Bluetooth 5.4
This motherboard is ideal for high-end builds and overclockers who want to get the most out of their system.
- 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16- 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,500 MHz- 5x M.2 (including 2x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G- USB on the I/O panel: 2x Thunderbolt 4, 6x USB 3.1, 4x USB 3.0, 2x USB 2.0- Total of 10x 4-pin connectors for fans and pumps- OC...
This motherboard is ideal for high-end builds and overclockers who want to get the most out of their system.
- 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16- 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,500 MHz- 5x M.2 (including 2x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G- USB on the I/O panel: 2x Thunderbolt 4, 6x USB 3.1, 4x USB 3.0, 2x USB 2.0- Total of 10x 4-pin connectors for fans and pumps- OC...
This motherboard is ideal for high-end builds and overclockers who want to get the most out of their system.
– 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,500 MHz
– 5x M.2 (including 2x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 4, 6x USB 3.1, 4x USB 3.0, 2x USB 2.0
– Total of 10x 4-pin connectors for fans and pumps
– OC features: 18+1+2 phase VRMs, CMOS
– Supports WiFi 7 and Bluetooth 5.4

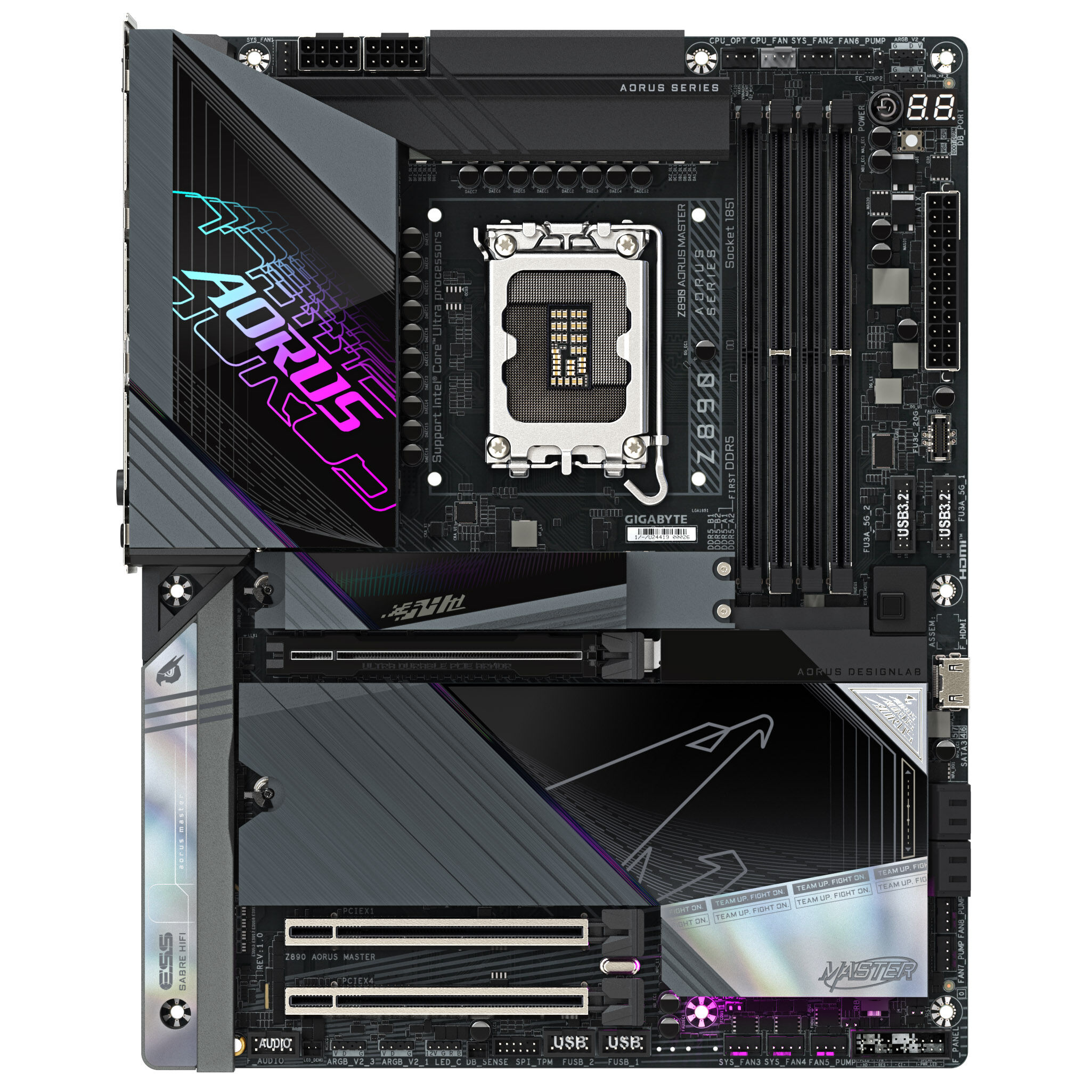

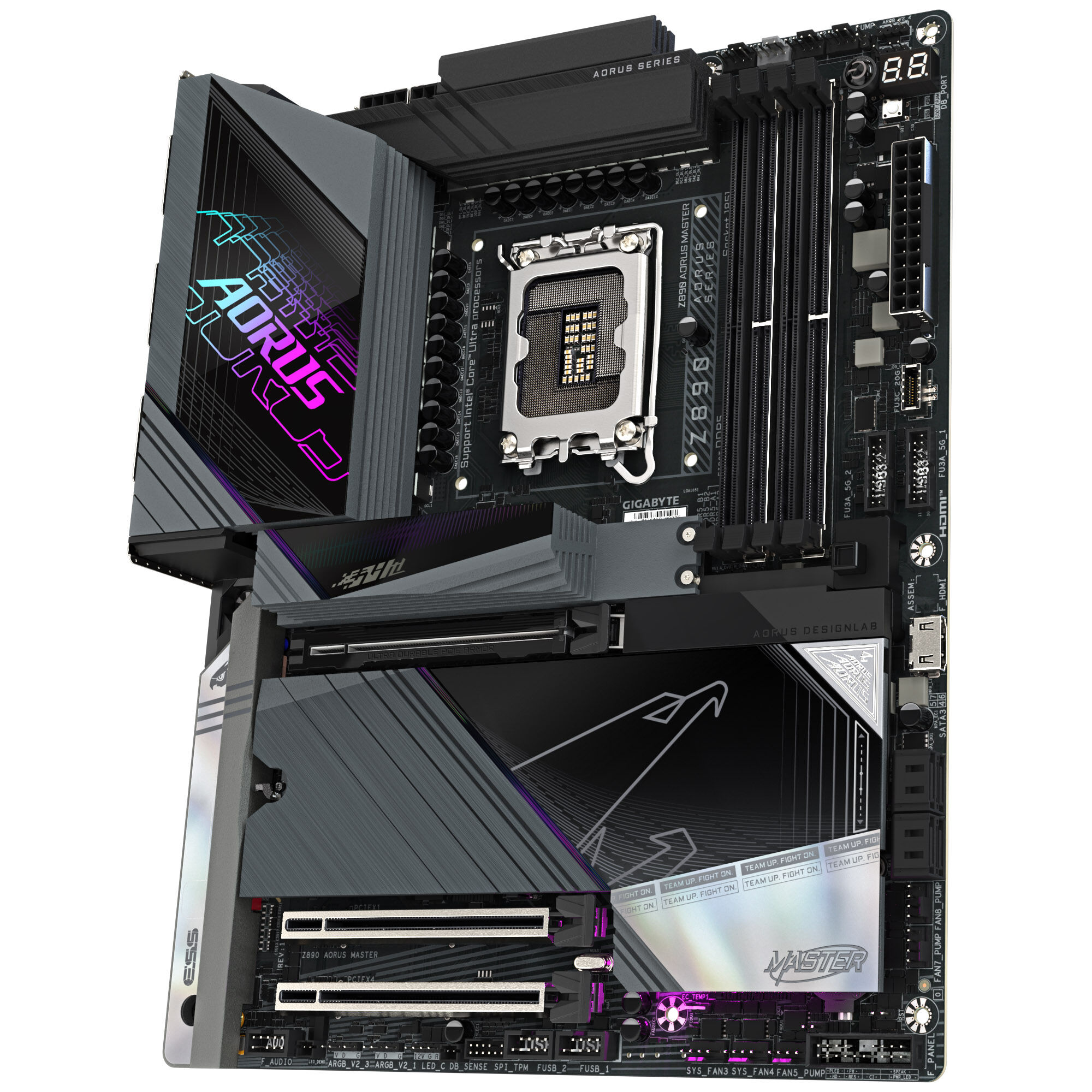

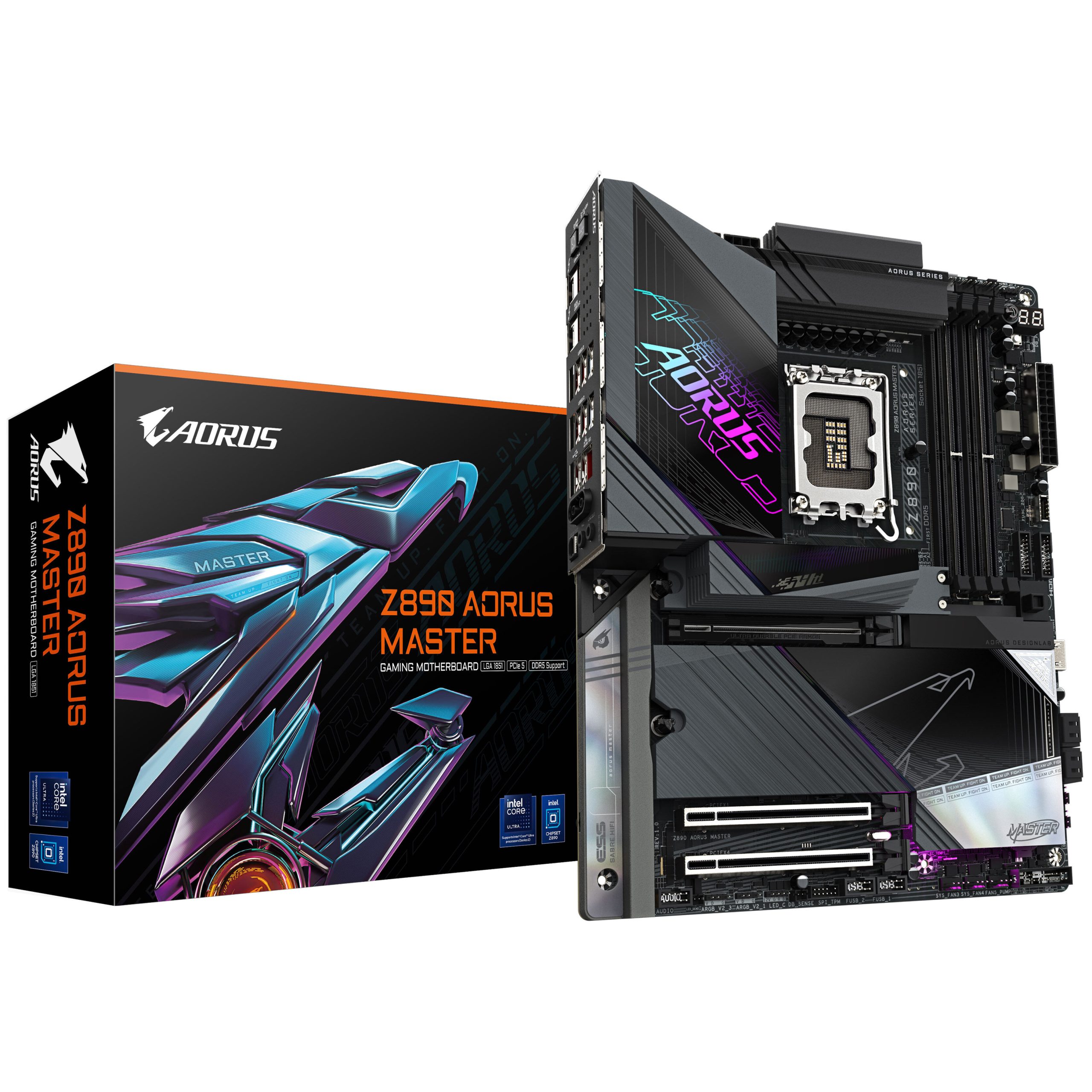

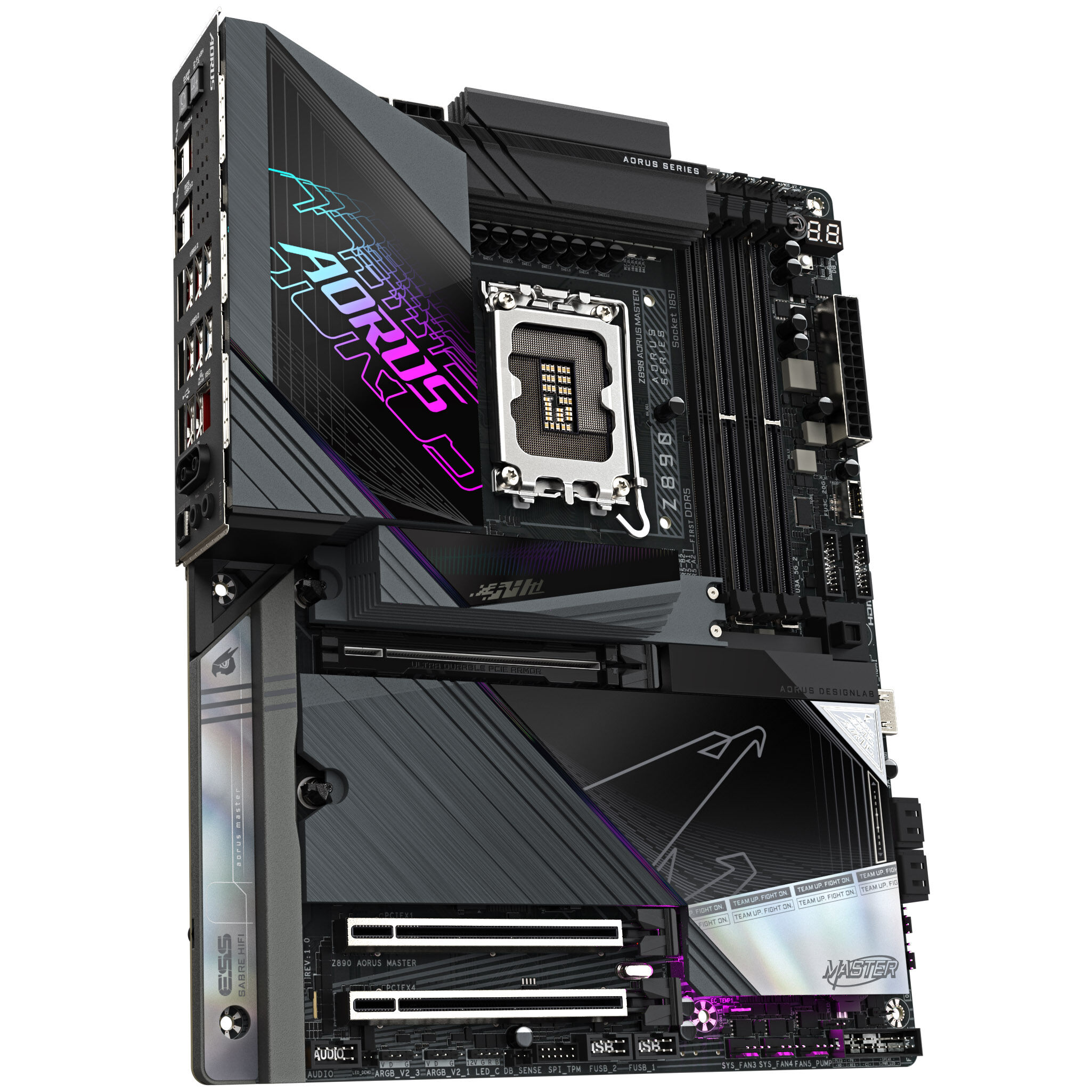

GIGABYTE Z890 AORUS Master: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE The Z890 AORUS Master is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890 AORUS Master boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Suitable for Overclocking
With its 18+1+2 phase VRMs, the GIGABYTE Z890 AORUS Master allows you to overclock your CPU and thus get the full performance out of your gaming PC. Additionally, the DDR5 RAM can be overclocked. To be on the safe side, there is a Clear CMOS button on the I/O panel.
Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel Z890
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 9500 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 10 Gbit/s
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 2
– USB 3.0 (internal) possible ports
– 4
– USB 2.0 (internal) header
– 2
– USB 2.0 (internal) possible ports
– 4
– RGB / LED ports
– 4x Digital RGB (3-pin 5VDG)
– Front panel audio header
– Yes
– SPI TPM header
– Yes
– External ports
– USB 4 Gen 3×2 (external) Type-C
– 2
– USB 3.1 (external) Type-A
– 6
– USB 3.0 (external) Type-A
– 4
– USB 2.0 (external) Type-A
– 2
– Display ports
– Thunderbolt 4 (2x)
