MSI Pro H610M-G, Socket LGA 1700, Intel H610M, Micro-ATX - DDR5

– 1x PCIe 4.0 x16 slot, including 1x PCIe 3.0
– DDR5 memory up to 5,600 MHz
– 1x M.2 slot with PCIe 3.0
– 1x M.2 E-Key slot for optional WLAN module
– USB on the I/O panel: 4x USB 2.0 / 2x USB 3.0 Type A
– A total of 2 fan connectors
– With Gbit LAN

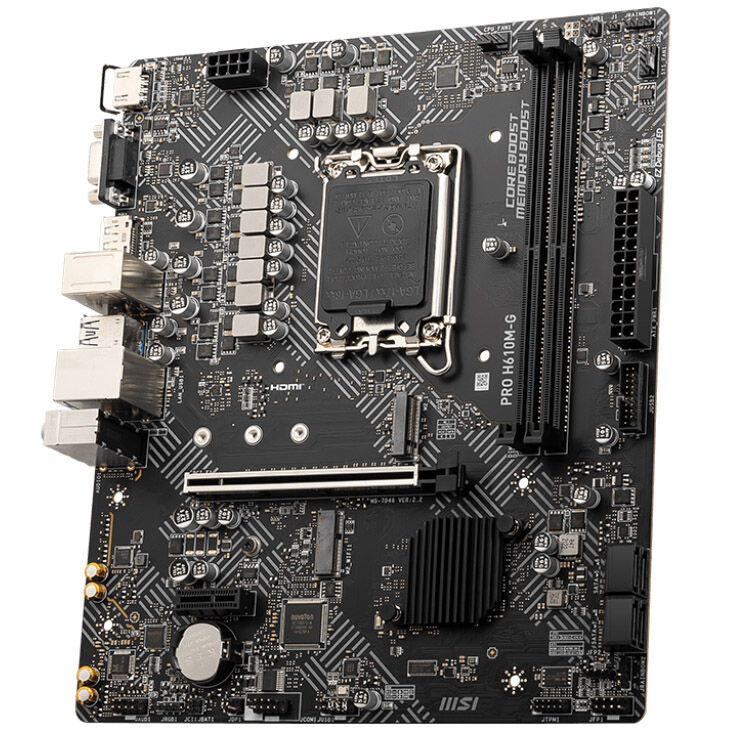

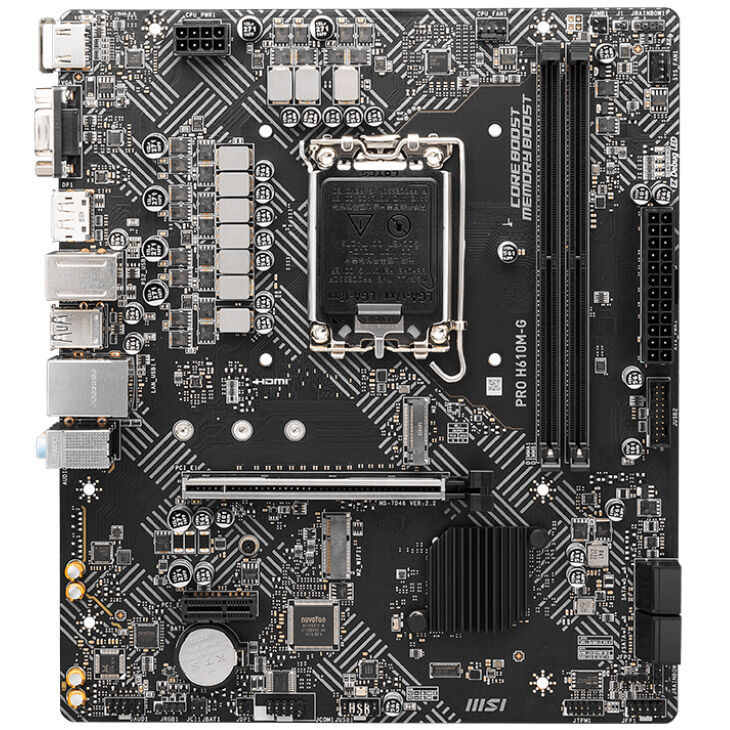

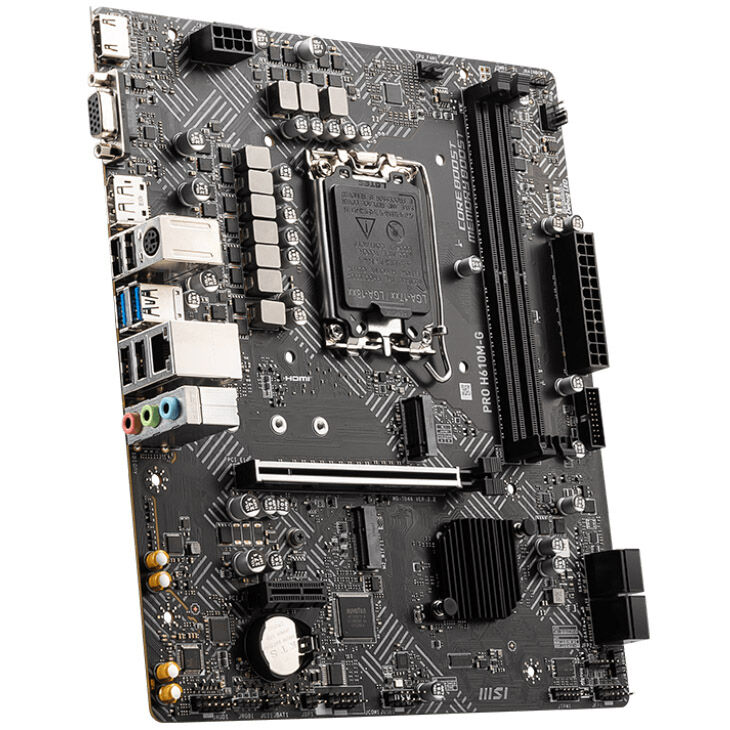

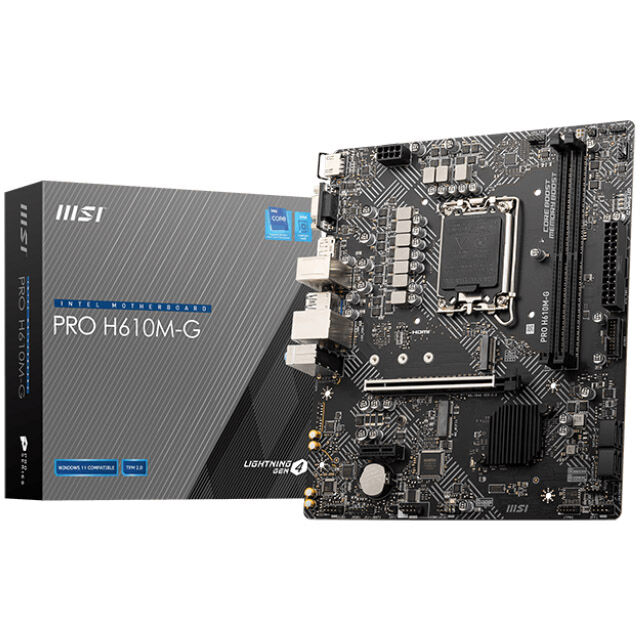

The MSI PRO H610M-G DDR5 Micro-ATX motherboard with Intel H610 chipset in detail
The MSI PRO H610M-G DDR5 is a Micro-ATX motherboard with the Intel H610 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake, and Raptor Lake desktop processors. It supports DDR5 memory up to 5,600 MHz and also offers features such as Gbit LAN.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Form Factor:
– Micro-ATX (243 x 211 mm)
– Chipset:
– Intel H610
– Socket:
– 1700 (for Intel 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 2x DDR5 (5,600 MHz)
– Dual-Channel
– Max. 96 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (x16)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 Key M (PCIe 3.0, x4, 2242-2280) Chipset)
– 1x M.2 Key E (for optional WLAN module)
– 2x USB 3.0 (one header, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (one header, max. 480 Mbps)
– 1x Front Panel Audio Header
– 2x System Panel Header
– 1x Chassis Intrusion Header
– 1x TPM Header
– 1x COM Port Header
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x Chassis Fan (4-pin)
– RGB Header:
– 2x 3-pin ARGB (5VDG)
– 1x 4-pin RGB (12 V)

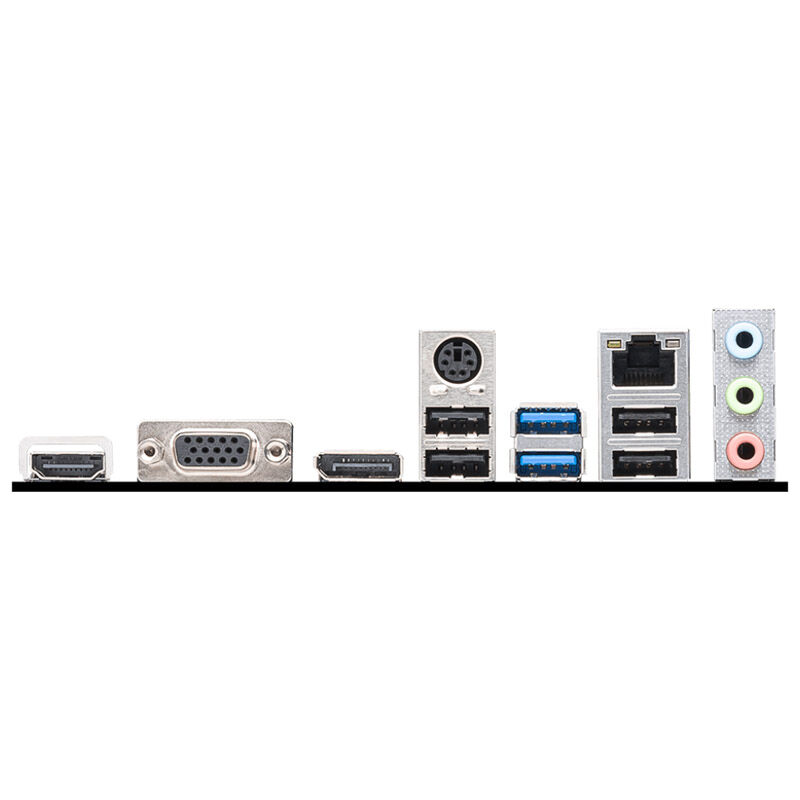

– External Ports:
– 1x PS/2 for keyboard or mouse
– 2x USB 3.0 Type A (USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (max. 480 Mbps)
– 1x VGA
– 1x HDMI 1.4
– 1x RJ-45 (Intel I219V, max. 1 Gbit/s)
– 3x 3.5 mm jack (Realtek ALC 897)
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
