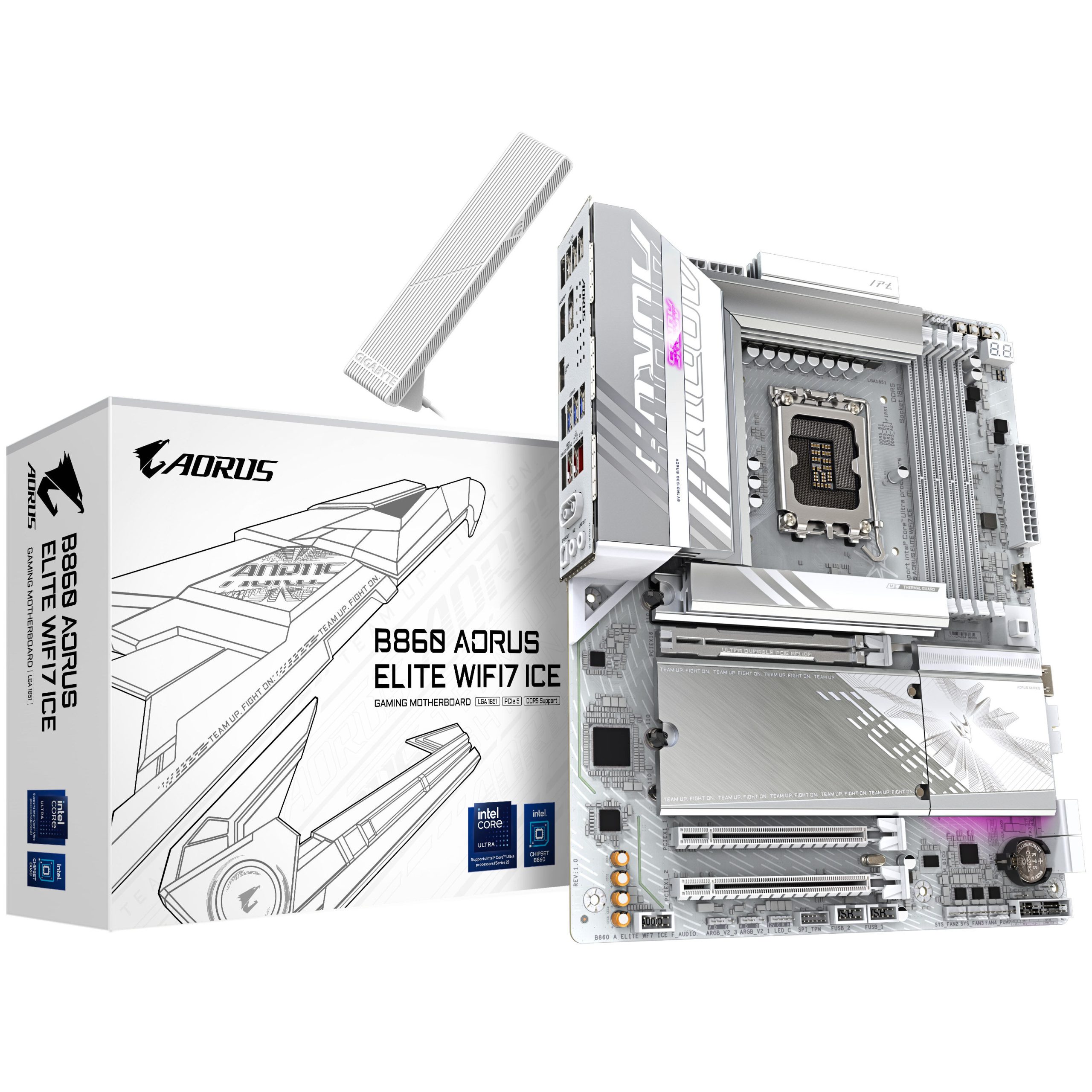

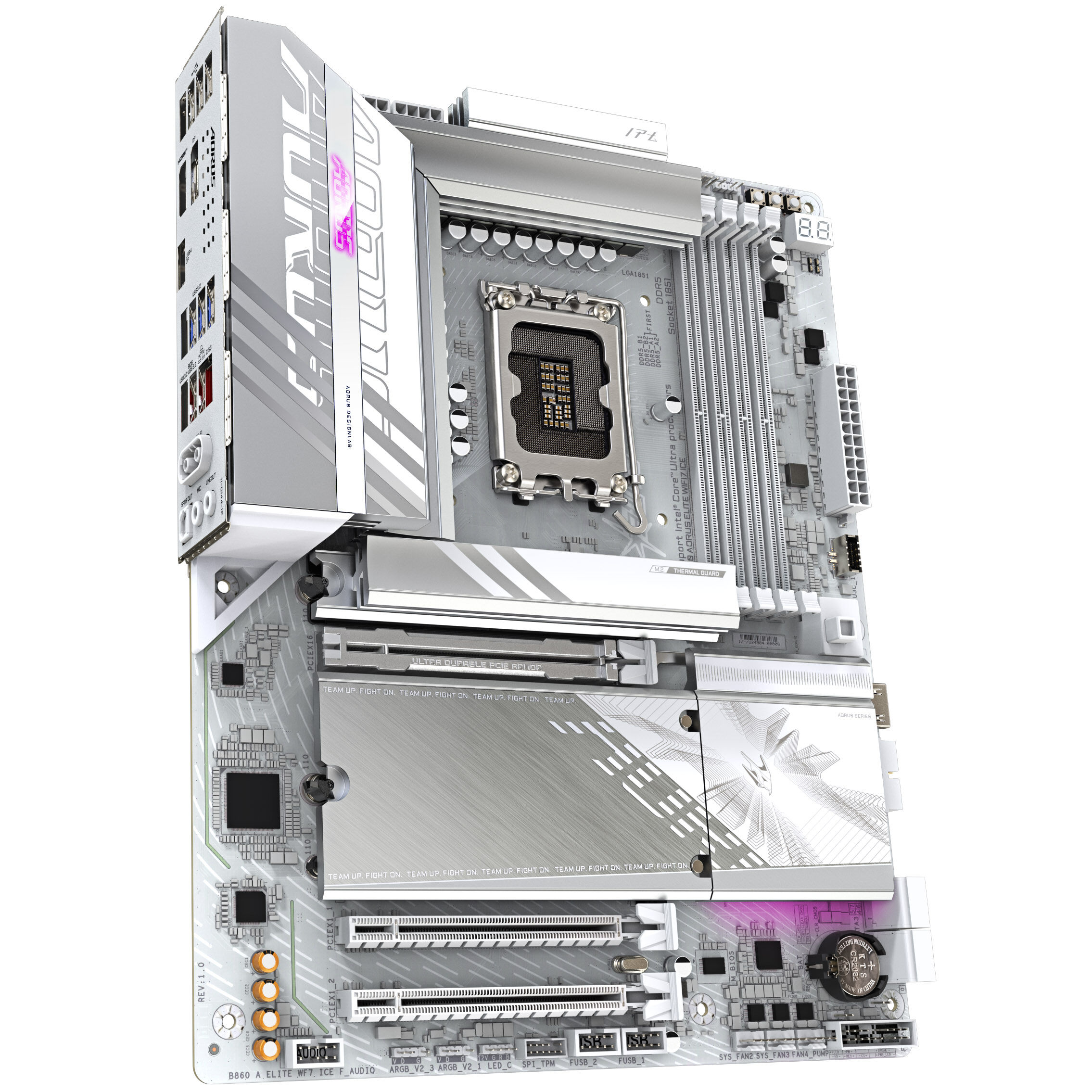

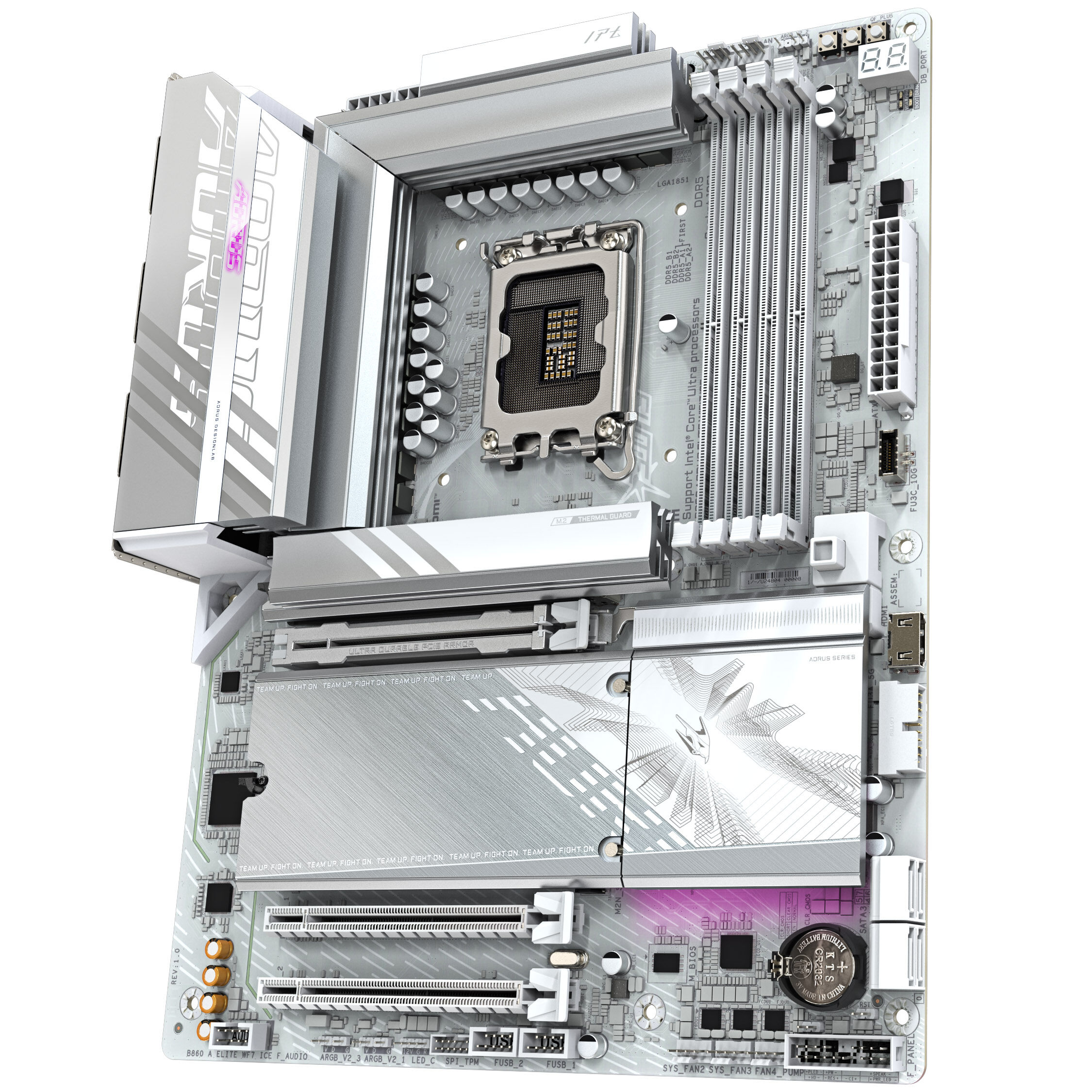

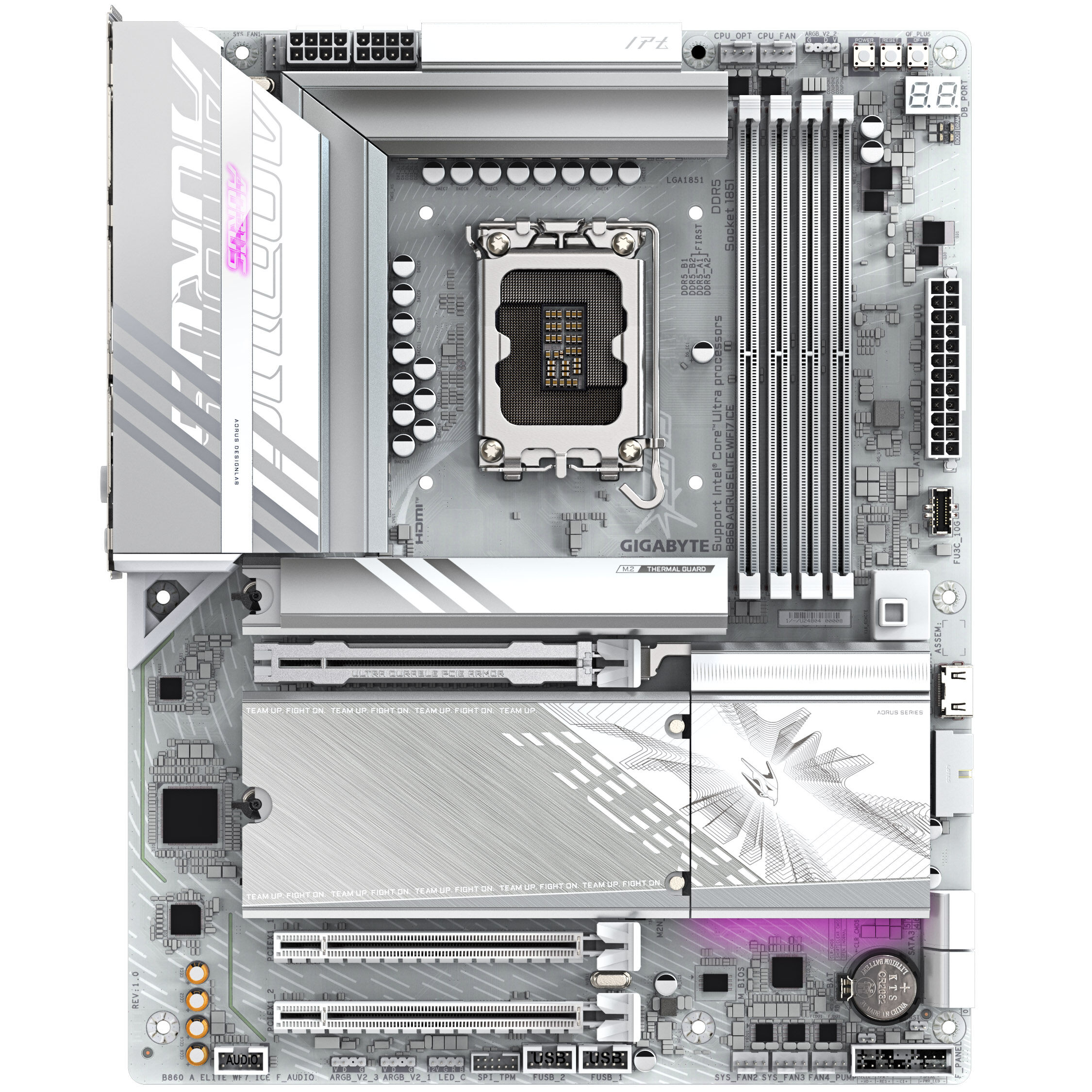

Gigabyte B860 Aorus Elite WiFi7 ICE motherboard, socket LGA 1851, Intel B860, ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x1
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 9200 MT/s
– Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA

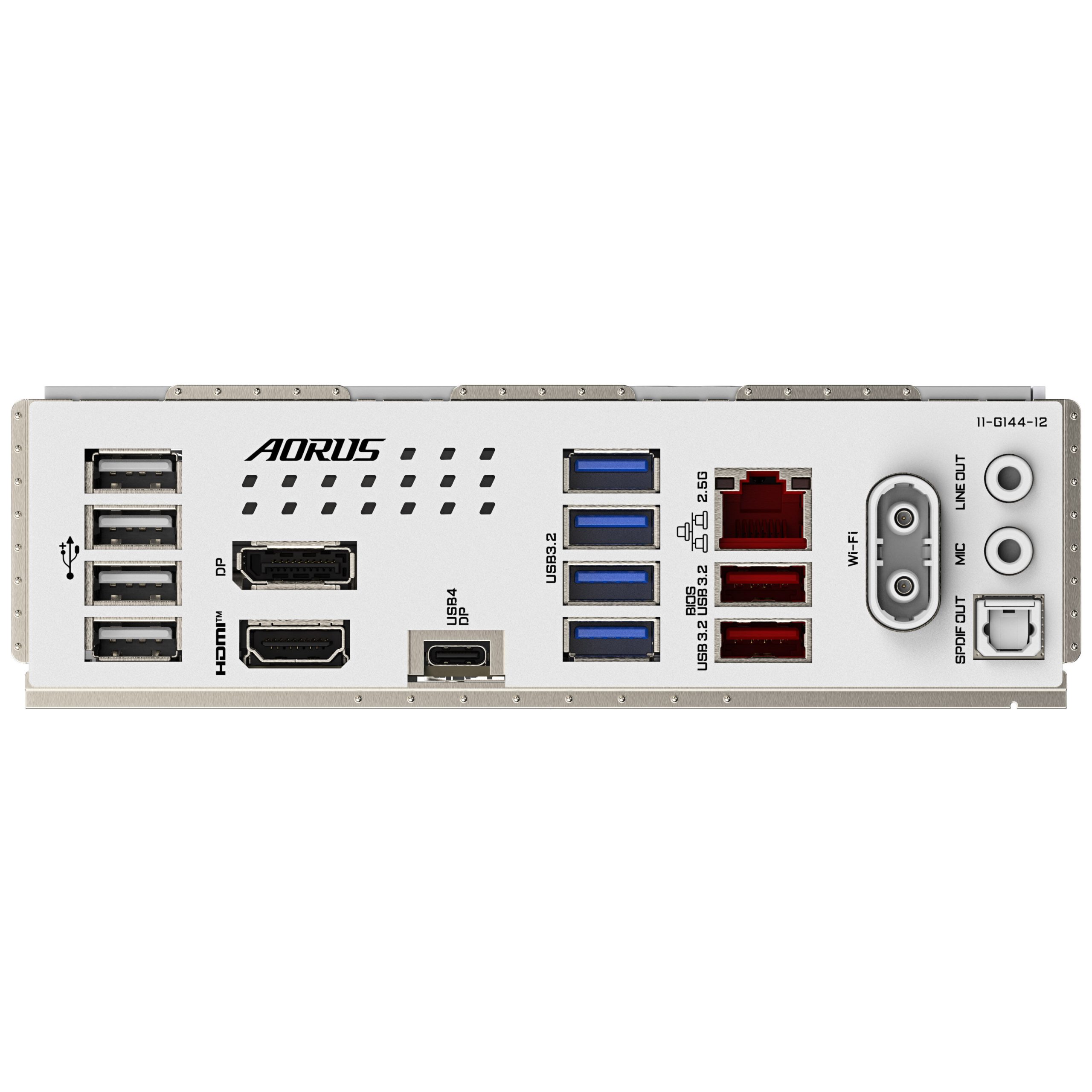

– USB: 1x USB-C 4.0, 2x USB-C 3.1, 4x USB 3.0, and 4x USB 2.0
– Cooling: 6x 4-pin PWM connectors for fans and radiators

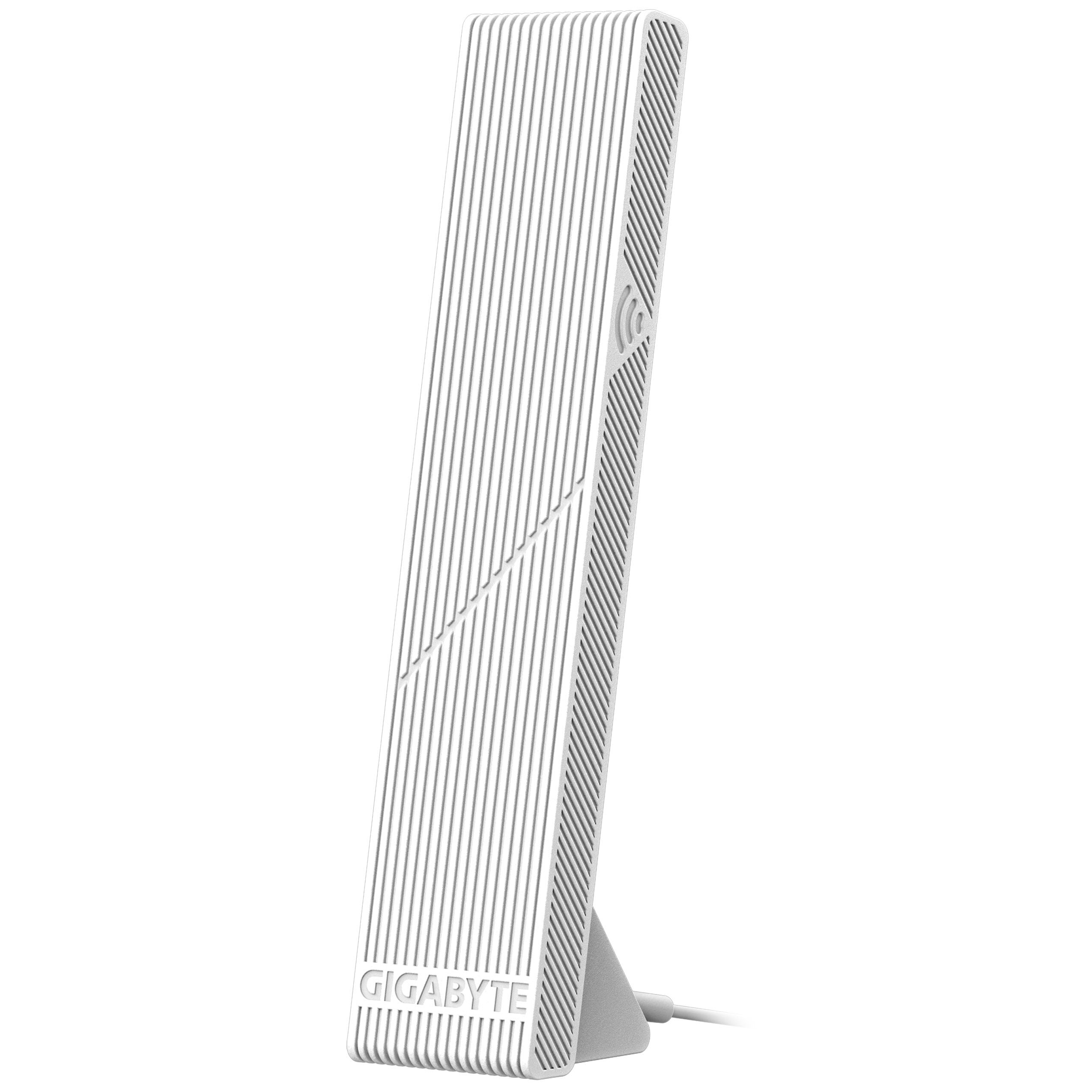

– Connectivity: Wi-Fi 7 and Bluetooth 5.4

Gigabyte B860 Aorus Elite WiFi7 ICE: ATX motherboard with Intel LGA 1851 socket and B860 chipset
The B860 Aorus Elite WiFi7 ICE is a ATX motherboard with the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake processors and is suitable for gamers/content creators who can forgo overclocking their CPU.

The B860 motherboards also support USB 4, which achieves very fast data transfer rates of up to 40 Gbps. The B860 Aorus Elite WiFi7 ICE also offers PCIe 5.0 for graphics cards and M.2 SSDs. The DDR5 memory can be overclocked, allowing you to get the most out of your RAM.

The 14-phase voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Features like EZ-Latch Plus and a Sensor Panel Link allow you to easily swap out M.2 SSDs and connect sensor panels directly to the motherboard.

Technical Details
– Color
– Main Color
– White
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– RAM
– Max. RAM
– 256 GB
– Memory Type
 -DDR5
– Memory Format
– DIMM
– Memory Slots
– 4x
-Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Internal Connectors
– CPU Power
– 1x 8-pin
– Fan Header
– 4-pin Fan Headers
– 6
– Lighting
– Lighting / RGB
– Yes
