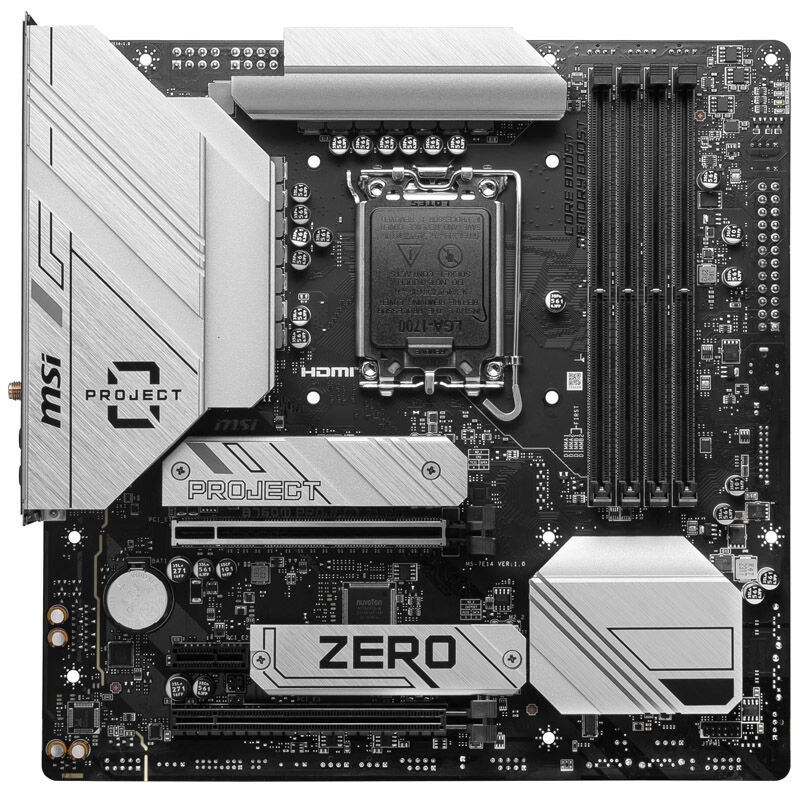

MSI Pro B760M Project Zero, Socket LGA 1700, Intel B760M, Micro-ATX - DDR5, Back-Connect Design

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 3.0 slot
– DDR5 memory up to 4800 MHz (7800 MHz OC)
– 2x M.2 PCIe 4.0 and 4x SATA
– USB on the I/O panel: 1x USB-C 3.2, 2x USB-A 3.2, 4x USB-A 2.0
– 2.5 Gb LAN and Wi-Fi
– Supports 12th, 13th, and 14th Generation Intel processors
– Note: The rear-mounted connectors require a special motherboard tray design

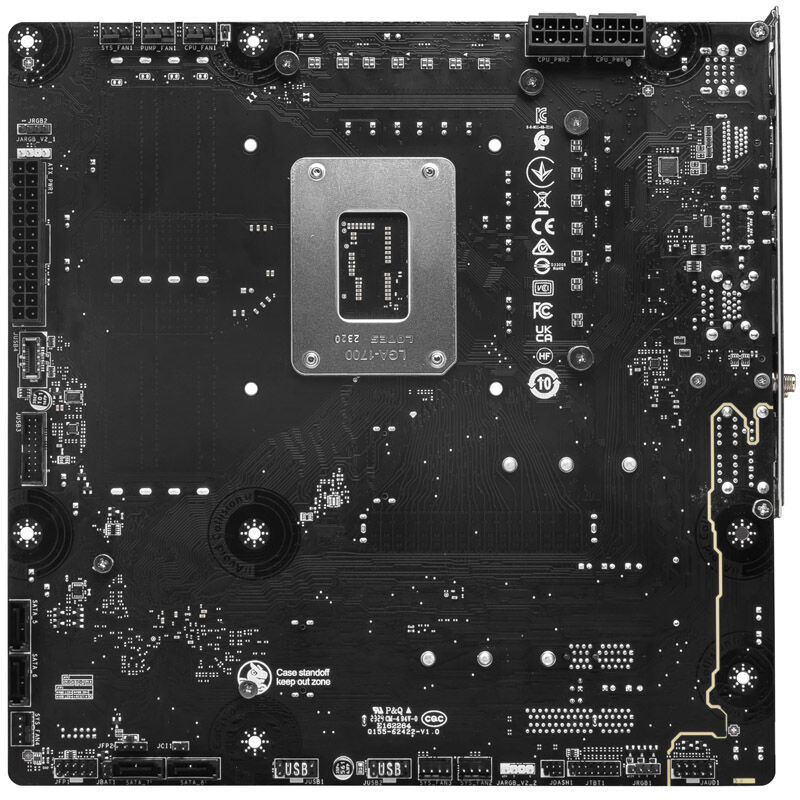

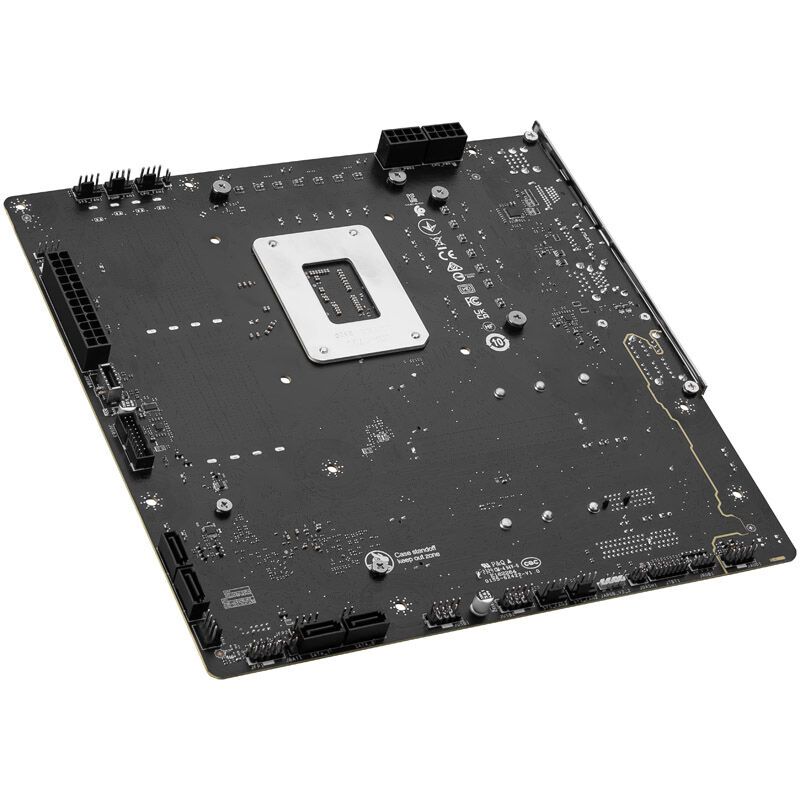

– Project Zero motherboard with back-connect design

The key feature of this B760M Project Zero motherboard from MSI is the so-called back-connect design, which connects the motherboard and the power supply to the motherboard. The CPU, fan connectors, SATA ports, and other interfaces have been relocated to the rear. This new feature provides better cable management in your case and thus a cleaner appearance. Its important to note that installing the motherboard requires a case with a dedicated motherboard tray. The motherboard tray must have appropriate cutouts in the correct places to ensure compatibility.

For Micro-ATX Cases and Intel Processors
The MSI B760M Project Zero motherboard from MSI is specifically designed for Intel processors. Furthermore, the Micro-ATX format allows you to easily install the motherboard into a smaller and more compact tower and offers two PCI Express slots for graphics cards.

Using the four RAM slots, you can expand the DDR5 memory by up to 256 GB, ensuring your PC can handle even demanding multitasking tasks without any problems. You can also overclock the RAM to up to 7,800 MHz.

Numerous ports and support for M.2 SSDs
The motherboard offers plenty of ports for your peripherals and hardware, including a USB-C port on the rear that can reach speeds of up to 20 Gbps. Of course, fast M.2 SSDs can also be installed on the motherboard, making long loading screens in games a thing of the past.

The motherboard also offers a built-in Wi-Fi module, a 2.5 Gigabit LAN port, and supports Bluetooth 5.3.

Extensive cooling for your hardware
The extended heatsink in the motherboard ensures better heat dissipation and keeps processors running at full speed. The built-in M.2 Shield Frozr function also prevents SSD throttling. With MSI motherboards, you can easily manage temperatures and the speed of your case and CPU fans.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For optimal processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details
– Format: Micro-ATX (244 x 244 mm)
– Chipset: Intel B760
– Socket: LGA 1700 (for 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 4x DDR5 (4800 MHz, up to 7800 MHz with overclocking)
– Dual-Channel
– max. 256 GB
– Slots:
– 1x PCIe 5.0 x16 (electrical x16)
– 1x PCIe 4.0 x16 (electrical x4)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (M-Key, PCIe 4.0 x4, 2242 – 2280, CPU)
– 1x M.2 (M-Key, PCIe 4.0 x4 / SATA, 2242 – 2280, chipset)
– 1x USB-C 3.1 (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Thunderbolt header (15-pin)
– 1x front audio header
– 1x chassis intrusion header
– 1x TPM header
– 1x MSI tuning controller header (5-pin)
– RGB header:
– 2x RGB header (4-pin, 12 V)
– 2x ARGB header (3-pin, 5 V)
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x Pump (4-pin)
– 4x Chassis Fan (4-pin)

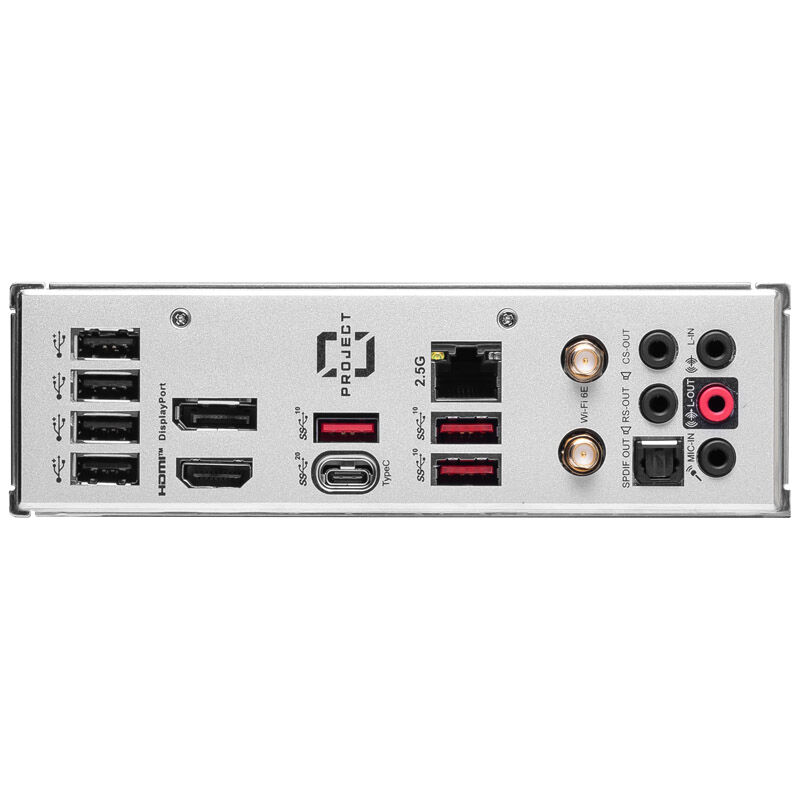

– External Connectors:
– 1x USB-C 3.2 (USB 3.2 Gen2x2, max. 20 Gbps)
– 1x USB-C 3.1 (USB 3.2 Gen2, max. 10 Gbps)
– 3x USB-A 3.1 (USB 3.2 Gen2, max. 10 Gbps)
– 2x USB-A 3.0 (USB 3.2 Gen1, max. 5 Gbps)
– 4x USB-A 2.0
– 1x HDMI 2.1
– 1x DisplayPort 1.4
– 1x 2.5 Gigabit LAN (Realtek RTL8125BG)
– 2x WLAN Antenna Connectors (WiFi 6E, Bluetooth) 5.3)
– 5x 3.5 mm jack (Realtek ALC897)
– 1x S/PDIF optical output
– Power supply:
– 1x 24-pin ATX12V
– 2x 8-pin ATX12V
