ASRock Z790 PG Lightning, Intel Z790 motherboard - Socket 1700, DDR5

– 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 3x PCIe 3.0 x1
– DDR5 memory up to 4800 MHz, with RAM overclocking up to 6800 MHz
– 4x M.2 slots, including 4x PCIe 4.0
– USB on the I/O panel: 1x USB 3.2 Type-C, 1x USB 3.1, 5x USB 3.0, and 1x USB 2.0
– Overclocking features: 14+1+1 phase VRMs with heat spreader and Dr.MOS
– A total of 7 connectors for fans and pumps

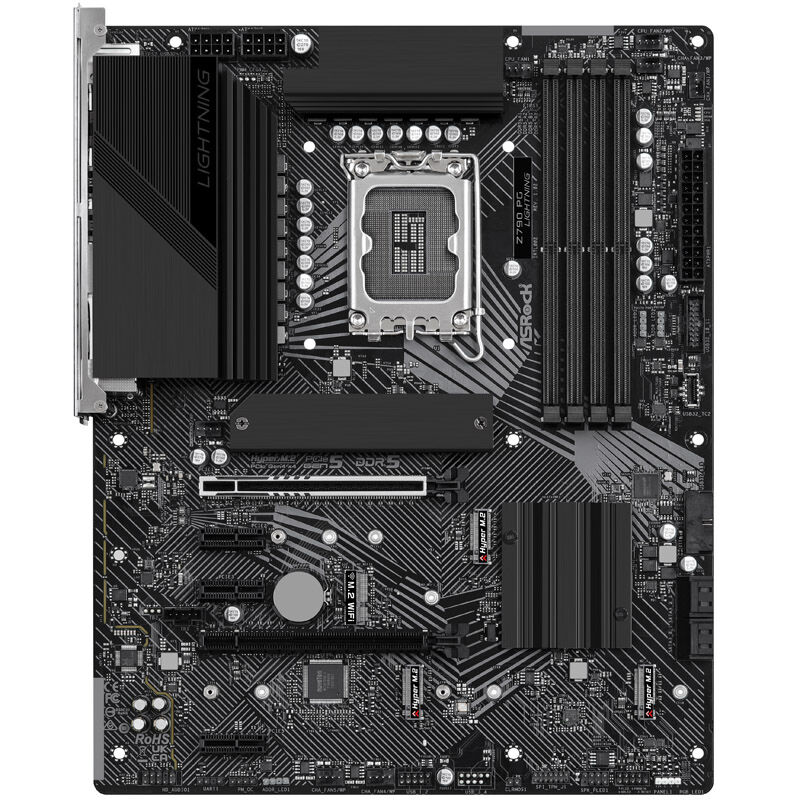

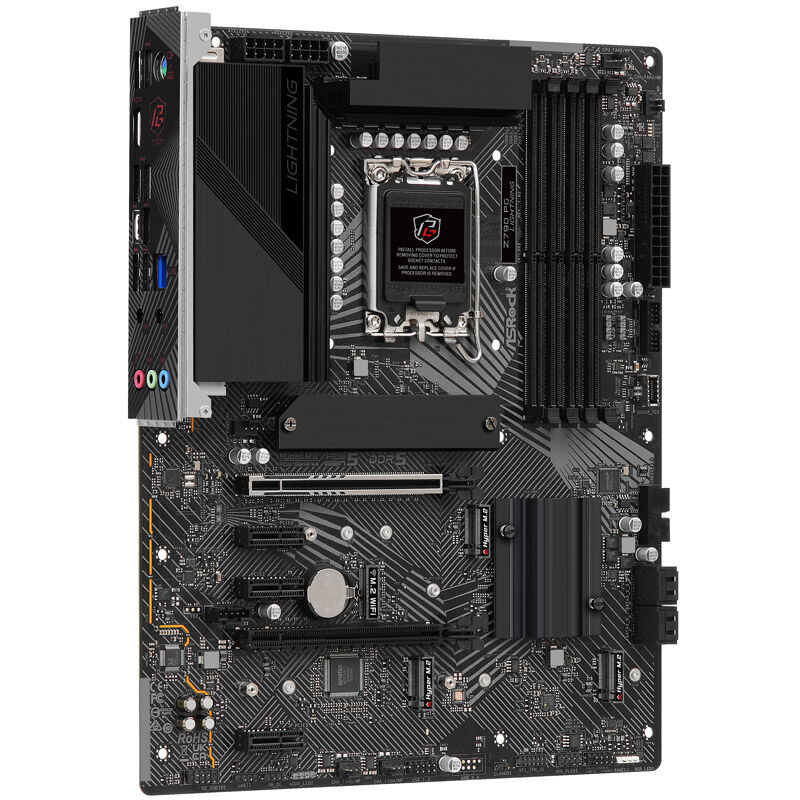

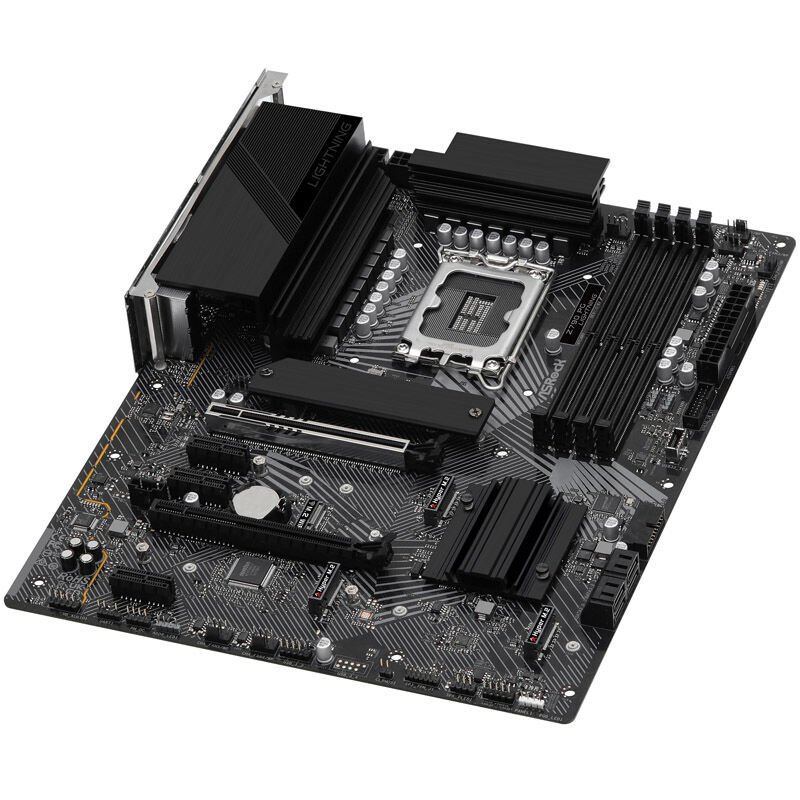

The ASRock Z790 PG Lightning/D4 ATX motherboard with Intel Z790 chipset in detail
The ASRock Z790 PG Lightning is an ATX motherboard with the high-end Intel Z790 chipset and the socket LGA 1700. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory up to 6800 MHz and, thanks to its outstanding power supply, is ideal for overclocking.

In addition to a stable power supply with 14+1+1 phase VRMs, the ASRock Z790 PG Lightning impresses with other features that make overclocking your system much easier. Dr.MOS for automatic adjustment of VRM voltage and frequency modulation, as well as extensive heat spreaders, ensure a stable system. Other features of this gaming motherboard include a 2.5 Gbps LAN port and 7.1 virtual surround sound.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly performing BIOS updates for your motherboard. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Format:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z790
– Socket:
– LGA 1700 (for Intel 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 4x DDR5 (4800 MHz, up to 6800 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 3x PCIe 3.0 x1 (chipset)
– Internal connections:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2260-2280, CPU)
– 1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
– 1x M.2 (PCIe 4.0 x4, 2260-2280, chipset)
– 1x M.2 (PCIe 4.0 x4 and SATA, 2260-2280, chipset)
– 1x M.2 E-Key
– 1x Thunderbolt 4 AIC connector (5-pin)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbps)
– 1x Front Panel Audio Header
– 1x SPI TPM Header
– 1x eDP Signal Connector
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x CPU Fan / Pump (4-pin)
– 5x Case Fans (4-pin)
– RGB Header:
– 1x RGB (4-pin, 12 V)
– 3x ARGB (3-pin, 5 V)

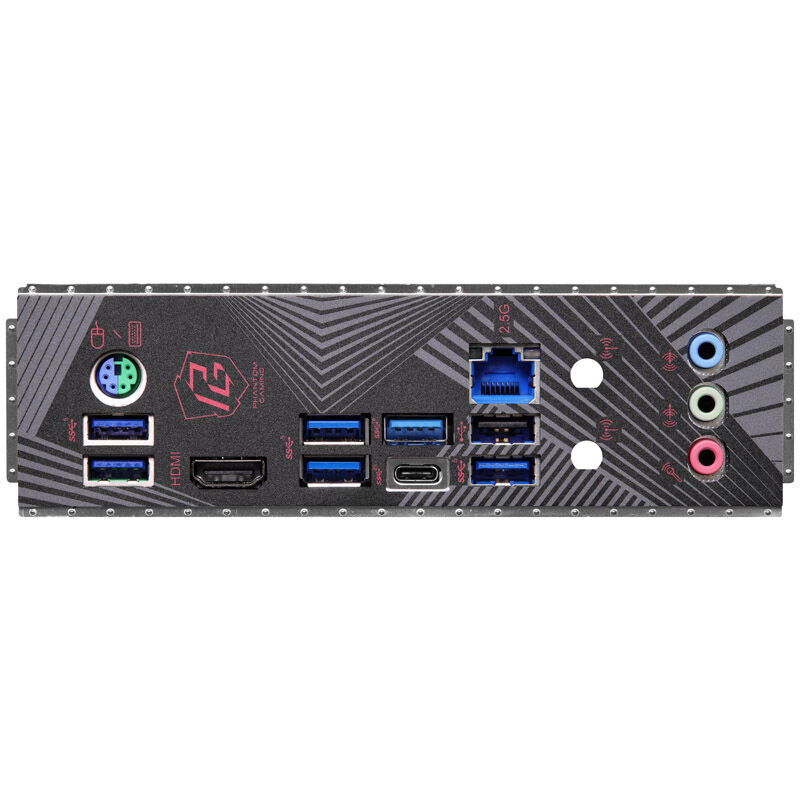

– External Ports:
– 1x PS/2 Combo for Keyboard or Mouse
– 1x USB 3.2 (Type-C, USB 3.2 Gen 2×2, max. 20 Gbps)
– 1x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 5x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 1x USB 2.0 (Type-A, max. 480 Mbps)
– 1x HDMI 2.1
– 1x RJ-45 (max. 2.5 Gbps, Dragon RTL8125BG)
– 3x 3.5 mm jacks (Realtek ALC897 7.1)
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX/EPS 12V
