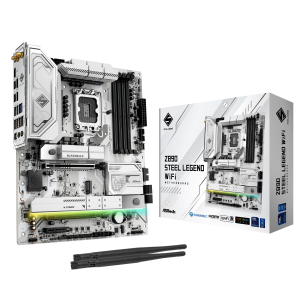

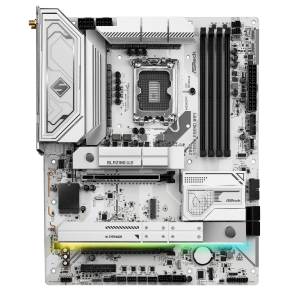

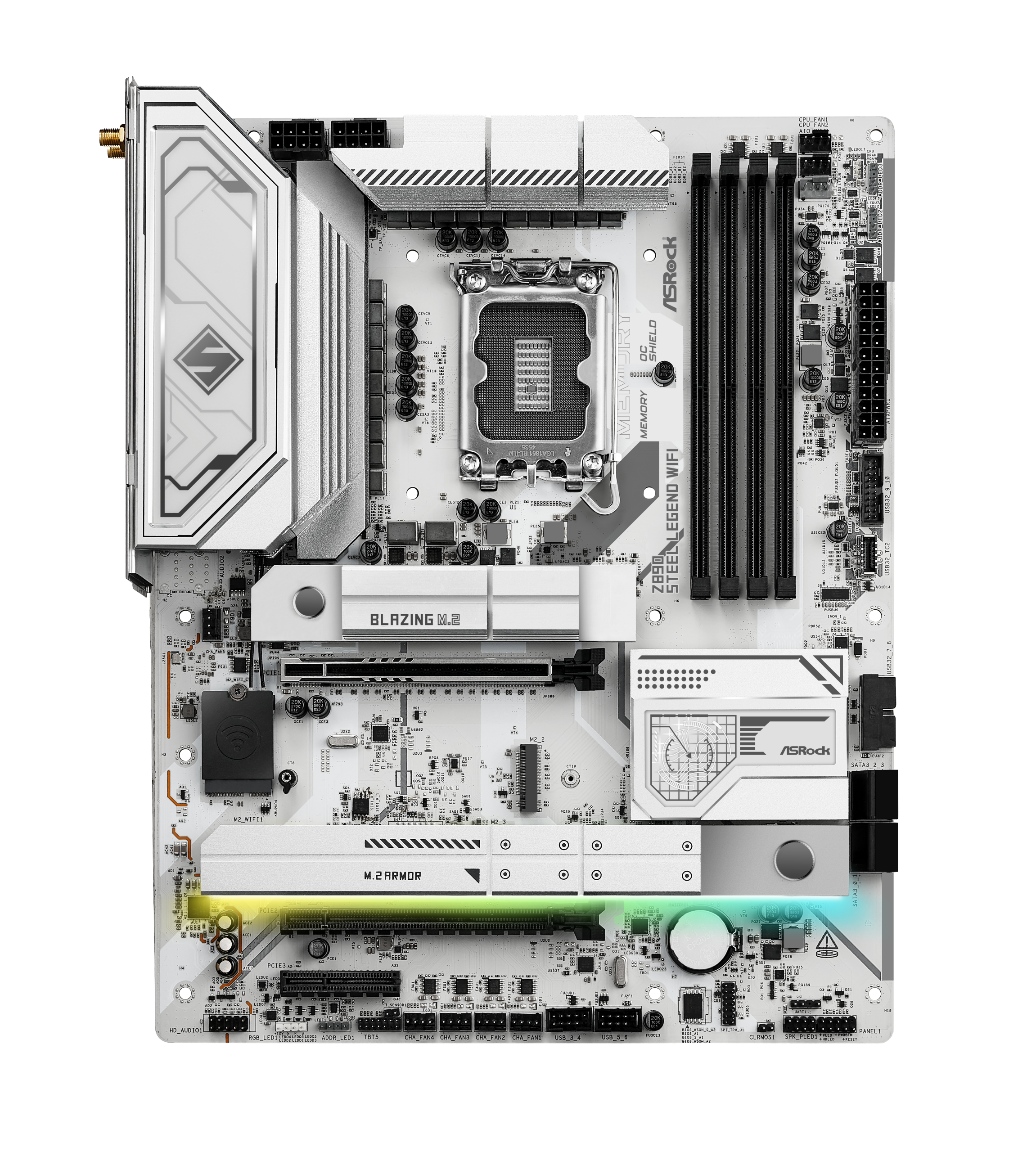

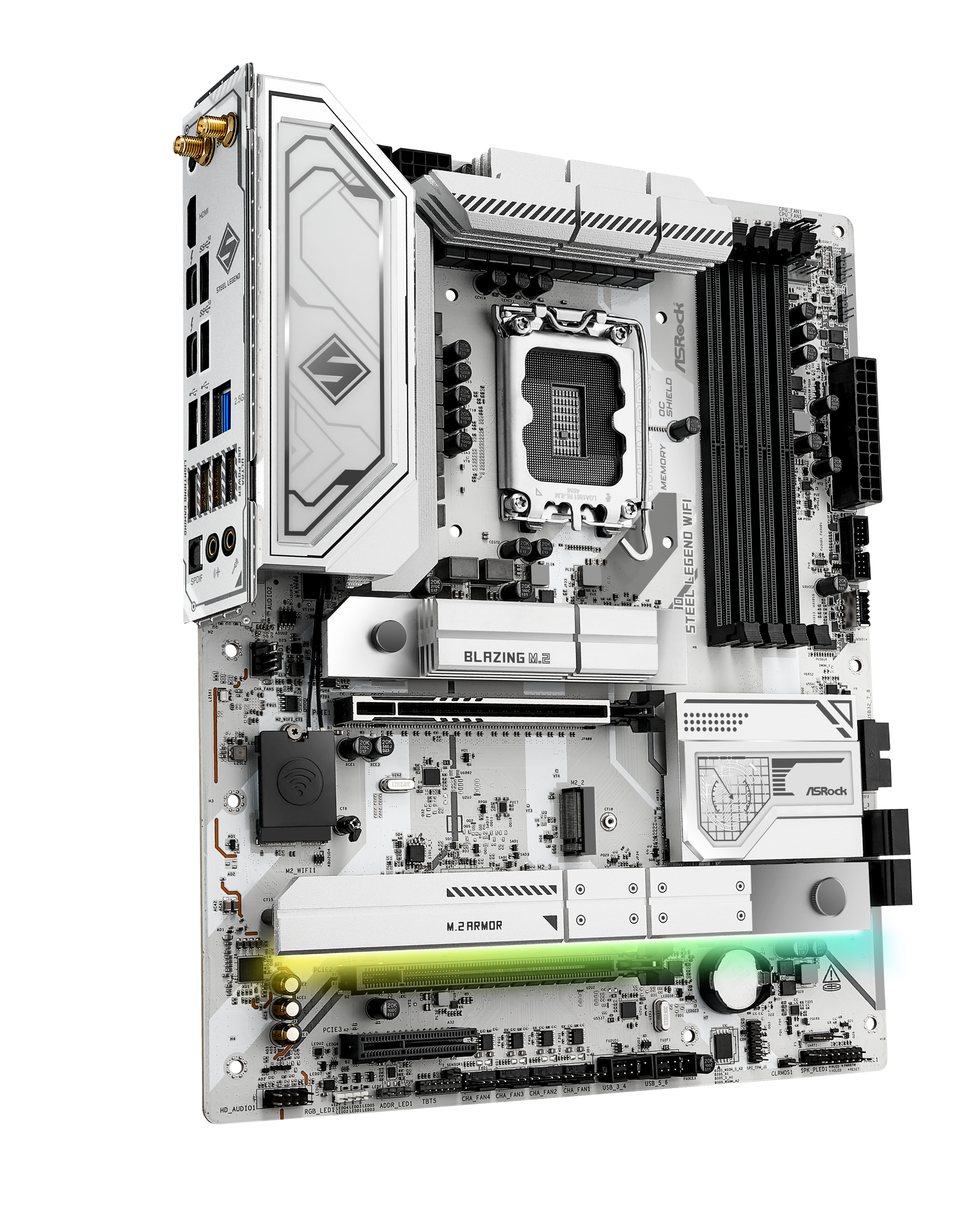

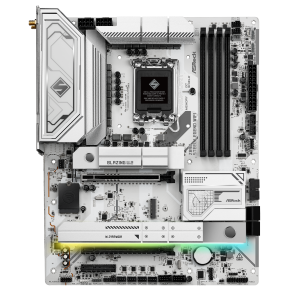

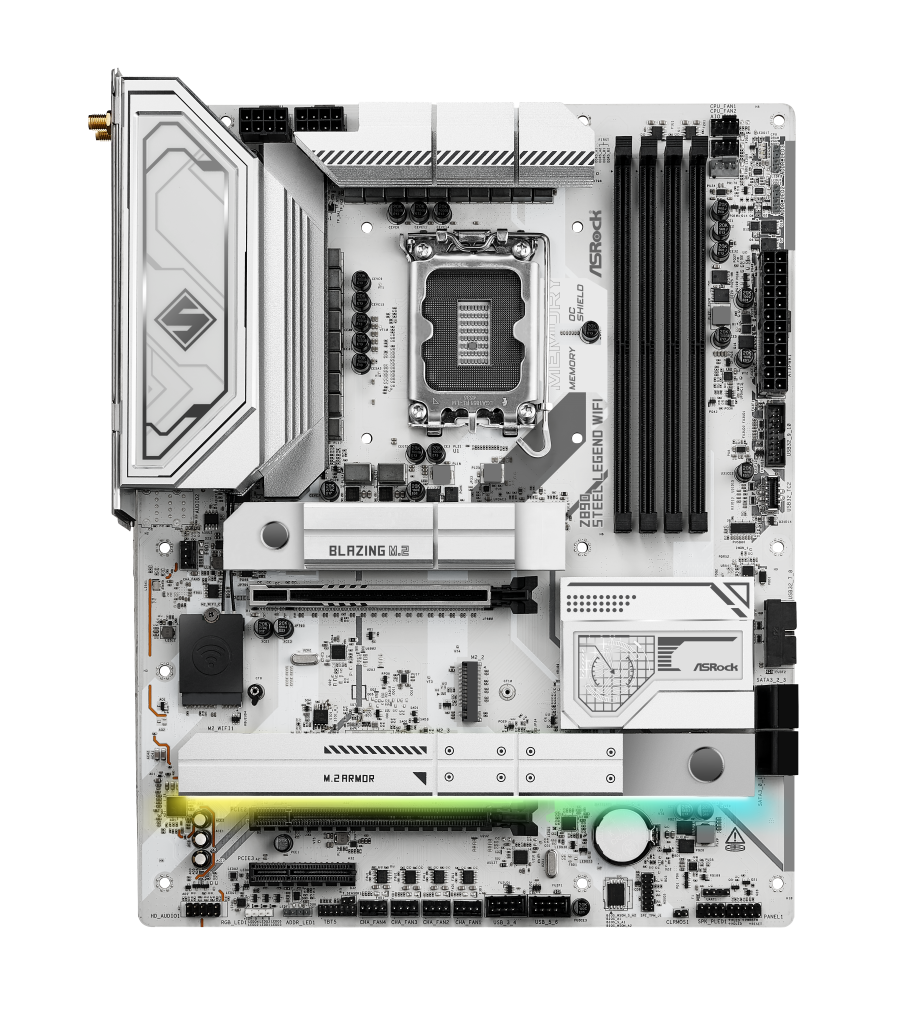

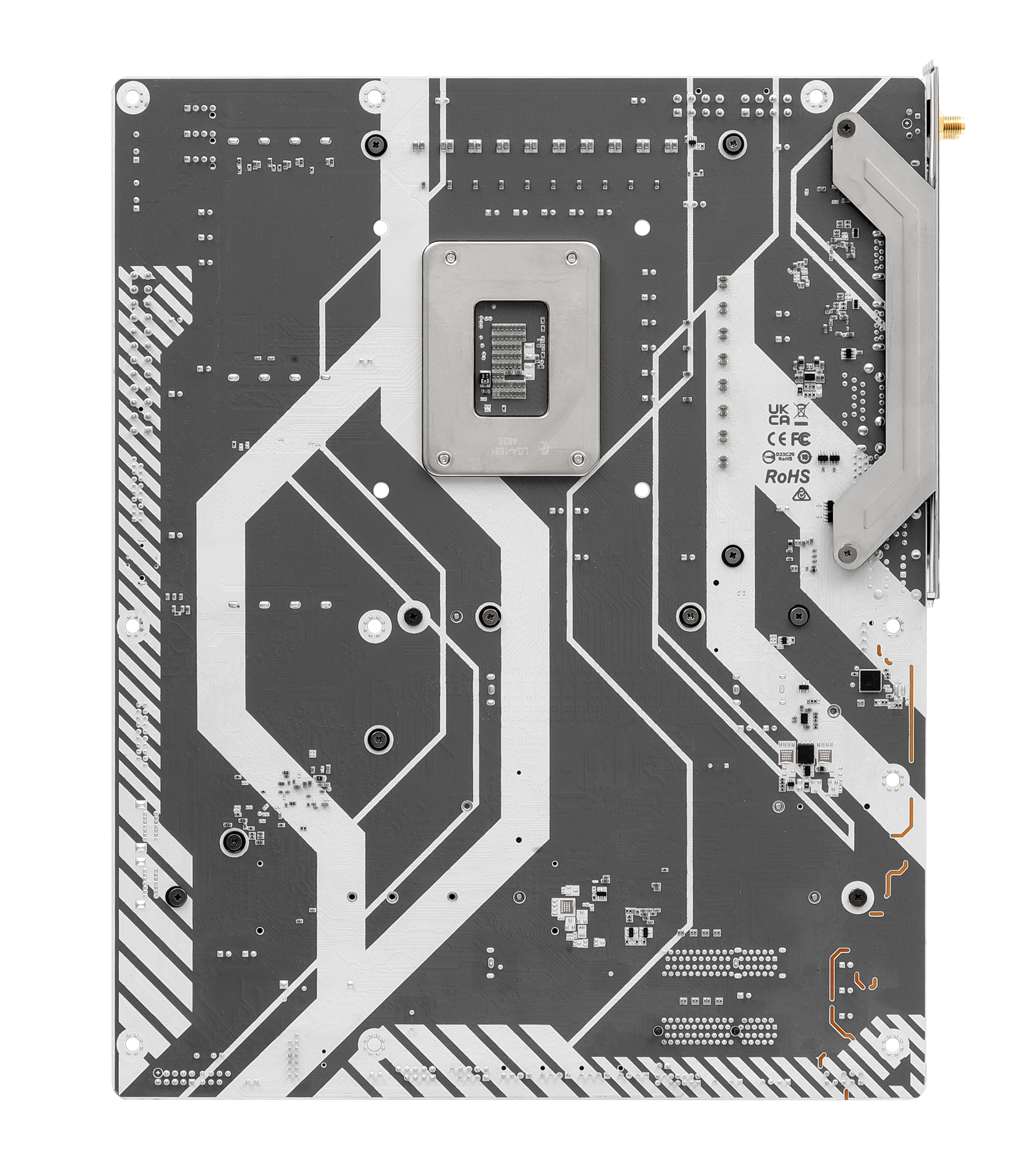

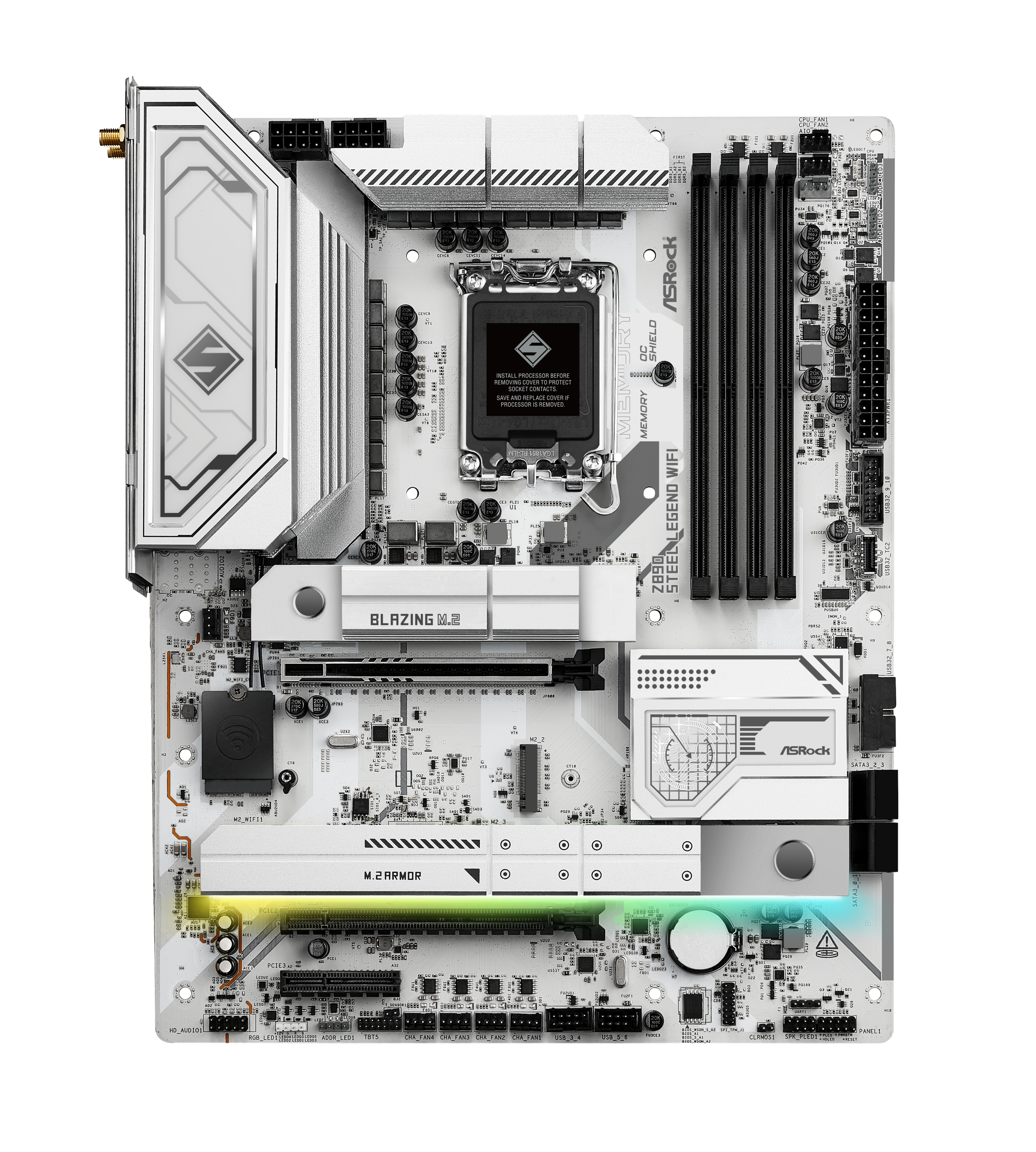

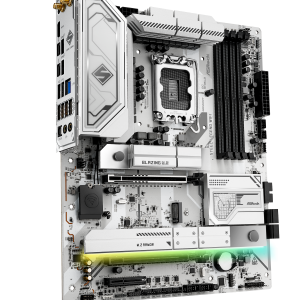

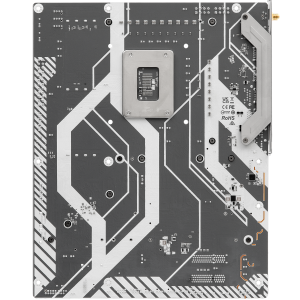

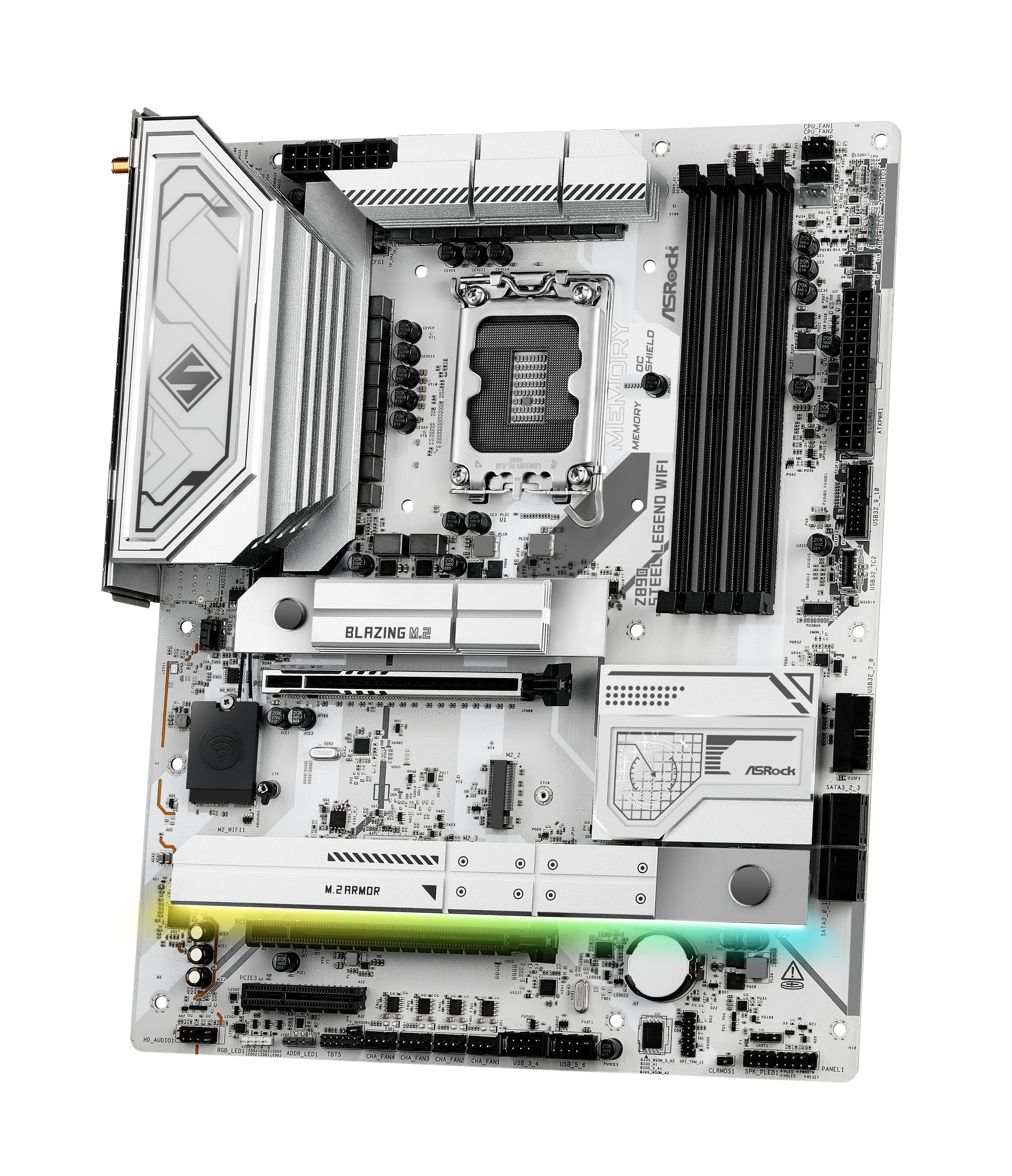

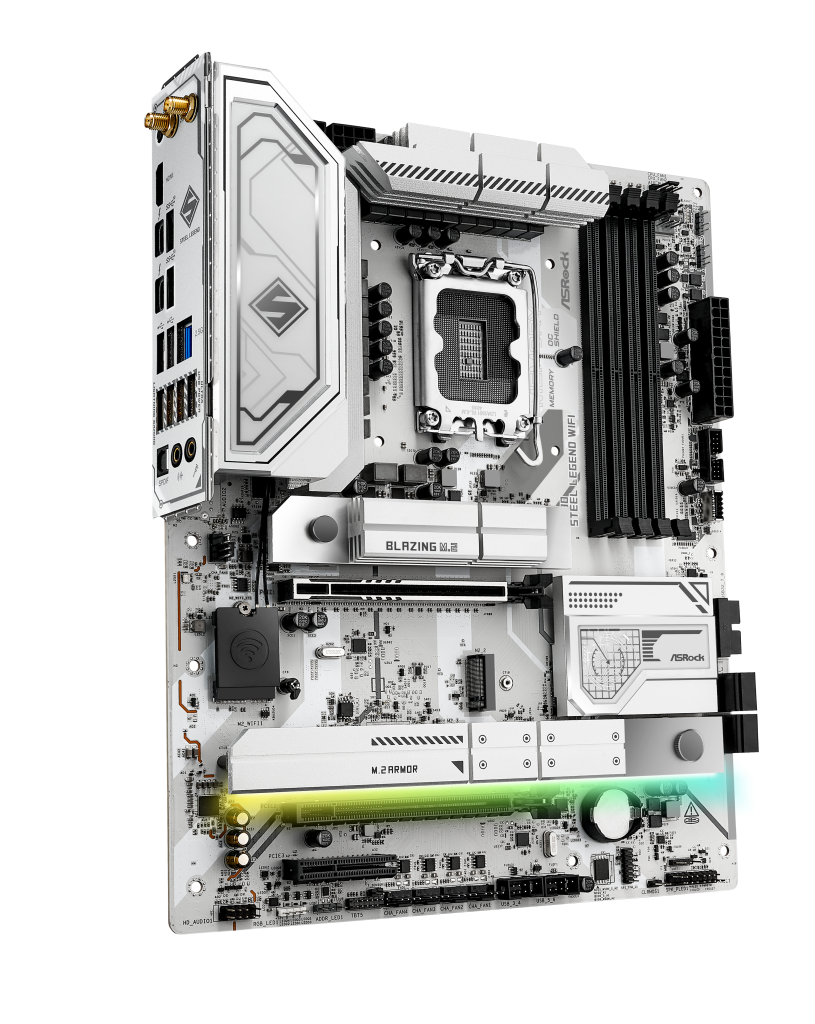

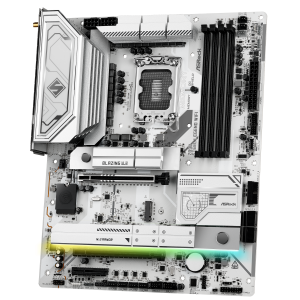

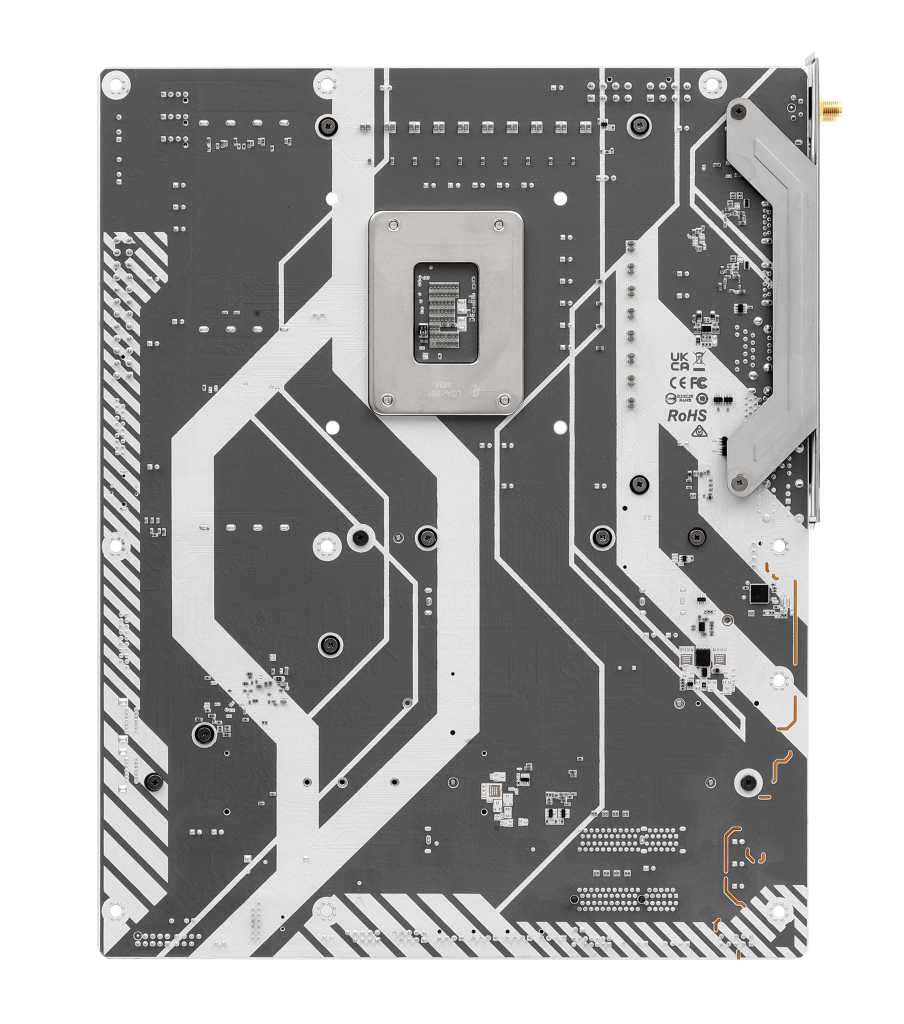

ASRock Z890 Steel Legend WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for high-end builds.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x4 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9066 MHz (XMP 3.0)
– 4x M.2 (including 1x PCIe 5.0, 2x PCIe 4.0, and 1x PCIe 4.0 & SATA) / 4x SATA 6G
– USB on the I/O panel: 2x USB 4, 2x USB 3.1, 4x USB 3.0, and 2x USB 2.0
– OC features: 18+1+1+1+1 phase VRMs, BIOS Flashback
– Total of 8x 4-pin connectors for fans and pumps

ASROCK Z890 STEEL LEGEND WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASROCK Z890 STEEL LEGEND WIFI is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASROCK Z890 STEEL LEGEND WIFI boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 9066 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 4.0 x4 (electrical x4, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280, CPU)
– 1x M.2 (PCIe 5.0 x4 & SATA; 2280, chipset)
– 1x M.2 (PCIe 4.0 x4; 2230 / 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x front panel audio header
– Fan header:
– 2x CPU fan (4-pin)
– 1x W_PUMP+ header
– 5x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x 4-pin RGB (12 V)

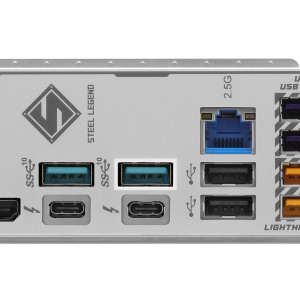

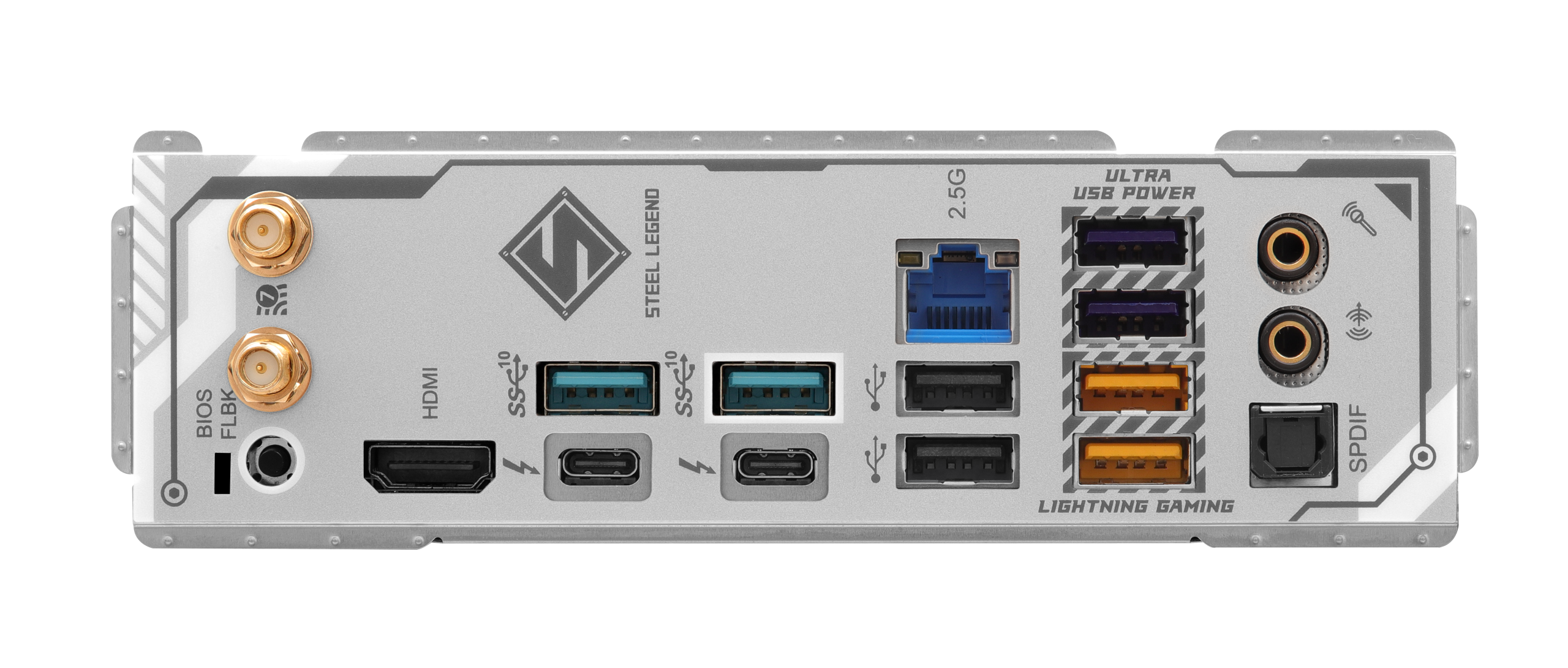

– External connections:
– 2x Thunderbolt 4 (USB-C)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type C, max. 480 Mbit/s)
– 2x antenna port
– 1xHDMI
– 1x 2.5 Gigabit LAN (Dragon RTL8125BG)
– 1x WiFi/Bluetooth module (Wi-Fi 7)
– 2x 3.5 mm jack (Realtek ALC 1220)
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX12V

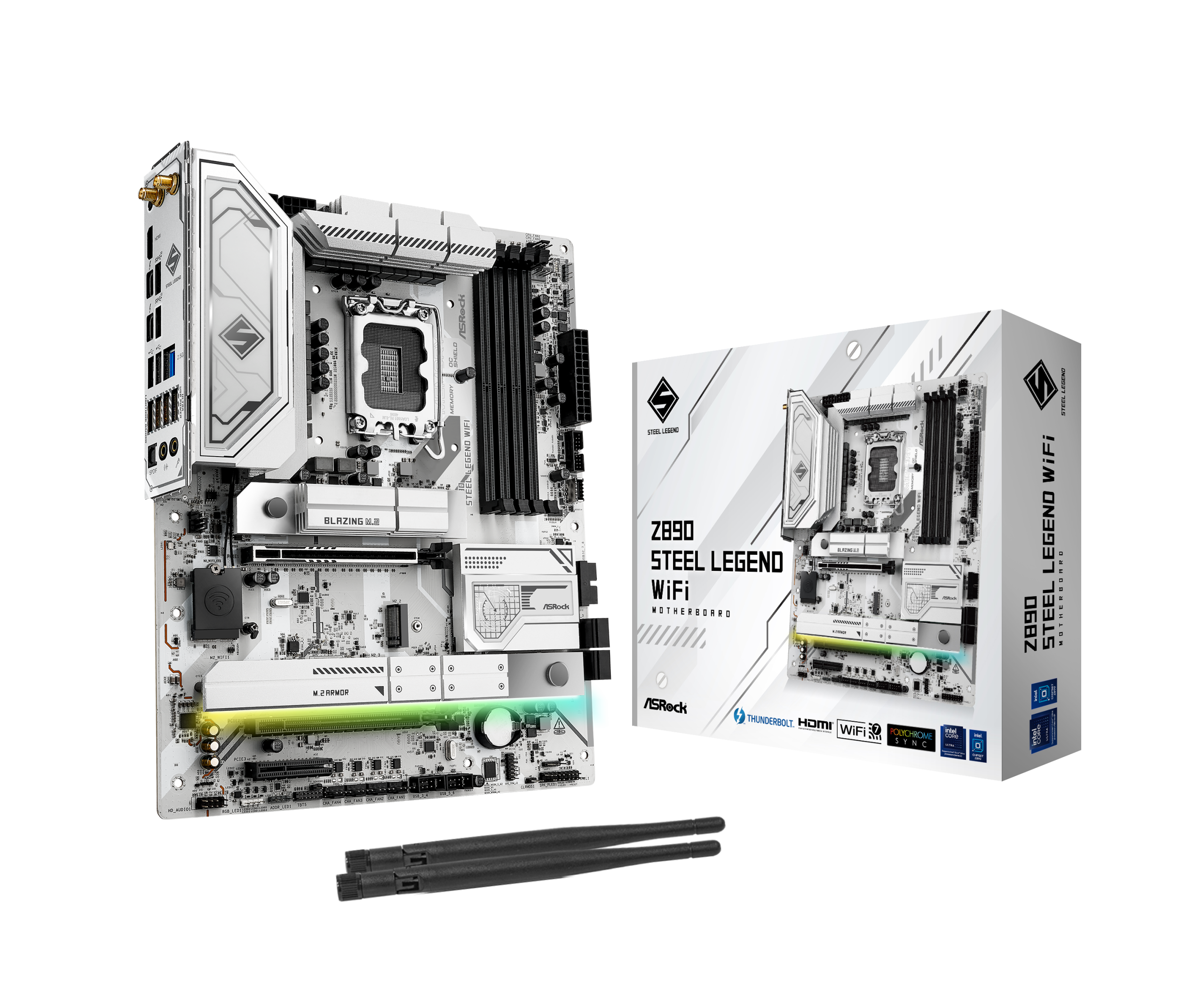

– Accesories:
– 2 x SATA data cables
– 2 x ASRock WiFi 2.4/5/6GHz Antennas
– 1 x thermistor cable
