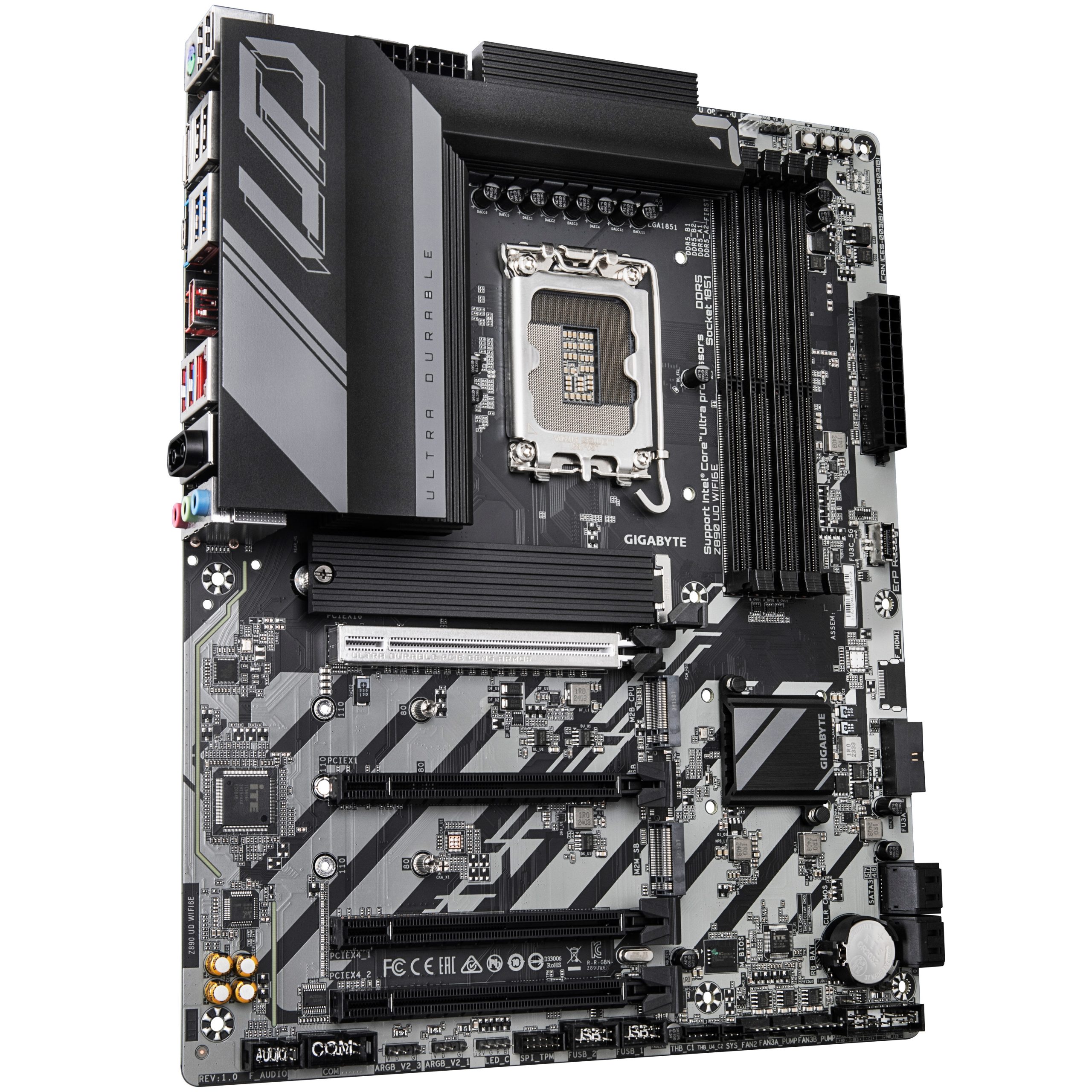

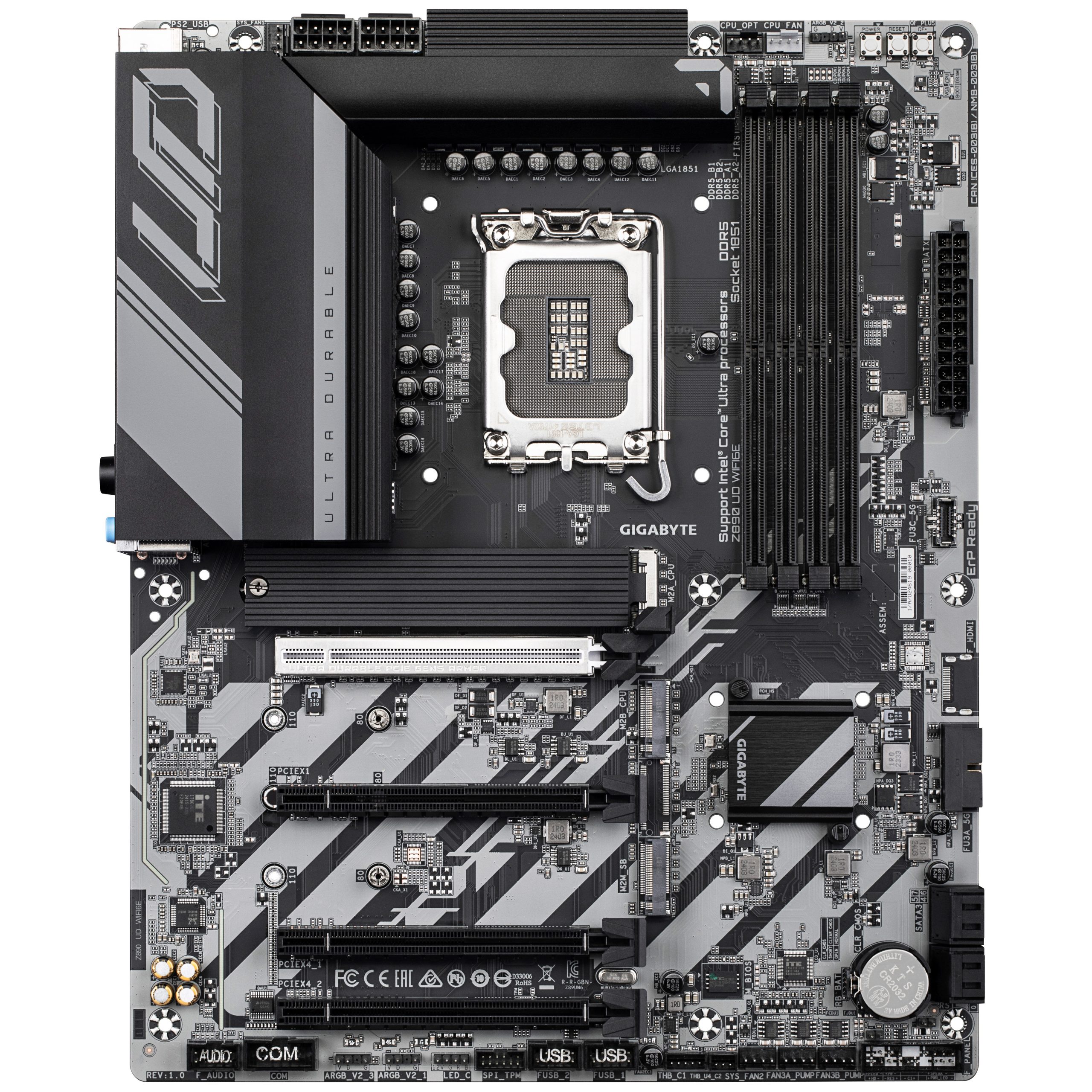

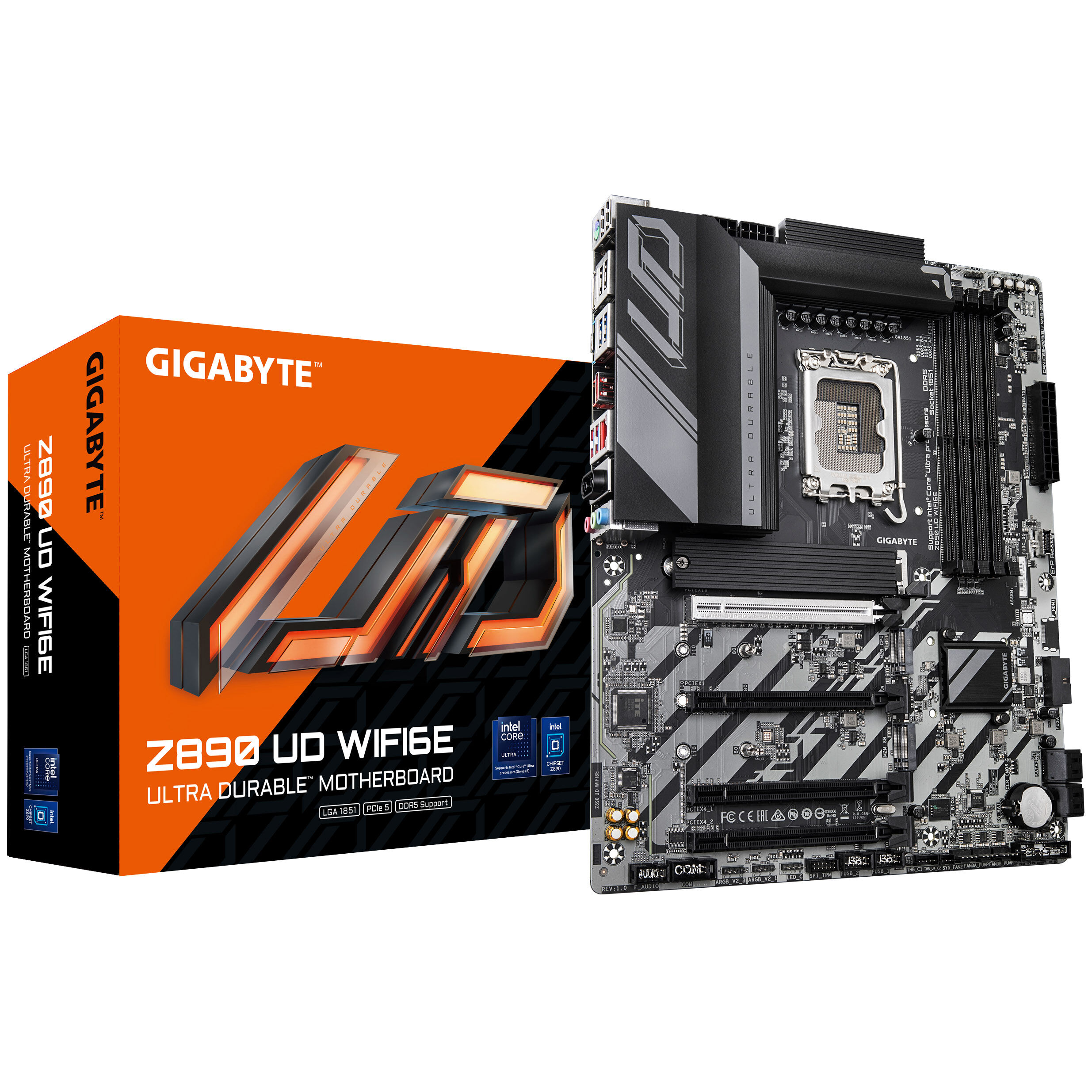

Gigabyte Z890 UD WiFi6E motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for your high-end build.

– 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x16 (x1)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8800 MHz
– 33x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 1x USB 4, 1x USB 3.1, 4x USB 3.0, and 4x USB 2.0
– A total of 6x 4-pin connectors for fans and pumps

GIGABYTE Z890 UD WiFi6E: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890 UD WiFi6E is an ATX motherboard with the The high-end Intel Z890 chipset and the LGA 1851 socket support second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890 UD WiFi6E boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
– div class=specification>
– Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (6400 MHz, up to 8800 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 2x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 4.0 x16 (electrical x1, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4/x2; 2280 / 2580 / 22110 / 25110, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 2280 / 2580 / 22110 / 25110, CPU)
– 1x M.2 (PCIe 4.0 x4/x2 & SATA; 2280 / 2580 / 22110 / 25110, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 2x Thunderbolt headers
– 1x front panel audio header
– 1x front panel
– 1x serial port header
– 1x Q Flash button
– 1x power button
– 1x reset button
– 1x reset jumper
– 1x Trusted Platform Module Header
– 1x Clear CMOS button
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU fan/pump (4-pin)
– 2x case fans (4-pin)
– – 2x case fan / pump (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x RGB headers

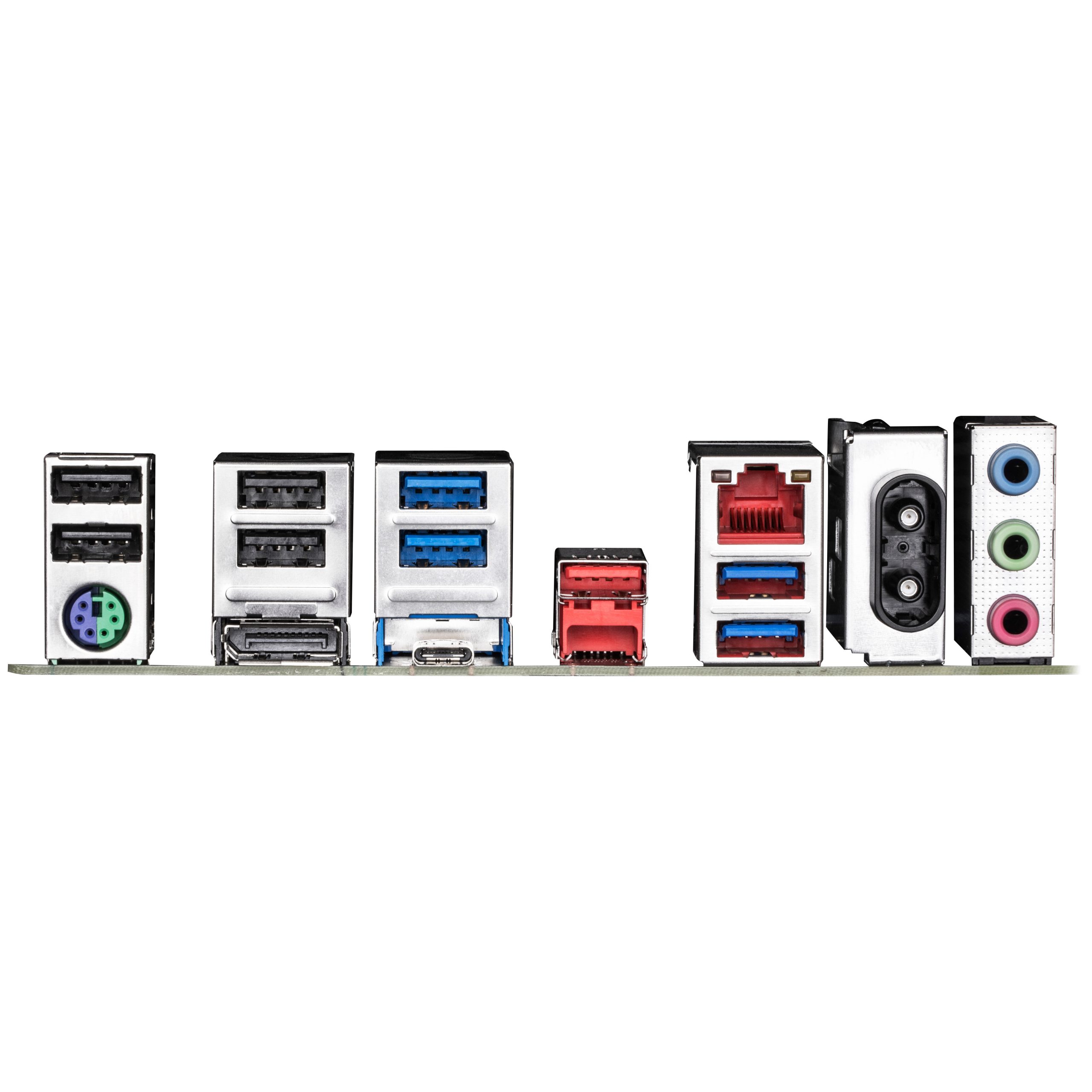

– External connections:
– 1x USB4 (Type C, USB 3.2 Gen 3×2, max. 40 Gbit/s)
– 1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort
– 1x 2.5 Gigabit LAN (Intel I219V)
– 2x 3.5 mm jack (Realtek ALC 1220)
– 1x WiFi/Bluetooth module (RTL8852CE)
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU
