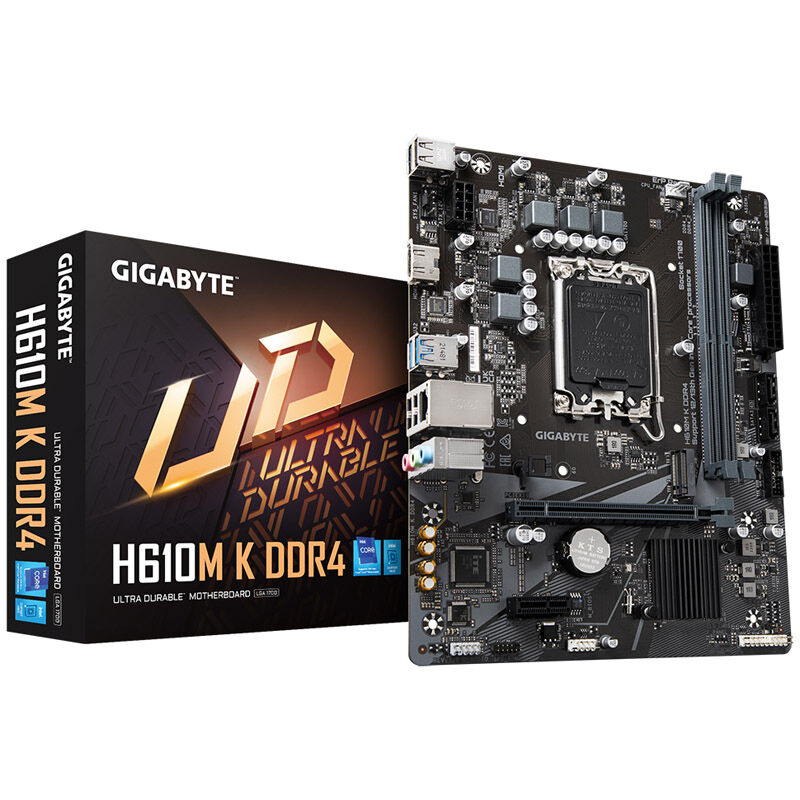

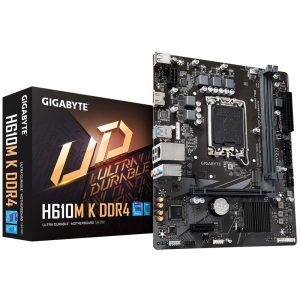

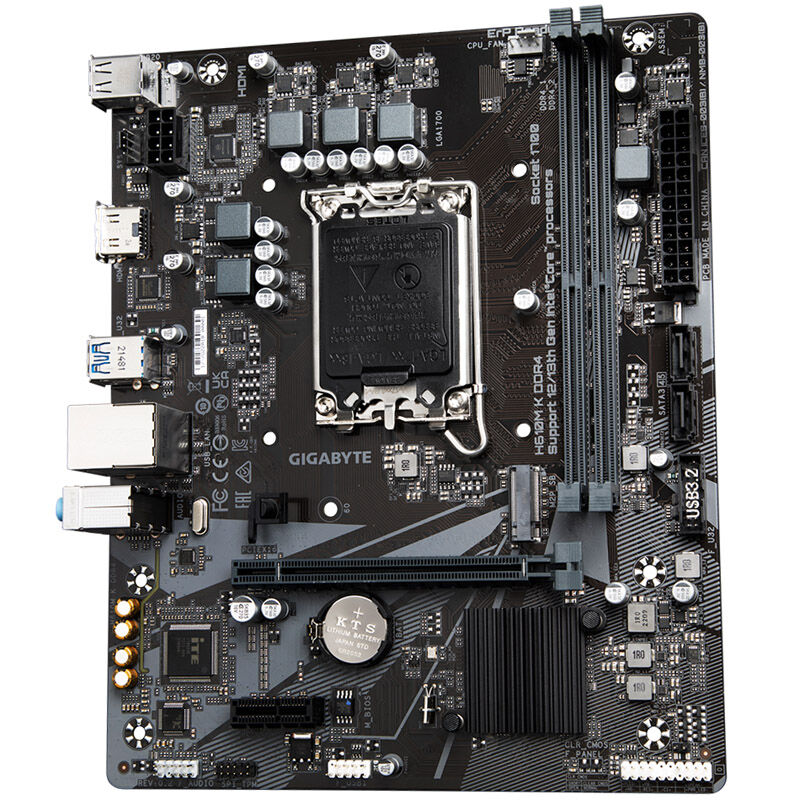

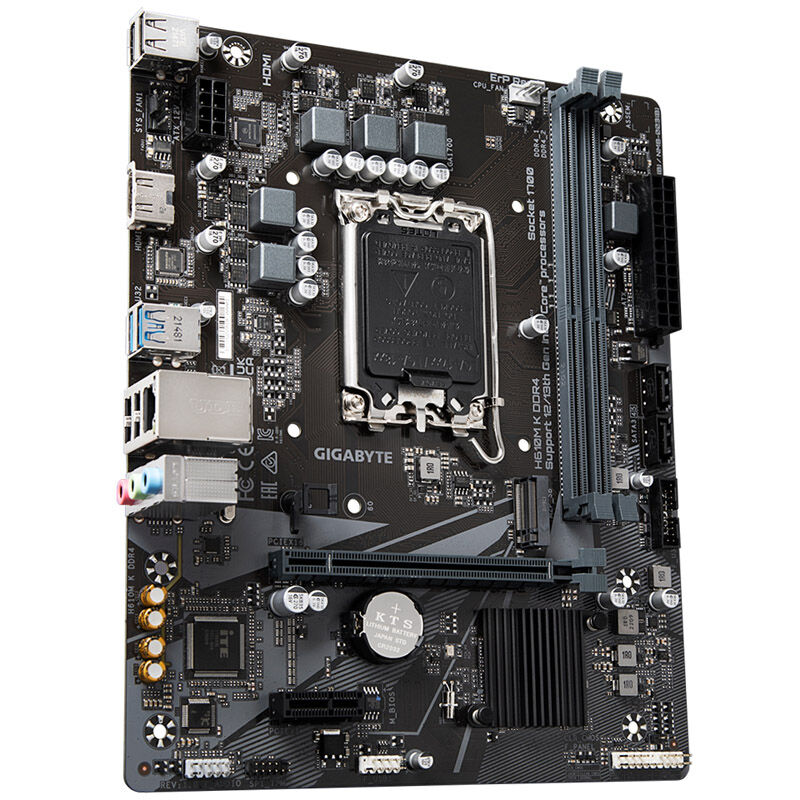

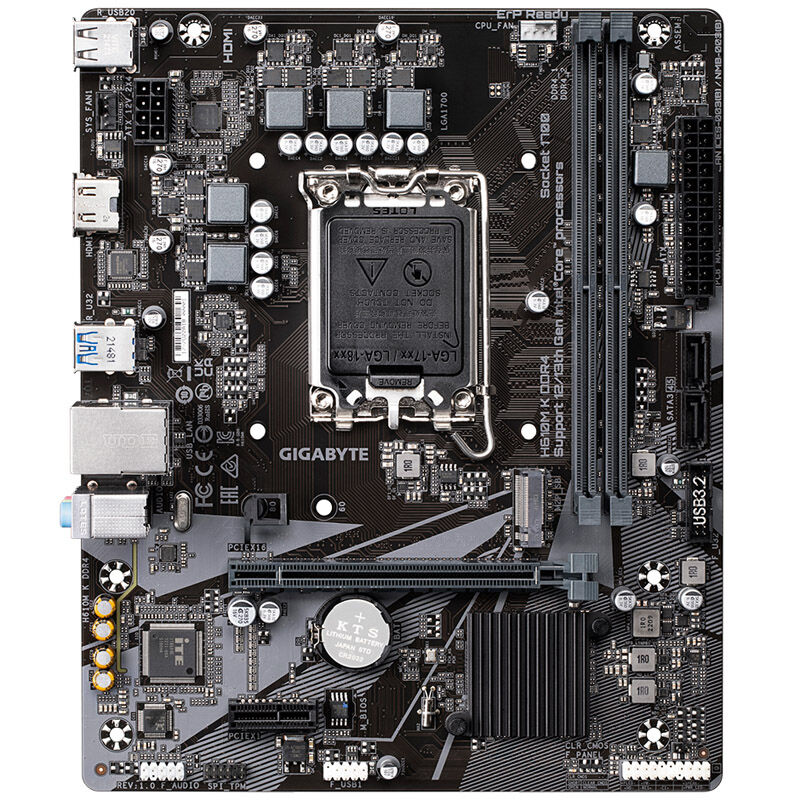

Gigabyte H610M K DDR4 motherboard, Socket 1700, Intel H610, Micro-ATX, DDR4

– 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x1
– DDR4 memory up to 3200 MHz
– 1x M.2 slot with PCIe 3.0 for NVMe SSDs

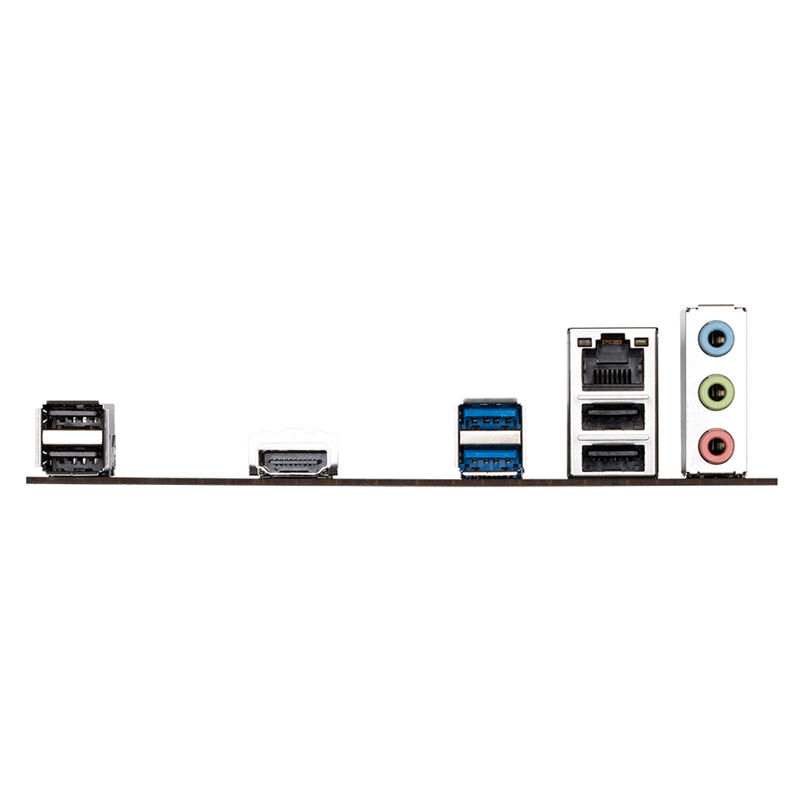

– USB on the I/O panel: 2x USB 3.0, 4x USB 2.0
– Features: 3+1 phase VRMs
– A total of 2 connectors for fans and pumps

The Gigabyte H610M K DDR4 Micro-ATX motherboard with Intel H610 chipset in detail
The Gigabyte H610M K DDR4 is a Micro-ATX motherboard with the Intel H610 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake, and Raptor Lake desktop processors. It supports DDR4 memory up to 3200 MHz.
Note: This motherboard supports DDR4 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Gray, Silver
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1700
– Motherboard
– Motherboard Chipset
– Intel H610
– RAM
– Max. RAM
– 64 GB
– Memory Type
– DDR4
– Memory Format
– DIMM
– Memory Slots
– 2x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– Wi-Fi / Bluetooth
– No
– Internal Ports
– CPU Power Supply
– 1x 8-Pin
– USB 3.0 (internal) Possible Ports
– 2
– Front-Panel Audio Header
– Yes
– SPI TPM Header
– Yes
– External Ports
– USB 3.0 (external) Type A
– 2
– Display Ports
– HDMI (1x)
– Storage Ports
– M.2 PCIe 3.0 x4
– 1
– SATA 6G (internal)
– 2
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x1 Slots (total)
– 1
– PCIe 4.0 x16 (mechanical)
– 1
– PCIe 3.0 x1 (mechanical)
– 1
– Fan Header
– 4-pin Fan Connectors
– 2
– Lighting
– Lighting / RGB
– No
