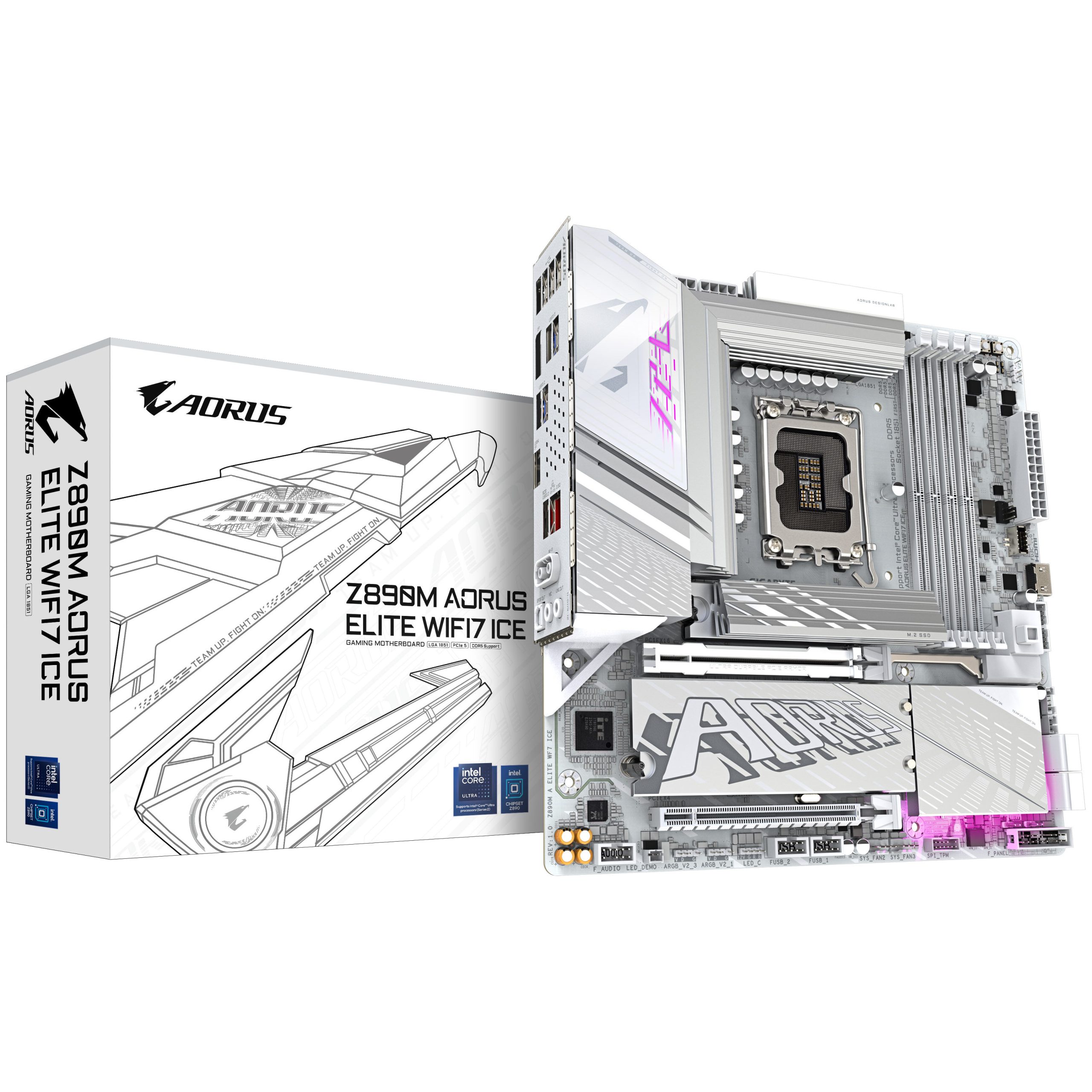

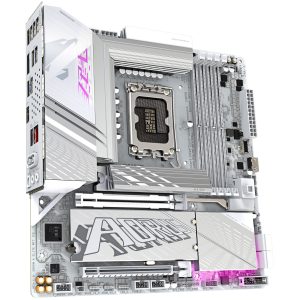

Gigabyte Z890M Aorus Elite WIFI7 ICE motherboard, socket LGA 1851, Intel Z890, mATX, DDR5

This motherboard is ideal for compact, high-end builds and gaming enthusiasts.

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x4
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8800 MHz (XMP 3.0)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 1x USB 4, 1x USB 3.1, 4x USB 3.0, and 4x USB 2.0
– OC features: 12+1+2 phase VRMs, CMOS reset, Q-Flash Plus button, and power button
– A total of 6 connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

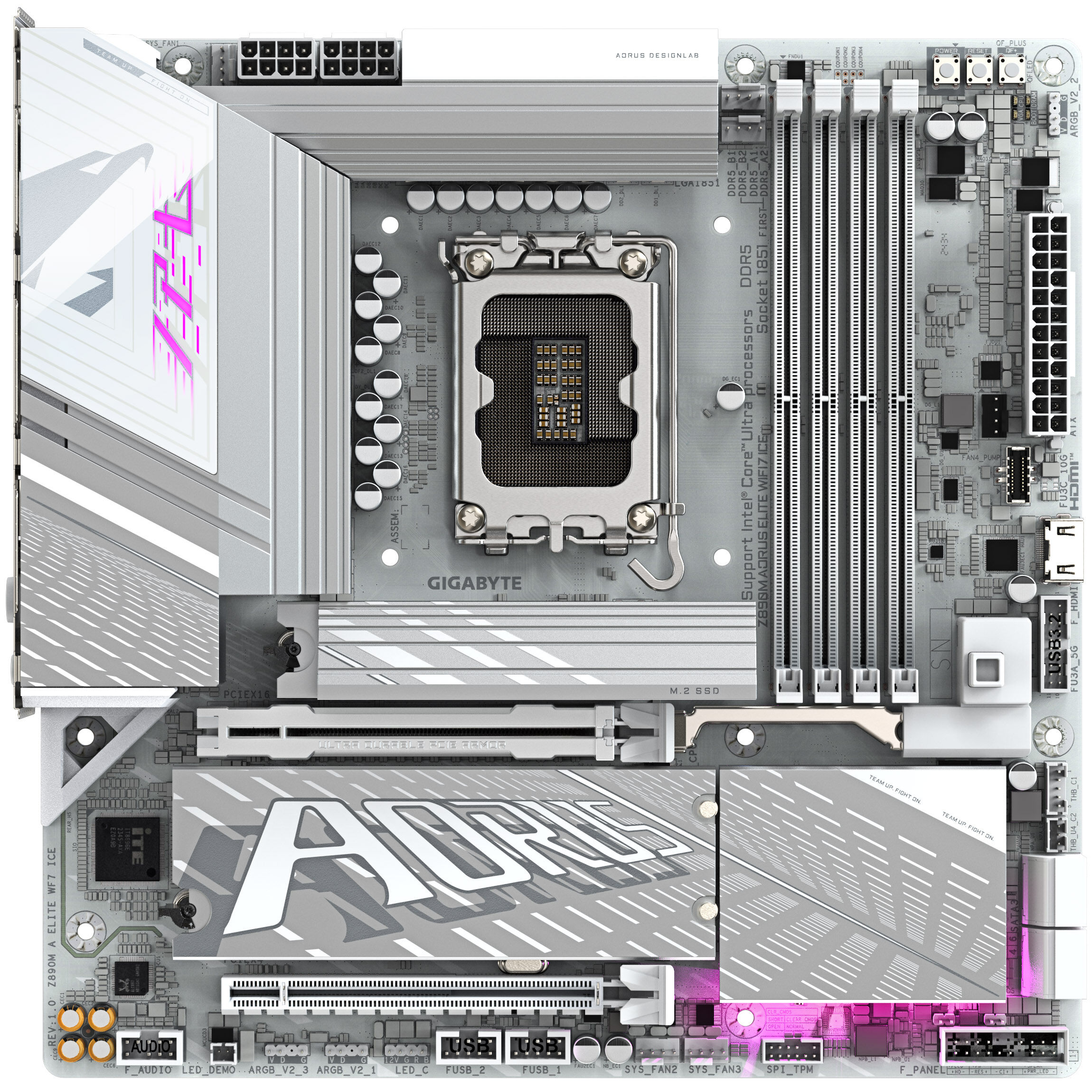

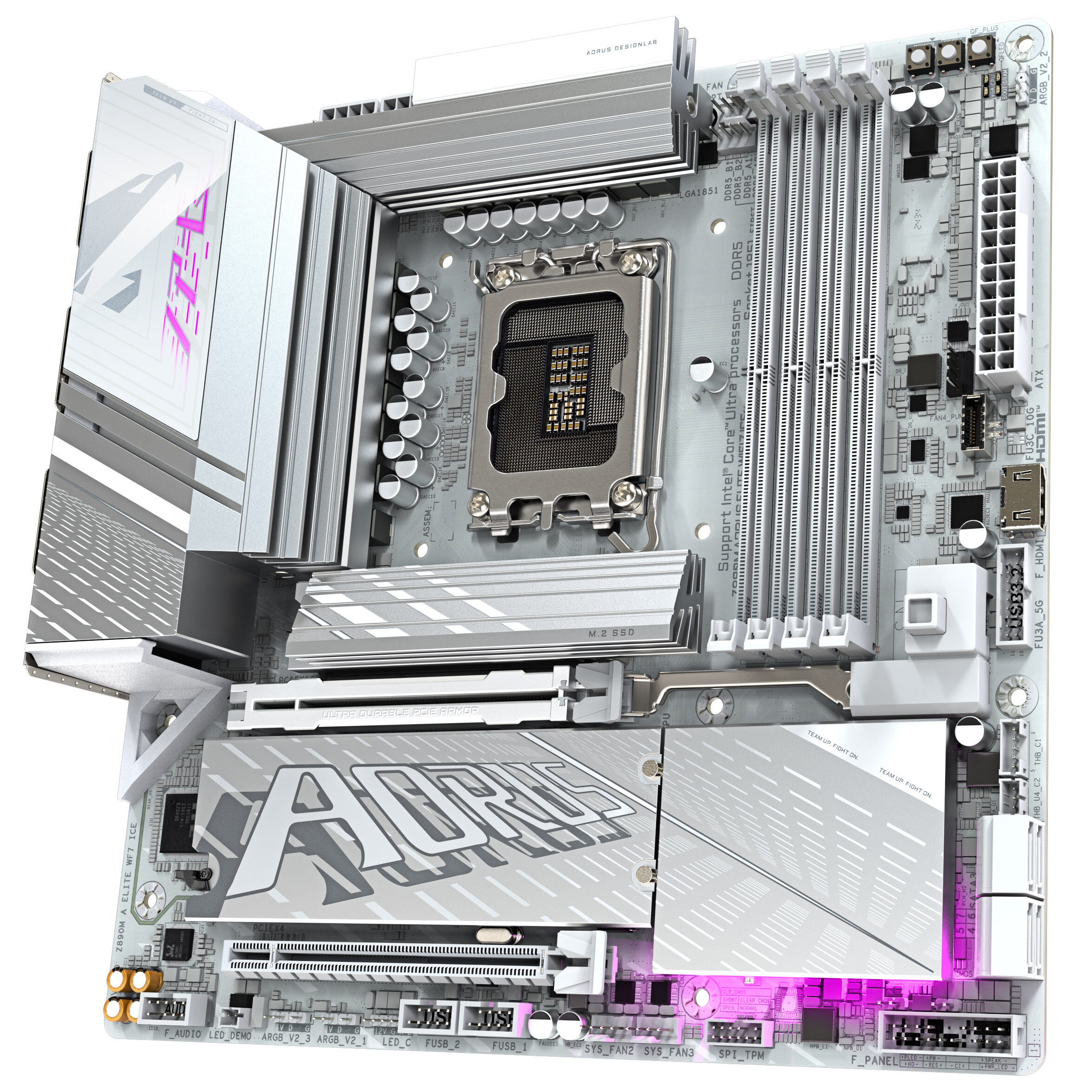

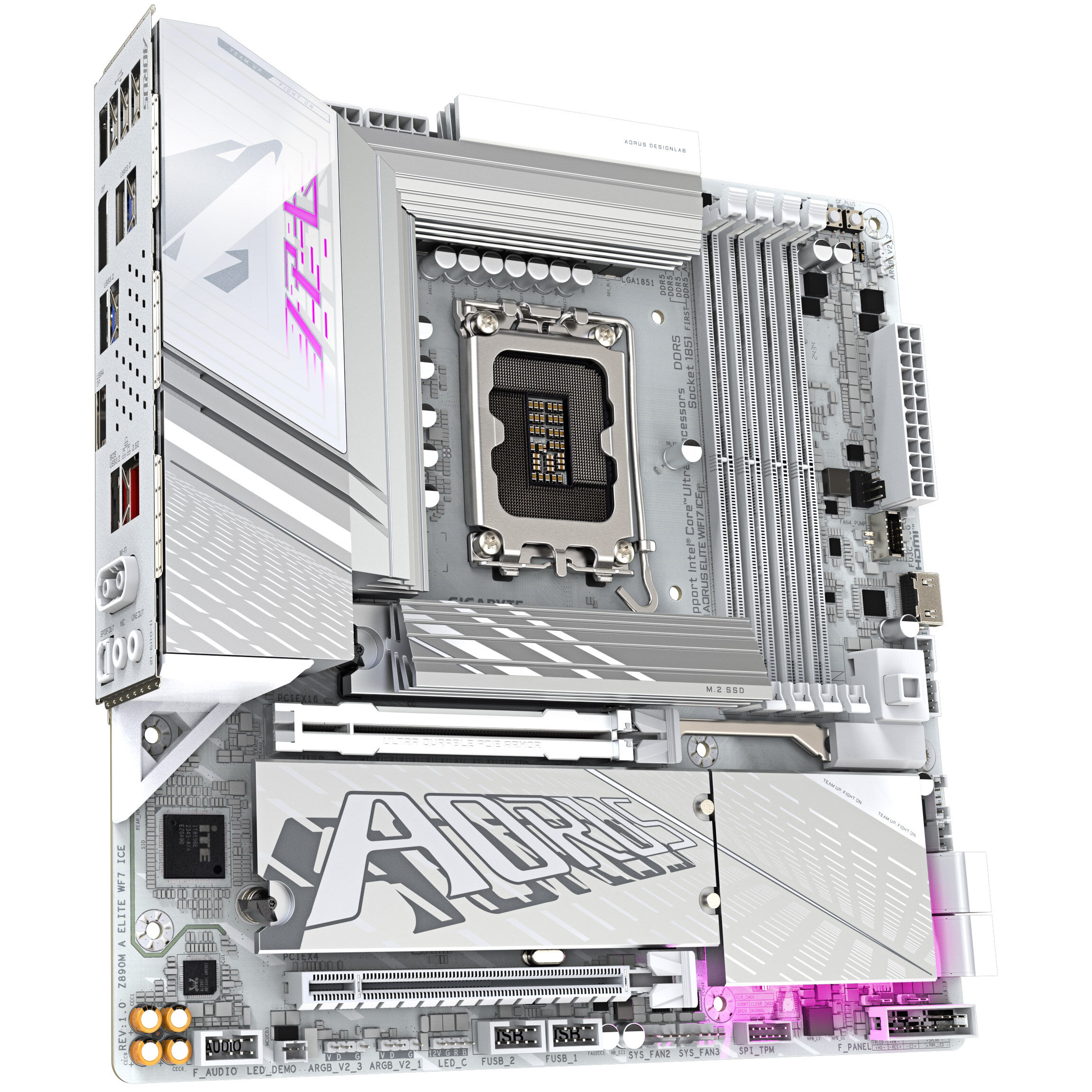

GIGABYTE Z890M Aorus Elite WIFI7 ICE: mATX motherboard with Intel LGA 1851 socket and Z890 Chipset
The GIGABYTE Z890M Aorus Elite WIFI7 ICE is an mATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890M Aorus Elite WIFI7 ICE motherboard features full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

The GIGABYTE Z890M Aorus Elite WIFI7 ICE offers a compact yet powerful design, ideal for DIY enthusiasts who embrace the Micro-ATX form factor. It features a robust 12+1+2 digital VRM design with 60A power stages, ensuring stable power delivery and supporting beginner-friendly overclocking. Advanced cooling management and easy M.2 mounting with EZ-Latch make the build process particularly user-friendly.

Technical Details
Form Factor:
– mATX (244 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (5600 MHz, up to 8800 MHz via XMP / OC / CUDIMM)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8)
– 1x PCIe 4.0 x4
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 2, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x HDMI (Sensor Panel Link)
– 1x front panel audio header
– 1x 10-1-Pin System Panel Header
– 1x start button
– 1x reset button + jumper
– 1x Q-Flash Plus button
– 1x Clear CMOS jumper
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU OPT fan (4-pin)
– 1x W_PUMP+ header
– 3x case fans (4-pin)
– RGB headers:
– 3x 3-pin ARGB (5 V)
– 1x 4-pin RGB (12 V)

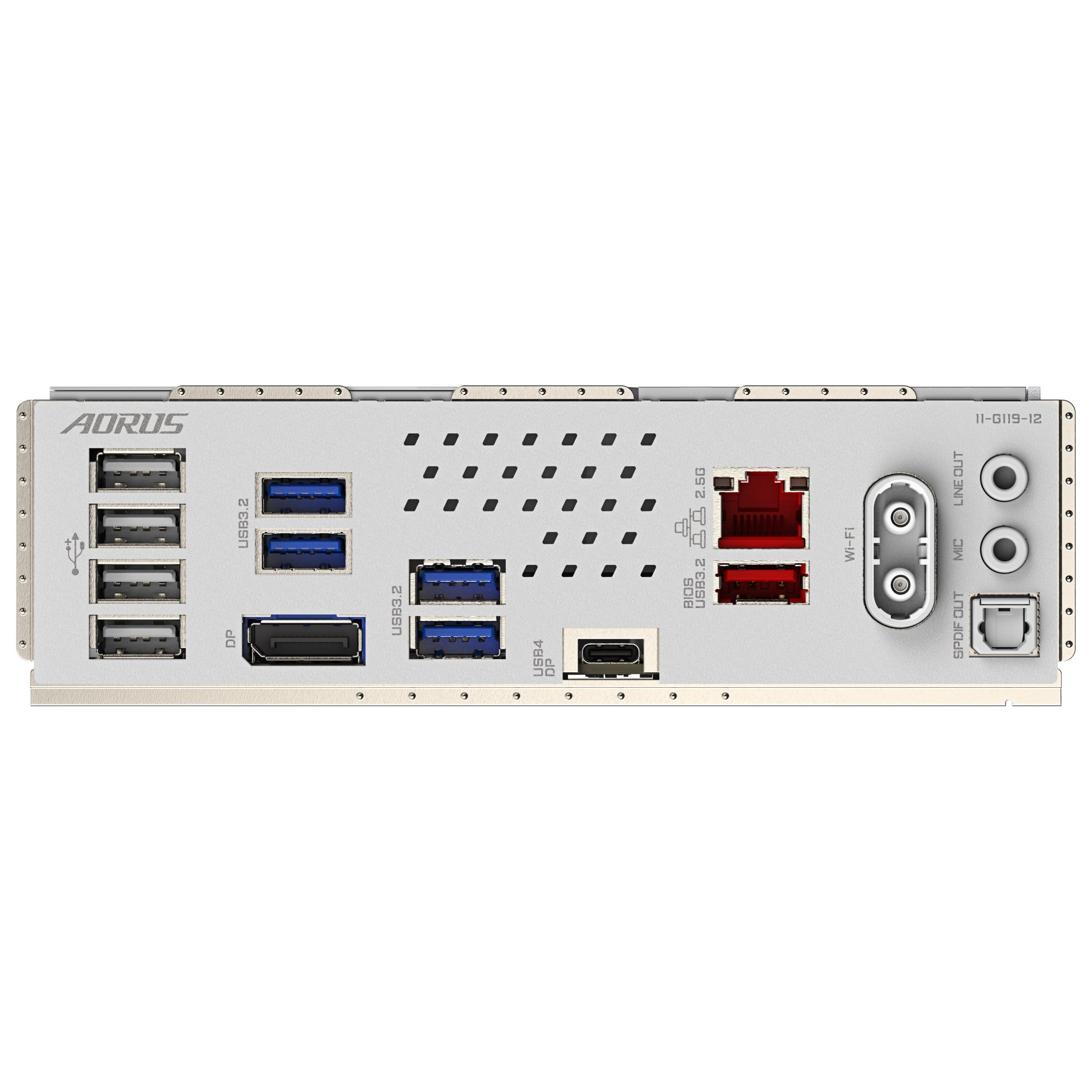

– External connectors:
– 1x Thunderbolt 4 (USB-C)
– 1x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 4x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (Type-A, max. 480 Mbps)
– 1x DisplayPort
– 1x 2.5 Gigabit LAN
– 1x Wi-Fi/Bluetooth module (RTL8922AE)
– 2x 3.5 mm jack (Realtek ALC 1220)
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX12V
– Accessories:
– 1x Wi-Fi 7 Antenna
– 2x M.2 screws
– 2x SATA cables
– 1x G-connector for easy connection of front panel cables
– 1x User manual and installation guide
