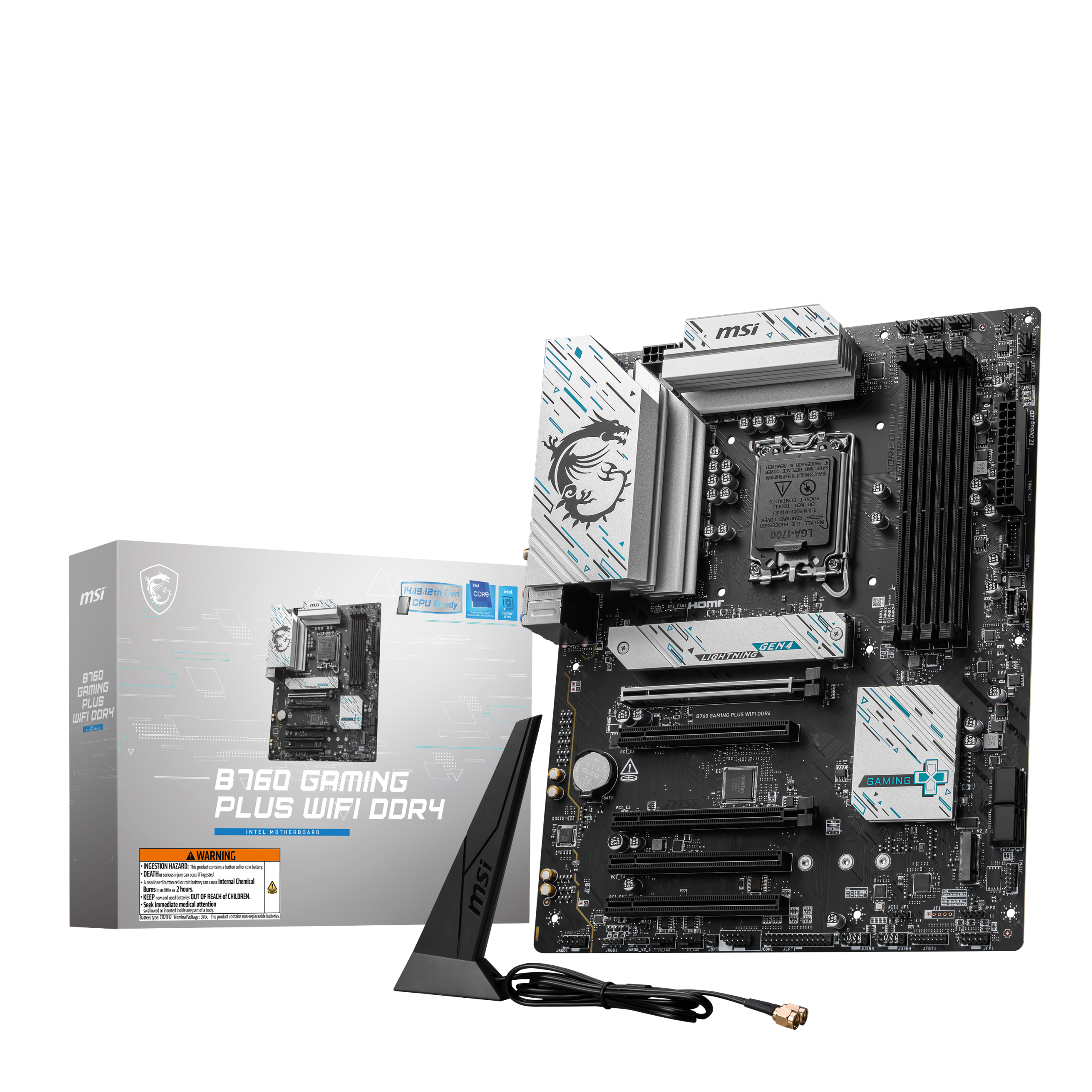

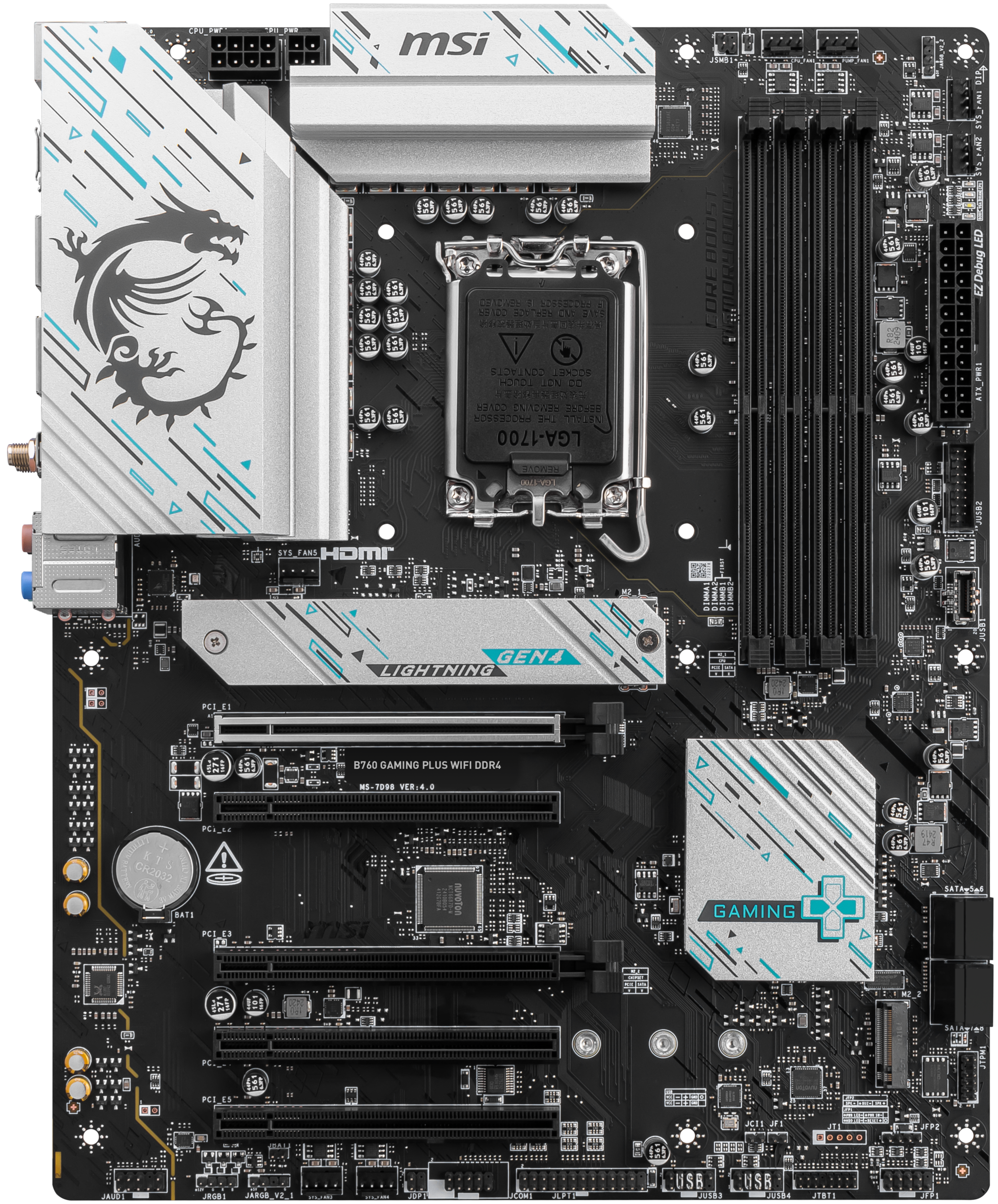

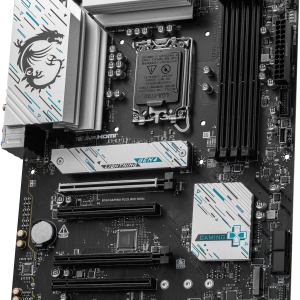

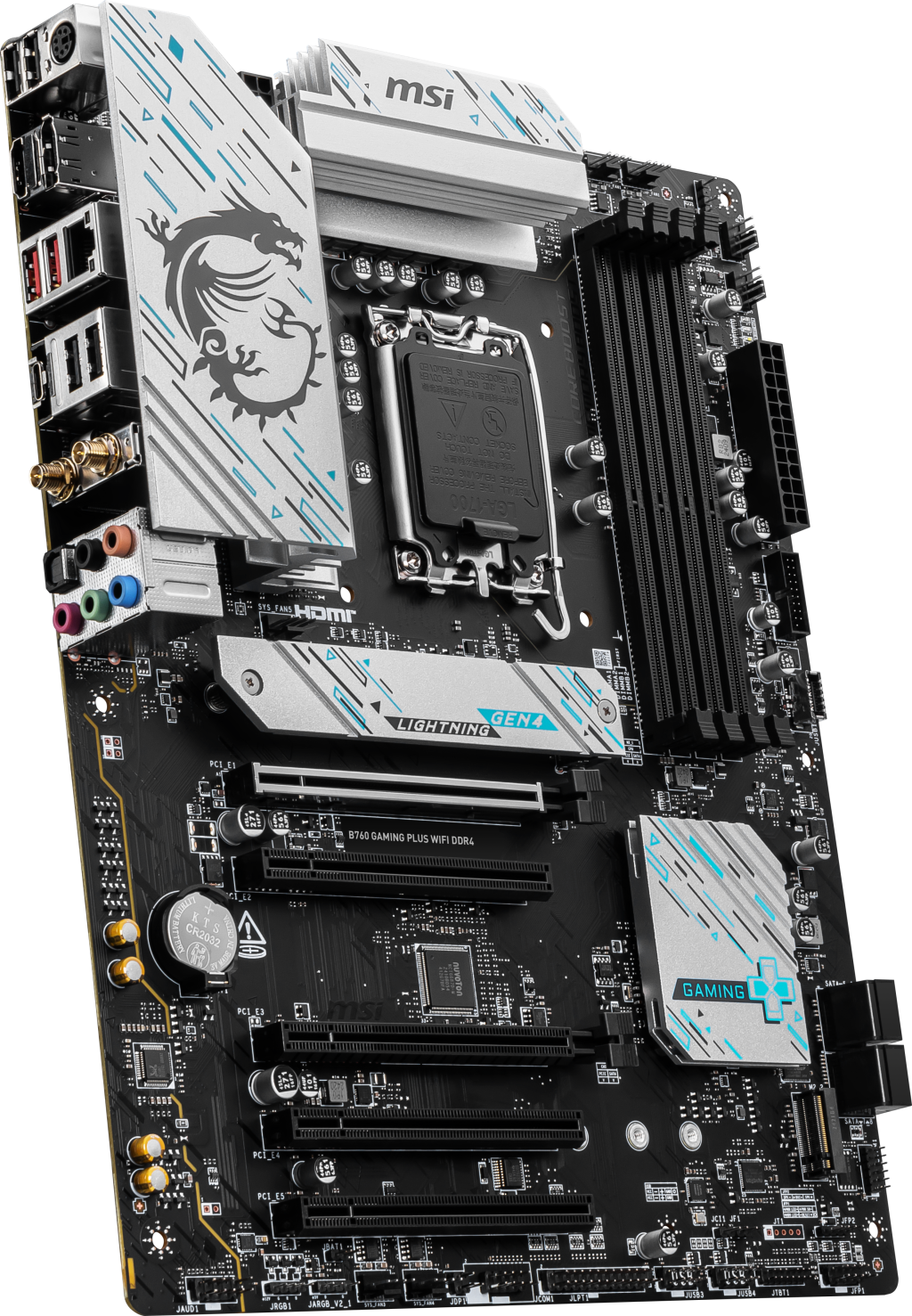

MSI B760 Gaming Plus WiFi, Intel B760 motherboard - Socket 1700, DDR4

– 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 3x PCIe 3.0 x16 (x1)
– DDR4 memory up to 3200 MHz, with RAM overclocking up to 5333 MHz
– 2x M.2 slots, including 2x PCIe 4.0

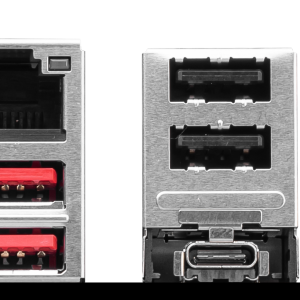

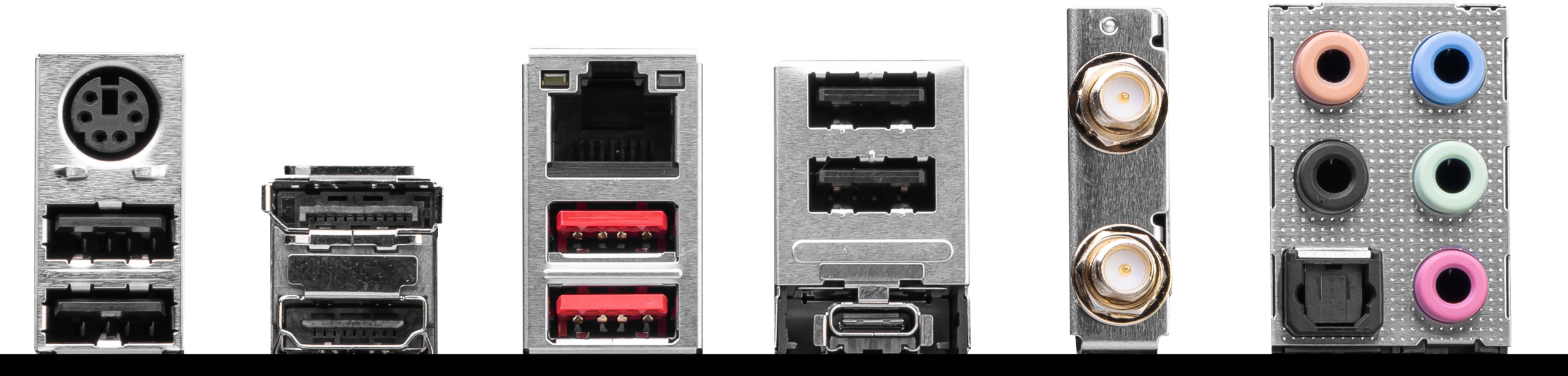

– USB on the I/O panel: 1x USB-C 3.1, 2x USB 3.1, and 4x USB 2.0
– A total of 7 connectors for fans and pumps

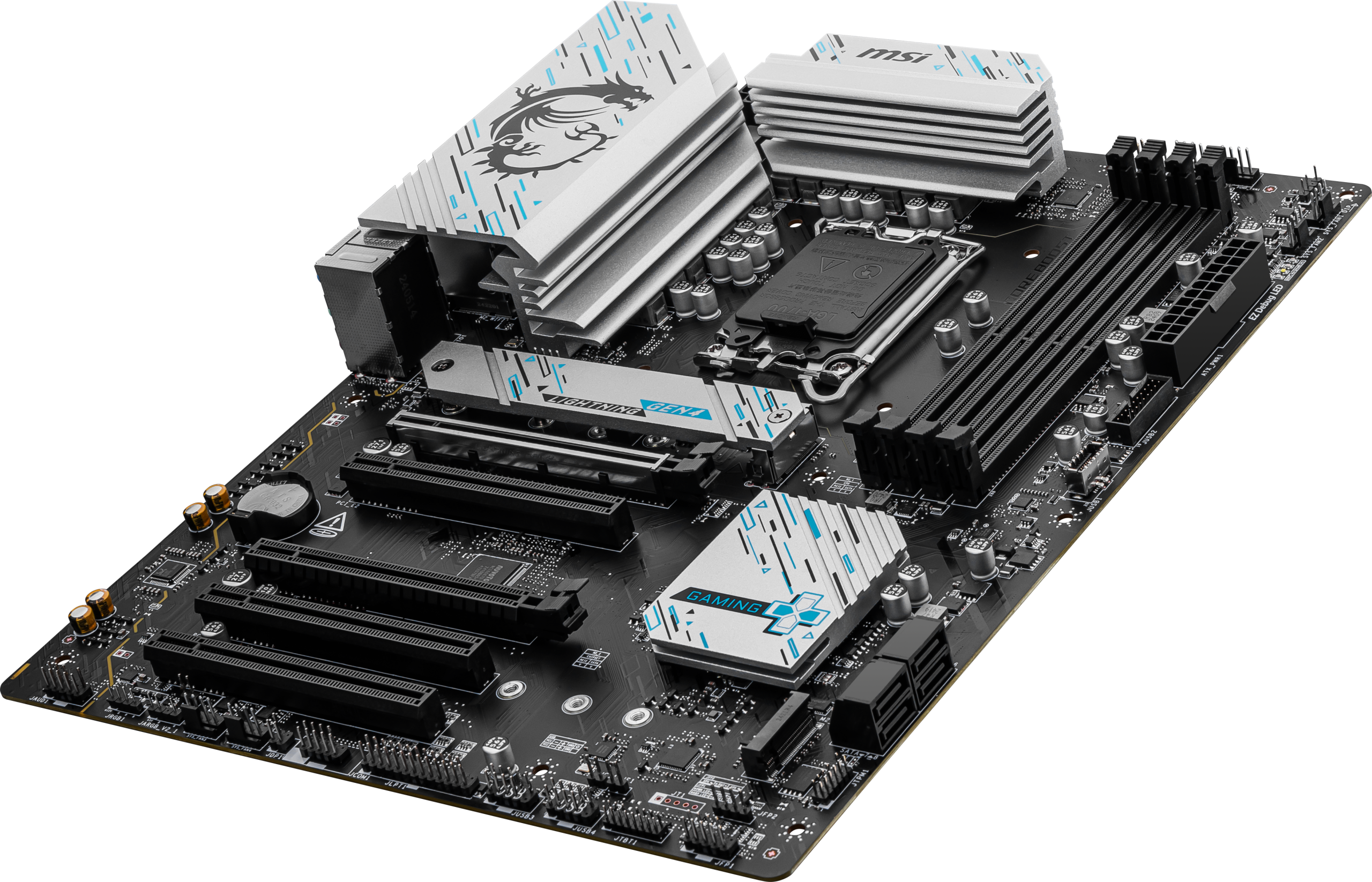

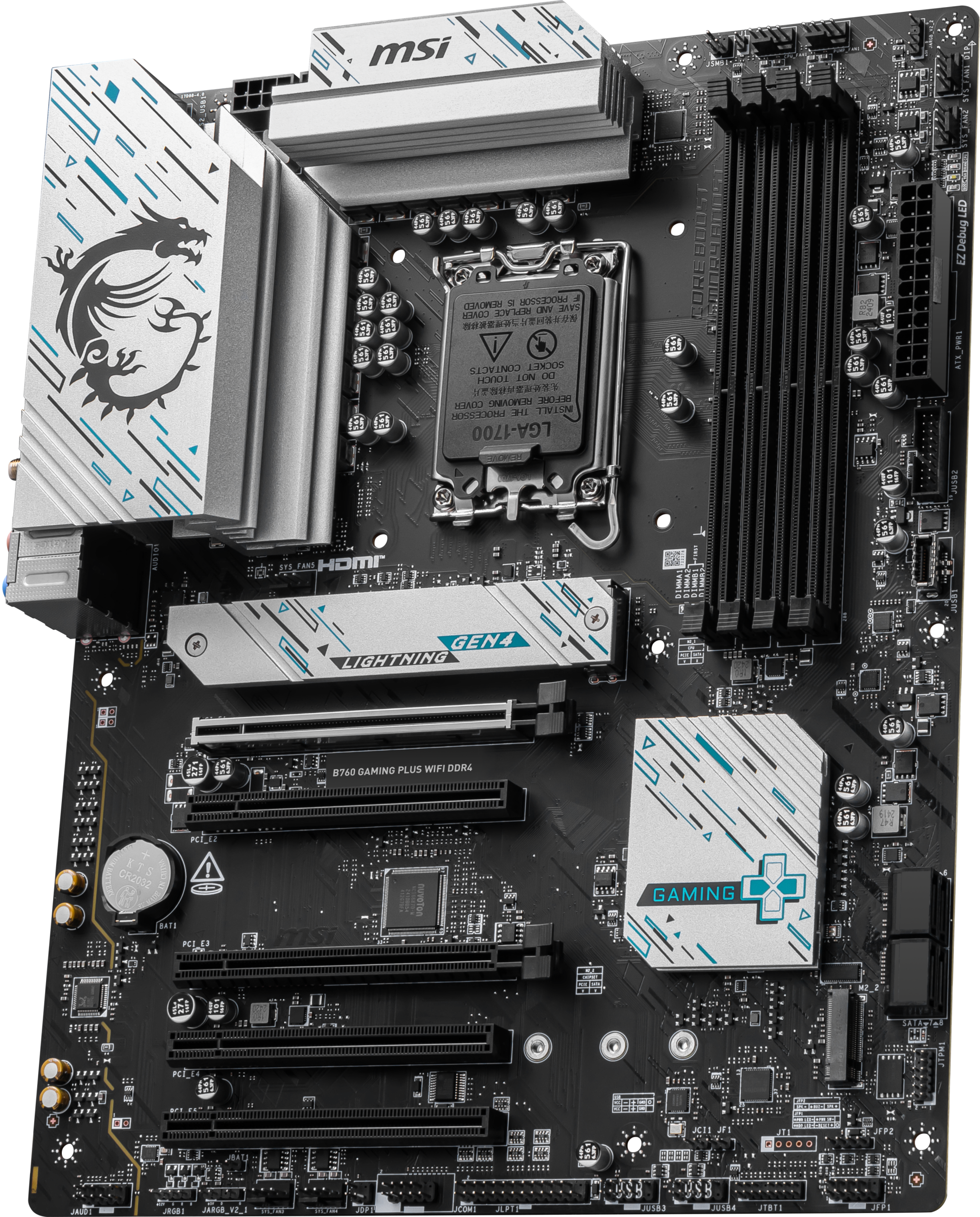

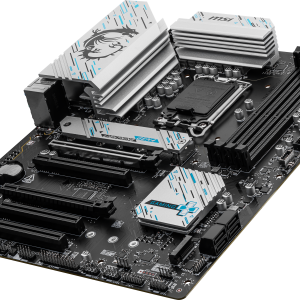

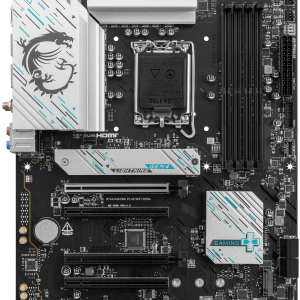

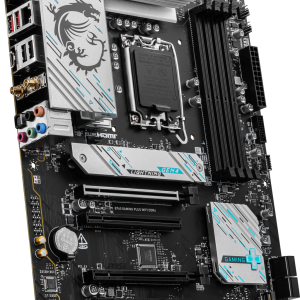

The MSI B760 Gaming Plus WiFi ATX motherboard with Intel B670 chipset in detail
The MSI B760 Gaming Plus WiFi is an ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is compatible with 12th, 13th, and 14th generation desktop processors. Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR4 memory up to 5,333 MHz and, thanks to its outstanding power delivery, is ideal for RAM overclocking.

Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1700
– Motherboard
– Motherboard Chipset
– Intel B760
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 128 GB
– Memory Type
– – DDR4
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 3200 MT/s
– Max. Memory Speed (OC)
– 5333 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 6E
– Bluetooth Standard
– 5.3
– Cooling
– Backplate
– Yes
– M.2 Heatsink
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU power supply
– 1x 4-pin + 1x 4+4-pin
