MSI Pro B760M-P, Socket LGA 1700, Intel B760M, Micro-ATX - DDR4

– 1x PCIe 4.0 x16 (x16), 2x PCIe 4.0 x1
– DDR4 memory up to 3200 MHz, with RAM overclocking up to 4800 MHz
– 2x M.2 slots, including 2x PCIe 4.0
– USB on the I/O panel: 1x USB-C 3.1, 1x USB 3.0, and 4x USB 2.0
– A total of 3 connectors for fans and pumps

The MSI Pro B760M-P DDR4 Micro-ATX motherboard with Intel B670 chipset in detail
The MSI Pro B760M-P DDR4 is a Micro-ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core desktop processors, codenamed Alder Lake and Raptor Lake. It supports DDR4 memory up to 4800 MHz and, thanks to its outstanding power supply, is ideal for RAM overclocking.

Note: This motherboard supports DDR4 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboard BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Format:
– Micro-ATX (244 x 244 mm)
– Chipset:
– Intel B760
– Socket:
– LGA 1700 (for Intel 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 4x DDR4 (3200 MHz, up to 4800 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 2x PCIe 4.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2242-2280, CPU)
– 1x M.2 (PCIe 4.0 x4 and SATA, 2242-2280, chipset)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Front Panel Audio Header
– 2x System Panel Headers
– 1x Trusted Platform Module Header (TPM2.0)
– 1x Chassis Intrusion Header
– 1x Serial (COM) Port Header
– 1x LPT Header
– Fan Header:
– 1x CPU Fan (4-pin)
– 2x Chassis Fan (4-pin)
– RGB Header:
– 1x RGB Header (4-pin, 12 V)

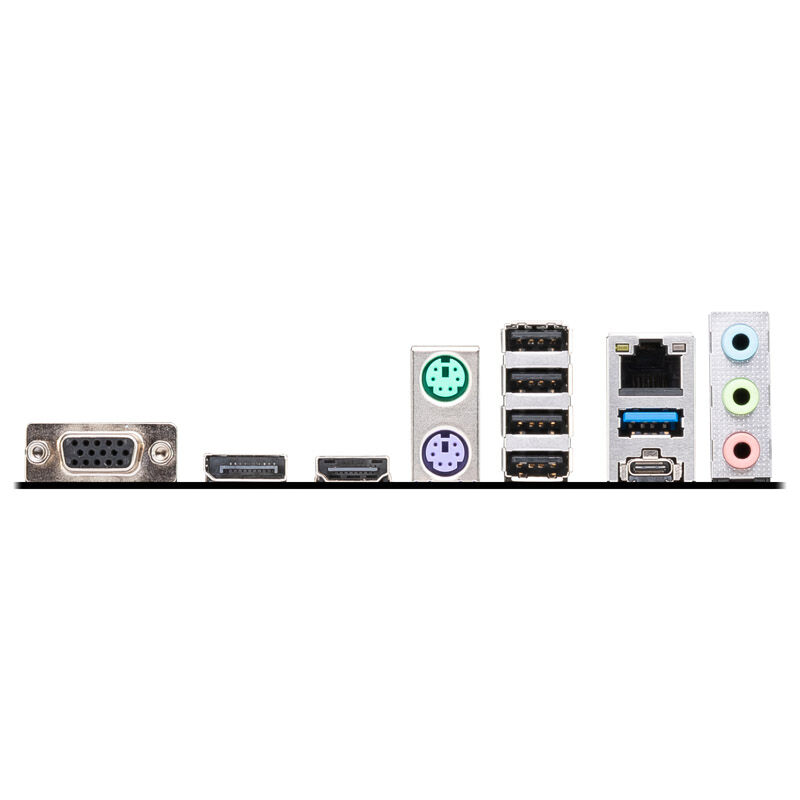

– External Connectors:
– 2x PS/2 for keyboard and mouse
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x VGA
– 1x HDMI 1.4
– 1x DisplayPort 1.4
– 1x RJ-45 (max. 1 Gbit/s, Realtek RTL8111H)
– 3x 3.5 mm jack (Realtek ALC897 7.1)
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
