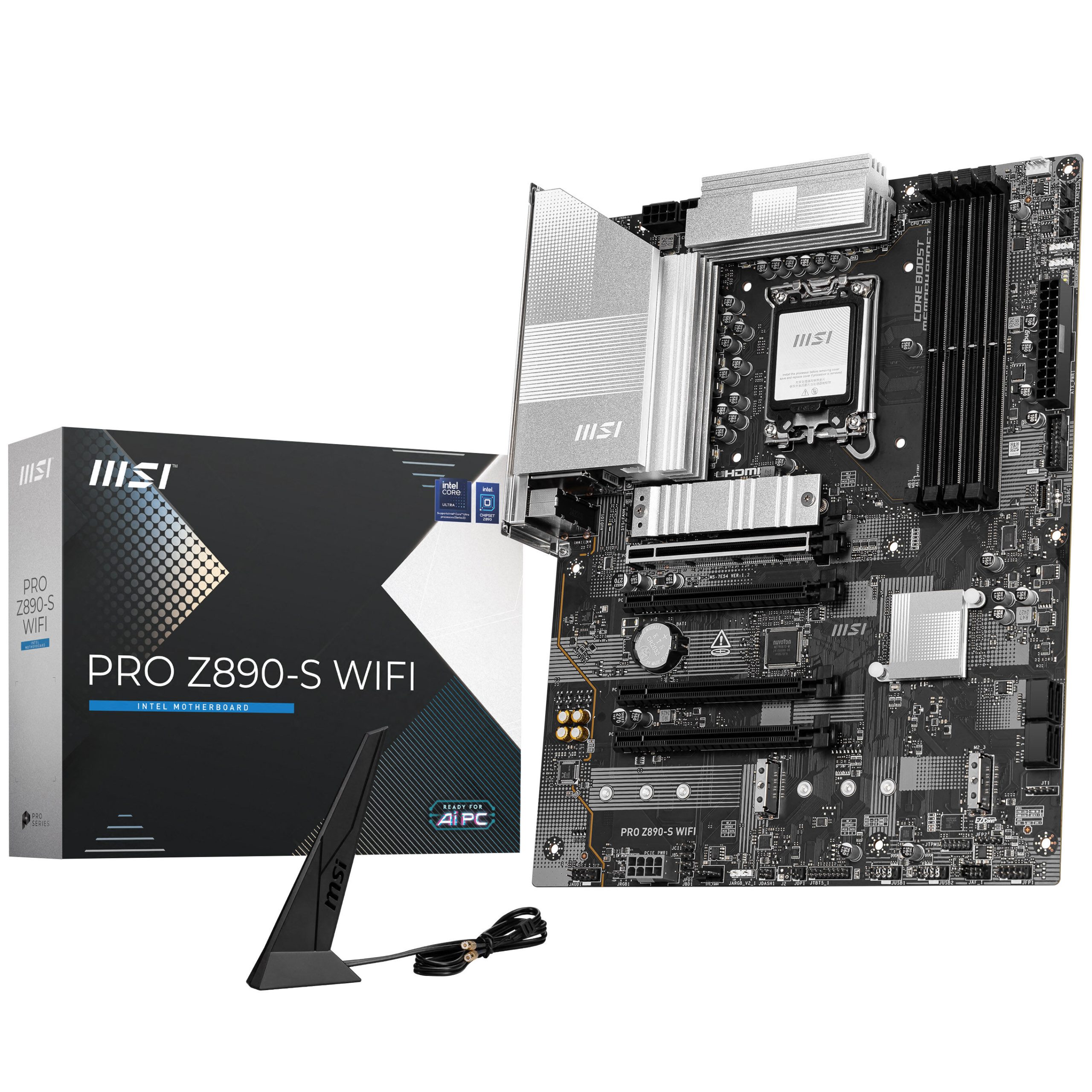

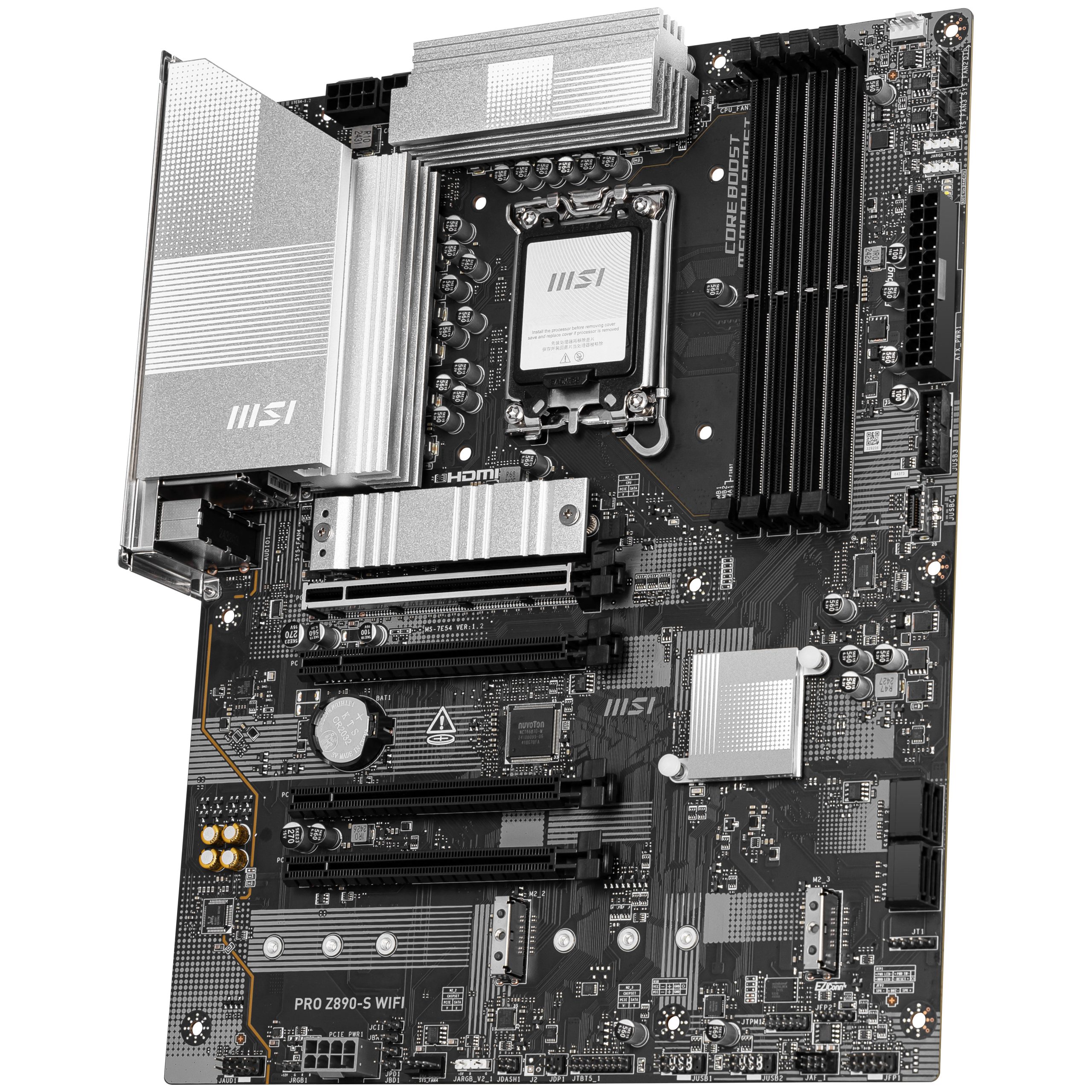

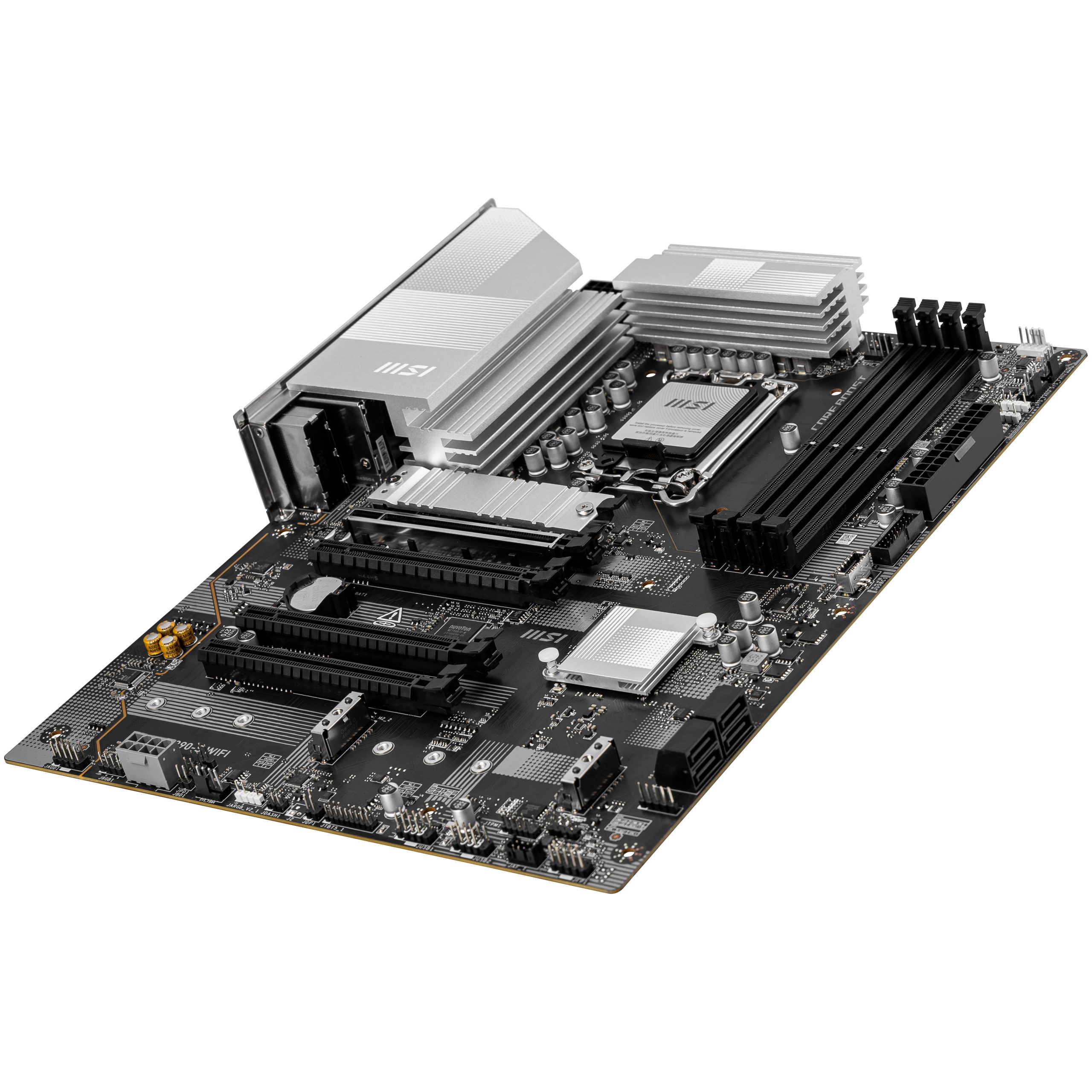

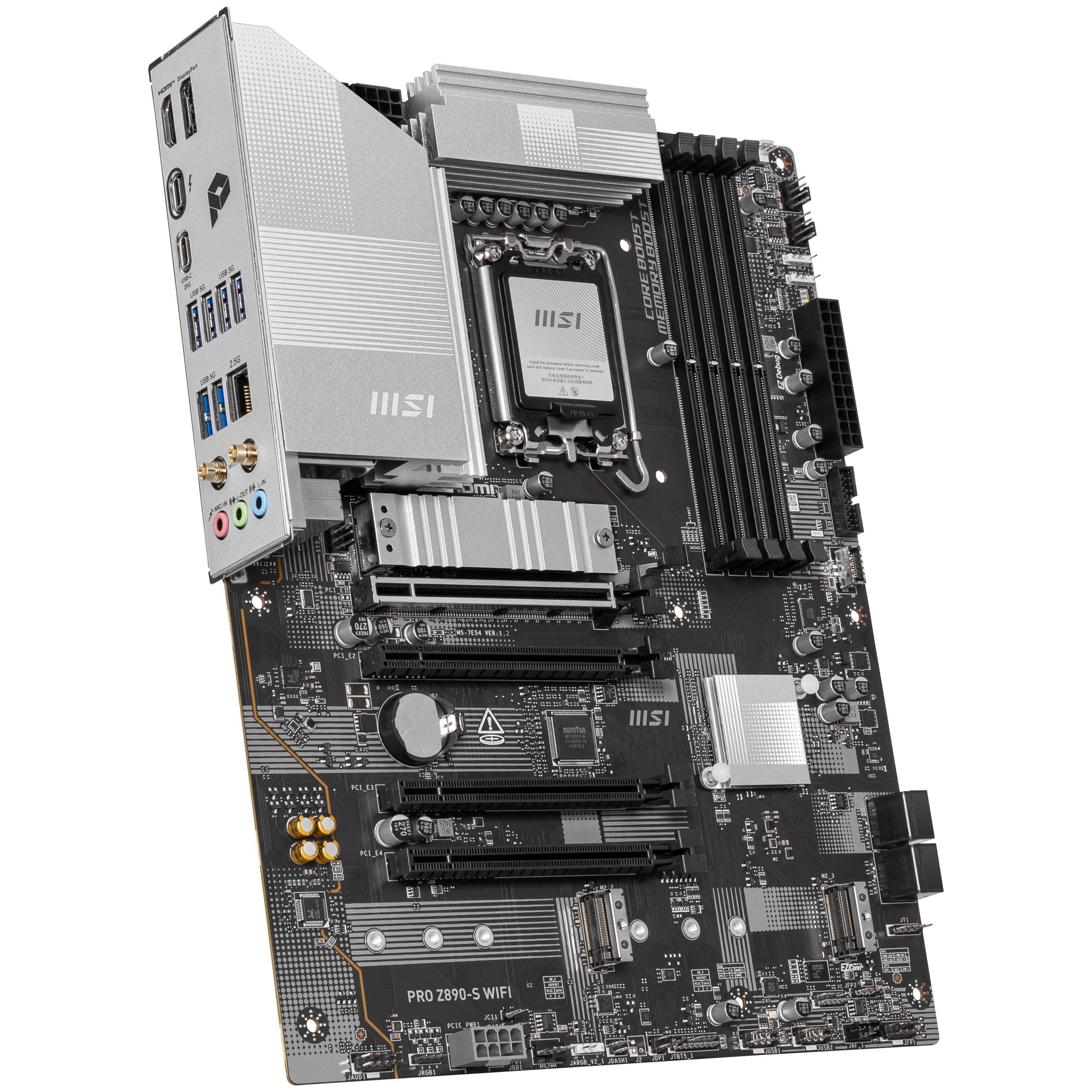

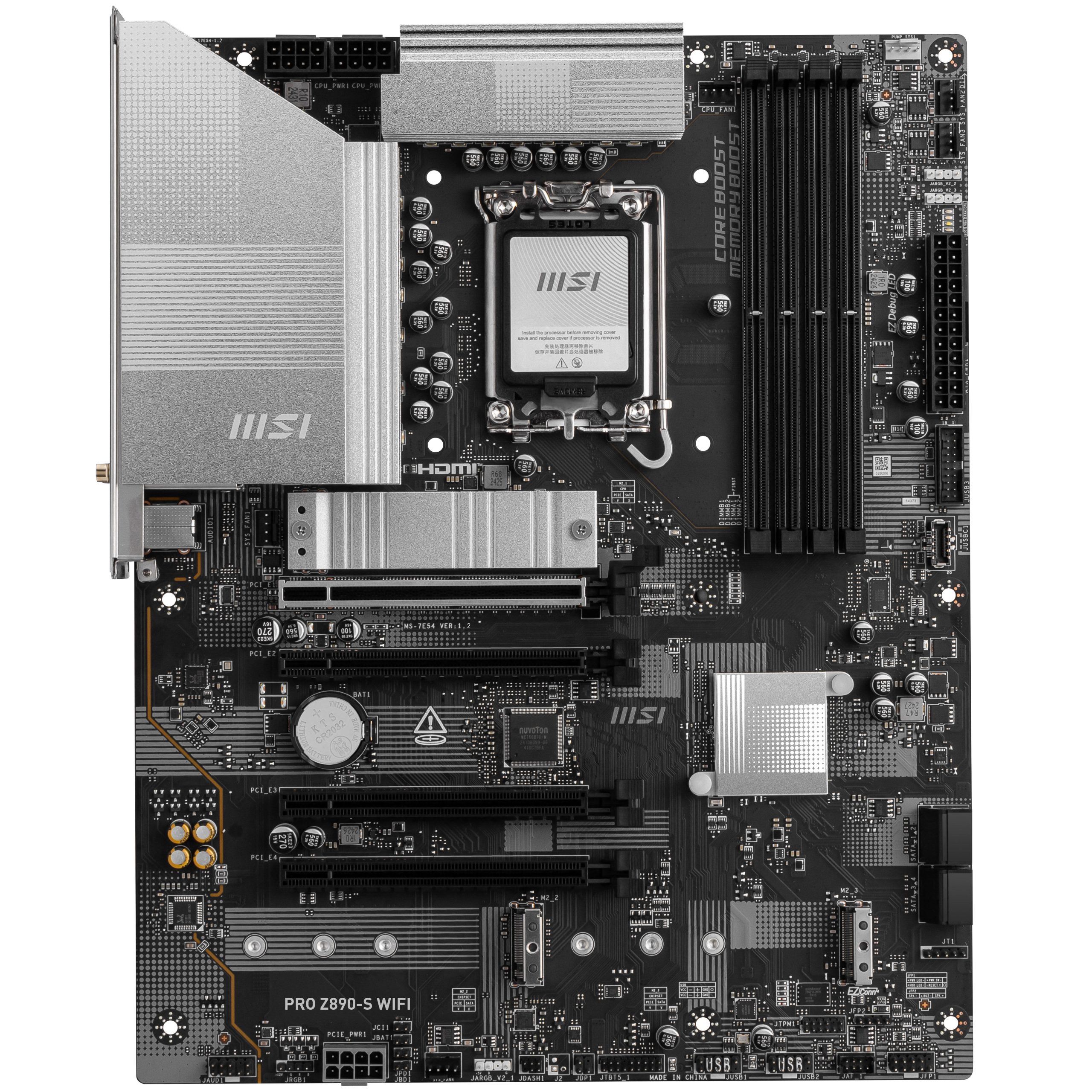

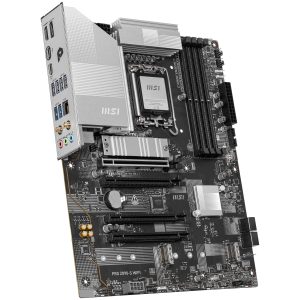

MSI PRO Z890-S WIFI motherboard, Socket 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for gaming enthusiasts.

– 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16 (x4) and 1x PCIe 3.0 x16 (x1)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8600 MHz
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

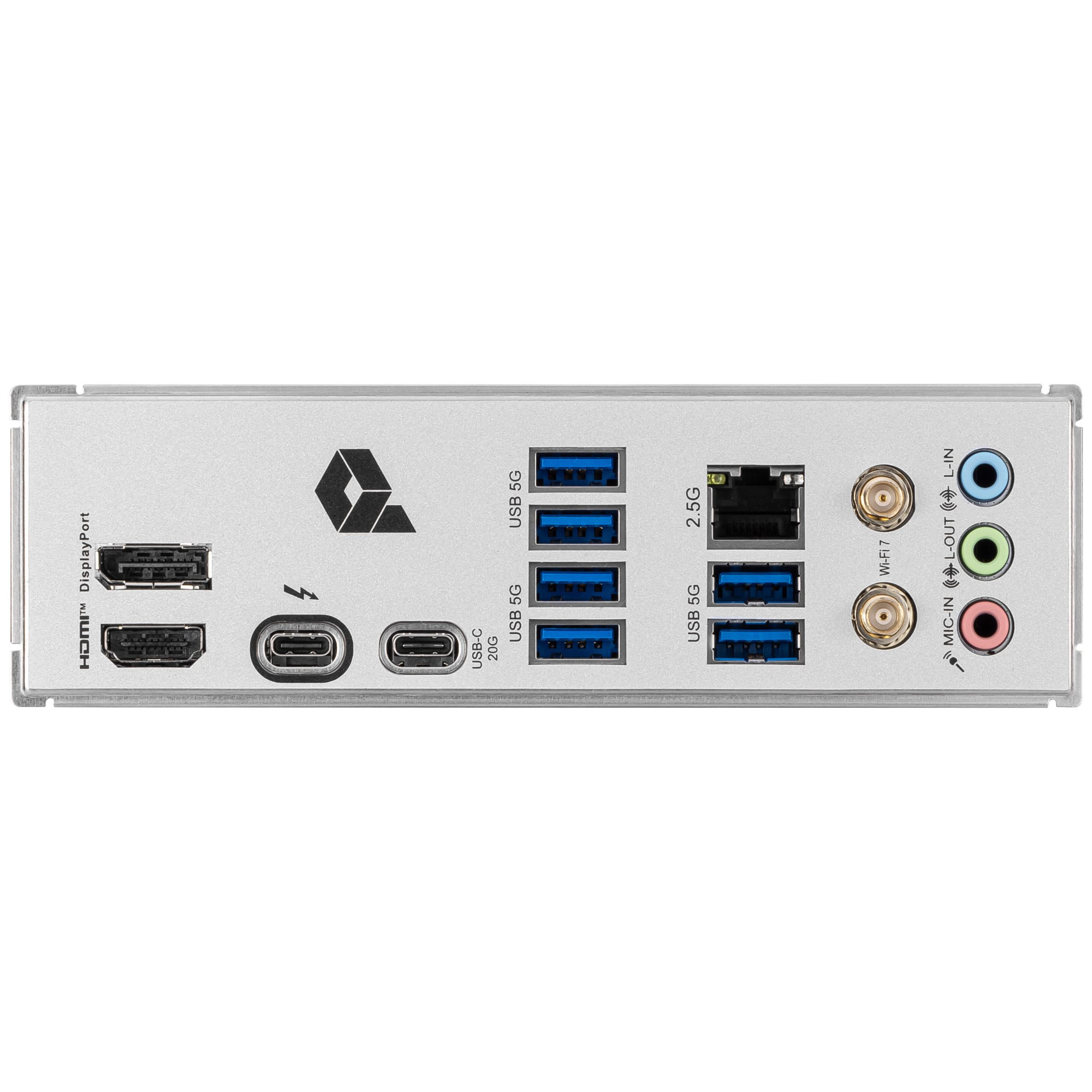

– USB on the I/O panel: 1x Thunderbolt 4, 1x USB-C 3.2, 6x USB 3.0
– A total of 6x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

MSI PRO Z890-S WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The MSI PRO Z890-S WIFI is an ATX motherboard with The high-end Intel Z890 chipset and the LGA 1851 socket support second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the MSI PRO Z890-S WIFI boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Silver
– Dimensions
– Length / Depth
– 243.8 mm
– Width
– 304.8 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel Z890
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 8600 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbit/s
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
— Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) Possible Connectors
– 2
– USB 2.0 (internal) Header
– 2
– USB 2.0 (internal) Possible Connectors
– 4
– RGB / LED Connectors
– 1x RGB (4-pin 5050 12VGRB), 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes
– External Connectors
– USB4 Gen 2×2 (external) Type C
– 1
– USB 3.2 (external) Type-C
– 1
– USB 3.0 (external) Type-A
– 6
– Display Ports
– Display Port (1x), HDMI (1x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 1
– M.2 PCIe 4.0 x4 & SATA 6G
– 1
– M.2 PCIe 5.0 x4
– 1
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 Slots (total)
– 4
– PCIe 5.0 x16 (mechanical)
– 1
– PCIe 4.0 x4 (mechanical)
– 2
– PCIe 3.0 x1 (mechanical)
– 1
– Fan Header
– 4-pin Fan Connectors
– 6
– Audio
– Sound Chip
– Realtek ALC897
– Lighting
– Lighting / RGB
– Yes
