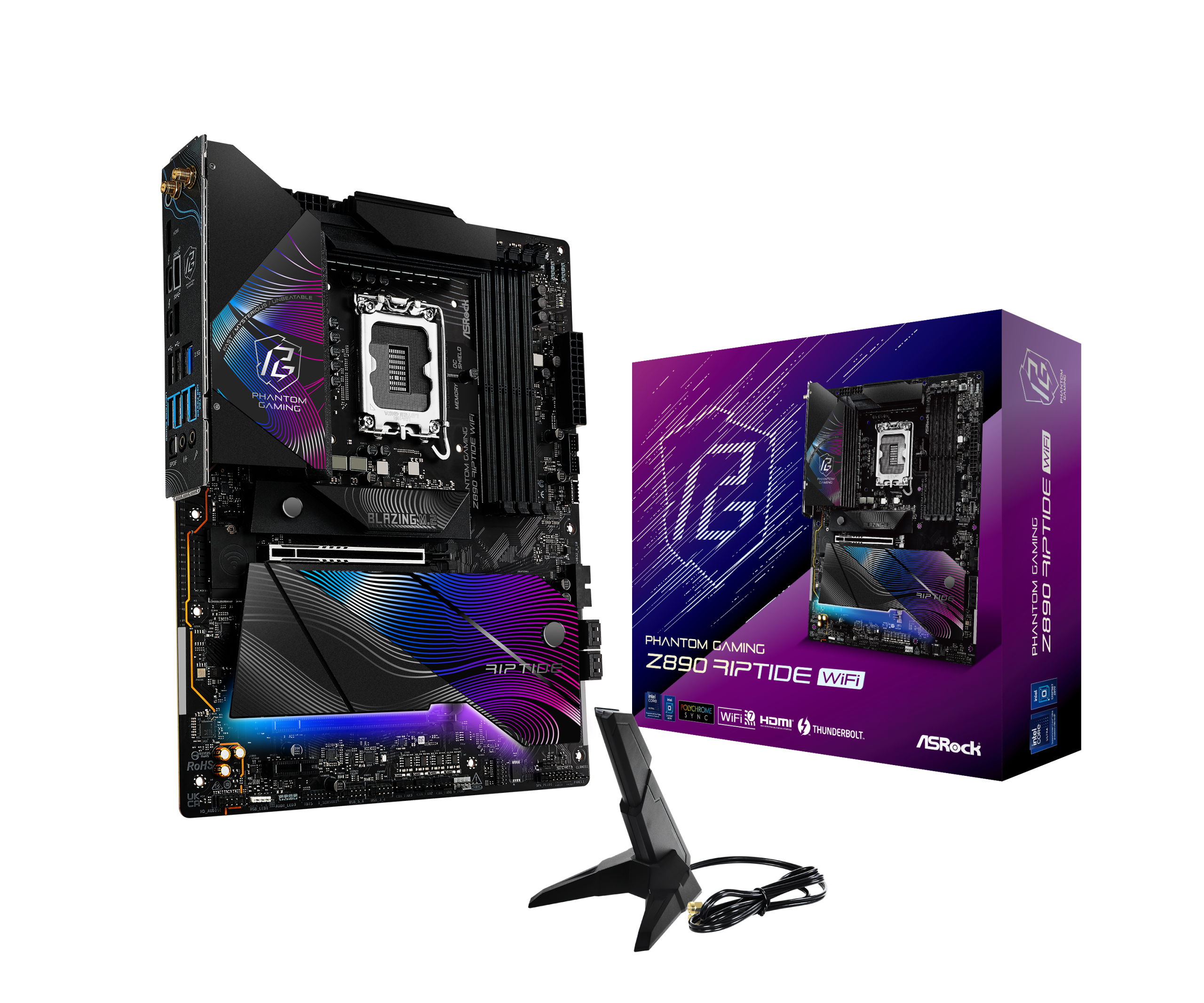

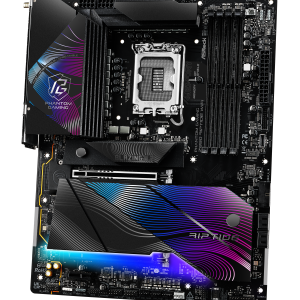

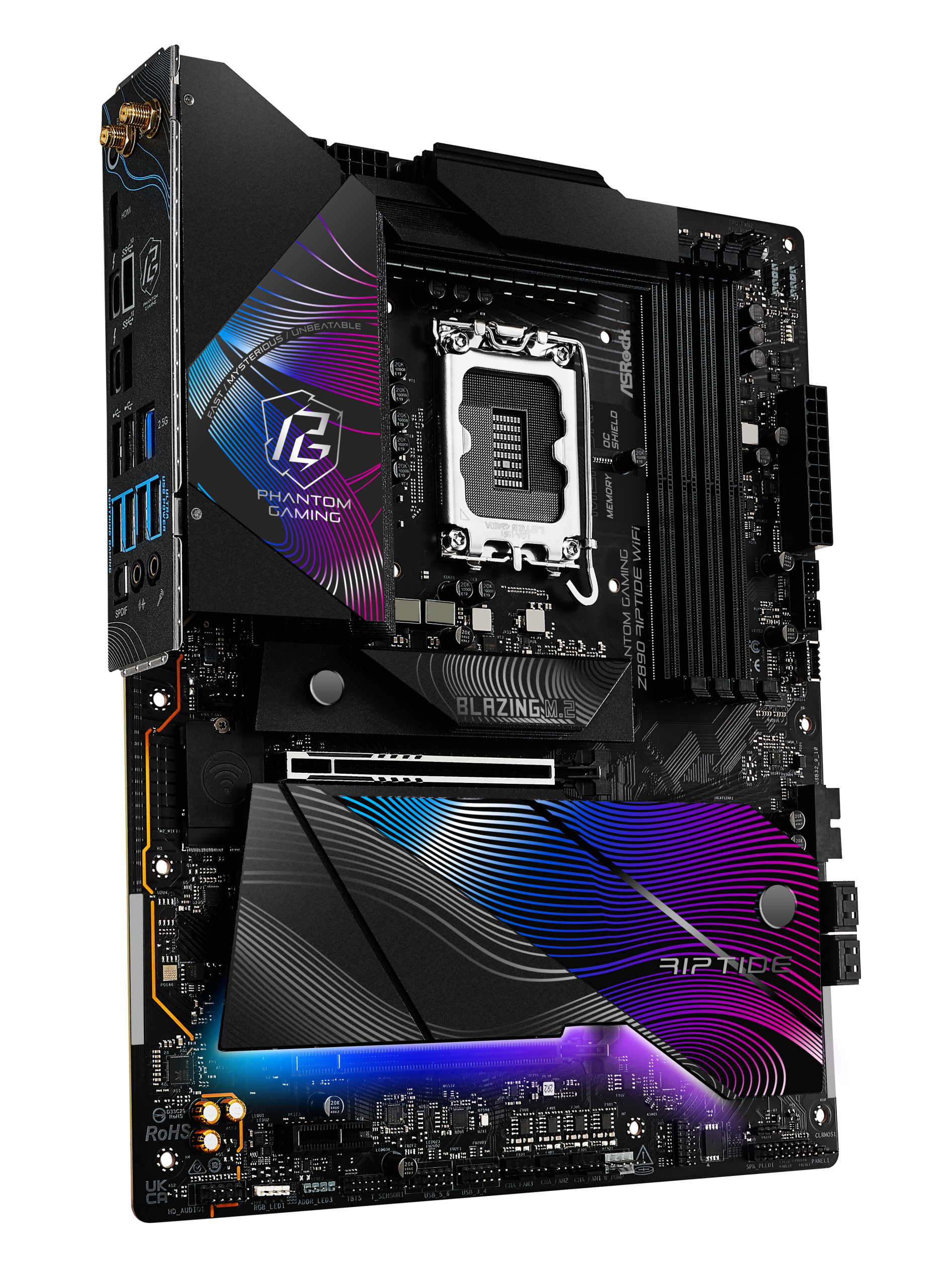

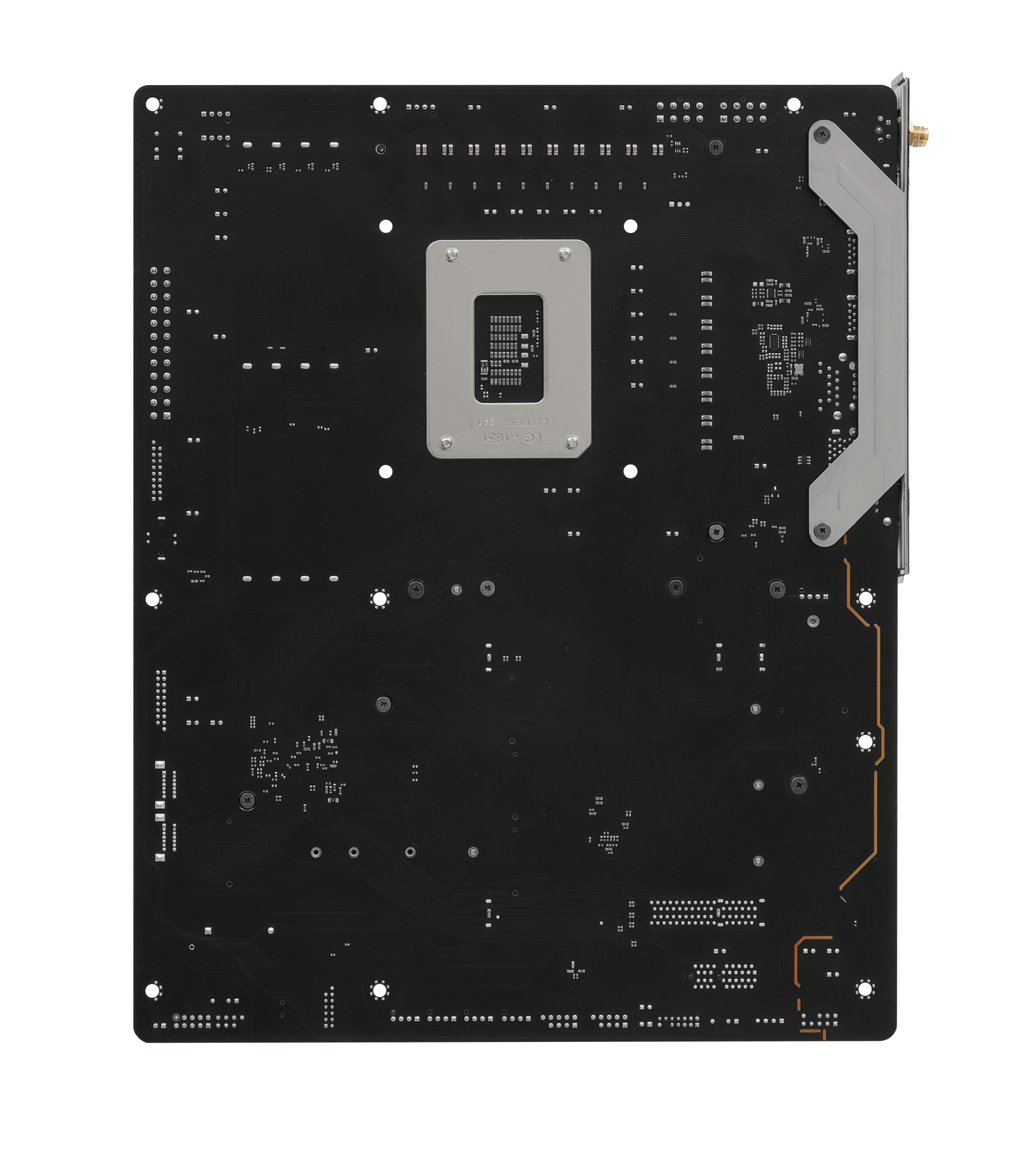

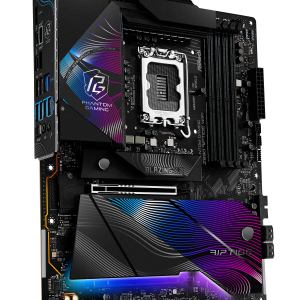

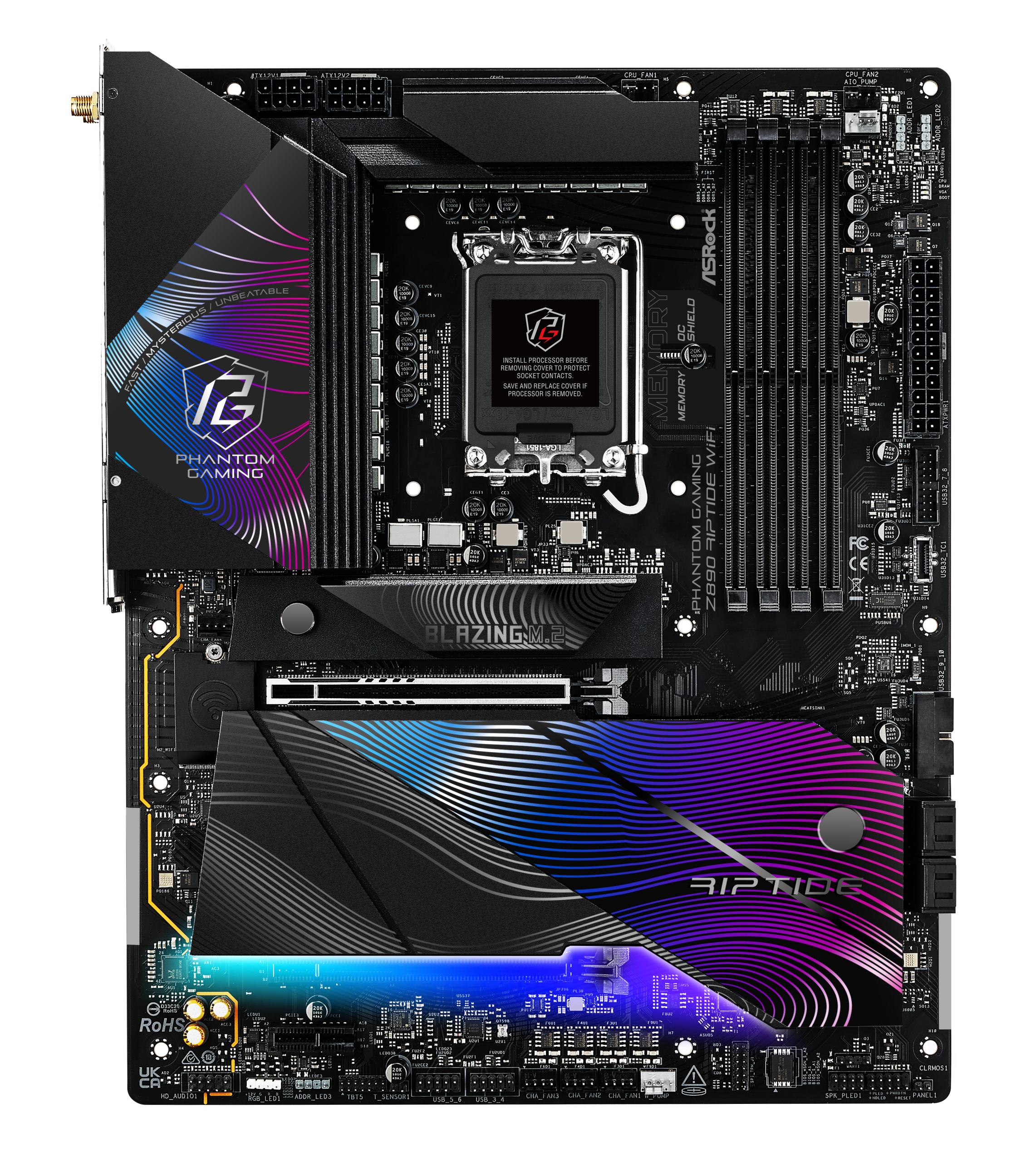

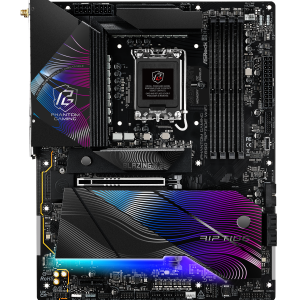

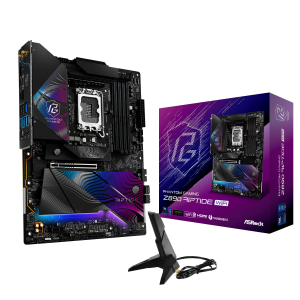

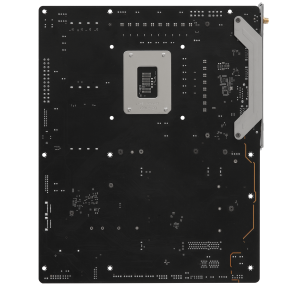

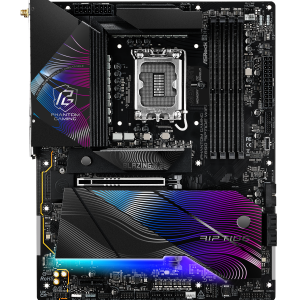

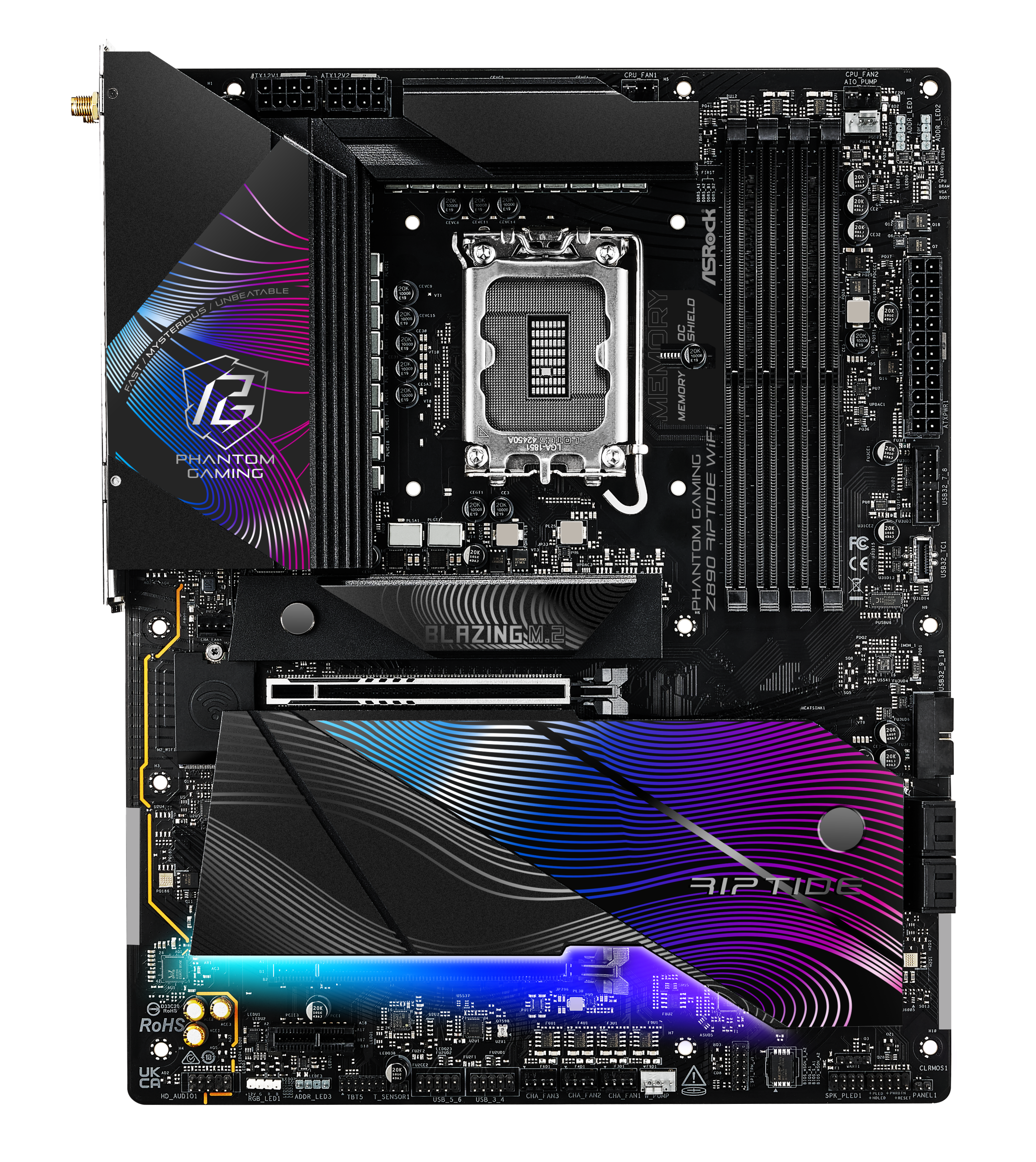

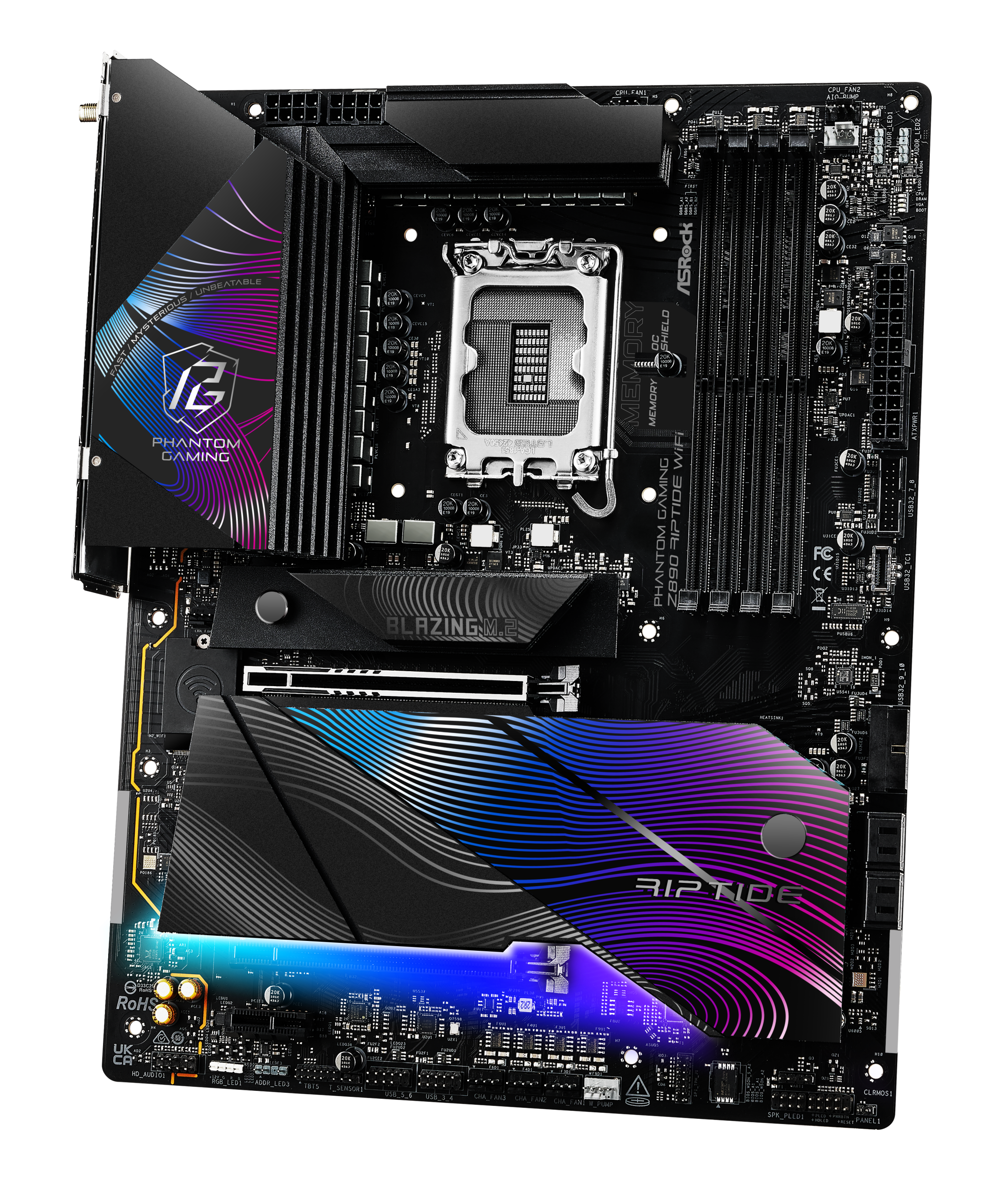

ASRock Z890 Riptide WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for gaming enthusiasts.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x4 (x4), and 1x PCIe 4.0 x1
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9066 MHz
– 5x M.2 (including 1x PCIe 5.0 and 4x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt, 2x USB 3.1, 4x USB 3.0, and 2x USB 2.0
– OC features: 18+1+1+1+1 phase VRMs
– Total of 8x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

ASRock Z890 Riptide WiFi: ATX motherboard with Intel LGA 1851 socket and Z890 Chipset
The ASRock Z890 Riptide WiFi is an ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASRock Z890 Riptide WiFi boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for Demanding Gaming
The ASRock Z890 Riptide WiFi is specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruptions. The premium voltage converters ensure a stable power supply to the CPU, ensuring reliable operation even at high clock speeds for extended periods. DDR5 RAM can also be overclocked to higher clock speeds.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMMs (up to 9066 MHz via OC / XMP 3.0)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x4 (electrical x4, chipset)
– 1x PCIe 4.0 x1 (chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– – 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 2x M.2 (PCIe 4.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2230 / 2242 / 2260 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x4; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 2x Thunderbolt
– 1x SPI TPM header
– 1x thermistor cable
– 1x Power LED/Speaker Header
– Fan header:
– 2x CPU fan (4-pin)
– 1x AIO pump (4-pin)
– 1x pump (4-pin)
– 4x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x RGB headers

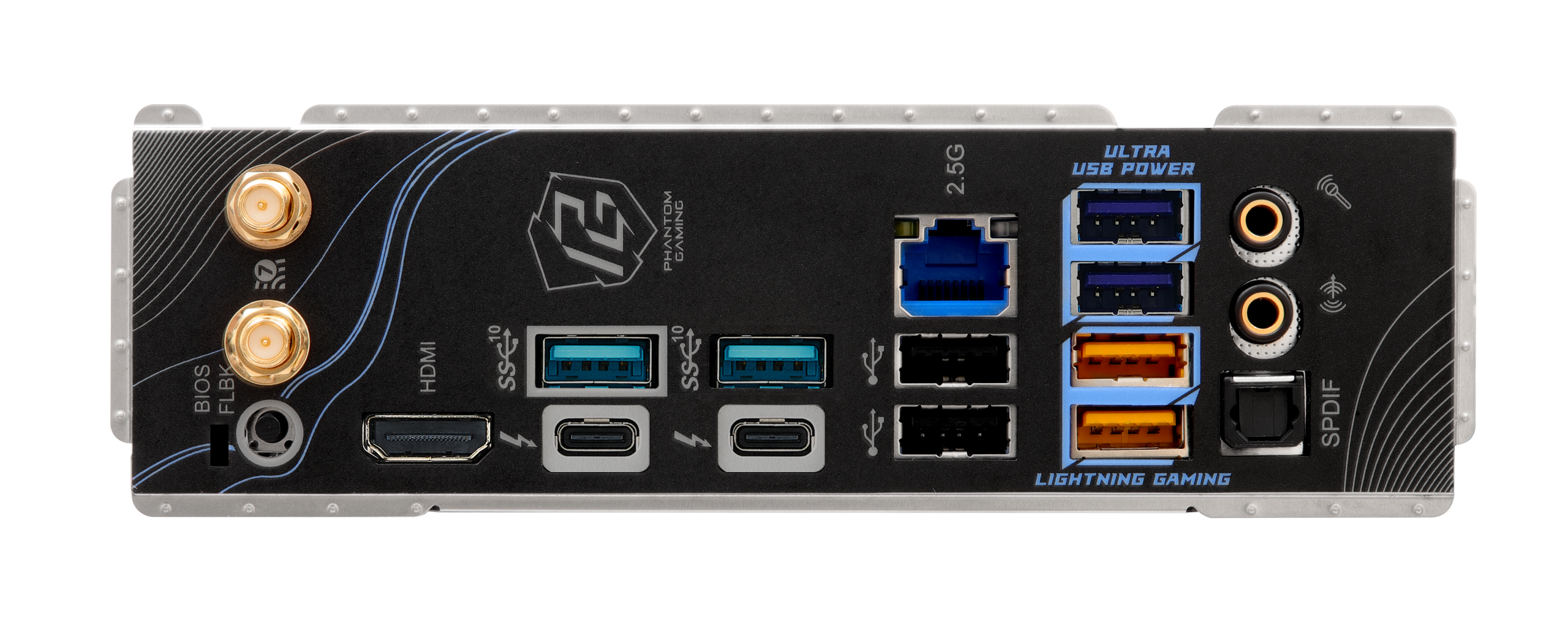

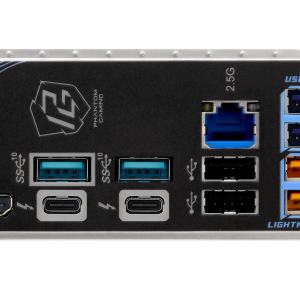

– External connections:
– 2x Thunderbolt (USB-C, max. 40 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1xHDMI
– 1x 2.5 Gigabit LAN (Killer E3100G)
– 2x 3.5 mm jack (Realtek ALC 1220)
– 2x antenna port
– 1x BIOS flashback button
– 1x WiFi/Bluetooth module
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU
– Accessories:
– 2x SATA cables
– 2x antennas
– 1x ARGB splitter cable
– 1x thermistor cable
