MSI B760I Edge WiFi, Socket LGA 1700, Intel B760I, Mini-ITX - DDR5

– 1x PCIe 5.0 x16 (x16)
– DDR5 memory up to 4800 MHz, up to 7200 MHz with RAM overclocking
– 2x M.2 slots with PCIe 4.0 for NVMe SSDs
– USB on the I/O panel: 6x USB 3.0, 2x USB 2.0
– Features: 9 virtual phases
– A total of three connectors for fans and pumps

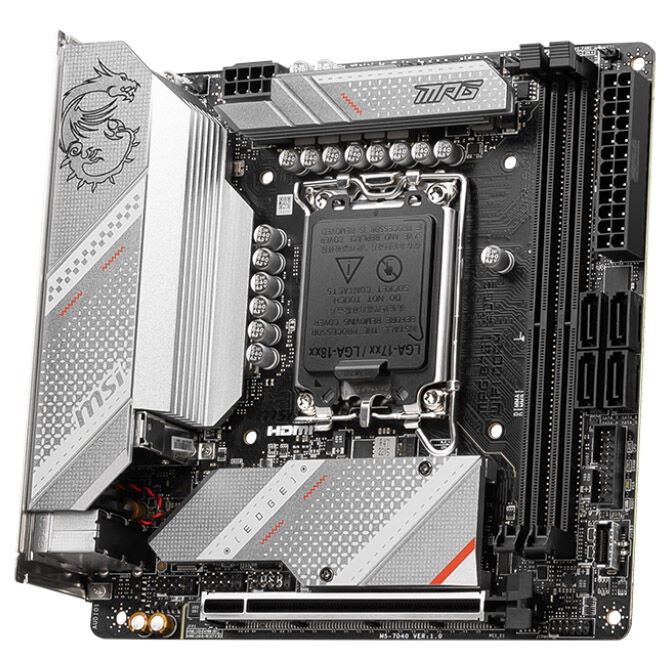

MSI B760I Edge WiFi: Mini-ITX motherboard for Intel Socket 1700
The MSI B760I Edge WiFi is a Mini-ITX motherboard and features a PCI Express 5.0 slot with full x16 connectivity for graphics cards. With the LGA 1700 socket, youre perfectly equipped for powerful Intel processors. The MSI B760I Edge WiFi also supports DDR5 memory up to 7,200 MHz via overclocking.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
– Processor
– Processor Manufacturer: Intel
– Processor Socket: LGA 1700
– Compatible Processors: Intel Celeron, Intel Pentium Gold
– Maximum Number of SMP Processors: 1
– Supported Processor Slots: LGA 1700
– Memory
– Supported Memory: DDR5 SDRAM
– Number of Memory Slots: 2
– – Memory Type: DIMM
– Memory Channels: Dual-Channel
– Non-ECC
– Supported Memory Speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200 5000, 4800 MHz
– Supported memory clock speed (max.) 7200 MHz
– Maximum RAM: 96 GB
– Storage controller
– Supported storage drive interfaces: M.2, SATA III
– RAID support:
– RAID levels 0, 1, 5, 10
– Internal I/O ports
– Number of USB 2.0 ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
– USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
– SATA III ports: 4
– Front panel audio connector
– Front panel connector
– ATX power connector (24-pin)
– CPU fan connector
– TPM connector
– RGB LED header

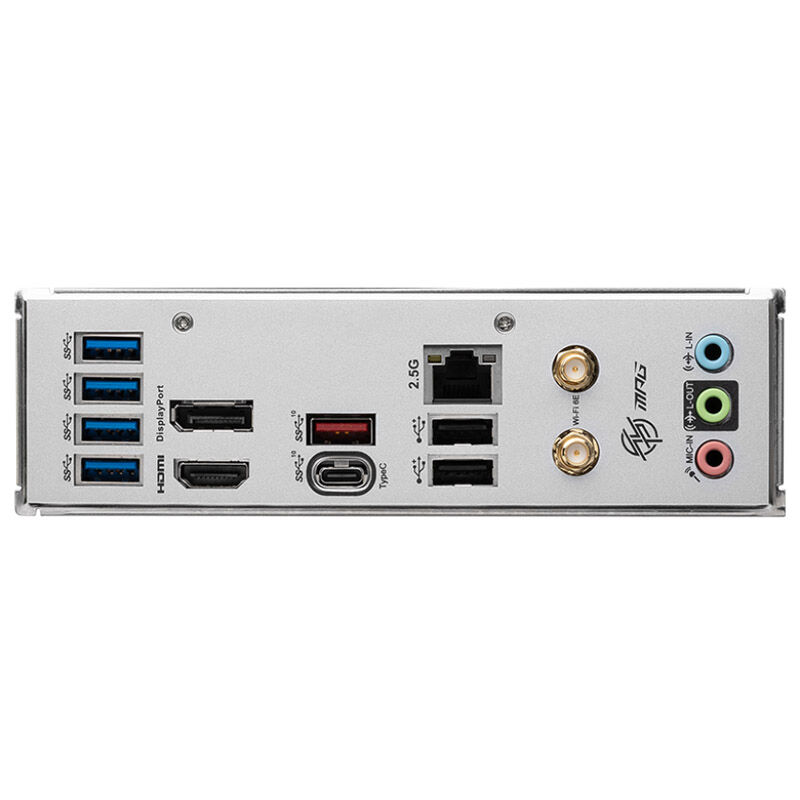

– Rear panel I/O ports
– Number of USB 2.0 ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) number of Type-A ports 4
– USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-A ports: 1
– Rear I/O ports:
– Number of Ethernet LAN ports (RJ-45): 1
– Number of HDMI ports: 2
– HDMI version 2.1
– Number of DisplayPort ports: 1
– DisplayPort version 1.4
– Network
– Built-in Ethernet port:
– Ethernet interfaces: Type 2.5 Gigabit Ethernet
– Wi-Fi
– Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
– Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
– Bluetooth
– Bluetooth version 5.3
