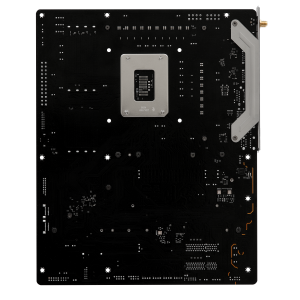

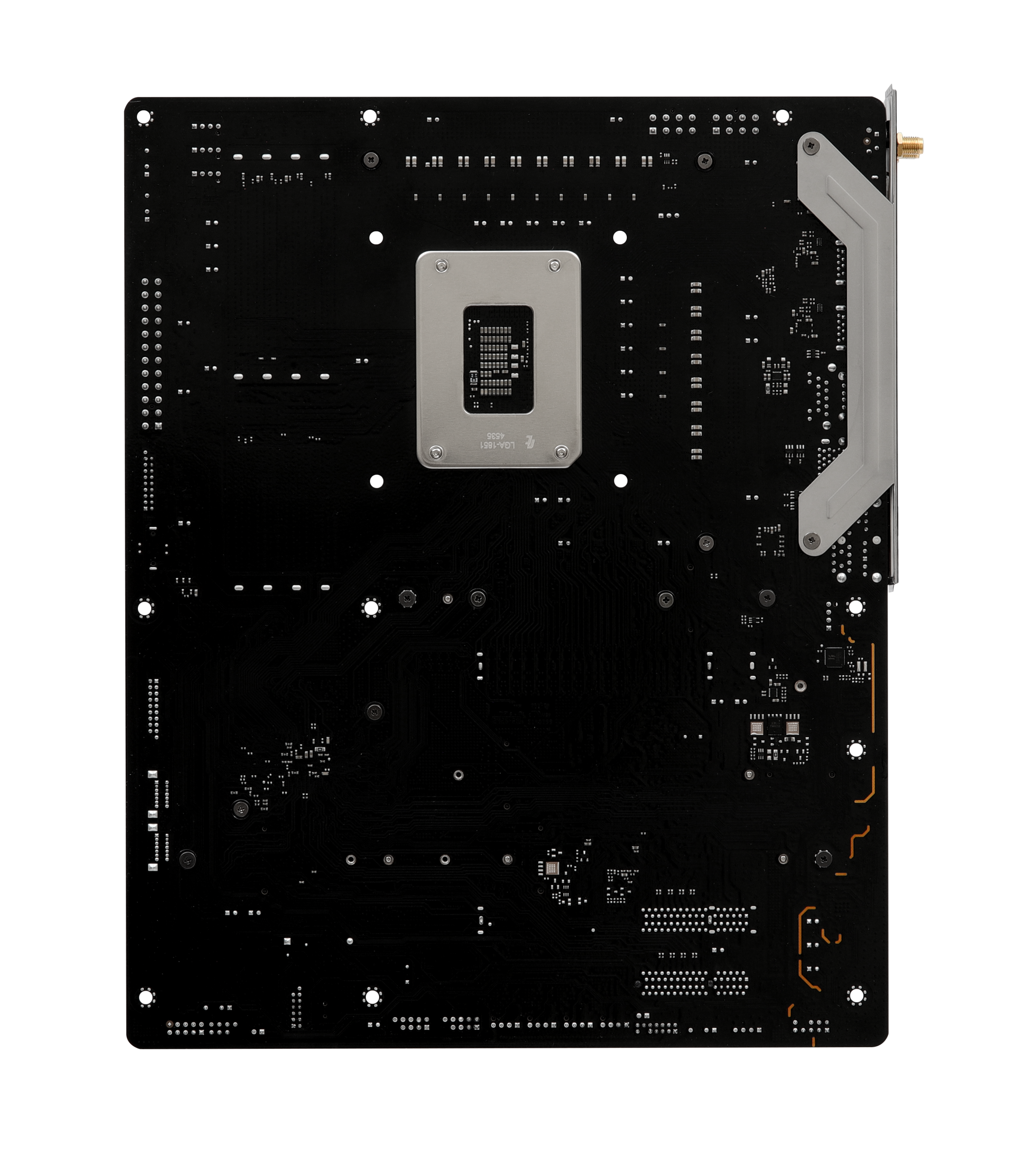

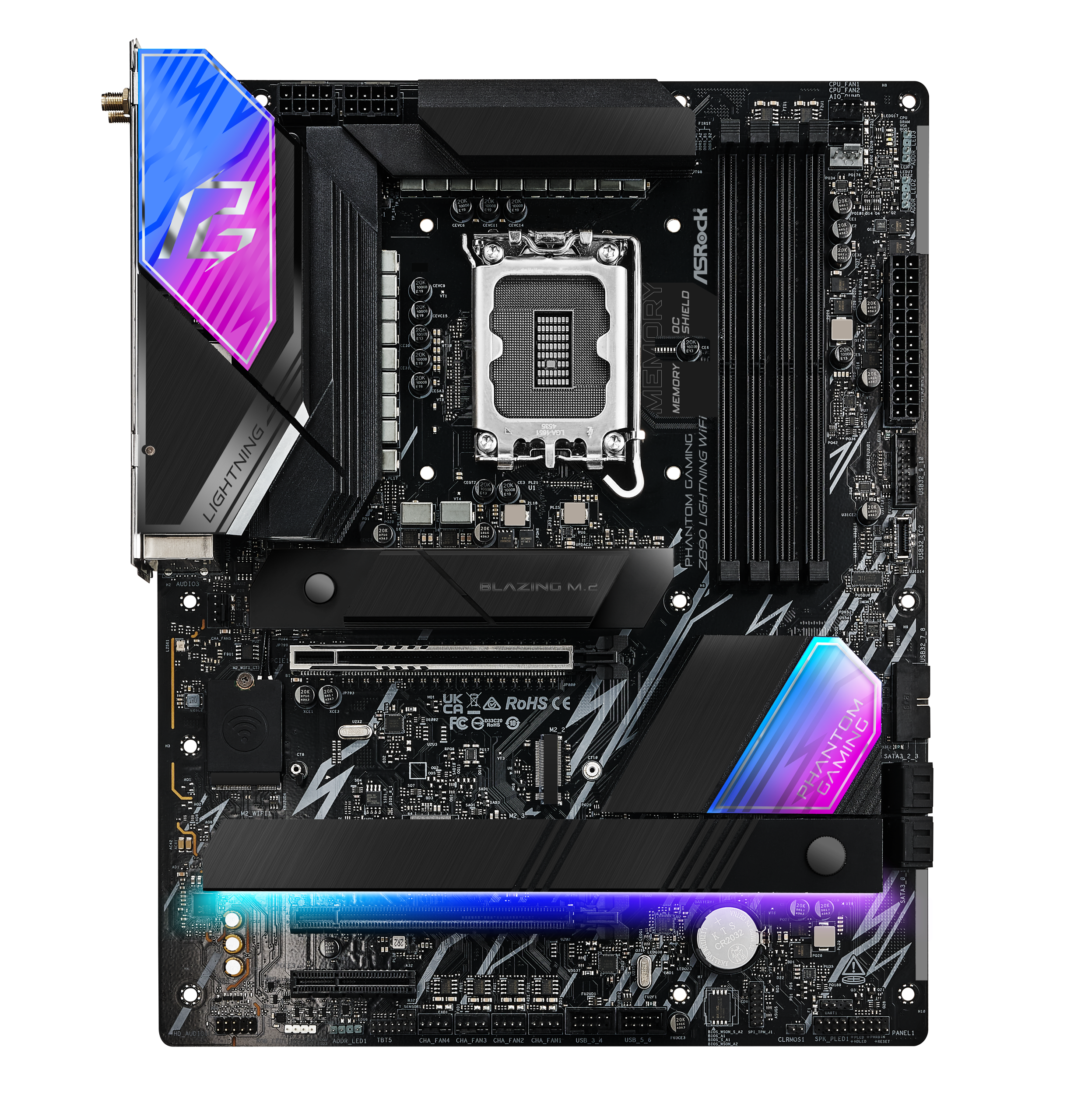

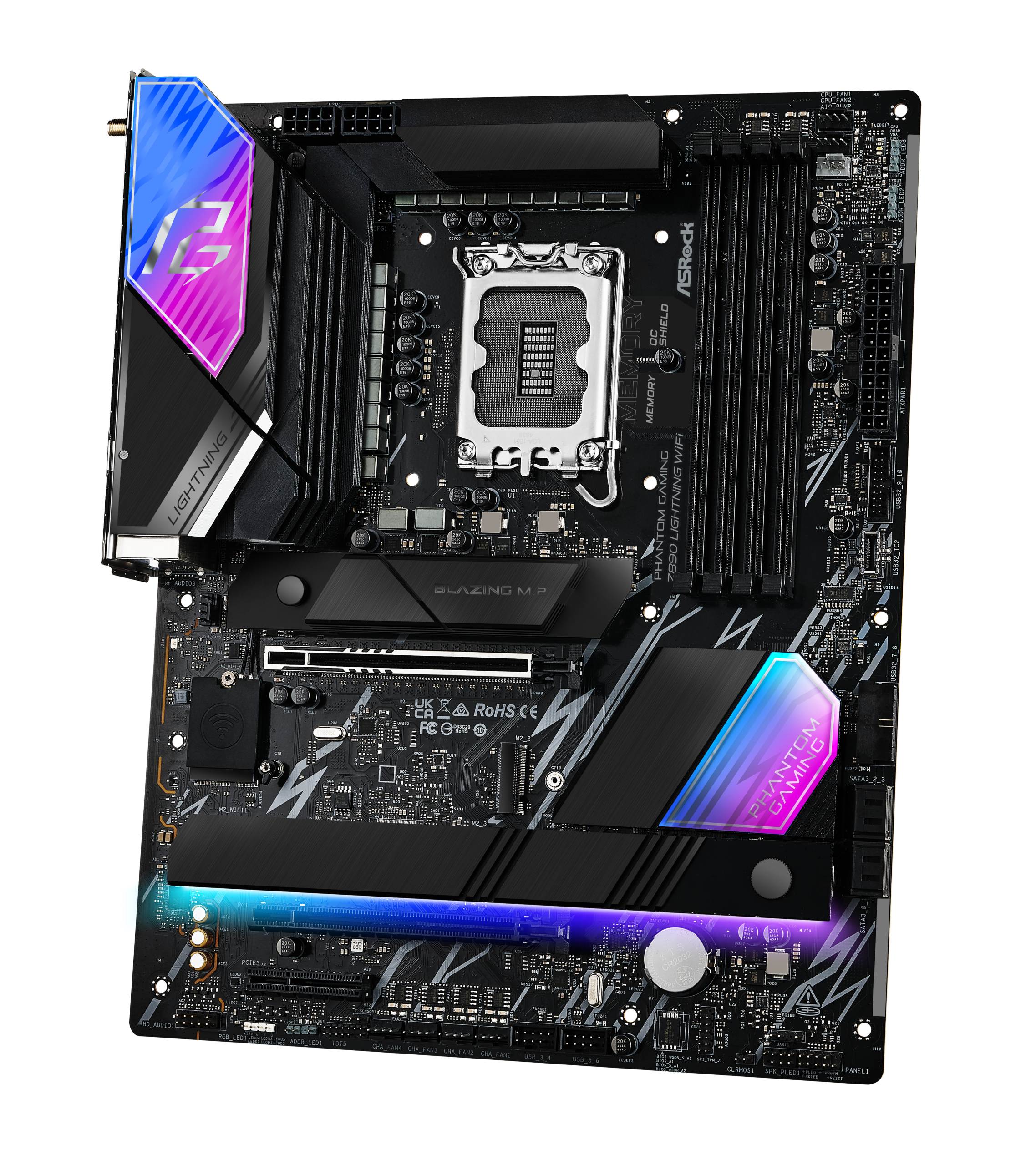

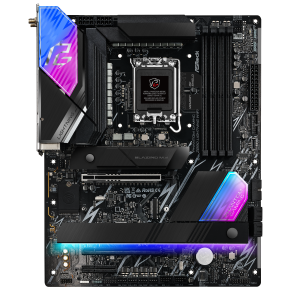

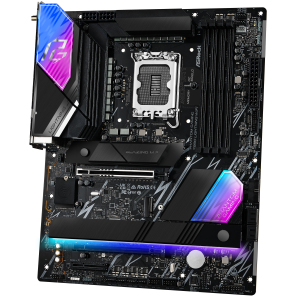

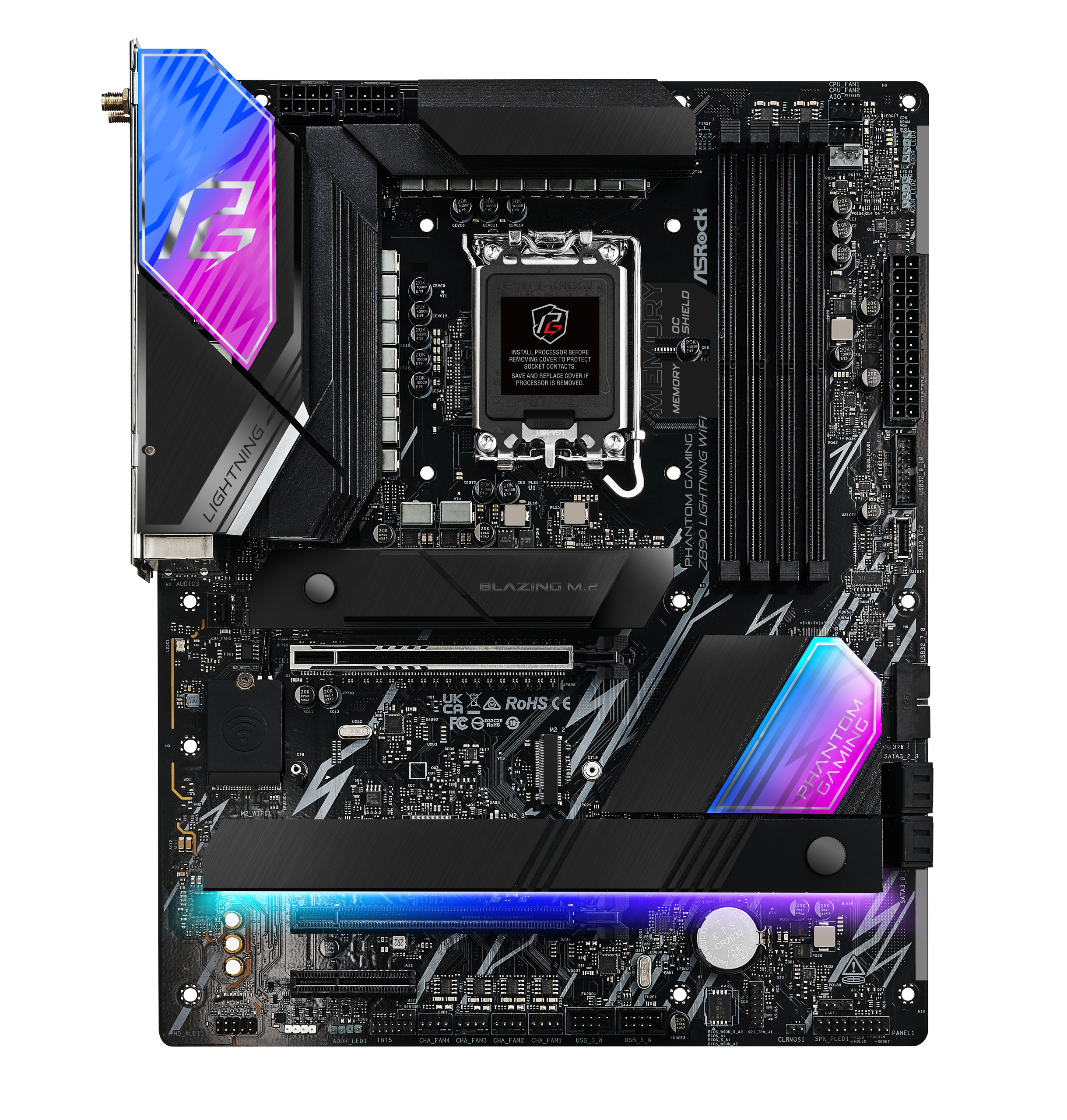

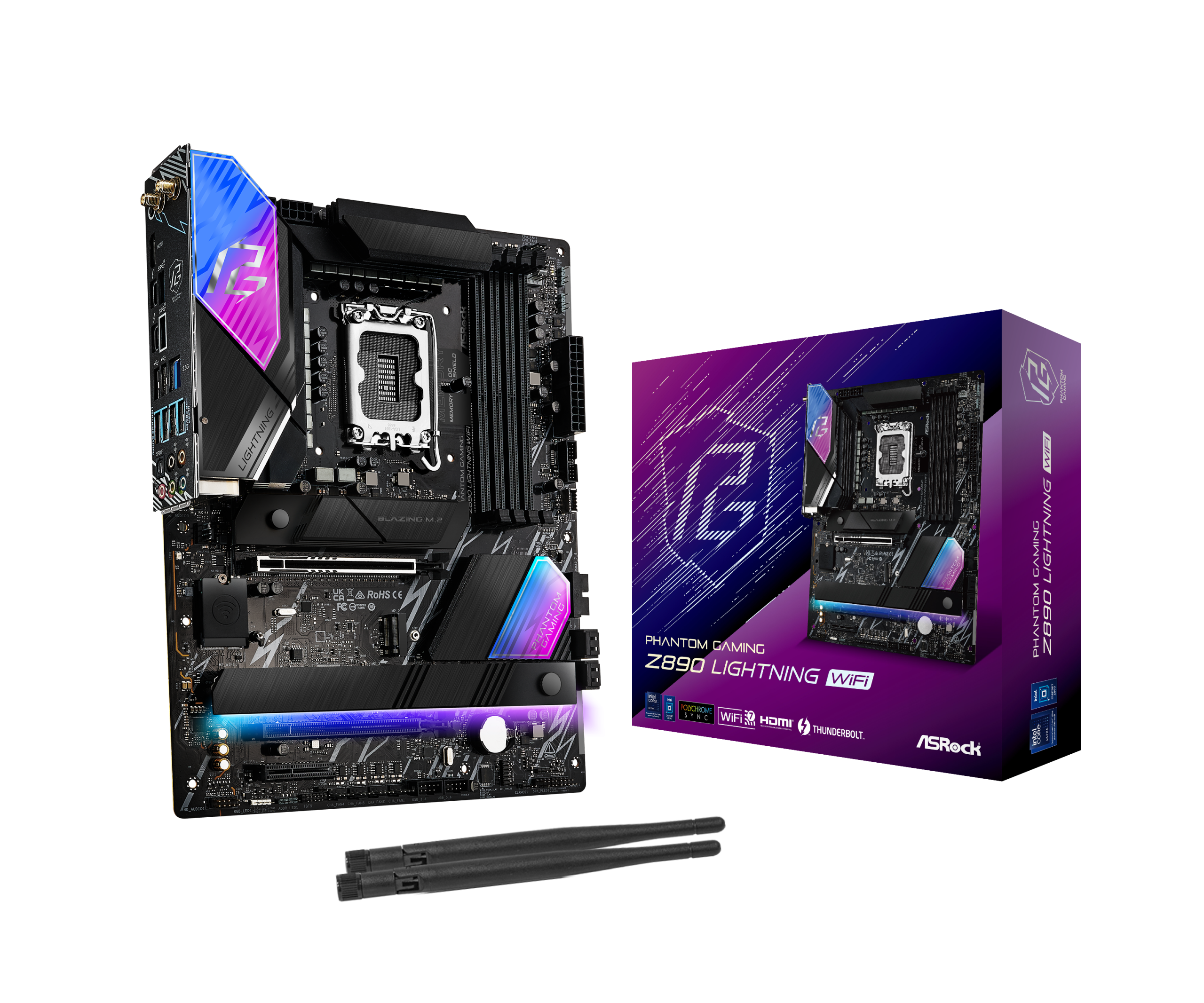

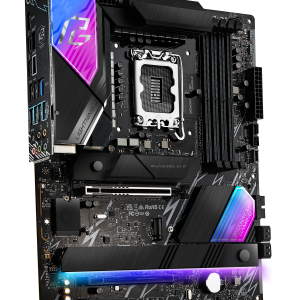

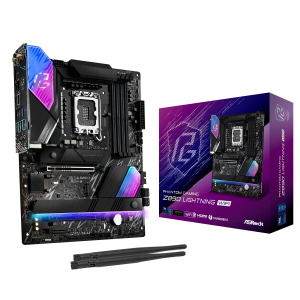

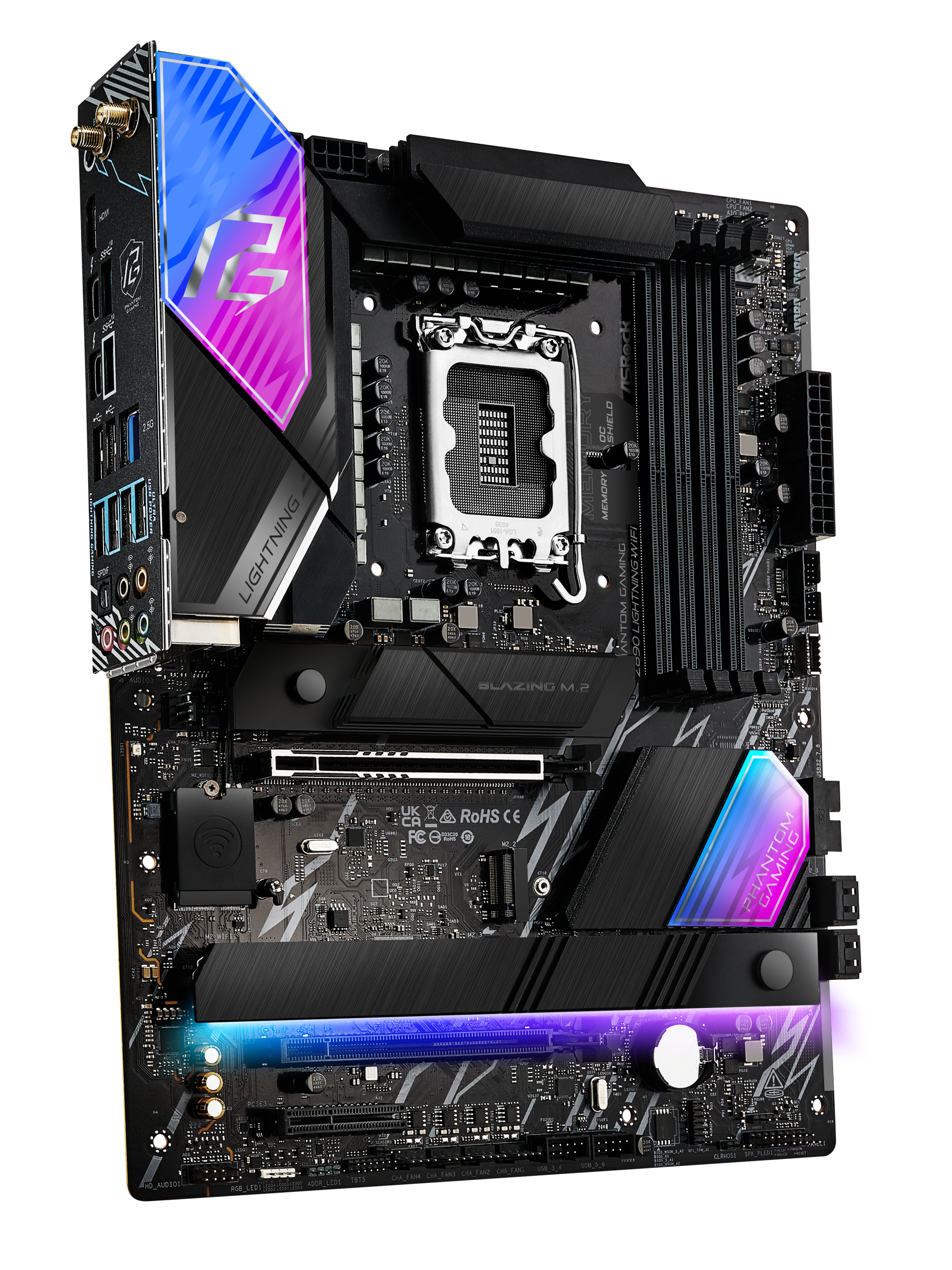

ASRock Z890 Lightning WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for your high-end build.

– 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x16 (x1)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 5600 MHz
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x USB 3.1, 4x USB 3.0, and 2x USB 2.0
– A total of 7x 4-pin connectors for fans and pumps

ASRock Z890 Lightning WiFi: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890 Lightning WiFi is an ATX motherboard with the high-end Intel Z890 chipset and the LGA socket 1851. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASRock Z890 Lightning WiFi boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 5,600 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 4.0 x4 (electrical x1, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2280, chipset)
– 1x M.2 (PCIe 4.0 x4; 2230 / 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 2x Thunderbolt headers
– 1x BIOS flashback button
– 1x SPI TPM header
– 1x Thermistor Cable Header
– 1x Power LED/Speaker Header
– Fan header:
 -2x CPU fan (4-pin)
– 1x AIO pump (4-pin)
– 5x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x RGB headers

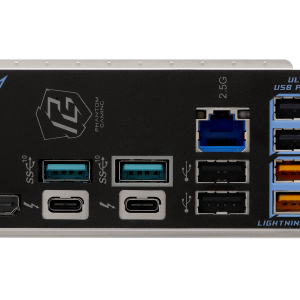

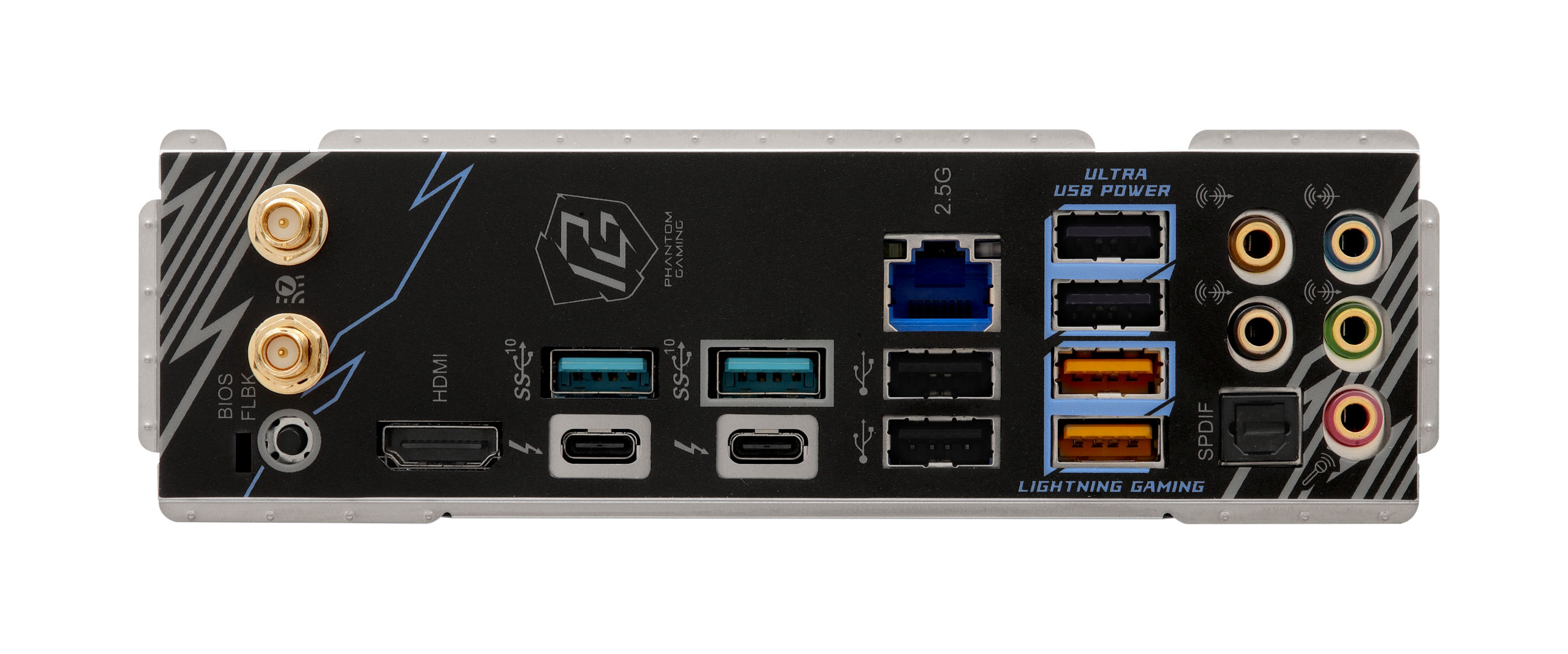

– External connections:
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1xHDMI
– 1x 2.5 Gigabit LAN (Intel I219V)
– 2x 3.5 mm jack (Realtek ALC 1220)
– 1x WiFi/Bluetooth module
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU
