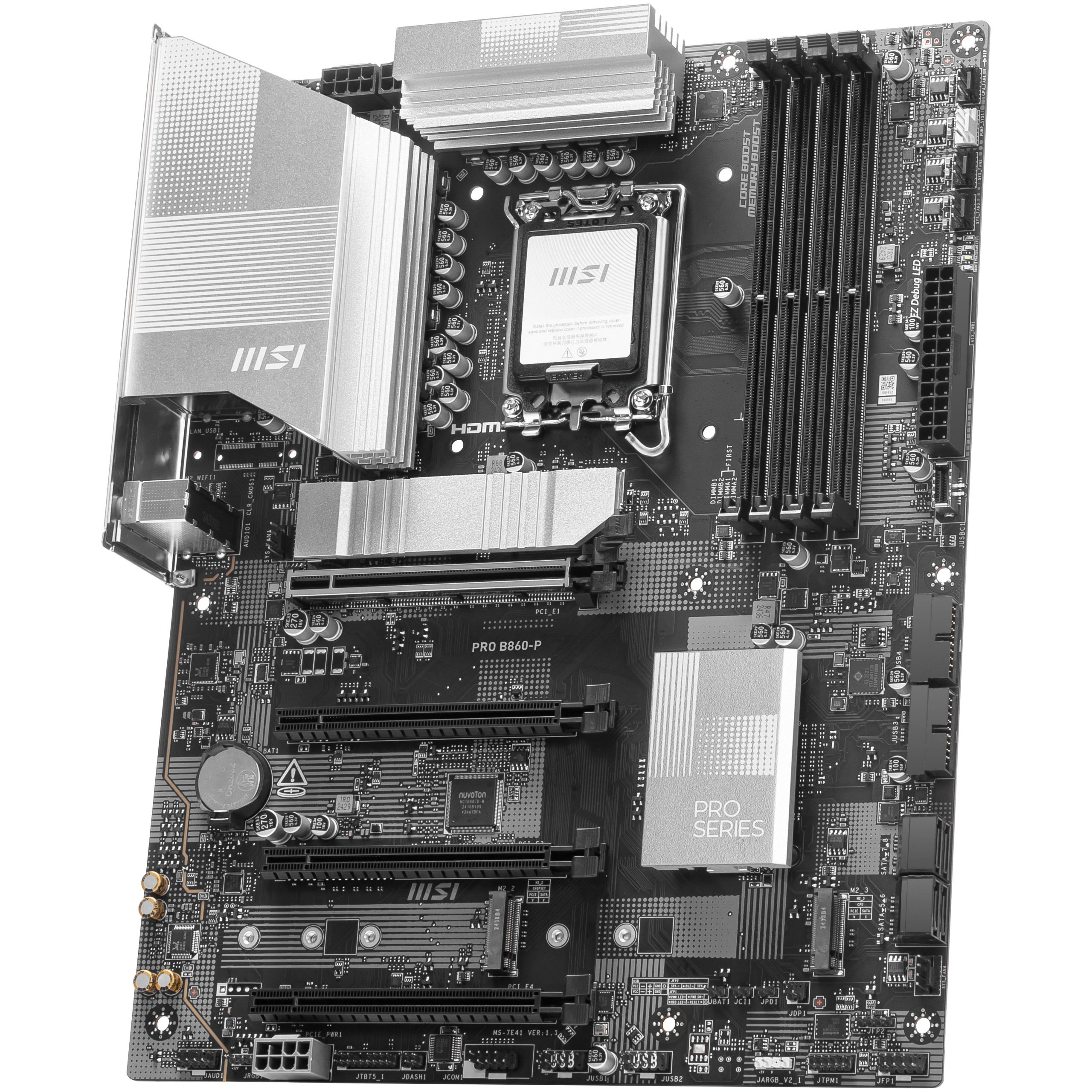

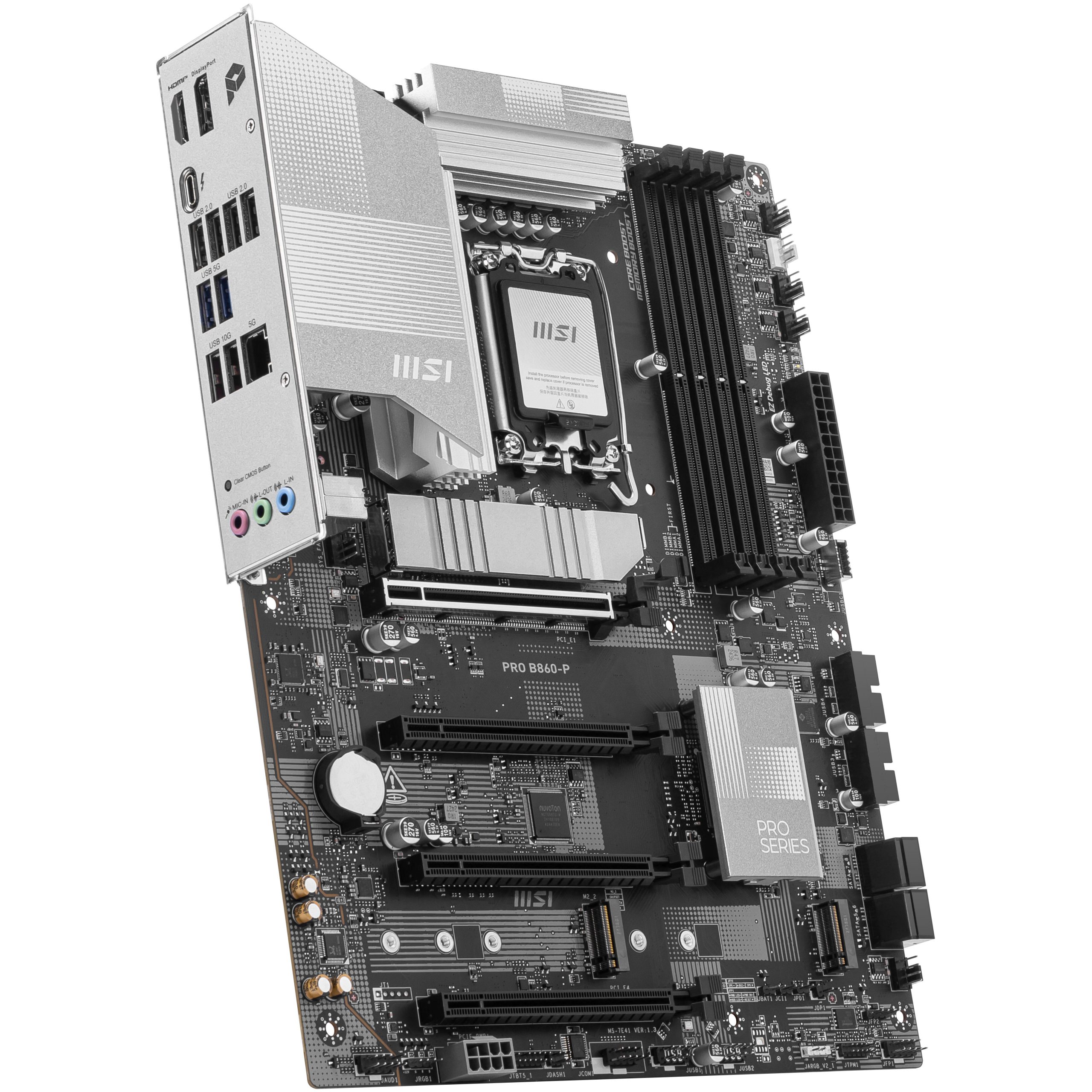

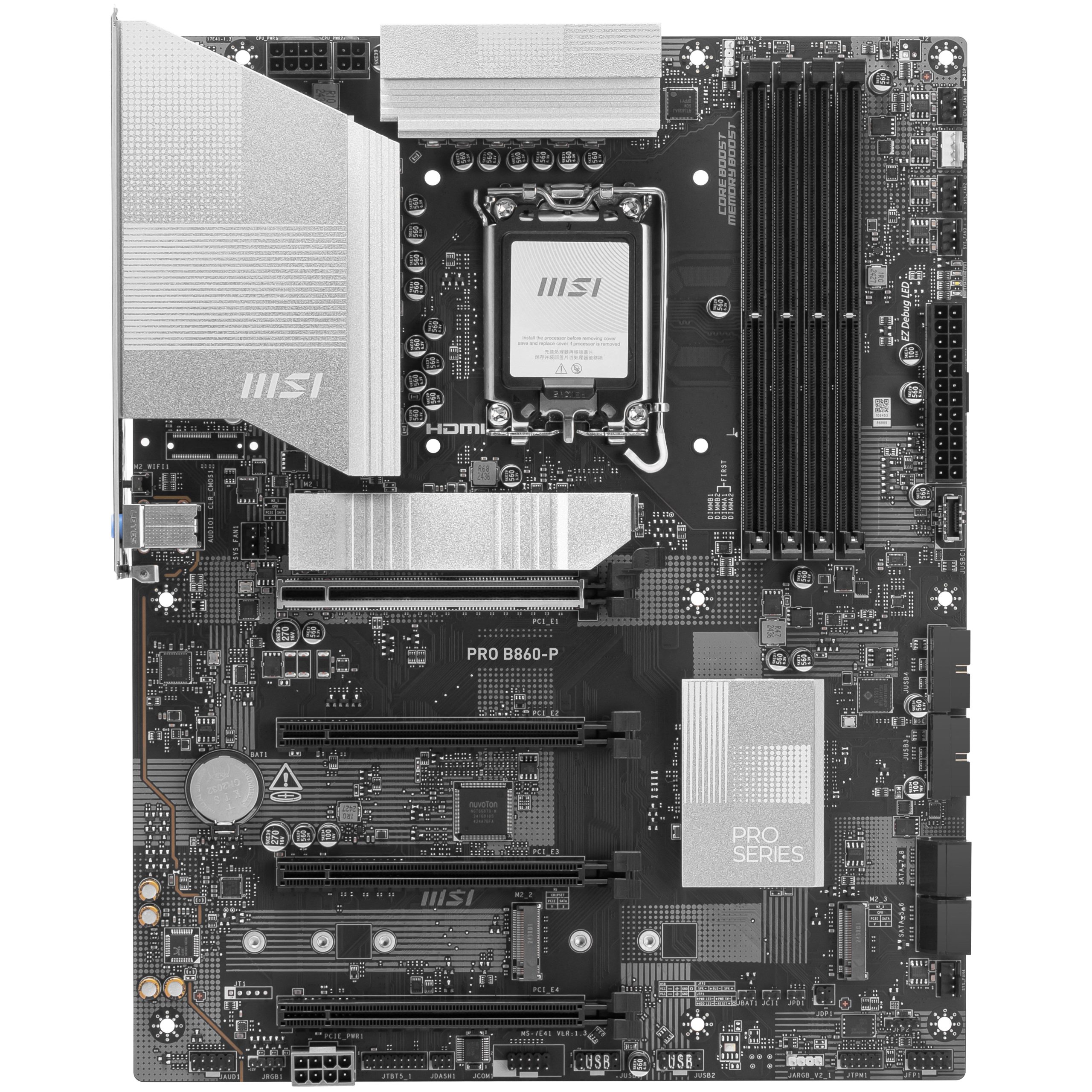

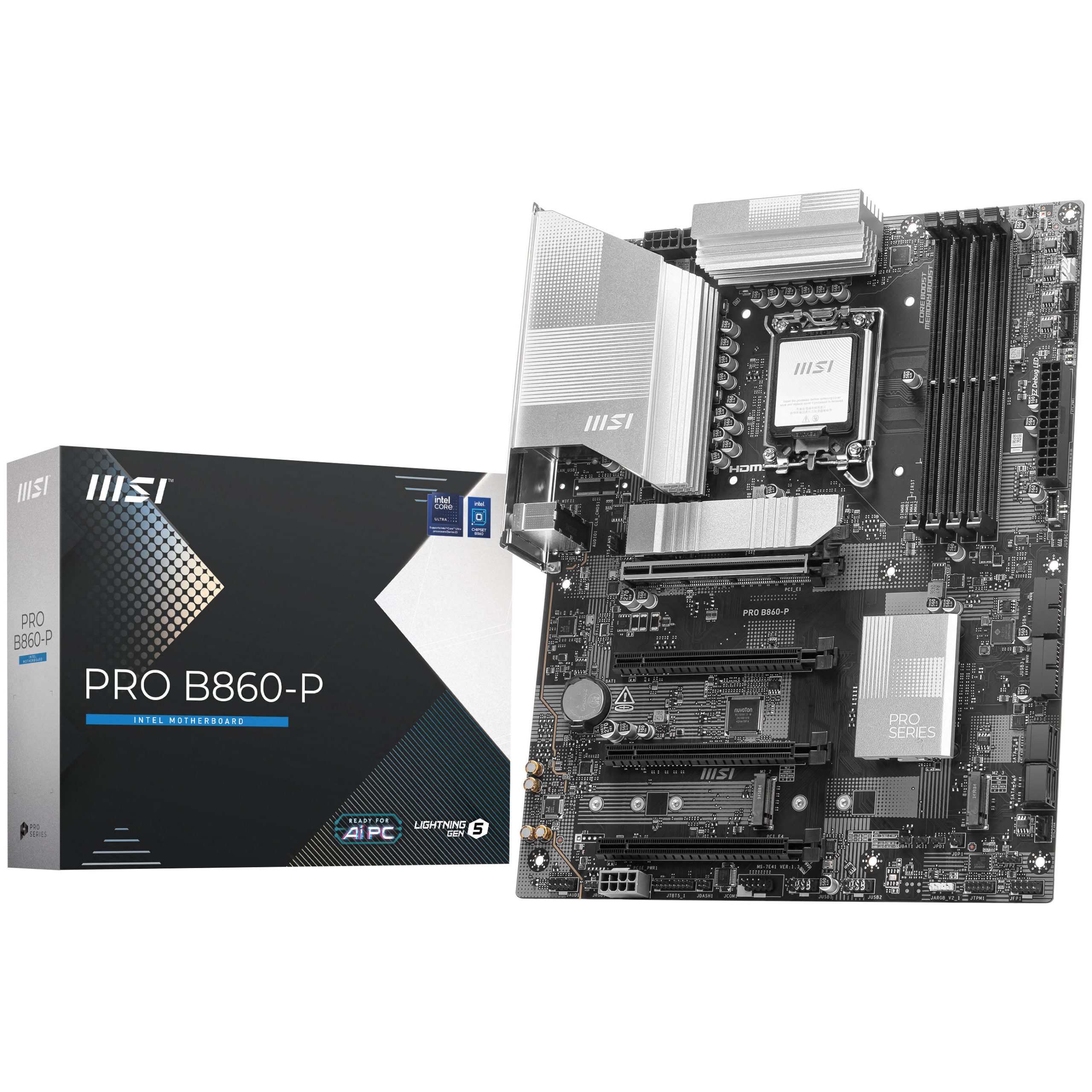

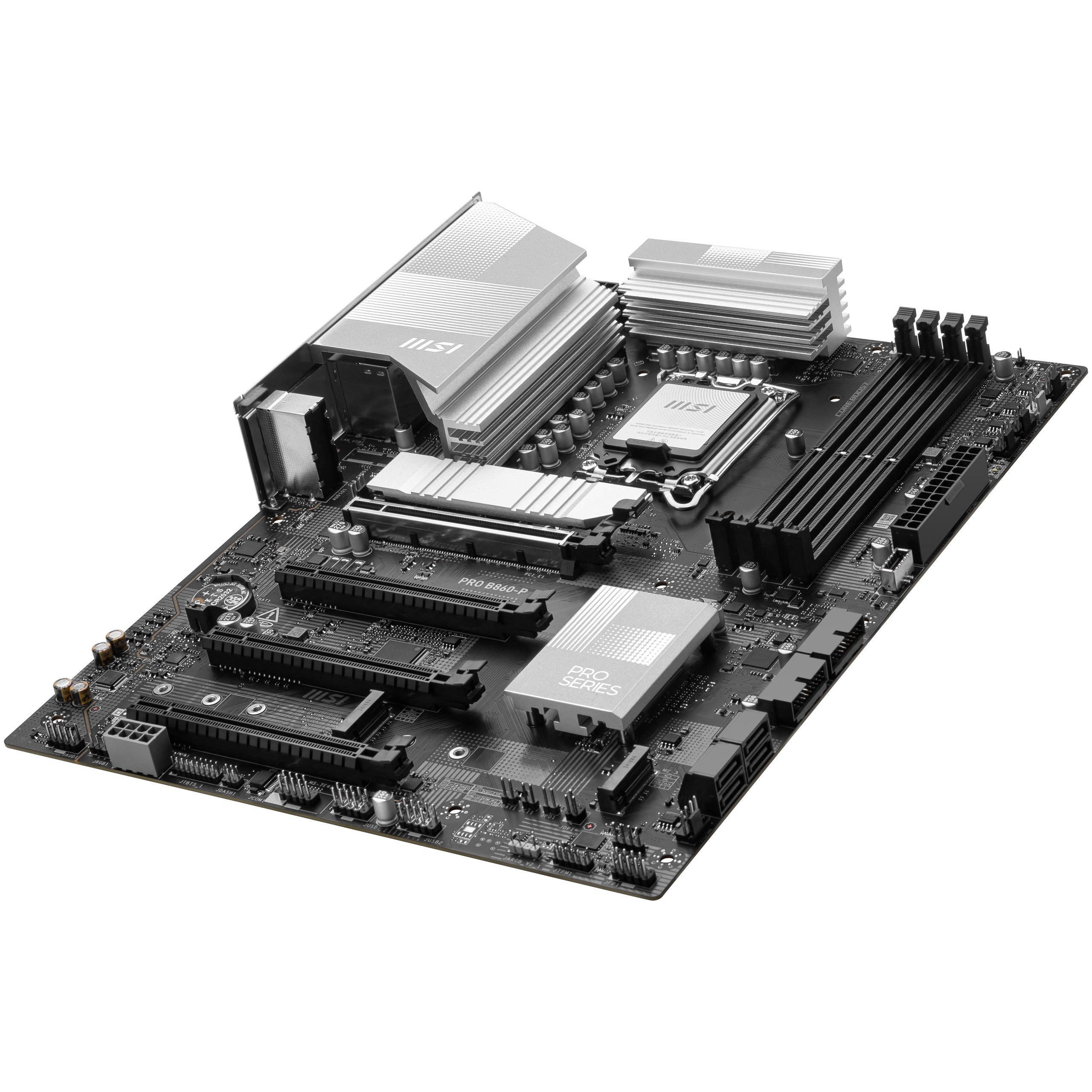

MSI PRO B860-P motherboard, socket LGA 1851, Intel B860, ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 2x PCIe 4.0 x16 (x1)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,600 MT/s
– Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA

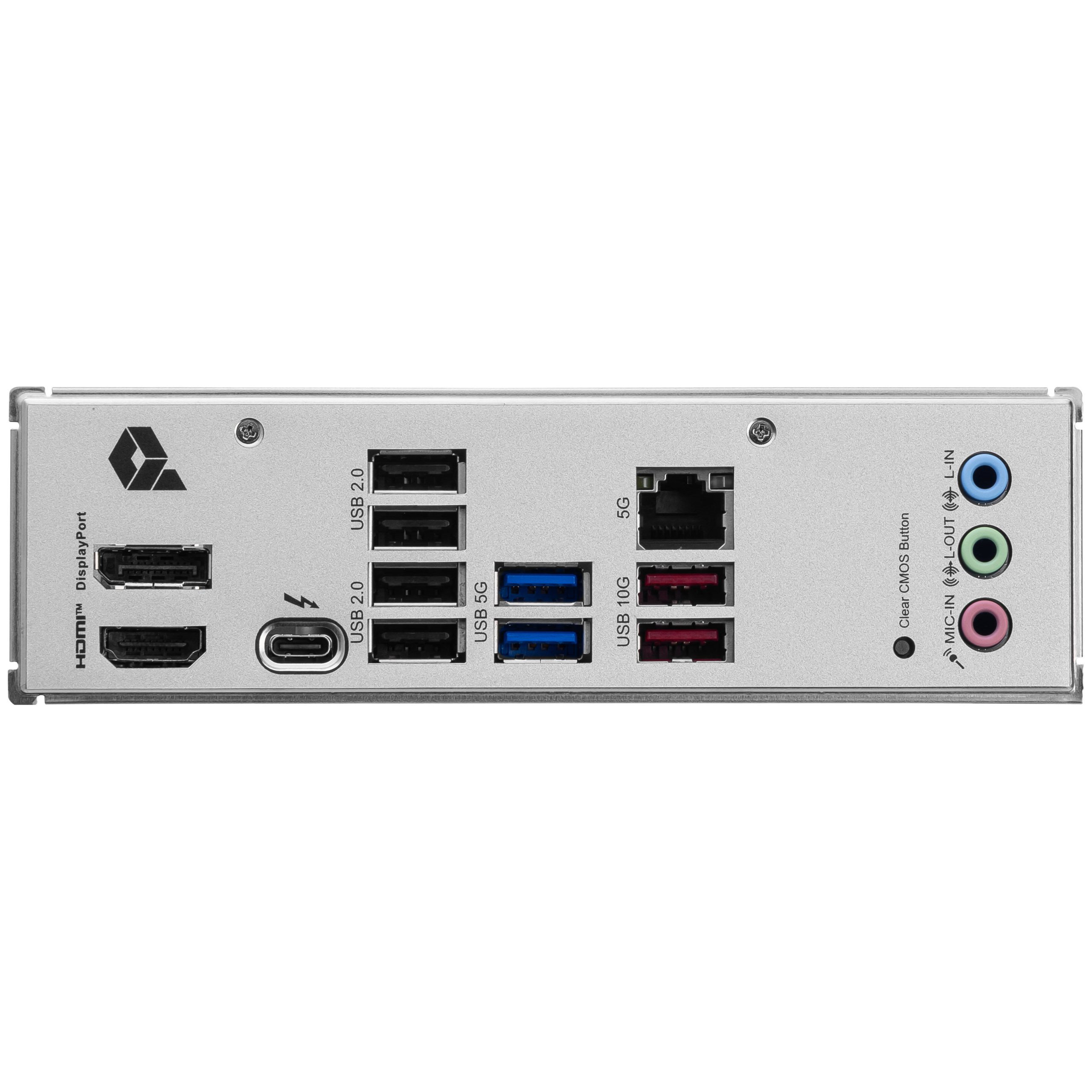

– USB: 1x Thunderbolt 4, 2x USB 3.1, 2x USB 3.0, and 4x USB 2.0
– Cooling: 6x 4-pin PWM connectors for fans and radiators

MSI PRO B860-P: ATX motherboard with Intel LGA 1851 socket and B860 chipset
The MSI PRO B860-P is an ATX motherboard with the mid-range Intel chipset B860 and the Intel LGA 1851 socket. It supports Intels Arrow Lake processor generation and is suitable for gamers who dont need to overclock their CPU.

The B860 motherboards also support USB 4, which achieves very fast data transfer rates of up to 40 Gbps. The MSI PRO B860-P also offers PCIe 5.0 for graphics cards and M.2 SSDs. The DDR5 memory can be overclocked, allowing you to get the most out of your RAM.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 243.8 mm
– Width
– 304.8 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel B860
– RAM
– Max. Memory
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 8600 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– Intel XMP 3.0
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– – 1x 5 Gbit/s
– LAN Chip
– Realtek 8126
– WLAN / Bluetooth
– No
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 1x 4-pin + 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible connectors
– 2
– USB 2.0 (internal) headers
– 2
– USB 2.0 (internal) possible connectors
– 4
– RGB / LED connectors
– 1x RGB (4-pin 5050 12VGRB), 2x Digital RGB (3-pin 5VDG)
