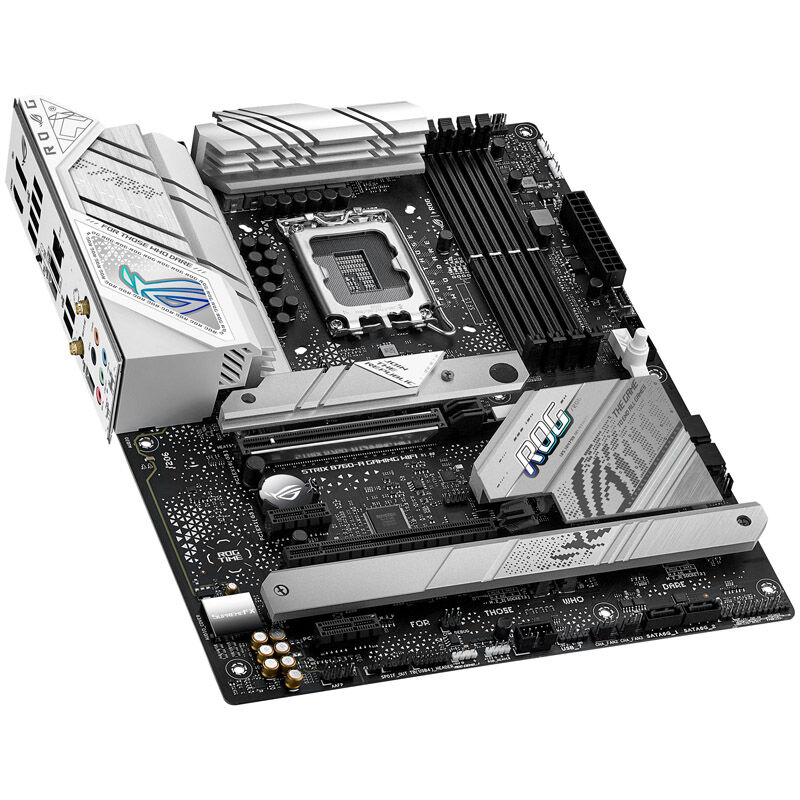

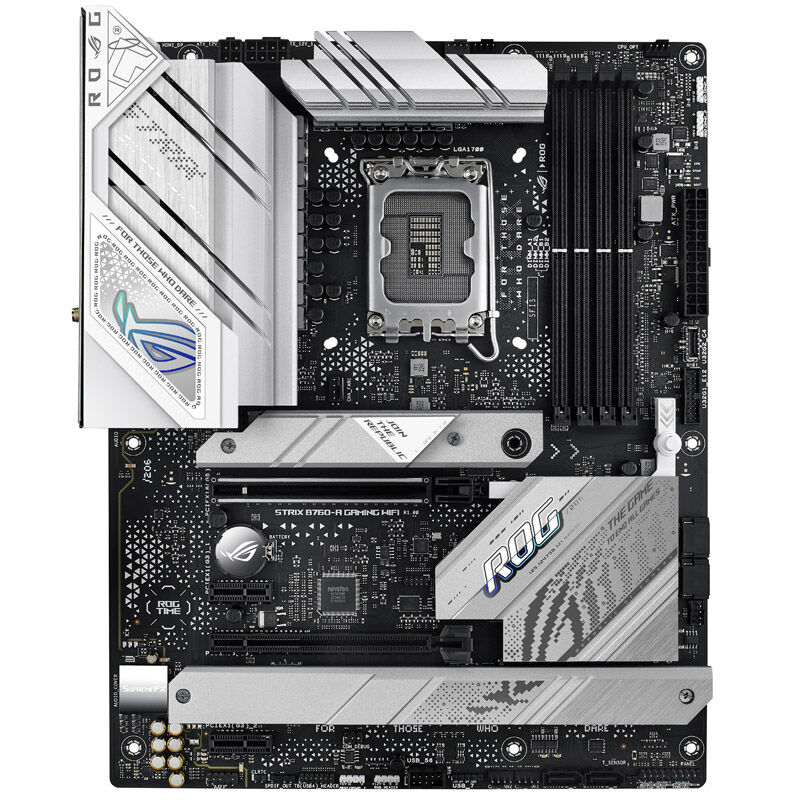

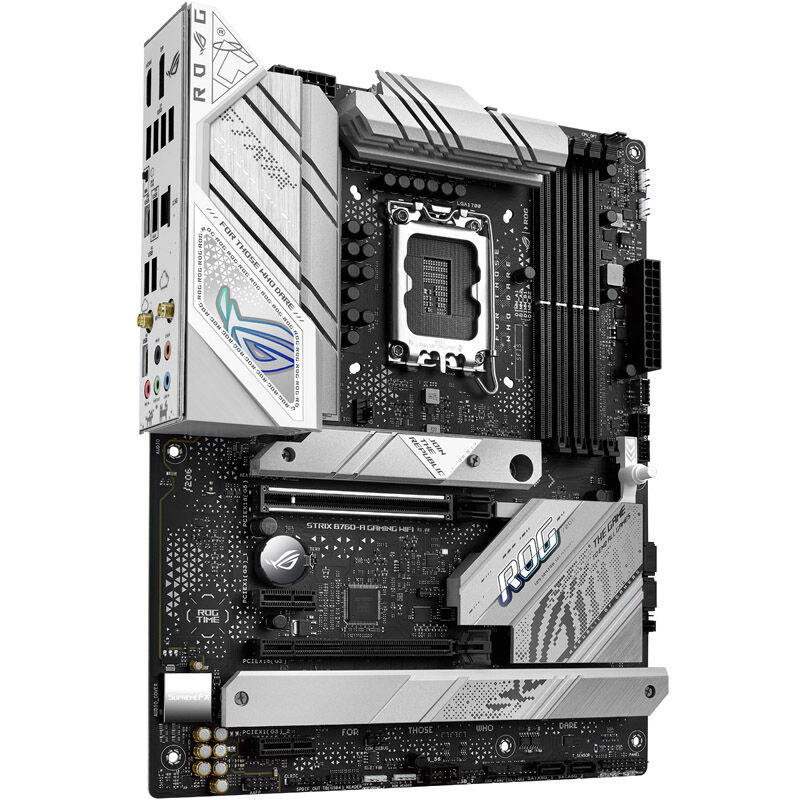

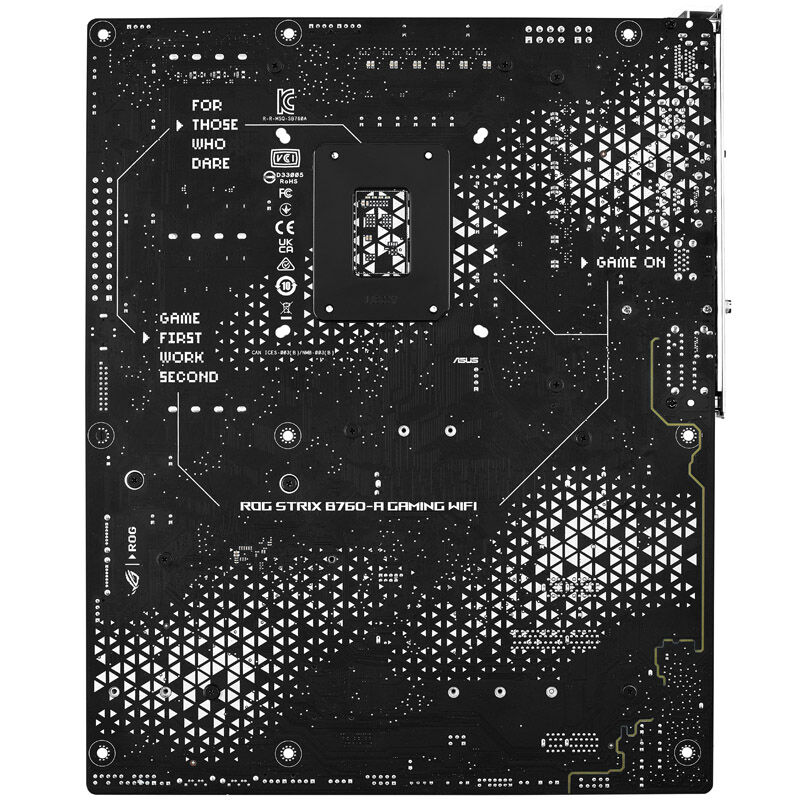

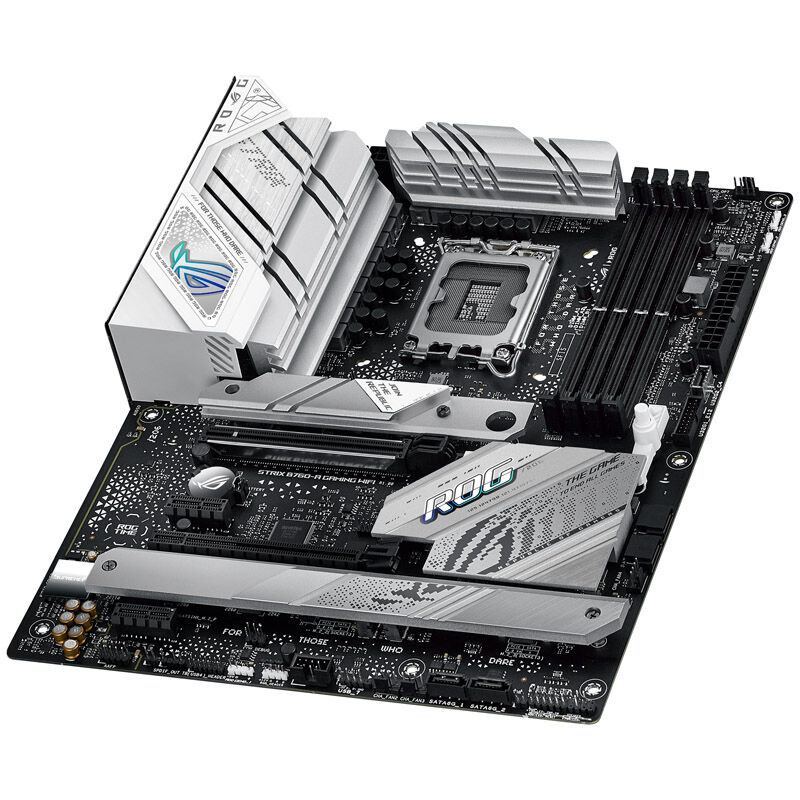

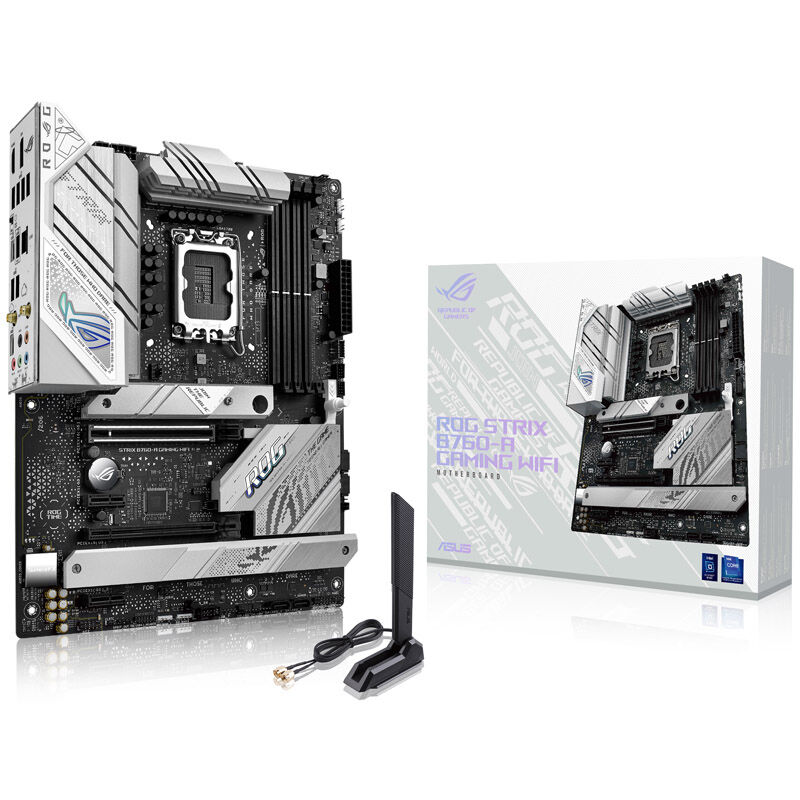

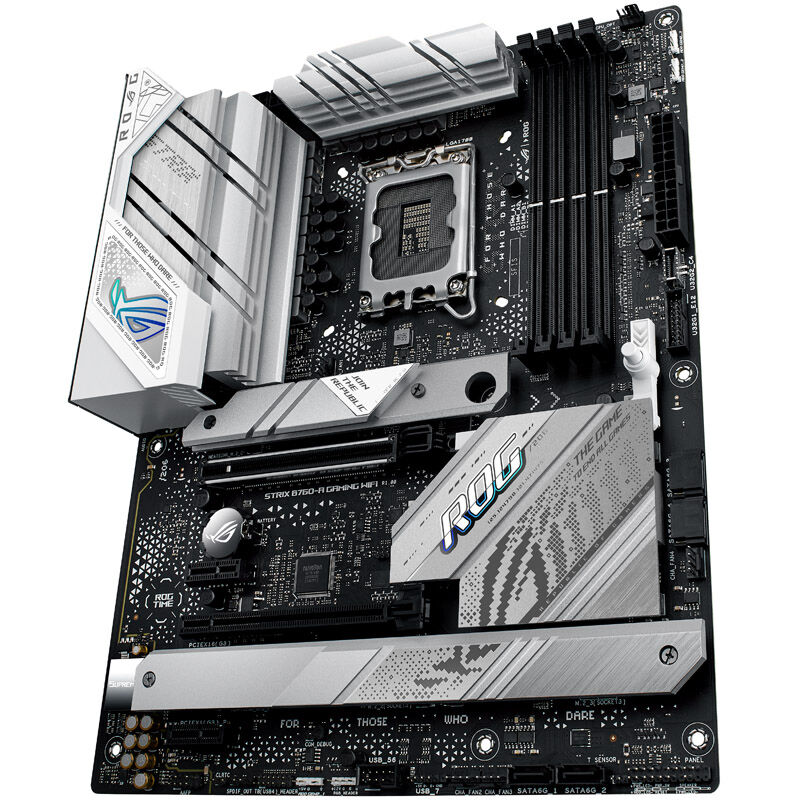

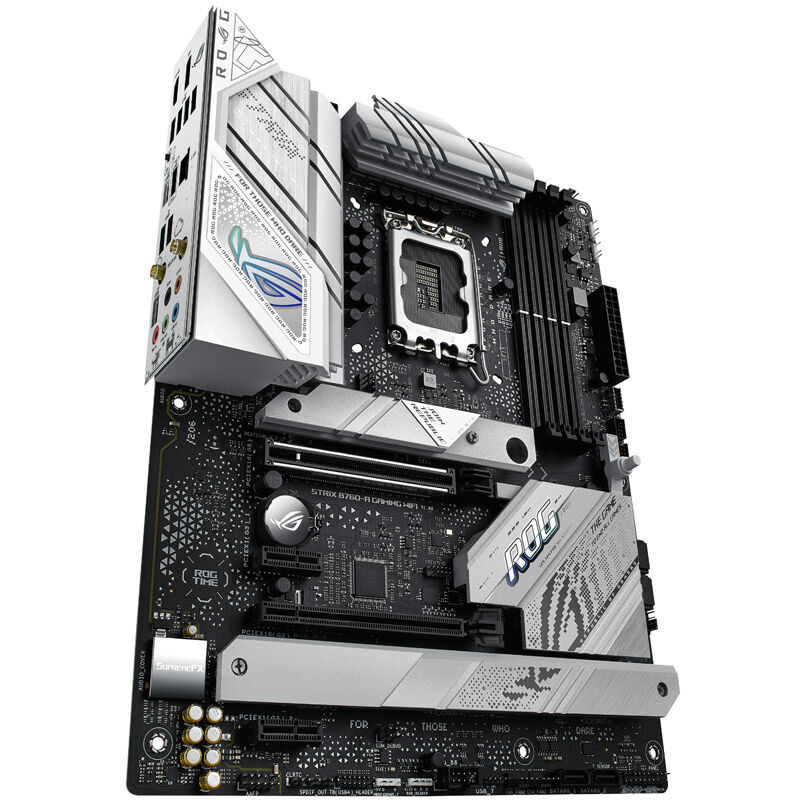

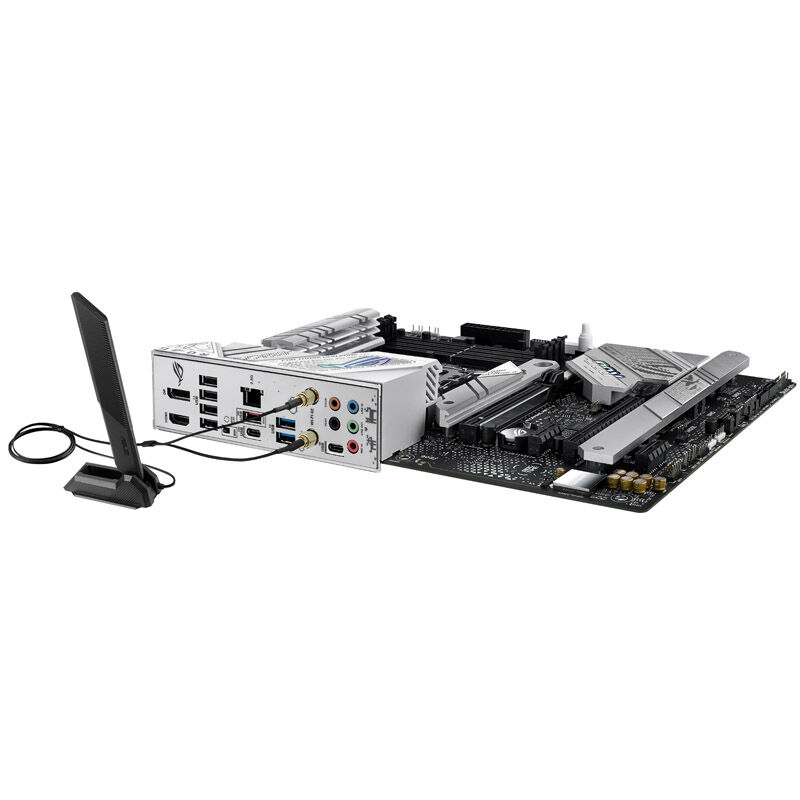

ASUS ROG Strix B760-A Gaming WIFI motherboard, Socket 1700, Intel B760, ATX, DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1
– DDR5 memory up to 4800 MHz, with RAM overclocking up to 7800+ MHz
– – 3x M.2 slots, including 3x PCIe 4.0

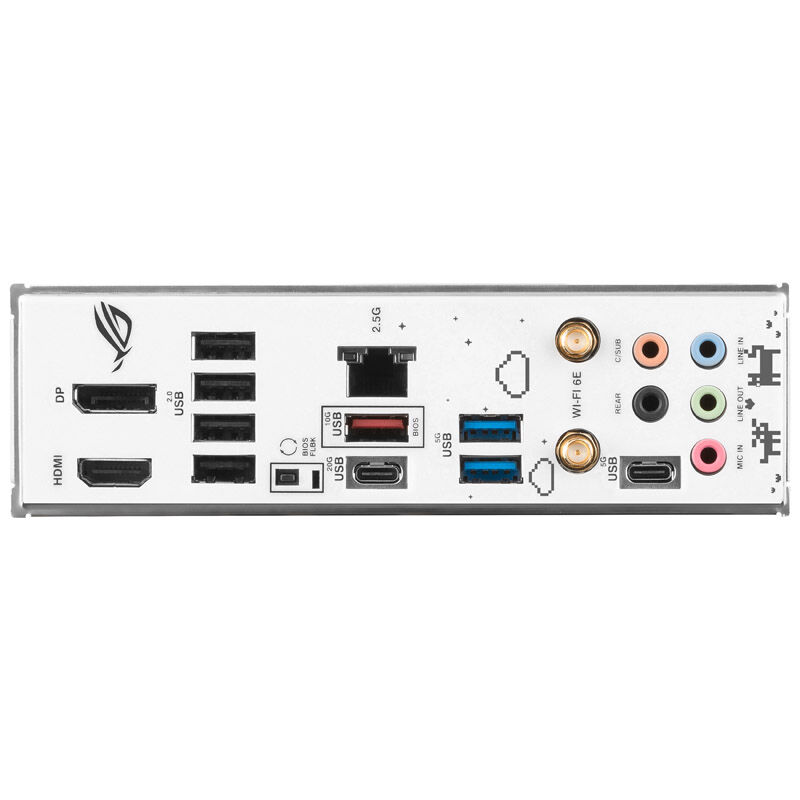

– USB on the I/O panel: 1x USB 3.2 Type-C, 1x USB 3.1, 1x USB 3.0 Type-C, and 1x USB 3.0
– Overclocking features: High-quality VRMs, Clear CMOS jumper, VRM heatsink
– A total of 5 connectors for fans and pumps

The ASUS ROG Strix B760-A Gaming WiFi ATX motherboard with the Intel B760-A chipset in detail
The ASUS ROG Strix B760-A Gaming WiFi D4 is an ATX motherboard with the Intel chipset B760-A and the LGA 1700 socket. The motherboard is suitable for 12th and 13th generation Intel Core desktop processors, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory up to 4800 MHz and, thanks to its outstanding power supply, is ideal for RAM overclocking.

In addition to a stable power supply with high-quality VRMs, the ASUS ROG Strix B760-A Gaming WiFi D4 impresses with other features that make overclocking your system much easier. DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as VRM coolers, ensure safety during overclocking attempts.

Technical Details:
– Processor
– Processor Manufacturer: Intel
– Processor Socket: LGA 1700
– Compatible Processors: Intel Celeron, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
– Supported Processor Slots: LGA 1700
– Memory
– Supported Memory: DDR5 SDRAM
– Number of Memory Slots: 4
– Memory Type: DIMM
– Memory Channels: Dual-Channel
– Non-ECC
– Supported Memory Speeds: 7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
– Supported Memory Clock Speed (Max.): 7800 MHz
– Maximum RAM 128 GB
– Unbuffered Storage
– Storage Controller
– Supported Storage Drives: HDD & SSD
– Supported Storage Drive Interfaces: M.2, SATA III
– Maximum Supported Number of HDDs: 4
– Number of Supported Storage Drives: 7
– RAID Support
– RAID Levels 0, 1, 5, 10
– Graphics
– Parallel Processing Technology: Not Supported
