Micro-ATX motherboard with Intel B860 chipset, supports PCI Express 5.0, compatible with DDR5 RAM
GIGABYTE B860M Eagle V2 Motherboard, Socket 1851, Intel B860, mATX, DDR5
Micro-ATX motherboard with Intel B860 chipset, supports PCI Express 5.0, compatible with DDR5 RAM
Micro-ATX motherboard with Intel B860 chipset, supports PCI Express 5.0, compatible with DDR5 RAM
Earn 106 Points
Price Match not available on this item
- SKU: MBGB-680
- MPN: B860M EAGLE V2
- EAN: 4719331869656
- Warranty: 12 Months
Details
Features:
– Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,066 MT/s
– Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
– USB: 6x USB 3.0, 7x USB 2.0
– Cooling: 4x 4-pin PWM connectors for fans and radiators

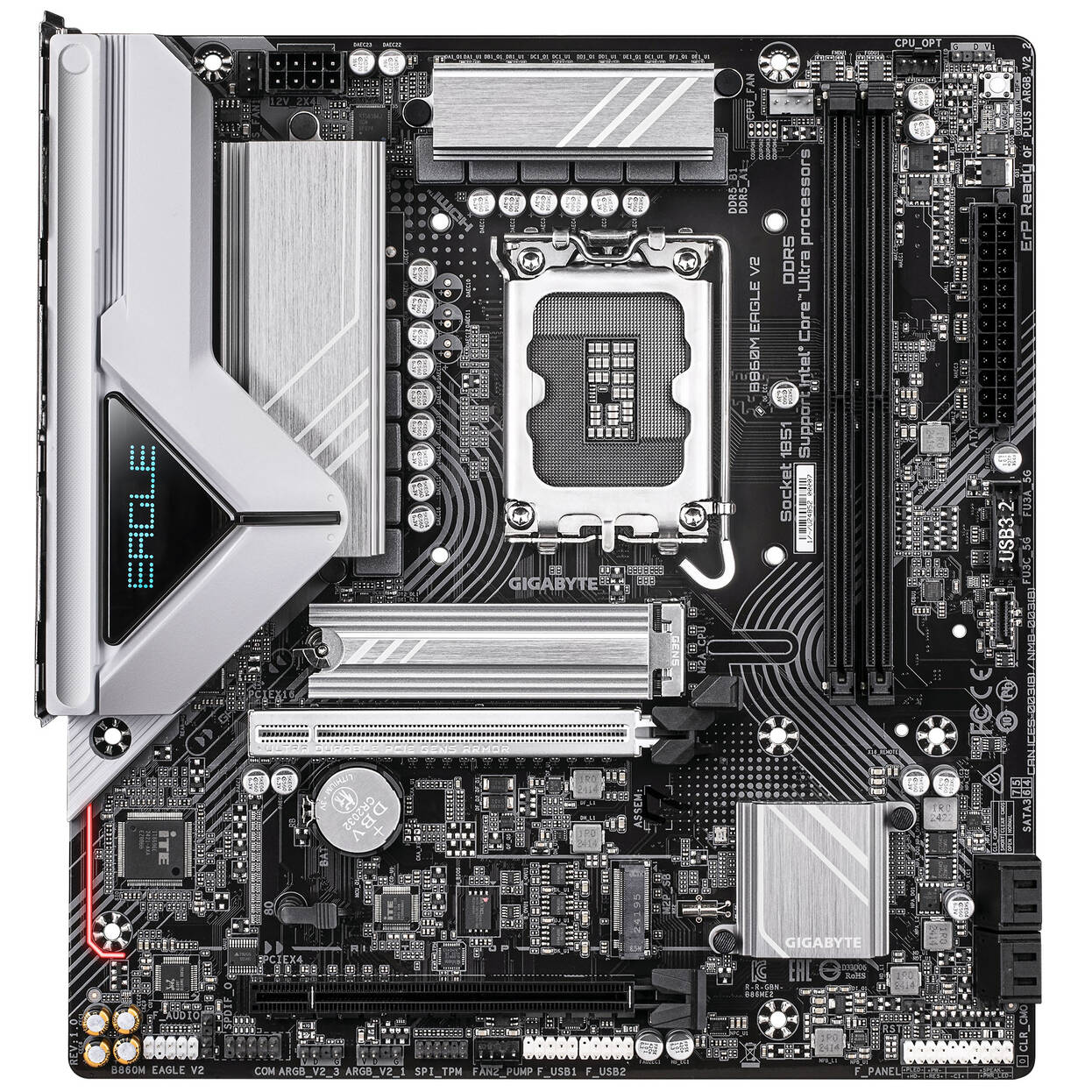

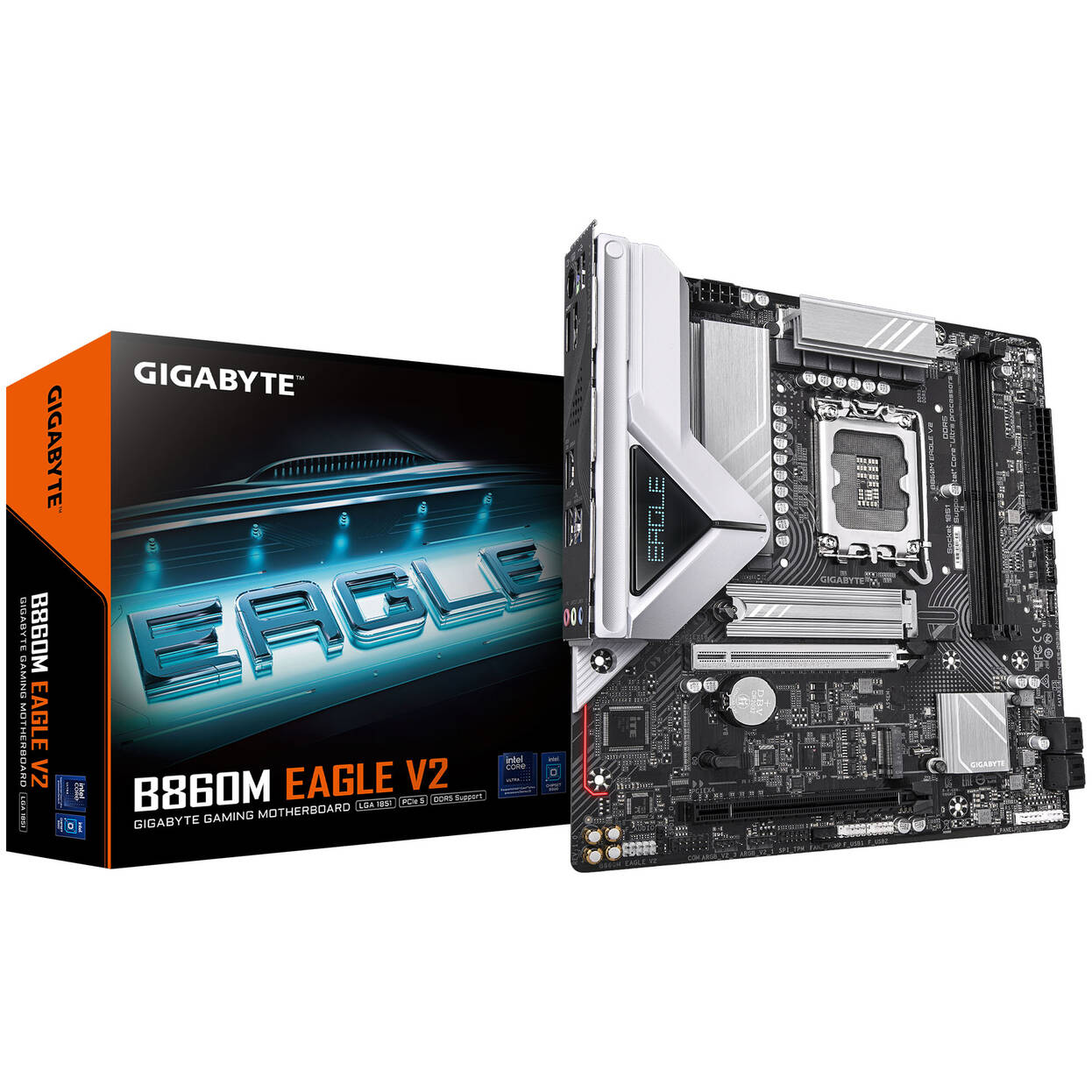

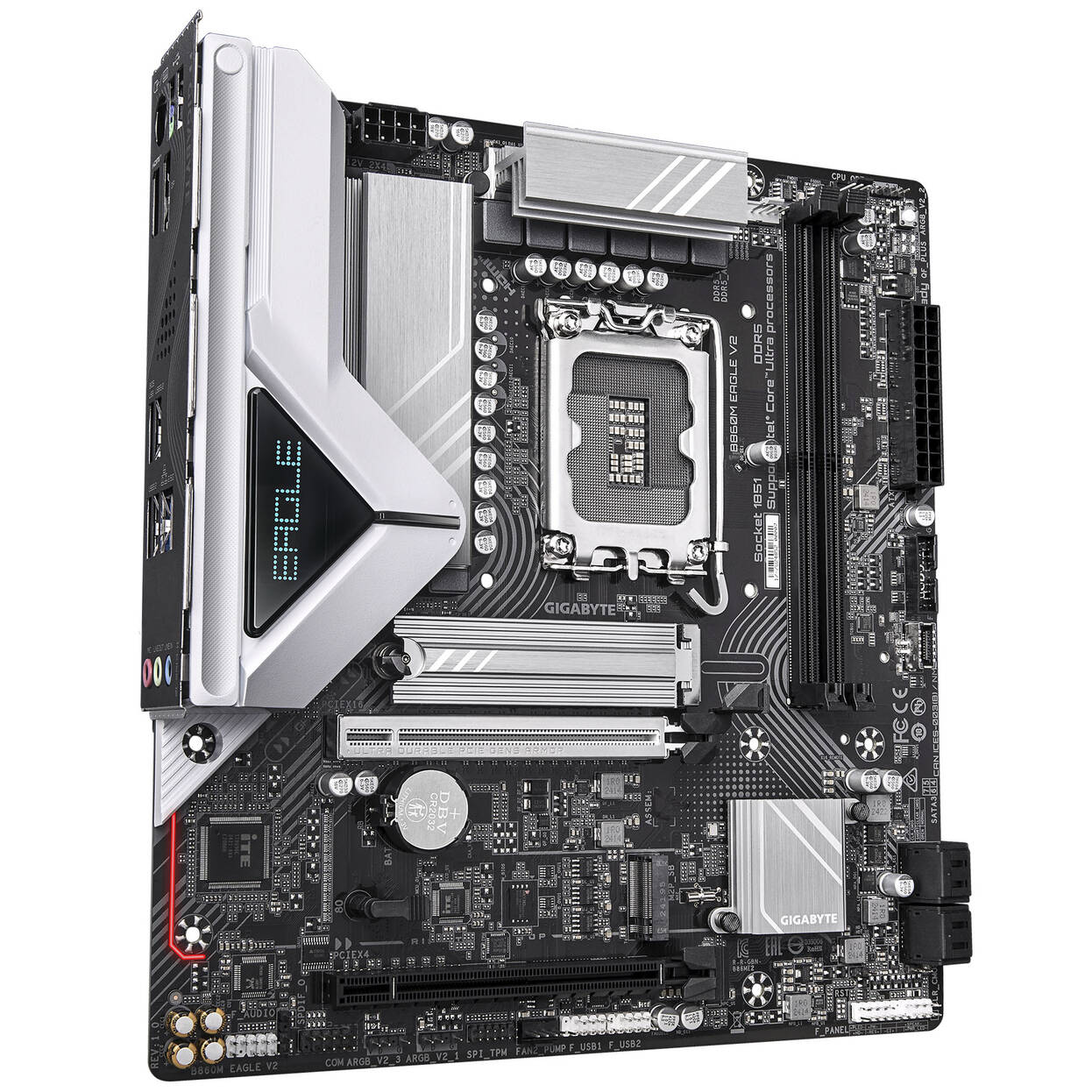

GIGABYTE B860M Eagle: micro-ATX motherboard with Intel LGA 1851 socket and B860 chipset
The GIGABYTE B860M Eagle V2 is a micro-ATX motherboard featuring the mid-range Intel B860 chipset and Intel LGA 1851 socket. It supports Intel processors from the Arrow Lake generation and is suitable for gamers who place little emphasis on extreme CPU overclocking.
Additionally, the GIGABYTE B860M Eagle V2 offers PCIe 5.0 for graphics cards and M.2 SSDs. The DDR5 memory is overclockable with XMP 3.0, allowing you to get the best out of your RAM.
| Specification | |
|---|---|
| Colour | Silver / Black |
| Form Factor | Micro-ATX |
| CPU Manufacturer | Intel |
| CPU Socket | 1851 |
| Motherboard Chipset | Intel B860 |
| Dual BIOS | No |
| Built-In I/O Shield | Yes |
| Max. Memory | 128 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (Standard) | 6400 MT/s |
| Max. Memory Speed (OC) | 9066 MT/s |
| EEC Support | No |
| Memory Slots | 2× DIMM |
| Performance Profile | Intel XMP 3.0 |
| LAN | Yes (1× Port) |
| Wi-Fi / Bluetooth | No |
| Backplate | No |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| CPU Power Supply | 1× 4+4-Pin |
| USB (Internal) | 1× USB 3.2 Type-C Header 1× USB 3.0 Header (2 Ports) 2× USB 2.0 Headers (4 Ports) |
| Front Panel Audio Header | Yes |
| SPI TPM Header | No |

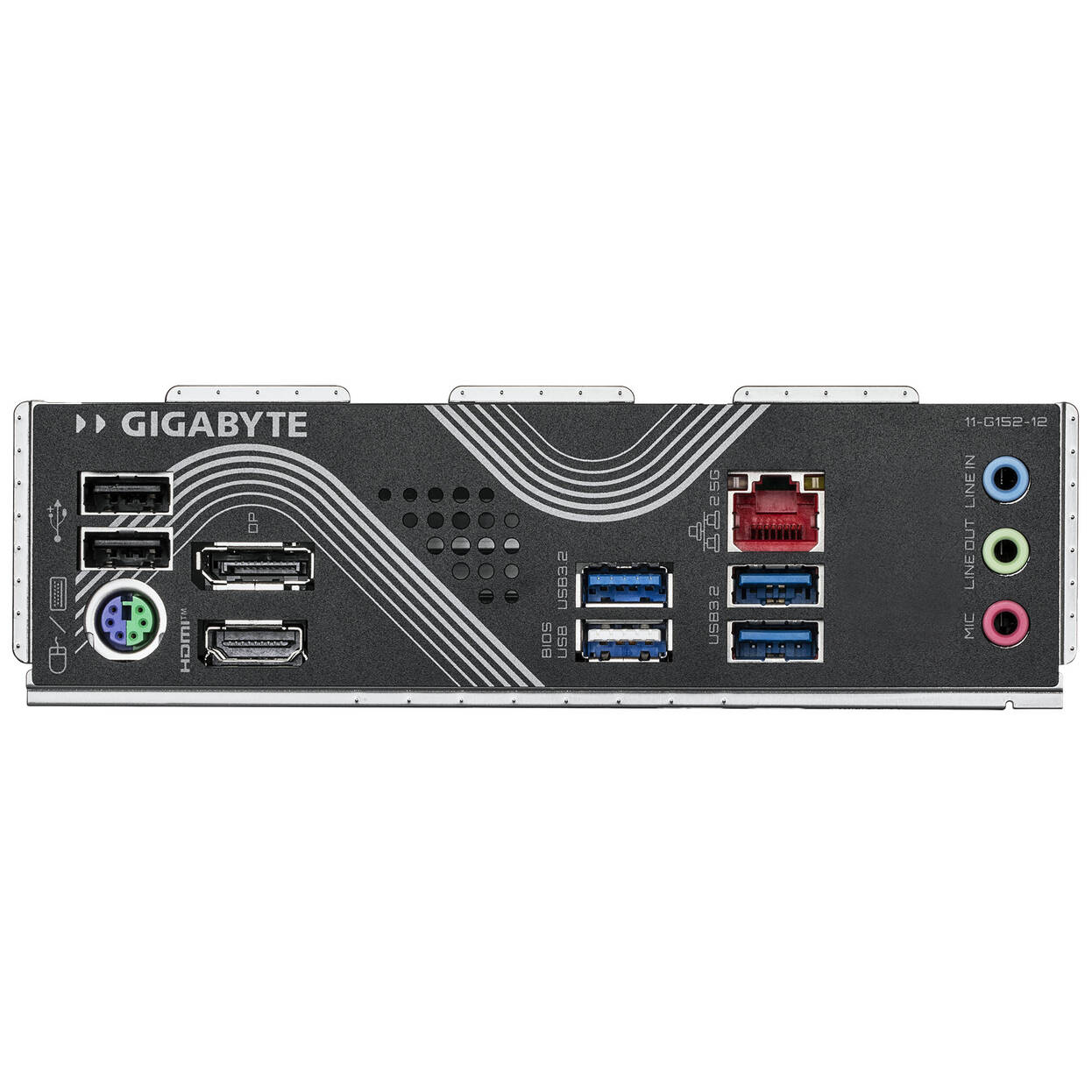

| USB (External) | 4× USB 3.0 Type-A, 2× USB 2.0 Type-A |
| Display Connectors | DisplayPort (1×), HDMI (1×) |
| Storage Ports | 1× M.2 PCIe 4.0 x4 1× M.2 PCIe 5.0 x4 4× SATA 6G |
| Back Connect | No |
| Expansion Slots | 2× PCIe x16 Slots (Total) 1× PCIe 5.0 x16 Mechanical 1× PCIe 4.0 x4 Mechanical |
| Fan Headers | 4× 4-Pin Fan Connectors |
| Lighting / RGB | Yes (RGB, Compatible with GIGABYTE RGB Fusion) |
