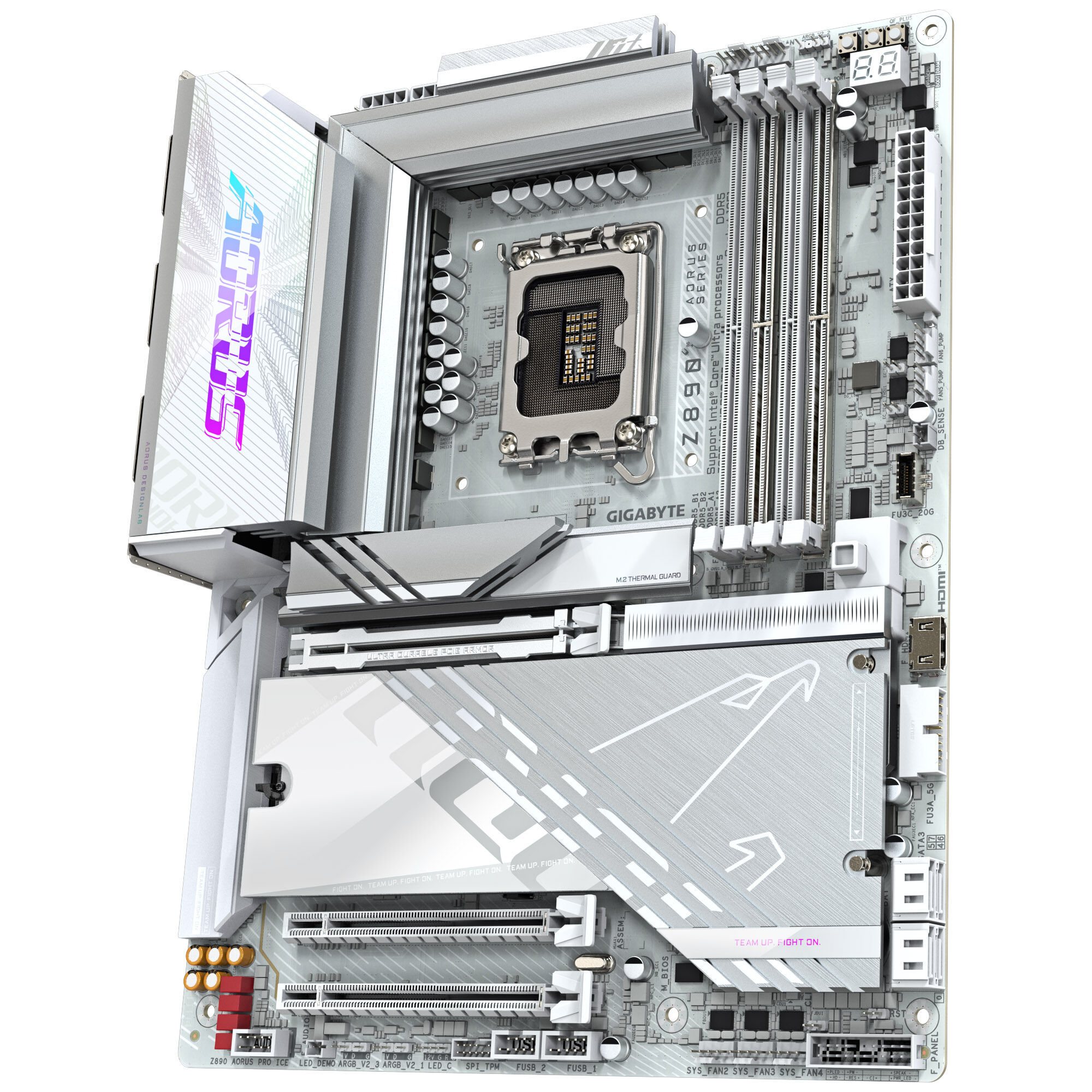

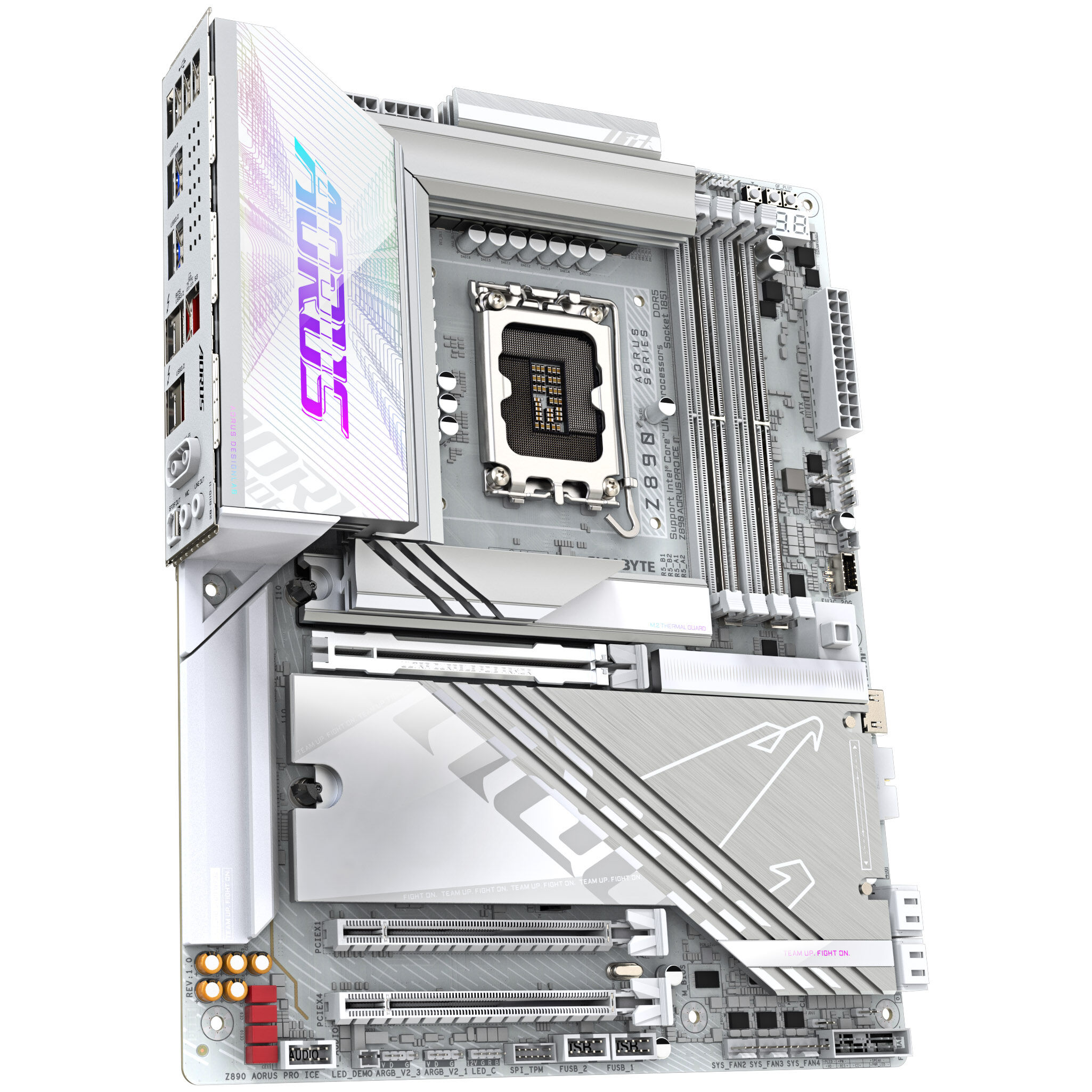

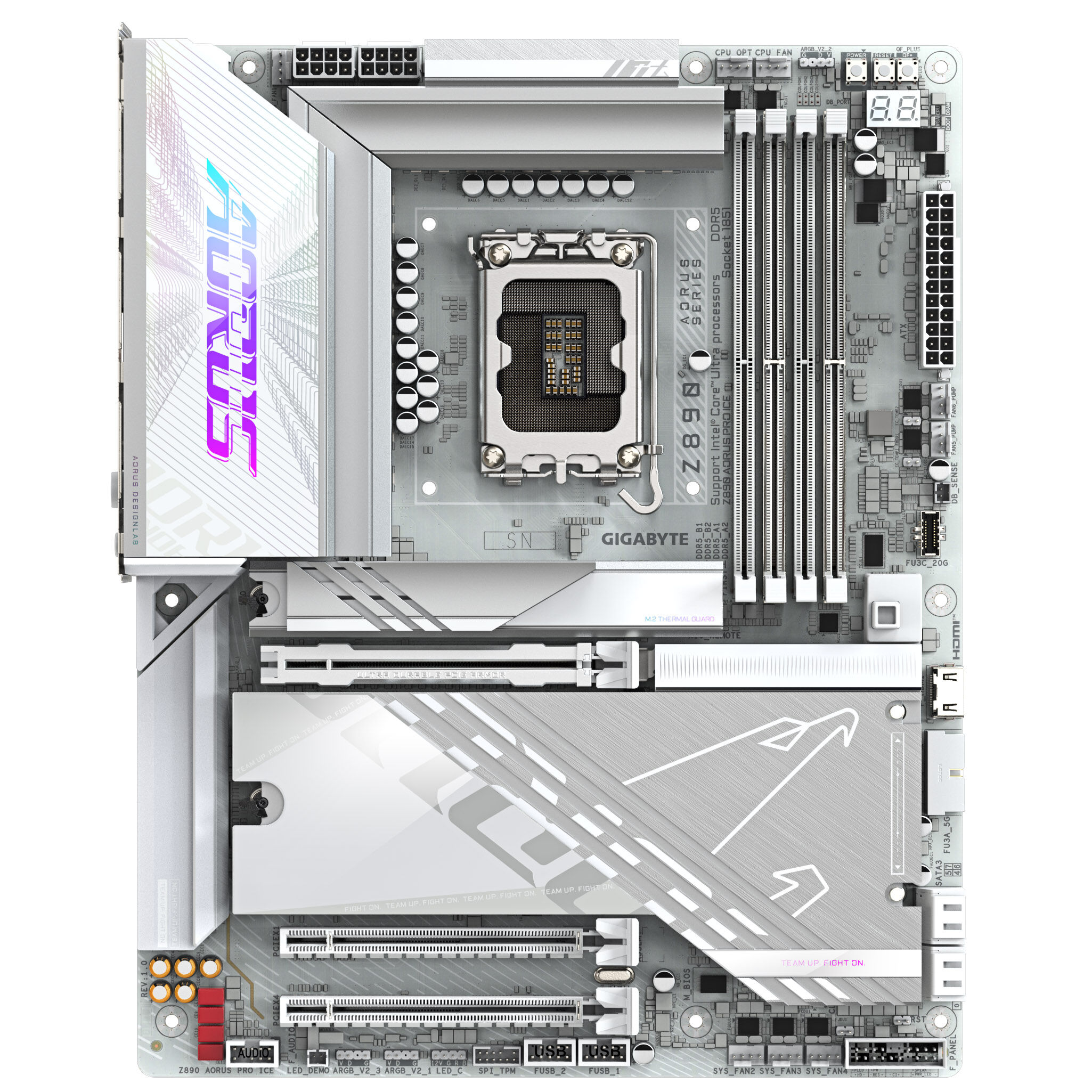

Gigabyte Z890 AORUS Pro ICE motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for gaming enthusiasts and overclockers.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x16 (x1)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9500 MHz
– 5x M.2 (including 1x PCIe 5.0 and 4x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x USB 4, 2x USB 3.1, 4x USB 3.0, and 4x USB 2.0
– A total of 8x 4-pin connectors for fans and pumps

GIGABYTE Z890 AORUS Pro ICE: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890 AORUS Pro ICE is an ATX motherboard with The high-end Intel Z890 chipset and the LGA 1851 socket support second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890 AORUS Pro ICE boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for Demanding Gaming
The GIGABYTE Z890 AORUS Pro ICE is specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruption. The premium voltage converters ensure a stable power supply to the CPU, ensuring it operates reliably for extended periods, even at high clock speeds. The DDR5 RAM can also be overclocked to higher clock speeds.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (6400 MHz, up to 9500 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 4.0 x16 (electrical x1, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4/x2; 2280 / 2580 / 22110) / 25110, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 2280 / 22110, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 2280 / 22110, chipset)
– 1x M.2 (PCIe 4.0 x4/x2; 2280, chipset)
– 1x M.2 (PCIe 4.0 x4/x2 & SATA; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 2x Thunderbolt headers
– 1x front panel audio Headers
– 1x front panel
– 1x noise detection header
– 1x Q Flash Button
– 1x power button
– 1x reset button
– 1x reset jumper
– 1x Clear CMOS button
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU fan/pump (4-pin)
– 4x case fans (4-pin)
– 2x case fan / pump (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x RGB headers

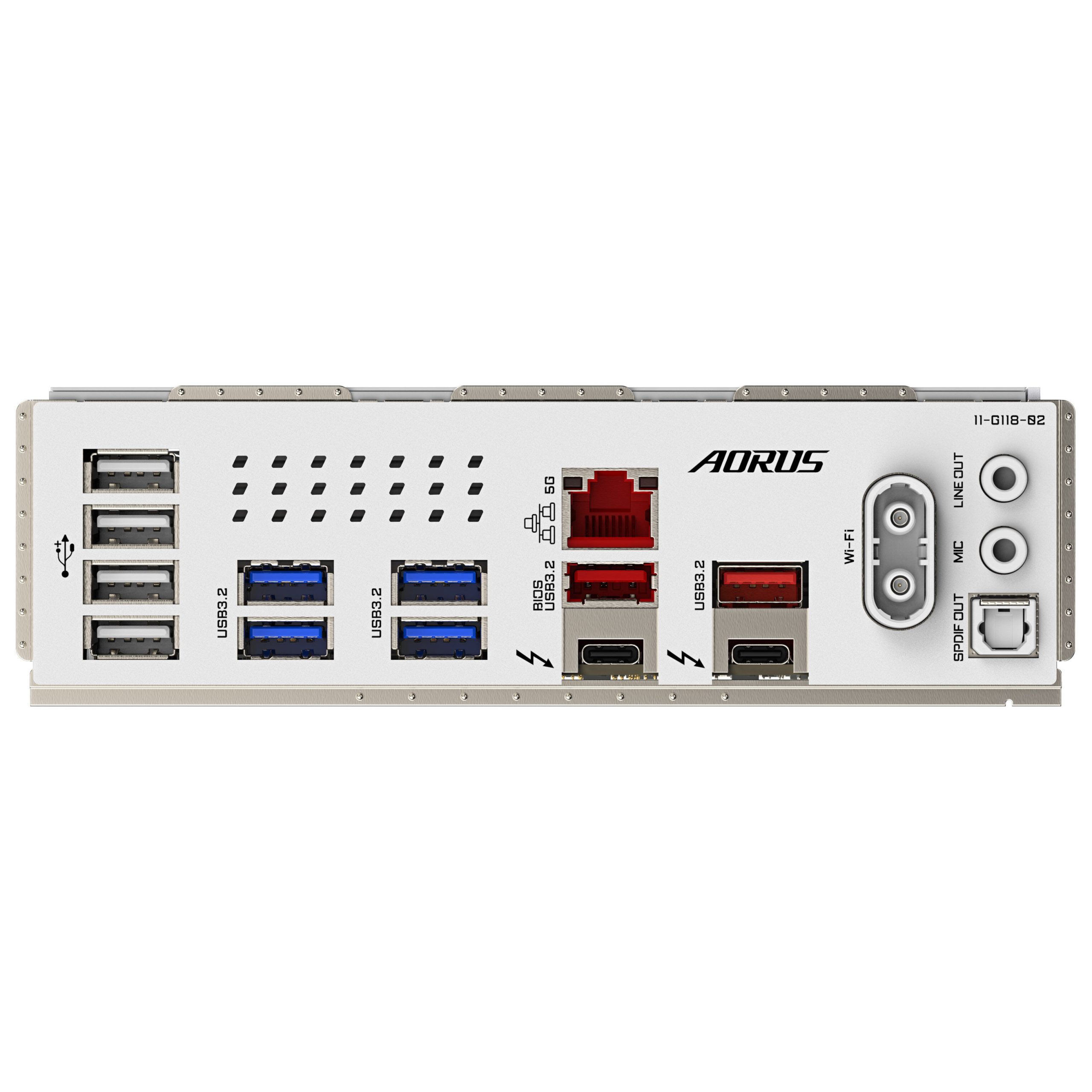

– External connections:
– 2x USB4 (Type C, USB 3.2 Gen 3×2, max. 40 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbps)
– 1xHDMI
– 1x 5 Gigabit LAN
– 2x 3.5 mm jack (Realtek ALC 1220)
– 1x WiFi/Bluetooth module
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU
