Gigabyte Z890 Aorus Master AI Top motherboard, socket LGA 1851, Intel Z890, E-ATX, DDR5

This motherboard is ideal for high-end builds and AI enthusiasts.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 5.0 x16 (x8), and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,500 MHz
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G

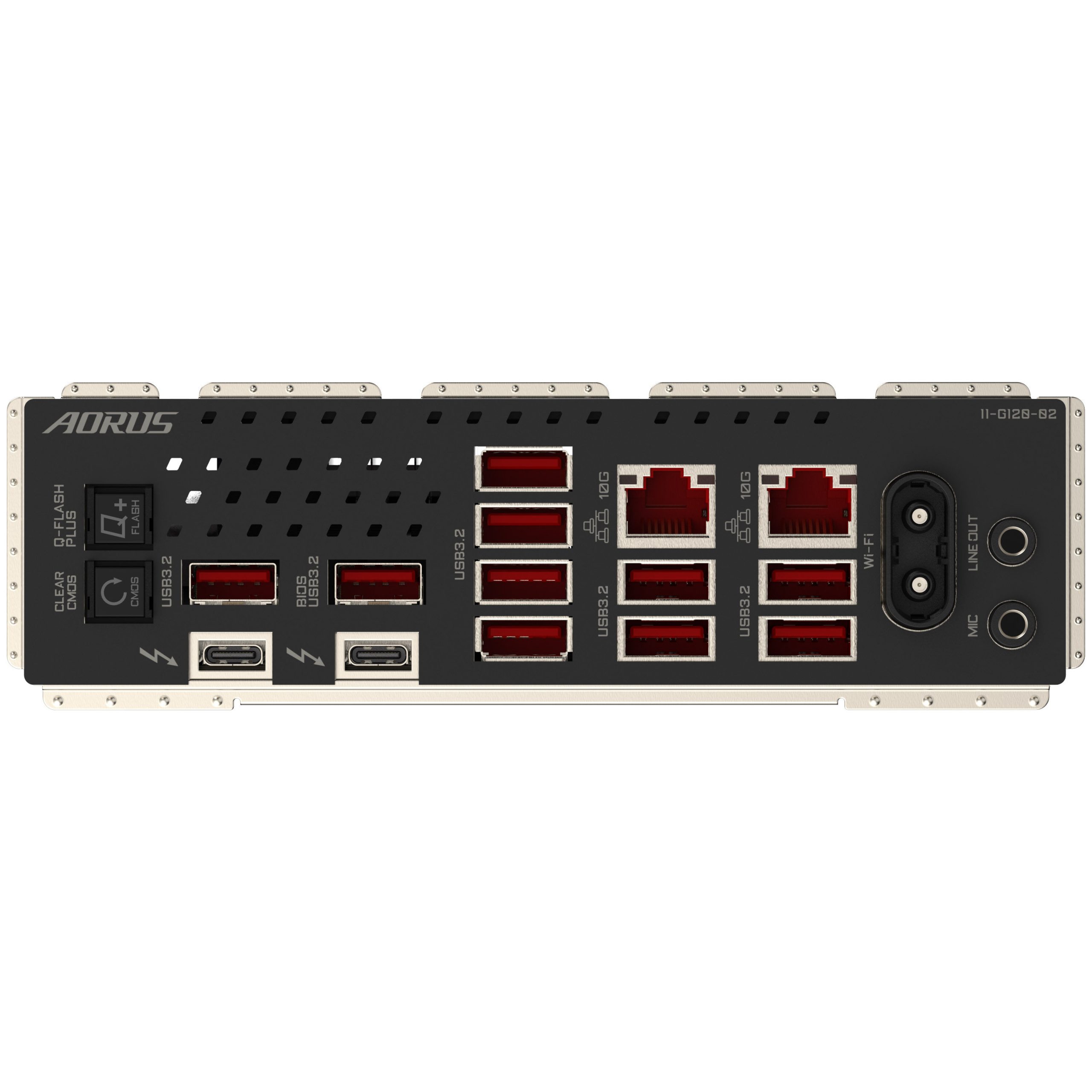

– USB on the I/O panel: 2x Thunderbolt 4, 10x USB 3.1
– Total of 10x 4-pin connectors for fans and pumps
– OC features: 20+1+2 phase VRMs, CMOS
– Supports WiFi 7 and Bluetooth 5.4

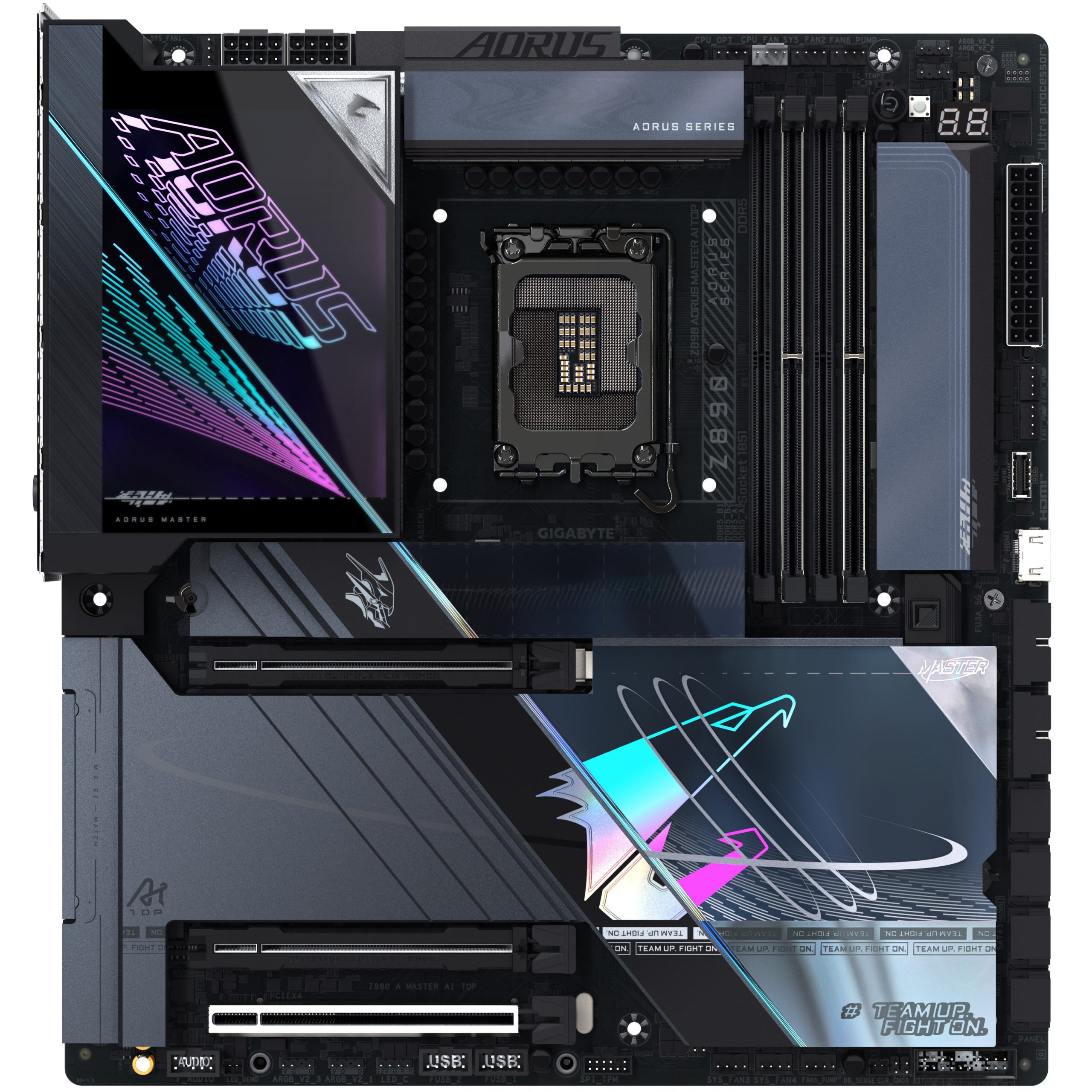

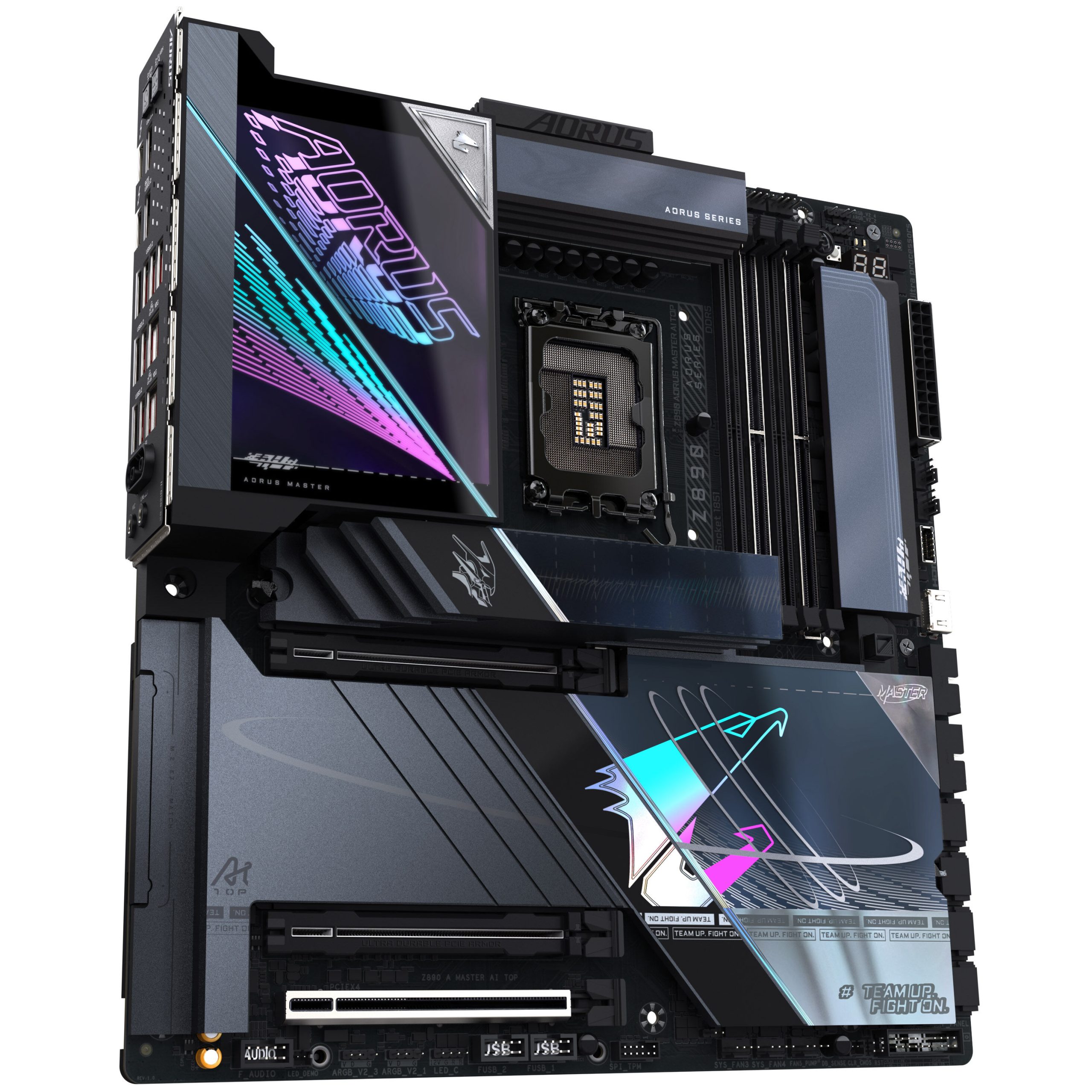

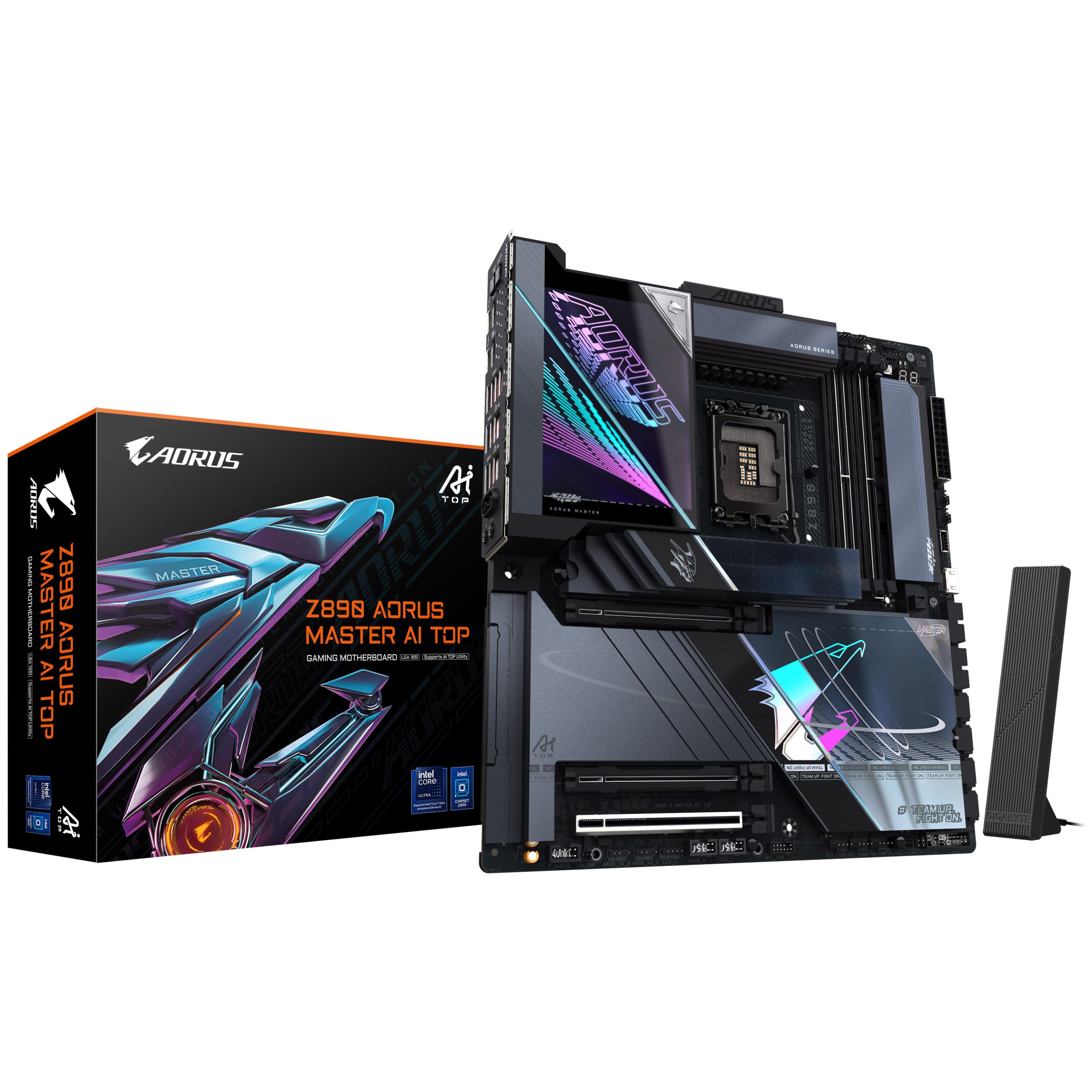

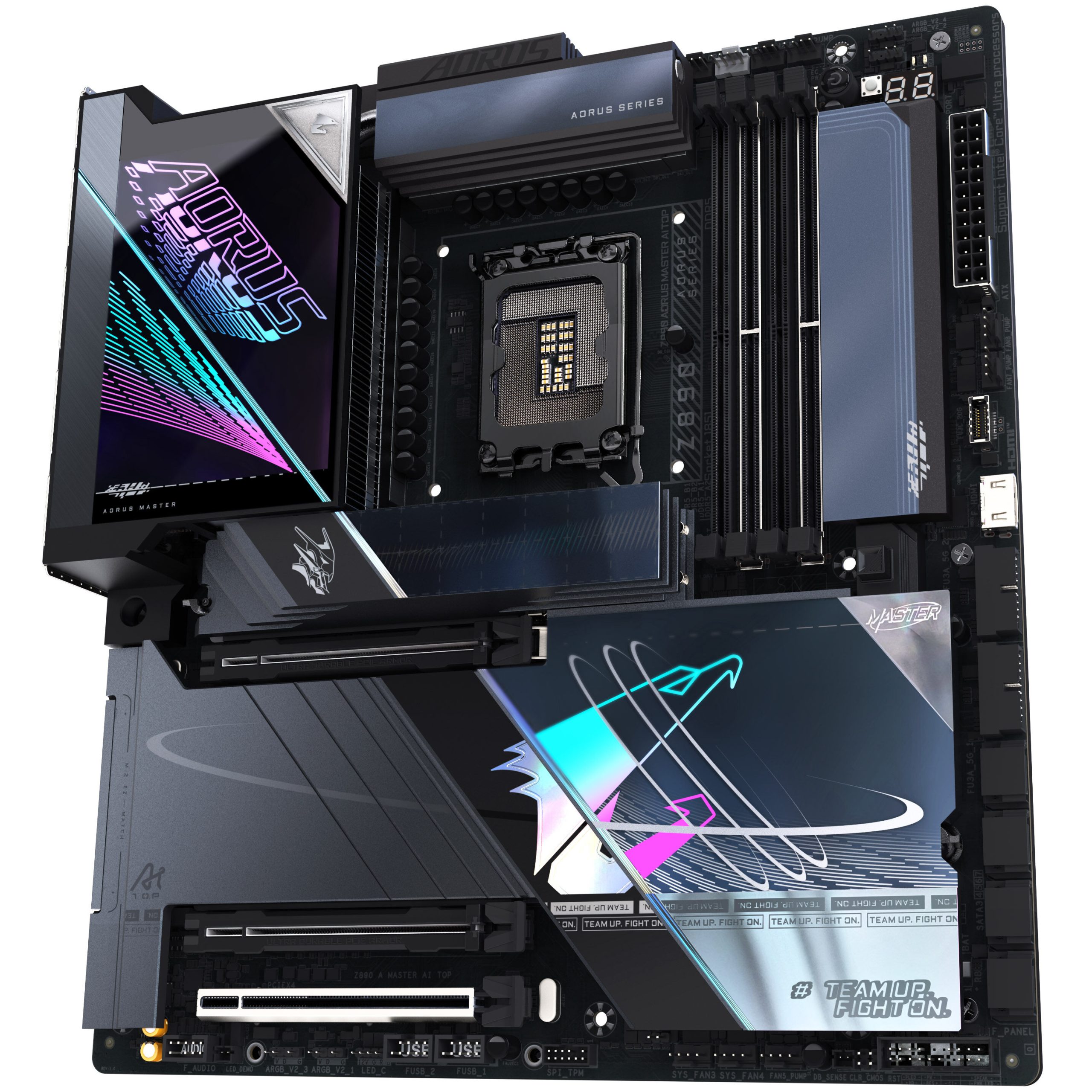

GIGABYTE Z890 Aorus Master AI Top: E-ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The The GIGABYTE Z890 Aorus Xtreme AI Top is an E-ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890 Aorus Master AI Top features full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Suitable for Overclocking
With its 20+1+2 phase VRMs, the GIGABYTE Z890 Aorus Master AI Top allows you to overclock your CPU and thus get the full performance out of your gaming PC. The DDR5 RAM can also be overclocked. To be on the safe side, there is a Clear CMOS button on the I/O panel.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 285 mm
– Width
– 305 mm
– Form Factor
– Mainboard Form Factor
– E-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Mainboard
– Mainboard Chipset
– Intel Z890
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– UDIMM
– Max. Memory Speed (OC)
– 9500 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– – Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 2x 10 Gbit/s
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1
– USB 3.0 (internal) header
– 2
– USB 3.0 (internal) possible connectors
– 4
– USB 2.0 (internal) header
– 2
– USB 2.0 (internal) possible connectors
– 4
– RGB / LED connectors
– 1x RGB (4-pin 5050 12VGRB), 4x Digital RGB (3-pin 5VDG)
