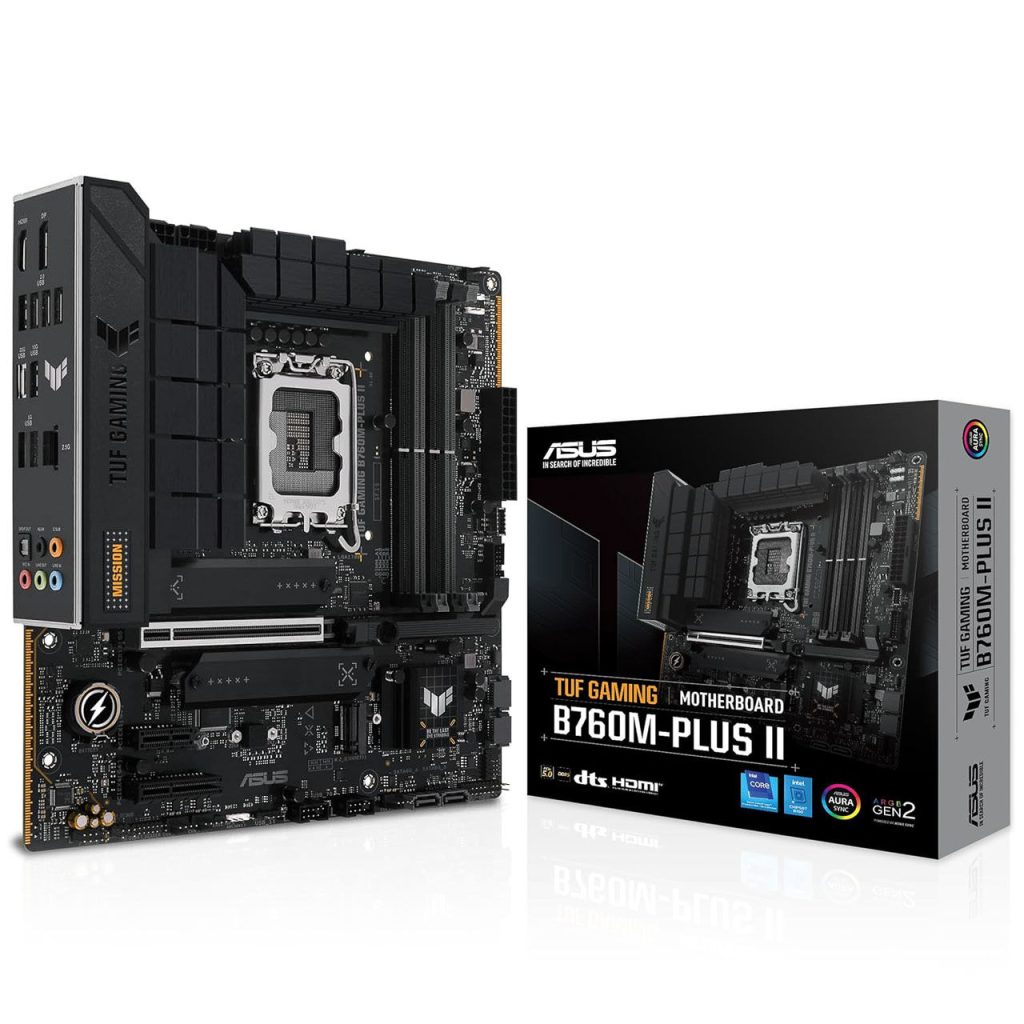

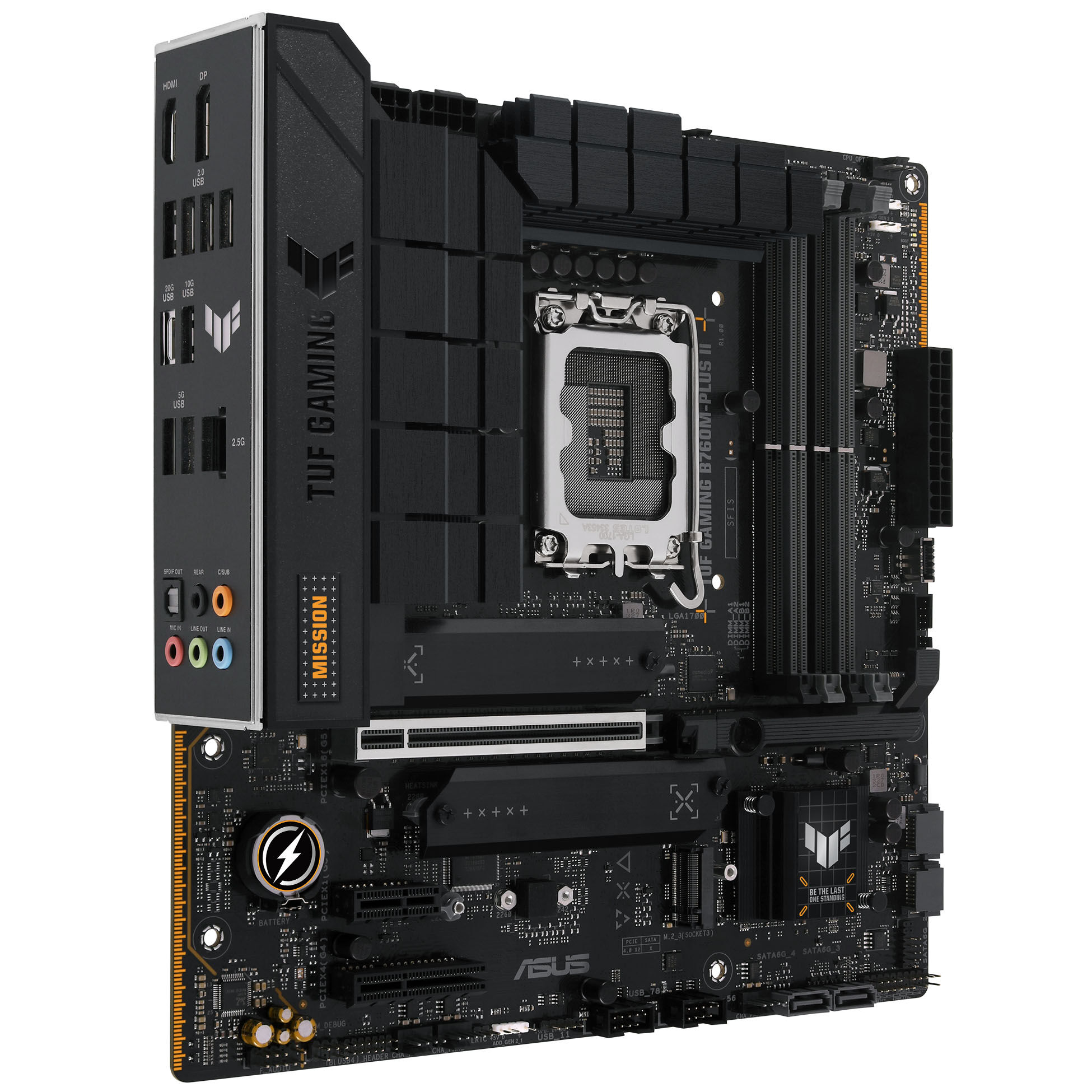

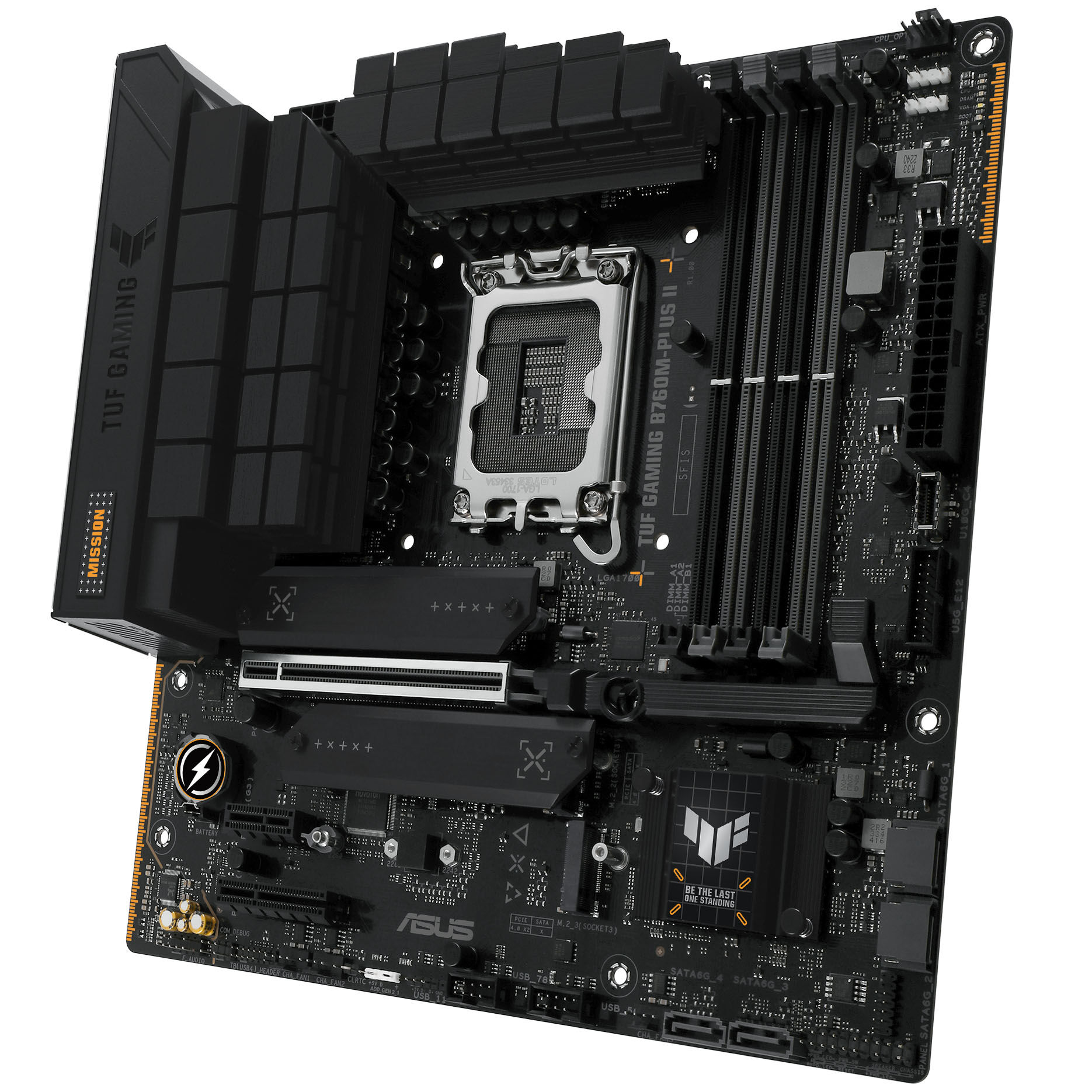

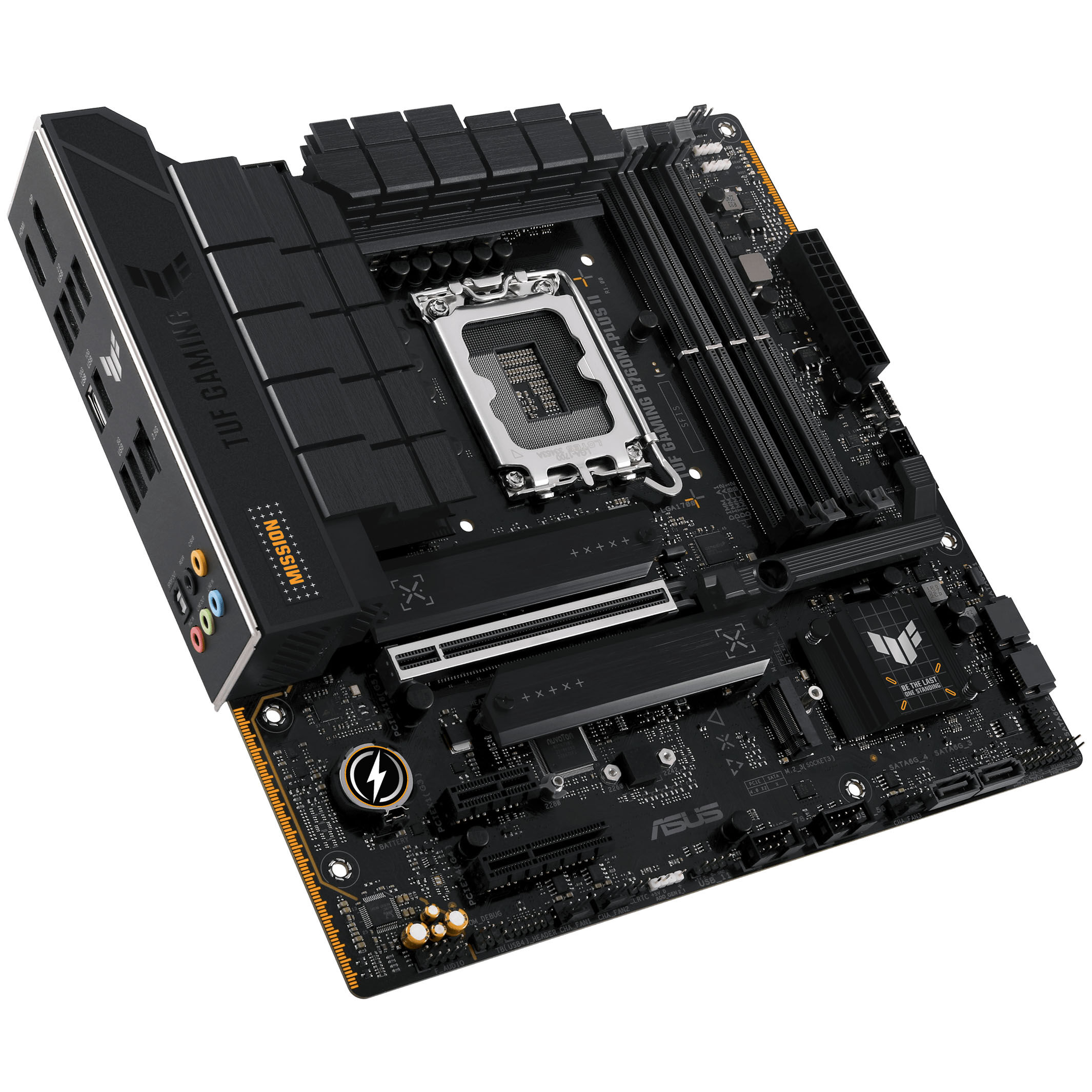

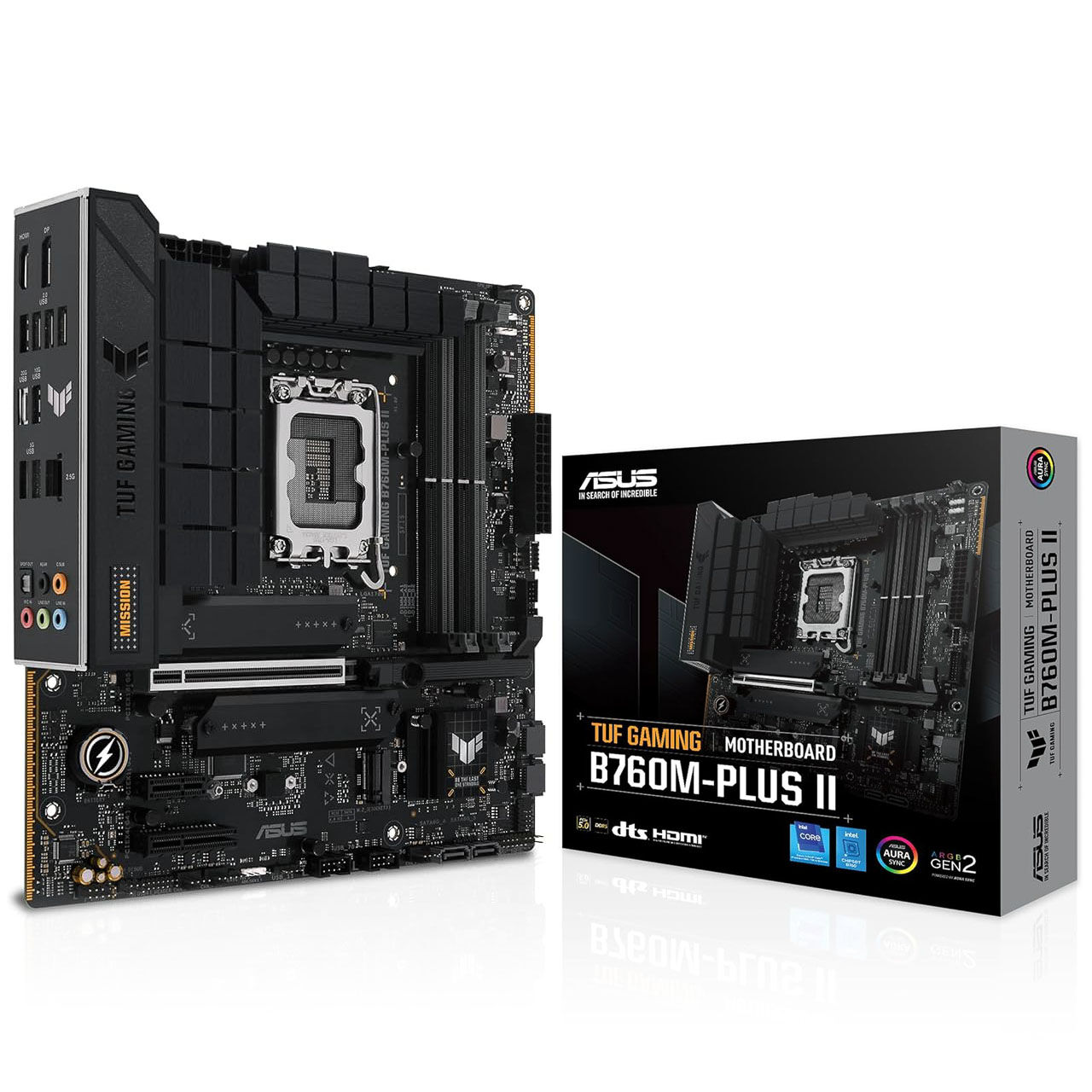

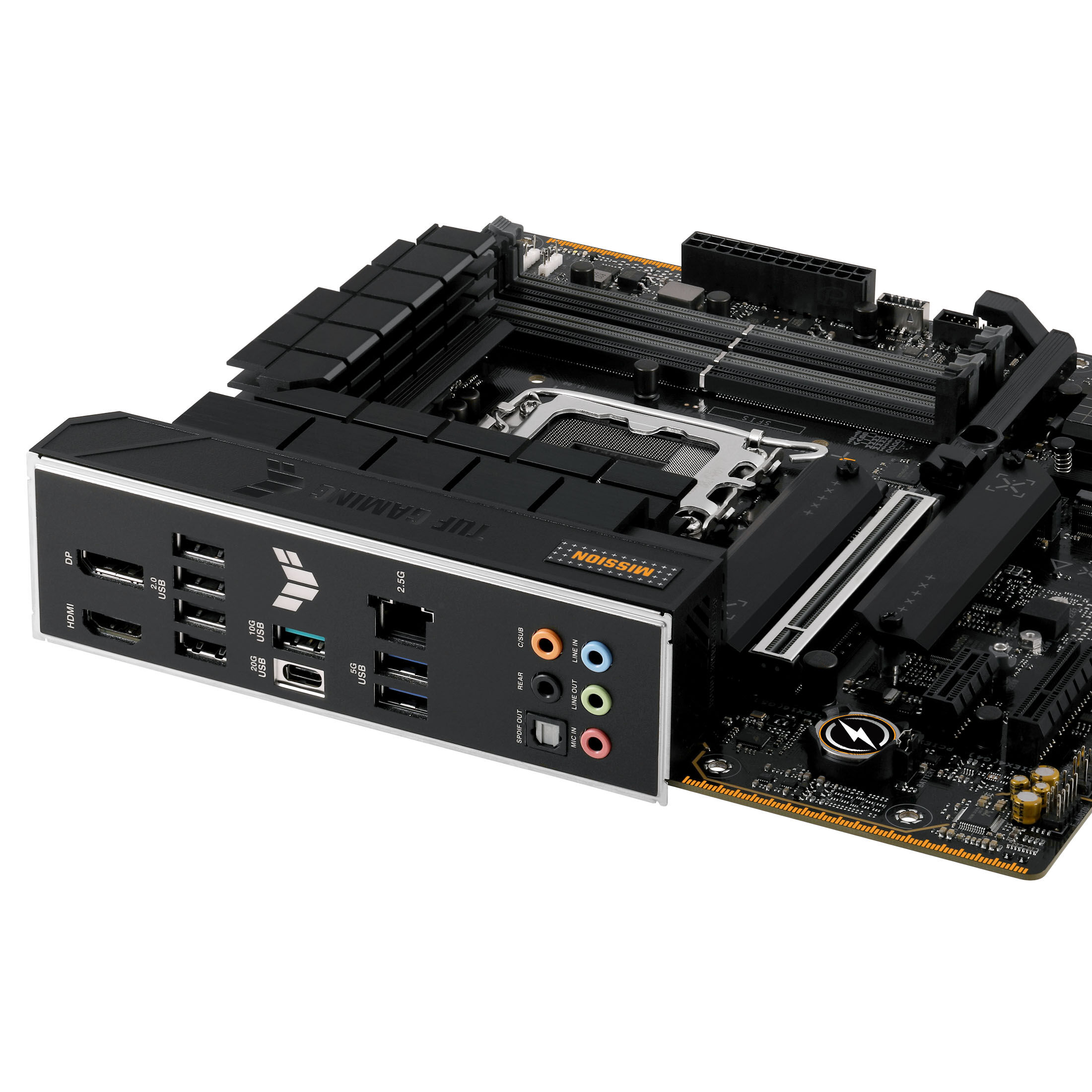

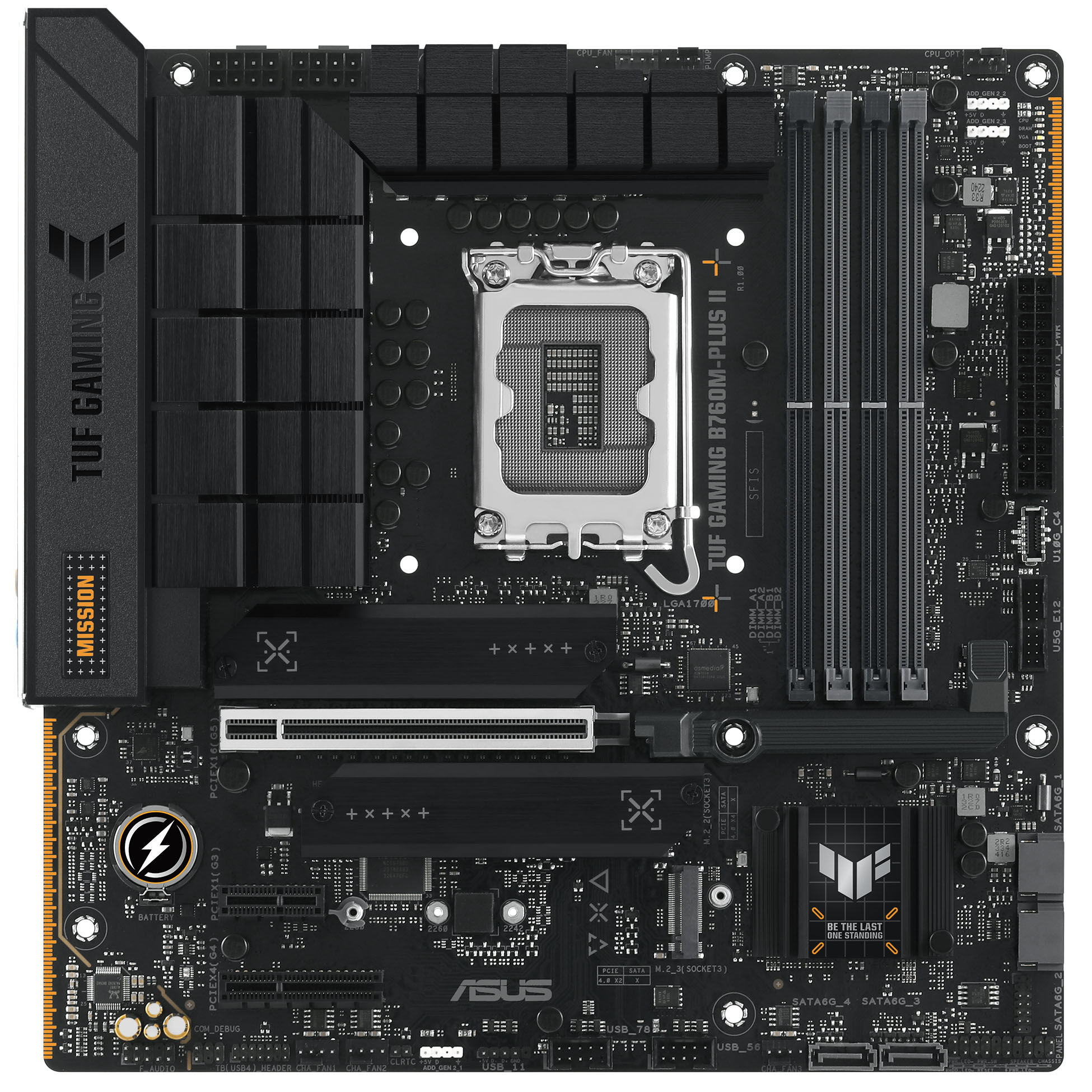

ASUS TUF Gaming B760M-Plus II motherboard, Intel B760, Socket 1700, Micro-ATX, DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x4 (x4), 1x PCIe 3.0 x1
– DDR5 memory up to 5,600 MHz, with RAM overclocking up to 7,800 MHz
– 3x M.2 slots, including 3x PCIe 4.0

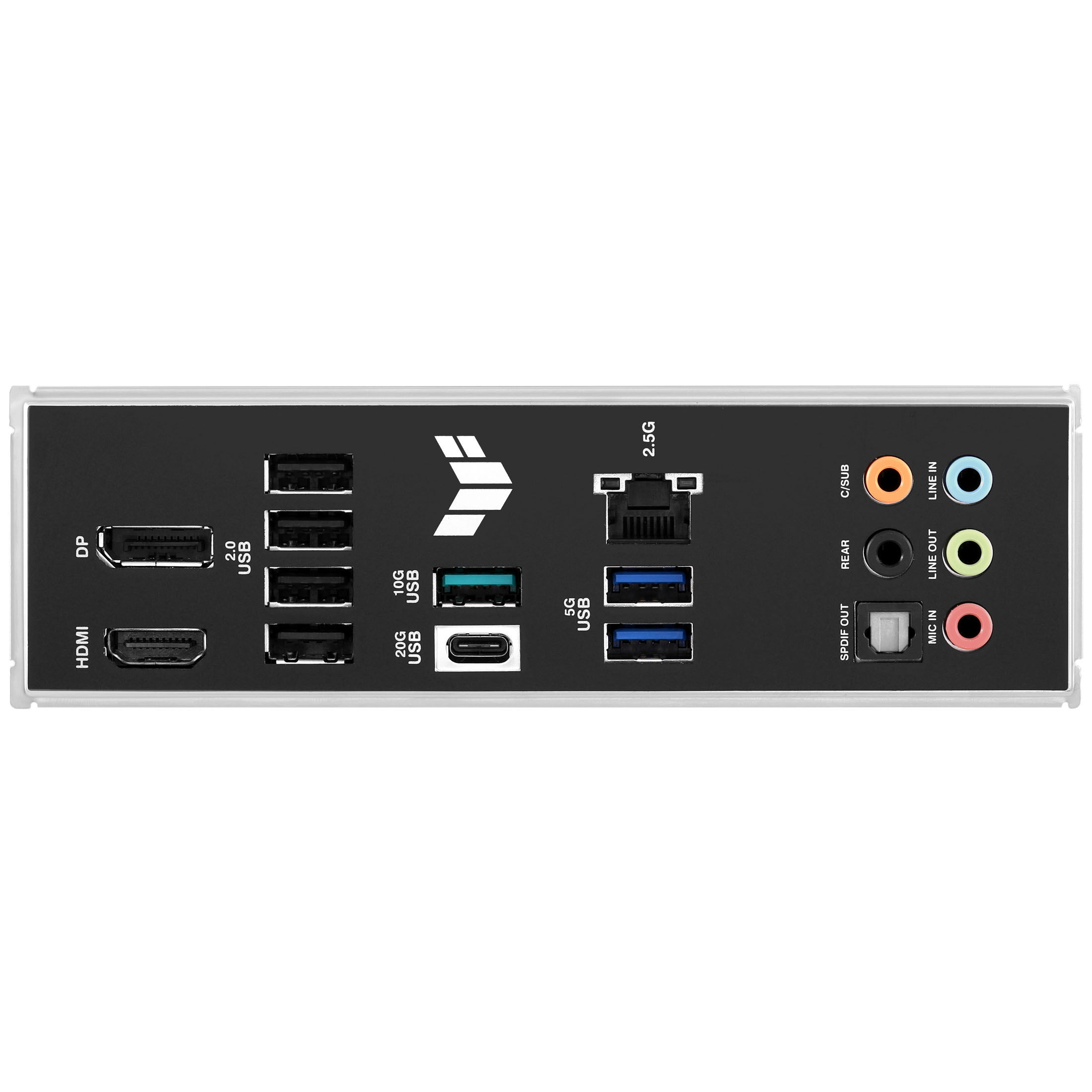

– USB on the I/O panel: 1x USB-C 3.2, 1x USB-A 3.1, 2x USB-A 3.0, and 4x USB-A 2.0
– A total of 6 connectors for fans and pumps

The ASUS TUF Gaming B760M-Plus II Micro-ATX motherboard with Intel B760 chipset in detail
The ASUS TUF Gaming B760M-Plus II is an ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is suitable for desktop processors of the Intel B760 family. 12th, 13th, and 14th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,800 MHz and, thanks to its outstanding power delivery, is ideal for RAM overclocking.

Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1700
– Motherboard
– Motherboard Chipset
– Intel B760
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 5600 MT/s
– Max. Memory Speed (OC)
– 7800 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– Intel XMP
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– WLAN / Bluetooth
– No
– Cooling
– – M.2 Heatsink
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– No
– Internal Connectors
– CPU Power Supply
– 2x 8-Pin
– USB4 (Internal) Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 3
– USB 2.0 (internal) possible ports
– 5
– RGB / LED ports
– 3x Digital RGB (3-pin 5VDG)
– Front-panel audio header
– Yes
– External ports
– USB 3.2 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 1
– USB 3.0 (external) Type-A
– 2
– USB 2.0 (external) Type-A
– 4
– Display ports
– Display Port (1x), HDMI (1x)
