Gigabyte H810M H motherboard, socket LGA 1851, Intel H810, Micro-ATX, DDR5

– Slots: 1x PCIe 4.0 x16 (x16) and 1x PCIe 3.0 x1
– RAM: 2x DIMM slots for up to 128 GB DDR5 RAM up to 6400 MT/s
– Storage: 1x M.2 (1x PCIe 4.0) and 2x SATA
– USB: 1x USB-C 3.0, 1x USB 3.0, and 5x USB 2.0
– Cooling: 3x 4-pin PWM connectors for fans and radiators

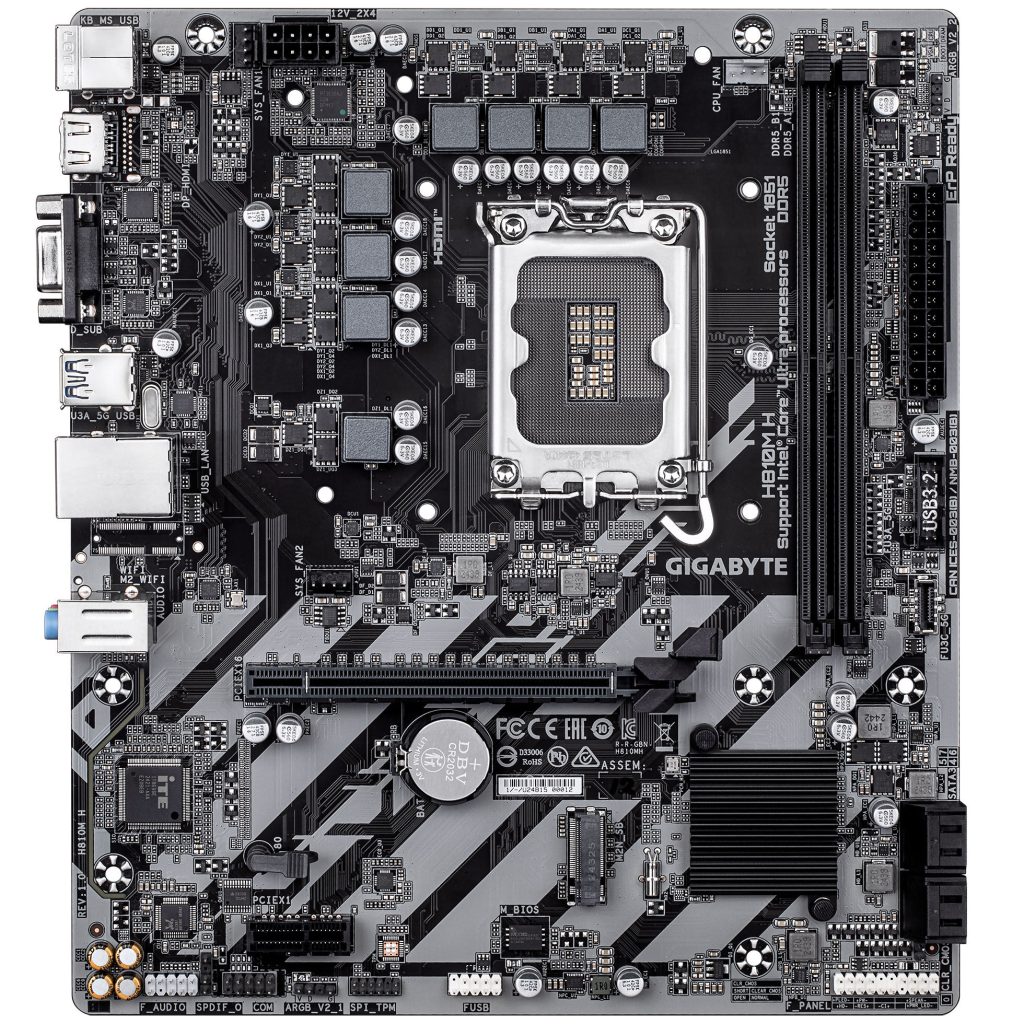

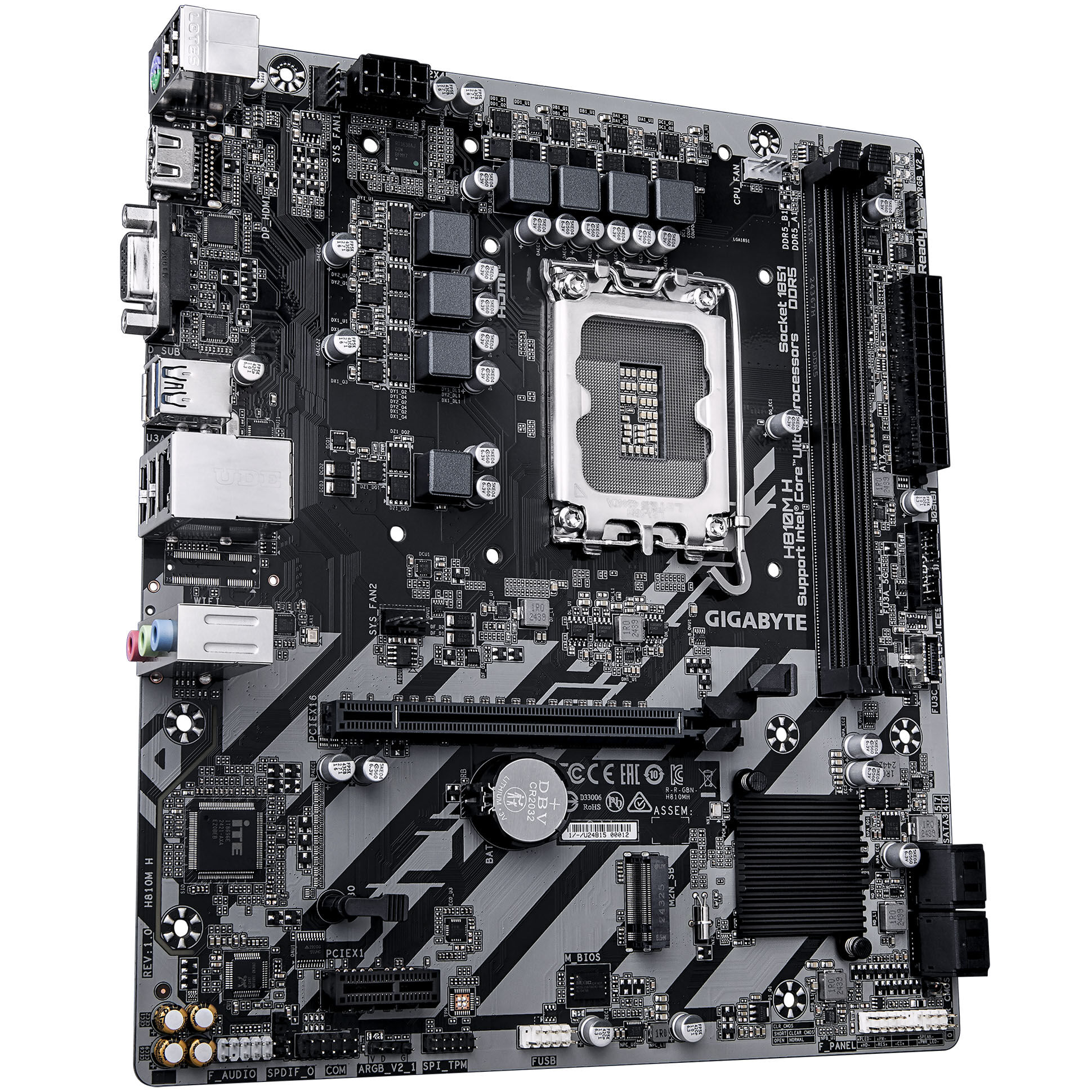

GIGABYTE H810M H: Micro-ATX motherboard with Intel LGA 1851 socket and H810 chipset
The GIGABYTE H810M H is a Micro-ATX motherboard with the entry-level Intel H810 chipset and the Intel LGA 1851 socket. It supports Intel Arrow processors. Lake generation and is suitable for office tasks and casual gaming. Overclocking of the CPU and RAM is not possible.

The GIGABYTE H810M H also offers PCIe 4.0 for graphics cards and PCIe 4.0 for M.2 SSDs.

Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel H810
– RAM
– Max. RAM
 -128 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (OC)
– 6400 MT/s
– ECC Support
– Yes
– Memory Slots
– 2x
– Performance Profile
– Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– Wi-Fi / Bluetooth
– No
– Cooling
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 1
– USB 2.0 (internal) possible ports
– 2
– RGB / LED ports
– 2x Digital RGB (3-pin 5VDG)
– Front-panel audio header
– Yes

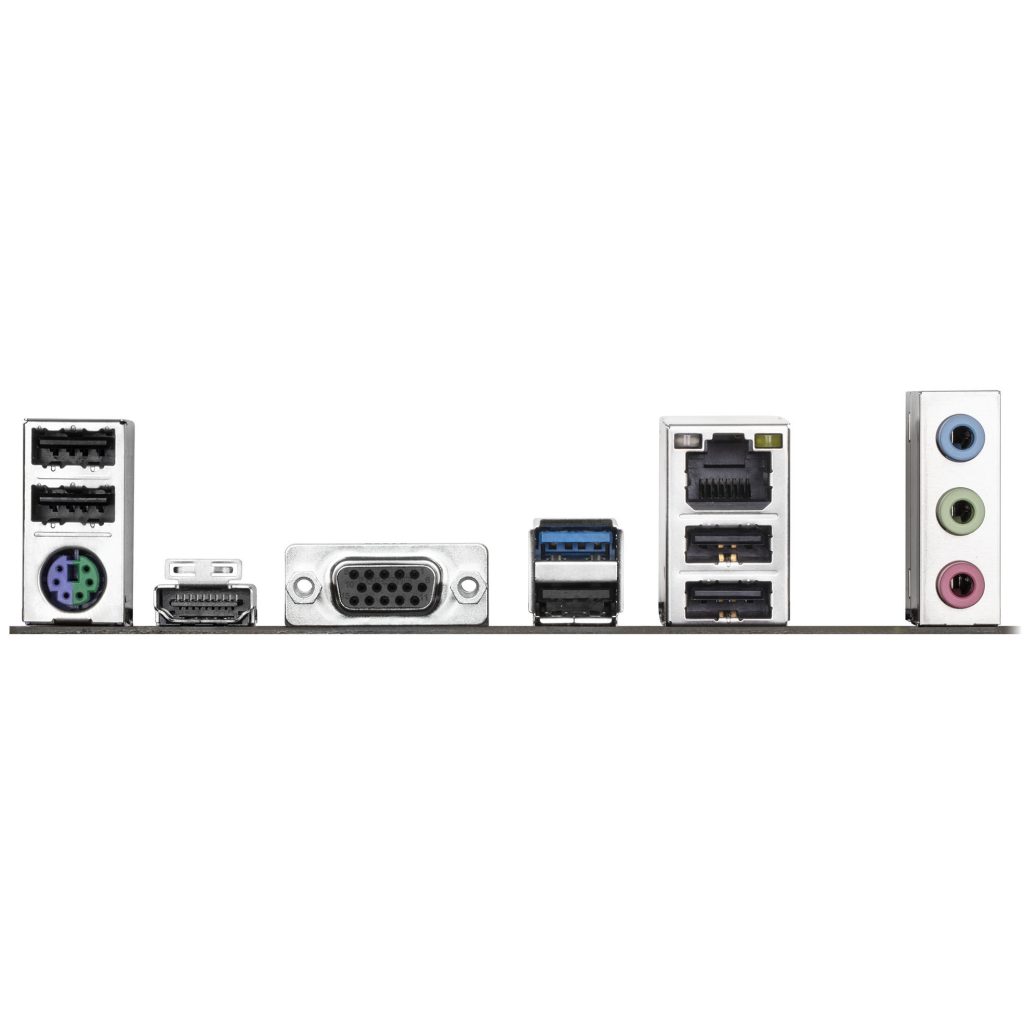

– External ports
– USB 3.0 (external) Type A
– 1
– USB 2.0 (external) Type A
– 5
– Display ports
– HDMI (1x), VGA (D-Sub) (1x)
– Storage ports
– M.2 PCIe 4.0 x4
– 1
– SATA 6G (internal)
– 3
– Expansion slots
– PCIe x16 slots (total)
– 1
– PCIe x1 slots (total)
– 1
– PCIe 4.0 x16 (mechanical)
– 1
– PCIe 3.0 x1 (mechanical)
– 1
– Fan Header
– 4-pin fan connectors
– 3
– Lighting
– Lighting / RGB
– Yes
