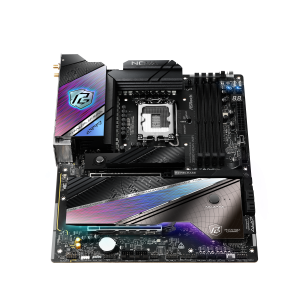

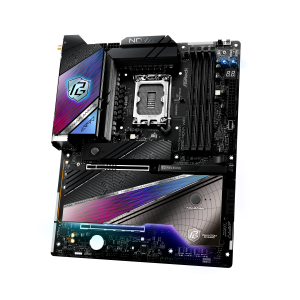

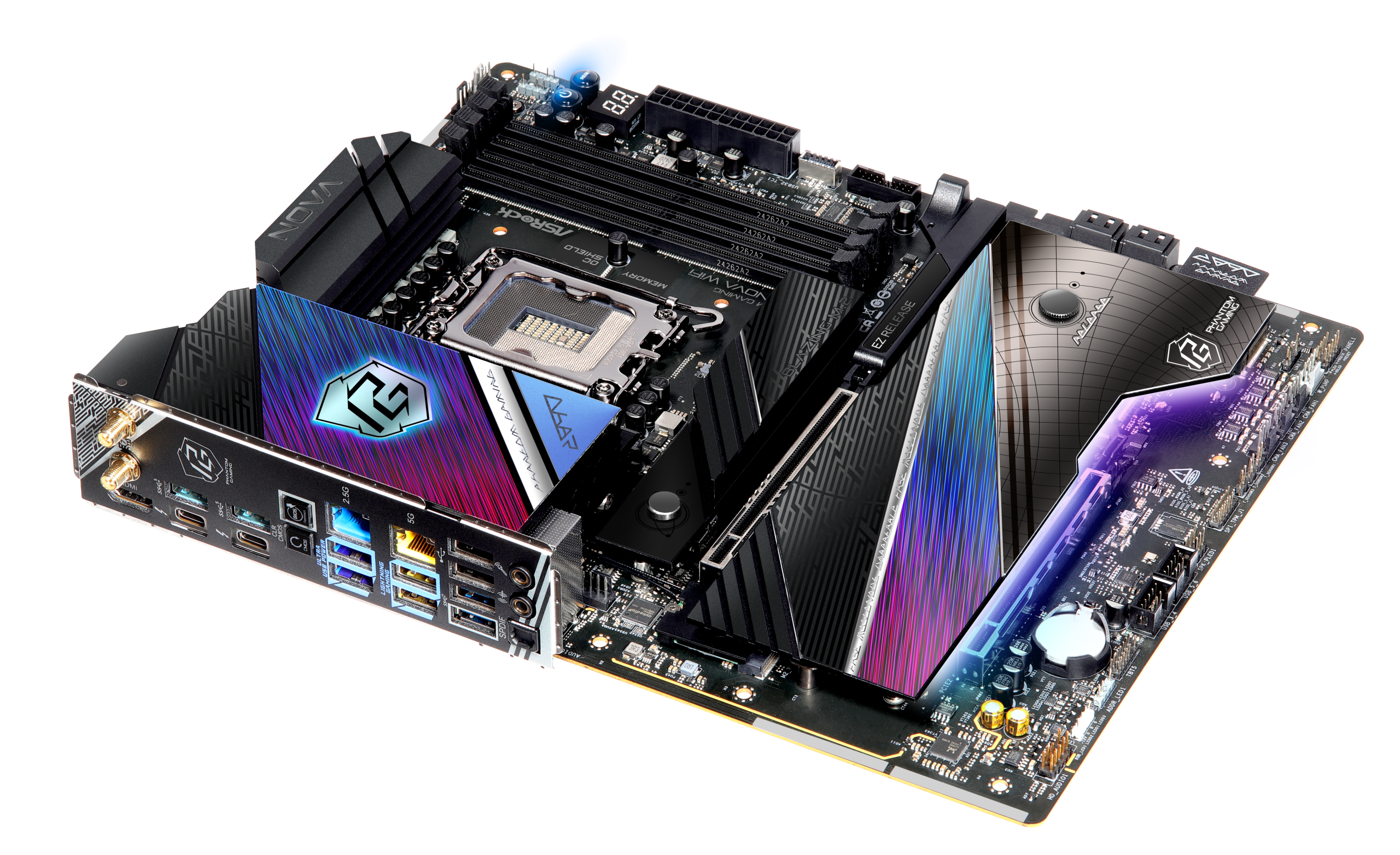

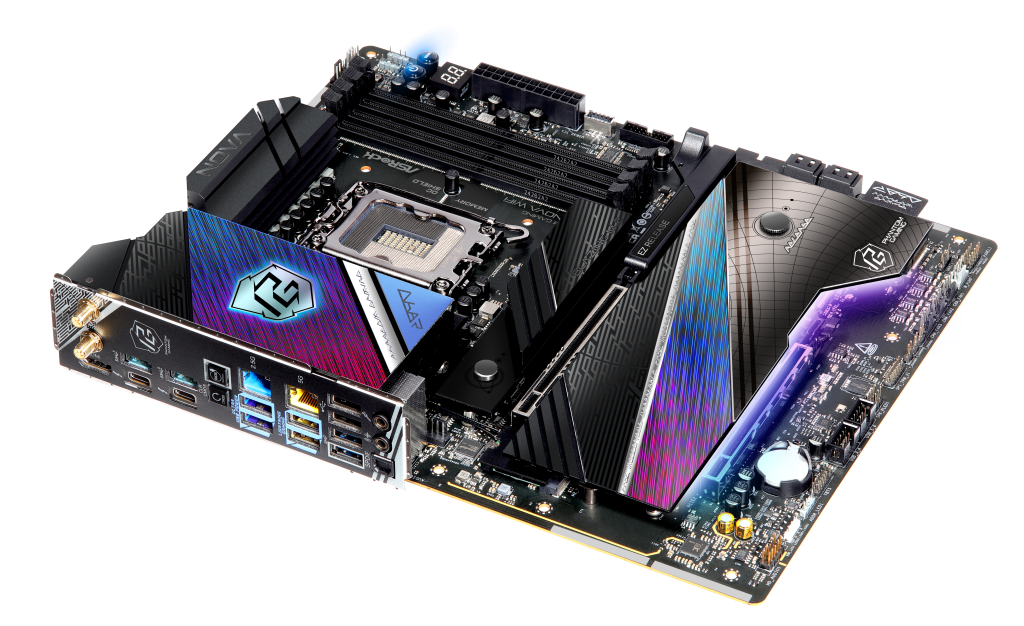

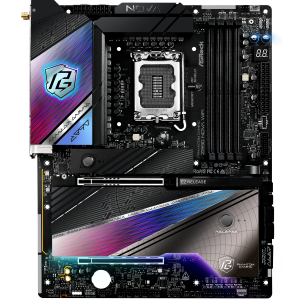

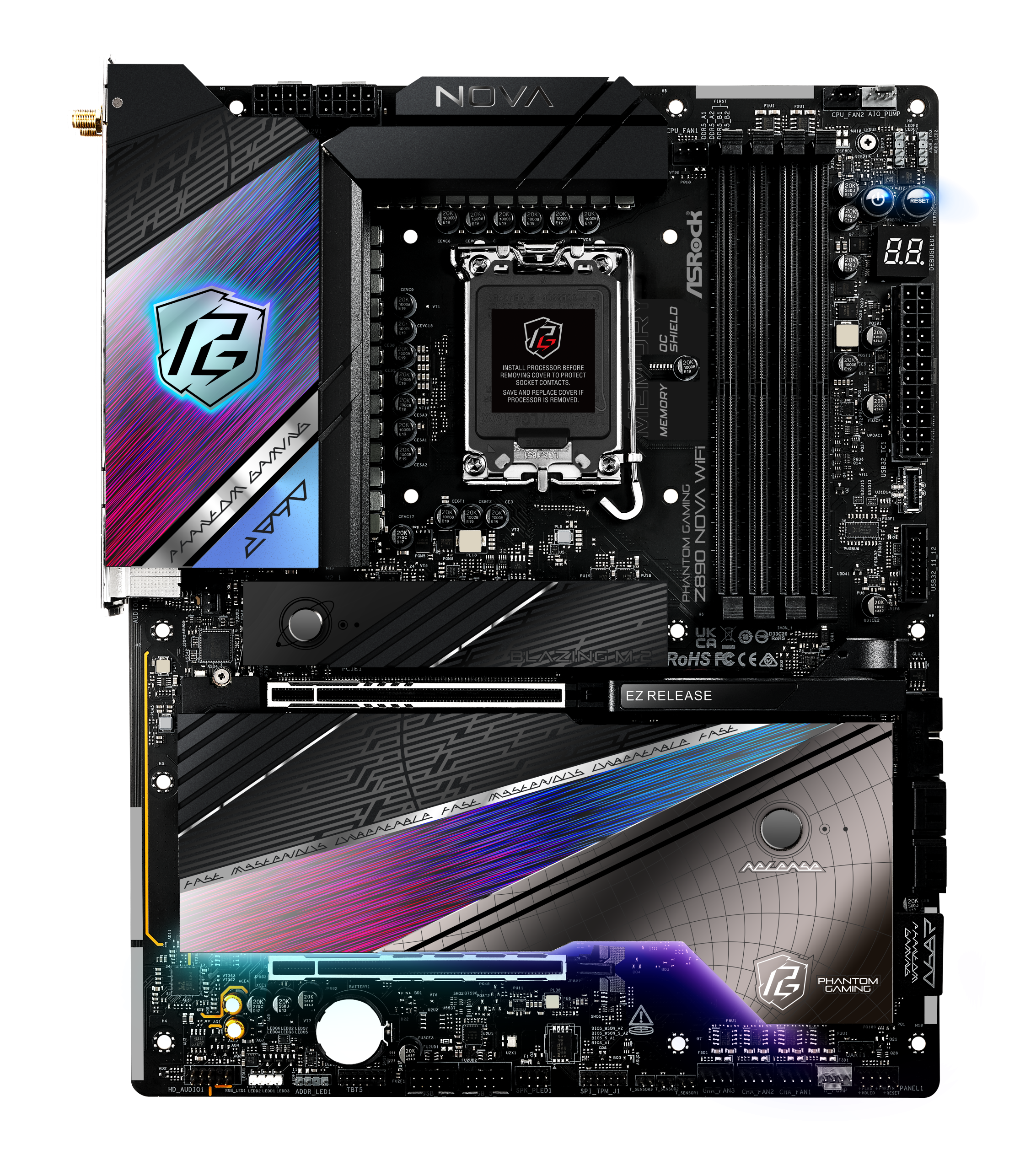

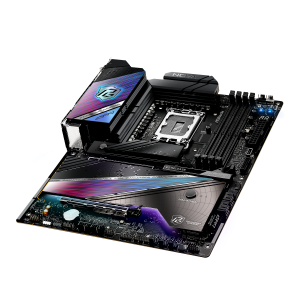

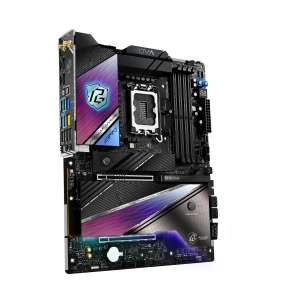

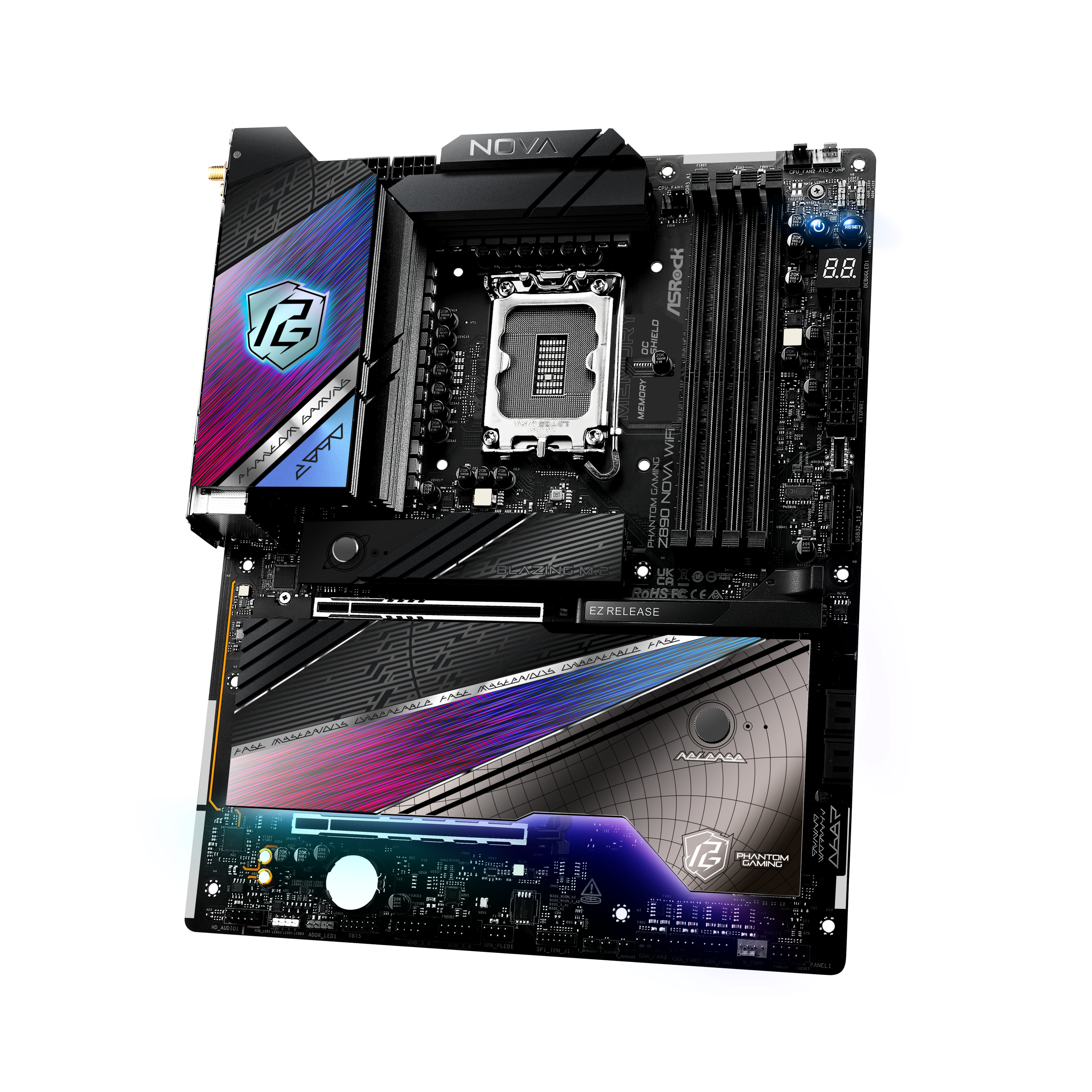

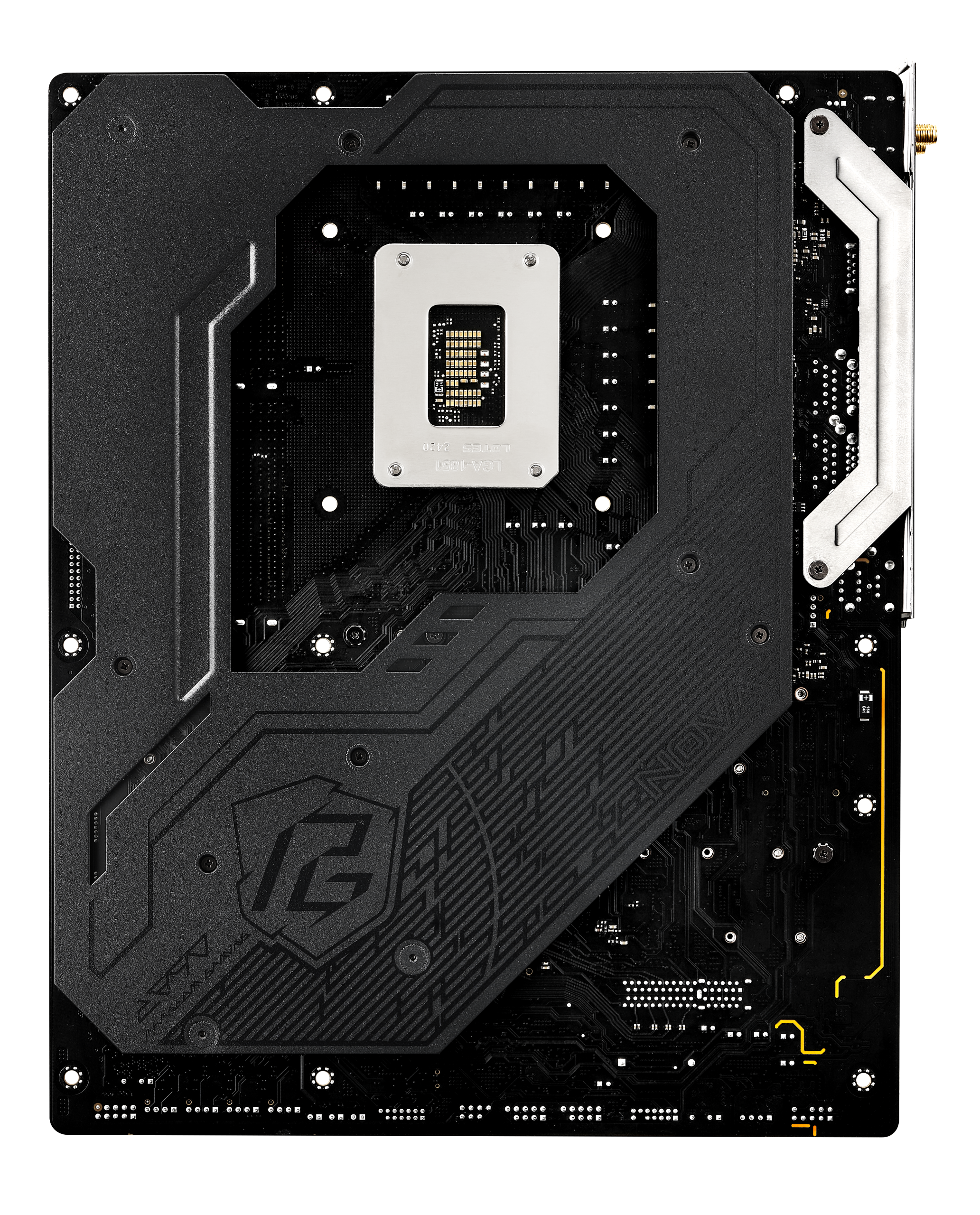

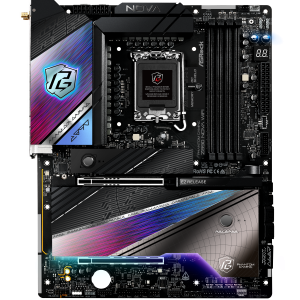

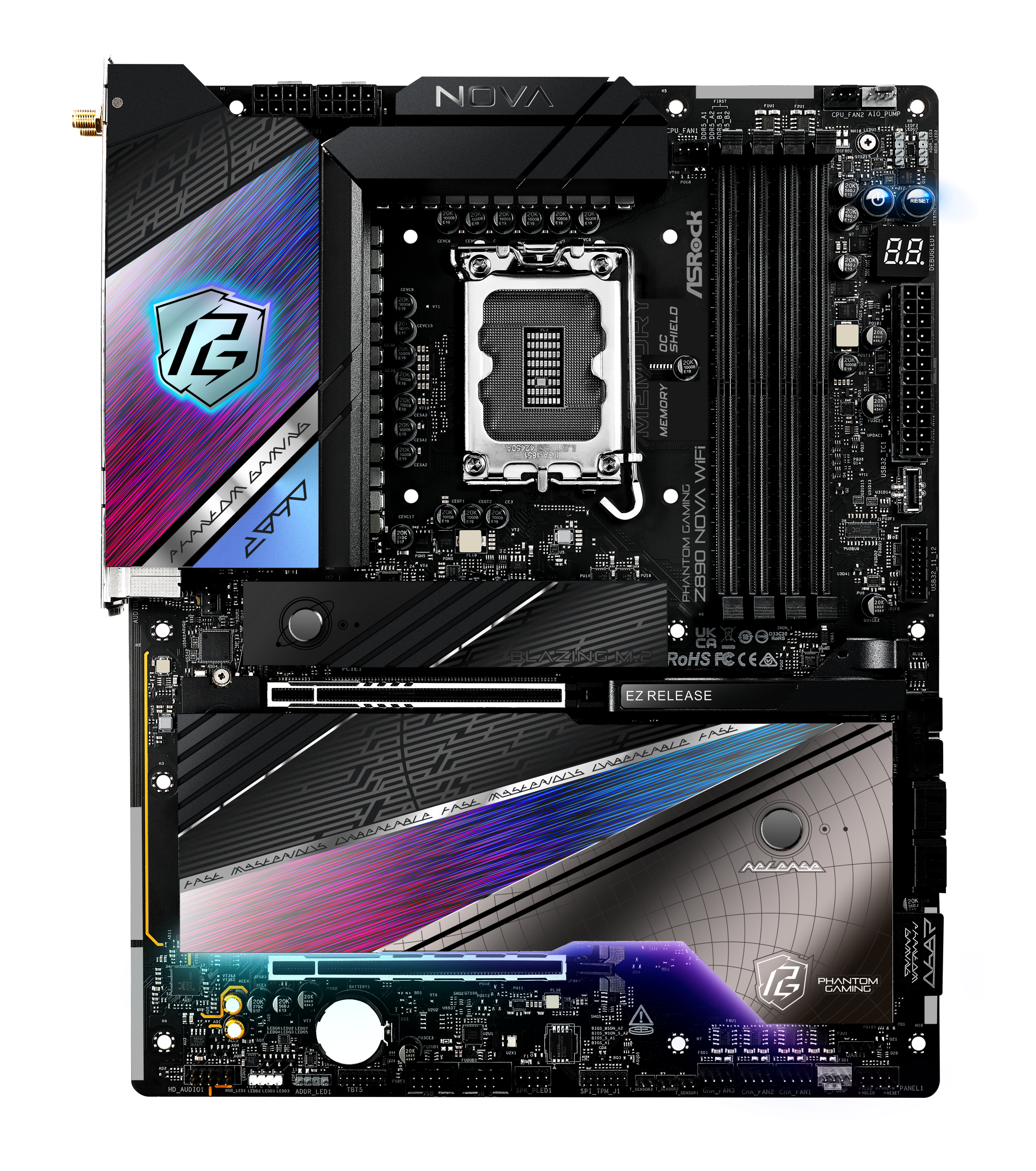

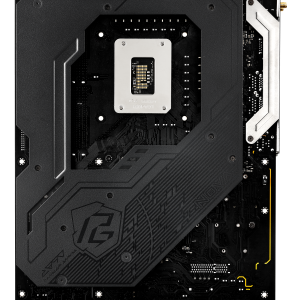

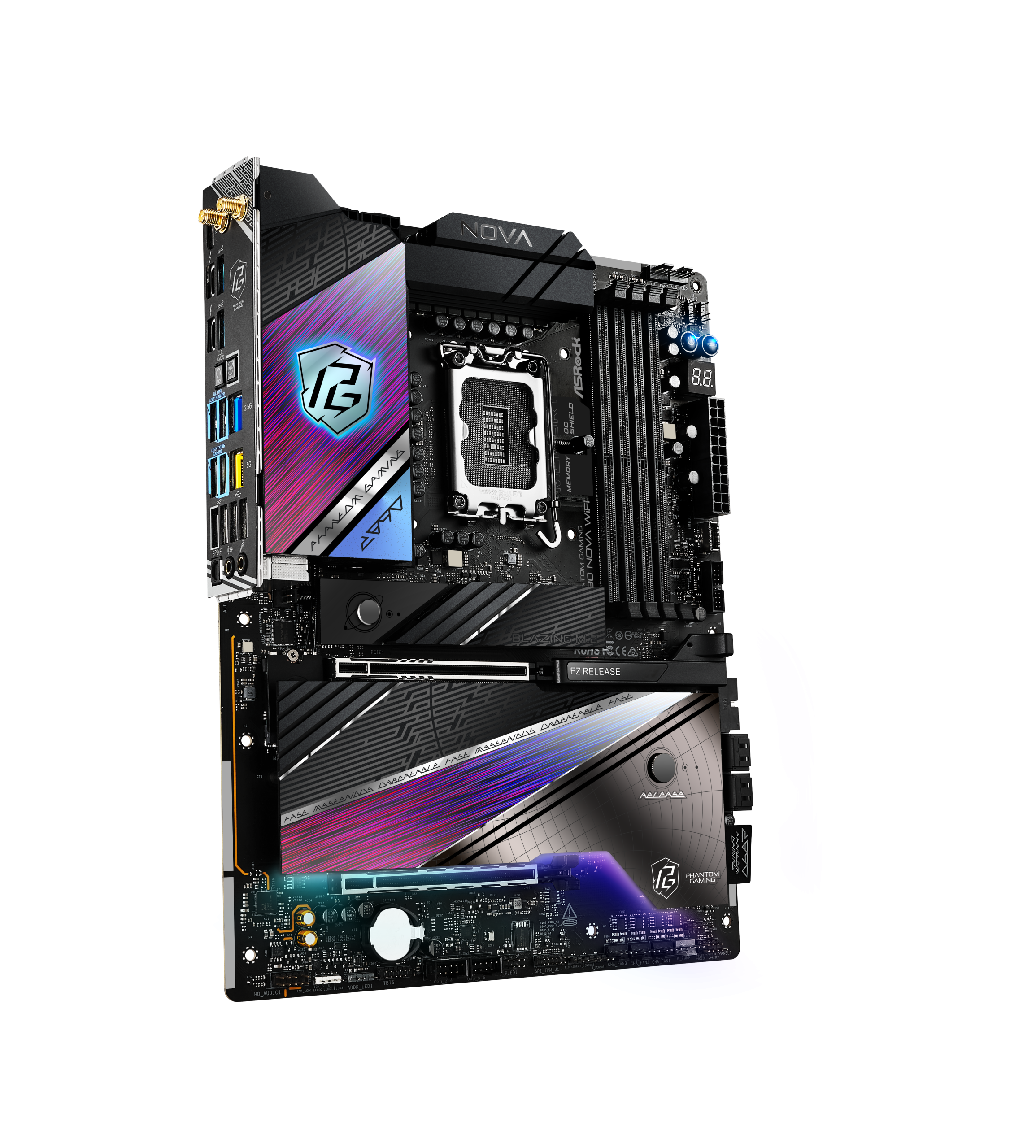

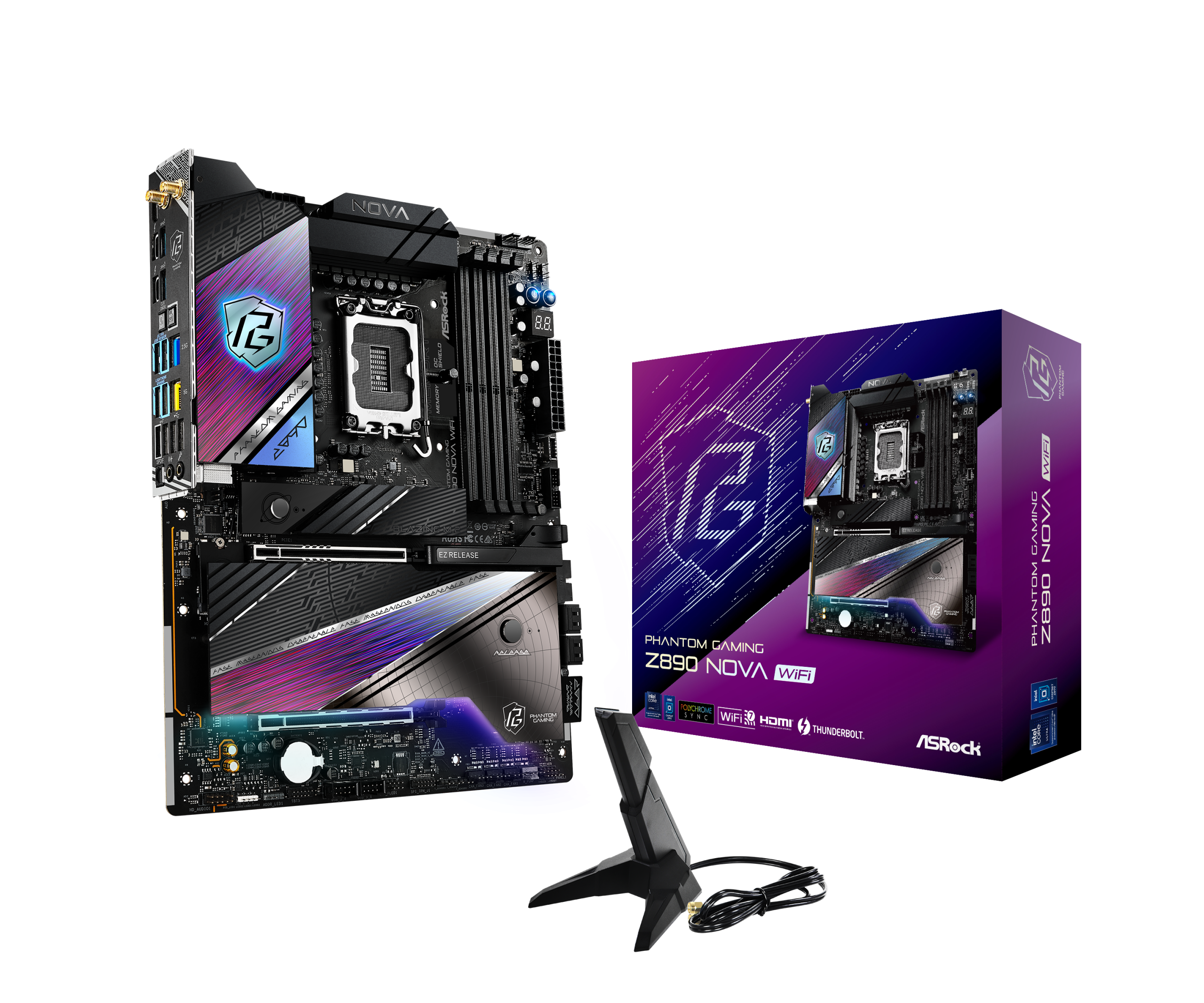

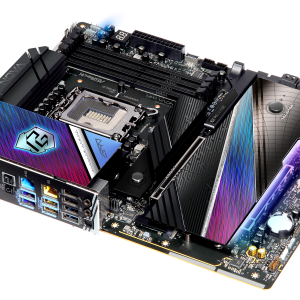

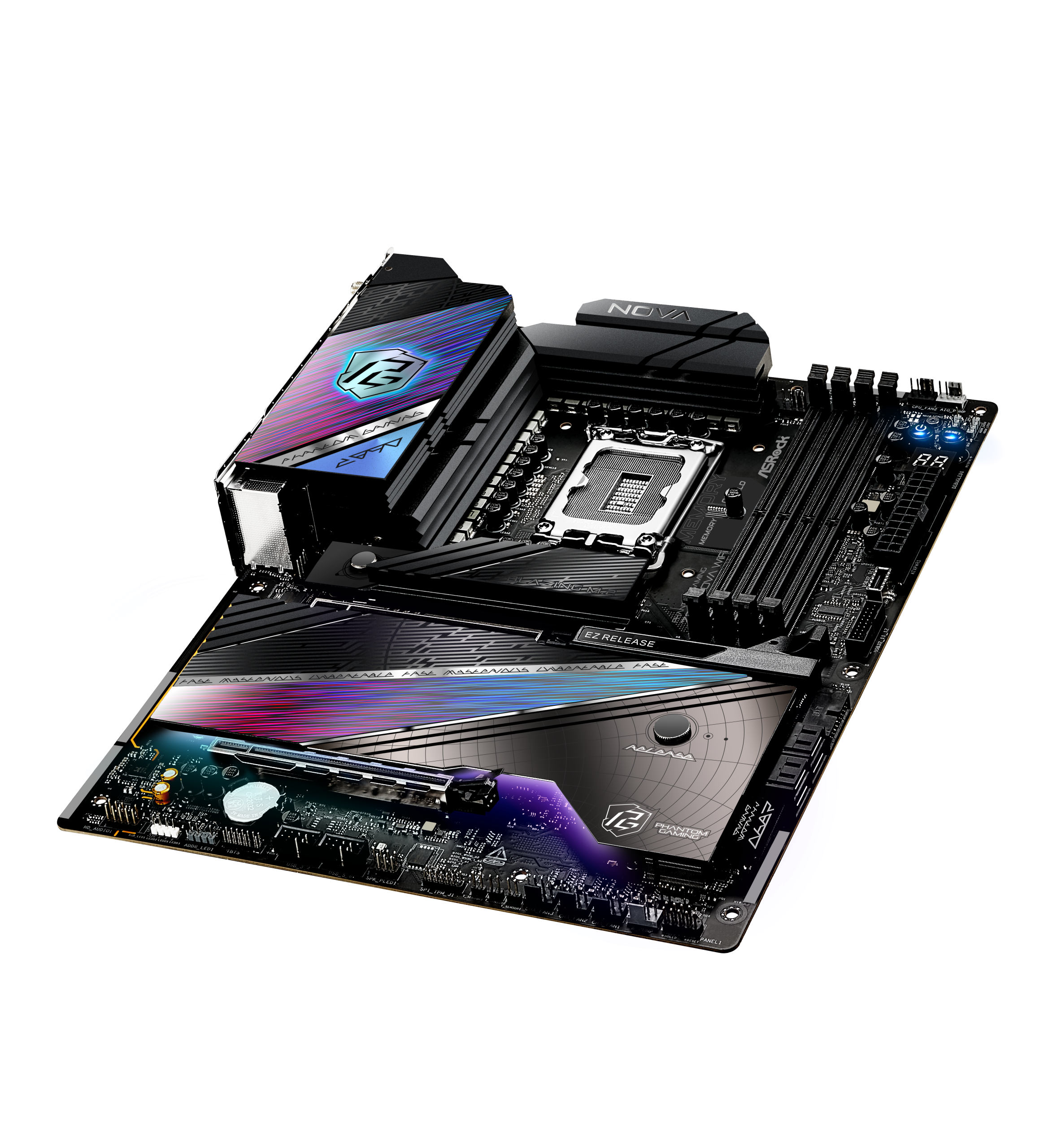

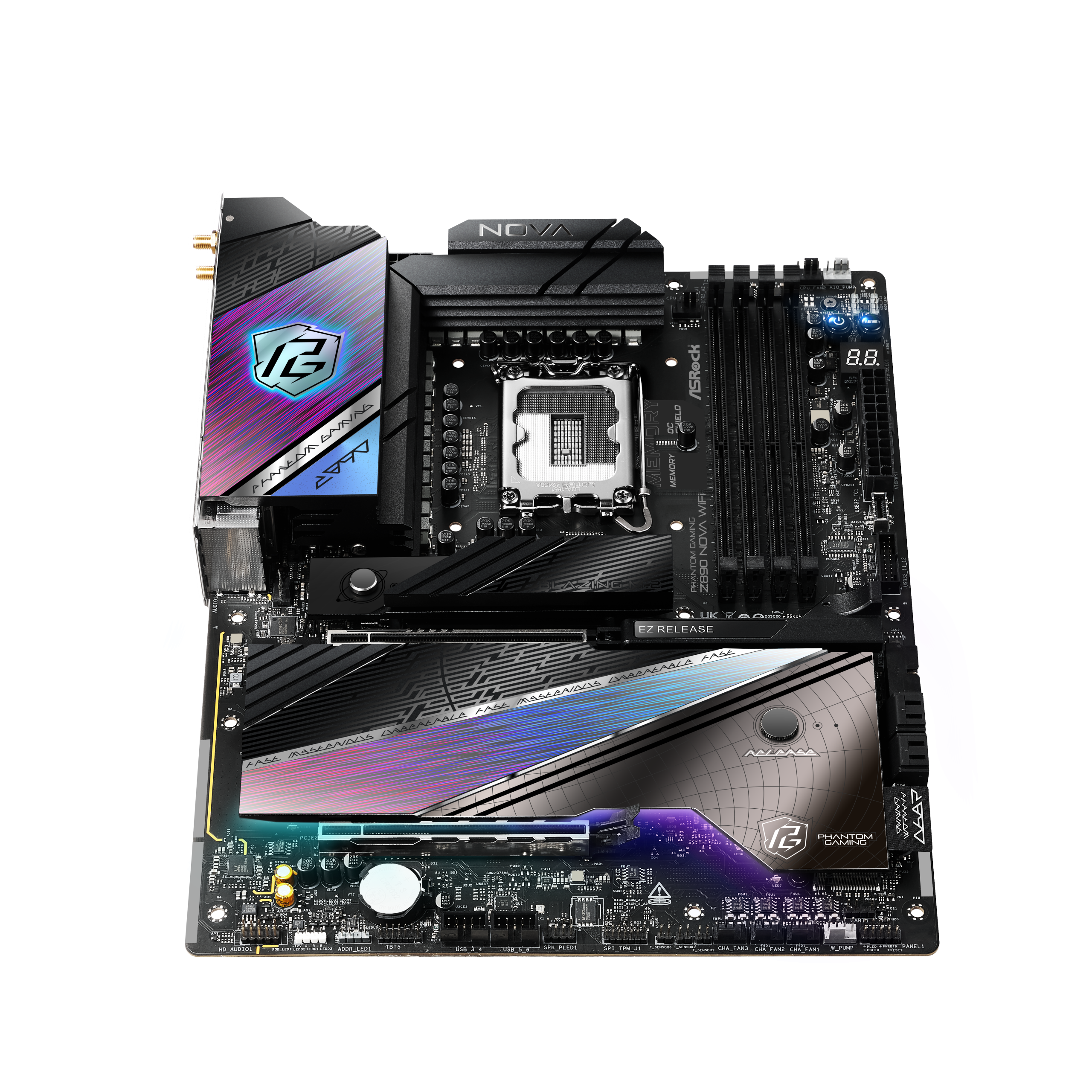

ASRock Z890 Nova WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for gaming enthusiasts and overclockers who want to push their system to its limits.

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 5600 MHz
– 6x M.2 (including 1x PCIe 5.0 and 5x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt, 4x USB 3.1, 4x USB 3.0, and 2x USB 2.0
– OC features: 20+1+2+1+1 phase VRMs, CMOS
– Total of 8x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

ASRock Z890 Nova WiFi: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890 Nova WiFi is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASRock Z890 Nova WiFi boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for Demanding Gaming
The ASRock Z890 Nova WiFi was specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruption. The first-class voltage converters ensure a stable power supply to the CPU, ensuring it operates reliably for extended periods, even at high clock speeds. The DDR5 RAM can also be overclocked to higher clock speeds.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 5,600 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2230 / 2242 / 2260 / 2280, chipset)
– 3x M.2 (PCIe 4.0 x4; 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 2x Thunderbolt
– 2x antenna port
– 1x BIOS flashback button
– 1x SPI TPM header
– 1x Thermistor Cable Header
– 1x Clear CMOS header
– 1x Power LED/Speaker Header
– Fan header:
– 2x CPU fan (4-pin)
– 1x AIO pump (4-pin)
– 1x Pump (4-pin)
– 4x Case fans (4-pin)
– RGB headers:
– 3x 3-pin ARGB (5 V)
– 1x RGB header

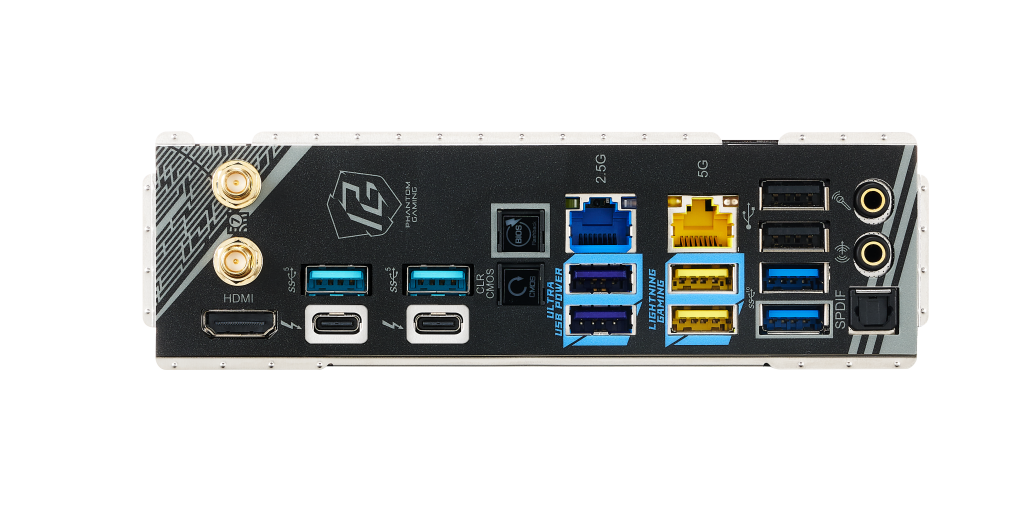

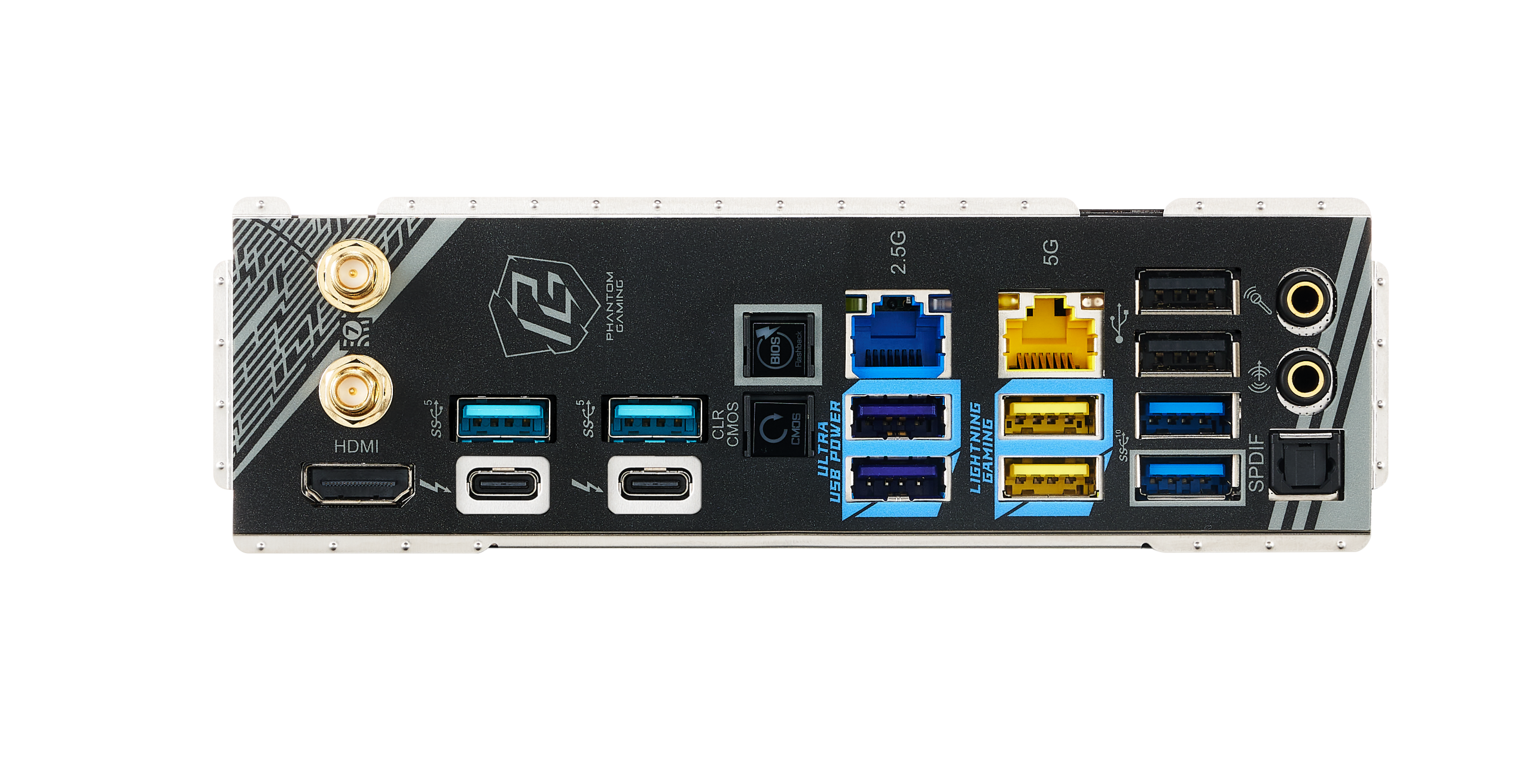

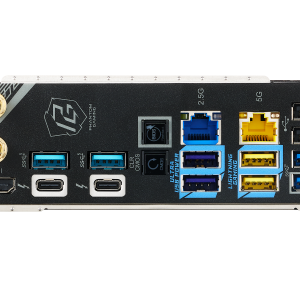

– External ports:
– 2x Thunderbolt (USB-C, max. 40 Gbps)
– 4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbps)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (Type A, max. 480 Mbps)
– 1x HDMI
– 1x 2.5 Gigabit LAN (Killer E3100G)
– 1x 5 Gigabit LAN (RTL8126)
– 2x 3.5 mm jacks (Realtek ALC 4082)
– 1x WiFi/Bluetooth module
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU

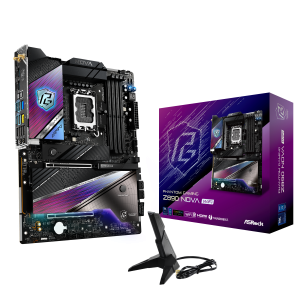

– Accessories:
– 4x SATA cables
– 1x M.2 expansion card
– 1x WiFi antenna
– 1x ARGB splitter cable
– 3x thermistor cables
– 1x screw for M.2 socket
– 1x standoff for M.2 socket
