MSI Pro Z790-P WiFi, Socket LGA 1700, Intel Z790, ATX - DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x1), 1x PCIe 3.0 x1
– DDR5 memory up to 5,600 MHz, with RAM overclocking up to 7,000 MHz
– 4x M.2 slots, including 4x PCIe 4.0
– USB on the I/O panel: 1x USB 3.2 Type-C, 1x USB 3.1, 2x USB 3.0, and 4x USB 2.0
– Overclocking features: 14+1+1 phase VRMs, BIOS Flashback, Clear CMOS button, VRM heatsink, DrMOS
– A total of 8 connectors for fans and pumps

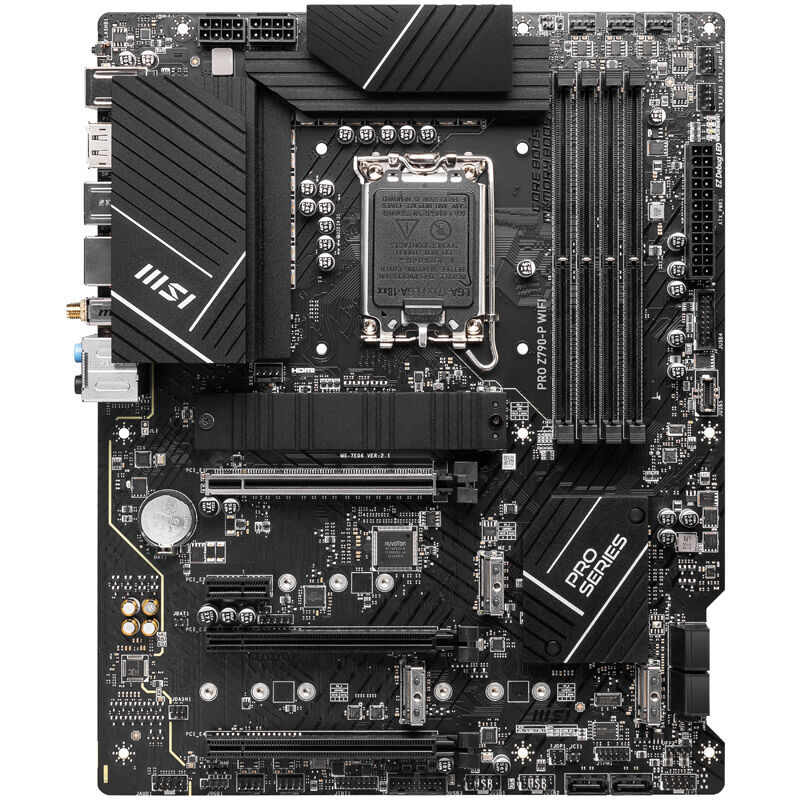

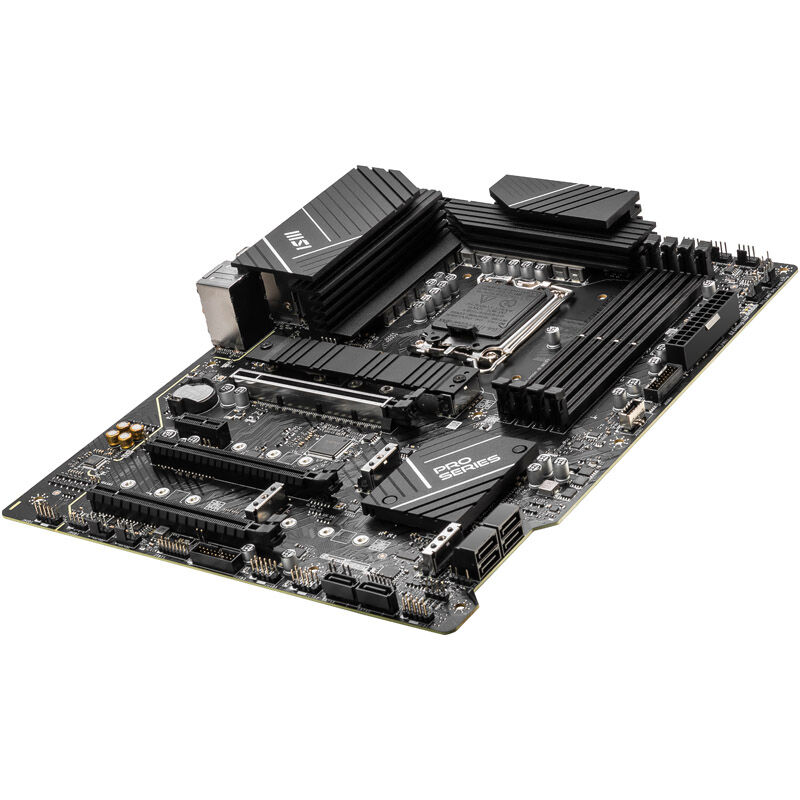

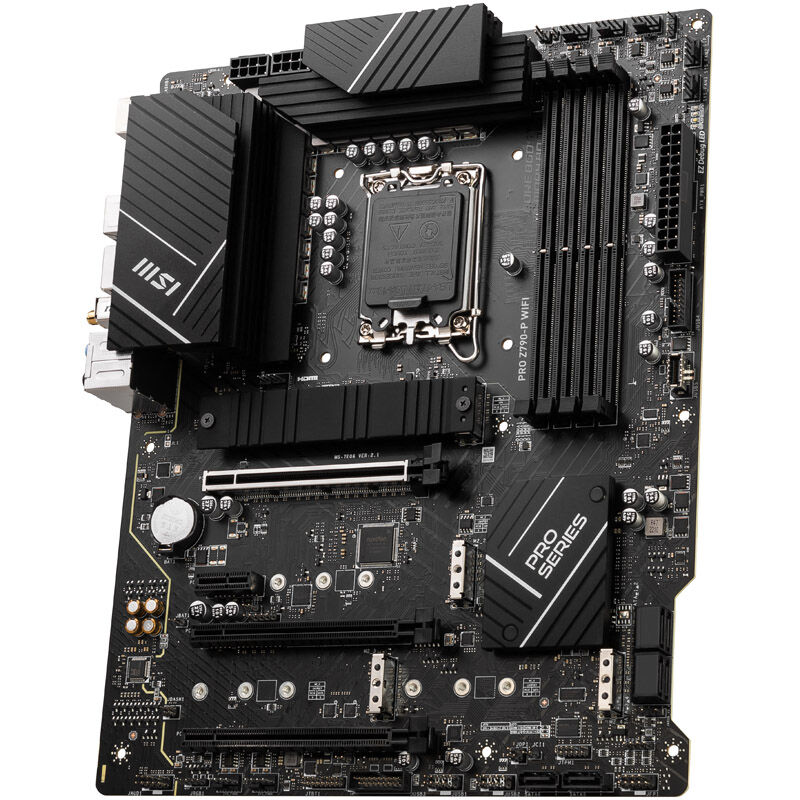

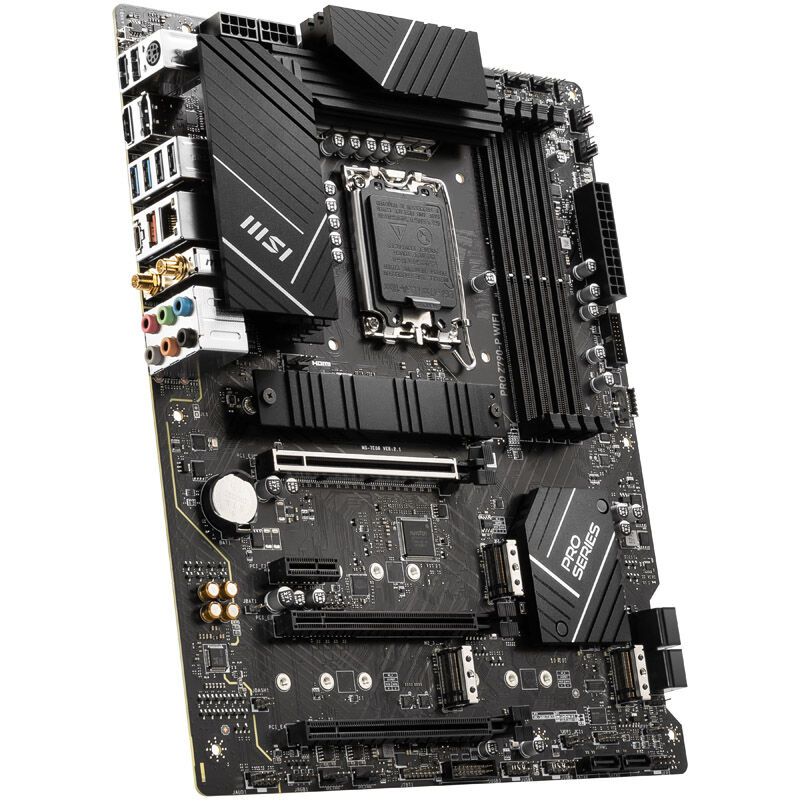

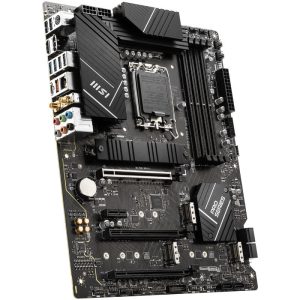

The MSI Pro Z790-P WiFi DDR5 ATX motherboard with Intel Z790 chipset in detail
The MSI Pro Z790-P WiFi DDR5 is an ATX motherboard with the high-end Intel Z790 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory clocked at up to 7,000 MHz and, thanks to its outstanding power supply, is ideal for overclocking.

In addition to a stable power supply with 14+1+1 phase VRMs and 55 A, the MSI Pro Z790-P WiFi DDR5 boasts other features that make overclocking your system much easier. DrMOS for adjusting VRM voltage and frequency modulation, as well as buttons for BIOS flashing, ensure security during overclocking attempts.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly performing BIOS updates for your motherboard. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Format:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z790
– Socket:
– LGA 1700 (for Intel 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 4x DDR5 (5,600 MHz, up to 7,000 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 2x PCIe 3.0 x1/x16 (electrical x1, chipset)
– Internal connections:
– 6x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
– 1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
– 2x M.2 (PCIe 4.0 x4 and SATA, 2242-2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 2x front panels
– 1x chassis intrusion
– 1x front audio
– 1x Thunderbolt 3 connector
– 1x tuning controller connector
– 1x TPM pin Headers
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x Pump/Fan (4-pin)
– 6x Case Fans (4-pin)
– RGB Header:
– 2x Addressable Gen 2 Headers (3-pin, 5 V)
– 1x RGB Header (4-pin, 12 V)

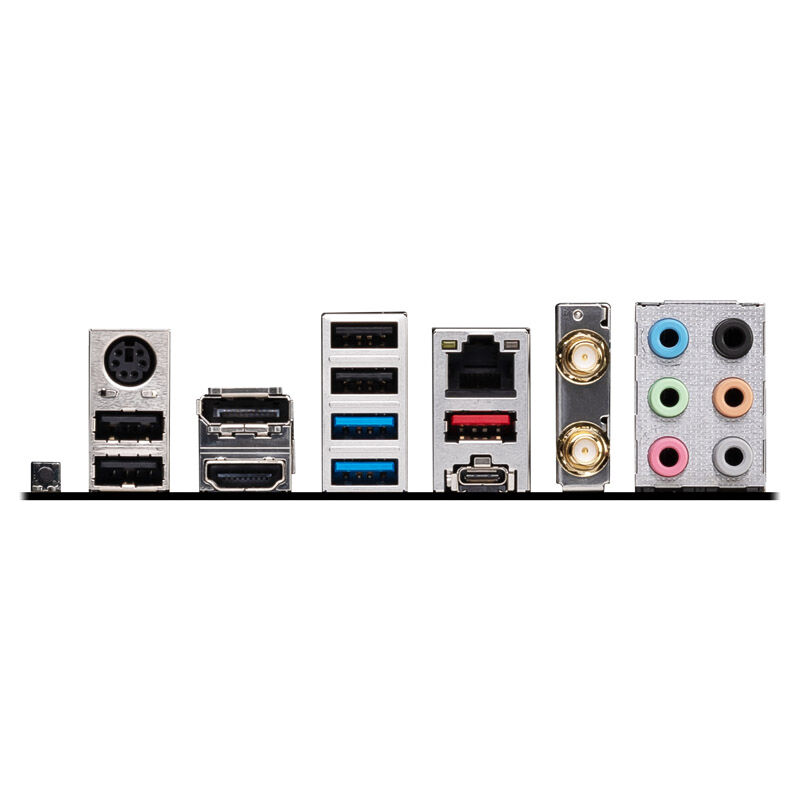

– External Connectors:
– 1x USB 3.2 (Type-C, USB 3.2 Gen 2×2, max. 20 Gbps)
– 1x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 2x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (Type-A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x BIOS Flash Button
– 1x Wi-Fi and Bluetooth Antenna Connectors (Intel WiFi) 6E)
– 1x DisplayPort 1.4
– 1x RJ-45 (max. 2.5 Gbps, Intel)
– 6x 3.5 mm jacks (Realtek ALC897 7.1)
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX/EPS 12V

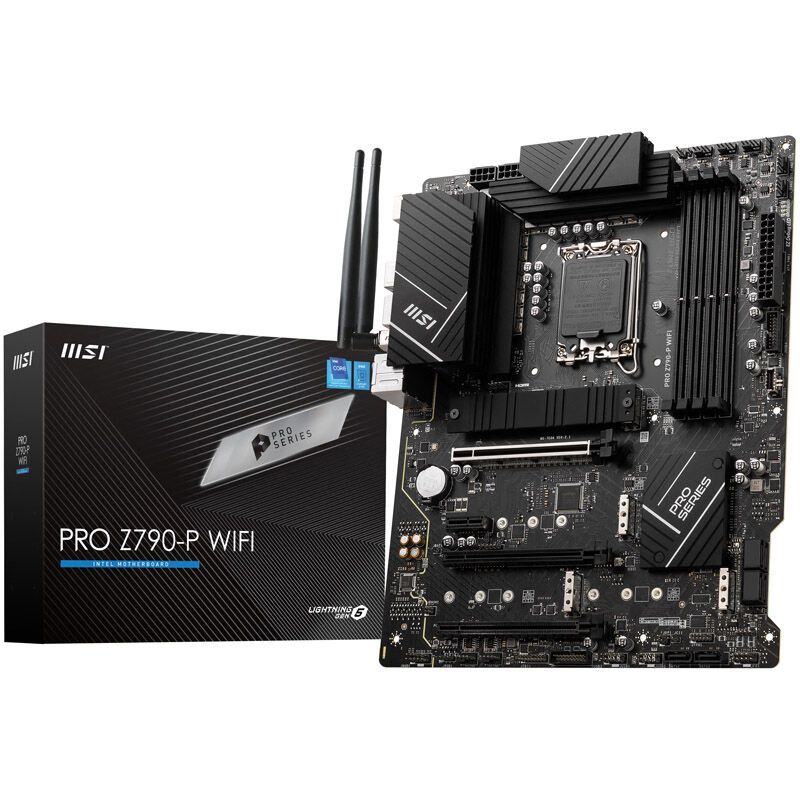

– Accessories:
– 1x set of Wi-Fi and Bluetooth antennas
– 2x 6 Gb/s SATA cables
